Splunk-Ops-Assistant

NLP capabilities for running SPL query to view logs

Comment

Inspiration

Investigating logs in Splunk requires knowing SPL (Search Processing Language). This is a real barrier for non-technical team members, and even experienced engineers lose valuable time writing and debugging queries during an incident. We wanted to remove that barrier — what if anyone could just ask a question in plain English and get a real answer from live Splunk data?

What it does

Splunk Ops Assistant is a web-based AI tool that lets users ask natural language questions about their logs (e.g. "show me all the errors" or "how many login events happened"). The assistant:

  1. Converts the question into a valid SPL query using an LLM.

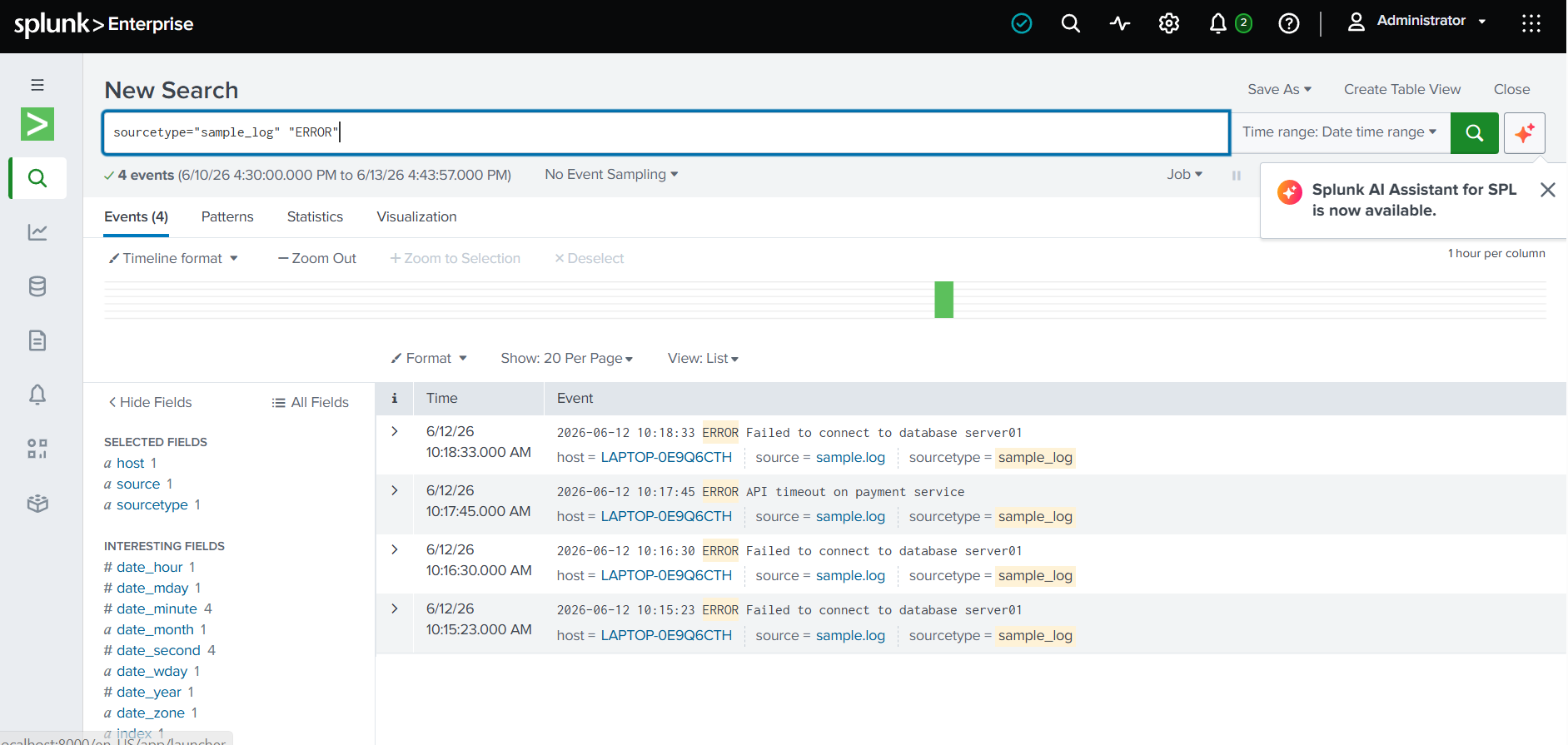

  2. Executes that query directly on Splunk using the Splunk MCP Server's splunk_run_query tool.
  3. Summarizes the returned log events into a plain-English answer.

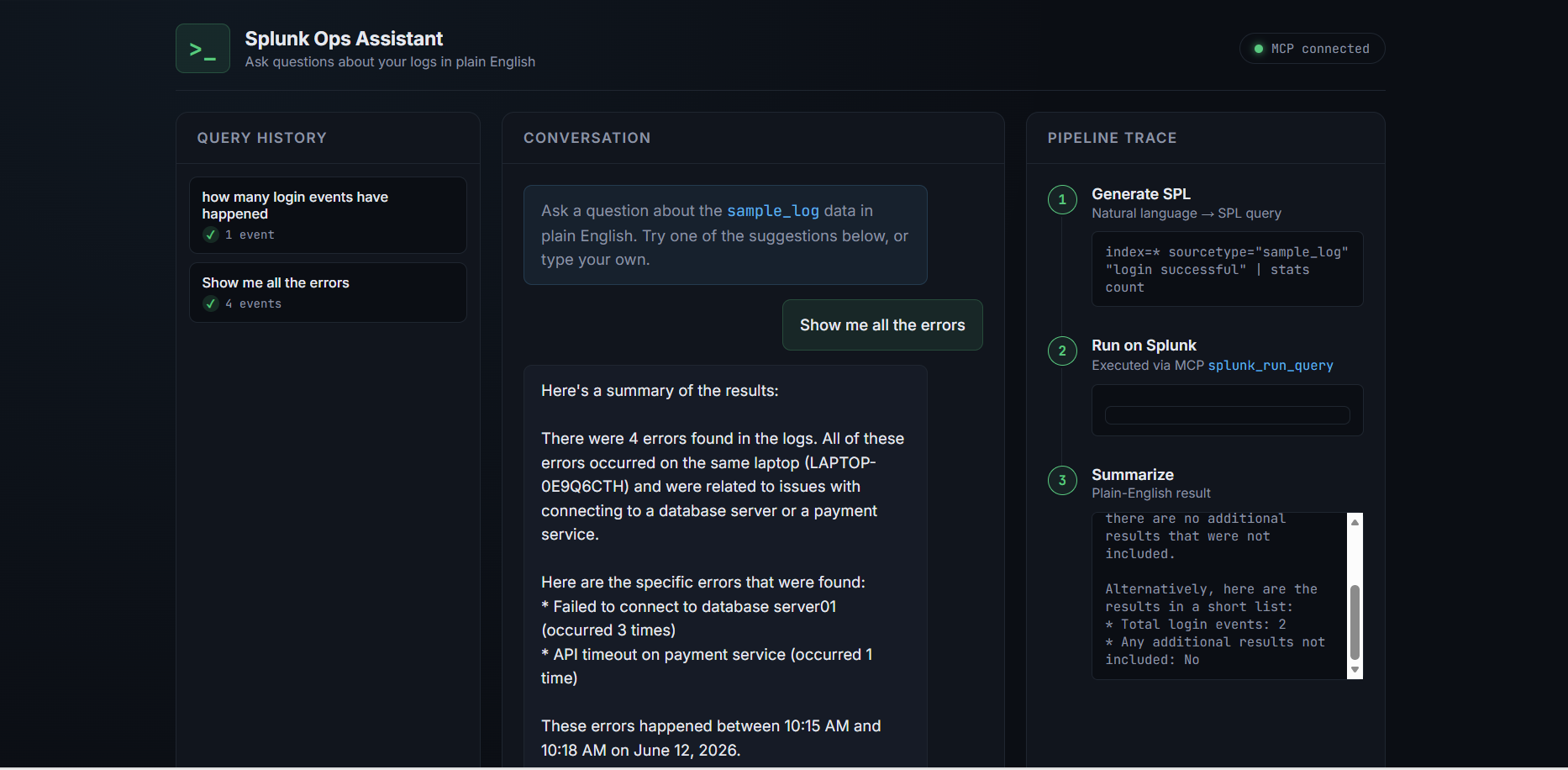

  4. Displays a live "pipeline trace" showing each step — the generated SPL, the raw matching events, and the final summary — so the process is fully transparent.

How I built it

The backend is a Flask app that orchestrates the pipeline: it calls an LLM (via OpenRouter) to generate SPL from the user's question, sends that SPL to the Splunk MCP Server over its JSON-RPC endpoint, and calls the LLM again to summarize the JSON results returned from Splunk. The frontend is a custom chat-style interface with a real-time pipeline visualization, suggestion chips for common queries, and a query history sidebar.

On the Splunk side, we set up a local Splunk Enterprise instance with a Developer License, ingested sample log data, and installed the MCP Server for Splunk Platform app (along with its dependency, Splunk AI Assistant for SPL), configured the mcp_tool_execute role capability, and generated an MCP encrypted token to authenticate our backend.

Challenges I ran into

  • Free-tier rate limits on multiple LLM providers required switching models and adding retry logic.
  • The Splunk AI Assistant's cloud-connected saia_* tools required a multi-day tenant activation process, so we built the pipeline around the always-available splunk_run_query MCP tool instead — which turned out to be a cleaner, more controllable architecture.
  • MCP token generation initially failed due to an "invalid audience" error — tokens must be created from inside the MCP Server app's configuration page (not via Settings → Tokens) so the audience claim is set correctly.

What I learned

We learned how the Splunk MCP Server exposes Splunk's search capabilities as structured, callable tools for AI agents — and how to design a multi-step AI pipeline (NL → SPL → execution → summary) that keeps a human in the loop via a visible trace of every step.

What's next

  • Support for saved searches and dashboards via additional MCP tools (splunk_get_knowledge_objects, splunk_run_saved_search).
  • Multi-turn conversation memory, so follow-up questions can refine previous searches.
  • Once Splunk AI Assistant's cloud tenant is activated, integrate saia_generate_spl and saia_explain_spl for even richer SPL generation and explanations.
