Poppin' Pills

Our innovative robot is designed to ensure precision and timeliness in medication administration, alleviating the burden on healthcare professionals and improving user experience for the elderly.

Comment

What inspired you?

With our loved ones getting older, we've noticed the burden of taking daily medication. The process of opening the pill bottle, reminding how many pills are required, and carefully measuring out the dose is becoming troublesome for the elderly and seniors, and there aren't many solutions found on the market.

What it does

We decided to tackle the above issue by creating an an easy way to dispense medications accurately.

How we built it

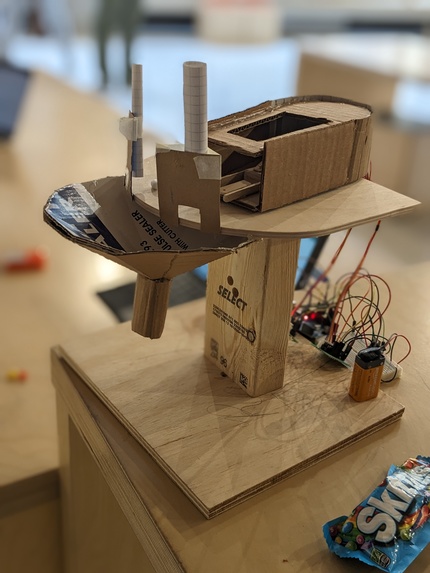

We built this project using mechatronics. After extensive brainstorming, we opted to implement a large rotating arm connected to a Slider Crank mechanism. The rotation is powered by a stepper motor. Users would fill various tubes with their pills, and the arm would rotate to the corresponding tube. The slider crank mechanism then expels the pill into a hole. The user will place their hand or cup underneath the hole to gather their pills. Thus, the user will not need to manually count their medication.

Challenges we ran into

The greatest challenges we faced were determining how to dispense specific pill shapes accurately (i.e. in batches of two).

Accomplishments that we're proud of

Though there were many challenges we faced, we also achieved many accomplishments. We came up with a creative solution that isn't available on the market. Although all of us are in Mechanical Engineering, we're proud that we were able to successfully integrate electronics and programming into our design.

What we learned

Two of up learned how to use new power tools today! We both learned how to use a circle saw and bandsaw. We also became more comfortable with use power drills.

What's next for Poppin' Pills

Poppin' Pills is excited to apply their strengthened mechatronics knowledge to future projects!

Built With

Share this project:

Updates

posted an update —

//Includes the Arduino Stepper Library

include

// Defines the number of steps per rotation const int stepsPerRevolution = 2038;

// Creates an instance of stepper class // Pins entered in sequence IN1-IN3-IN2-IN4 for proper step sequence Stepper myStepper = Stepper(stepsPerRevolution, 8, 10, 9, 11); Stepper smallStepper = Stepper(stepsPerRevolution, 3, 5, 4, 6);

void setup() { // Nothing to do (Stepper Library sets pins as outputs) }

void loop() {

ROTATE POSITION smallStepper.setSpeed(10); smallStepper.step(stepsPerRevolution/24); delay(1000);

// PUSH BLOCK - Rotate CCW myStepper.setSpeed(10); myStepper.step(-stepsPerRevolution); delay(1000);

// ROTATE POSITION smallStepper.setSpeed(10); smallStepper.step(-stepsPerRevolution/4); delay(1000);

// PUSH BLOCK 2X Rotate CCW myStepper.setSpeed(10); myStepper.step(-stepsPerRevolution); delay(500);

// ROTATE POSITION smallStepper.setSpeed(10); smallStepper.step(stepsPerRevolution/8); delay(1000); }
