We use tools like Splunk on a daily basis to ensure the security of our most important assets. From firewall logs, to proxy logs, Unix syslog to Windows Event Logs, we're able to collect, filter, analyze, and report on all this information within Splunk to provide a 360 degree view of our security posture.

However, all these things can be rendered meaningless if someone is able to walk into a closet, an office, or a datacenter and walk out with an asset containing valuable information.

It is part of a security engineer's job to ensure that an in-depth security plan is in place, and that includes logging, monitoring, and auditing of access to physical assets and entry into restricted areas.

Splunk Perimeter Security is a monitoring package for Splunk with a focus on logging, monitoring, and alerting on events generated from access to physical locations using CIM-compliant Alert logs from a pre-existing or custom-made alarm or security monitoring system. For certain applicaitons, if deployed properly, it can greatly augment or replace a traditional physical alarm system.

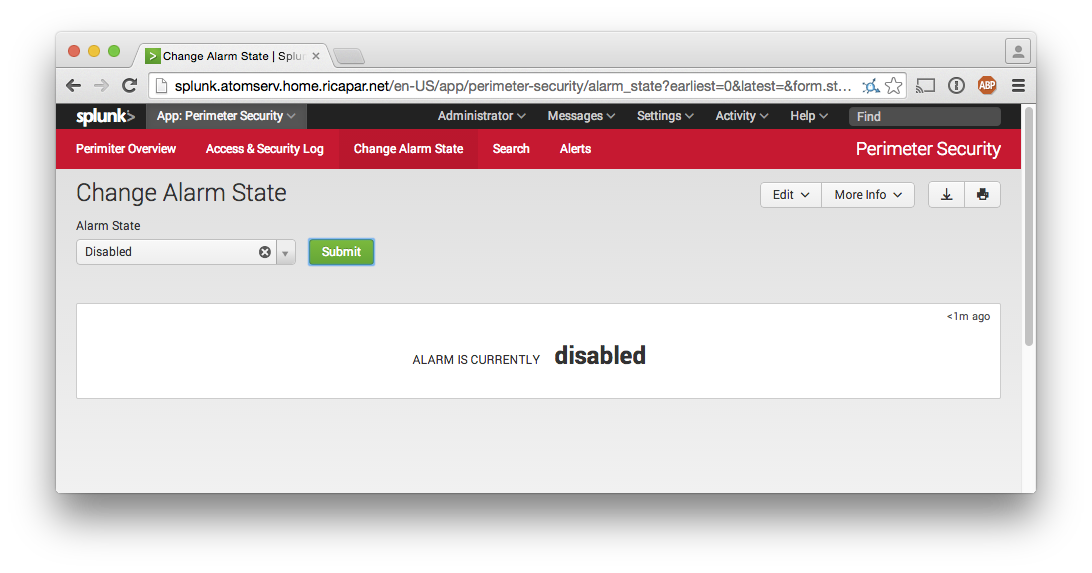

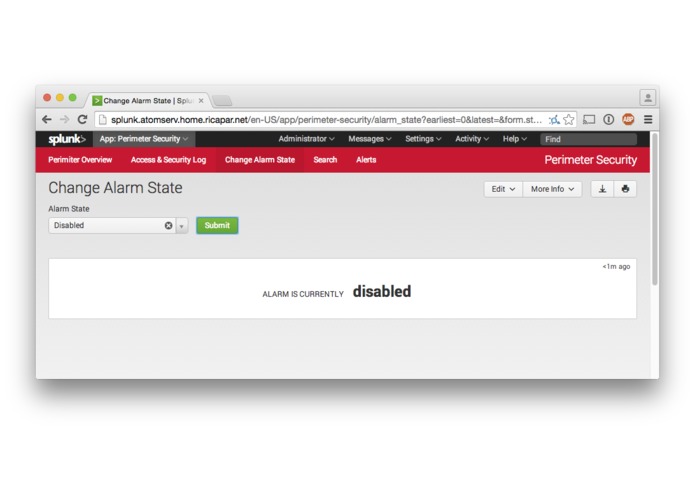

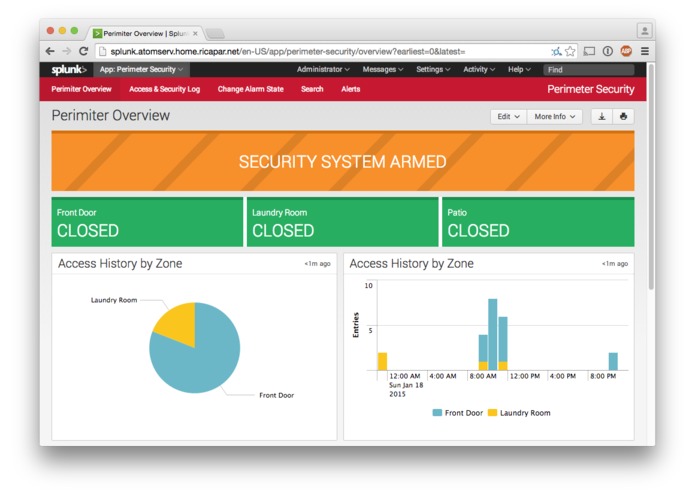

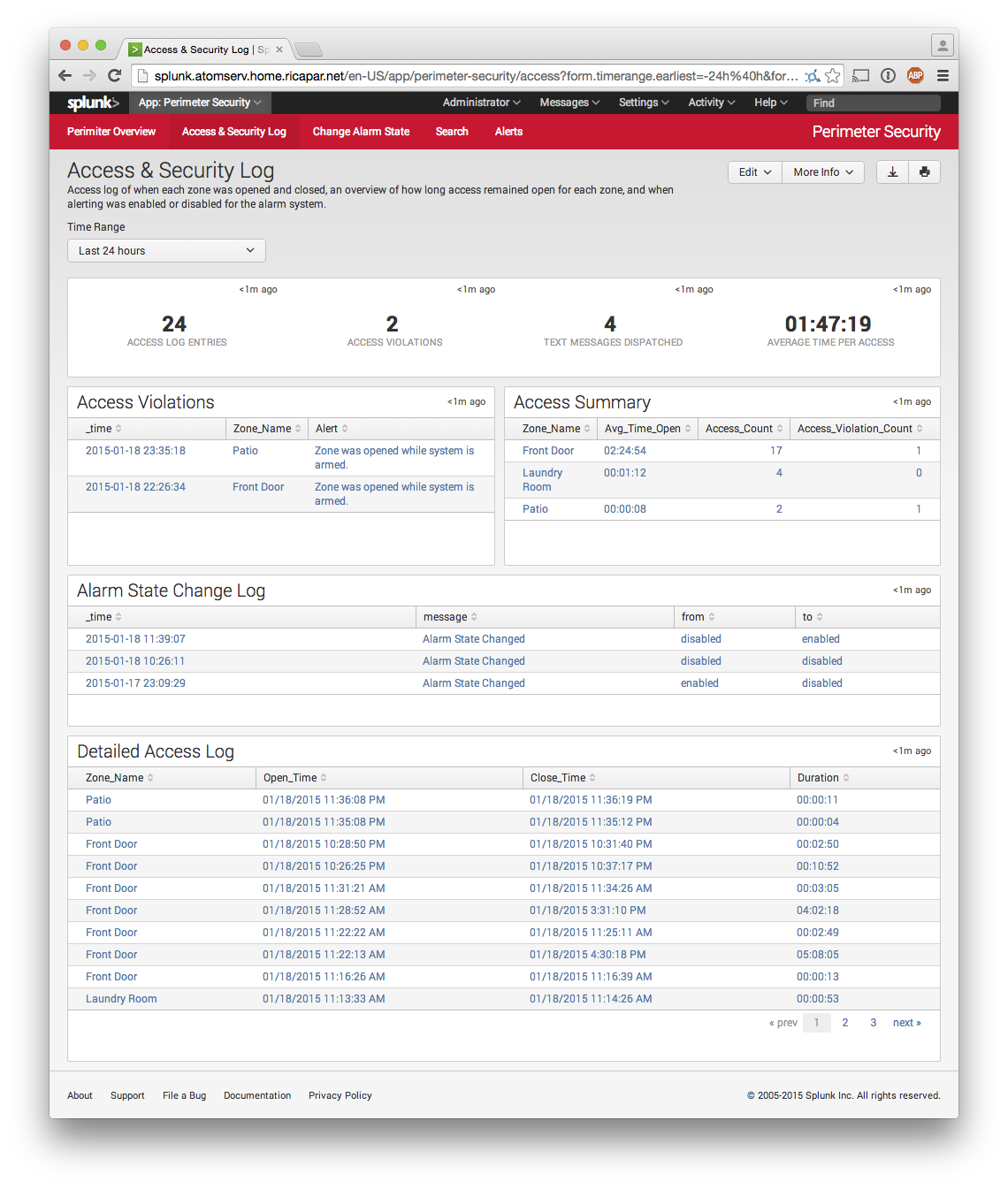

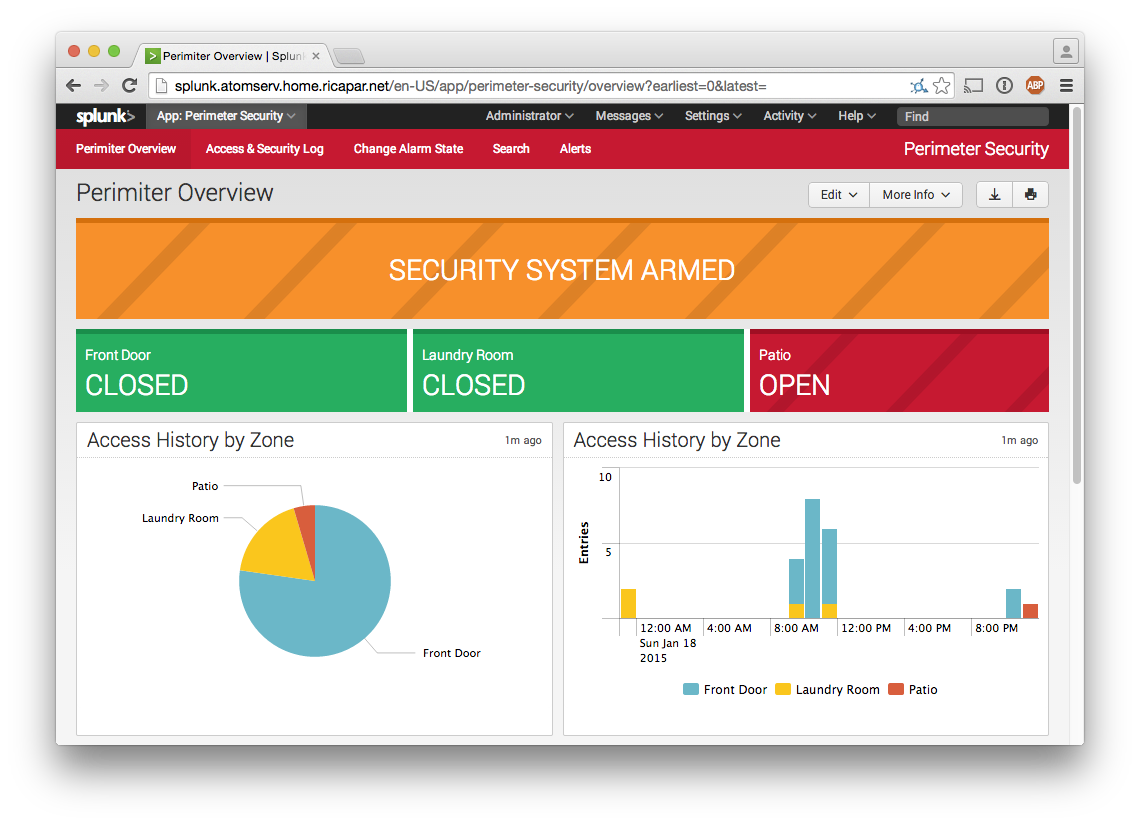

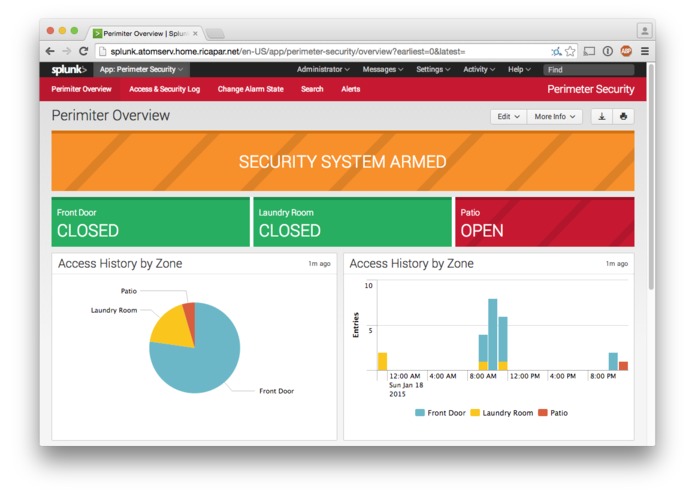

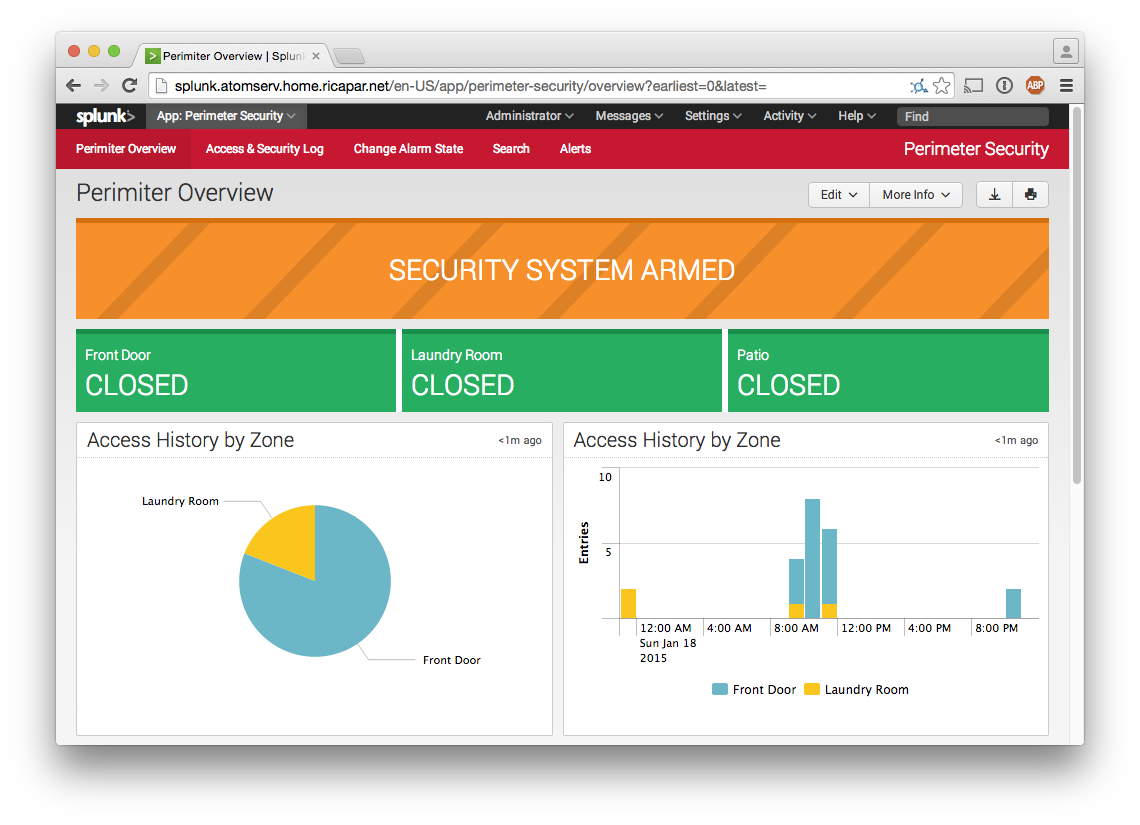

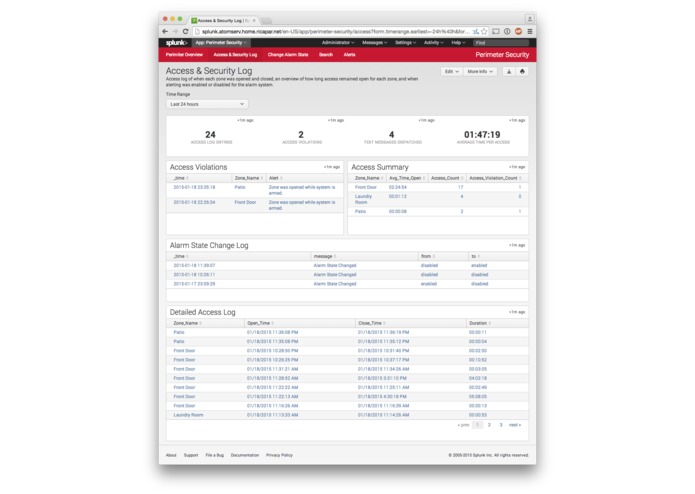

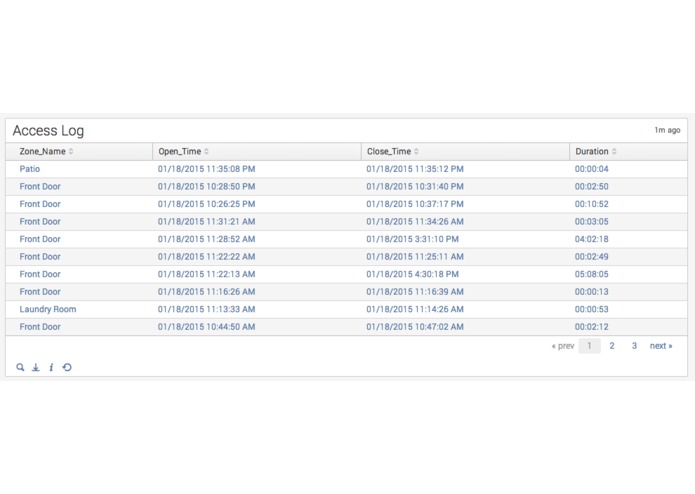

The application includes several dashboards that enable monitoring and include auditing of physical access events to a home, office, or a datacenter.

Warning About Alarm Systems

Alarm systems come in many shapes and forms and can range from simple hard-wired home systems to millitary grade security. If you are going to make modifications to your alarm system, please proceed with caution and ensure you aren't disabling or interfering with something that may sound a panic alarm, call the authorities, or trap you in a room and proceed to fill it with nerve gas. Treat your alarm system as you would any mission-critical production system.

Common Information Model Compliance

When possible, the application attempts to generate and use Common Information Model compliant events.

The dashboards, alerting script, and Raspberry Pi monitoring scripts follow the Alerts Data Model as defined by the CIM.

To account for specific physical security-related events, the fields listed below are also expected to be present within events. A * indicates the field is not part of the CIM, but is required to be present in the app for all dashboard features to work as designed.

Field Name Description / Use
src A unique identifier for the zone being monitored.
src_category A value of zone_trigger is used when a zone changes state,
body A value of open or closed indicating the state of the zone.
type A value of alert is used when a zone changes state, event for periodic status messages.
*zone Aliased from src. Used by lookup tables.
*zone_name A display name to be used when alerting and displaying information about a specific zone.
*zone_active Must be set to "true" for a zone to be able to trigger alerts or be displayed on dashboards. By default this is set using a provided lookup table.

RaspberryPi Proof of Concept

As a proof of concept, as well as a sample implementation for a home alarm system, the app includes a TA-PerimeterSecurity package that can be deployed to a RaspberryPi that is wired into a home security system through the onboard GPIO pins.

The http://raspberrypi.org is a small, low-power ARM computer that is ideal for running small web servers, home automation, and general tinkering. When wired correctly, it is possible to monitor the GPIO (General Purpose I/O) pins on the computer using a small Python script. Using the Splunk Forwarder for Linux ARM, you can monitor the output of the Python script and use it to build a set of dashboards, reports, and alerts for your alarm system.

For more information about building an alarm system using a Raspberry Pi, see the documentation for TA - Splunk Perimeter Security.

Included in the Raspberry Pi TA is a sample data file from Sunday, January 18th 2014.


Splunk Server Requirements

  • Splunk 6 or greater
  • Python 2.7 or greater
  • Twilio Python Helper Library for text message alerting
  • An index called "perimeter-security". (This can be changed/replaced via editing the perimeter-security-idx macro, but the app includes an indexes.conf with the index defined.)

Twilio Alerting Setup

If enabled, the application supports triggering alerts if the system is in an "armed" state. Included is a script that can be triggered via a real-time alert to notify a list of contacts (populated via a lookup table) via text messaging using the Twilio API.

The Twilio Python Helper Library library must be installed for text message alerting to work. This is not required for the rest of the app to function, but you will be unable to send alerts using the provided script if it is not installed.

On your Splunk server, run:

sudo pip install twilio

This will install the necessary libraries onto your system Python installation. NOTE: Splunk's Python installation is not sufficient for this script to work.

Within the Splunk $SPLUNK_HOME/etc/apps/perimeter-security/bin/scripts/ directory are two files:

File Purpose
send-text.sh Wrapper script to call send-text.py
send-text.py Handles sending of text messages via the Twilio API

You will need to modify send-text.py before you can call it within an alert. Open the file, and edit these lines:

# =Variable Definitions=
Twilio_From = "<your Twilio phone number>"
Twilio_SID = "<your Twilio SID>"
Twilio_Auth = "<your Twilio Auth key - keep this secret!>"
# /=Variable Definitions=

Lastly, you will need to configure a lookup table to list out which phone numbers should be notified when an alert is triggered.

Open $SPLUNK_HOME/etc/apps/perimeter-security/lookups/alert_phones.csv and add phone numbers, one per line. You must include your country code and area code.


Closing Notes

This app was written by Rich Acosta and Erica Feldman for the Splunk Apptitude contest.

This project is licensed under the MIT License. See LICENSE for full details.

Future Enhancements

Below are some ideas for enhancements to the application.

  • Allow enabling and disabling of the alarm via incoming text messages
  • Make use of Splunk's RBAC settings to only allow specific users to enable/disable the alarm system
  • Add the user's ID to the audit log of alarm enable/disable settings.
  • Heath checks on Raspberry Pi GPIO pin monitoring daemon.
  • Compliance with physical access logging and auditing standards defined by various governmental and standards organizations.


Thanks to stackd/wayoutmind for an excellent Python daemon module:

## Extra Credits As specified in the contest entry, this entry attempts to fulfill the "Extra Credit" points by:

  • Conforming to the Common Information Model's "Alerts" Data Model
  • Providing value by being able to: 1) fulfill physical access log audit requirements when combined with at-the-door screening 2) Allowing home or small business owners to self-monitor and self-alert without having to pay monthly fees to a proprietary alarm system.
  • Providing a portable platform by building dashboards against documented CIM fields combined with documented fields specific to physical security systems.
  • Providing an extendable platform using the Splunk Universal forwarder for the Raspberry Pi using provided Python scripts to monitor GPIO pins for closed or open circuits.
  • Testing the application in the developer's own home for a large majority of the contest period.
