ApexFan

World Cup 2026 sports concierge powered by Gemini, Google Cloud, and MongoDB Atlas

ApexFan helps matchday groups answer a practical question: where should we go, what should we do, and how do we prove the recommendation came from real data?

It combines a fan-facing concierge UI with MongoDB-backed venue, commerce, itinerary, group decision, retrieval-trace, and audit-log data. The demo is built for the Google Cloud Rapid Agent Hackathon MongoDB track and is optimized for fast judge verification.

Live Demo Demo Mode License: MIT MongoDB Google Cloud

ApexFan dashboard

Live Demo

The deployed demo requires no user authentication. Open the demo URL, click Run Auto-Tour, and inspect User Status Checks for live API and MongoDB evidence.

What Is This?

ApexFan is a sports travel coordination agent for the 2026 FIFA World Cup. It focuses on the real friction around large events:

  • Fans need nearby food, retail, transit, and venue-aware options.
  • Groups need a shared itinerary, budget, and voting memory.
  • Local businesses need matchday demand to be routed intelligently.
  • Judges and users need proof that AI answers are grounded in inspectable data.

The app uses MongoDB Atlas data as the operational source of truth and Gemini as the conversational layer. Every important user-facing claim is backed by retrievable evidence such as collection names, read-only operations, counts, indexes, or audit-log entries.

The 3-Step Demo Journey

Step User action What ApexFan proves
1. Ask Ask for nearby food, budget, stadium, or group planning help. Gemini responds with MongoDB-grounded context and visible tool-call chips.
2. Inspect Open retrieval evidence, playbook, trust check, or User Status Checks. The app reveals collections, operations, live counts, indexes, and fallback state.
3. Act Vote in the group decision room or add itinerary activity. MongoDB-style group memory, CRUD updates, budget changes, and audit logs update the plan.

Screenshot Tour

The README intentionally keeps screenshots limited: one frontend view, one overall video contact sheet, and three MongoDB Atlas backend evidence captures. Additional captures are preserved in the demo-video folder for video production and QA.

Frontend

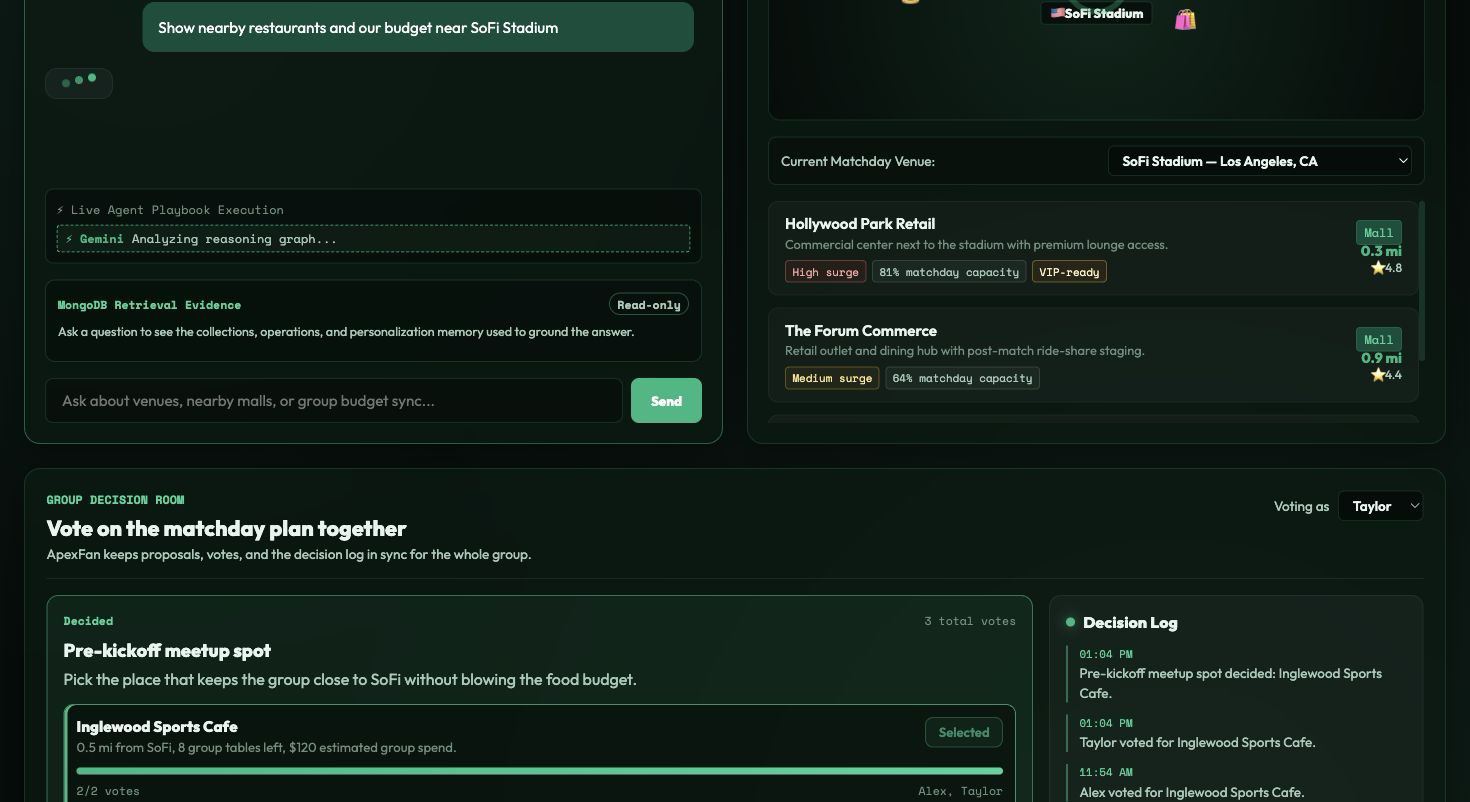

The dashboard screenshot at the top of this README shows the primary user experience: chat, itinerary, evidence, status checks, and group planning in one product surface.

Overall Demo Proof

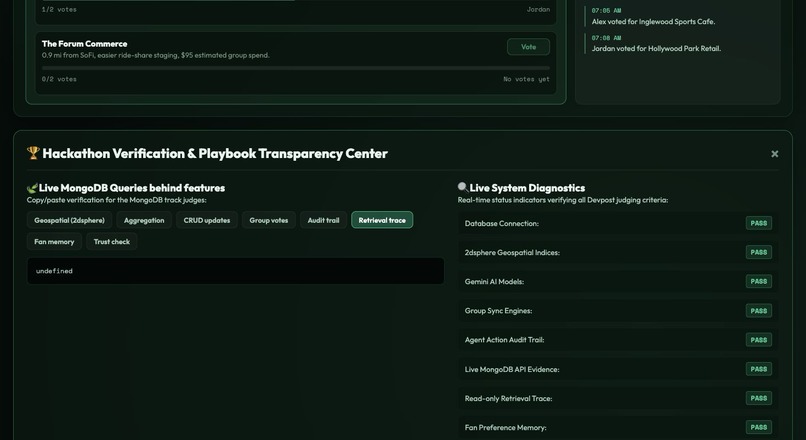

Judge review contact sheet

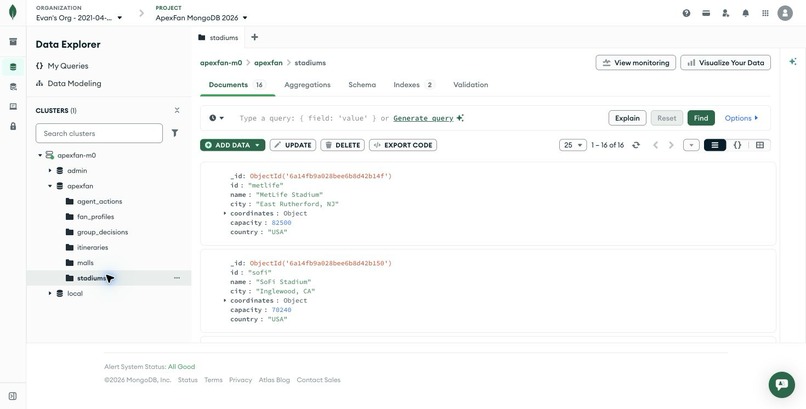

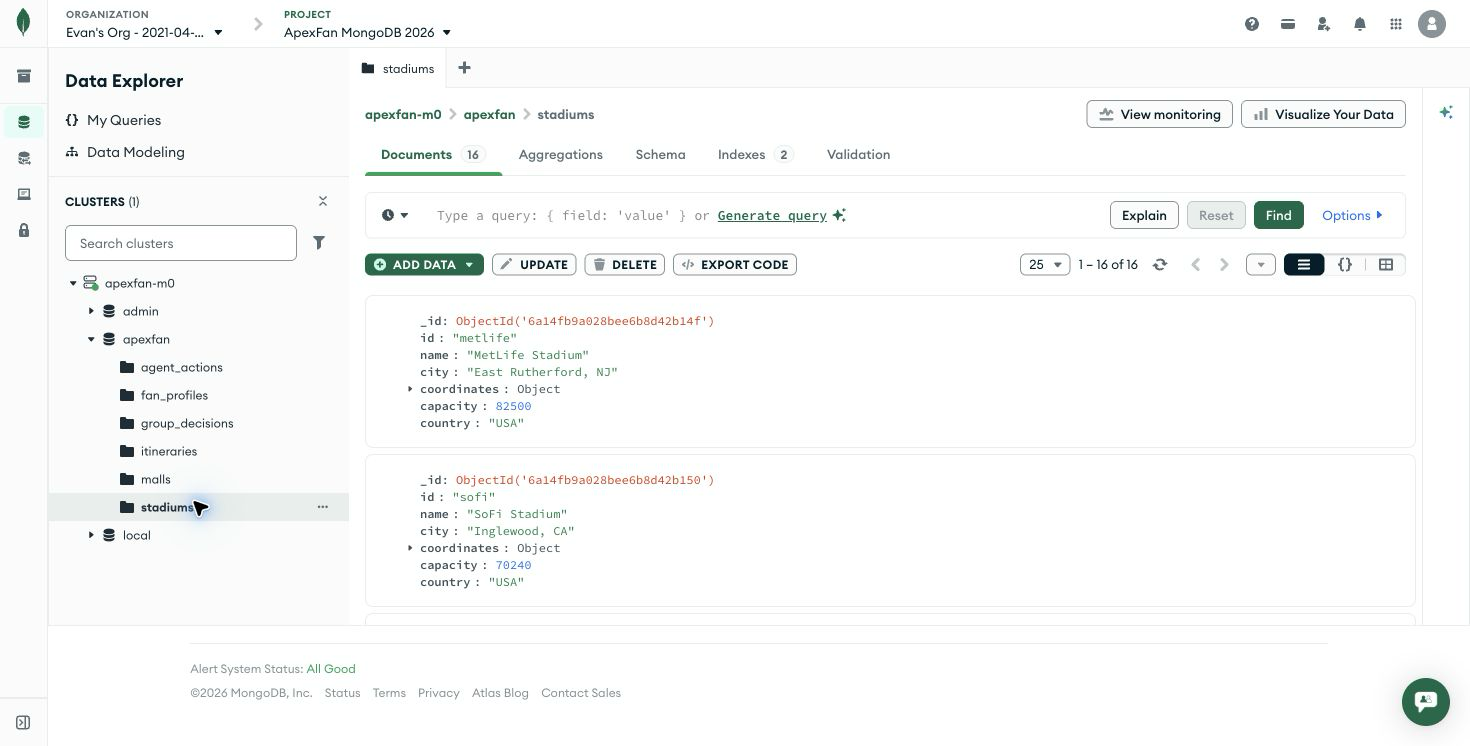

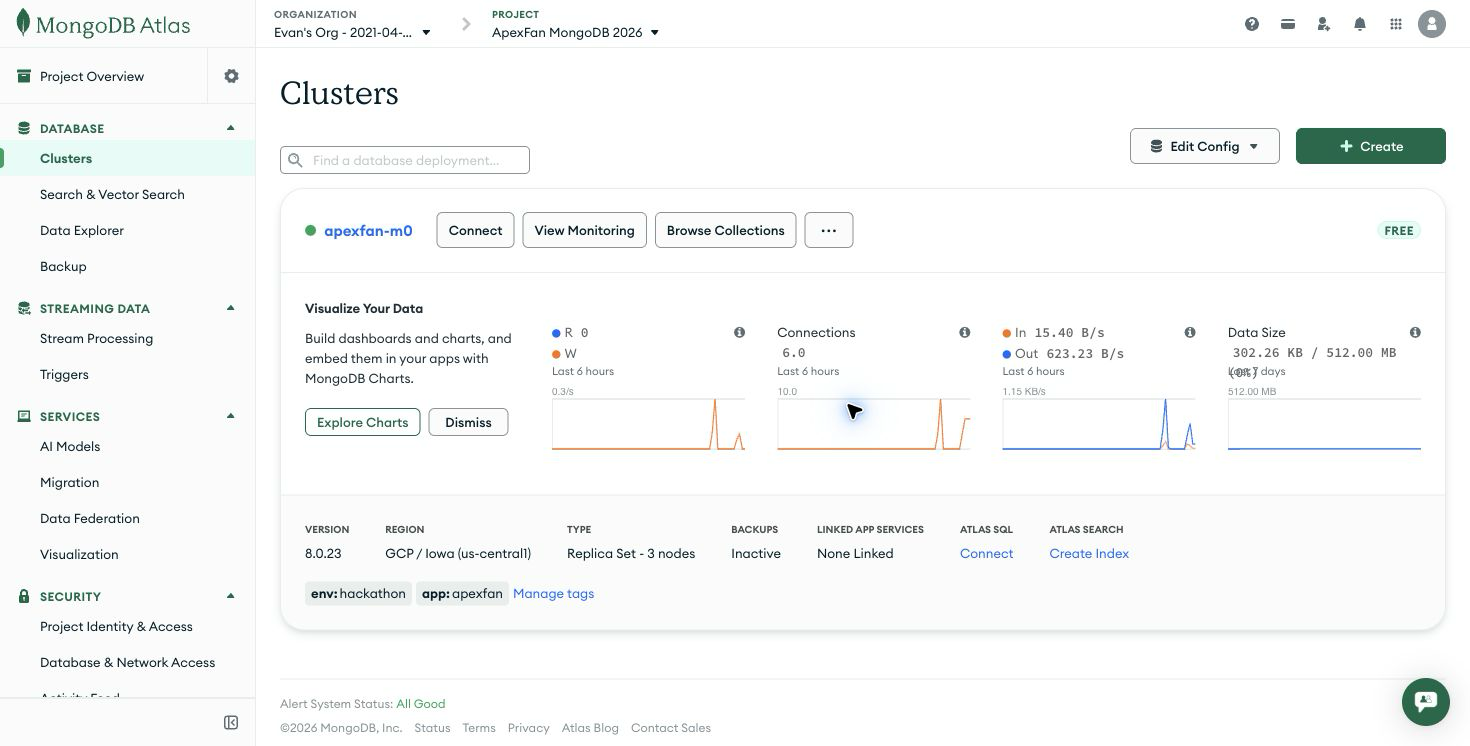

MongoDB Atlas Backend Evidence

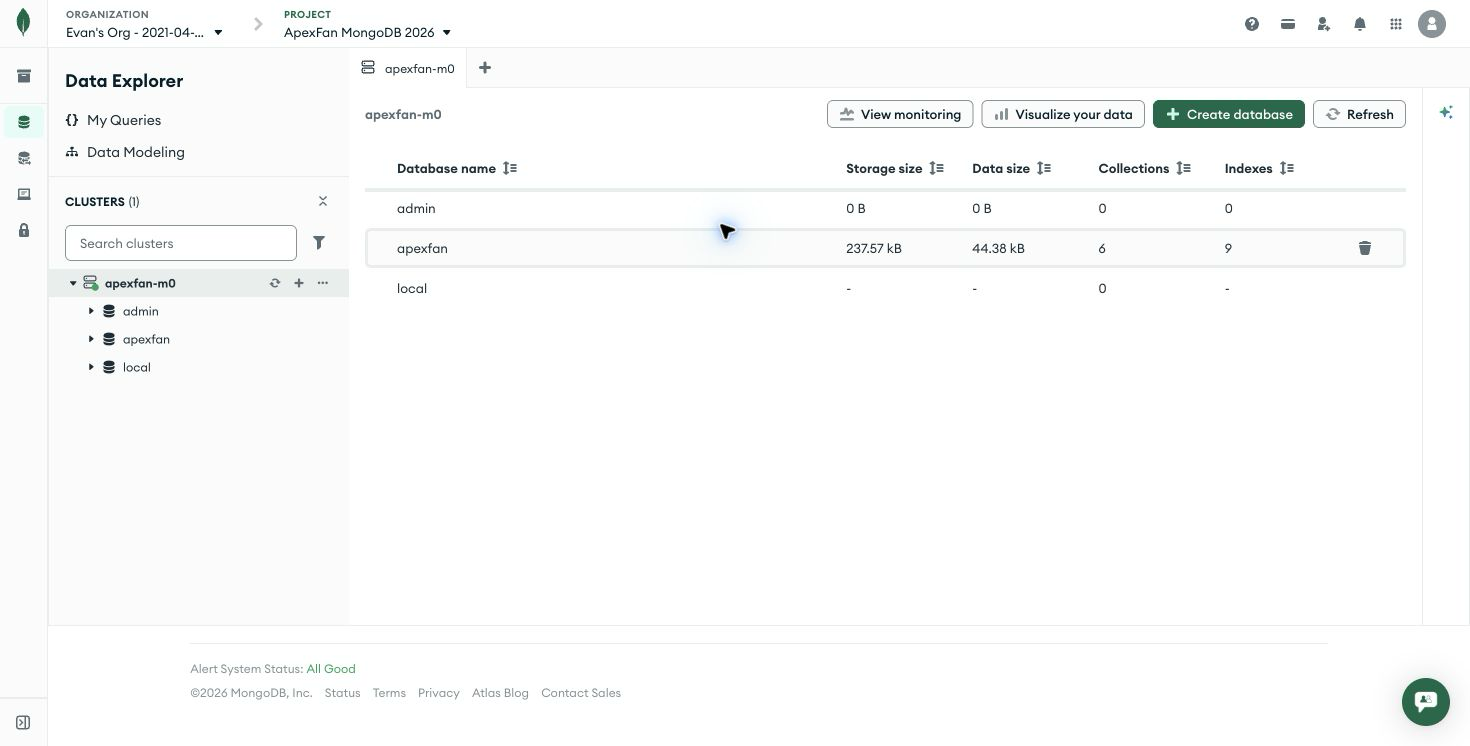

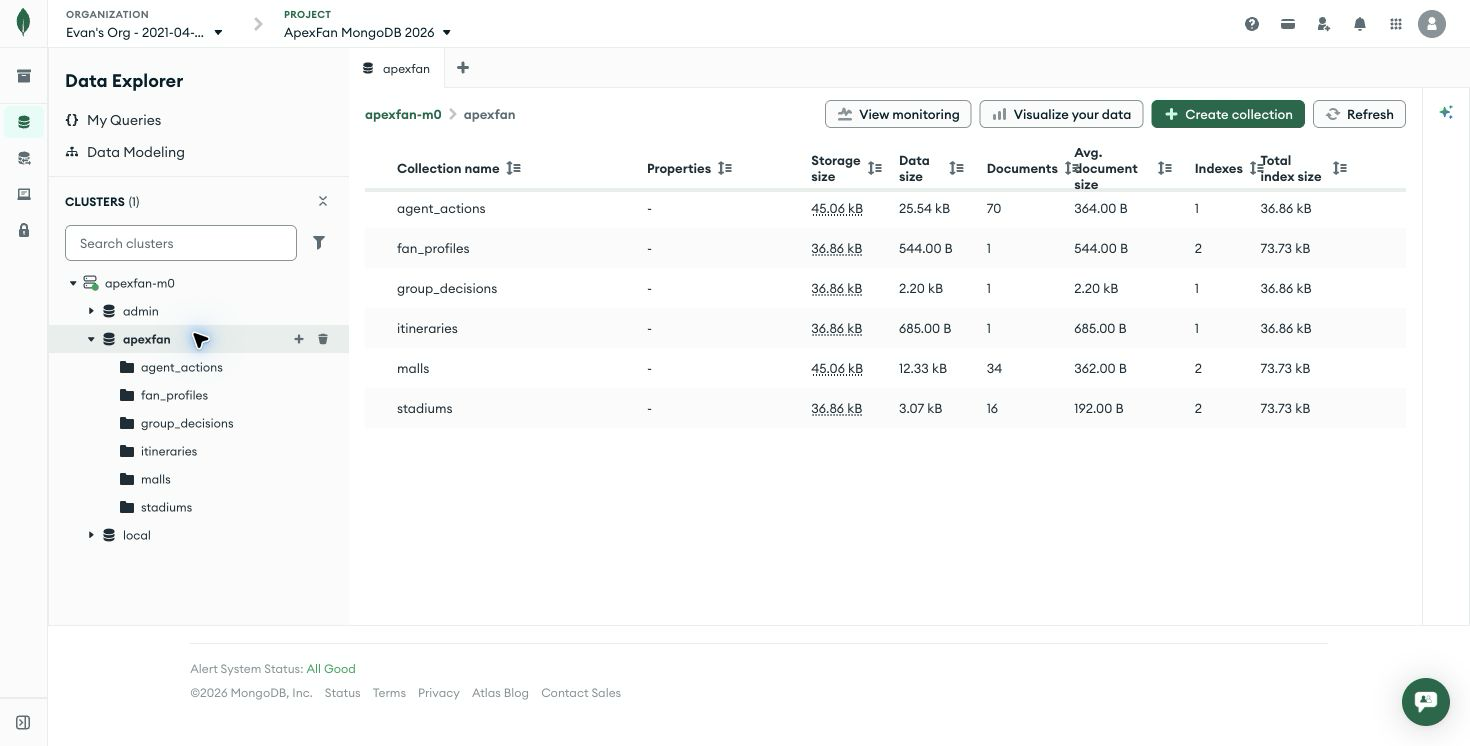

ApexFan database expanded

Fan profile documents

2dsphere index evidence

Feature Showcase

Venue-Aware Concierge

ApexFan includes all 16 FIFA World Cup 2026 host venues across the United States, Canada, and Mexico. Users can ask about host cities, official venues, nearby restaurants, malls, and fan logistics.

MongoDB Geospatial Commerce Matching

The app models stadiums and nearby commerce with GeoJSON point coordinates and 2dsphere indexes. This supports proximity-ranked restaurant and retail recommendations around venues such as SoFi Stadium, MetLife Stadium, and Estadio Azteca.

Group Itinerary and Budget Memory

The group itinerary uses MongoDB-style update patterns, including $push for new activities and $inc for budget changes. The UI turns those changes into a visible group plan instead of a static recommendation.

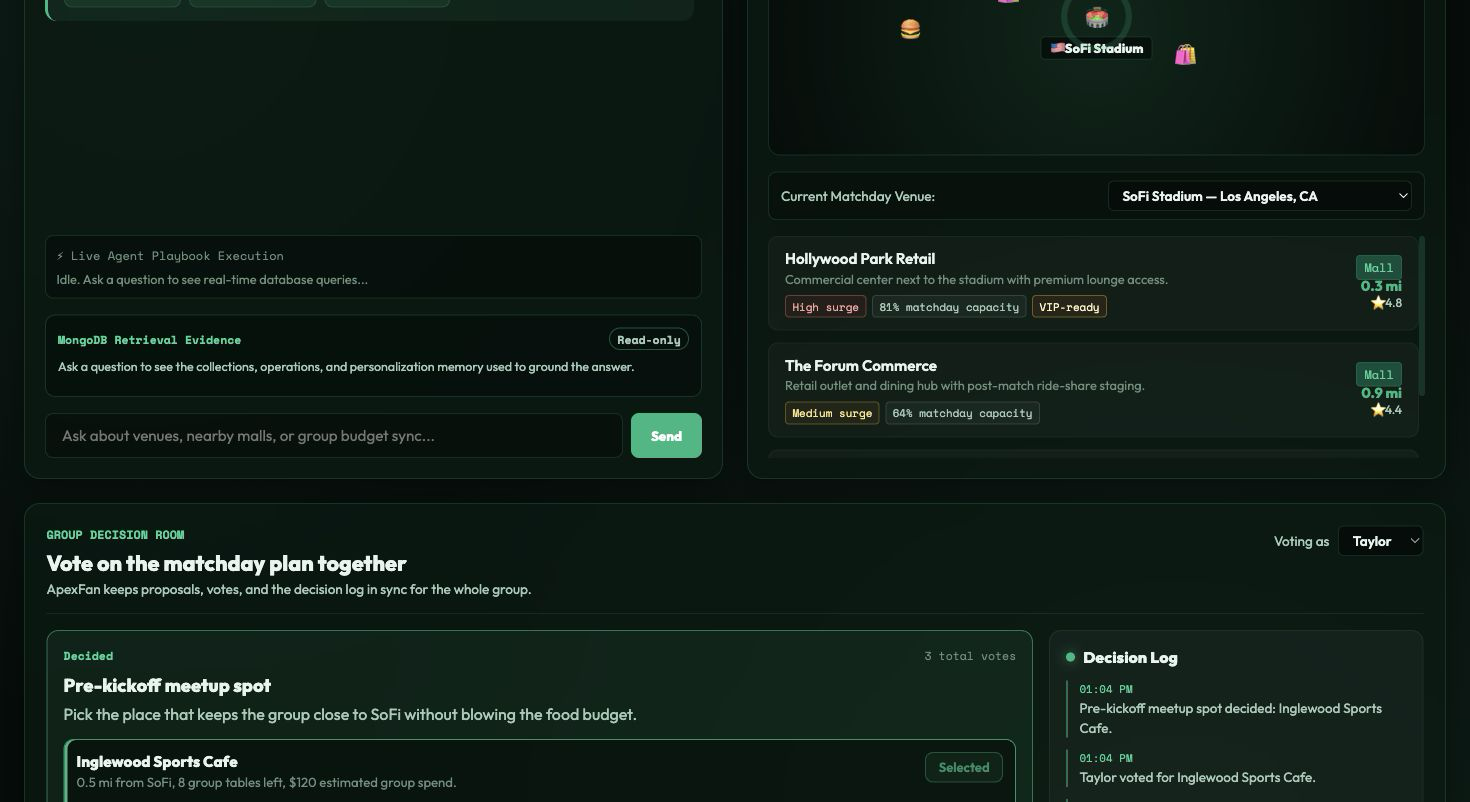

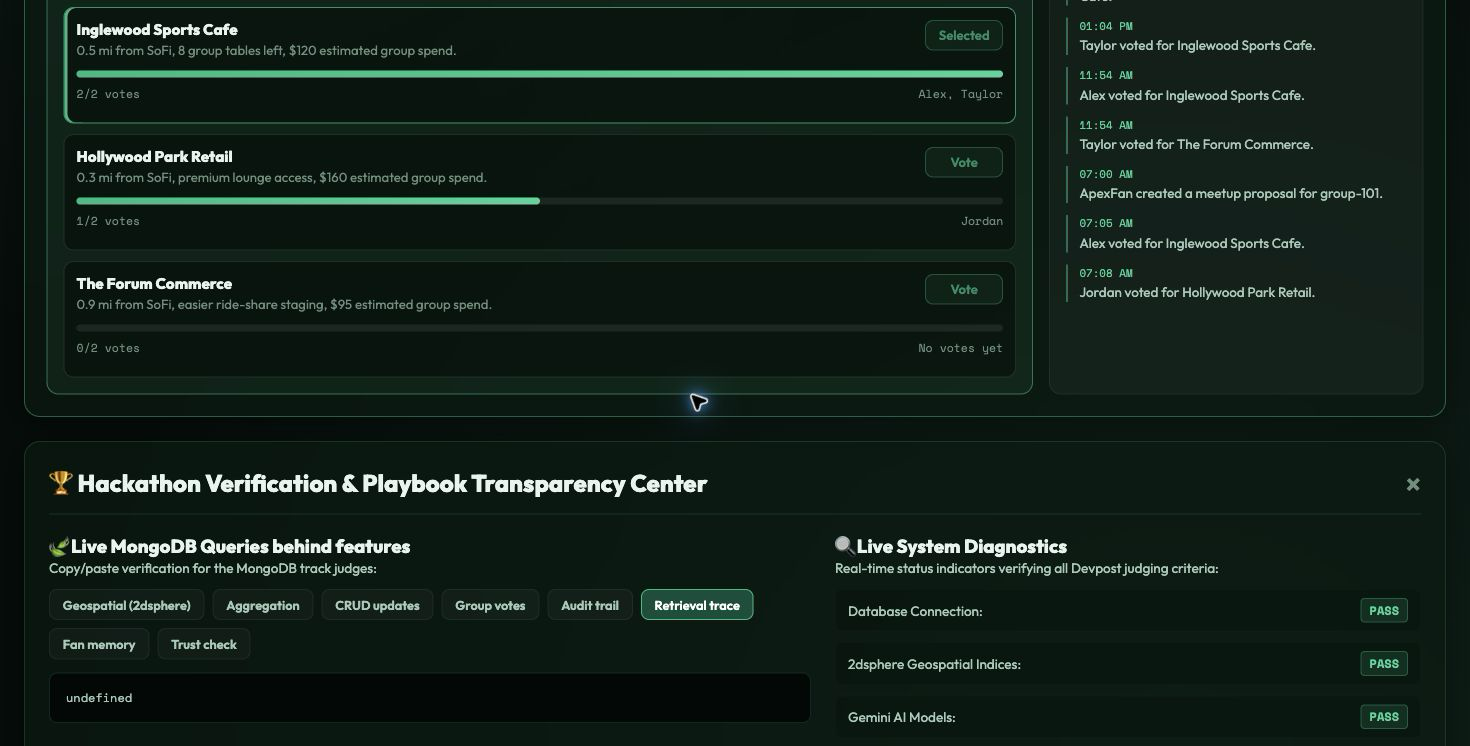

Decision Room Voting

The group decision room stores proposals, options, votes, decision logs, and proposal status. It demonstrates how an agent can support group coordination without pretending that one user speaks for everyone.

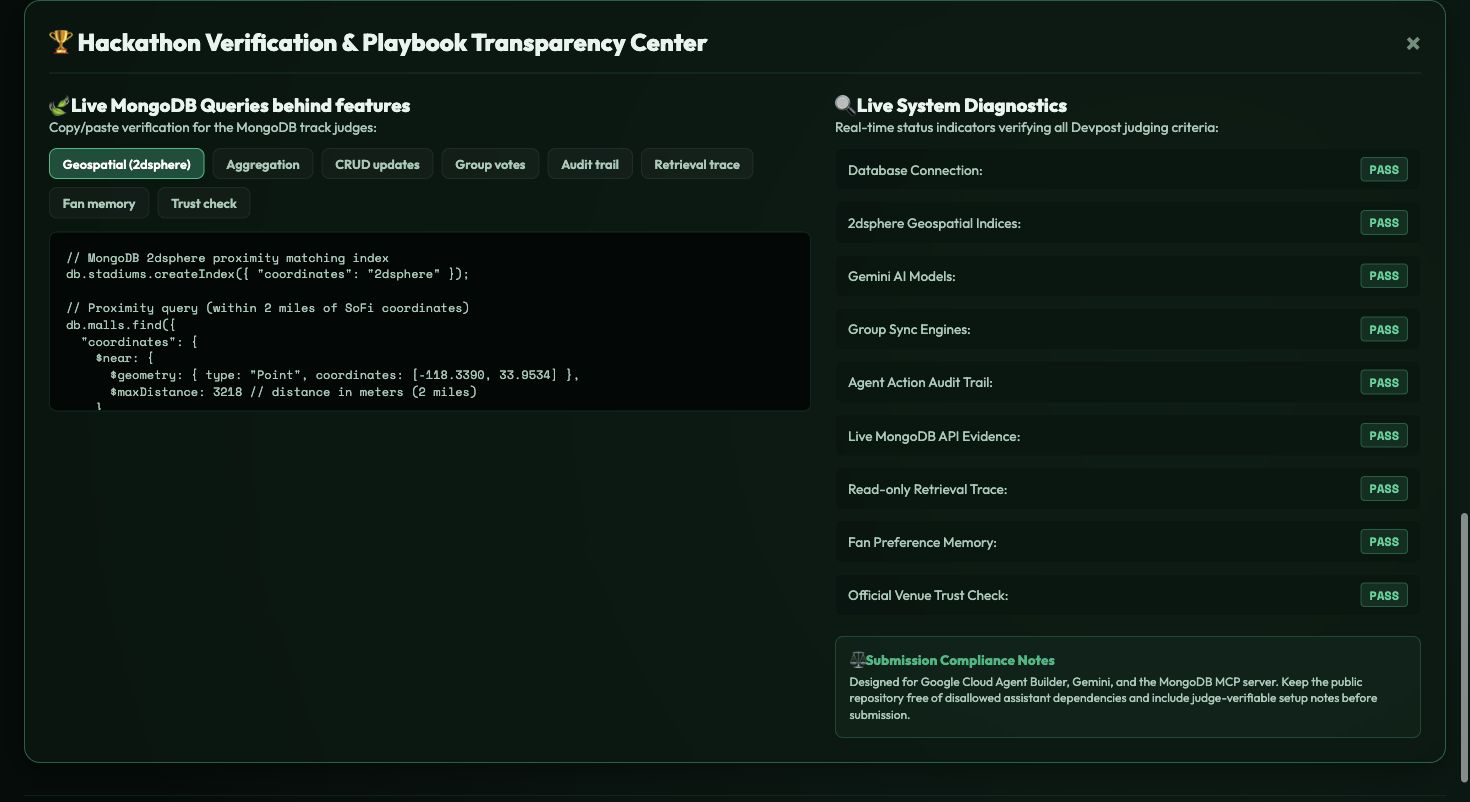

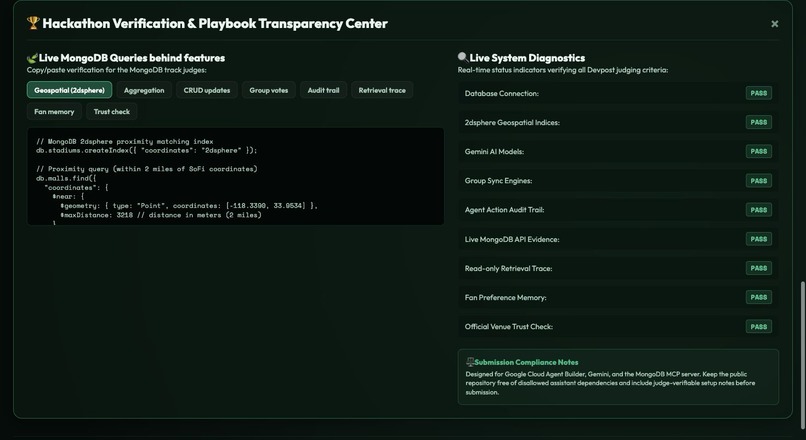

Read-Only Retrieval Trace

Every important chat answer can expose the collections, operations, documents read, and evidence used to ground the response. This is built to reduce hallucination risk and make the agent auditable.

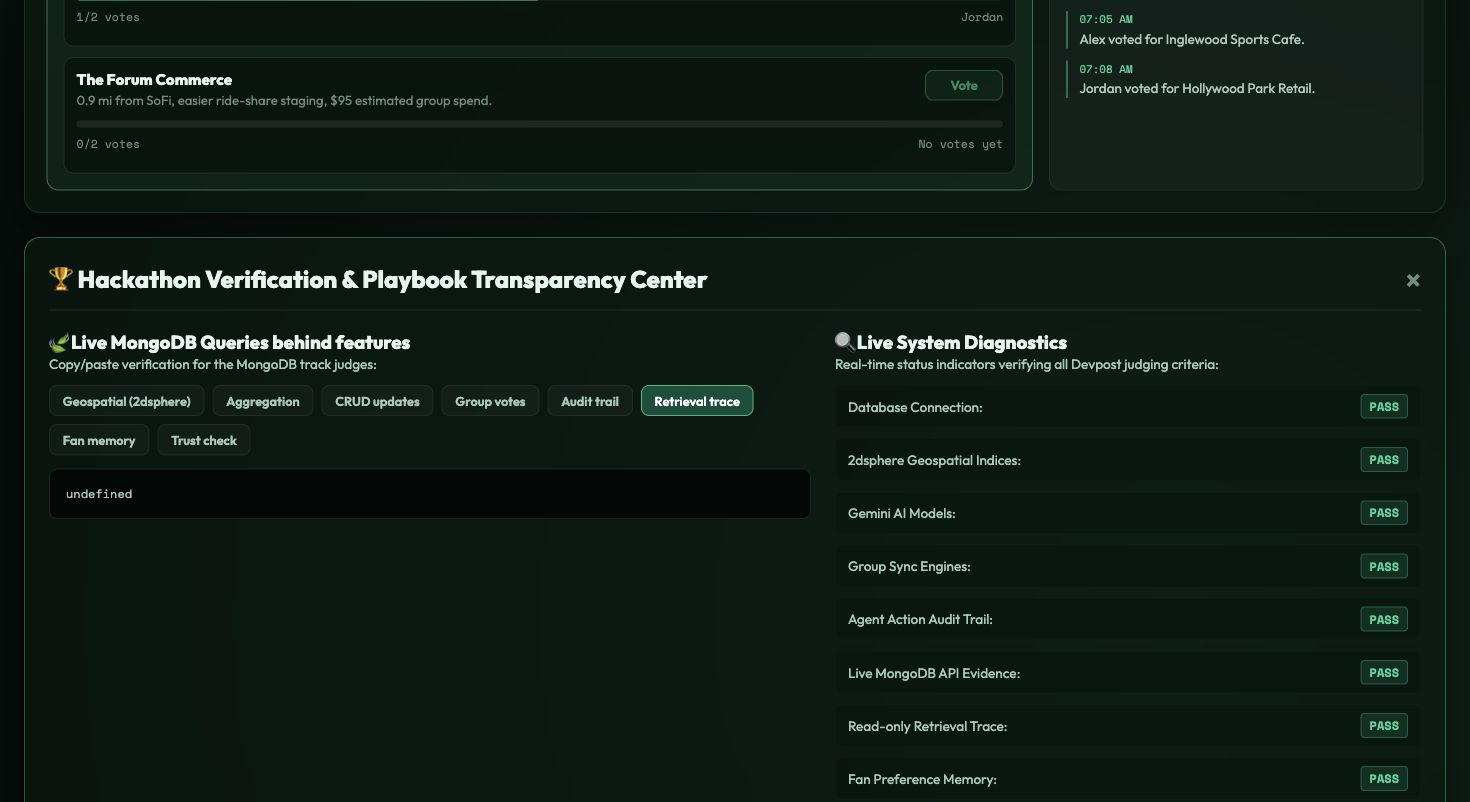

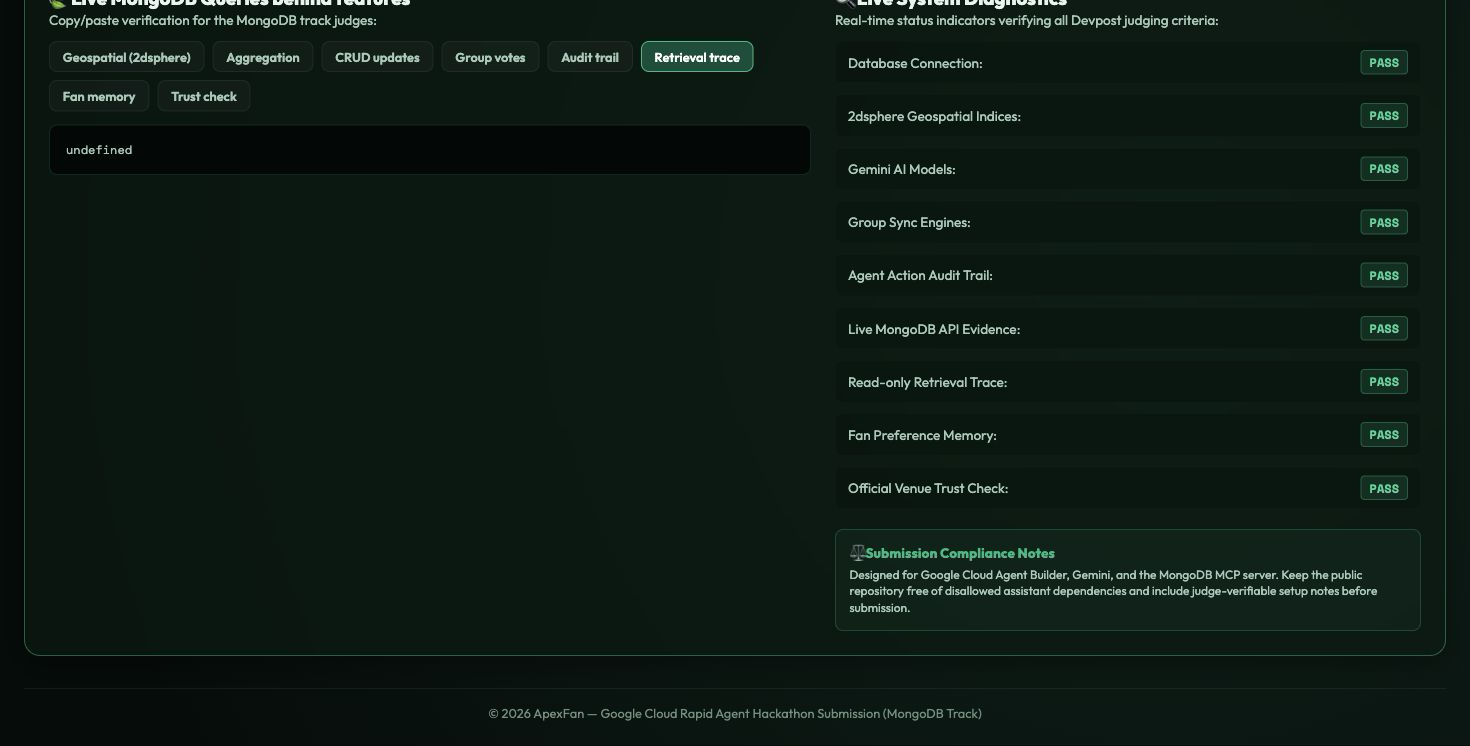

User Status Checks

The status panel calls live endpoints such as /api/status, /api/live-mongodb, /api/retrieval-trace, and /api/trust-check so a user or judge can verify the system without reading source code.

Agent Action Audit Trail

Agent actions are recorded in agent_actions when MongoDB is connected, with in-memory fallback for local demos. This gives users a lightweight operational history of what the concierge did.

MongoDB Capability Count

Judges can verify nine MongoDB-backed capabilities in the running demo:

  1. 2dsphere geospatial retail proximity lookup
  2. Aggregation pipeline for group budget utilization
  3. CRUD itinerary updates with $push and $inc
  4. Agent action audit trail in agent_actions
  5. Change Stream-ready group sync simulation for live itinerary activity
  6. Group decision voting memory in group_decisions
  7. Read-only retrieval trace evidence for every chat answer
  8. Demo-safe fan preference memory in fan_profiles
  9. Official venue trust check against World Cup host venue records

The UI exposes these through tool-call chips, the retrieval evidence panel, User Status Checks, /api/status, /api/playbook, /api/retrieval-trace, /api/live-mongodb, and /api/trust-check.

Architecture

┌──────────────────────────────────────────────────────────────────┐
│ Firebase Hosting                                                 │
│ Public ApexFan web app                                           │
│ Demo mode, concierge UI, evidence panels, group decision room     │
└───────────────────────────────┬──────────────────────────────────┘
                                │ HTTPS / JSON
                                ▼
┌──────────────────────────────────────────────────────────────────┐
│ Express API on Google Cloud Run                                  │
│ /api/chat, /api/status, /api/live-mongodb, /api/retrieval-trace   │
│ deterministic fallback when Gemini or MongoDB credentials absent  │
└───────────────┬─────────────────────────────────┬────────────────┘
                │                                 │
                ▼                                 ▼
┌──────────────────────────────┐   ┌───────────────────────────────┐
│ Gemini / Vertex AI            │   │ MongoDB Atlas                  │
│ conversational planning        │   │ stadiums, malls, itineraries   │
│ grounded answer synthesis      │   │ fan_profiles, group_decisions  │
└──────────────────────────────┘   └───────────────────────────────┘

The app can run with live MongoDB Atlas and Gemini credentials, or in deterministic fallback mode for local review. Fallback mode still keeps the demo usable and explains which credentials are required for live evidence.

Grounded Agent Flow

User asks a matchday question
        |
        v
Intent is mapped to stadium, commerce, budget, decision, or trust-check context
        |
        v
MongoDB snapshot and retrieval trace are assembled
        |
        v
Gemini receives grounded context and returns a concise answer
        |
        v
UI shows answer, tool chips, trace evidence, and audit-log state

The important design choice: Gemini is not the database. MongoDB holds the venue, commerce, group, memory, and evidence records; Gemini explains them in natural language.

API Reference

Endpoint Method Purpose
/api/venues GET Returns all 16 World Cup 2026 host venues.
/api/malls?stadiumId=sofi GET Returns nearby commerce records for a venue.
/api/playbook GET Returns MongoDB operation examples used in the demo.
/api/status GET Returns User Status Checks for database, Gemini, geospatial, audit, and capability evidence.
/api/live-mongodb GET Returns live Atlas counts and indexes when MONGODB_URI is configured.
/api/retrieval-trace?query=show%20nearby%20food%20and%20budget GET Returns read-only grounding operations behind a user answer.
/api/trust-check?venue=Cowboys%20Stadium GET Corrects venue aliases against official World Cup host records.
/api/group-decisions GET Returns group voting state and decision logs.
/api/group-decisions/:proposalId/vote POST Records a member vote for a proposal option.
/api/chat POST Sends a user question to Gemini or deterministic fallback with trace evidence.
/api/add-activity POST Adds an itinerary activity and updates the group budget.
/api/itinerary GET Returns the active demo itinerary.
/api/audit-log GET Returns recent agent actions from MongoDB or fallback memory.

Database Shape

Collection Purpose Judge-visible evidence
stadiums Official World Cup 2026 host venue records 16 venue count, coordinates, capacity, country
malls Nearby restaurant and retail records 2dsphere index, proximity recommendations, surge metadata
itineraries Group plans and budget state $push, $inc, aggregation budget summary
group_decisions Proposal options, votes, and decision logs decision room and vote updates
fan_profiles Demo-safe preference memory synthetic profile, no private user data required
agent_actions Agent activity audit trail action log and latest operational history

Quick Start

Prerequisites

  • Node.js 18+
  • MongoDB Atlas account for live database evidence
  • Google Cloud project with Vertex AI or a Gemini API key for live AI responses
  • Firebase CLI and Google Cloud CLI for deployment

Install and Run

git clone https://github.com/JiawenZhu/apex-fan-mongodb.git
cd apex-fan-mongodb
npm install
npm run dev

Open http://localhost:3000.

Configure Environment

Create .env in the project root:

MONGODB_URI=mongodb+srv://USER:PASSWORD@CLUSTER.mongodb.net/apexfan
GEMINI_API_KEY=your_google_gemini_api_key
GEMINI_MODEL=gemini-2.5-flash
PORT=3000

Vertex AI mode is also supported:

USE_VERTEX_AI=true
GOOGLE_CLOUD_PROJECT=apexfan-mongodb-2026
GOOGLE_CLOUD_LOCATION=us-west1
GEMINI_MODEL=gemini-2.5-flash
MONGODB_URI=mongodb+srv://USER:PASSWORD@CLUSTER.mongodb.net/apexfan

You can start from .env.example.

Reproducibility and Testing

MongoDB Verification

npm run mongodb:verify

This checks Atlas connectivity, collection counts, and 2dsphere indexes.

To write verification into the audit trail:

npm run mongodb:verify:audit

API Verification

With the app running locally:

npm start
npm run mongodb:api

For the deployed site:

APEXFAN_API_URL=https://apexfan-mongodb-2026.web.app npm run mongodb:api

Manual Judge Path

  1. Open https://apexfan-mongodb-2026.web.app/?demo=true.
  2. Click Run Auto-Tour.
  3. Ask: Show nearby food and budget for my group.
  4. Open retrieval evidence and confirm the MongoDB collections and read-only operations.
  5. Open User Status Checks.
  6. Vote in the group decision room and inspect the audit log.
  7. Call /api/live-mongodb to verify Atlas counts and indexes.

Demo Video Package

The professional demo video package lives in demo-video/.

The video uses action-led motion, cursor focus, zoom regions, backend screenshots, MongoDB Atlas evidence, and encoded-frame QA checks.

Design Decisions

Decision Rationale
Public no-auth demo Judges can verify the app without account setup or hidden state.
Demo mode at /?demo=true Starts the intended walkthrough quickly and lowers evaluation friction.
MongoDB as source of truth Venue, commerce, group, memory, and audit records stay inspectable outside the LLM.
Retrieval trace in the UI Users can see what data grounded a response without opening logs.
Synthetic fan profile Shows personalization while avoiding private user data collection.
Deterministic fallback The demo remains reviewable if credentials are missing or a service is cold.
Status endpoints Judges can verify live behavior with direct API calls.

Responsible AI and Data Use

  • The demo uses synthetic fan preference memory.
  • No private user secrets or personal user data are required for judging.
  • Retrieval traces are read-only and disclose the data used to ground answers.
  • Venue trust checks compare ambiguous venue names against official host records.
  • Gemini is instructed to answer from supplied operational context rather than inventing unsupported facts.

Deployment

Firebase and Cloud Run deployment commands are defined in package.json.

npm run deploy:api:with-vertex
npm run deploy:hosting

Combined deployment:

npm run deploy

Production targets:

See FIREBASE_DEPLOYMENT.md for the full deployment workflow.

Tech Stack

Layer Technology
Frontend Vanilla HTML, CSS, JavaScript
API Node.js, Express
AI Gemini via @google/genai, Vertex AI mode supported
Database MongoDB Atlas, MongoDB Node.js driver
Geospatial GeoJSON points, 2dsphere indexes
Hosting Firebase Hosting
Server runtime Google Cloud Run
Demo video Remotion, Gemini 3.1 Flash TTS, ffmpeg
Verification MongoDB scripts, status endpoints, API checks

Project Files

File Purpose
server.js Express API, Gemini integration, MongoDB operations, fallback data
public/app.js Frontend behavior, chat, status checks, demo flow
public/index.html App shell
public/style.css Visual system
scripts/mongodb-verify.js MongoDB Atlas verification
scripts/mongodb-api-check.js API verification
MONGODB_SETUP.md Atlas setup and CLI guidance
JUDGE_CHECKLIST.md Judge-facing evidence checklist
DEMO_SCRIPT.md Walkthrough script
demo-video/README.md Demo video production notes

License

MIT License. See LICENSE.

Built for the Google Cloud Rapid Agent Hackathon MongoDB track.
