Inspiration

Track: Everything Web3

Storj DCS video link: https://link.storjshare.io/jvel7b2pso63i5h5yryeft4hchoa/hackathon-submission%2FzkTrace%20storj.mp4

Supply chain management has been difficult to manage over the couple of years, from small businesses down to the large corporations.

And within the last few years, so many companies having gotten knee deep into the blockchain space, have been skeptical about introducing their businesses to the blockchain, as it risks leaking sensitive data and requires some high level management, on any of the public blockchains available.

Difficulties and hinderances like these are caused by:

• privacy

• a lot of bureaucracy and gas between levels in the system

• difficulty in tailoring out a supply chain management solution (joining a common network)

• requiring advanced setups

Alternative solutions have been provided like:

• Developing a custom solution for each party of exchange. Con: This is rather expensive to develop and scale when new players join. Leading them to develop their own custom solution to join in.

• Using a centralized system to store records and agreements between companies since its easier. Con: There exists one-sided control and access to data. Introducing a neutral party is expensive and still gives more systems access to sensitive data.

• Using enterprise blockchain networks. This helps in access restriction, decentralization and necessary integration. Con: It lacks in security, privacy and performance standards.

Hence, this is why we built zkTrace, a blockchain supply chain management protocol that permits companies to provide private and safe business operations.

What it does

zkTrace is a protocol that combines the power of blockchain for trustlessness, and zero knowledge for privacy, to provide safe and confidential business processes, correctly order events and increase work flow at no cost (gasless).

We convert our data and Trace agreement to stream of data.

zkTrace uses Oortech DSS as it's data storage provider. The protocol makes use of the Storj DCS for decentralized storage of private business logic & transactions and also IPFS to provide data availability publicly for tracking the supply chain processes.

The protocol provides an implementation after a common frame of reference has been agreed between businesses, validating private collaborations between companies without leaking sensitive data.

It is built to ensure easy and trustless agreement between corporations and entities.

zkTrace allows you to customize and describe business processes, regardless of how complex they are, using smart contracts.

How we built it

Unlike other systems, zkTrace is built to have the frame of reference immutable and resistant to tamper once the state (handshake) has been established.

First, we make reference to the Buyer system and the Supplier system.

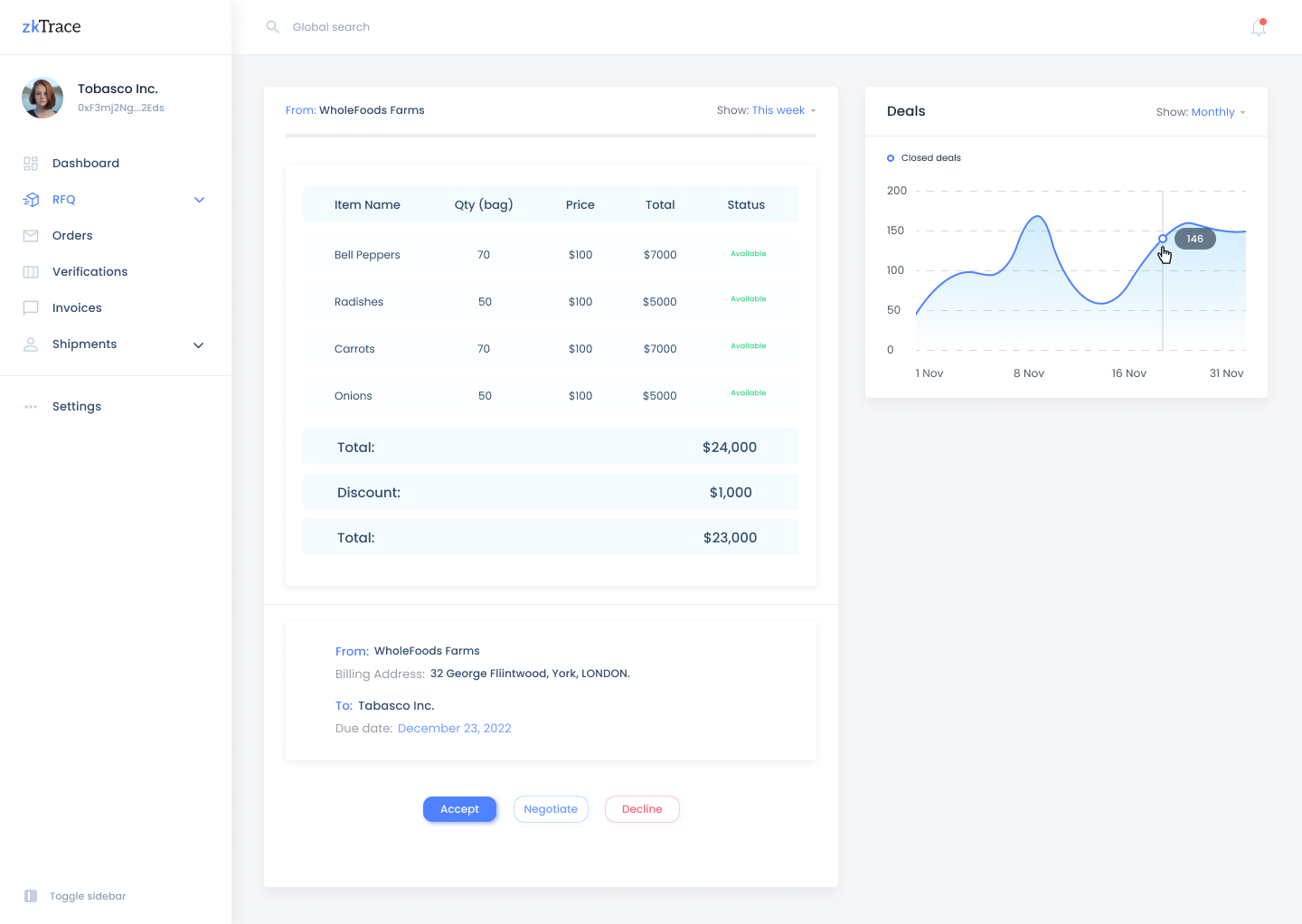

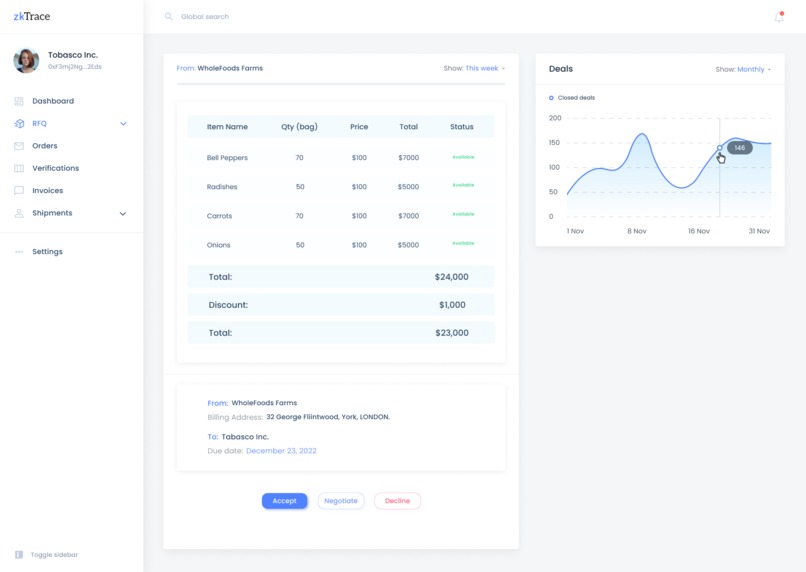

The Buyer requests for a quotation from a specific supplier, detailing the items needed, quantity, dates, etc).

The supplier receives and reviews the request. They then send back their proposed terms including prices, discounts, availabilities of products etc. (These details are used to create the Trace Agreement)

The Trace Agreement contains the overall details of the transaction and the number of levels within a particular supply chain management.

The buyer then receives the proposal and either agrees or declines, requesting for adjustments.

Agreement between the Buyer and the Supplier is called a "handshake", in literal representation of an agreement (state).

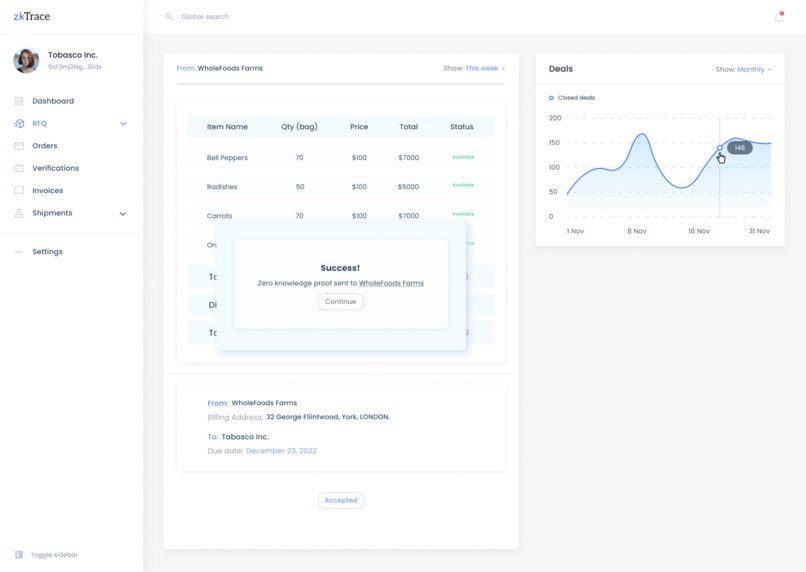

After the handshake, a cryptographic proof (zero knowledge proof & nullifier) that confirms the proper business logic and commercial data application, is generated and sent to the Supplier and the Buyer consecutively.

The cryptographic proof is created using, a random number generator built with Chainlink VRF, to generate a nullifier (after hashing) and zero knowledge circuit to generate zk proof.

The two cryptographic proofs are used to create the Trace Agreement, which is the smart contract that controls every state of the supply chain and contains details of each transaction. Each supply chain is a unique transaction and the Trace Agreement represents each. The Trace Agreement helps with verification for the different stages of the supply chain.

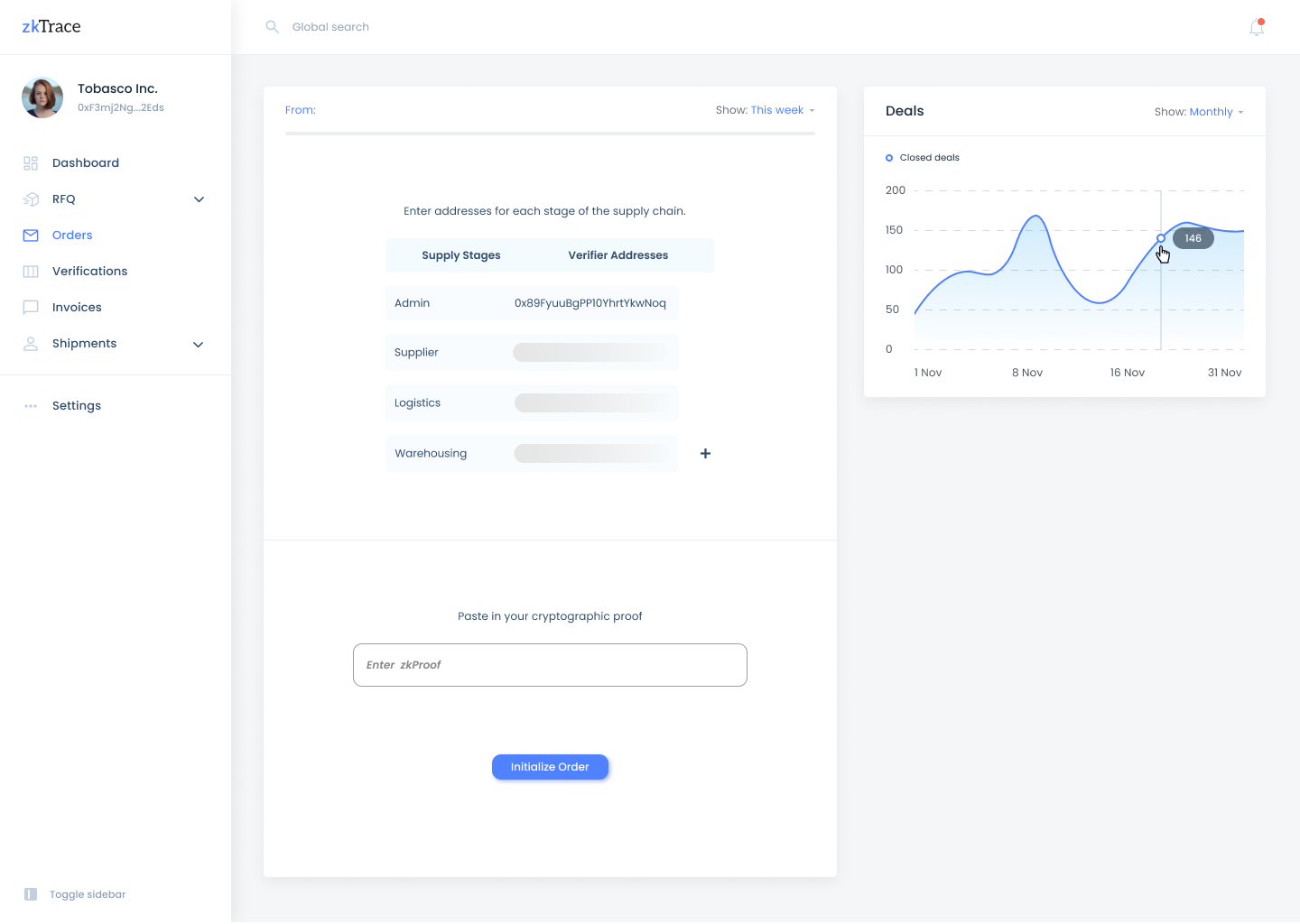

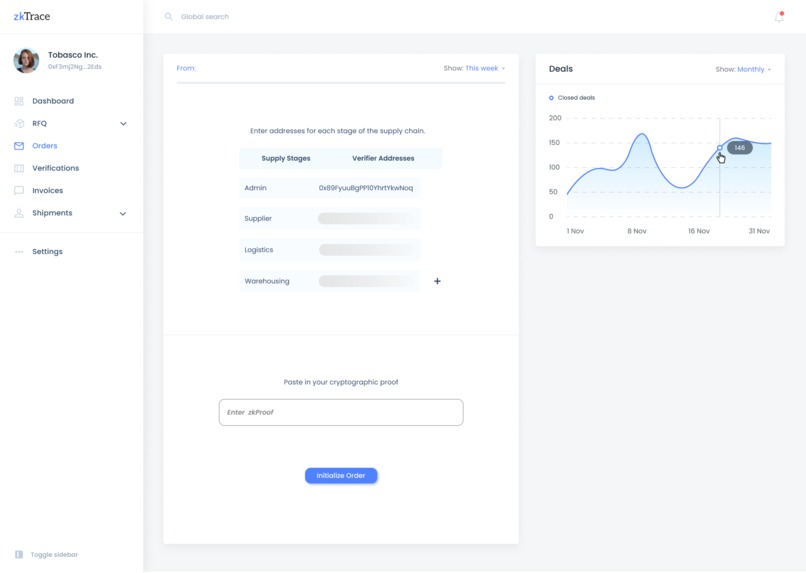

When the Buyer is ready to begin the process, they initialize the order after updating the supply chain stages & addresses and input the cryptographic proof generated for verification. The Supplier is then notified to confirm the execution of the order by verifying his cryptographic proof.

Once this is done, the Trace Agreement is open.

Each stage, the movement and state of the transaction is seen on chain. The verifier addresses for each stage of the transaction have to sign consecutively, confirming the state of the transaction before going to the next.

The verifier addresses are used to create a merkle tree and the merkle root is saved on the smart contract.

zkTrace as a protocol aims to create data availability and has two ways of storing data. The protocol uses Storj DCS for private data storage and uses IPFS/Filecoin for the public.

That is, business logic that are discrete like details of the Trace Agreement and transactions are saved using Storj DCS while IPFS stores data for tracking the supply chain process.

Tools Used:

• Chainlink VRF: is used to build our random number generator which returns an array of numbers. The seed (a number in the array) is used to create nullifier used and the array of numbers is used in the zero knowledge circuit to generate zero knowledge proof. The zero knowledge circuit is designed to compare the pre image of the generated random number.

• Chainlink External adaptor running on a Chainlink node for on chain zero knowledge verification. The adapter verifies the proof generated and is used to connect to the zero knowledge engine we built via its API for easy on chain zero knowledge verification.

• Merkle tree: used to save the list of verifier addresses for easy verification

• IPLD (inter planetary link data): used for content addressing of the Trace agreement the list of verifier addresses (data persistence).

• Storj DCS: used to store private data like business logic and details of transactions.

• Oortech DSS: storage provider. Also creates s3 bucket to store stream (data on IPFS)

Challenges we ran into

• Understanding how zero knowledge proof works and implementing it in the protocol

• Lack of resources for building private E2EE on-chain messaging protocol

Accomplishments that we're proud of

• Understanding how to build zero knowledge circuits.

• Finding solutions to making supply chain gasless using relayers.

• Increasing privacy through the combination of zero knowledge proof and merkle tree.

• Building a supply chain protocol

What we learned

• create a privacy mechanism for supply chain management and agreement between corporation on a public blockchain.

• work with zero knowledge, zokrates, Storj DCS, Oortech DSS, zk SNARK and Merkle Tree.

What's next for zkTrace

• Further looking into building our own efficient private E2EE on-chain messaging protocol (using Tendermint).

• intense marketing and full documentation.

• properly integrating this into businesses.

Built With

  • chainlink
  • hardhat
  • ipfs
  • ipld
  • javascript
  • merkle-tree
  • orto-dss
  • solidity
  • storj-dcs
  • zero-knowledge
  • zokrates
