Inspiration

So when I joined this hackathon, I looked at the parts I had with me. I knew that I wanted to do something with Hardware. I saw that I had these RF modules laying around so I decided to base my project with that. I have a deep passion for assistive technology and saw that some people can't reach their light switch and I went from there.

What it does

This project turns on and off lights from a light switch.

How I built it

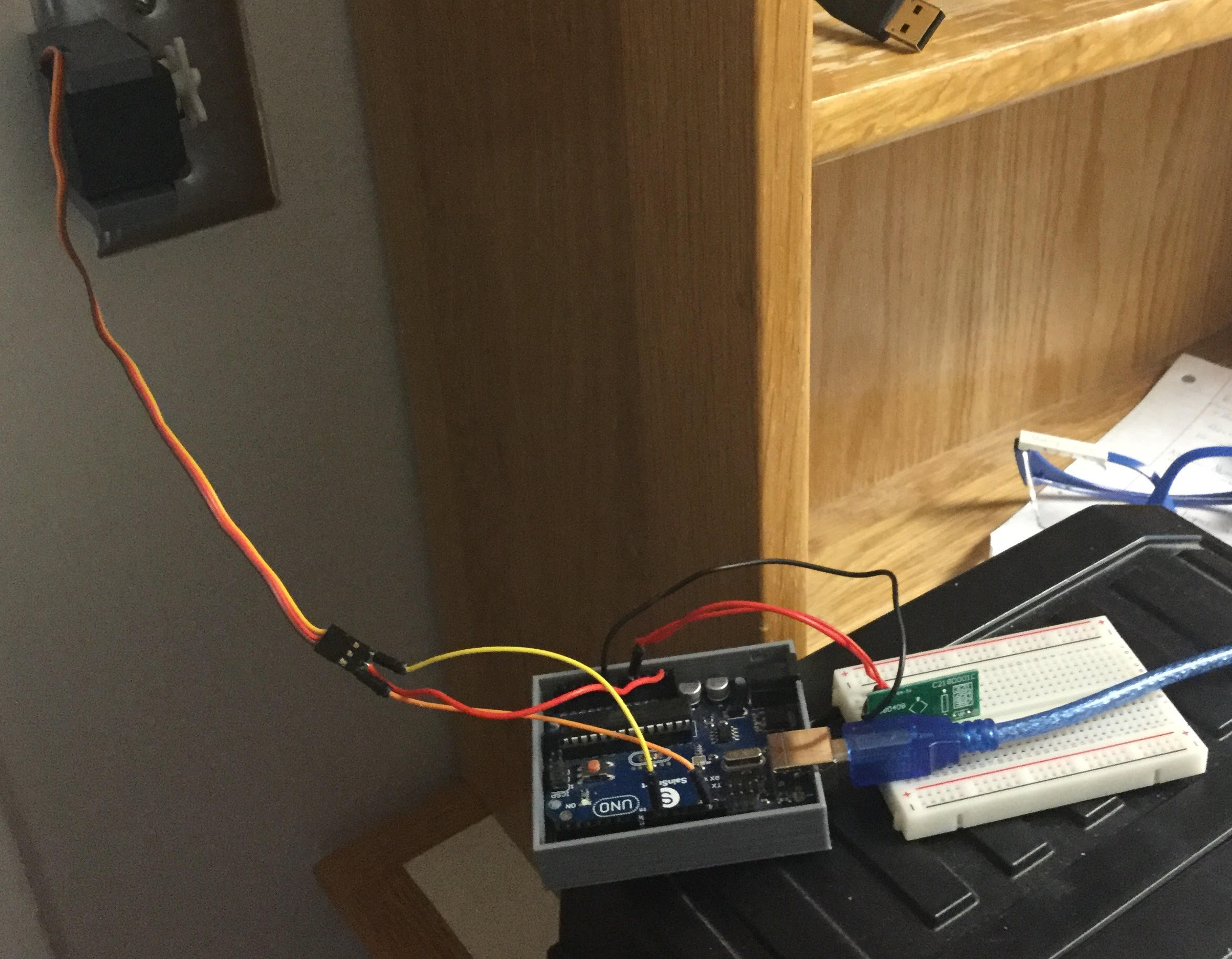

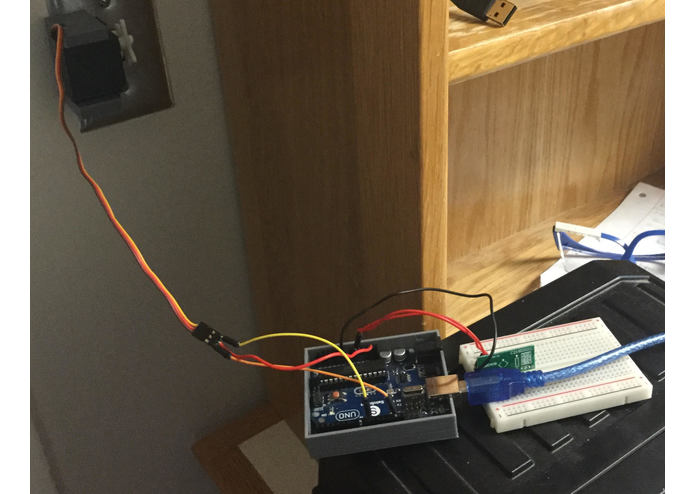

I built this using 2 Arduino Unos, a 433 Mhz transmit and recieve modules, a 3D printed enclosure and a servo motor.

When I first started out, I tested that the RF board could talk to each other by using the Serial Monitor in Arduino. Then I hooked up a button on the Arduino with the transmit, and a Servo on the Arduino with the recieve. Once I verified that this was working I went onto the 3D modeling.

For the 3D modeling, I used OpenSCAD to design the case for the servo, and printed it out.

Challenges I ran into

So this is my first project where I programmed something that wireless. I didn't realize how often spurious signal occurs on the receive. This subsided when I changed the range the reciever module needed to change the value of the Servo

Accomplishments that I'm proud of

I'm pretty proud of how well it actually manipulates the switch

What I learned

I learned a ton about incorporating wireless things into hardware. Prior to using the RF Modules I tried out a ESP8266. Although I didn't end up using it, I feel more comfortable using these types of things and plan to use them in future projects.

What's next for Wireless Light Switch Manipulation

I would like to get it to eventually work with a particle photon with an Alexa Dot as the interface the user uses to manipulate the switch.
