Whiteboard architecture sessions are where critical design decisions happen — yet they rarely get expert review in real time. Flaws in security, scalability, or reliability often surface weeks later when fixing them is 10x more expensive. We asked: what if an AI senior architect could join every whiteboard session, watching and listening, just like a real colleague?

What it does

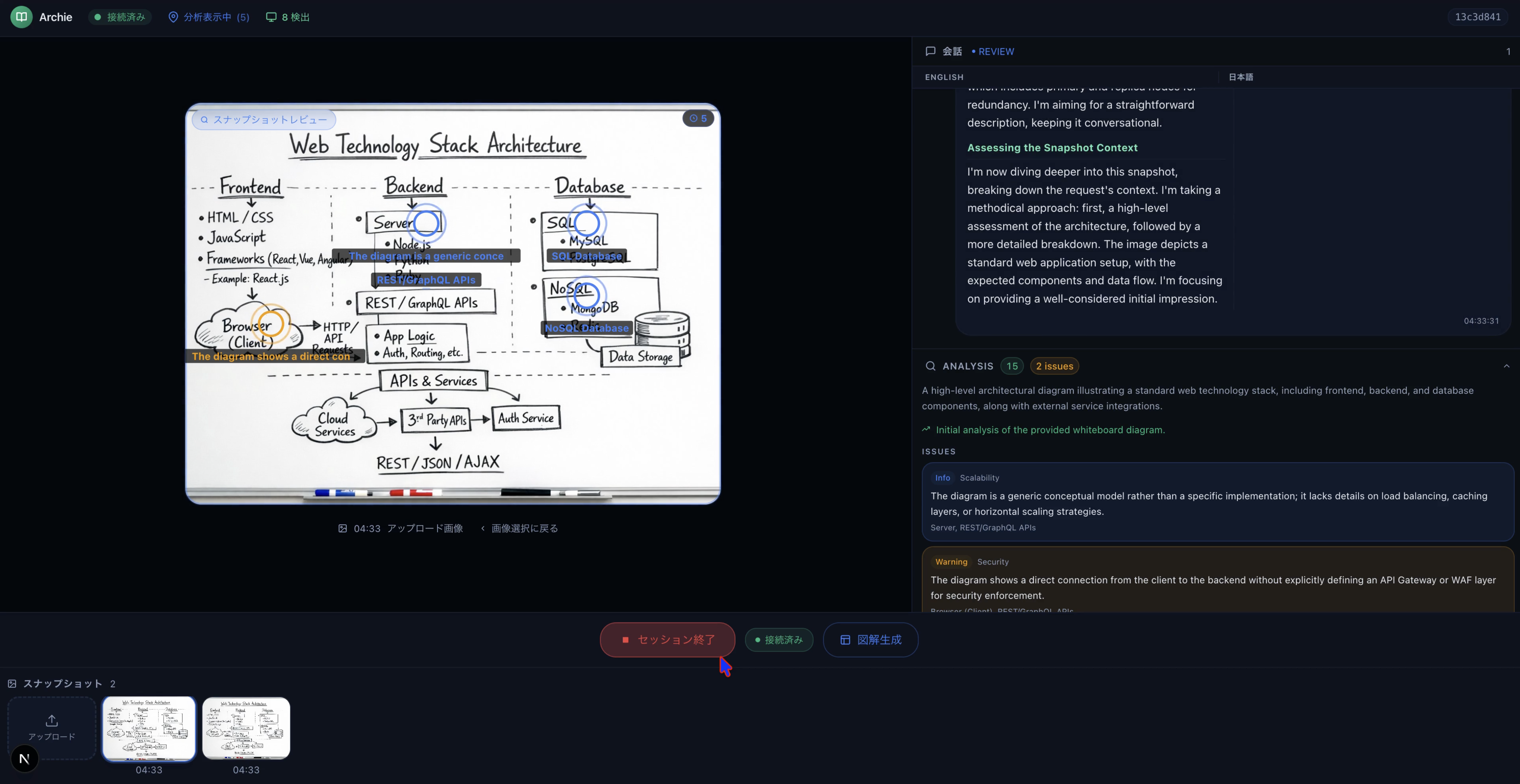

Whiteboard Architect is a real-time AI architecture reviewer. Point your camera at a whiteboard, talk through your design, and Archie — an AI senior cloud architect — provides instant voice feedback.

• Sees your diagrams through the camera and understands them as you draw
• Listens to your explanations via microphone
• Responds with real-time voice feedback on security, scalability, reliability, cost, and operations
• Interrupts naturally — barge-in support lets you cut in mid-sentence, just like a real conversation

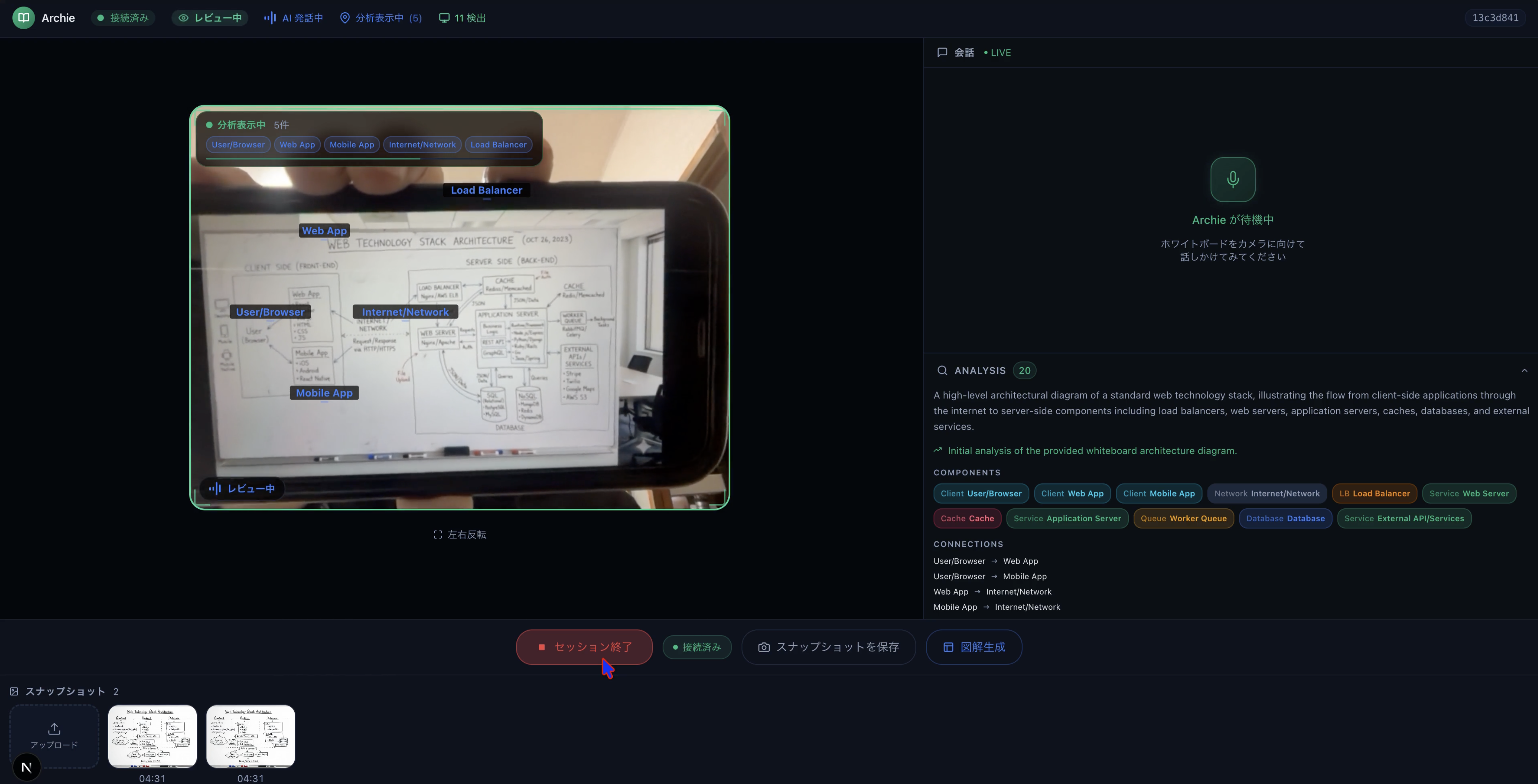

• Annotates your whiteboard with visual markers highlighting issues and components
• Generates diagrams — converts hand-drawn sketches into clean SVG diagrams
• Records findings as structured review notes with severity levels and recommendations

How we built it

We built a multi-model architecture using four Gemini models, each optimized for its task:

The backend (FastAPI + Google ADK) runs four parallel async tasks per WebSocket connection:

1. Upstream — routes client audio/video to Gemini Live API via LiveRequestQueue
2. Downstream — streams Gemini responses back to the client
3. Recovery — monitors session health and detects false barge-ins
4. Perception — runs periodic deep analysis of the whiteboard

The frontend (Next.js 16) uses custom React hooks for AudioWorklet-based capture (PCM16 16kHz), gapless audio playback (PCM 24kHz), and canvas-based video capture (JPEG @ 1fps).

Infrastructure is fully automated with Terraform deploying to Google Cloud Run, Firestore, and Cloud Storage.

Challenges we ran into

• Live API tool-calling bug — The -12-2025 model variant triggers WebSocket 1008 errors when tools are invoked. We built an automatic model probing system that tests candidates at startup and falls back to working variants.
• Barge-in responsiveness — Achieving natural interruption required a dual approach: server-side detection via Gemini Live API plus client-side RMS-based VAD to immediately clear audio buffers.
• Language quality — The native audio model produces significantly better responses in English. Rather than forcing Japanese, we adopted an English-first approach with a dedicated translation service for bilingual display.
• Background analysis coordination — Running a separate perception model alongside the live conversation required careful state management to inject analysis context naturally without disrupting the flow.

Accomplishments that we're proud of

• Truly real-time multimodal interaction — audio, video, and text stream bidirectionally with minimal latency
• Native barge-in powered by ADK + Live API — no custom interruption logic needed
• A perception layer that continuously understands whiteboard structure and auto-generates visual annotations
• Graceful degradation — the app works without any cloud services beyond a Gemini API key

What we learned

• LiveRequestQueue is the key abstraction for multiplexing audio/video to Gemini while receiving responses simultaneously
• ADK dramatically simplifies agent development — session management, tool execution, and Live API integration come built-in
• Multi-model architectures outperform single-model approaches when tasks have different latency/capability requirements
• English-first with translation produces better quality than forcing non-English in system prompts

What's next

• Multi-language support beyond English/Japanese
• Collaborative multi-user review sessions
• Architecture Decision Record (ADR) generation from review notes
• Historical snapshot comparison across sessions
