Webcam Music

An instrument that you can play with your webcam anytime from anywhere.

Comment

About Us

Team: Clawdawgs-19

School and Club

LCHS iTeam of La Cañada High School - https://github.com/lchsiteam

Team members' devpost, github, and discord

Bryan Wang - https://devpost.com/the-non-feline - https://github.com/the-non-feline - not a cat#9738

Ryan King - https://devpost.com/RyantheKing - https://github.com/RyantheKing - RyantheKing#9710

Devyn Oh - https://devpost.com/thepnkprkr - https://github.com/MC-Atom - MC_Atom#1733

Kai Bredemann - https://devpost.com/awesomehaze - https://github.com/awesomehaze - haze#2948

Ean Jeffries - https://devpost.com/epicean - https://github.com/epicodaboss - Epico (Ean)#2393

Inspiration

We were inspired by music. Half of our group is in choir, and half of our group makes original music for fun. Making music is very fun and rewarding, but it’s very hard for beginners to figure out some of the more complicated aspects. This project makes it easier for those beginners to have some fun creating music, even if it’s not super practical.

What it does

This project is conceptually very simple. The application watches your webcam, and with the help of OpenCV, it recognizes where your hands are. This is fed into a simple function that converts the x and y positions of your hands into parameters. These parameters control a wave function, which outputs to the speakers of the computer. At the end of a recording, it will also save the audio to a .wav file.

How we built it

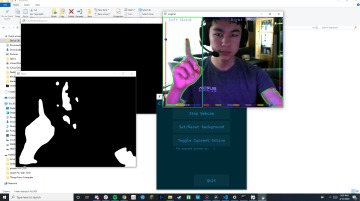

We split into two teams, one two work on hand tracking, and one to work on converting hand location into audio signals. We used OpenCV to analyze webcam feed in real time, and used a picture of the background without the hands in frame and a the live feed to subtract out (mostly) everything that wasn’t the hands, so that we could then get the contours for the hands. We then used numpy and the built-in math module to crunch the numbers required to produce the desired sounds, and sounddevice was used to produce the sounds. Numpy and SciPy were used to write the audio to a .wav file.

Challenges we ran into

At first it was difficult to recognize the hands with a noisy background, and we relied on a black background and for the user to wear dark clothes. However we were able to overcome this by removing a photo of the background from the image in the live feed. We also ran into many problems with the audio quality, which were eventually solved by lowering the sample rate.

Accomplishments that we’re proud of

Tracking 2 hands at once and tracking hands with a noisy and bright background.

What we learned

How to better and more efficiently work on programs in teams, as well as learning aspects of OpenCV, tkinter, sounddevice, and SciPy python libraries.

What's next for Webcam Music

We plan to improve and eventually publish our creation so that others can have fun with the tool we enjoy. We will likely code the system to recognize hand gestures, and perform more musical features such as holding a note or a staccato.

Built With
