Voice-Controlled Runner

A pixel-style parkour game controlled by your voice – shout to control your jumps, collect coins, and dodge bombs, all within your browser.

Comment

Voice-Controlled Runner

1. Project Name: Voice-Controlled Runner

2. Elevator Pitch (One Sentence): A pixel-style parkour game controlled by your voice—shout to control jumps, collect coins, and dodge bombs, all within a browser.

3. Project Story (American-Style Essay):

About the Project: We transformed microphone input into game actions, making sound a playable and tangible interactive method. The project pursues novel interaction and lightweight implementation, suitable for beginners to learn and expand upon.

Inspiration: At a lively hackathon, we had a sudden inspiration: could we turn "shouting" into a game operation? Real-world scenarios include party interactions, classroom icebreakers, and accessibility needs in situations with hand disabilities. We hope to combine the fun of classic pixel parkour with the audio capabilities of Web Audio to create a lightweight game that can be played solely in a browser.

What it does

  • Capture microphone audio, calculate volume using RMS, and apply noise threshold and EMA smoothing.

  • Map real-time volume to character height for continuously controllable "voice-activated jumping".

  • Generate coins, bombs, and various power-ups (magnets, shields, speed boosts, double damage, slow motion).

  • Track combos, levels, achievements, and high scores (persistent in localStorage).

  • Provide calibration, sensitivity adjustment, and mute options.

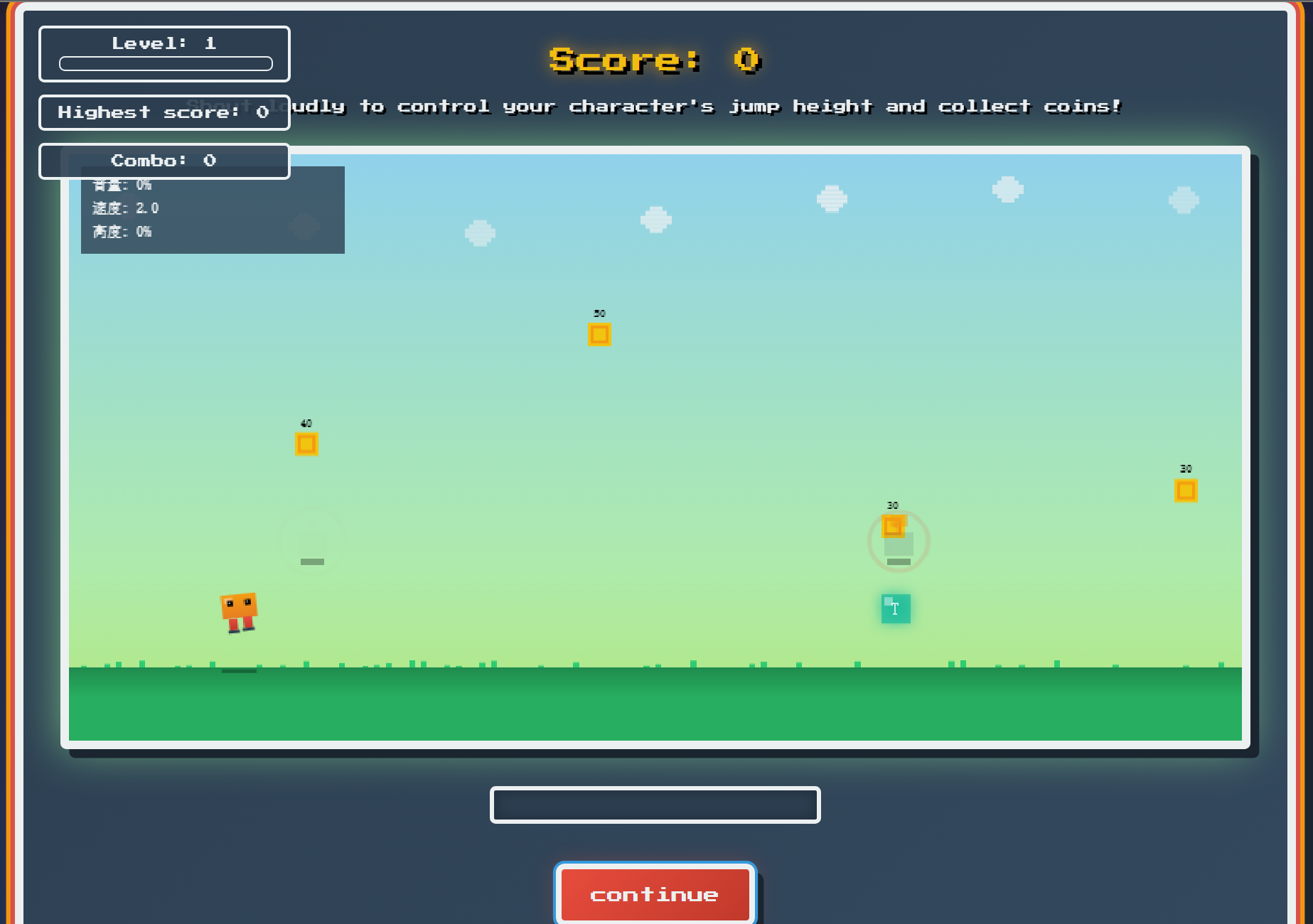

  • Draw pixelated visuals, particles, lightning, and rainbow trails using HTML5 Canvas.

Key code references:

  • Microphone initialization: game.js:476

  • Volume to height mapping: game.js:516-528

  • Main game loop: game.js:1441-1484

  • Item system: game.js:561-656

  • Achievement system: game.js:315-371

  • HTML Controls: index.html:671-683

How we built it (Building Process and Challenges)

  • Using HTML5 Canvas to render layers and a lightweight particle system

  • Web Audio API: AudioContext + AnalyserNode, using temporal RMS to improve stability

  • Signal Processing: Ambient noise baseline calibration, noise thresholding, sensitivity scaling, EMA smoothing

  • Generator and Collision: Deterministic generation, overlap threshold collision, ensuring rhythm and fairness

  • Performance Optimization: Limiting particle count, batch updates, minimizing allocation per frame

The challenges lay in microphone permissions and cross-browser audio differences, and making "shouting" both sensitive and jitter-free. We stabilized input through EMA smoothing and thresholding control, then guided the player with visual feedback.

Challenges we ran into (Challenges, International Perspective)

  • Vastly different permission prompts and UX across browsers

  • Baseline differences caused by different hardware/environments (quiet room vs. noisy scene)

  • Trade-offs between Chinese interface and global user expectations

  • Privacy: Microphone used only locally, no uploads

  • Low-end device performance: Optimized drawing paths and limited number of effects

Accomplishments that we're proud of (Gains and Significance)

  • A voice-controlled game for beginners with stable response

  • A clear and learnable audio processing pipeline (RMS + EMA)

  • Rich interaction and visuals achieved without relying on external libraries

What we learned (Learning Outcomes, Closely Related to the Competition Theme)

  • Real-time audio capture in browsers and the practice of getUserMedia

  • UX surrounding voice interaction: calibration, sensitivity, feedback indicators

  • Canvas game architecture: main loop, entity system, effects, and UI layering

  • Expressing rhythm and increasing difficulty using simple mechanisms

What's next for Voice-Controlled Runner (Next Steps and Business Plan)

  • Productization: Applications include party/classroom interaction and rehabilitation training warm-ups

  • PWA mobile adaptation, offline and full-screen experience

  • Online leaderboards, season events, and achievement synchronization

  • Accessibility mode (clapping/whistling detection) and secure input

  • Collaboration and Demos: Events and educational scenarios, providing a lightweight SDK for voice-controlled mini-games

Supports Markdown and LaTeX mathematical formulas. The core formula is as follows:

  • RMS (Normalization):

$\displaystyle r = \frac{1}{128} \sqrt{\frac{1}{N} \sum_{i=1}^{N} (x_i - 128)^2}$

  • EMA smoothing:

$\displaystyle y_t = \alpha \cdot v_t + (1 - \alpha) \cdot y_{t-1}$

  • Height mapping:

$\displaystyle h = h_{\min} + v \cdot (h_{\max} - h_{\min})$

  • Pixel overlap collision (50% rule):

$\displaystyle \text{overlap}_x \ge 0.5\,\min(w_1, w_2)$ and $\text{overlap}_y \ge 0.5\,\min(h_1, h_2)$

4. Technology Stack (Detailed)

  • HTML5 Canvas: Fine-grained pixel drawing, particles and effects

  • Web Audio API: AudioContext, AnalyserNode; temporal data, RMS calculation

  • JavaScript (ES6): Game state management, generators, collision and system logic

  • CSS3: UI styles and animations (buttons, containers, indicators)

  • localStorage: Highest score persistence

  • No external libraries or build tools required; validated on the latest Chrome/Edge (desktop)

5. Project Structure

.
├─ index.html # UI, canvas, controls, and styles
└─ game.js # Main loop, audio pipeline, entities/effects/system/drawing

``` Entry Point Description:

- `index.html` loads `game.js` and defines controls (start, pause, calibration, sensitivity, etc.)

- `game.js` constructs `VoiceControlledRunner` (`game.js:1488-1490`) in `DOMContentLoaded`

## 6. How to Start the Project

Windows PowerShell:

``` python -m http.server 3000

``` Then open:

``` http://localhost:3000/

``` After allowing microphone access, click "Start Game" to optimize the experience through calibration and sensitivity adjustments.

Note:

- You must use `http://localhost` (not `file://`) to enable `getUserMedia`

- The port can be changed as needed; the example uses `3000`

## 7. Project Operation Mechanism (Information Flow and Logic Graph)

### Information Flow

``` Microphone → AudioContext → Analyser (Time Domain Bytes)

→ RMS → Baseline/Noise Threshold → Sensitivity → EMA → Volume (0–1)

→ Height Mapping → Character

→ Main Loop → Entities (Coins, Bombs, Items)

→ Collision → Score/Combo/Experience → UI Stack

Structure Logic Graph (High Level)

[Audio Initialization]

└─ getUserMedia → Analyser → DataArray

[Signal Processing]

└─ RMS → Threshold → EMA → Volume

[Gameplay]

├─ Player (height←Volume)

├─ Spawners: Coins/Bombs/PowerUps

├─ Collisions: Pixel overlap threshold

└─ Effects: Particles/Lightning/Trails

[System]

├─ Combos and Multipliers

├─ Achievements and Levels

├─ Item Lifecycle (Activation/Deactivation)

└─ High Score Persistence

[UI]

├─ Canvas HUD

├─ HTML Controls (Start/Pause/Calibration/Sensitivity/Mute)

└─ Status Overlay (Tutorial, End)

Core Update Loop

  • Read volume → Update character height

  • Push entity → Collision detection → Update score/experience/combo

  • Update effects and status → Draw background, sprites, UI

  • Use requestAnimationFrame to schedule the next frame

Code Reference: - Update loop: game.js:1441-1484

  • Volume pipeline: game.js:489-514

  • Height mapping: game.js:516-528

  • Collision detection: game.js:842-859

  • Generators: Coins game.js:530-541, Bombs game.js:675-694, Items game.js:543-559
