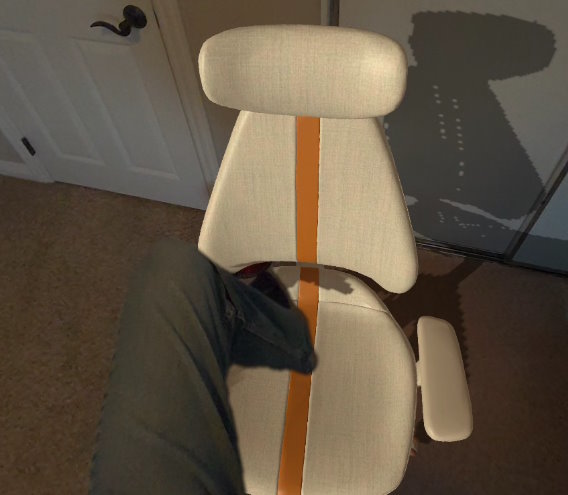

Visualize Things

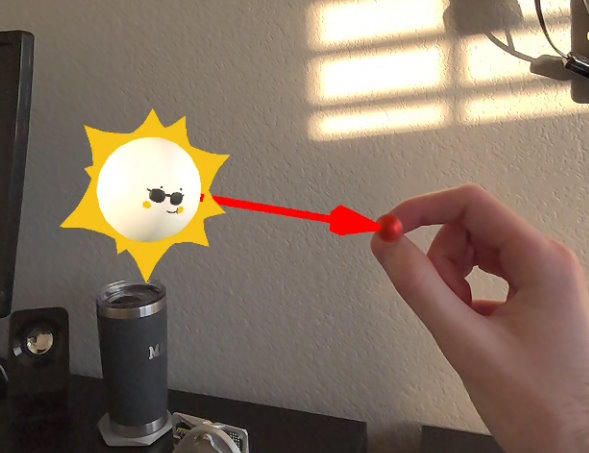

virtual sun editor
dynamic occlusion

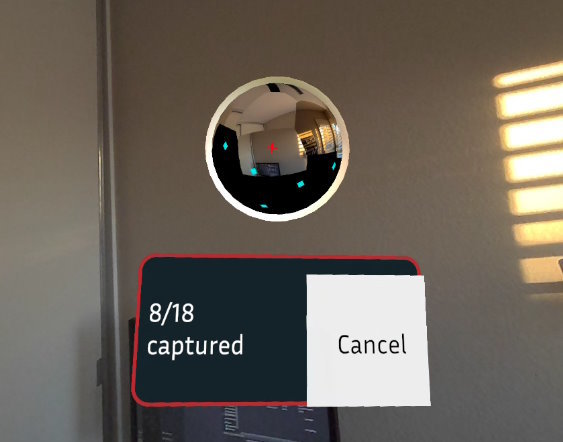

scanning a panorama for reflections

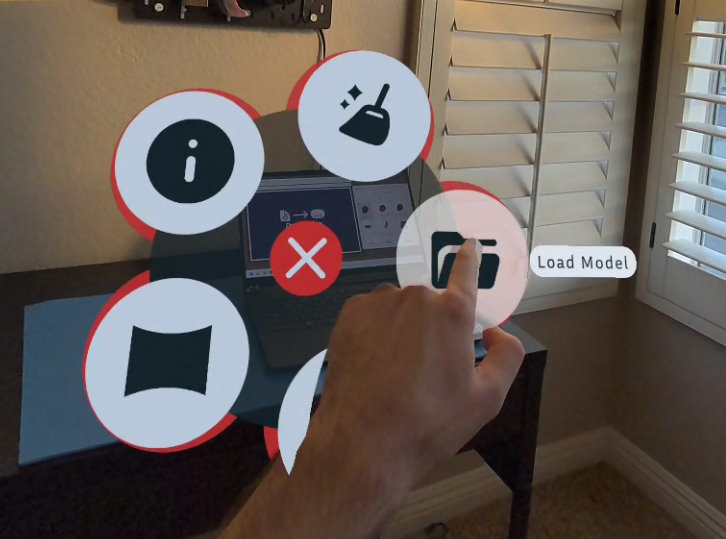

radial menu
companion app homescreen

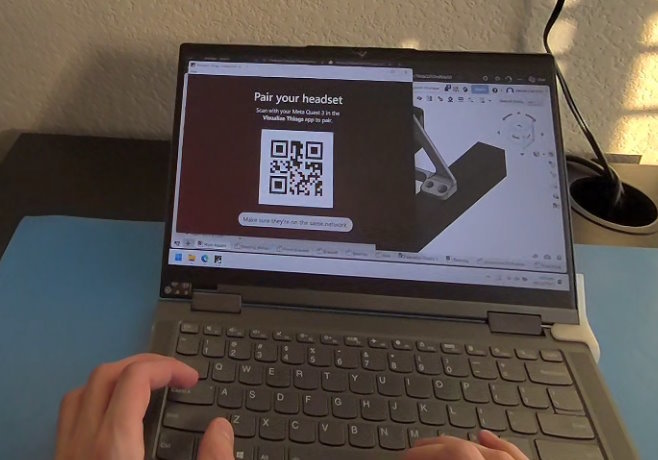

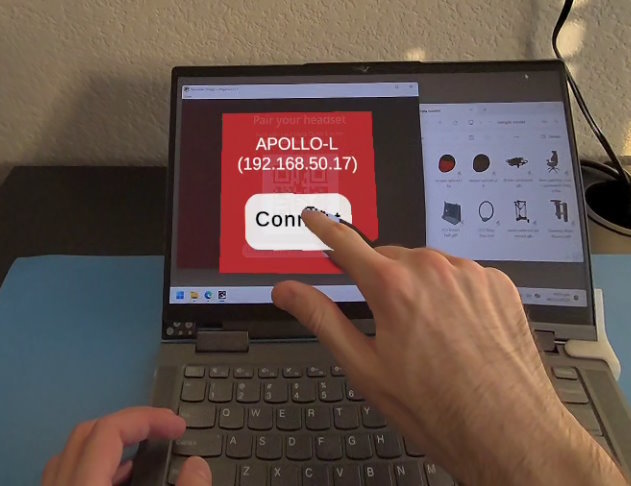

companion app connection confirmation
digital twin

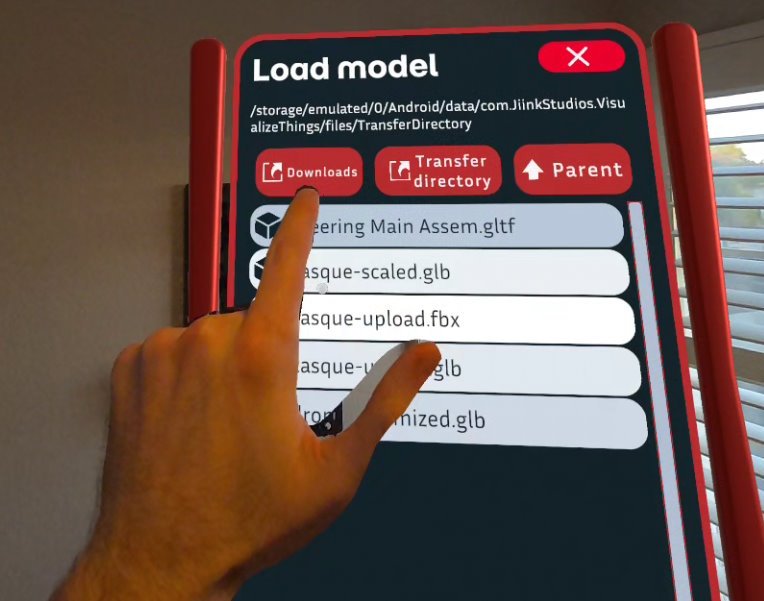

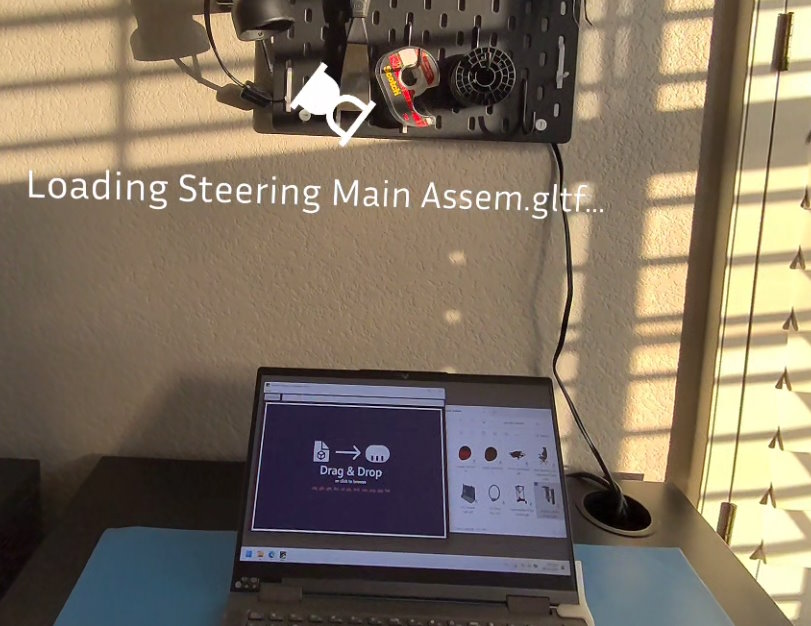

loading a model from local storage
loading a model from a PC

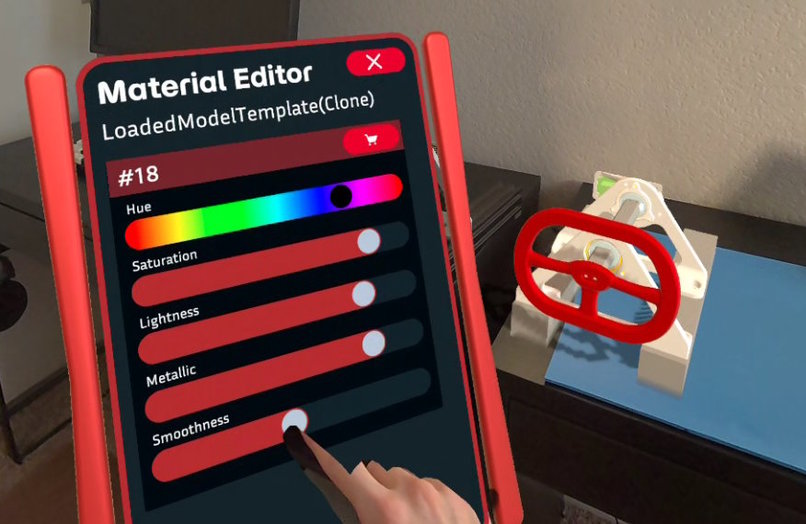

editing a material

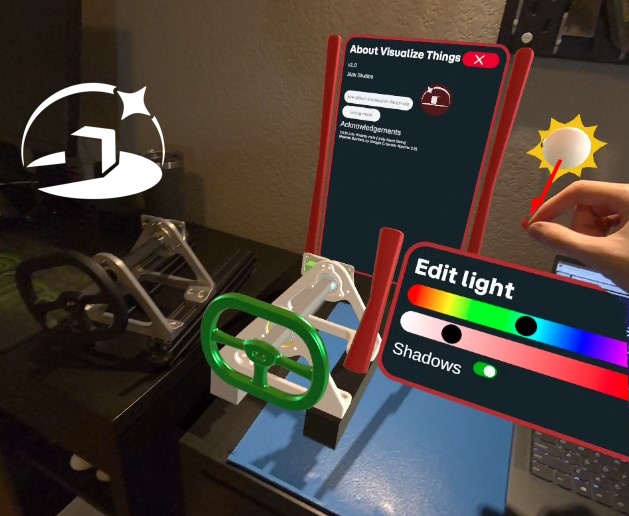

editing light

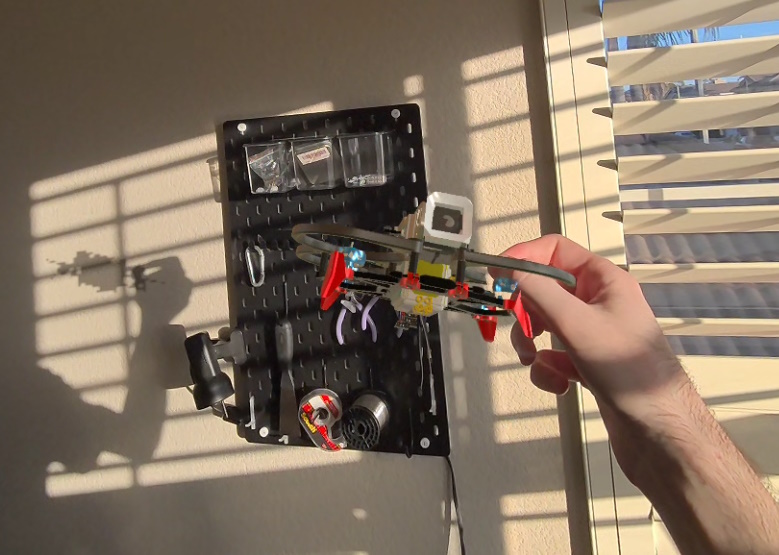

shadows

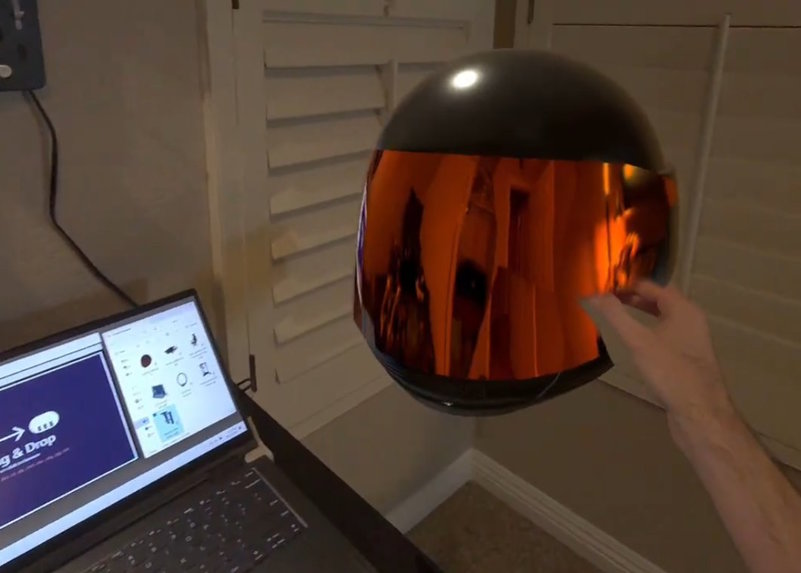

reflection of scanned panorama

Inspiration

Since I got into computer-aided design and 3D printing, I was often surprised by the size of the design once it came off the printer. Using MR to preview designs sounded cool, but I never found a simple way to do this. Existing apps had bigger scope than I wanted, and having to make logins for cloud-based storage services was not pleasing. They also didn't use the Quest 3 features I was interested in such as dynamic occlusion.

What it does

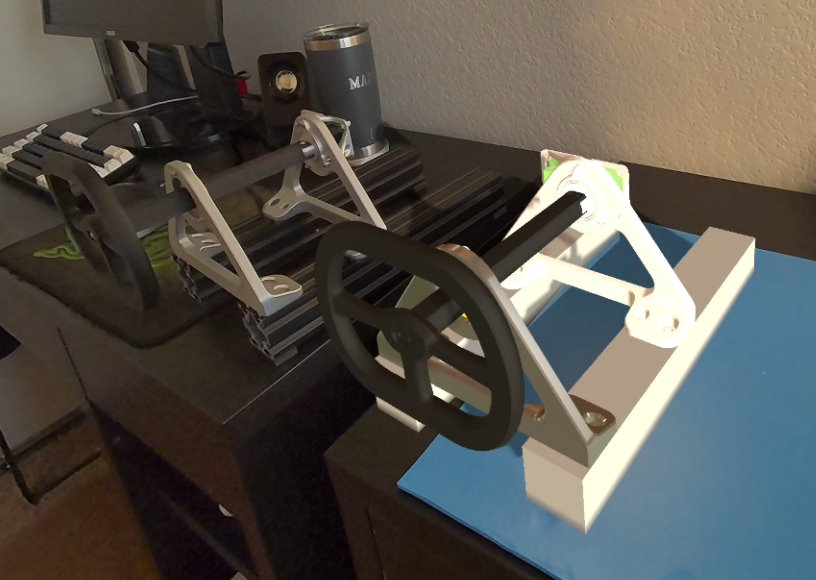

You can open up just about any 3D model file off the Quest's storage. Then you can tweak materials and lighting to make it looks realistic. Optionally, there is a PC app that lets you drag-and-drop 3D models to immediately transfer and view the model on Quest.

How I built it

I referenced many Meta Unity sample projects - MRUK examples, Passthrough Camera API examples, XR Interaction SDK examples, etc. This way I was able to slowly bring together the features needed for interacting with all the menus and 3D model manipulations.

Challenges I ran into

My plan for the UI flow changed multiple times early on. It's hard to think of a good way to access all the features of this app that works with hand tracking while not being exhausting to use. It was really hard to figure out all the materials too. When there's transparency, UI, passthrough underlays, and dynamic occlusion, there's a lot of visual bugs to deal with.

Accomplishments that we're proud of

I'm happy that I got the QR code scanning working so you can connect to the optional PC app easily. I am also pleasantly surprised by how effective it was to use the Passthrough Camera API to generate a panorama to use for a reflection probe. I liked thinking of creative ways to use these cool APIs. I think the radial menus with the big push buttons worked out great for hand tracking.

What I learned

The only way to make good hand-tracked interactions is to just build stuff and try it out and iterate. It's very time consuming and extremely frustrating but that's what it takes to make something decent.

What's next for Visualize Things

A roadmap:

Better way of moving and accurately orienting models of any size
Menu for connecting to a PC that doesn't need QR codes
Use the new Environment Raycasting API for easier model placement
Way to import more directly from OnShape. potentially QR code or link-pasting in-headset
More detailed model colliders
Smoother menu movement
Point lights
Saving and loading
Option for blob shadows
Controller support
use of full-detailed scene mesh
Automatic optimization of CAD models - mesh and material count
Photo mode with auto transfer to companion app
Section view
Co-located visualization

Known Issues

Re-centering the playspace causes laser misalignment
Upon first use, the "Set Reflections option requests the camera permisson, but then needs to be selected a second time to activate.
Error communication is poor; information gets printed to the debug log instead of informing the user.
If using with the PC Companion app, you need to restart the Quest app if you want to reconnect to the same computer a second time.
