Veer (वीर) is a Hindi word which means Brave and courageous.

Virus Examination and Elimination Robot.

VEER (Virus Examination and Elimination Robot) UVC disinfection robot is designed for indoor and outdoor surface virus prevention. This AI-based self-moving robot is equipped with cutting-edge technology including Sensor technology, 254 nm UVC light system and autonomous navigation to traverse indoor locations. It moves autonomously, stopping at user-predefined hotspots that require a longer time of exposure, disinfecting and killing bacteria and viruses on all exposed surfaces. It’s currently used to fight against Coronavirus (COVID-19).

“ Everyone deserves to be happy and feel safe.”

These ultraviolet disinfection robots use UV light to kill harmful microorganisms and have been in excessive demand for the reason that the coronavirus outbreak. “Automatic disinfection robots are an important part of maintaining safety and prevention, it may be one of the major bright spots in response to COVID-19.

Introduction:

The Virus examination and elimination robot from UltraViolet(UVC) - also called VEER | UVC Robot is an autonomous disinfection robot for hospitals, Society, Schools, Supermarket and Malls, production lines and Pharmaceutical companies.

The robot can drive autonomously even as emitting focused UV-C light onto pre-described infectious hotspots in affected person rooms and different health center environments, as a consequence disinfecting and killing bacteria and viruses on all exposed surfaces. The robot is designed as a supplement to the existing cleaning cycle with the intention of reducing the spread of hospital-acquired infections (HAIs), infectious illnesses, viruses, microorganisms, and other kinds or harmful organic microorganisms.

Hospital Acquired Infections (HAIs) and Healthcare-Associated Infections are a major and growing problem for the healthcare system and give rise to significant costs for hospitals, primarily because of extra days in bed, readmissions, deaths, etc.

The infections generally occur in reference to the admission, examination, treatment, care or rehabilitation. The supply of contamination may be different patients, a team of workers, traffic, or even system and environments. In general, the infection rates can be prevented if the chain of infection is broken.

The robot is designed to make sure a cost-efficient and dependable measure and elimination of the overall stage of microorganism and viruses, and thereby increasing the operation time of the health center, limiting the range of affected person proceedings and securing high exceptional service, higher patient experience, and higher success rate.

Current Problems | Covid-19

Novel Coronavirus, spreading swiftly all throughout the globe, infecting and killing millions of humans worldwide. The disease is particularly spread from individual to person through small drops from the nose or mouth, and also those drops can land on objects and surfaces across the individual, including tables, doorknobs, floor, and any surfaces. The People and healthcare provider can get infected by touching those objects or surfaces, then touching their eyes, nose or mouth. With the shortage of protecting medical packages, our corona worrier is infected with the aid of corona additionally. INDIAN CONTEXT:- Whilst the world is affected by a medical emergency, India has to aspect its tradition and Ideological heterogeneity inside the situation. With the numbers reaching above 20000 and still increasing, doctors', supportive clinical bodies of workers & police officers have been vigilantly working as a way to successfully contain the situation. As per given Indian medical guidelines, the principle attention presently is on.

Technology Solutions

A technological innovation that can eliminate the need for officials to get in direct contact with the people in order to conduct thermal screening on a wider scale, sharing feed on a server to accumulate accurate data, disinfect public places and most importantly ensuring our warriors' safely while they work to keep us safe.

Identifying the affected individual and region, conducting maximum SCREENING to eliminate unforeseen spreading, containment of the infected people to keep them from spreading into the community and disinfection - both personal and social; of colonies, police stations, nonsecular places & hospitals and many others.

The infections typically occur In connection with the admission, examination, treatment, care, or rehabilitation. The source of infection can be other patients, staff, visitors, or even equipment and environments. In general, the infection rates can be prevented if the chain of infection is broken. One way to eliminate the virus without chemicals is through the use of UV light. “Individual, energetic UV-C photons photochemically interact with the RNA and DNA molecules in a virus or bacterium to render these microbes non-infectious. This all happens on the microscopic level.” Wavelengths in the photobiological ultraviolet spectral band known as " UV-C, 200 to 280 nanometers (nm)" have been shown to be the most effective for disinfection, although now, even less energetic UVs are disinfected when applied in excess. "

Vision: A world without infection

Product Outline

VEER (Virus Examination and Elimination Robot) is used for this disinfectant indoor & outdoor space case. This robot uses a UV light and autonomous navigation to traverse indoor locations. “Users can do mapping on cell phones and choose methods. The robot stops at every kind of point until the disinfection work is done.

The COVID-19 fighting robot VEER | UV Robot is designed to identify potential Corona infected persons through temperature scanning. It is equipped with a thermal infrared camera accurate to +/- 0.3 degrees Celsius. It uses the same robotic platform as the indoor UV sanitizing robot, so it can operate autonomously.

VEER robot already had sensors allowing it to navigate independently and stop when it detects the presence of a person. A directed light source that automatically shut down when it detected motion nearby could be a useful feature.

The robot can drive autonomously even as emitting focused UV-C light onto pre-described infectious hotspots in affected person rooms and different health center environments, as a consequence disinfecting and killing bacteria and viruses on all exposed surfaces. The robotic is designed as a supplement to the existing cleaning cycle with the intention of reducing the spread of hospital-acquired infections (HAIs), infectious illnesses, viruses, microorganisms, and other kinds of harmful organic microorganisms.

The robot can drive autonomously while emitting concentrated UV-C light onto pre-defined infectious hotspots inpatient rooms and other hospital environments, thus disinfecting and killing bacteria and viruses on all exposed surfaces.

The robot is designed to ensure a cost-efficient and reliable measure and removal of the overall level of bacteria and viruses, and thereby increasing the operation time of the hospital, limiting the number of patient complaints and securing high-quality service, better patient experience, and higher success rate. The UVC disinfection robot can also be used in manufacturing production lines where a high level of compliance in disinfection is required.

Why am I building this?

The novel coronavirus is rapidly spreading from human to human and surface objects (microorganism) to humans. In humans, there is a high probability of infection from the surface (object virus) to humans. Which is why our healthcare workers are getting infected. To prevent this spreading chain, we have to disinfect all the infected areas around us. That area is prone to any type of bacteria or viruses. So that our medical service provider can stay safe and do their work.

When we realize this big problem, an idea has come up that we have to make a disinfection robot and that could disinfect all the areas through it. There are two ways to disinfect the surface, one is a chemical process and the other is UVC light. We are building a robot that can disinfect hospitals, colleges, public transport, etc. through UV light. The name of this robot is VEER || UV robot. According to the WHO, we can avoid this epidemic if we break the chain of transmission of corona from one to the other. Through advanced technology, Veer is able to break this chain quickly.

Why UVC?

Using only Ultraviolet C (UVC), instantly kill 99.99% germs, bacteria, viruses, and superbugs on any exposed surface. The process is fast, affordable, safe, and highly effective. It has scientifically-proven UVC( used in hospitals). It works on plastics, metal leather, and fabrics. The proven is 99% germs-kill in 3 minutes. UVC is an environmentally friendly, nontoxic, nonallergenic.

How it Works?

It works in two ways, first it makes use of UVC to kill the germ, Bacteria, and Viruses. At the same time, it also has a spray machine in addition which produces disinfectant gas from inside the inner disinfection system, for sterilizing targeted areas. it unexpectedly disinfects the robotic spray device in indoor spray locations. that enhances the coverage and uniformity of disinfection. Disinfecting robots can automatically, efficiently, and accurately disinfect and prevent indoor pandemics on the prescribed course.

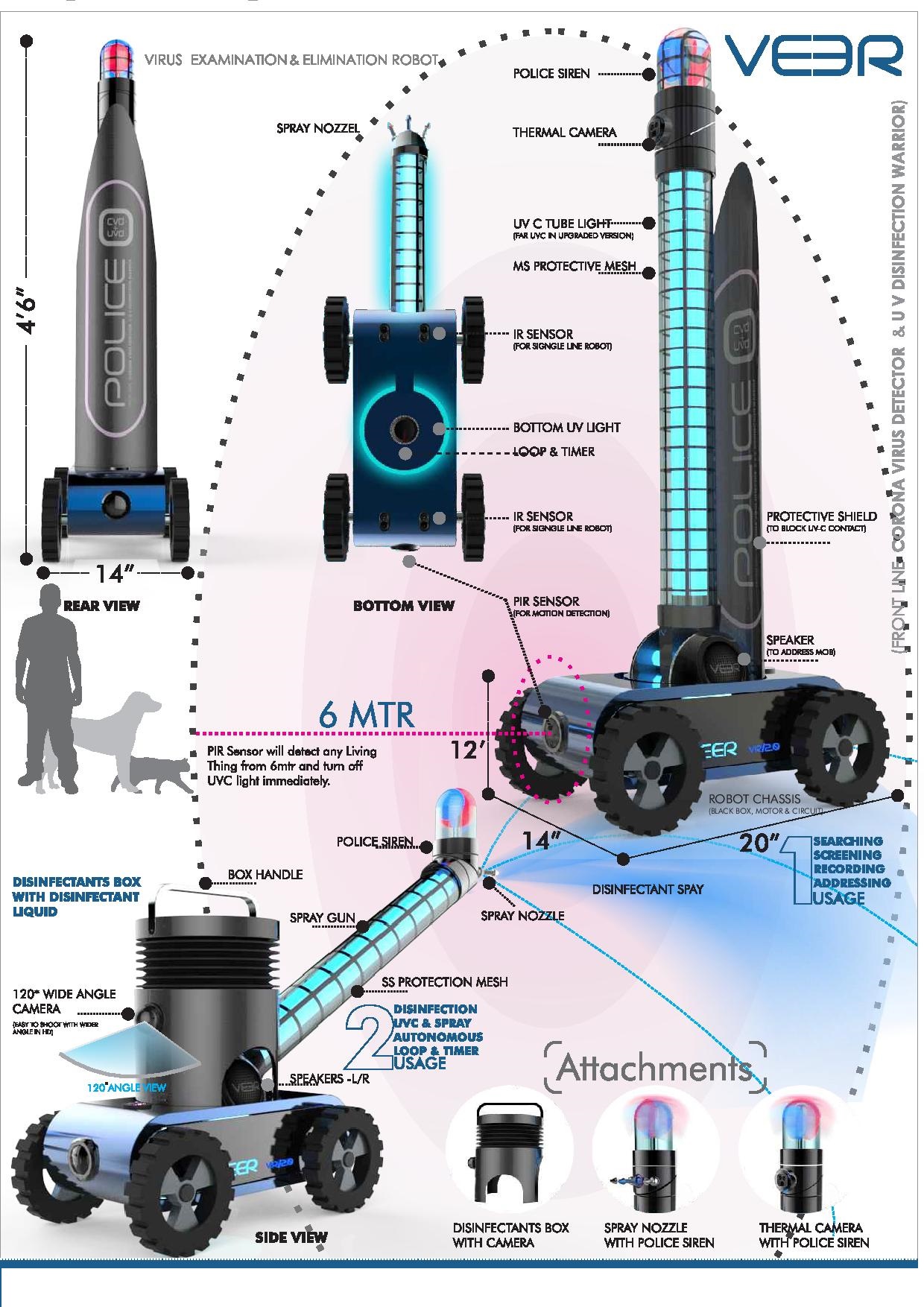

Veer | UV Robot’s Features:

UltraViolet Light

Ultraviolet (UV) light is a component of the electromagnetic spectrum that falls in the region between visible light and X-Rays. This invisible radiation consists of a wavelength range of 100 nm to 400 nm. UV light can be divided and labeled into four different areas:

100 nm to 200 nm Far UV or Vacuum UV - These wavelengths only propagate in a vacuum 200 nm to 280 nm UVC - Useful for disinfection and sensing 280 nm to 315 nm UVB - useful for curing, tanning and medical applications

315 nm to 400 nm UVA or near UV - useful for printing, curing, lithography, sensing and medical applications.

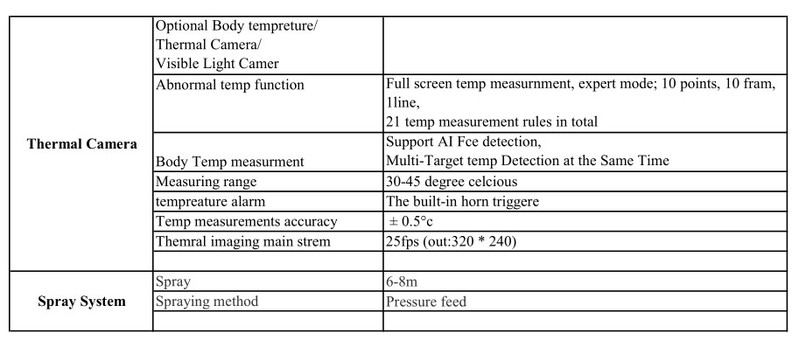

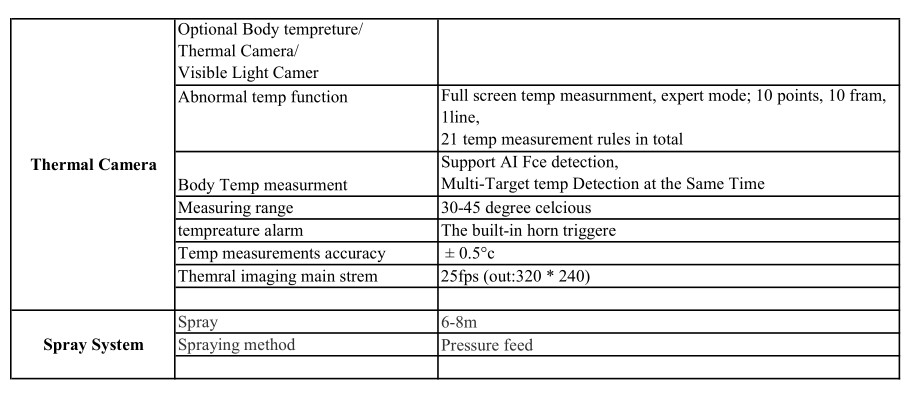

AI-enabled thermal camera for body temperature measurement and screening system

It is capable of long-distance, and quickly screening. The temperature measurement accuracy is ≤0.3℃. It works in real-time thermal imaging, multi-target automatic temperature measurement. It supports automatic calibration of body and surface temperature to make temp measurement more accurate. Simultaneous temperature display of visible and infrared thermal imaging.

Human detection and Obstacle avoiding PIR Sensor:

PIR (Passive IR Sensor) is made of a pyroelectric sensor, which is able to detect different levels of infrared radiation. For example, Everything emits varied level radiation and the level of radiation will increase with the increase of the object’s temperature. The range of PIR Sensor: Indoor PIR: Detection distance range from 25 centimeters to 20 meters. Outdoor PIR: Detection distance range from 10 meters to 150 meters.

Normal Surveillance Camera to record Videos & Click Photographs

The camera has a switchable IR-cut filter, so it can capture detailed images even in the daylight, night vision or candlelight. The image below shows the photos of a candle with and without an IR-cut filter. With optional IR LEDs that are shipped with the camera, it is even possible to get perfect B/W images in total darkness.

In built Mic and Amplified small Speakers.

Infrared Senors to Single line Robot Task

This is the simplest bot with a single sensor so its working principle is also as simple as follows.. when the IR sensor sees the black line one wheel of the bot rotates and the bot turns away from the line. When the IR sensors sees the white background the other wheel rotates and the bot turns slightly towards the line.

UVC tube light to disinfect area (Nos: 6, 252 Hrtz, 65 Watts Each) UVC lights are UV germicidal bulbs that emit very short ultraviolet wavelengths from 100 to 280 nanometers that damages the DNA of bacteria, viruses, and other pathogens. Note: Can be easily upgraded for FAR UV light which Safe for Humans “Far-UVC light has a very limited range and cannot penetrate through the outer dead-cell layer of human skin or the tear layer in the eye, so it’s not a human health hazard. But because viruses and bacteria are much smaller than human cells, far-UVC light can reach their DNA and kill them.” “And unlike flu vaccines, far-UVC is likely to be effective against all airborne microbes, even newly emerging strains,” said professor David J. Brenner - Columbia University.

Police Siren to control crowed and warning for notorious element

In built Mic in Remote for announcement and can be used addressing Public

Save & Protect Workers from close contact This robot will work in place of our health worker and monitor every single person. If someone in a group has corona symptoms like increased body temperature, then the robot will detect them, and alert officers. Besides it will completely disinfect the target area so that our corona warriors will be fully protected and corona will not be spread in between health workers.

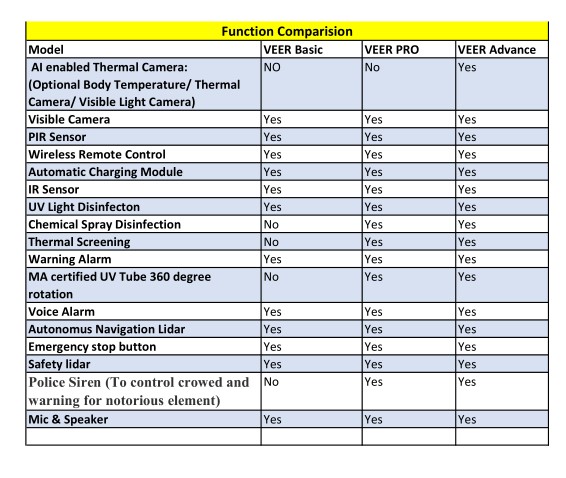

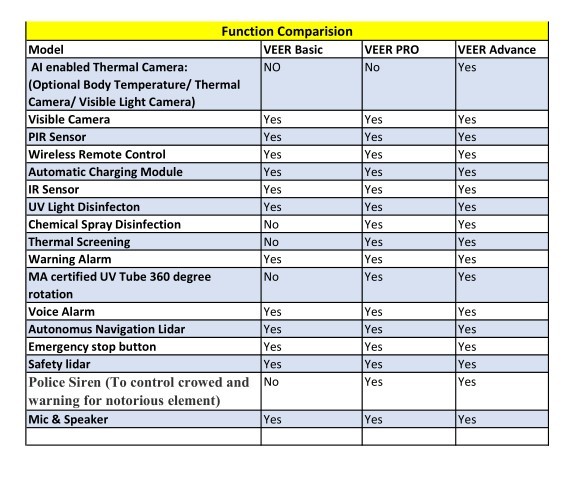

VEER Functions

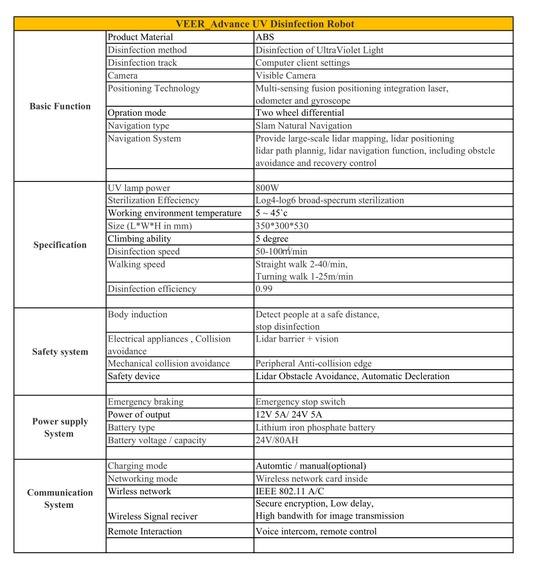

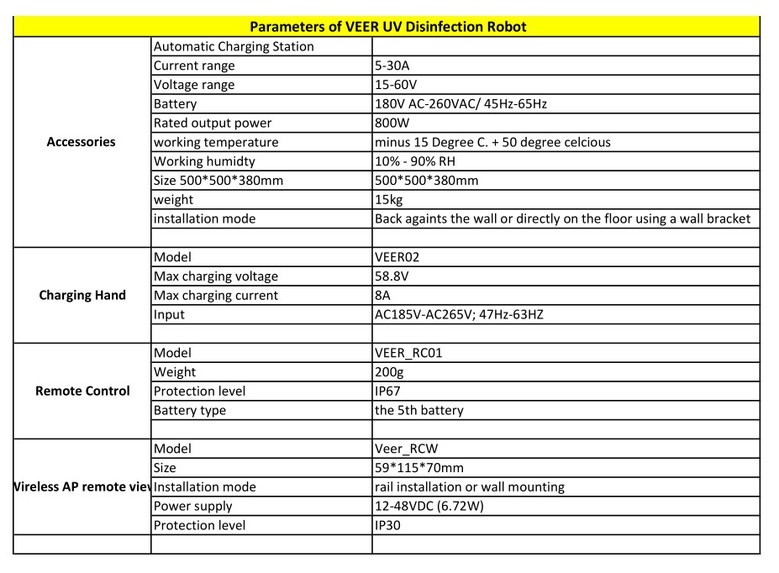

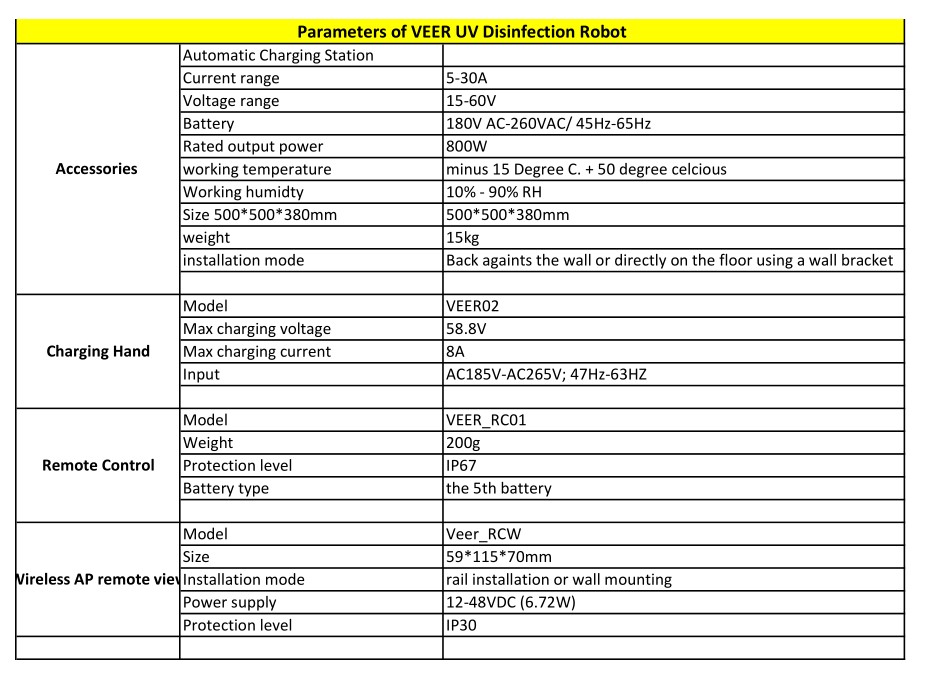

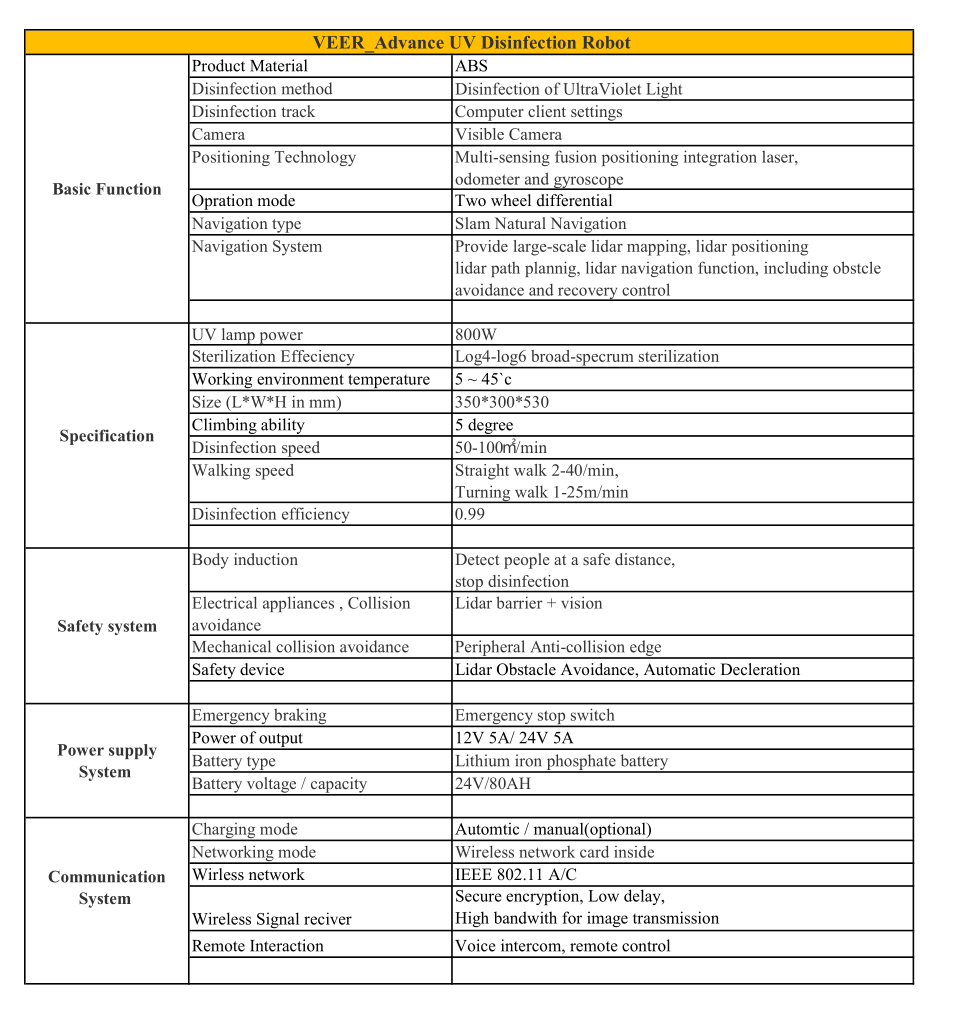

UVC Lamp Autonomous laser navigation Spray tank Liquid storage tank Thermal Camera Camera Efficient disinfection: It can cover 10000 m2 disinfection space. Durable Endurance: High capacity lithium battery, working time upto 8 hours.

Safe and Reliable:

Infrared sensor with obstacle avoidance, automatic declaration, emergency stop button, Ultrasonic anti-collision to prevent special circumstances.

Automatic Planning:

Preset disinfection function through mobile and remote. Disinfection robots will automatically plan disinfection paths. Application Scenario: It is suitable for the disinfection of public places in small and medium-size offices. Scene: Airport, high-speed rail, subway, hospital, school, supermarket, hotel, office building, Bank, Library, gym, etc.

360 degree view of robot prototype
