Decription

A simple ussd application used to allow the exchange of information between authorities and local communities and how they can protect their livestock and crops while coexisting together with wildlife. USSD application will be able to work on any and all phones without the need of an internet connection.

The application involves the use of Africa's Talking which is a Kenya-based mobile solutions firm integrating reliable two-way SMS, voice, and USSD functionality across mobile providers in Africa. The application will involve the usage of the online USSD emulator offered for free by Africa's Talking. The project involved writing the USSD application's interface using PHP. The aim of the project was to provide a way in which people from rural areas and do not have access to the internet or have smartphones can gain access to information that can help them protect their livestock and crops without also harming the animals. The application will be used by local community members as well as the authorities. The application will enable local community member to find well know practices and tips that can aid with protecting their livestock and crops while being mindful of the existing wildlife. The application will also alert users on any threats or problems they may face from wildlife. The application will also have a way in which local members can quickly report illegal wildlife activities and wildlife sightings and get a call from the authorities regarding the report which will for quicker response times from authorities. The final feature is to allow the users to share their own opinions or feedback on things that have done that have worked for them and those that didnt.

Tools used in this project

  • XAMPP - xampp was used as way to create a database and view the php file.
  • Ngrok - is a secure introspectable tunnel to localhosts. In order to use the Africa's talking ussd emulator it is required that the php file be available online. Ngrok allows your local scripts and sites to be accssible as if their online.
  • Africa's Talking - you need to create an account in order to be able to use the USSD emulator. Ngrok can be found at https://ngrok.com. Documentation regarding the usage of Africa's Talking can be found in their website. https://africastalking.com/

What to do

  • Assuming that you have installed and used XAMPP, Ngrok and everything works as intended then the next step is to create an account in the Africa's Talking website.
  • After creating an account open the sandbox app.
  • Go to the USSD tab.
  • Go to Create Channel.
  • The default "Pick a shared Service Code" option is *384# by default and cannot be changed for a free acoount.
    • The Channel will be the number code one has to dial in order to use the app e.g. *384*56721#, the number 56721 is the channel number.
    • Callback URL is the url link to your php script which will be used to provide the user with the USSD interface and options. Should you have used XAMPP and Ngrok your Callcak URL will be something like http://533ab178.ngrok.io/interface.php/.
    • Create the channel.
    • After creating your channel you can now launch the simulator.
    • Choose your country and enter your phone number.

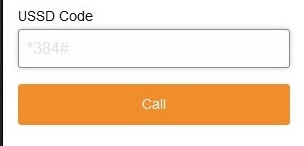

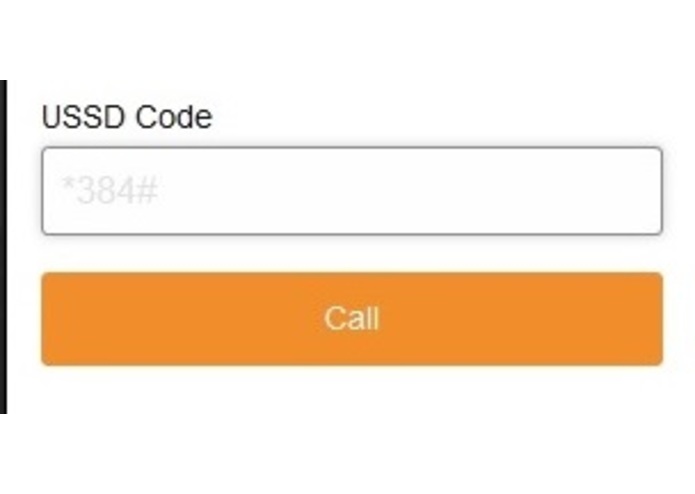

    • Choose the USSD option and enter the USSD code from ealier.
    • Test your Application. Note: Should you get an error please wait a 1-2 minutes for your scripts to load.

Problems Faced

One problem that we faced with using XAMPP and localhosts was that we were not able to connect to our local database using the Ngrok method hence it would be best to use a web host
