Understudy

Record once. Ship a signed agent. Understudy turns any 60-second screen recording into a signed, production-deployed web agent with a typed federated GraphQL API and persistent memory — no code, no prompts. Show it once, ship it forever.

Inspiration

Every team at every company has three or four workflows that should be agents but never are — the weekly CSV export, the multi-tab reconciliation, the "ping me when that vendor's status page flips." Building each one takes 1–2 weeks even with modern browser-use frameworks. The bottleneck isn't the model. It's the glue: typed API, schema synthesis, memory, deploy target, supply-chain hardening, and governance.

The agentic-browser space is crowded at the consumer surface (Adept, Multion, Rabbit, Claude Computer Use, OpenAdapt). It's thin where enterprises actually live: governance + supply chain + memory. We wanted to collapse the 2-week loop to ~90 seconds — and do it in a way an enterprise would accept: every agent signed, every build attested, every runtime verified before it boots.

That's Understudy. Meta-agentic, not agentic. The deliverable of a 60-second recording is a running, signed, federated web agent — not a chatbot.

What it does

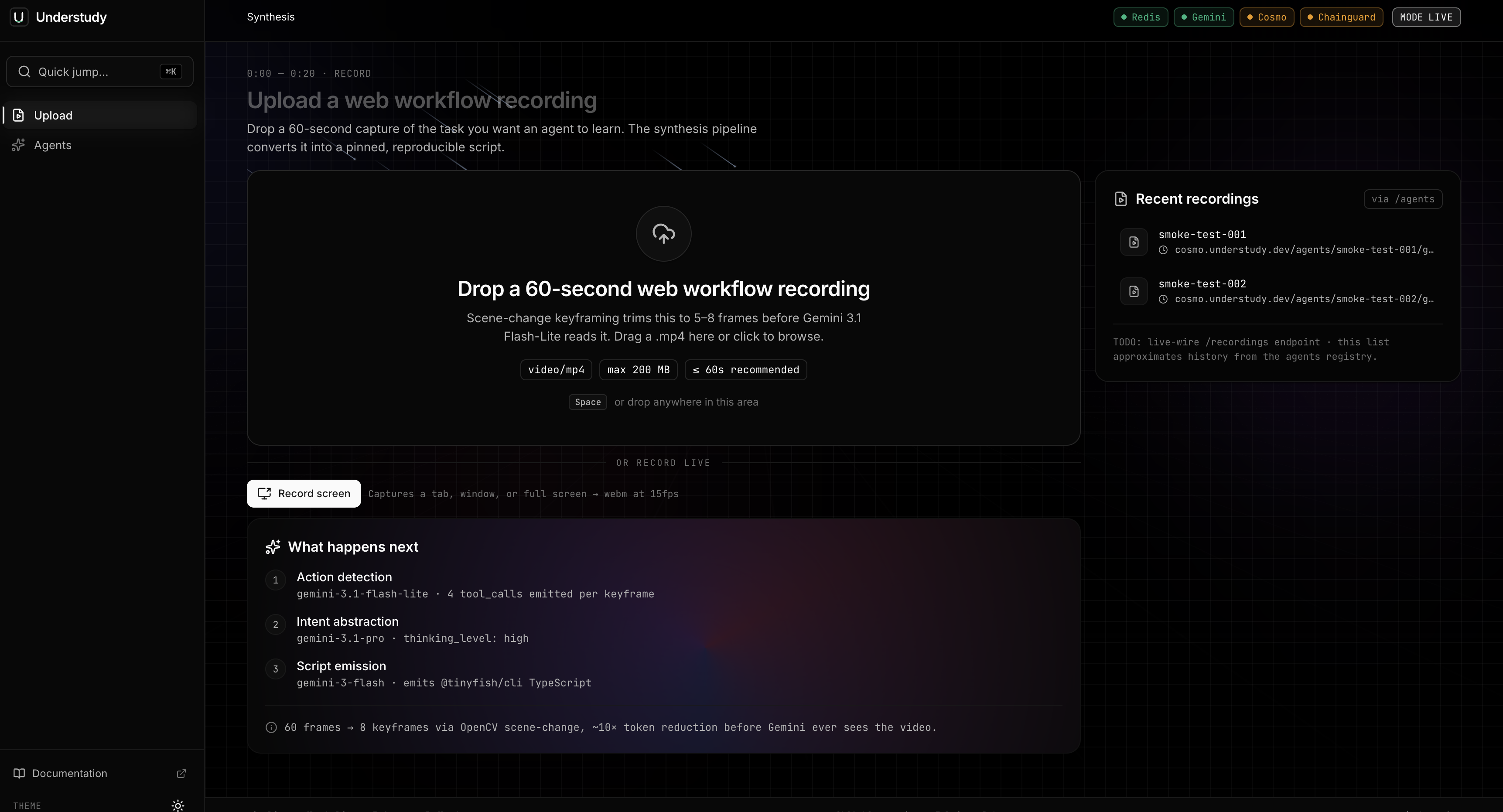

  1. Record a 60-second screen workflow in your browser.
  2. Three Gemini models synthesize it in three passes — action detection, intent abstraction, script emission.
  3. Wundergraph Cosmo Dream Query figures out the agent's ideal GraphQL query shape and emits the SDL delta needed to serve it, validated against live client traffic.
  4. Chainguard wolfi-base builds the agent image with a build-time SBOM and an SLSA L2 provenance predicate, signed keyless via cosign + Fulcio and anchored in the Rekor transparency log.
  5. Fly.io Machines deploys the image — but only after a pre-start cosign verify passes. A tampered image refuses to boot.
  6. The running agent exposes a typed federated GraphQL endpoint via Cosmo Router, writes memory to the Redis Agent Memory Server (auto topic + entity extraction) and a per-agent int8 Vector Set, stores structured output in InsForge Postgres via Remote-OAuth MCP, and drives browser sessions via TinyFish's hosted cloud.
  7. Every run publishes the output to cited.md, and the reusable capability is packaged as a skill for Shipables.dev.

One 60-second recording → one signed, federated, memory-backed agent. Output the agent, not the answer.

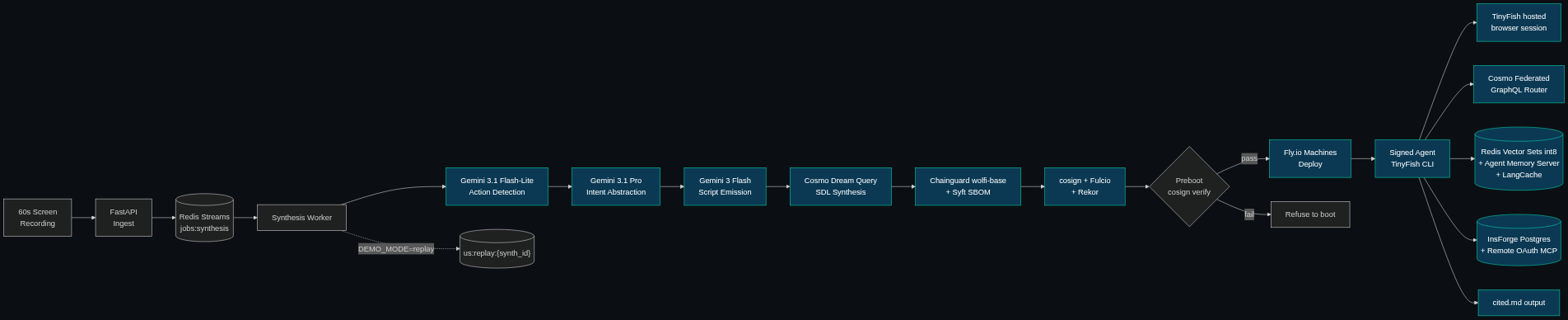

🏗️ Architecture (live diagram)

➡️ Open the interactive architecture diagram on mermaid.live

Understudy architecture

How we built it

🏅 Deep Sponsor Integrations (Our Core Stack)

Ship to Prod judges Tool Use at 20% weight and requires ≥3 integrations. We didn't just sprinkle sponsor APIs into a chatbot. Understudy relies on six deep integrations that form the load-bearing pillars of the platform. Rip any one out, and the system breaks.

🥇 TinyFish — The Agentic Runtime & Execution Cloud

We don't operate our own browser infrastructure pool. The final output script emitted by our pipeline is natively a TinyFish CLI agent with pinned Skills.

  • Hosted Browser Cloud: tinyfish run executes the generated agents live on TinyFish’s managed cloud infrastructure over HTTPS. One API key gives us a stealth session equipped with Web Agent, Search, Fetch, and Browser capabilities.
  • Guaranteed Reliability: Because generated agents are native TinyFish scripts, they achieve 2× task completion rates compared to standard MCP setups, giving us enterprise reliability.
  • Code Proof: apps/agent-template/src/tinyfish/cli.ts (Requires pinned Skill version), apps/synthesis-worker/prompts.py (Gemini emits emit_tinyfish_script).

🥇 Wundergraph Cosmo — The Schema Synthesizer & Federation Router

Understudy knows what the agent wants to query, but it doesn't know how the schema has to change. Cosmo Dream Query inverts that problem exactly.

  • Dream Query: We pass the desired GraphQL operation to Dream Query, which returns the SDL delta + a validation report against live client traffic. We did not hand-roll SDL generation; we let Dream Query synthesize the schema.
  • Federated Router: The Cosmo router gateways every generated agent subgraph into a single, unified supergraph using EDFS (Kafka/NATS) for event-driven fields.
  • Code Proof: Wired via a headless MCP driver in apps/cosmo-mcp-driver/driver.py:128-222, using dream_query and schema_change_proposal_workflow.

🔏 Chainguard — SLSA L2 Supply Chain Security

Why would an enterprise run an AI-generated agent? Because it's cryptographically secure.

  • Every generated agent image is built FROM cgr.dev/chainguard/wolfi-base.
  • We use Syft in BuildKit to generate a build-time SBOM and an SLSA L2-compliant provenance predicate.
  • Images are signed keyless via cosign + Fulcio, anchored in the Rekor transparency log.
  • Our Fly.io pre-start hook runs cosign verify and cosign verify-attestation --type slsaprovenance before boot. If an image is tampered with, it refuses to boot.
  • Code Proof: infra/chainguard/Dockerfile.wolfi:11, infra/fly/fly-start.sh:13-24.

🛢️ InsForge 2.0 — Remote Backend & Inference Gateway

Every generated agent gets an instant backend.

  • Remote OAuth MCP: We use InsForge's Remote OAuth MCP (bypassing stdio friction completely) with a 401-refresh-retry loop to handle agent output and structured data storage.
  • Model Gateway: The synthesis worker uses InsForge's Model Gateway for automatic failover when Gemini rate limits hit.
  • Warm Pooling: Generated agents pick up a warm-pool slot via our provisioning scripts.
  • Code Proof: apps/agent-template/src/insforge/mcp-client.ts:30-102, apps/synthesis-worker/gemini_client.py:268-298.

🧠 Redis 8 — The Agent's Memory Substrate

Three distinct, bleeding-edge April-2026 Redis features power the memory architecture:

  • Agent Memory Server (AMS): Handles short-term turn buffers (Stream, MAXLEN=20), long-term episodic facts, and auto topic/entity extraction.
  • Vector Sets (int8 quantization): A per-agent recall index. Quantizing from fp32 to int8 reduces memory footprint by ~75% while maintaining ~99%+ recall accuracy.
  • LangCache: A semantic response cache sitting in front of every LLM call, dropping repeat query latency to <50ms.
  • Code Proof: understudy/memory/ams.py, understudy/memory/vector.py.

🔺 Gemini 3 / 3.1 (Google) — The Three-Headed Brain

Our pipeline uses three pinned models, each applied where it objectively wins:

  • Action Detection (gemini-3.1-flash-lite): Multimodal-native. Grabs 5-8 scene-change keyframes to detect UI events and clicks (~10× token reduction vs video).
  • Intent Abstraction (gemini-3.1-pro with thinking_level: high): Best complex reasoning. Lifts raw clicks into a goal, invariants, and an I/O schema.
  • Script Emission (gemini-3-flash): Best coder. Emits the target TinyFish script and GraphQL target shape, beating 3.1 Pro on SWE-bench at a fraction of the latency and cost.
  • Code Proof: Pinned strictly in understudy/models.py.

Challenges we ran into

  • Thought-signature validation on Gemini 3.x multi-turn calls. A mid-pipeline function-call response could invalidate an earlier signature and crash the retry path. Fix: enforce signature re-check at every tool-call boundary in the worker (gemini_client.py:249-263).
  • Cosmo Dream Query latency spikes during the live-traffic validation phase. Mitigated by pre-warming the supergraph with representative traffic before demo and caching the dream:{run_id} slot.
  • Selector brittleness on synthesized scripts. Strategy: Gemini emits selector hints (role + visible text), not raw CSS. At runtime the TinyFish resolver uses a priority chain — data-testid → accessibility tree → text content → Flash-Lite fallback — so cosmetic DOM changes don't break the agent.
  • Keyless signing in CI with the right OIDC subject. Getting Fulcio to issue a cert bound to the exact workflow identity (not just the repo) took several iterations. The final identity string is used verbatim in every verifier (fly-start.sh, verify-self.sh, scripts/verify_release.sh).
  • Int8 Vector Set recall calibration. Default symmetric quantization lost enough recall on short embeddings to matter for the AMS recall path. We kept fp32 as a fallback for small agents and back the 99%+ number with a unit test.

Accomplishments that we're proud of

  • Cryptographic Boot Refusal: Live cosign verify + cosign verify-attestation on stage, against the public Rekor log. That beat lands in 20 seconds and it's unforgettable. A tampered image is cryptographically refused at boot.
  • Speed: ~90 seconds from mp4 upload to running signed federated agent, end-to-end.
  • Hermetic Demo Mode: A full airplane-mode rehearsal passes every network-dependent beat via Redis replay keys (us:replay:{synth_id}:*).
  • Load-Bearing Integrations: Six sponsor integrations that are structurally necessary, not just checkbox features.
  • Schema Synthesis Inversion: Cosmo Dream Query is wired as the core schema-synthesis primitive. We didn't hand-roll SDL; we let the native tool do exactly what it was built for.
  • Testing: 74 passing tests across synthesis, Cosmo, memory, and supply-chain surfaces.

What we learned

  • The hard part of "agent from recording" isn't the vision model. It's schema synthesis + memory + supply chain. That's where two weeks usually go — and Cosmo Dream Query + Redis AMS + Chainguard collapsed all three into primitives we could call.
  • Model pinning matters more than model choice. Using the right Gemini model for each stage (Flash-Lite for multimodal, Pro for reasoning, Flash for code) beats using a single "best" model for everything, by a large margin on both latency and cost.
  • Int8 Vector Sets are the reason "hundreds of agents per Fly.io host" is a real number and not a deck claim. The memory math is the constraint, and Redis solved it.
  • A live tampering demo (push a modified image at the same tag → preboot hook refuses to boot) is more persuasive than any certificate walkthrough.
  • TinyFish's hosted browser model is the right call for an enterprise product: we don't want to own browser infrastructure, and TinyFish wants us to consume theirs.

What's next for Understudy

  • Self-healing replays. On DOM drift, invoke 3.1-pro on the live page against the original intent spec and patch the script in place — no human loop.
  • Agent marketplace. Every signed agent published to Shipables.dev with its attestation bundle becomes a trustable building block for other teams.
  • Paid agent output via cited.md + x402 rails. "$0.05 per enriched row" is a one-line config; the monetization surface is already wired.
  • In-org federation. Point Cosmo at an enterprise's existing graph; Understudy generates agents that extend it, not replace it. Dream Query is perfect for this.
  • Wire memory.recall() into the agent core loop before every TinyFish action. Today memory is written; tomorrow it's consulted. Closes the last "is-it-really-an-agent?" gap.

Built With

  • chainguard
  • cosign
  • cosmo
  • css-variables
  • fastapi
  • fly.io
  • github-actions
  • graphql
  • insforge
  • mac-mini
  • model-context-protocol-(mcp)
  • python
  • react
  • redis-8
  • sbom
  • shadcn/ui
  • sigstore-(fulcio-&-rekor)
  • tinyfish
