Understory

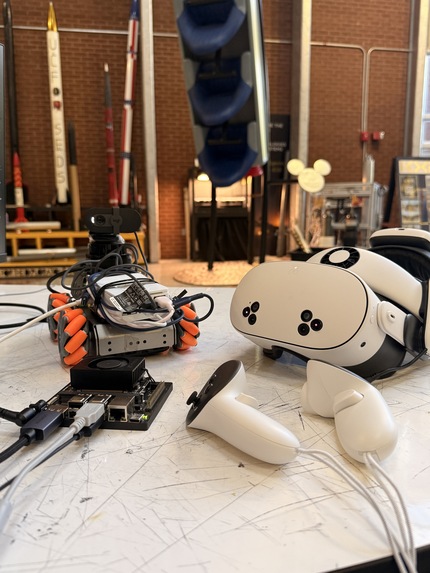

Look at our set up
Utilize the Meta Quest to control the robot

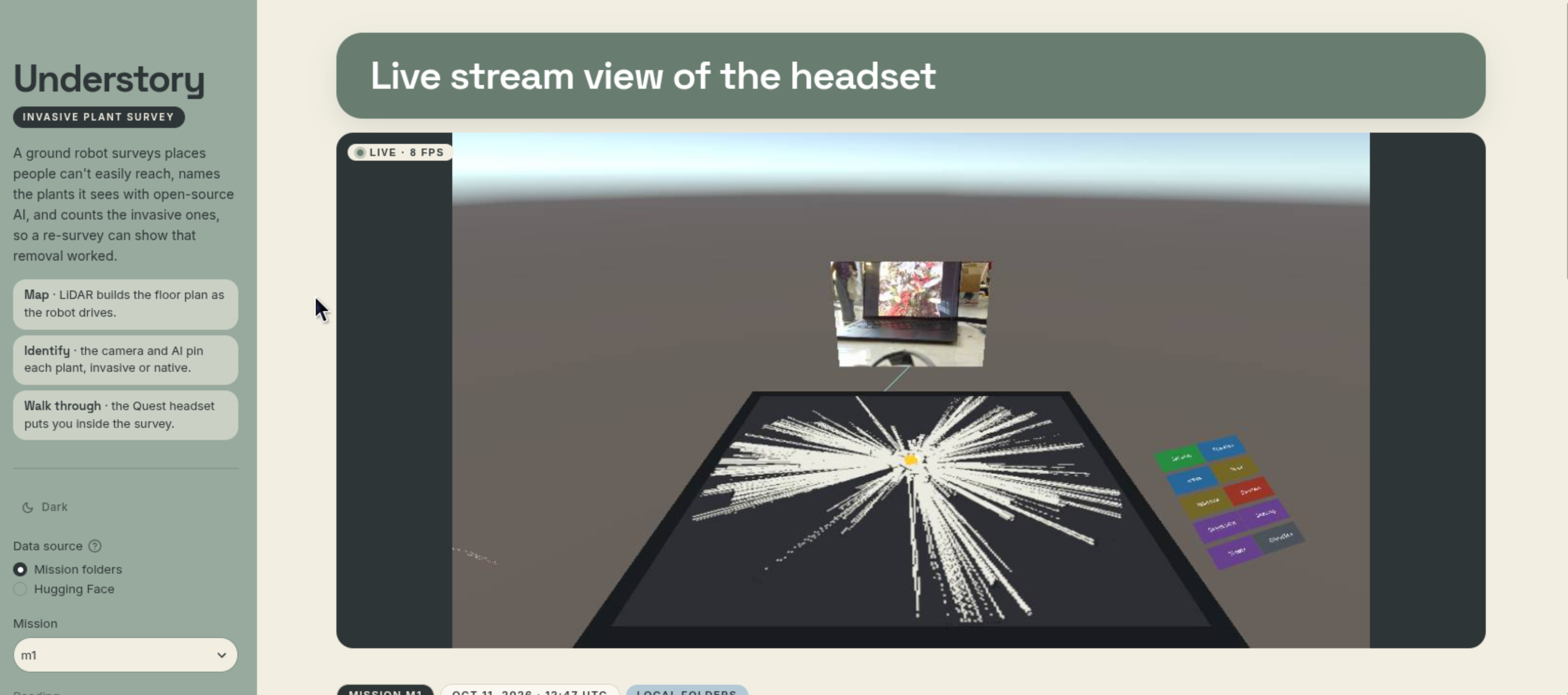

Dashboard and look from the Meta Quest

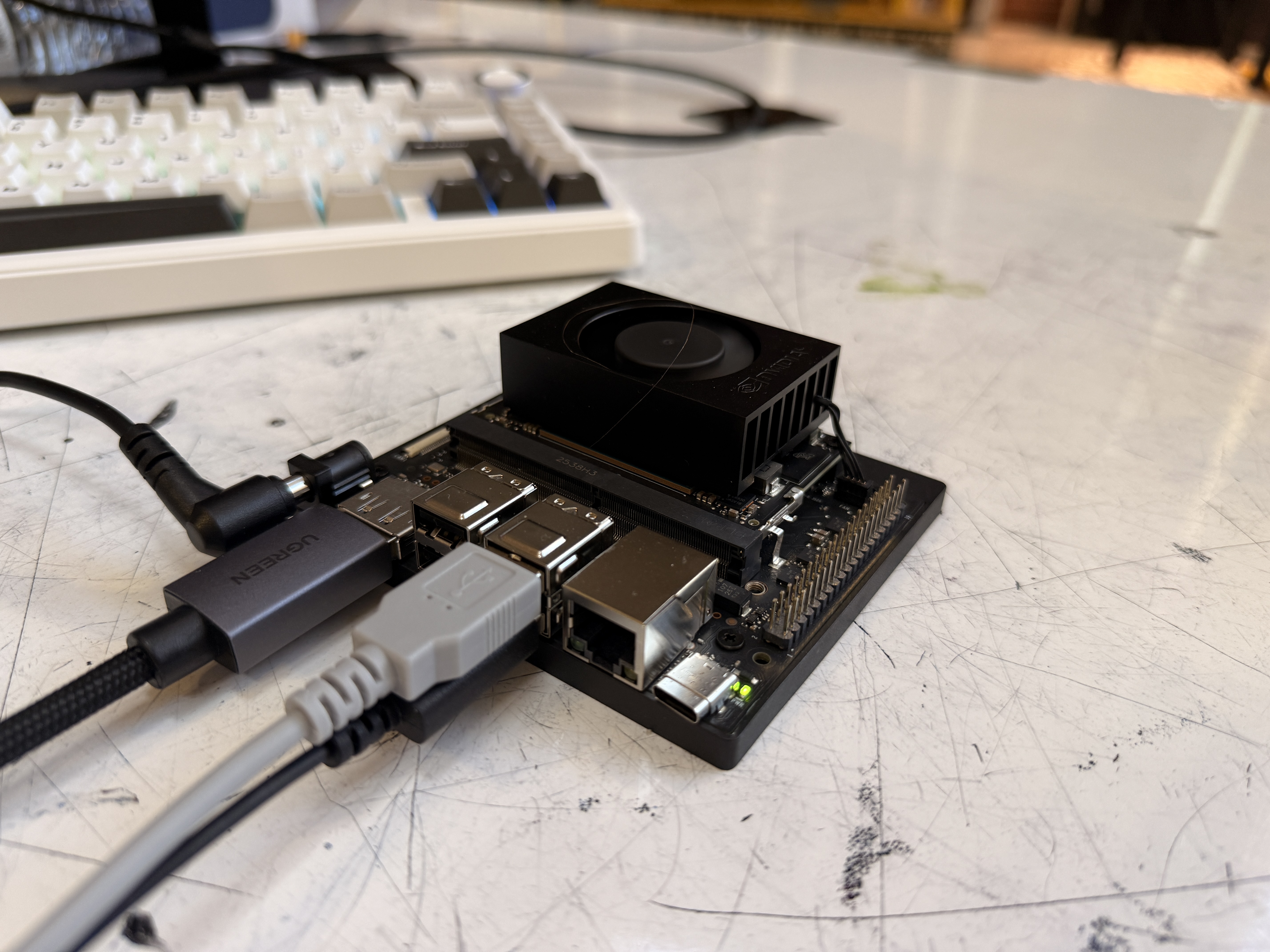

Powered by the Jetson-Nano

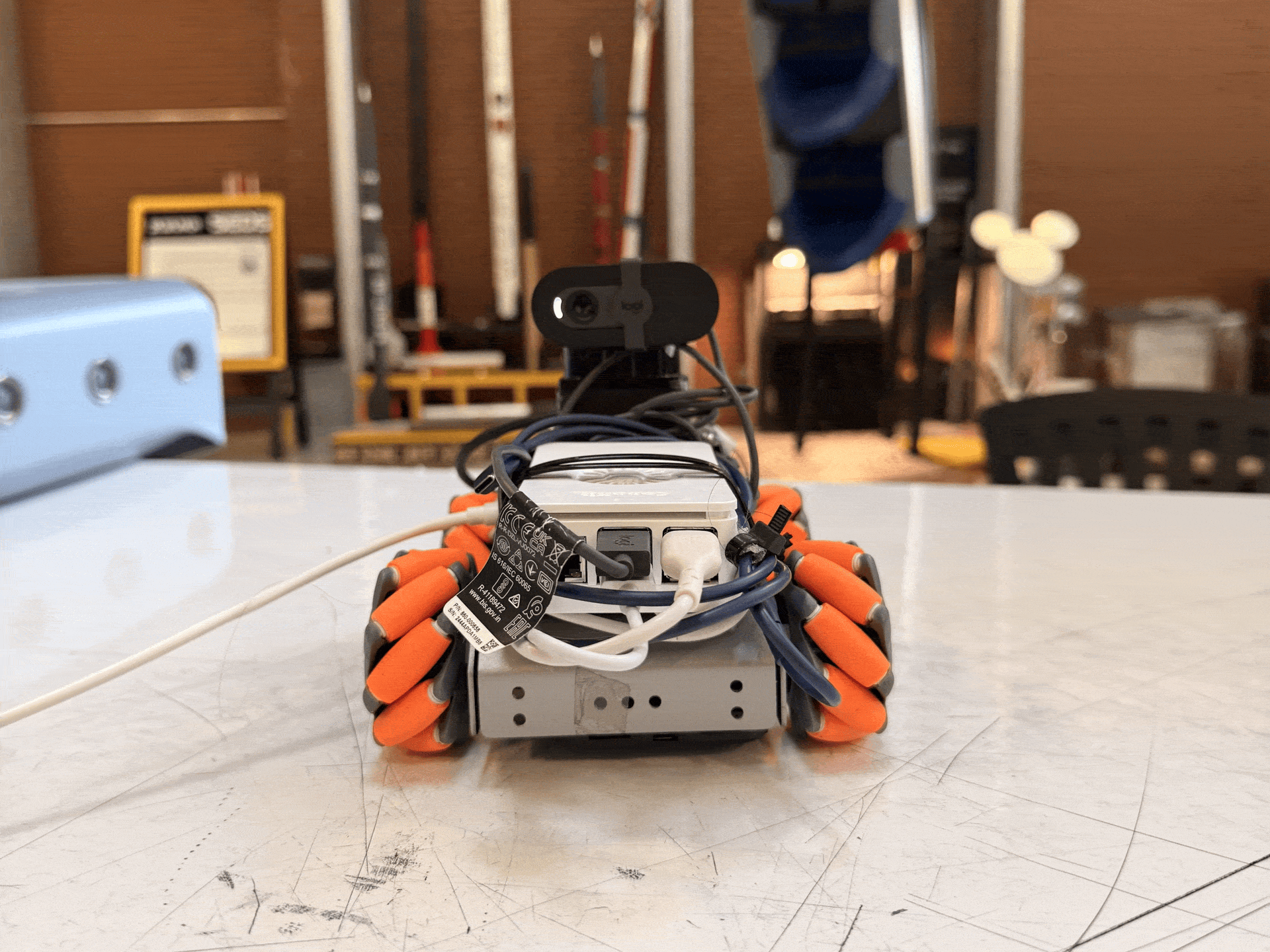

Understory demo

Inspiration

Central Florida's conservation land is being overrun by invasive plants such as Brazilian pepper, air potato, and cogongrass.
Crews remove them by hand, but checking whether a removal worked means scouting the land through thick brush, heat, and mud, so most of it is never re-surveyed.
Our goal: a robot that drives through a habitat, maps it, identifies the plants with on-device AI, and turns the survey into a place you can walk through in VR.
Understory is named after the layer of a forest below the canopy, where these plants spread and where people rarely look.

What it does

Maps as it drives: a 2D lidar builds a floor plan live with SLAM, and the robot plans its own survey points on that map.
Captures 360° "bubbles": at each survey point the robot spins in place, stopping every 30° to take 12 photos, each tagged with its heading.
Finds and names plants: an open-vocabulary detector finds plant-like objects, and a biology model names the species and flags it as invasive or native.
Pins each plant on the map: the plant's position in the image plus the lidar range in that direction places it on the floor plan, with a cropped photo saved for each pin.
VR walkthrough: a Meta Quest app shows a tabletop miniature of the map with the robot, bubbles, and pins. Pick a bubble and you are standing inside it, with the plants marked around you.
Before and after: survey once, remove the invasives, survey again, and the app shows which plants are gone and which remain ("7 invasive → 1 remaining").
Voice commands: hold a button on the Quest controller and say "start survey", "take a picture", or "come back home". Speech is transcribed on the robot's own network.
Manual driving: the Quest thumbsticks drive and strafe the robot, and one button is an emergency stop that overrides everything else.
Web dashboard: a live lidar view of the robot and the saved map with its pins, open to any laptop on the robot's network.
Mission logging: every mission is saved to a folder (bubbles, pins, photos, map) that the dashboard and cloud steps read.
Works offline: every model in the live demo runs on our own hardware.

How we built it

Compute: Raspberry Pi 5 on the robot (lidar, camera, mapping, navigation); NVIDIA Jetson Orin Nano at the table (AI and dashboard); ESP32 for motor control
Sensing: Slamtec RPLIDAR C1 and a Logitech Brio 101 camera
Motion: mecanum chassis powered by 6× AA cells (7.2 V)
Perception: OWL-ViT for detection, BioCLIP for species ID, Whisper for speech, and OpenCV for panorama stitching, all through PyTorch and Hugging Face Transformers
Acceleration: NanoOWL-style TensorRT engine on the Jetson for detection
Robotics: ROS 2 Jazzy in Docker with slam_toolbox, Nav2, twist_mux, and our own mission manager and survey planner
VR: Unity 6 with the Meta XR SDK and OpenXR on a Meta Quest, talking to ROS through ROS-TCP-Connector
Dashboard: Streamlit, with a WebSocket relay for the live lidar and headset view
Data: mission folders handed off through a private Hugging Face dataset
3D reconstruction: MASt3R and gsplat on an AMD Radeon PRO W7900, with Depth Anything V2 as a fallback
Tooling: Foxglove for debugging; pytest for the geometry, voice, and mission logic

Technical details

Two-stage plant ID
- OWL-ViT only answers "is this a plant?" using general prompts like "a plant" or "a leaf".
- Each box is cropped from the exact frame it came from and passed to BioCLIP, which picks from a fixed list of five species by scientific name.
- The list also contains non-plants (a wall, a hand, a laptop). If one of those wins, the crop is dropped instead of being forced into a species.
Rejecting things that are not our plants
- The list also holds 20 other living things by scientific name (people, pets, house plants). If one of those wins, the crop is dropped.
TensorRT on the Jetson
- The detector runs as a TensorRT engine: 19 ms per frame vs. 62 ms in PyTorch, enough to keep up with the camera at 15 frames per second.
Putting a plant on the map
- The box's horizontal position becomes an angle using the camera's field of view; added to the robot's heading, that gives a direction in the map.
- The lidar range in that direction gives the distance.
- Sightings of the same species within 0.5 m merge into one pin, and a pin is only published after 3 sightings.
360° bubbles
- The mission manager rotates the robot in 30° steps using the SLAM heading, waits for it to settle, and asks for a frame.
- The 12 frames are sent to the headset as a ring of curved panels at their recorded headings, so the bubble works even when stitching fails.
- A stitched panorama follows as an extra when OpenCV can build one.
Who controls the wheels
- Three sources can send drive commands, and twist_mux picks one by priority: e-stop, then Quest thumbsticks, then autonomy.
- The ESP32 stops the motors if it hears nothing for 300 ms.
Built against fake data first
- We agreed on topic names and JSON shapes on Friday night and wrote them down in one file.
- Every part was built against a fake mission generator and a mock ROS endpoint, so the Quest app, navigation, and perception could each be tested without the robot.

Challenges we ran into

Heat: running both models on the Pi 5 pushed it to 83 °C in five minutes and throttled the CPU, so the AI moved to the Jetson.
Speed: OWL-ViT takes about 3 seconds per frame on the Pi's CPU, so the detector drops frames and the species step matches each box to its original frame by timestamp.
Lookalike plants: in photos, cogongrass looks like grass and wild coffee looks like leaves. Both scored so low that we dropped the detector threshold to 0.05 and relied on BioCLIP to reject the junk.
False positives: a ceiling decoration was confidently named cogongrass until we added the "not a plant" list.
Faces and decorations: the first live pins were a face named Brazilian pepper and an artificial flower garland named air potato. Adding other species by scientific name fixed it.
Pi power and clock: the Pi rebooted several times and has no clock battery; it once came back almost six hours slow, which breaks ROS transforms between machines.
USB power: on a power bank the Pi 5 limits its USB ports, so the lidar kept dropping out with over-current errors until we raised the limit in the bootloader.
Hotspot: on 2.4 GHz the phone hotspot could not carry the camera stream. Moving to 5 GHz took ping from over a second to 5 ms.
Two of everything: more than once both computers started mapping at the same time, with two mission managers driving the same wheels, until we added a check to the start scripts.
Motor shield: loose I2C wiring made the wheels keep turning after a stop, so the firmware now re-sends stop while idle and recovers the bus.
Humble vs. Jazzy: our navigation code was written for ROS 2 Humble. On Jazzy, slam_toolbox needs lifecycle activation, twist_mux expects a different message type, and Nav2 plugin names changed.
Panoramas with no start angle: OpenCV's stitcher crops its output, so the headset couldn't place pins on it. We switched to always sending the 12 raw frames with their headings.
Boxes off the frame: our detector scaled box heights by the image width, so boxes ran off the bottom of the picture.
Quest build: the first headset build took 13 minutes, and a shader that worked in the editor failed on Android.

Accomplishments that we're proud of

A full chain from camera frame to named, mapped plant, built only from open-source models and running offline
Detection at camera speed (15 frames per second) on an 8 GB Jetson, alongside the species model
A VR view where you can stand inside a spot the robot photographed and see what it found there
A before/after comparison that turns two surveys into one number
Two computers, a headset, and a microcontroller sharing one map over a phone hotspot
Four people building in parallel against a shared contract, with a fallback for every fragile part

What we learned

How to split a robot's work across a Pi, a Jetson, and a microcontroller with ROS 2
Chaining a general detector with a specialist classifier, and why a "none of the above" option matters
How much sensor fusion depends on timestamps, clocks, and measured offsets
Building a Unity app against a robot that doesn't exist yet
Thermal and power limits decide where code runs as much as software does

What's next for Understory

An outdoor chassis that can handle real understory terrain
A real before-and-after survey of a habitat, to replace our staged data
A larger species list, including animals
Soil moisture, light, and air quality readings shown as heat maps on the map
Before/after reports and similar-plant search in the dashboard for land managers
Full 3D Gaussian splat reconstructions of each survey site
GPS so surveys line up across weeks and seasons
