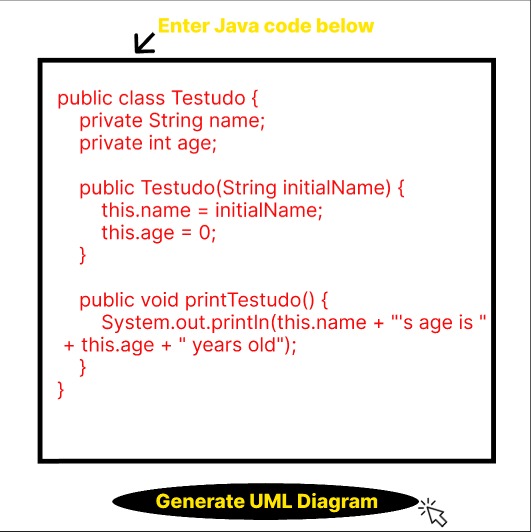

  Java code example page

•

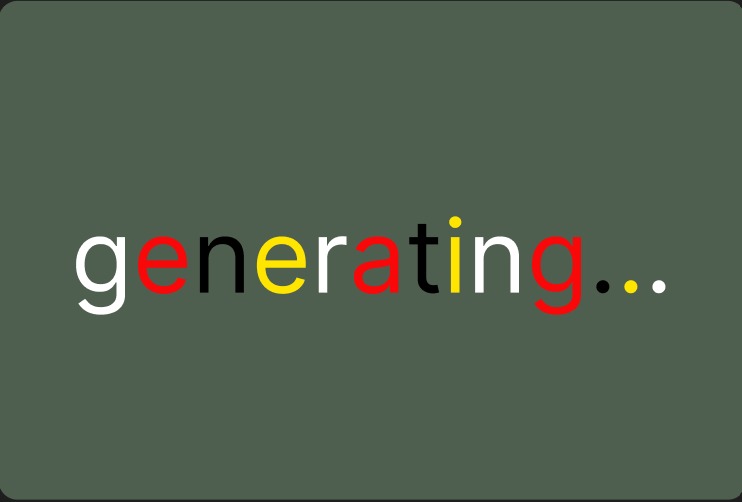

  Generating from Java code to UML page

•

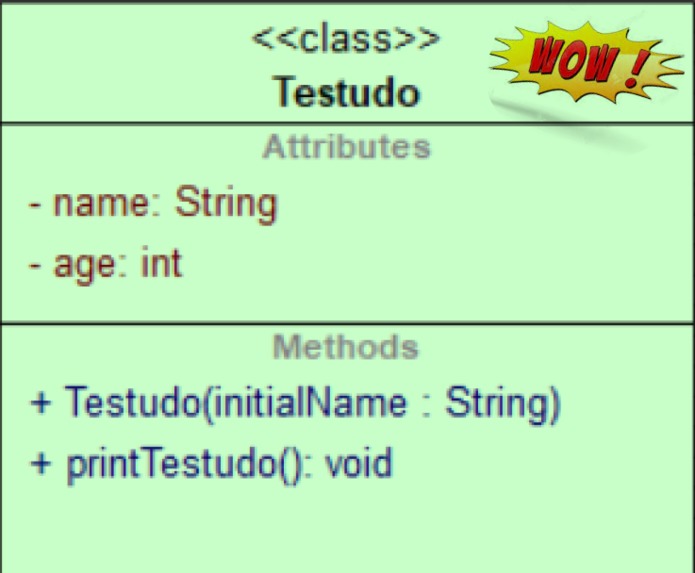

  UML from Java code successfully generated

Inspiration

In my Java programming classes, it was always required to create a UML diagram BEFORE writing source code. I understand they're important for forward design, but what about backward design? I always felt that it is harder creating it from scratch, and I would often get stuck. So I want to encourage the reality of backward design, because coding visualizations should be stress-free for everyone!

What it does

UMDiagrams uses Java code to create a UML Diagram for you.

How I built it

Final Design visuals w/ Figma; source code run example with Java through Eclipse.

Accomplishments that I'm proud of

first hackathon; I didn't expect to come with an idea and follow through, especially with no team.

What's next for UMDiagrams

Possibly have it as an application within Eclipse.
