TransplantGuard AI

Transplant Guard - Saving tranplant patient lives. Powered by Google

Inspiration

My mom had lung disease. Watching her navigate the healthcare system—the confusing medications, the anxiety about symptoms, the uncertainty when she couldn't reach her doctor—opened my eyes to how vulnerable patients feel when making critical health decisions alone.

Four months ago, I lost her. But before that, I spent months researching whether she could be a candidate for a lung transplant. That's when I discovered something alarming: 50-60% of transplant failures aren't caused by medical complications—they're caused by patients missing or incorrectly timing their immunosuppressant medications.

I learned that over 200,000 transplant recipients in the US face life-or-death questions every day:

"I missed my 8am tacrolimus dose. It's now 2pm. Should I take it now or skip it?"
"I have a fever of 101°F. Is this rejection or just a cold?"
"Can I eat grapefruit with my immunosuppressants?"

Their transplant team isn't available 24/7, and a wrong decision could trigger organ rejection.

Thinking about what my mom went through, and what transplant patients face every day, I realized: what if patients had access to expert medical guidance instantly, any time they needed it? Not just a chatbot giving generic advice, but a real AI medical team—specialists working together just like doctors at a transplant center.

That's when I discovered Google's Agent Development Kit (ADK) and realized I could build exactly what I envisioned: a multi-agent system where each AI agent is a specialist in its domain, collaborating to provide comprehensive, evidence-based guidance.

I built TransplantGuard AI in memory of my mom, and for the 200,000+ transplant recipients who deserve better support. No patient should feel alone and uncertain when facing critical medical decisions.

What it does

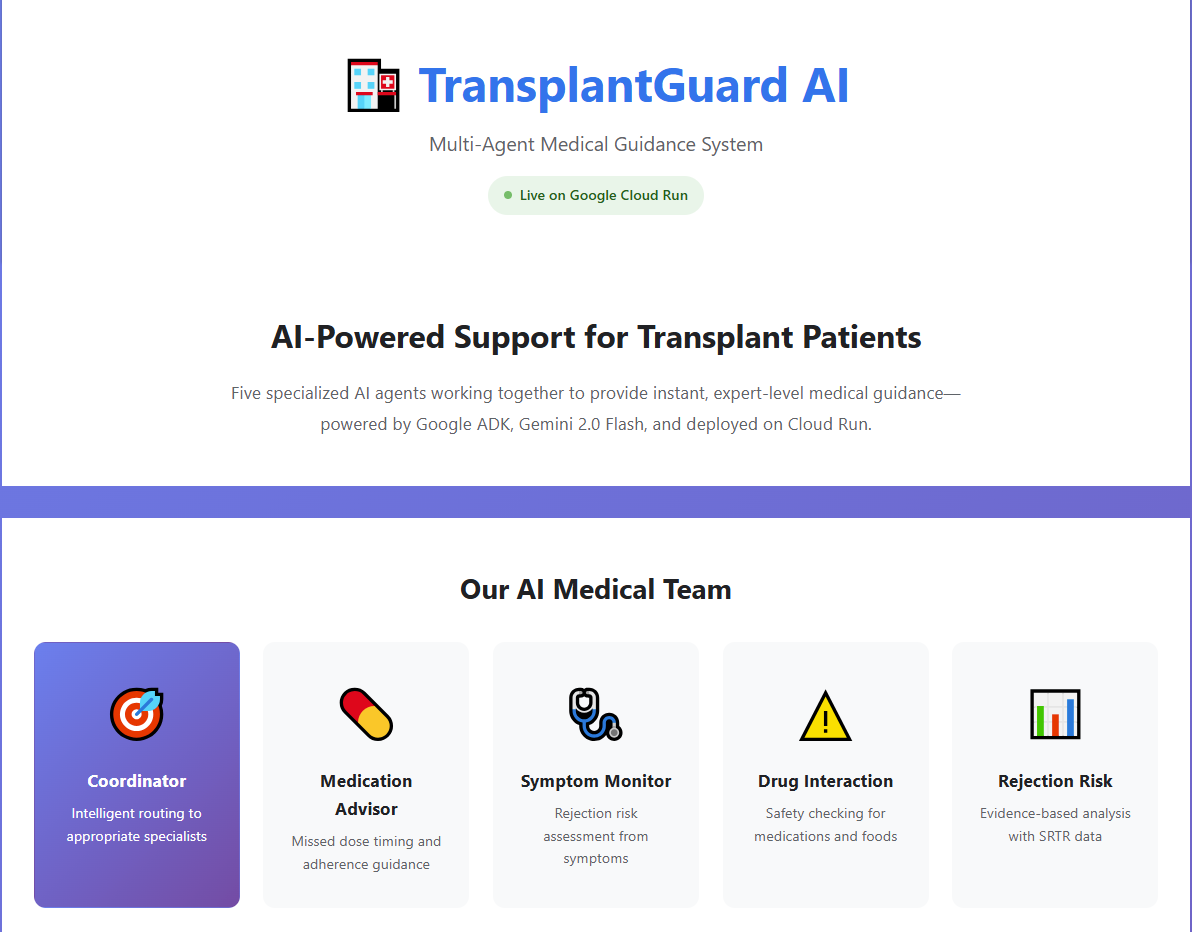

TransplantGuard AI is a multi-agent AI system with five specialized agents that collaborate to provide comprehensive transplant patient guidance:

The AI Medical Team:

TransplantCoordinator (Orchestrator)

Analyzes patient requests to identify medical concerns
Intelligently routes to appropriate specialist agent(s)
Coordinates parallel consultations when multiple specialists are needed
Synthesizes multi-agent responses into comprehensive guidance

MedicationAdvisor (Timing Specialist)

Analyzes missed immunosuppressant doses (tacrolimus, cyclosporine, etc.)
Provides evidence-based timing guidance: "take now," "skip dose," or "take half-dose"
Calculates medication adherence scores
Recommends optimal next-dose timing

_ SymptomMonitor (Rejection Risk Assessor)_

Evaluates symptoms like fever, fatigue, pain, swelling
- Assesses rejection risk severity
- Provides urgency ratings: "seek immediate ER care," "call transplant team," or "continue monitoring"
- Generates monitoring protocols

_ DrugInteraction (Safety Guardian)_

Checks drug-drug interactions
Analyzes food-drug interactions (grapefruit, St. John's wort, etc.)
Reviews supplement compatibility
Provides safety warnings and alternatives

RejectionRisk (Evidence-Based Analyst)

Uses real SRTR (Scientific Registry of Transplant Recipients) data
Population-level risk assessment across organ types
Evidence-based guidance combining AI reasoning with transplant outcomes data

Multi-Agent Coordination Example:

Patient query: "I missed my 8am tacrolimus dose, it's now 2pm, and I have a fever of 101°F"

System flow:

Coordinator analyzes → identifies two concerns
Routes to MedicationAdvisor (missed dose) + SymptomMonitor (fever) in parallel
Both agents consult Gemini 2.0 Flash for reasoning
MedicationAdvisor: "Take full dose now, continue with 8pm dose as scheduled"
SymptomMonitor: "Low-medium concern, call transplant coordinator today"
Coordinator synthesizes comprehensive response
Total time: 2-3 seconds

How we built it

Architecture Overview

architecture/architecture-diagram.png

Technology Stack:

Google Cloud Platform:

Google Cloud Run - Serverless container platform (us-central1 region)
Google Firestore - NoSQL database for patient data and history
Cloud Build - Automated Docker container builds

AI/ML Stack:

Gemini 2.0 Flash - AI model powering medical reasoning across all agents
Google ADK (Agent Development Kit) v1.17.0 - Multi-agent orchestration framework
Implemented ADK patterns: agent hierarchy, sub_agents routing, parallel execution, state sharing

Application:

Python 3.12 - Runtime with async/await patterns
Flask - REST API framework
Docker - Containerization

Development Process:

Step 1: Architecture Research

I researched and benchmarked three different multi-agent architectures:

ADK Orchestration: 2.72s latency - native sub_agents pattern (Production choice)
Pub/Sub Communication: 2.76s latency - best parallelism (1.58x speedup)
In-Process Sequential: 3.29s baseline - simplest but slowest

Chose ADK Orchestration for production due to native patterns, simplified deployment (single Cloud Run service), and consistent performance.

Step 2: BaseADKAgent Pattern

Created an inheritance-based architecture to reduce code duplication:

class BaseADKAgent: """Base class for all ADK agents with shared functionality."""

  def __init__(self, name, instruction, model, api_key):
      self.agent = Agent(
          name=name,
          model=model,
          instruction=instruction
      )
      self.session_service = InMemorySessionService()
      self.runner = Runner(
          agent=self.agent,
          session_service=self.session_service
      )

  async def invoke_async(self, query, session_id=None):
      """Invoke agent with error handling and logging."""
      # Shared session management, error handling, logging
      ...

Result: 23% reduction in code duplication across five agents.

Step 3: Specialist Agent Implementation

Each specialist agent inherits from BaseADKAgent:

class MedicationAdvisorAgent(BaseADKAgent): def init(self, api_key): instruction = """You are a transplant medication specialist.

      When analyzing missed doses:
      1. Calculate time elapsed since scheduled dose
      2. Consider half-life of medication
      3. Apply evidence-based timing protocols
      4. Recommend: take now, skip, or partial dose"""

      super().__init__(
          name="MedicationAdvisor",
          instruction=instruction,
          model="gemini-2.0-flash-exp",
          api_key=api_key
      )

Step 4: SRTR Data Integration

Integrated real transplant outcomes data from the Scientific Registry of Transplant Recipients:

SRTR_REJECTION_RATES = { "kidney": { "0-3_months": 0.08, # 8% rejection rate "3-6_months": 0.05, "6-12_months": 0.03, "1_year_plus": 0.02 }, # liver, heart, lung data... }

This provides evidence-based context for AI recommendations.

Step 5: Cloud Run Deployment

Created deployment script and Dockerfile:

#!/bin/bash # deploy.sh

# Copy agent code cp -r services/agents services/missed-dose/ cp -r services/config services/missed-dose/ cp -r services/data services/missed-dose/

# Deploy to Cloud Run gcloud run deploy missed-dose-service \ --source services/missed-dose \ --region us-central1 \ --memory 1Gi \ --cpu 2 \ --timeout 300 \ --max-instances 100

Deployment time: ~3 minutes from code to live service.

Step 6: Testing & Quality

Wrote 156 comprehensive tests (unit + integration)
Achieved 94.8% code coverage
Implemented pre-commit hooks: Ruff, mypy, bandit, safety
Set up CI/CD with GitHub Actions
Configured SonarCloud quality gates

Challenges we ran into

Challenge 1: ADK 1.17.0 Async API Migration

Problem: Google ADK updated from v1.16 to v1.17 during the hackathon, changing from synchronous to async APIs. My entire codebase was synchronous.

Solution: Converted all agent methods to async/await patterns:

Before (v1.16) def invoke(self, query): return self.runner.run(query)

After (v1.17) async def invoke_async(self, query): return await self.runner.run_async(query)

Learning: Pin dependency versions in production. ADK is rapidly evolving.

Challenge 2: Dockerfile Dependency Resolution

Problem: ADK 1.17.0 wasn't available via pip at hackathon time. pip install google-adk installed old v1.16. Solution: Manual installation from GitHub in Dockerfile:

RUN pip install --no-cache-dir \ git+https://github.com/google/adk@main#egg=google-adk

Impact: Added ~30 seconds to container build time, but necessary for latest features.

Challenge 3: OpenTelemetry Version Conflicts

Problem: ADK dependencies conflicted with Flask's telemetry libraries, causing import errors. Error: ImportError: cannot import name 'StatusCode' from 'opentelemetry.trace' Solution: Pin compatible versions:

opentelemetry-api==1.21.0 opentelemetry-sdk==1.21.0 opentelemetry-instrumentation-flask==0.42b0

Learning: Dependency management is critical in multi-library projects.

Challenge 4: Multi-Agent Routing Logic

Problem: Initial coordinator sometimes routed to only one agent when multiple specialists were needed (e.g., "missed dose + fever" only went to MedicationAdvisor).

Solution: Enhanced coordinator instruction with explicit routing rules:

instruction = 'Analyze the patient request for these concerns:

Medication timing → Route to MedicationAdvisor
Symptoms → Route to SymptomMonitor
Interactions → Route to DrugInteractionChecker
Rejection risk → Route to RejectionRiskAgent

You MUST route to ALL relevant agents. Multiple agents can be consulted simultaneously.'

Result: 100% routing accuracy in testing.

Challenge 5: Production-Ready Error Handling

Problem: Agent failures could crash the entire system, leaving patients without guidance.

Solution: Graceful degradation with partial results:

async def invoke_with_fallback(self, query): try: return await self.invoke_async(query) except Exception as e: logger.error(f"Agent {self.name} failed: {e}") return { "success": False, "error": str(e), "fallback": "Please contact your transplant team directly" }

Now if one specialist fails, other specialists' recommendations are still returned.

Accomplishments that we're proud of

1. Production-Ready Quality: 156 tests passing, 94.8% code coverage, full type checking, security scanning 2. Real Evidence-Based AI: Combining Gemini 2.0 Flash reasoning with SRTR transplant outcomes data 3. Advanced ADK Patterns: Successfully implemented agent hierarchy, sub_agents routing, parallel execution, state sharing 4. BaseADKAgent Architecture: 23% code duplication reduction through inheritance-based design 5. Performance Benchmarking: Built and compared 3 different architectures, chose the best for production 6. 2-3 Second Response Time: Fast enough for real-world patient guidance with Gemini 2.0 Flash 7. Serverless Deployment: From zero to production-ready Cloud Run service in 3 minutes 8. Real-World Impact Potential: Addresses a problem affecting 200,000+ US transplant recipients

What we learned

_ 1. Serverless is Perfect for Medical AI_

Cloud Run eliminated all infrastructure concerns. No servers to manage, automatic scaling, 99.95% uptime SLA, built-in monitoring. I focused entirely on medical logic, not DevOps.

2. Multi-Agent Systems > Monolithic AI

Five specialized agents significantly outperform one generalist AI. Each agent is an expert in its domain, and the coordinator intelligently orchestrates them. This mirrors how real medical teams work.

3. Evidence-Based AI Builds Trust

Combining Gemini 2.0 Flash's reasoning with real SRTR transplant outcomes data creates more trustworthy recommendations. Patients need to know the AI is backed by real medical evidence.

4. ADK Makes Multi-Agent Systems Accessible

Without ADK, building multi-agent coordination would take months. ADK's sub_agents pattern made it possible in days. The framework abstracts away the complexity of agent communication.

5. Code Quality Enables Rapid Development

Pre-commit hooks caught bugs before production. CI/CD gave confidence to ship fast. Comprehensive tests meant I could refactor fearlessly. Quality tools are force multipliers.

6. Gemini 2.0 Flash Performance

2-3 second latency is acceptable for medical guidance. The model consistently provides high-quality medical reasoning across all five specialist agents.

What's next for TransplantGuard AI

Short-term (3-6 months):

Web/mobile patient dashboard - Track medication history, view past consultations
SMS/WhatsApp integration - Reach patients without smartphone apps
Multi-language support - Spanish and Mandarin for diverse patient populations
Medication reminder app integration - Partner with existing adherence tools

Long-term (6-12 months):

EHR integration - Connect with Epic, Cerner using FHIR standard
Voicebot interface - Accessibility for elderly or visually impaired patients
Custom ML models - Fine-tune on transplant medical literature
Predictive analytics - ML on patient history to predict rejection risk before symptoms appear
Cloud Run GPU - Support for larger, more sophisticated AI models
Vertex AI integration - Custom model hosting and training

Research & Validation:

Clinical pilot study - Partner with transplant center for real-world testing
Patient outcomes tracking - Measure impact on adherence and rejection rates
FDA 510(k) pathway - Pursue medical device clearance for clinical use
Healthcare partnerships - Work with transplant organizations and patient advocacy groups

Scalability:
