Apex Terminal — DevPost Project Story

Inspiration

Every retail trader knows the frustration: the tools available to us are either painfully basic (think Robinhood's single-line charts) or absurdly expensive (Bloomberg Terminal at \$24,000/year). There's a massive gap in the middle — serious retail traders who want institutional-grade analytics, real-time data, and AI-driven insights without mortgaging their house.

The moment the idea clicked was during a late-night trading session. I was juggling six browser tabs — TradingView for charts, Yahoo Finance for news, a spreadsheet for position tracking, Alpaca's dashboard for orders, and two more tabs for options data. I thought:

"Why can't I have everything Bloomberg has — charting, portfolio analytics, autopilot trading, risk management, options Greeks, backtesting — in a single, beautifully designed terminal that runs on localhost?"

That was the spark. Apex Terminal was born from the conviction that a solo developer, armed with modern frameworks and AI, could build a Bloomberg-class workstation from scratch.

The trading world also lacks transparency in decision-making. Most platforms give you data, but they don't give you an AI copilot that explains why it's buying AAPL at this exact moment, or shows you the full signal → score → order pipeline. I wanted to build something where the autopilot's brain is fully visible — every cycle, every candidate score, every risk check — laid bare for the trader to audit.

What It Does

Apex Terminal is a full-stack Bloomberg-style trading workstation packed with features that would normally require a team of 50 and a year of development:

Core Features

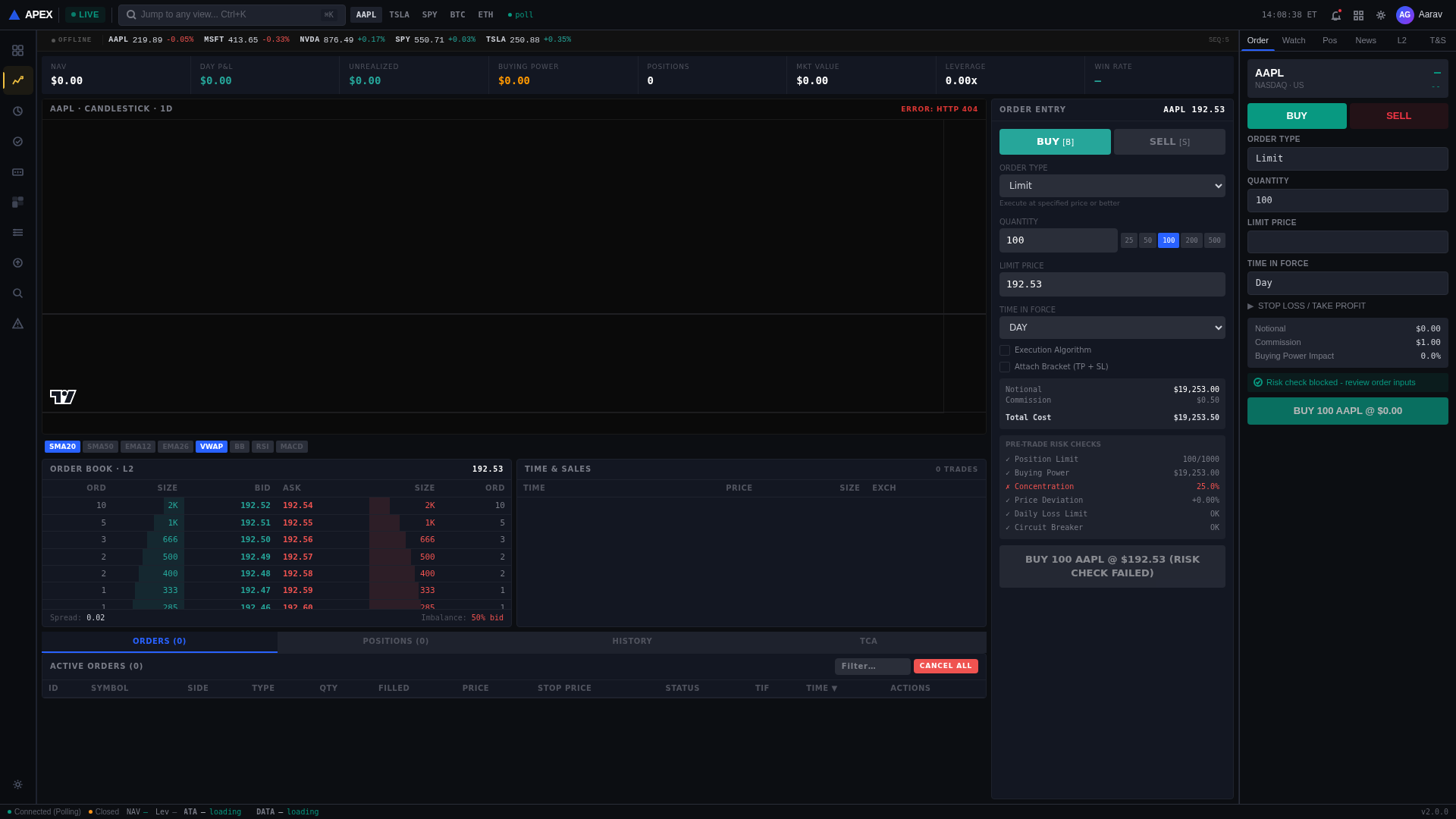

📊 Live Candlestick Charting — TradingView-quality charts powered by lightweight-charts v5 with 35+ server-side technical indicators (SMA, EMA, VWAP, RSI, MACD, Bollinger Bands, ATR, Ichimoku Cloud, Stochastic, OBV, MFI, and more)

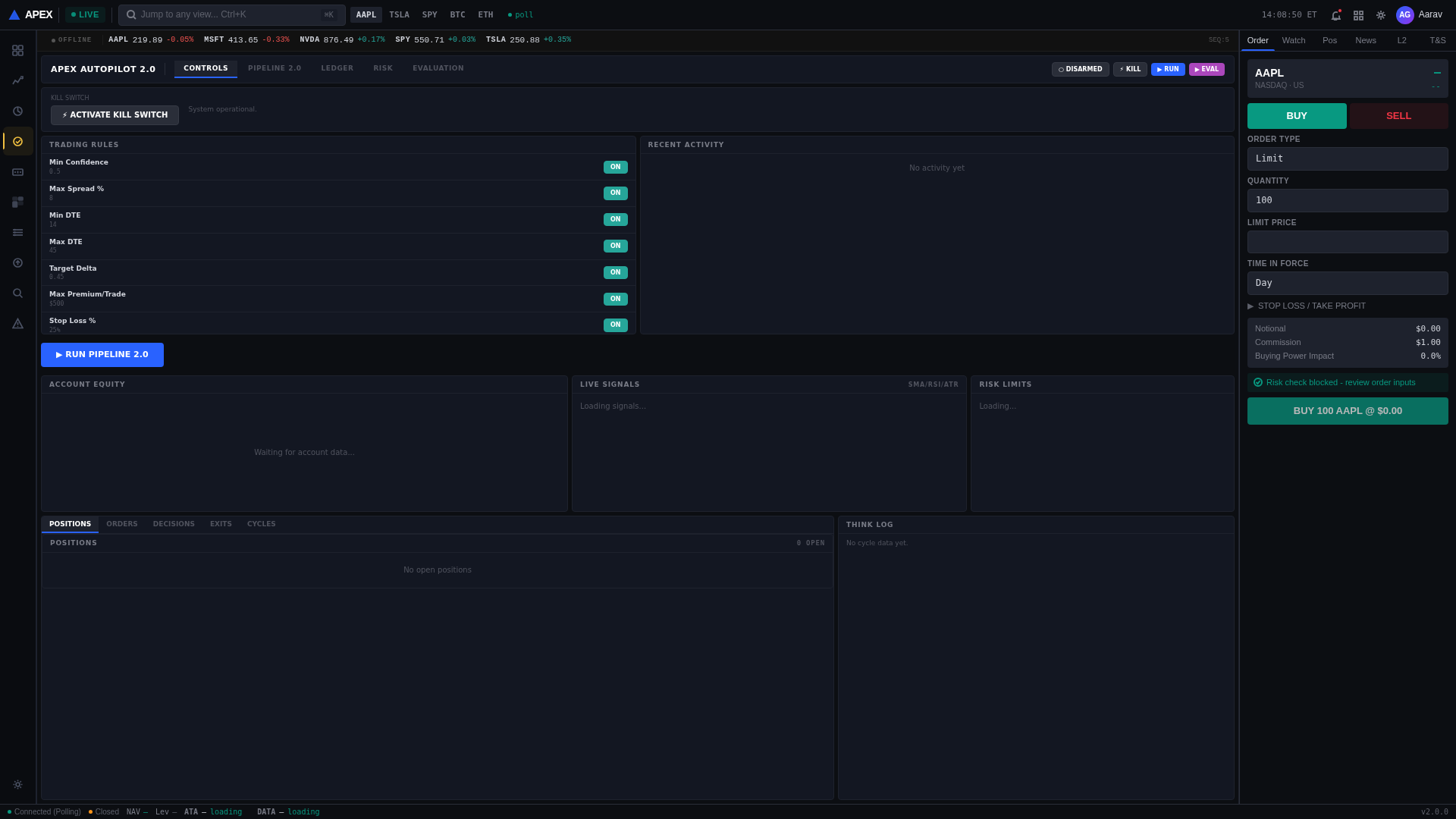

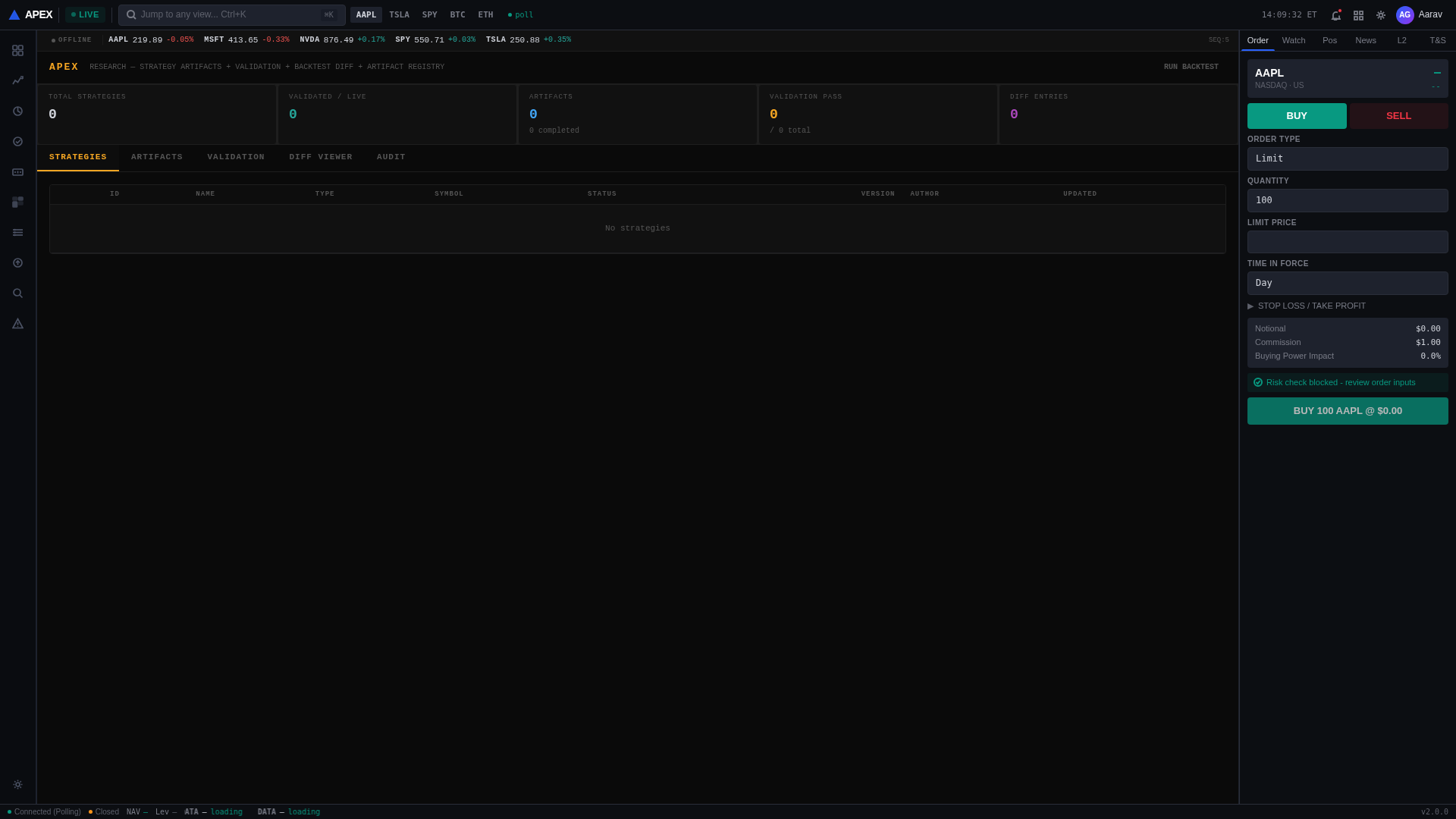

🤖 Autopilot AI Paper Trading Engine — A multi-signal autonomous trading system that scans a configurable symbol universe, scores candidates using a composite signal model, executes paper trades via Alpaca, and maintains a full audit trail

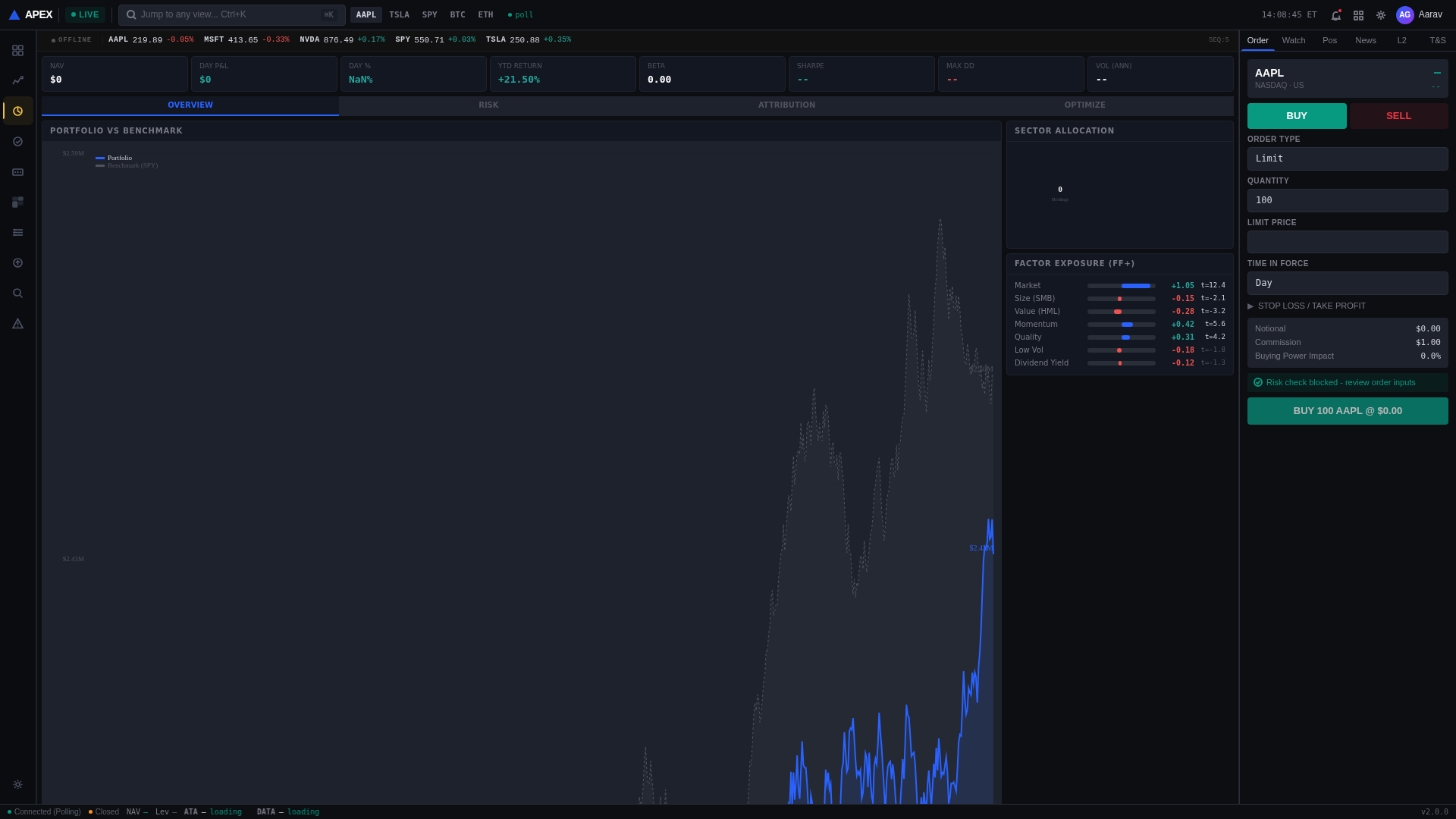

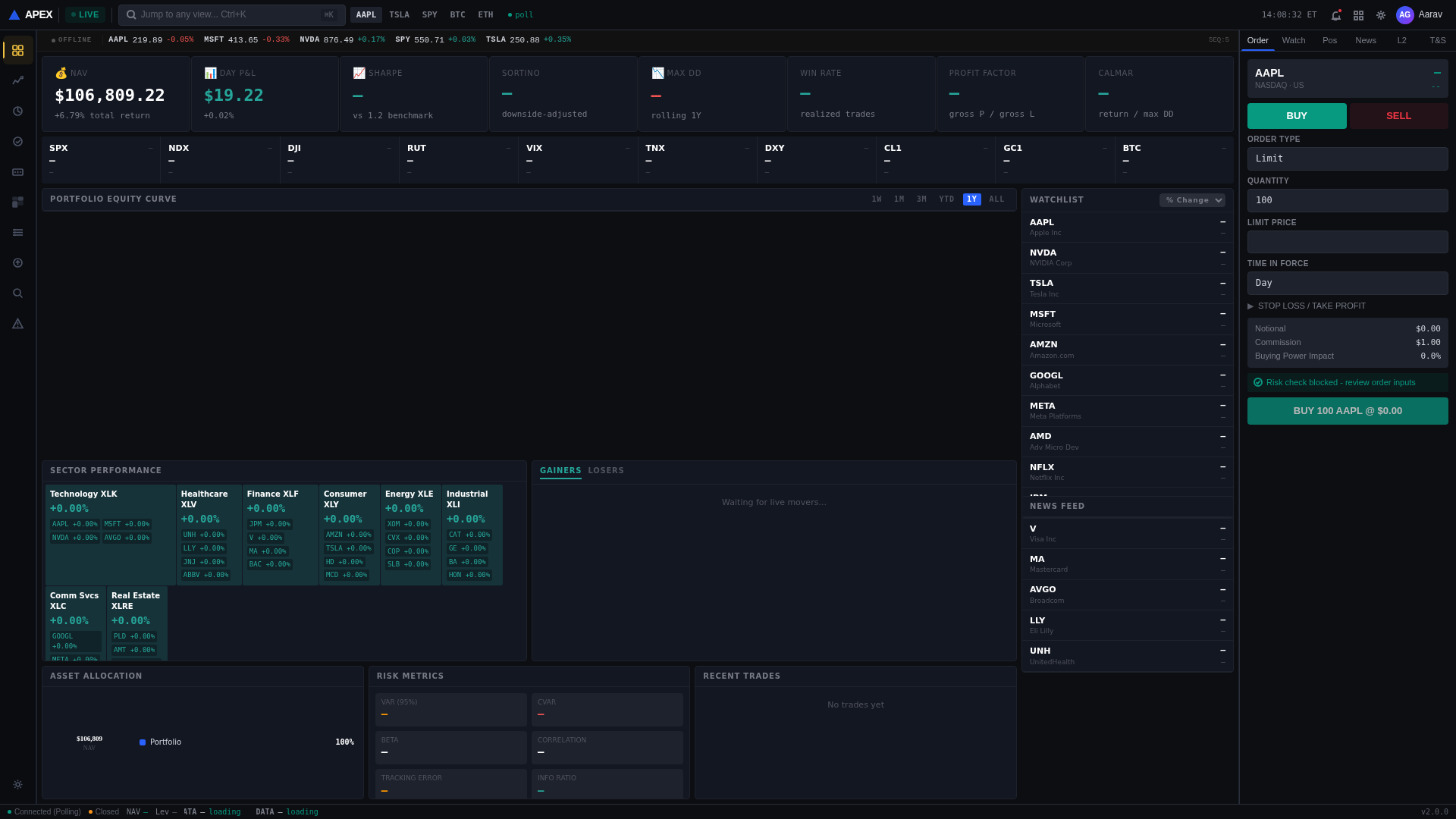

💼 Real-Time Portfolio — Live positions and P&L via Alpaca paper account with Sharpe ratio, max drawdown, volatility KPIs, and equity curve with drawdown overlay
📈 Options Chain — Full options chain with Black-Scholes Greeks ($\Delta$, $\Gamma$, $\nu$, $\Theta$, IV) computed server-side

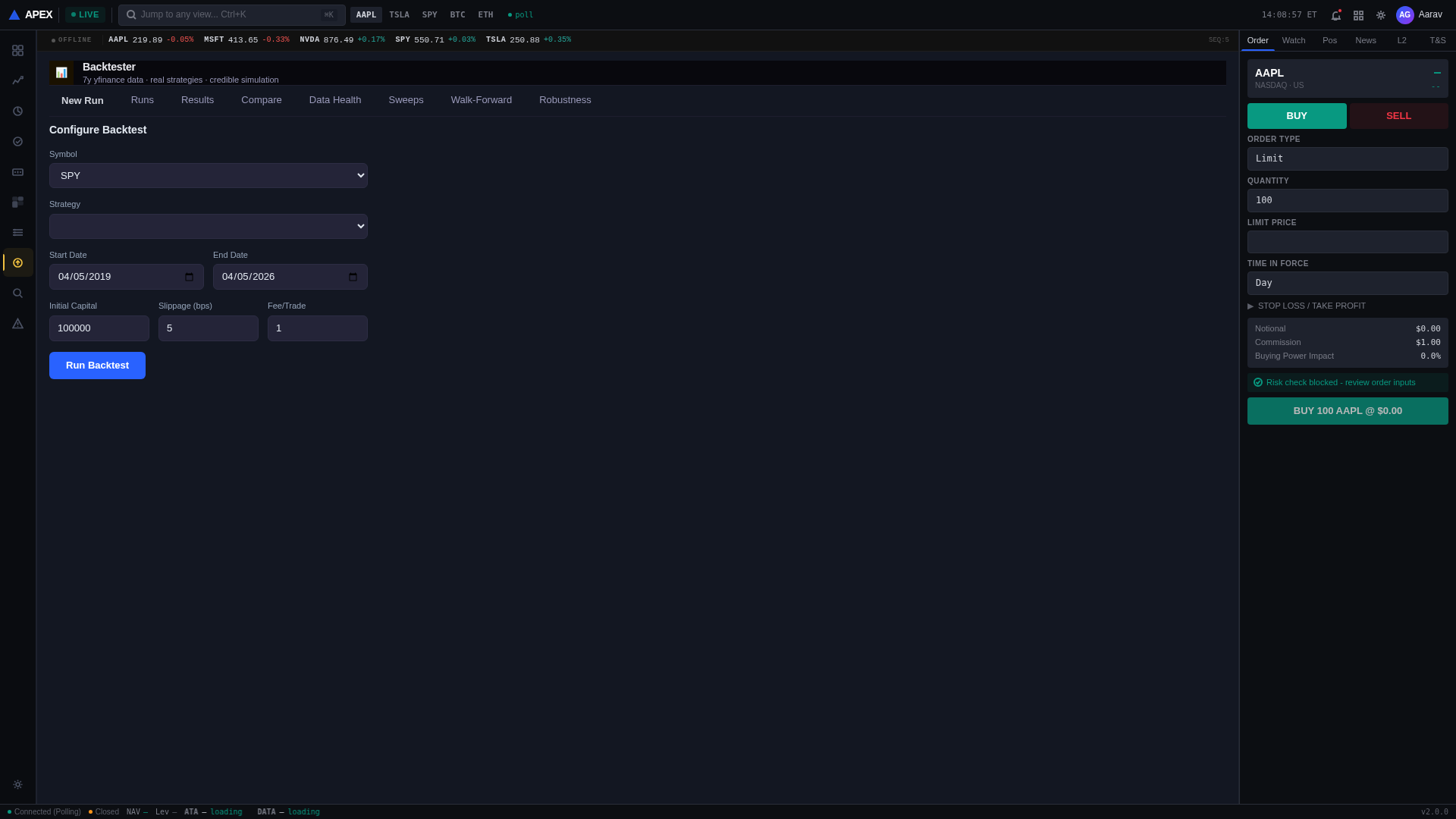

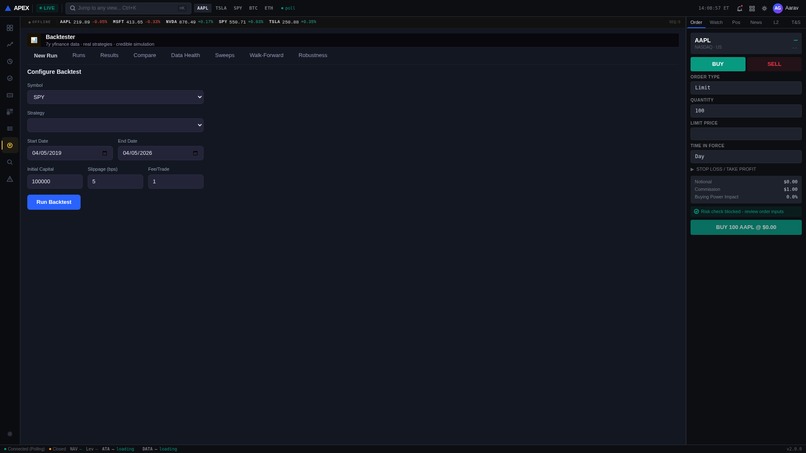

⚡ Backtesting Engine — Run historical strategy backtests with walk-forward analysis, Monte Carlo simulation, and multi-strategy comparison

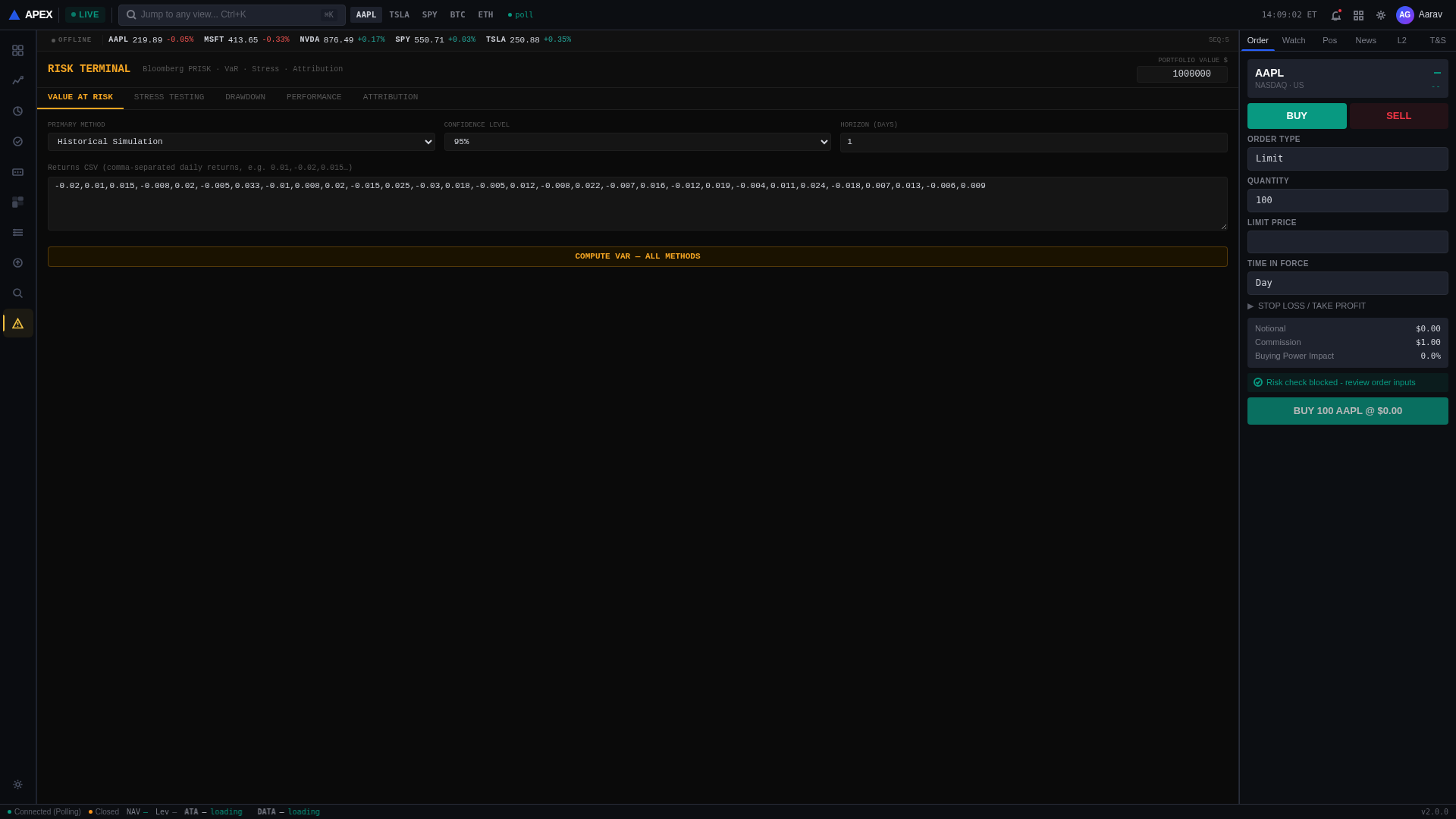

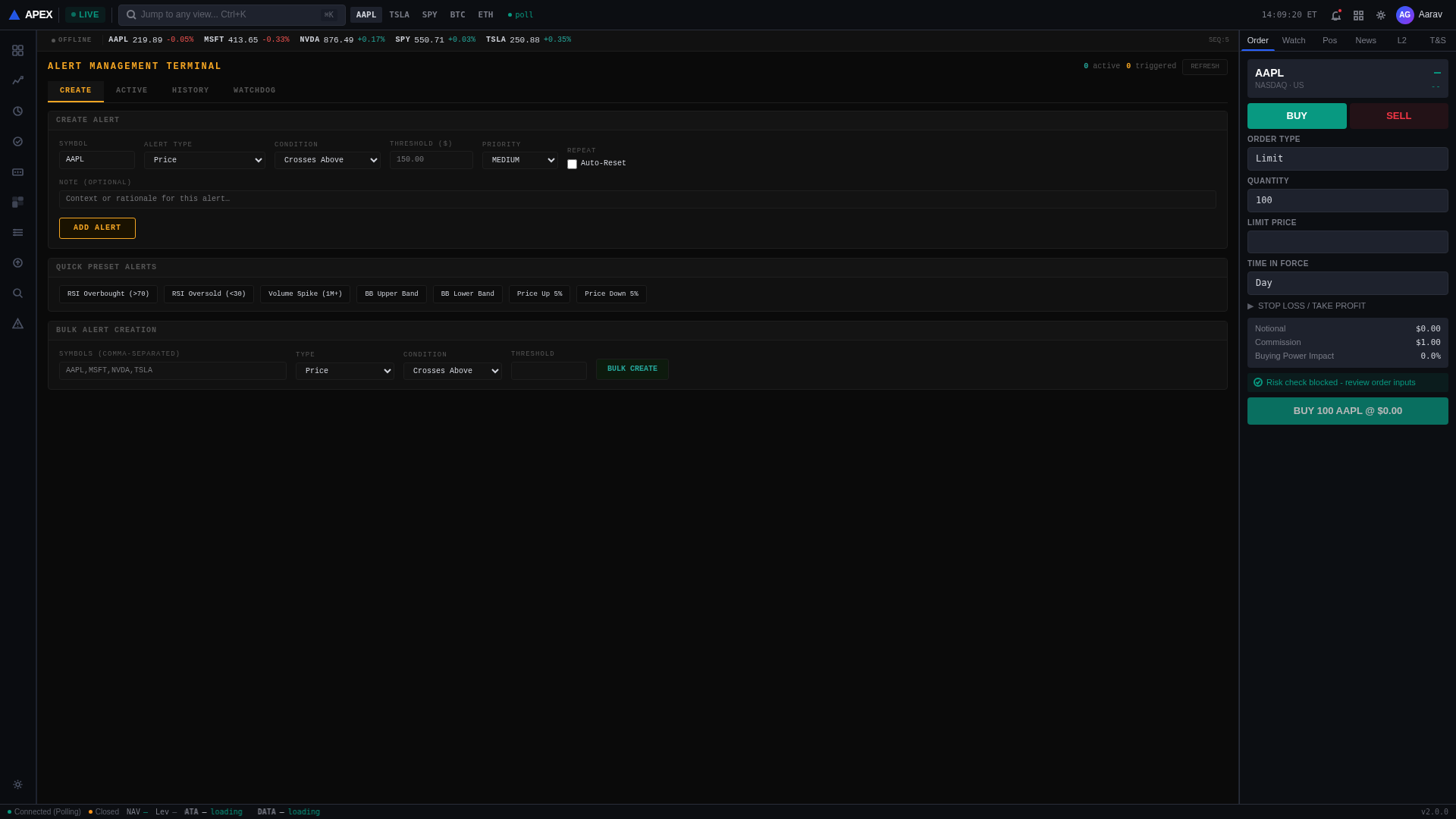

🛡️ Risk Management — Position sizing, exposure analysis, stress testing, margin monitoring, and compliance checks

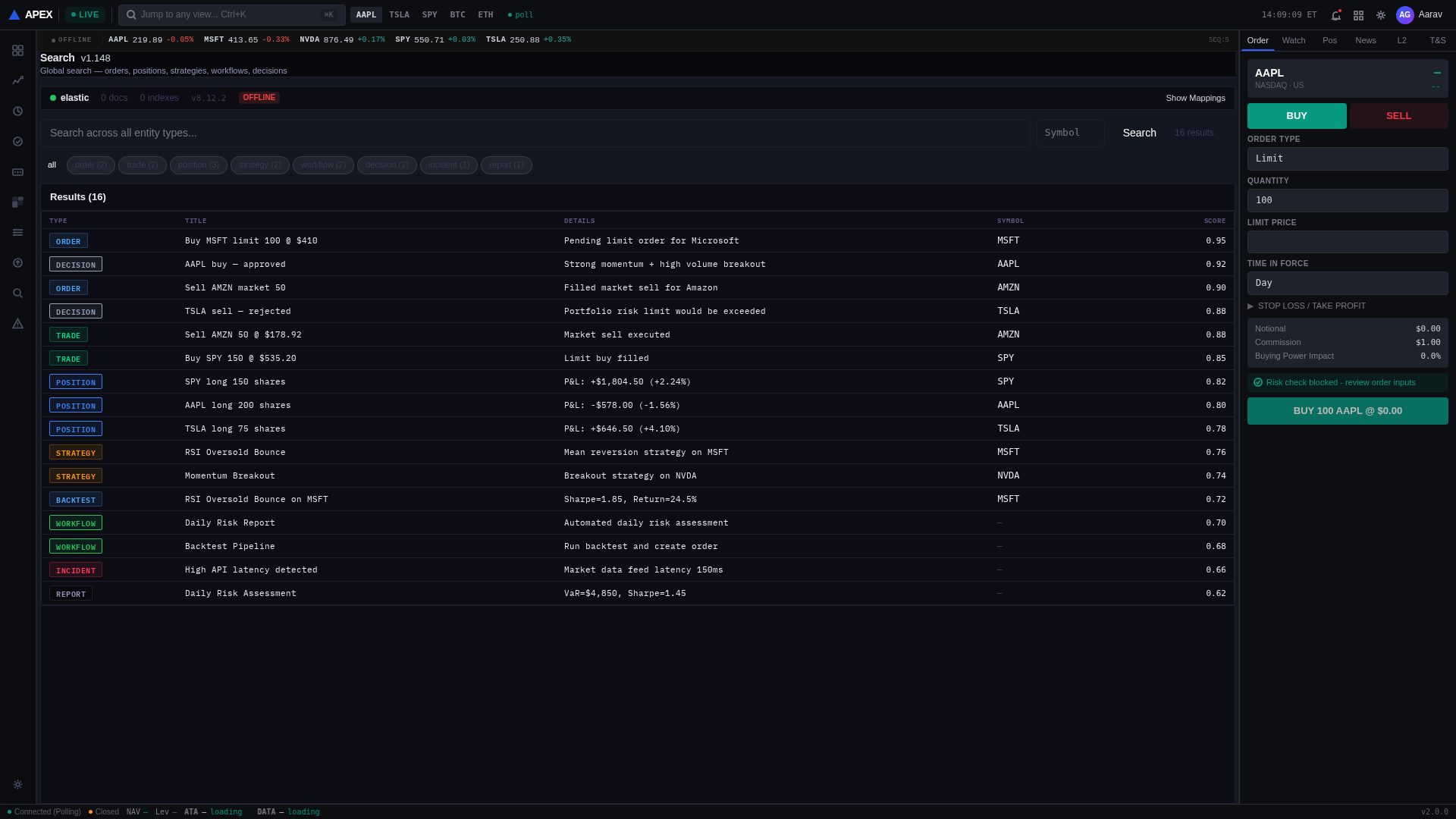

🔍 Elasticsearch-Powered Search — Full-text search with faceted filters, KNN vector similarity, and saved search templates

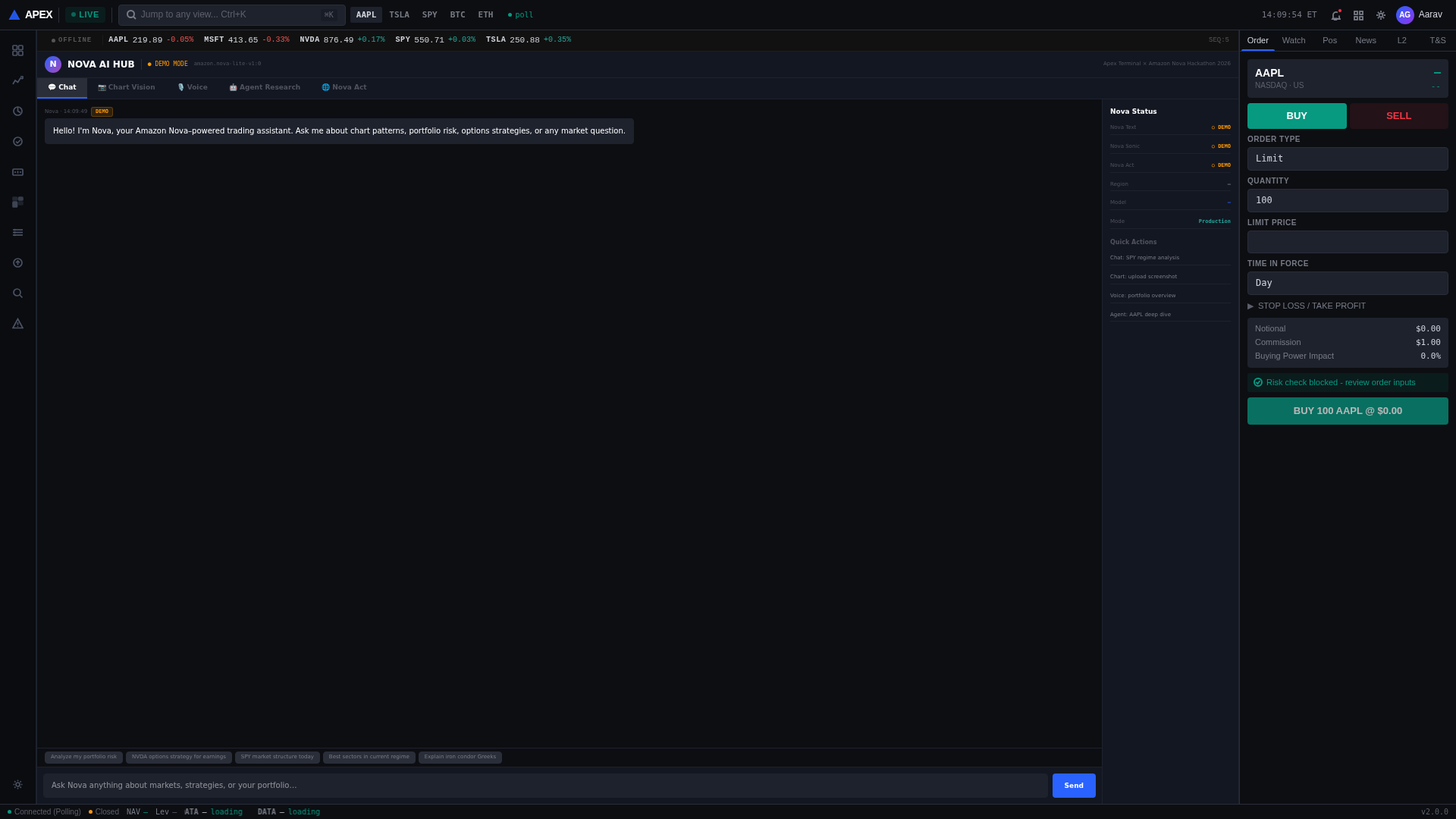

🧠 AI Agents — Pluggable agent architecture for research, sentiment analysis, and strategy generation
📰 Live News & Sentiment — Real-time financial news aggregation with NLP-based sentiment scoring

By The Numbers

Metric	Value
Frontend TypeScript/TSX files	888
Frontend lines of code	324,039
Backend Python files	753
Backend lines of code	228,264
API route modules	249
Playwright E2E test suites	246
Total lines of code	~552,000
Git commits	51

How I Built It

Architecture

The system follows a clean client-server architecture with a React 19 SPA communicating with a FastAPI backend via REST and WebSocket:

$$ \text{Browser} \xrightarrow{\text{HTTP / WS}} \text{FastAPI} \xrightarrow{\text{REST}} \begin{cases} \text{Alpaca (broker + data)} \ \text{Finnhub (WS ticks)} \ \text{Tradier (options)} \ \text{yfinance (fallback)} \end{cases} $$

Frontend Stack:

React 19 + TypeScript + Vite 5 for blazing-fast HMR and builds
Zustand for global state management (positions, autopilot state, quotes)
lightweight-charts v5 for institutional-quality candlestick rendering
Tailwind CSS 4 for the dense, Bloomberg-inspired dark theme
React Router 7 for client-side routing across 20+ pages
react-resizable-panels for the drag-to-resize panel layout

Backend Stack:

FastAPI (Python 3.10+) — asynchronous REST API with 249 route modules
SQLite (via SQLAlchemy + aiosqlite) for persistent bar data, autopilot ledger, and trade journal
Alpaca-py for live market data + paper trading execution
yfinance as a zero-cost delayed fallback data source
pandas + numpy for server-side technical indicator computation
WebSocket manager for real-time tick streaming and autopilot state broadcasting
Structlog for structured, queryable application logging

Testing & QA:

246 Playwright E2E test files covering navigation, portfolio, chart views, autopilot, indicators, and investor personas
Vitest unit tests for frontend stores and services
pytest for backend unit and integration tests
Determinism proofs — run the same backtest 3x and diff the output to verify reproducibility

The Development Journey

The build followed an aggressive wave-based sprint model:

Phase 1 (Core): Built the FastAPI skeleton, Alpaca data integration, and basic candlestick chart rendering. Got a working trading terminal with live quotes in the first 48 hours.
Waves 1-10: Added the Autopilot AI engine, portfolio page, options chain, risk desk, search, Elasticsearch integration, and the first batch of technical indicators. Each wave was a focused 2-day sprint adding one major feature.
Waves 11-20 (Online-Only Pivot): Stripped out all mock/demo data and committed to 100% live data. Every API endpoint now hits real market data — Alpaca for broker data, Finnhub for WebSocket ticks, yfinance as fallback.
Waves 21-104 (The Masterplan): Implemented the Bloomberg feature parity roadmap — research notebooks, BQL queries, execution cockpit, blotter, pre-trade risk, surveillance, attribution, factor models, stress scenarios, smart routing, broker scoring, agent registry, and more.
Sprint 1 (Stability): Full Playwright E2E coverage, determinism proofs, media evidence pack, and comprehensive roadmap documentation.

Challenges I Faced

1. The WebSocket Hydra 🐉

The original design used 13 separate polling timers for real-time updates (quotes, positions, autopilot state, news, etc.). This was burning CPU and causing race conditions. Migrating to a unified WebSocket architecture with a centralized manager and topic-based subscriptions was a multi-day refactor that touched every store and service.

2. Alpaca Rate Limits

Alpaca's paper trading API has strict rate limits. A naïve implementation of "fetch quote for every symbol on every render" would get throttled instantly. The solution: batch quote endpoints (GET /api/v1/market/quote/batch?symbols=AAPL,MSFT,GOOG), client-side quote caching with TTL, and staggered polling intervals.

3. The Autopilot Double-Order Bug 🐛

Early on, I accidentally mounted two autopilot routers (v1 and v3) simultaneously. Both were independently scanning the same universe and placing orders — resulting in double orders on every signal. The fix was canonical: disable the v3 router entirely and route everything through unified_autopilot_router.

4. Options Greeks Computation

Computing Black-Scholes Greeks ($\Delta = N(d_1)$, $\Gamma = \frac{N'(d_1)}{S\sigma\sqrt{T}}$) server-side for an entire options chain with 50+ strikes × 12 expirations is computationally expensive. The solution was vectorized numpy computation and aggressive caching with a 60-second TTL.

5. 552K Lines of Code, One Developer

Managing half a million lines of code solo — across two languages, three databases, five API providers, and 20+ frontend pages — required extreme discipline. Every feature got its own route module, its own Playwright test file, and its own wave number for traceability.

6. The CORS + Proxy Maze

Running the frontend on :5100 and the backend on :8000 with WebSocket upgrade requests, API path rewrites (/api/autopilot → /api/v1/autopilot), and multiple proxy rules in Vite's dev server config was a constant source of subtle bugs. The final working proxy configuration has 4 route-specific rewrites.

What I Learned

Zustand >> Redux for trading UIs. Zustand's minimal API (create, get, set) and built-in middleware (immer, devtools) made it trivial to manage complex nested state (positions array, autopilot candidates, streaming quotes) without Redux's action-creator boilerplate.
lightweight-charts is production-ready. After evaluating Chart.js, Recharts, d3, and TradingView's widget, I landed on lightweight-charts v5 for its native candlestick support, GPU-accelerated rendering, and minimal bundle size (~40KB gzip).
FastAPI's router composition scales beautifully. With 249 route modules registered via app.include_router(), the codebase stays modular. Each feature is a self-contained file with its own router, models, and logic — no monolithic views.py.
E2E tests are the best documentation. The 246 Playwright test files serve as living documentation of every feature's expected behavior. When a page breaks, the test tells you exactly what used to work.
Determinism proofs matter. Running a backtest three times and diffing the outputs catches floating-point drift, timestamp ordering issues, and non-deterministic API responses that unit tests would never find.

What's Next

Sprint 2: Replace all remaining polling with WebSocket push, add autopilot candidate drill-down panel, and config save/load
Sprint 3: Docker Compose full-stack deployment, nginx reverse proxy, rate limiting, connection pooling
Sprint 4: Volume histogram overlay, virtual scroll for large option chains, performance regression testing, AI signal quality improvements
