TEKLA API AUTOMATION FOR DRAWING

Developed a Windows application using Tekla Open API to automate drawing creation, plate selection, hole extraction, and dimension processing, reducing manual work and improving detailing productivity

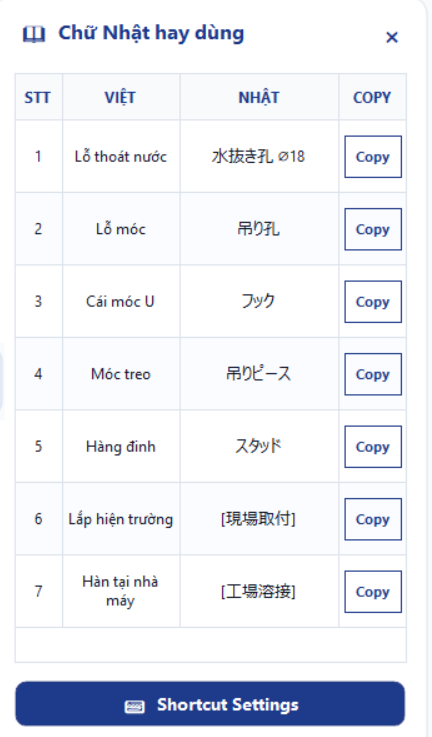

Dictionary

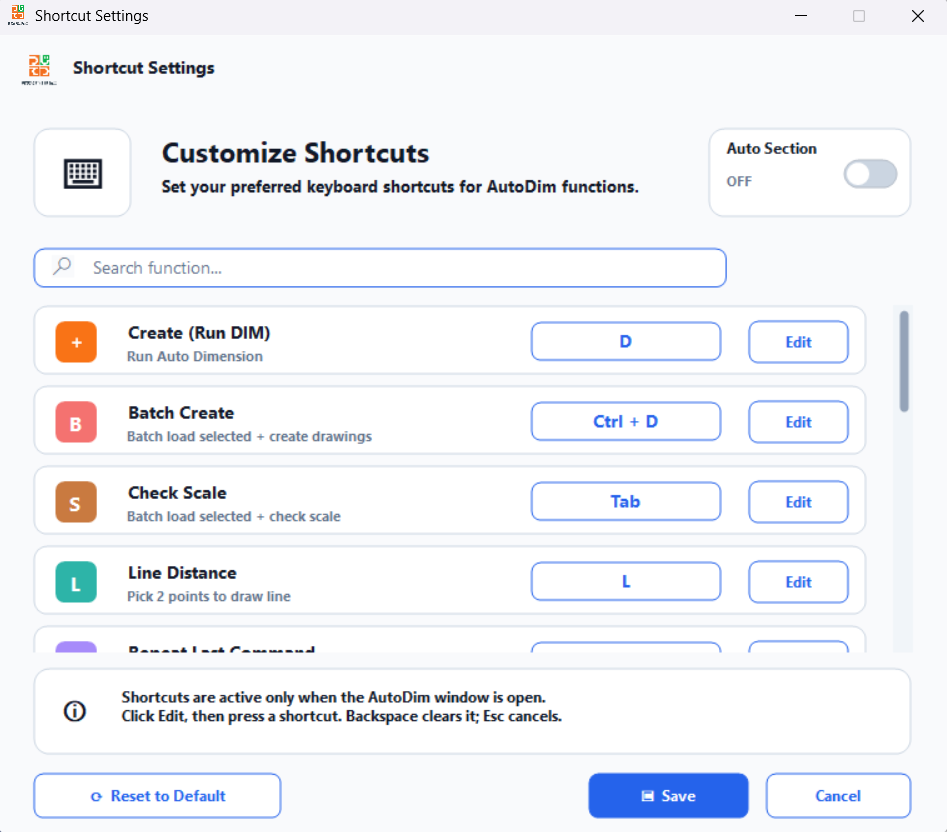

HotKeys setting, quick functions

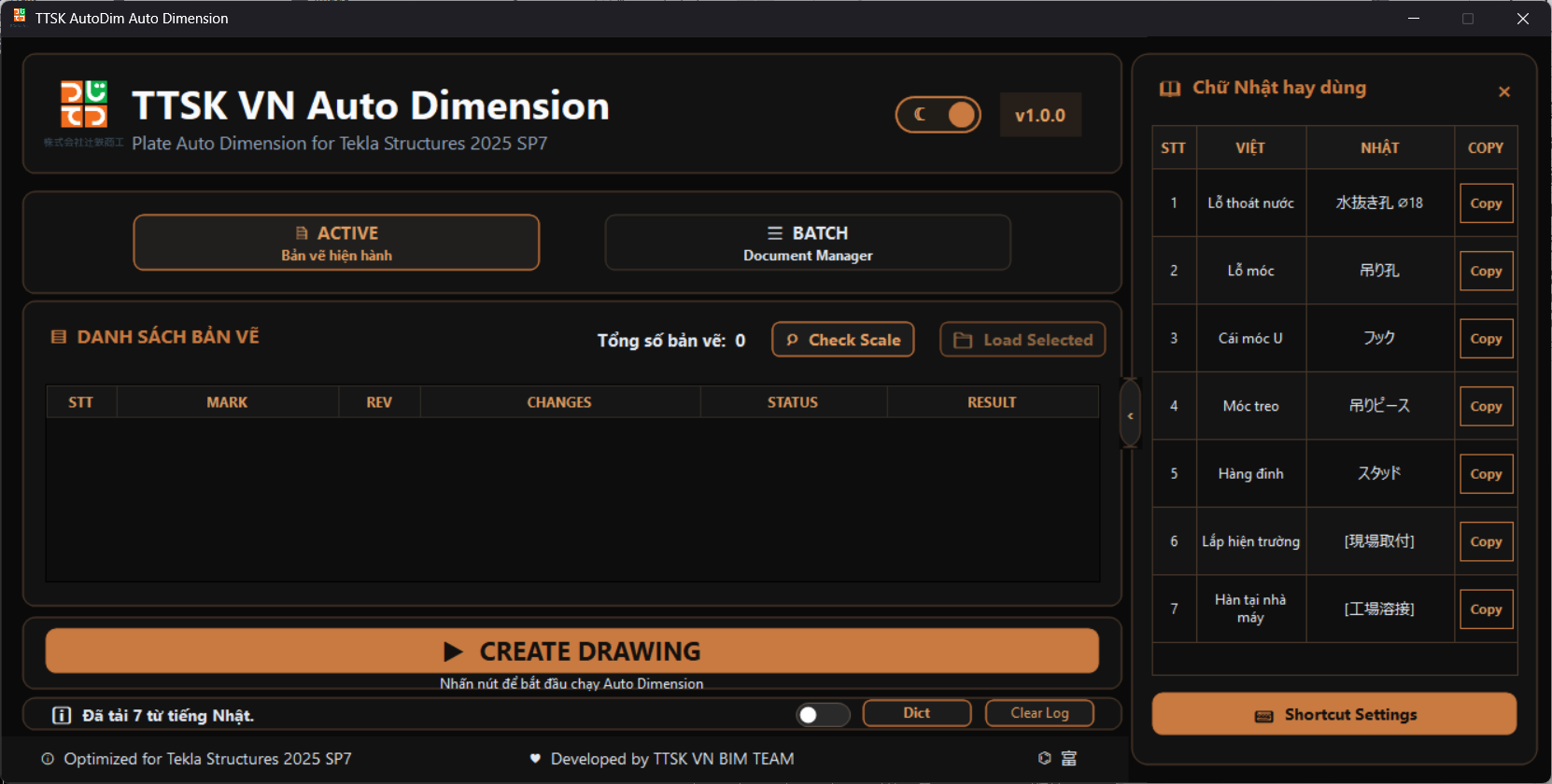

Dark Mode

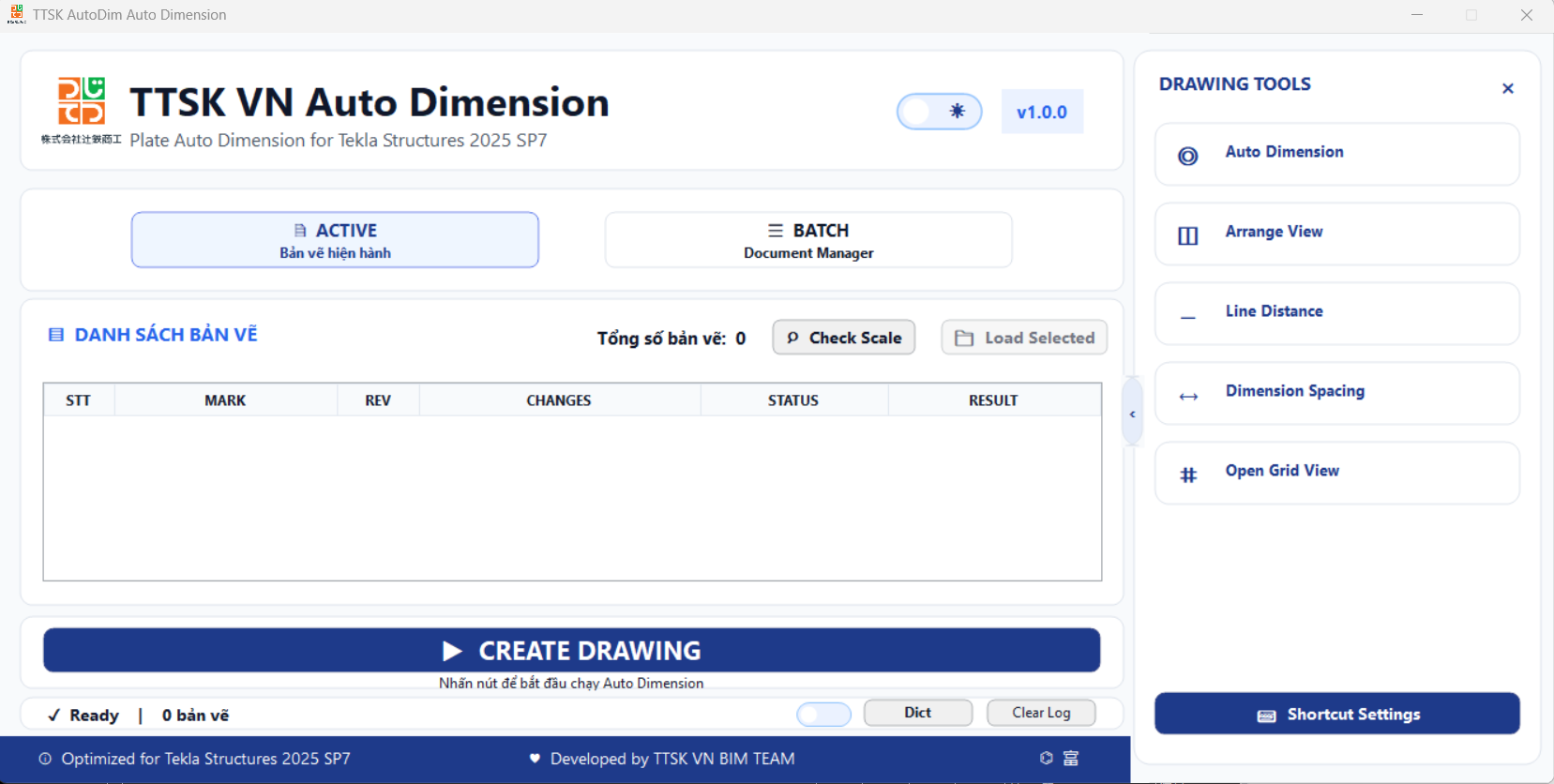

Light Mode

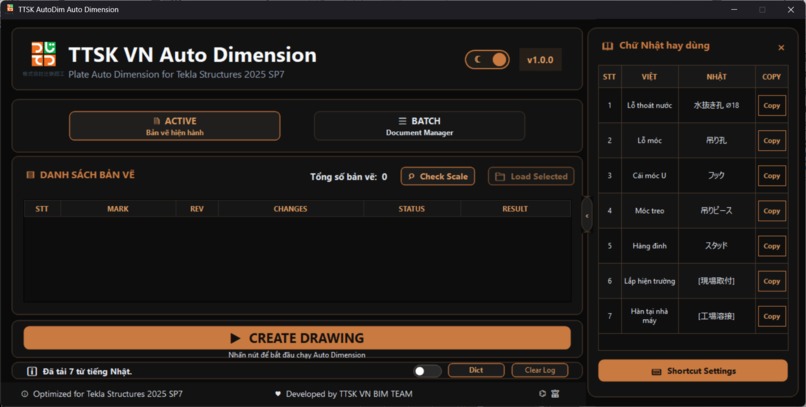

many auxiliary functions, automatic dimension for drawing

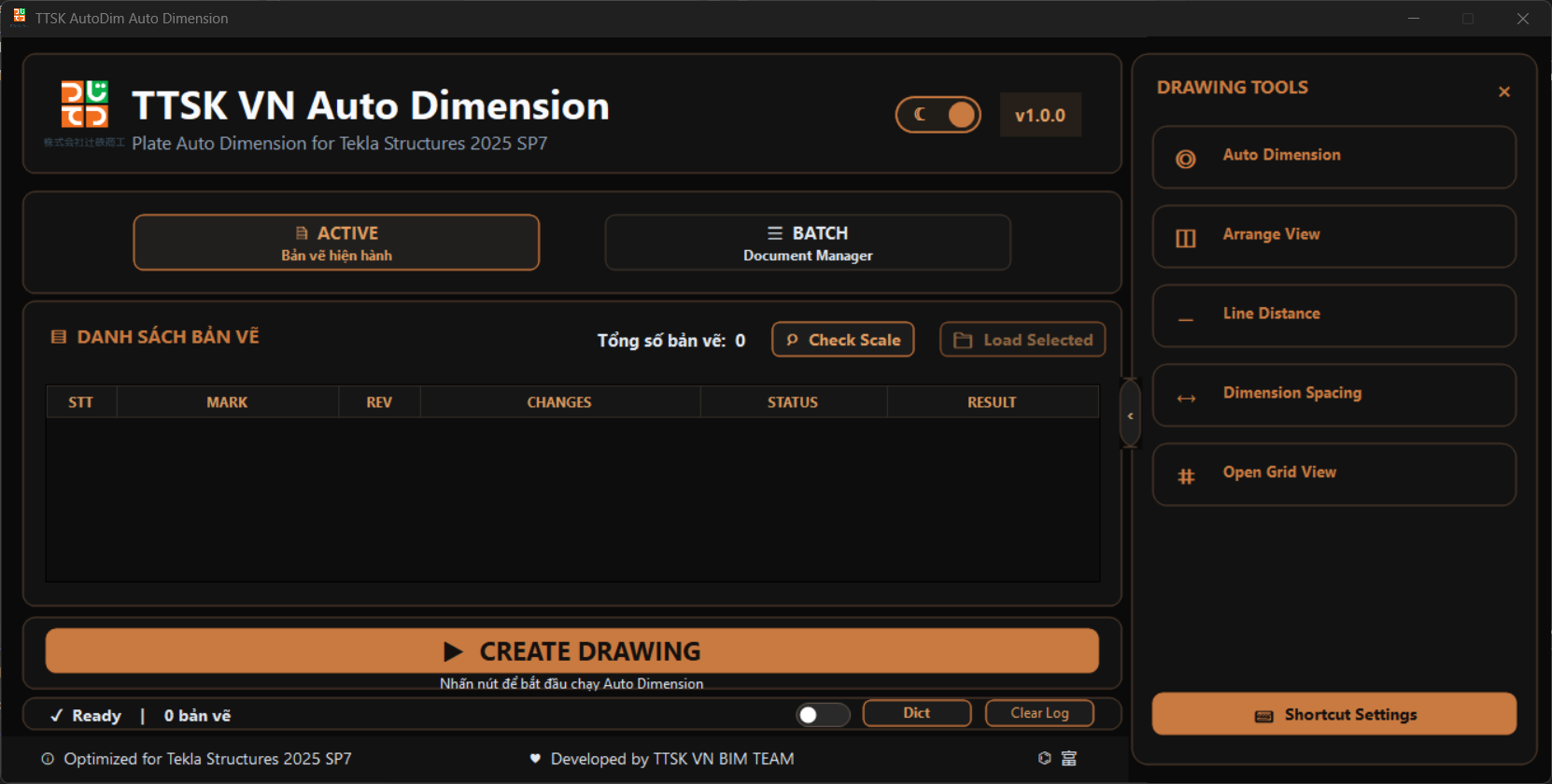

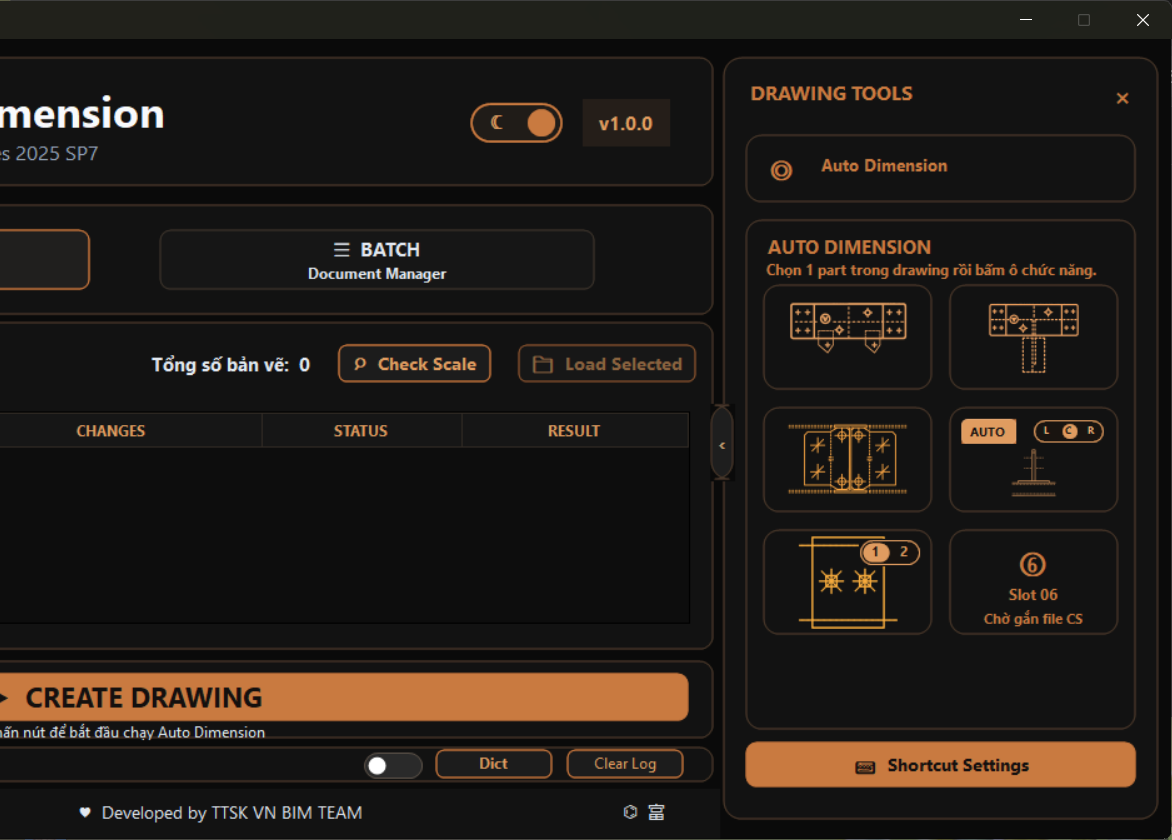

Some auxiliary dimensioning functions

Inspiration: Repetitive drawing tasks in Tekla take significant time and are prone to human errors, inspiring us to automate the detailing process.

What it does: Automates drawing creation, plate selection, hole extraction, and dimension processing in Tekla Structures, improving productivity and consistency.

How we built it: Built with C#, .NET, WinForms, and Tekla Open API to automate drawing and detailing workflows.

Challenges we ran into: Handling complex drawing rules, dimensions, and extracting model data accurately.

Accomplishments that we're proud of: Reduced manual work, improved productivity, and standardized drawing generation.

What we learned: Deep understanding of Tekla Open API, software architecture, and industrial automation development.

What's next for TEKLA API AUTOMATION FOR DRAWING: Add intelligent rule-based automation and support more drawing workflows.
