Team USA Digital Mirror

Discover your Team USA DNA through biometric matching, and explore 120 years of Olympic and Paralympic history with an AI-powered chat and interactive 3D globe.

Comment 2

🎯 What Is This?

Team USA Digital Mirror connects your body to 120 years of Olympic history. Our K-means ML model maps your height, weight, and age onto 8,108 verified historical athlete profiles — then unlocks a full AI analyst, interactive 3D globe, and voice assistant to let you explore every dimension of Team USA's story.

Data: 271,116 global Olympic records (1896–2016), filtered to 8,108 USA Summer athletes with biometrics. Built on the public 120 Years of Olympic History Kaggle dataset.

✨ The 3-Step Journey

╔══════════════════════════════════════════════════════════════════════════╗
║                                                                          ║

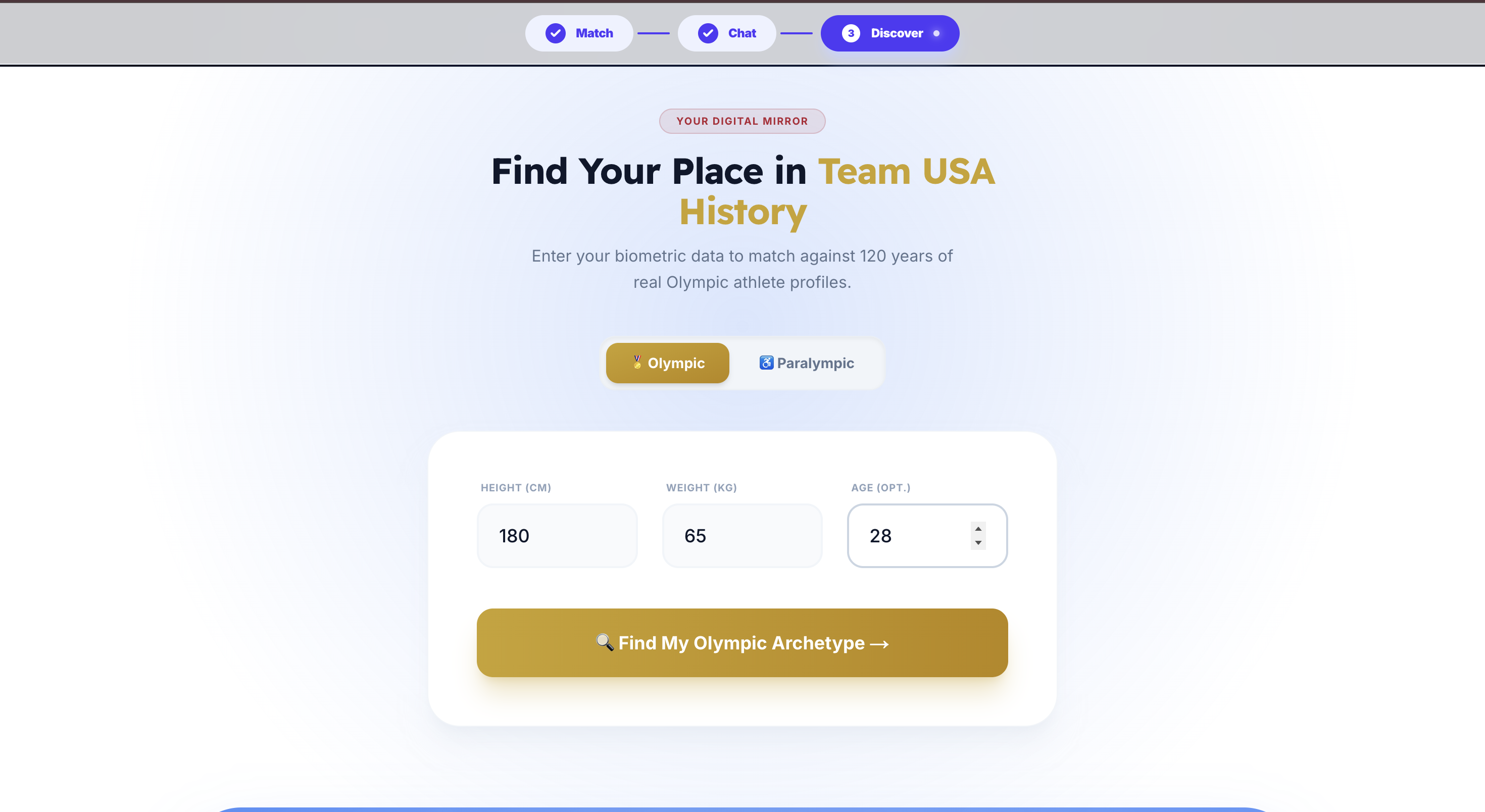

║   STEP 1 · MATCH          STEP 2 · CHAT           STEP 3 · DISCOVER     ║
║   ─────────────────        ─────────────────        ─────────────────    ║
║   Enter height, weight,    Ask the AI Analyst       Explore all 6        ║
║   and age. K-means ML      anything about Team       archetypes, Para     ║
║   finds your Olympic or    USA Olympic history.      data, and 120 yrs   ║
║   Paralympic archetype     Globe flies to every      of timeline charts. ║
║   in under 50ms.           city Gemini mentions.                         ║
║                                                                          ║
╚══════════════════════════════════════════════════════════════════════════╝

🌟 Feature Showcase

### 🏅 Biometric Archetype Matching K-means clustering across **6 Olympic** and **6 Paralympic** archetypes. Enter height + weight + age and receive a profile card with your top sports, historical medal rates, and a "Why you match" insight — all grounded in verified data. ### 🌍 Live 3D Interactive Globe NASA-textured Earth built with **Three.js + react-three-fiber**. Features atmosphere glow, starfield, sonar city markers, and animated flight arcs. When Gemini mentions an Olympic host city, the globe **automatically flies there**.

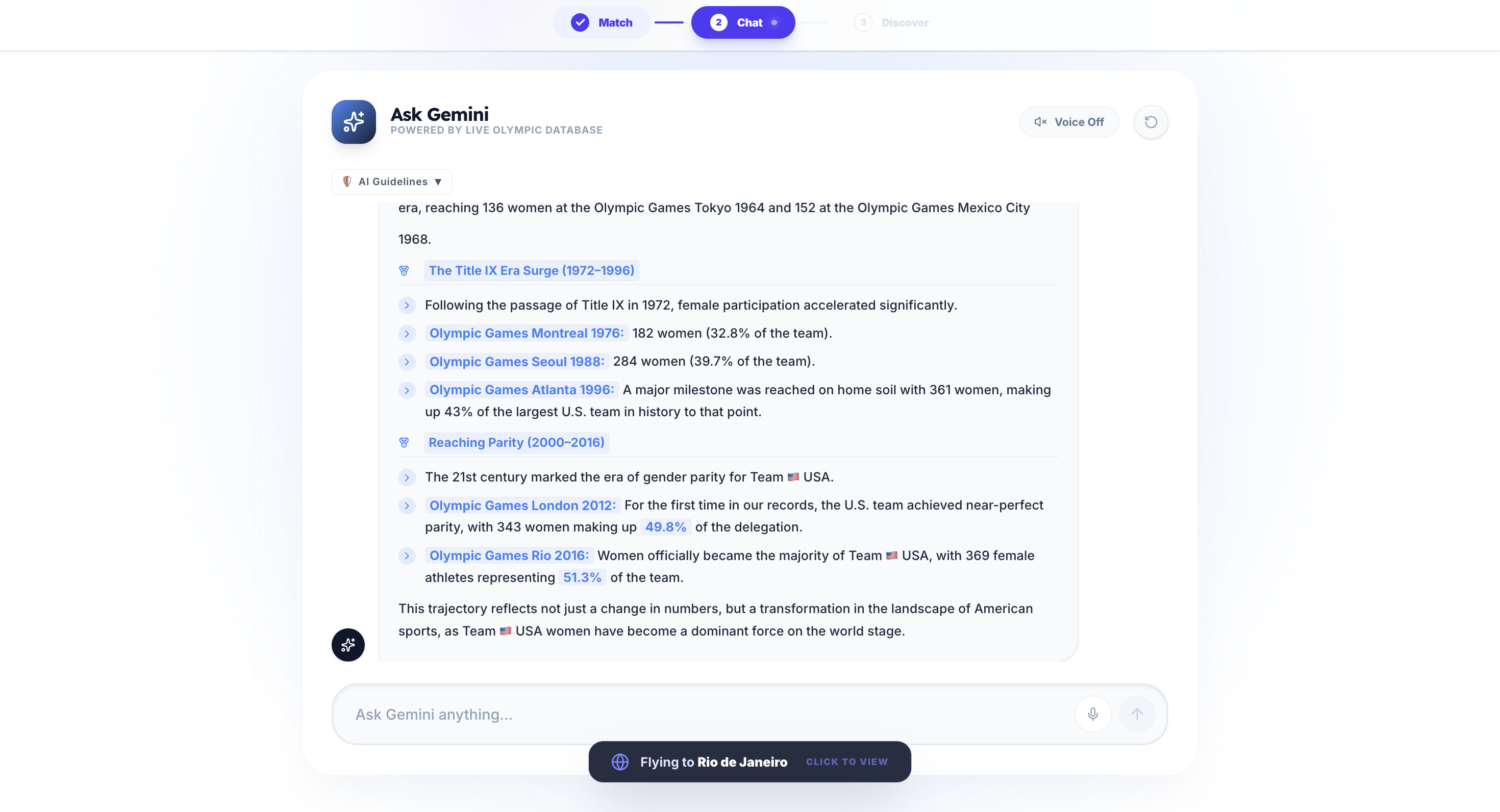

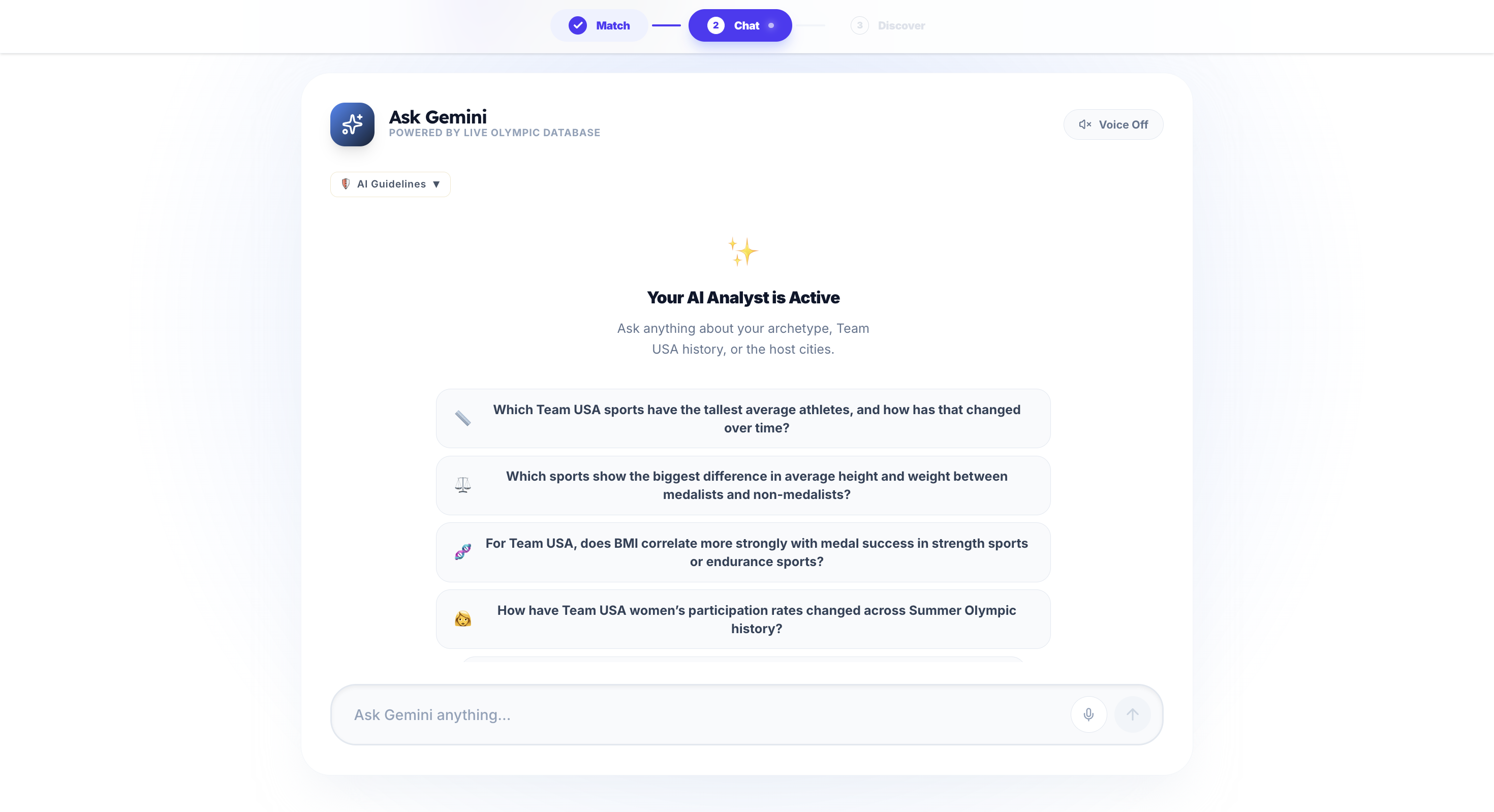

### 🤖 Gemini AI Analyst (Function Calling) A full **agentic AI** with 11 SQL-backed tools that query 271k rows of live PostgreSQL data. Every answer is grounded — no hallucination. Supports streaming SSE and a parallel **Live Voice** mode with real-time audio transcription. ### 🎤 Voice Assistant (Live API) Speak your question, hear the answer. Powered by **Gemini Live API** (`gemini-live-2.5-flash-native-audio`) with full duplex audio. The backend uses a hybrid architecture — SQL-grounded answers injected back for Gemini to speak.
### 🖐️ Hand Gesture Control **MediaPipe Hands** via webcam. Point to hover, pinch to select, open palm to rotate/zoom, fist to close panels. No mouse or keyboard required for globe navigation. ### 📍 LA28 Games Distance Tracker Geocode any city and calculate the great-circle distance to the **LA28 Coliseum** using the Haversine formula. Your city pin appears on the globe with a flight arc to Los Angeles.
### 🔗 Shareable Deep Links `?h=178&w=72&age=25` URL params auto-run the match and display a shared-result banner. Send your archetype to anyone — they see your exact result without re-entering anything. ### 📡 SSE Streaming Chat Chat responses stream progressively via **Server-Sent Events** — text appears word by word in real time. No spinner waiting for a 5-second full response.

🏗️ Architecture

┌─────────────────────────────────────────────────────────────────────────┐
│                   teamusa-8b1ba.web.app  (Firebase Hosting CDN)         │
└────────────────────────────────┬────────────────────────────────────────┘
                                 │  HTTPS
               ┌─────────────────▼───────────────────┐
               │   Next.js 16  (Firebase App Hosting) │
               │                                       │
               │   • 3D Globe (Three.js + R3F)         │
               │   • Biometric input + archetype UI    │
               │   • Gemini AI chat panel              │
               │   • Olympic / Paralympic toggle       │
               │   • Voice TTS + MediaPipe Gestures    │
               │   • StepNav: Match → Chat → Discover  │
               └──────────────┬──────────────────────┘
                              │  REST + SSE + WebSocket
               ┌──────────────▼──────────────────────┐
               │   FastAPI  (Cloud Run, us-central1)  │
               │                                       │
               │   POST /api/match   → K-means        │
               │   POST /api/chat    → Gemini agent   │
               │   POST /api/chat-stream → SSE        │
               │   WS   /api/voice-chat-live          │
               │   POST /api/location → Haversine     │
               │   GET  /api/timeline, /api/stats     │
               └──────────────┬──────────────────────┘
                              │  11 SQL tools + dynamic SQL
               ┌──────────────▼──────────────────────┐
               │   Cloud SQL  PostgreSQL              │
               │                                       │
               │   271,116 rows · 6 normalized tables │
               │   View: v_results_full               │
               │   Columns: id, name, sex, age,       │
               │     height_cm, weight_kg, noc,       │
               │     year, season, city, sport,       │
               │     event, medal                     │
               └─────────────────────────────────────┘

This prevents the native Live model from hallucinating stats while keeping the voice experience fully real-time.

Voice Hybrid Architecture

The Live Voice assistant uses a two-lane hybrid design to ensure every answer is data-grounded:

User speaks → Gemini Live API (transcription only)
                    ↓ full question detected
              SQL-backed ask_gemini() in background thread
                    ↓ verified DB answer
              → sent to browser as live_text (shown in chat)
              → injected back into Gemini session as text
              → Gemini speaks the grounded answer via audio

🔬 Technical Foundation

K-Means Biometric Clustering

Our engine uses a multi-dimensional K-means clustering algorithm to map user inputs. The distance $d$ between a user's biometric profile $P$ and an archetype centroid $C$ is calculated using the weighted Euclidean distance:

$$ d(P, C) = \sqrt{ \sum_{i=1}^{n} w_i (P_i - C_i)^2 } $$

Where:

  • $w_i$: Feature weights (prioritizing Height and Weight over Age).
  • $P_i$: User's normalized biometric values.
  • $C_i$: Archetype centroid coordinates derived from 120 years of Team USA data.

Grounded Retrieval (RAG)

The Gemini Analyst uses a ReAct (Reasoning and Acting) pattern to interact with the PostgreSQL database. Instead of relying on internal knowledge, it follows a strict protocol:

  1. Analyze: Understand the user's intent (e.g., "Tallest athletes in 1996").
  2. Act: Select and execute the appropriate SQL tool (e.g., get_athlete_biometrics).
  3. Synthesize: Generate a natural language response grounded only in the returned dataset.

MediaPipe Gesture Mapping

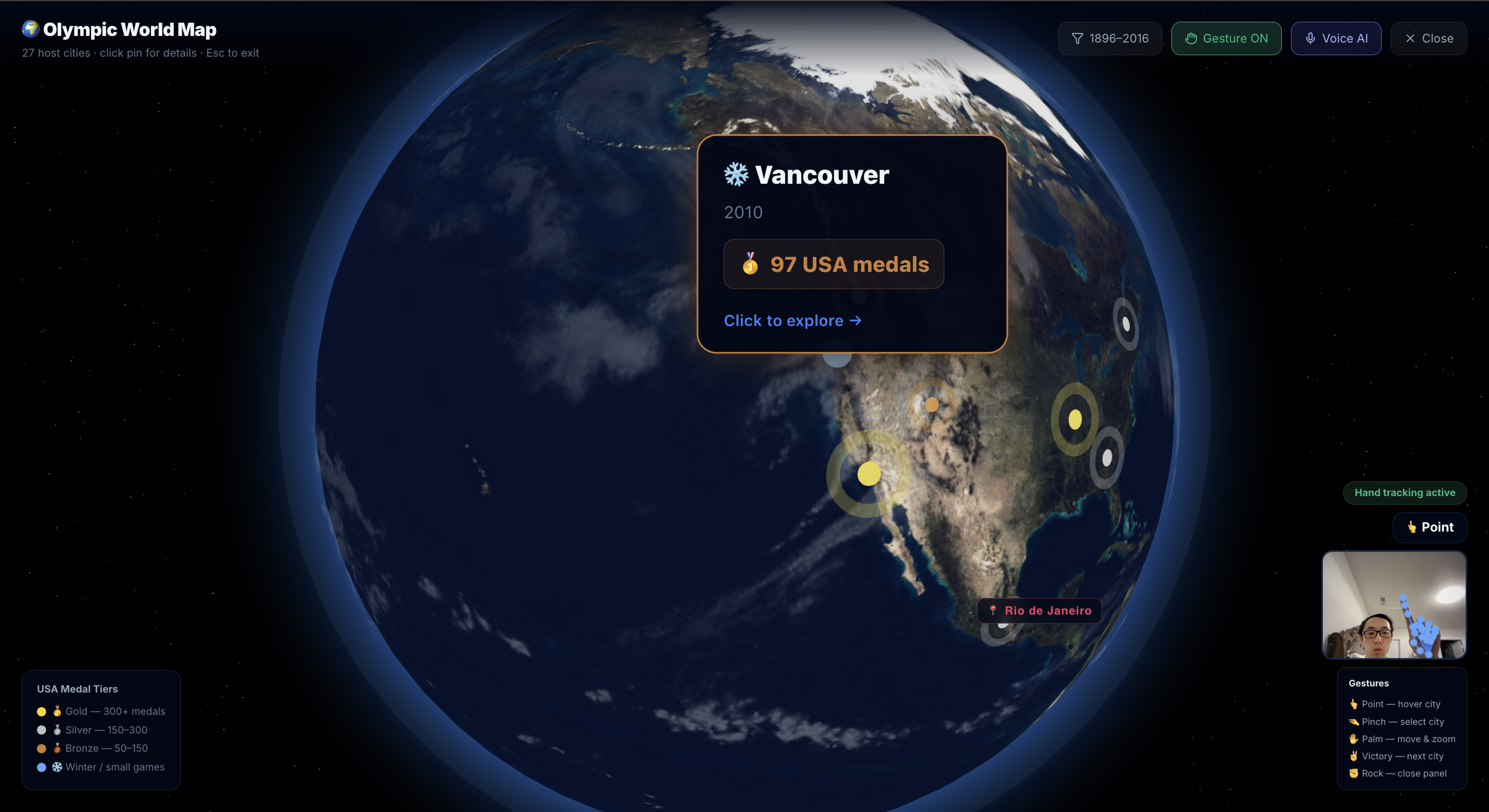

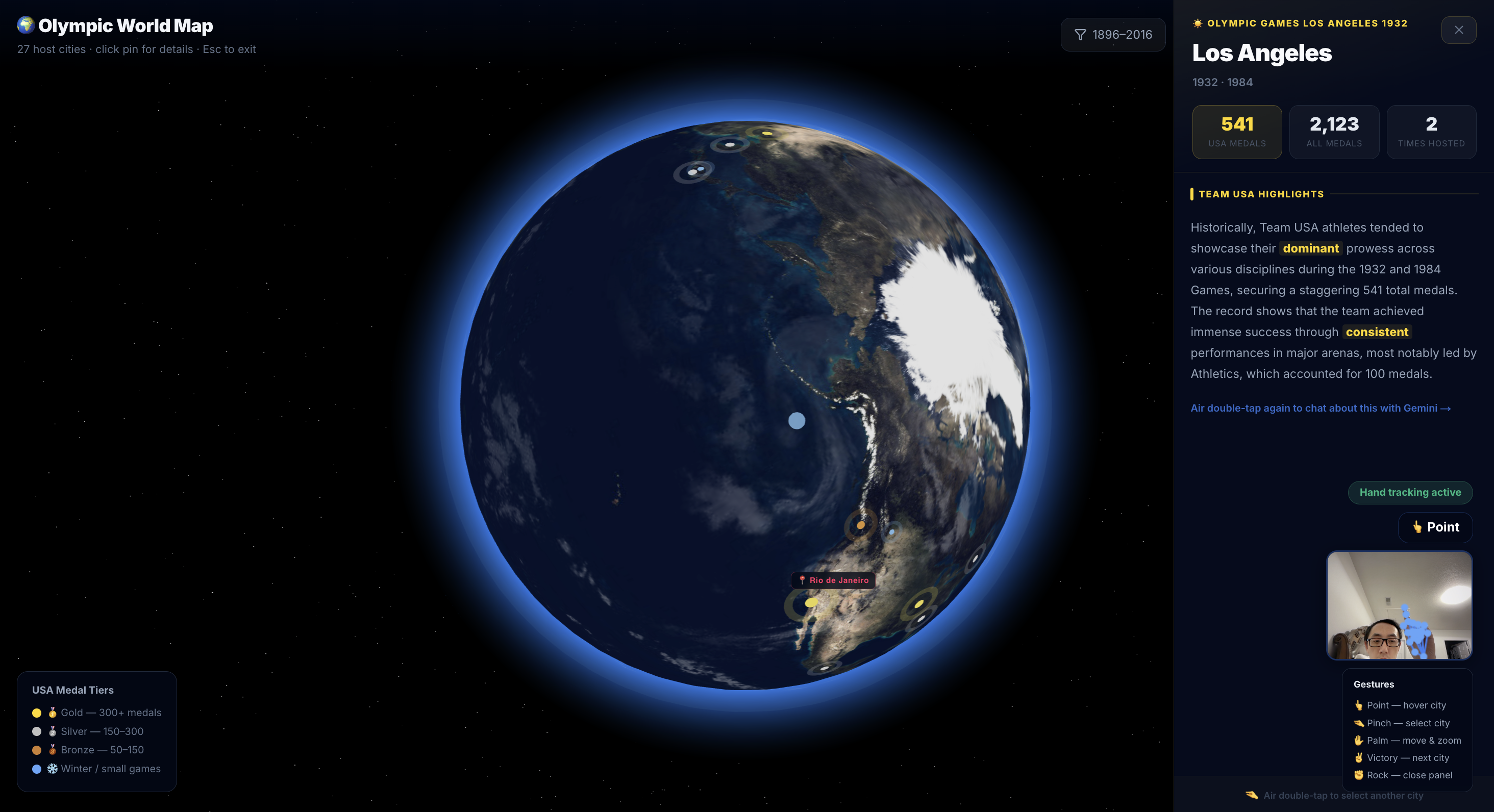

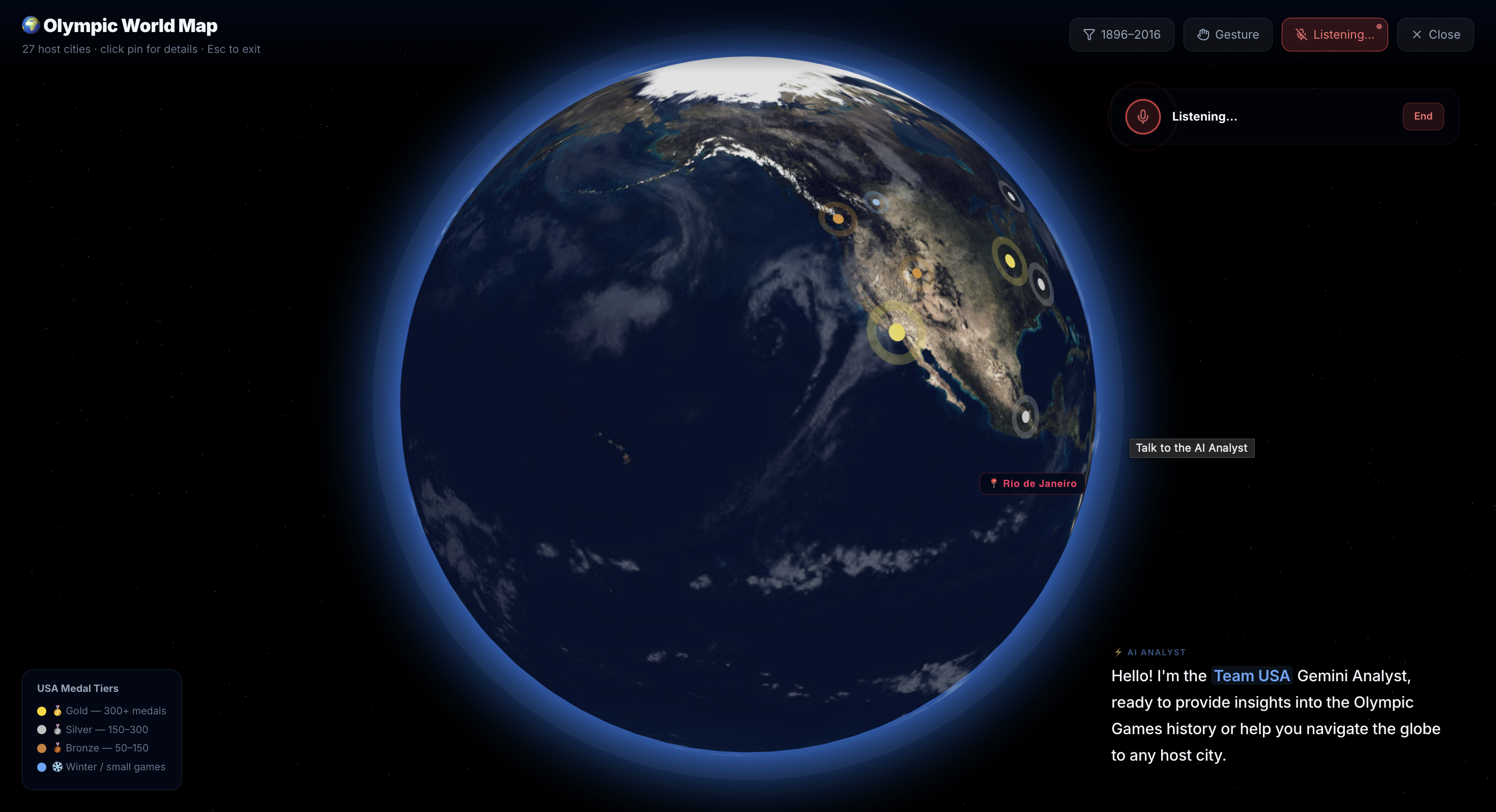

The 3D globe supports touchless navigation via MediaPipe Hands. We map hand landmarks to camera controls in a Three.js environment:

  • Index Point: Raycasts to the globe surface for city selection.
  • Pinch (Index + Thumb): Triggers a "click" event on the target location.
  • Open Palm: Initiates rotation based on the hand's vector $V_{hand}$ relative to the screen center.
  • Fist: Global "cancel" or "close panel" signal.

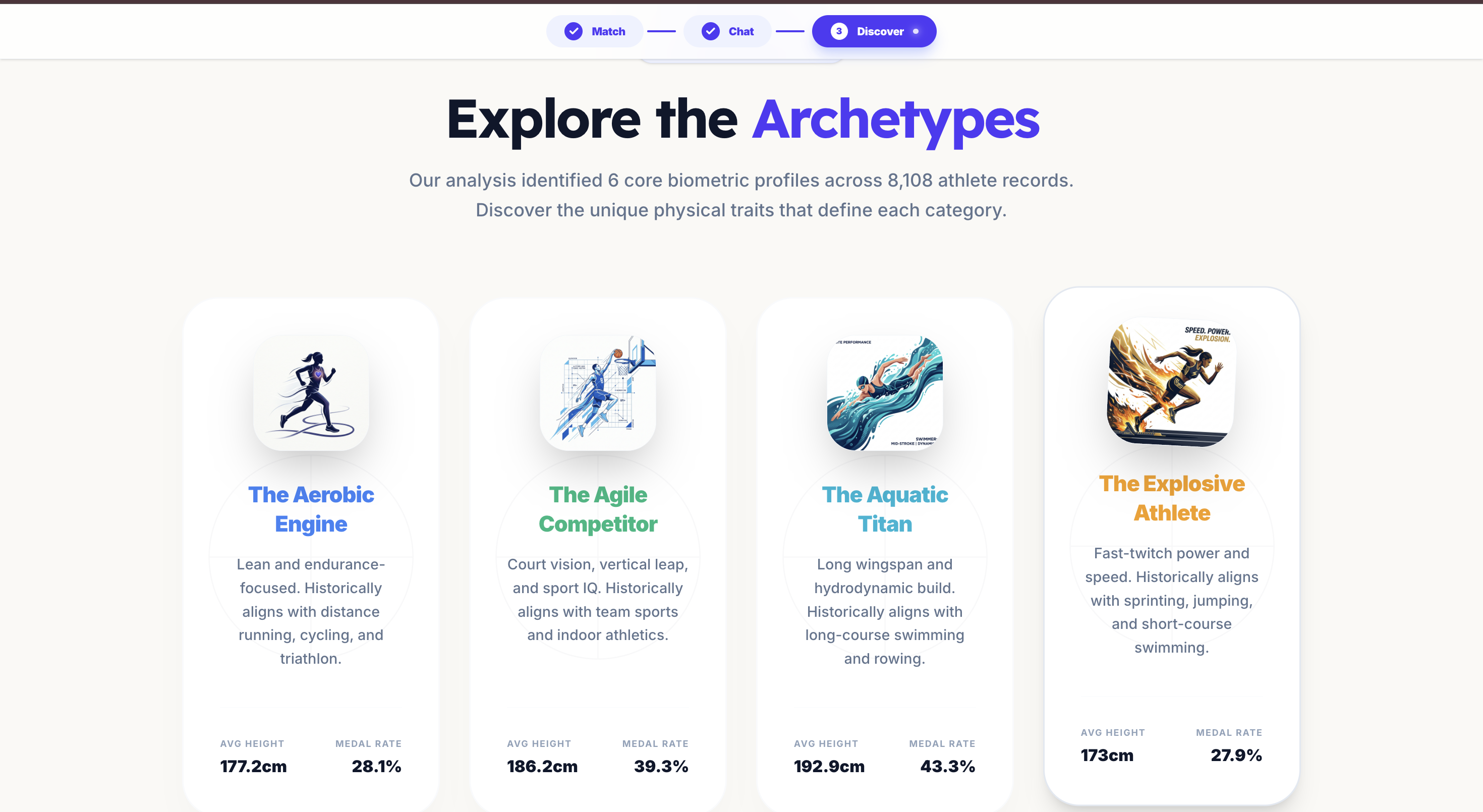

🧬 The Athlete Archetypes

# Olympic Archetype Description
1 Powerhouse High mass, high strength — weightlifting, wrestling, throwing

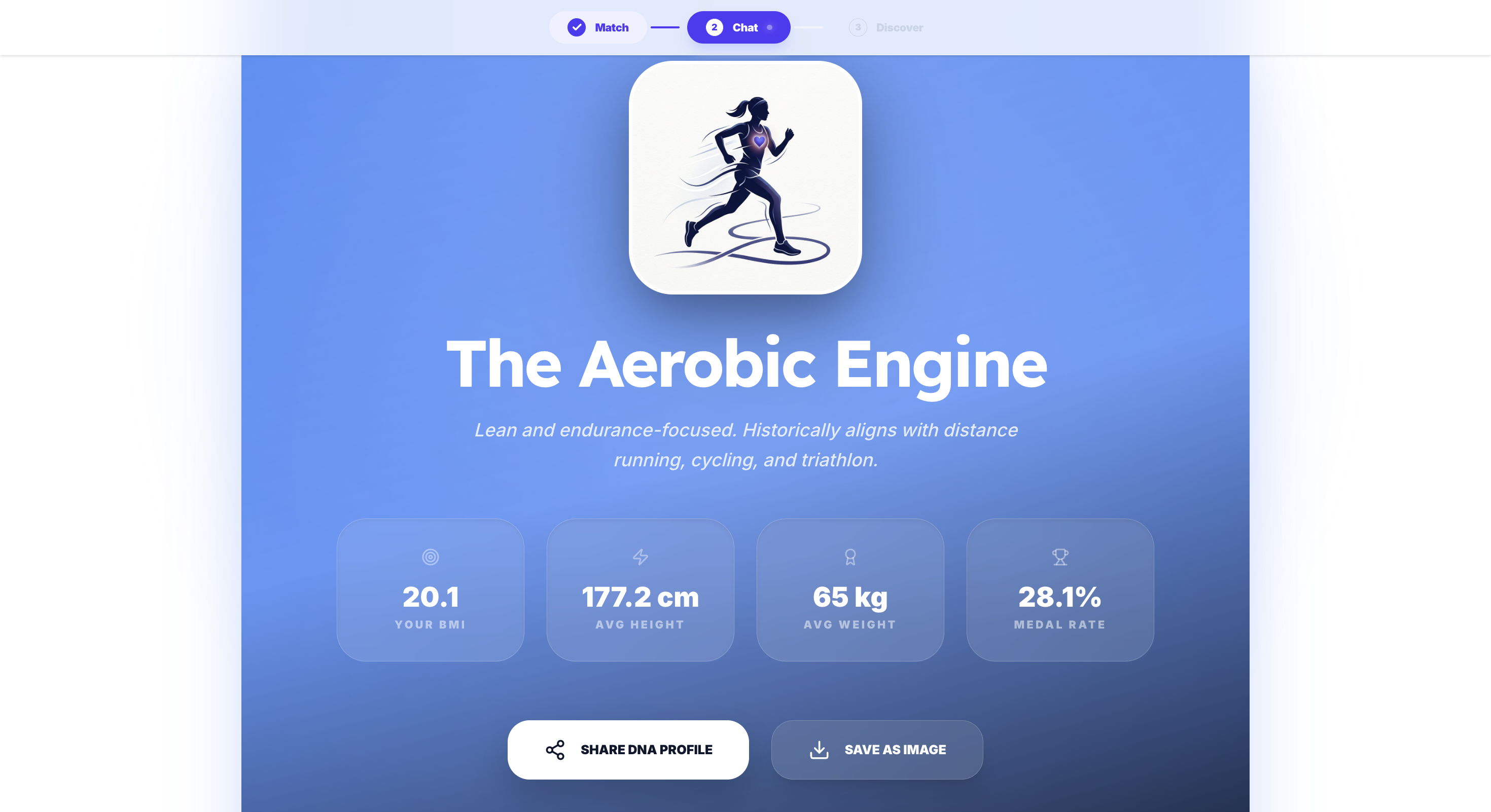

2 Aerobic Engine Lean, efficient — distance running, cycling, triathlon
3 Explosive Athlete Fast-twitch power — sprinting, jumping, throwing
4 Precision Maestro Technical accuracy — archery, shooting, fencing, gymnastics
5 Aquatic Titan Tall, broad — swimming, water polo, rowing
6 Agile Competitor Balanced all-rounder — team sports, combat sports

Paralympic archetypes mirror these six clusters using Olympic sports that share functional movement patterns with Paralympic classifications. All Paralympic data is clearly marked as exploratory and educational — the underlying dataset covers Olympic Games only.

🤖 Gemini Agent Tools

The AI analyst has 11 function-calling tools that query the live database:

Tool What It Does
get_medal_stats Count medals by country, year, sport, or range
get_athlete_biometrics Average height/weight by sport or nation
get_sport_breakdown Top sports by medal count
get_top_nations Global leaderboard by medal count
get_athlete_age_stats Min/max/avg age by sport and year
get_gender_breakdown Male vs Female athlete counts by team and year
get_games_summary Host city stats for any Games (athletes, nations, events)
get_sport_history First/last year a sport appeared, total medals awarded
get_bmi_by_sport Average BMI grouped by sport
get_custom_sql_data Execute any aggregate SELECT against v_results_full
trigger_map_view Flies the 3D globe to any Olympic host city mentioned

🚀 Quick Start

Prerequisites

  • Python 3.11+ and Node.js 20+
  • Google Cloud SDK (gcloud auth application-default login)
  • Cloud SQL Auth Proxy (local dev only)

1. Clone & Install

git clone https://github.com/JiawenZhu/teamusa-gemini-analyst.git
cd teamusa-gemini-analyst

# Root dev dependencies
npm install

# Frontend
cd frontend && npm install && cd ..

# Backend
cd backend && python3 -m venv .venv && source .venv/bin/activate \
  && pip install -r requirements.txt && cd ..

2. Configure Environment

backend/.env

# Vertex AI (preferred — no API key needed, uses gcloud credentials)
DATABASE_URL=postgresql://postgres:password@localhost:5433/teamusa-database

frontend/.env.local

NEXT_PUBLIC_API_URL=https://teamusa-oracle-api-789615763226.us-central1.run.app

3. Run Locally

npm run dev
# Starts: Cloud SQL Proxy → FastAPI (port 8000) → Next.js (port 3000)

Open http://localhost:3000

✅ Reproducibility & Testing

No login required. The live demo is fully public — visit teamusa-8b1ba.web.app and start exploring.

Automated Backend Tests

A 37-test pytest suite runs fully offline (no DB or API key needed). Covers all endpoints, K-means logic, Haversine distance, and SSE chunker.

cd backend
source .venv/bin/activate
pip install pytest httpx   # one-time
pytest test_api.py -v
# Expected: 37 passed in ~4s

Manual Verification Checklist

Step Action Expected Result
1. Olympic Match Height 178cm, Weight 72kg, Age 25 → "Find My Archetype" Named archetype card with medal rate, top sports, closest anonymized historical records
2. Paralympic Toggle Switch to Paralympic → re-run same biometrics Distinct para_* archetype (e.g., "Para Endurance Engine")
3. AI Chat Ask: "Which Team USA sports have the tallest athletes?" Gemini queries DB, returns heights by sport with historical trend
4. Globe Auto-Fly Ask about multiple different Olympic cities Globe animates to each city automatically
5. Voice Mode Click mic → speak a question Answer streamed as text + spoken via TTS
6. LA28 Tracker Enter hometown (e.g., "Chicago, IL") Distance in km/miles + globe pin + flight arc to LA
7. Shareable Link Copy URL after match → open in incognito tab Archetype auto-loads from ?h=178&w=72&age=25 params
8. Hand Gestures Enable webcam → test pinch, palm, point Globe responds to gestures without mouse

API Verification

BASE=https://teamusa-oracle-api-789615763226.us-central1.run.app

# Health check
curl $BASE/health
# → {"status":"ok"}

# Olympic biometric match
curl -X POST $BASE/api/match \
  -H "Content-Type: application/json" \
  -d '{"height_cm": 178, "weight_kg": 72, "age": 25, "mode": "olympic"}'
# → {"archetype_id": "aerobic_engine", "user_bmi": 22.7, ...}

# Paralympic match
curl -X POST $BASE/api/match \
  -H "Content-Type: application/json" \
  -d '{"height_cm": 178, "weight_kg": 72, "age": 25, "mode": "paralympic"}'
# → {"archetype_id": "para_endurance_engine", ...}

# Dataset stats
curl $BASE/api/stats
# → {"total_records": 271116, "unique_athletes": 8108, ...}

Cold-start note: First request after inactivity may take 5–10s as Cloud Run spins up. Subsequent requests respond in under 50ms.

Interactive Swagger UI: teamusa-oracle-api-789615763226.us-central1.run.app/docs

📡 API Reference

Endpoint Method Description
/health GET Health check → {"status":"ok"}
/api/stats GET Dataset statistics (total records, athletes, years)
/api/archetypes GET All 6 Olympic archetypes with biometric profiles
/api/para-archetypes GET All 6 Paralympic archetypes
/api/match POST Biometric → archetype (Olympic or Paralympic)
/api/chat POST Gemini agent — full JSON response
/api/chat-stream POST Gemini agent — SSE streaming response
/api/voice-chat-live WebSocket Live voice session with audio I/O
/api/location POST Geocode city + great-circle distance to LA28

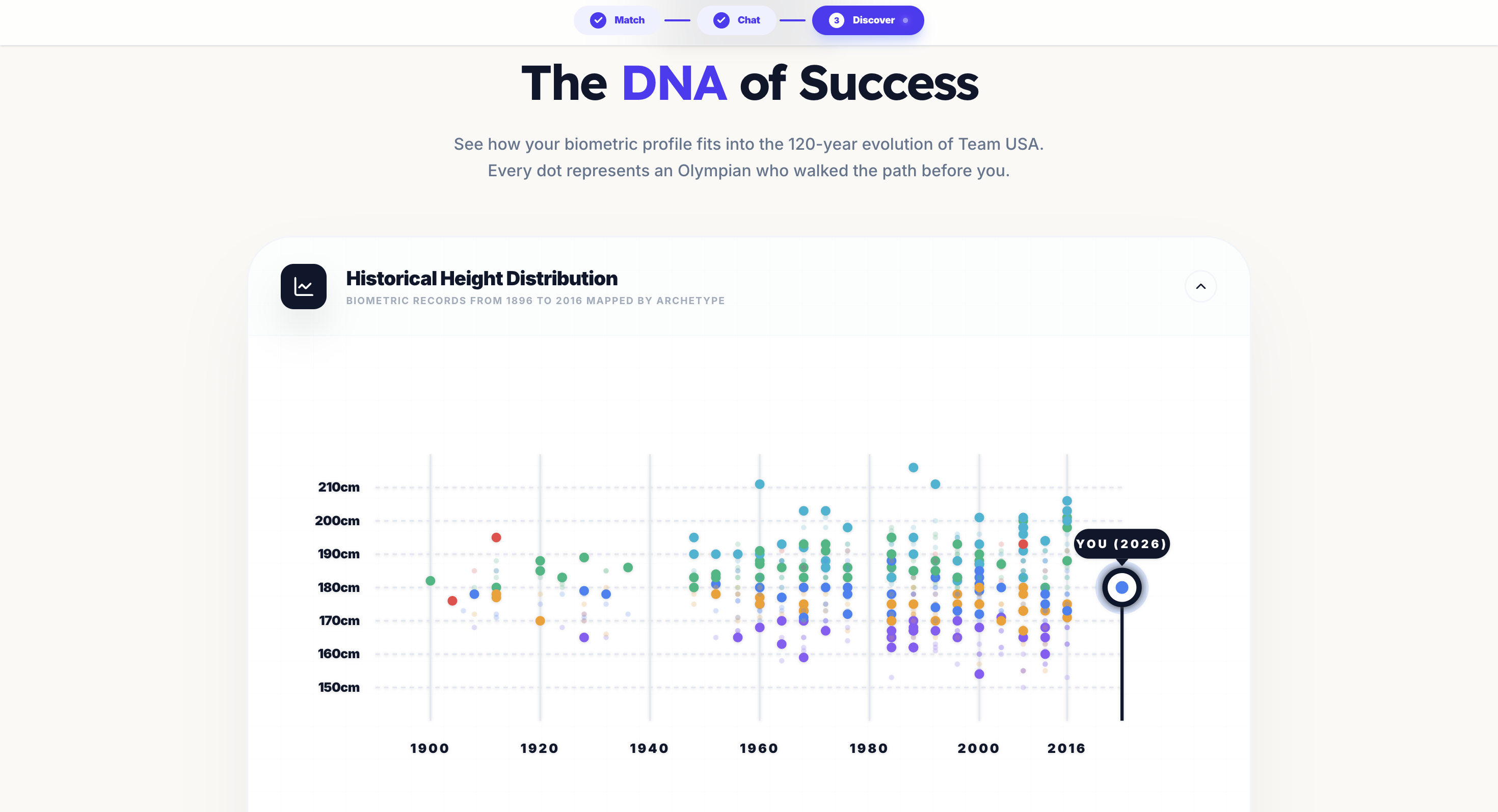

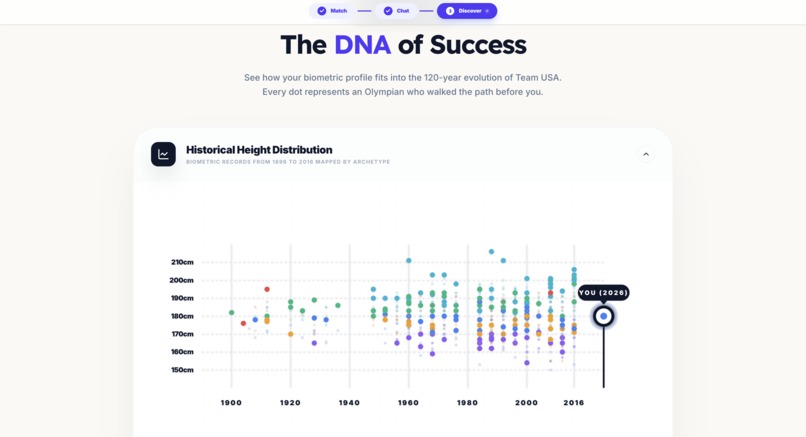

/api/timeline GET 600-point scatter data for visualization
/api/olympic-cities GET All host cities with coordinates and medal counts

Match request body:

{
  "height_cm": 178,
  "weight_kg": 72,
  "age": 25,
  "mode": "olympic"
}

🗄️ Database Schema

-- 6 normalized tables
athletes  (id, name, sex, height_cm, weight_kg)
nations   (noc PK, team_name)
games     (id, year, season, city)
sports    (id, name)
events    (id, sport_id FK, name)
results   (id, athlete_id FK, noc FK, games_id FK, event_id FK, age, medal)

-- Primary query surface (271,116 rows):
VIEW v_results_full
  Columns: id, name, sex, age, height_cm, weight_kg,
           noc, team_name, year, season, city, sport, event, medal
  medal values: 'Gold' | 'Silver' | 'Bronze' | NULL

[!NOTE] Historical data note: This dataset preserves original Sports-Reference records. Minor discrepancies vs. modern IOC databases may exist (e.g., the 1900 Paris Games shows 32 women where the IOC retroactively recognizes 22, because some events were later de-certified). We intentionally preserve the more inclusive historical record.

🏆 Design Decisions

Decision Rationale
K-means in-memory, not Gemini Archetype matching needs <5ms latency. Gemini is reserved for grounded narrative where latency is acceptable.
Separate Olympic + Paralympic models Different biometric distributions require independent clustering. Same source data, different filters and centroids.
Vertex AI (no API key) Authentication via gcloud ADC — no key rotation risk, works with both Cloud Run and local dev.
SSE streaming for chat Progressive rendering feels live. No spinner waiting for a 5-second full response.
Live Voice hybrid architecture Native Live model is great for voice I/O but doesn't reliably invoke SQL tools. DB-grounded answer is injected back for Gemini to speak.
trigger_map_view tool Bridges AI conversation → 3D visualization automatically. No button click required.
Shareable URL params ?h=&w=&age= deep links encode any result so it can be shared and auto-reproduced.
Firebase Hosting + Cloud Run Global CDN edge for the frontend; auto-scaling serverless backend. Zero cold-start penalty on the frontend.

🛡️ Responsible AI

All AI responses are governed by explicit system instructions:

Principle Enforcement
Conditional language only Responses use "historically associated with", "aggregate patterns suggest" — never deterministic claims about individuals
No individual athlete profiles AI is prohibited from naming, profiling, or predicting outcomes for specific athletes
Aggregate data only All insights are drawn from population-level statistics, never individual records
Olympic / Paralympic separated The two models are independent; Paralympic analysis always carries the proxy-sports disclaimer
Historical scope enforced AI is scoped to the 1896–2016 dataset; post-2016 questions are explicitly declined

📊 Tech Stack

LayerTechnology
Frontend FrameworkNext.js 16 (App Router, TypeScript)
3D VisualizationThree.js + react-three-fiber + @react-three/drei
AI / LLMGoogle Gemini (Vertex AI) — function calling + Live API
BackendFastAPI + Python 3.11 + Uvicorn
DatabaseCloud SQL for PostgreSQL (271k rows)
ML Clusteringscikit-learn K-means (in-memory, <50ms inference)
Hosting (Frontend)Firebase Hosting + Firebase App Hosting (Cloud Run)
Hosting (Backend)Google Cloud Run (us-central1)
GeocodingOpenStreetMap Nominatim (no API key)
Gesture ControlMediaPipe Hands (browser WebGL)
AnimationsFramer Motion
Testingpytest + httpx (37 tests, fully offline)

📄 License

Apache License 2.0 — see LICENSE.

Data: Olympic History 1896–2016 Kaggle Dataset (CC0). All user-facing insights are aggregate, anonymized, and conditional.

**Built for the [Vibe Code for Gold with Google Hackathon](https://vibecodeforgoldwithgoogle.devpost.com/)** *Challenge 4: The Athlete Archetype Agent*
*Powered by Google Cloud · Gemini API · Next.js · FastAPI · K-means*

Built With

  • api
  • firebase-hosting-apis:-nominatim-(openstreetmap-geocoding)
  • google-cloud-sql-(postgresql)
  • html/css-frontend-framework:-next.js-16-(react)
  • languages:-python
  • react-three-fiber-backend-framework:-fastapi
  • scikit-learn-(k-means-clustering)-ai-&-llm:-google-gemini-api-(function-calling-&-tool-use)-google-cloud-services:-google-cloud-run
  • speech
  • sql
  • three.js
  • typescript
  • web
Share this project:

Updates
