Team Joint Venture: Case 15 -Magnetic Writing Guidance Board

•

  Magnetic Slant Board Writing Assistive Device

•

  Device in use

Team Joint Venture: Case 15 -Magnetic Writing Guidance Board

What it does

Our device is an adjustable slant board that utilizes a variety of letter and number tiles that can be used as guides. These guides are lined with magnetic tape and used with a custom stylus that is repelled by the rails. This aids the recipient in staying between the guidelines to practice writing with assistance.

How we built it

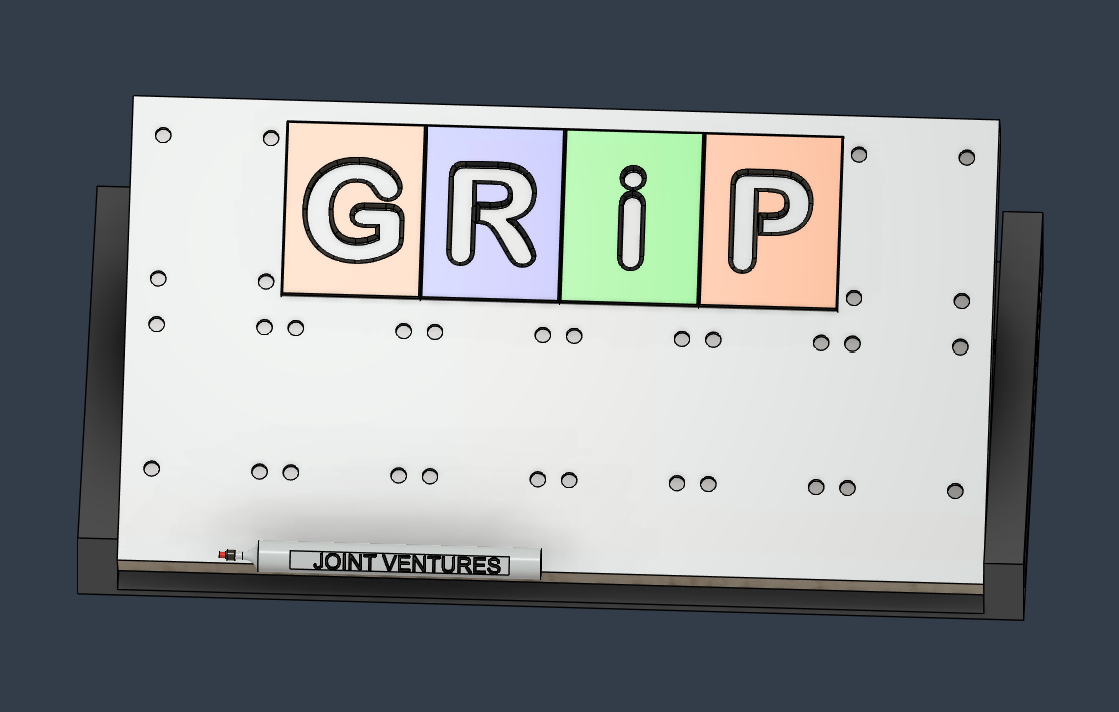

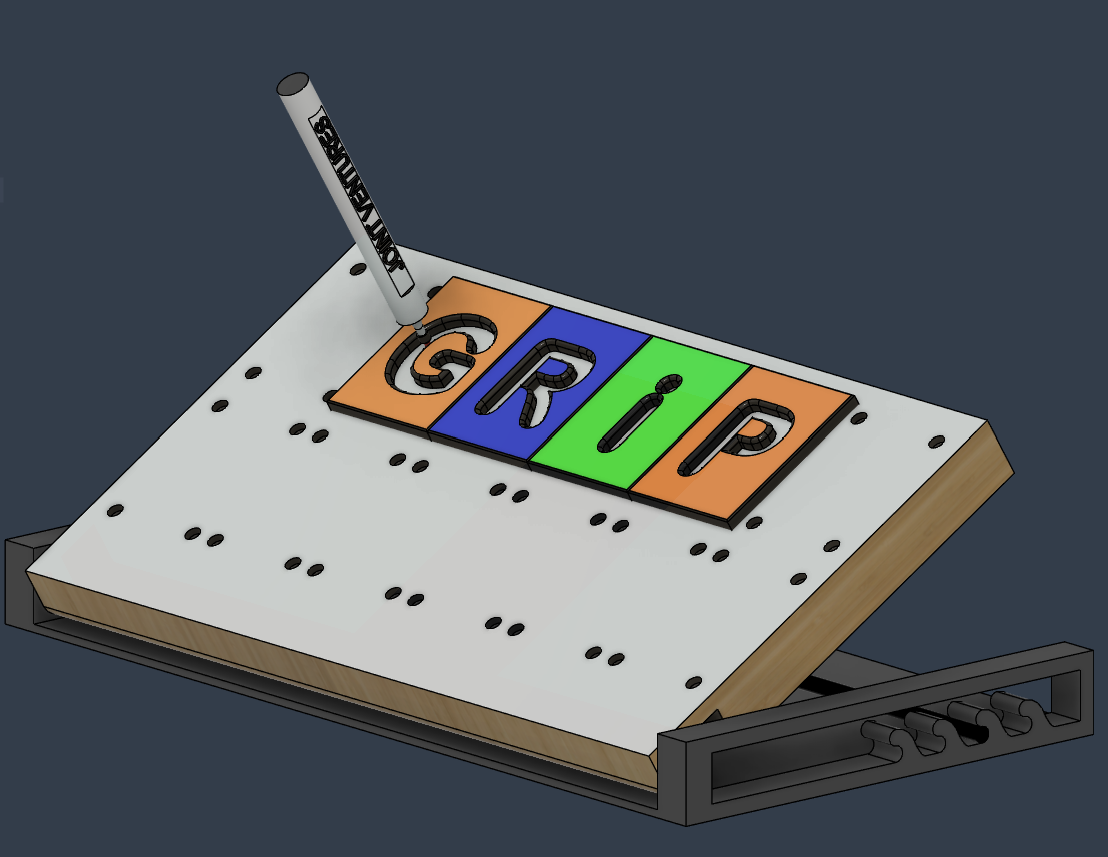

We used Fusion360 to create a full sized mock-up of our design.

How to build it

We recommend 3D printing all components except for the stylus and pin. Those items can be bought premade. The pen then can have magnetic tape attached right above the tip. We suggest 3D printing the parts if only a few devices are being made, however if this is being manufactured injection molding would be more cost efficient. All parts can be 3D printed out of PLA or PETG (if concerned about longevity) except for the slant board base which should be made of aluminum with a textured bottom to prevent sliding across the table.

Challenges we ran into

Our biggest challenge was determining how much assistance the recipient needed. Our initial ideas was to create the same device without physical rails that prevent movement outside of the letters completely. This could be a next step for this recipient once they are able to get more practice or if they end up needing less assistance.

Accomplishments that we're proud of

We kept this device cost effective and easy to manufacture. We aimed for a stye that would appeal to children and parents.

What we learned

We had the opportunity to learn more about diplegic CP, including the challenges and physiological circumstances that effect people with this condition.

Built With

• autodesk-fusion-360
