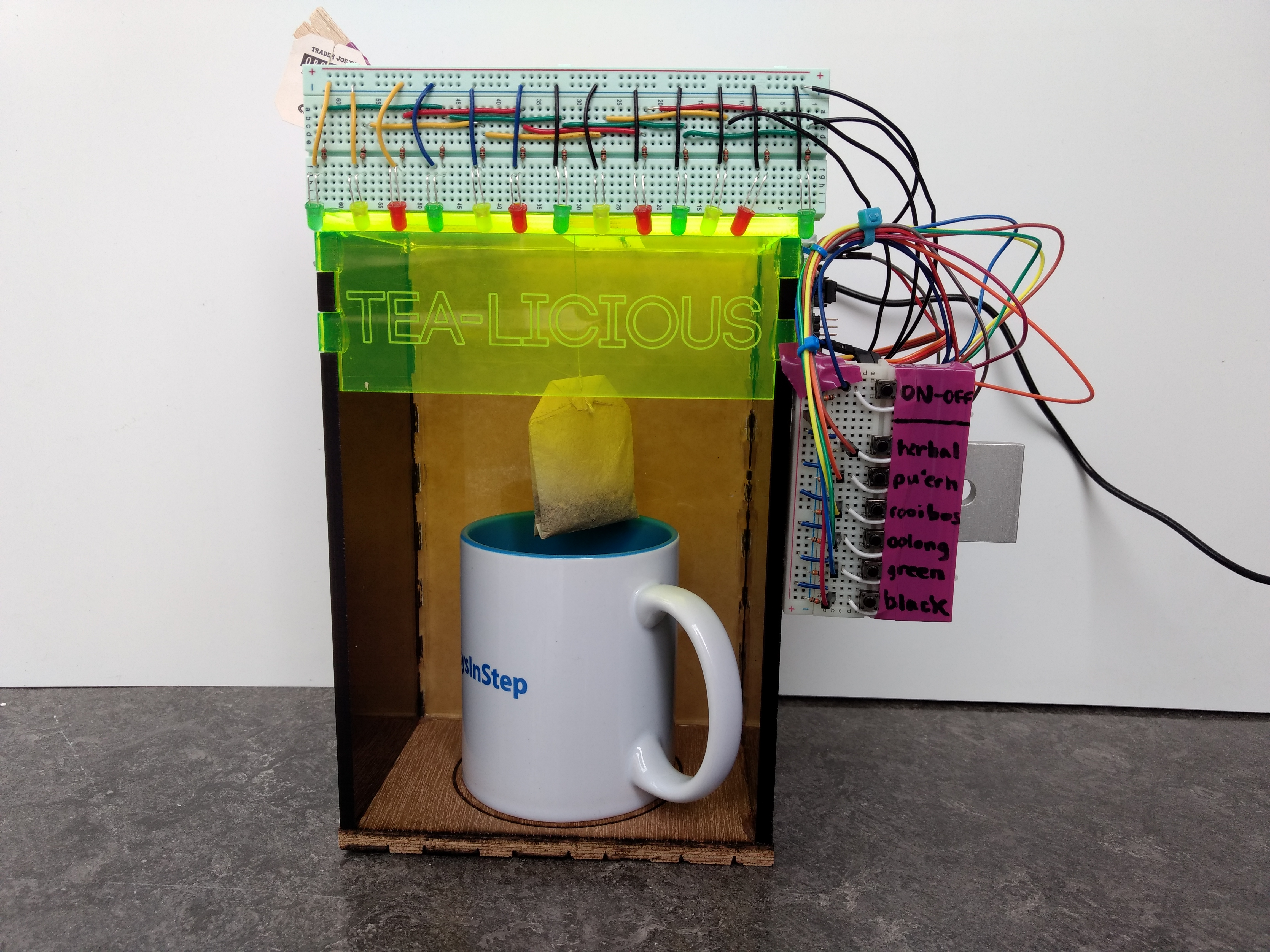

Tea-licious in action

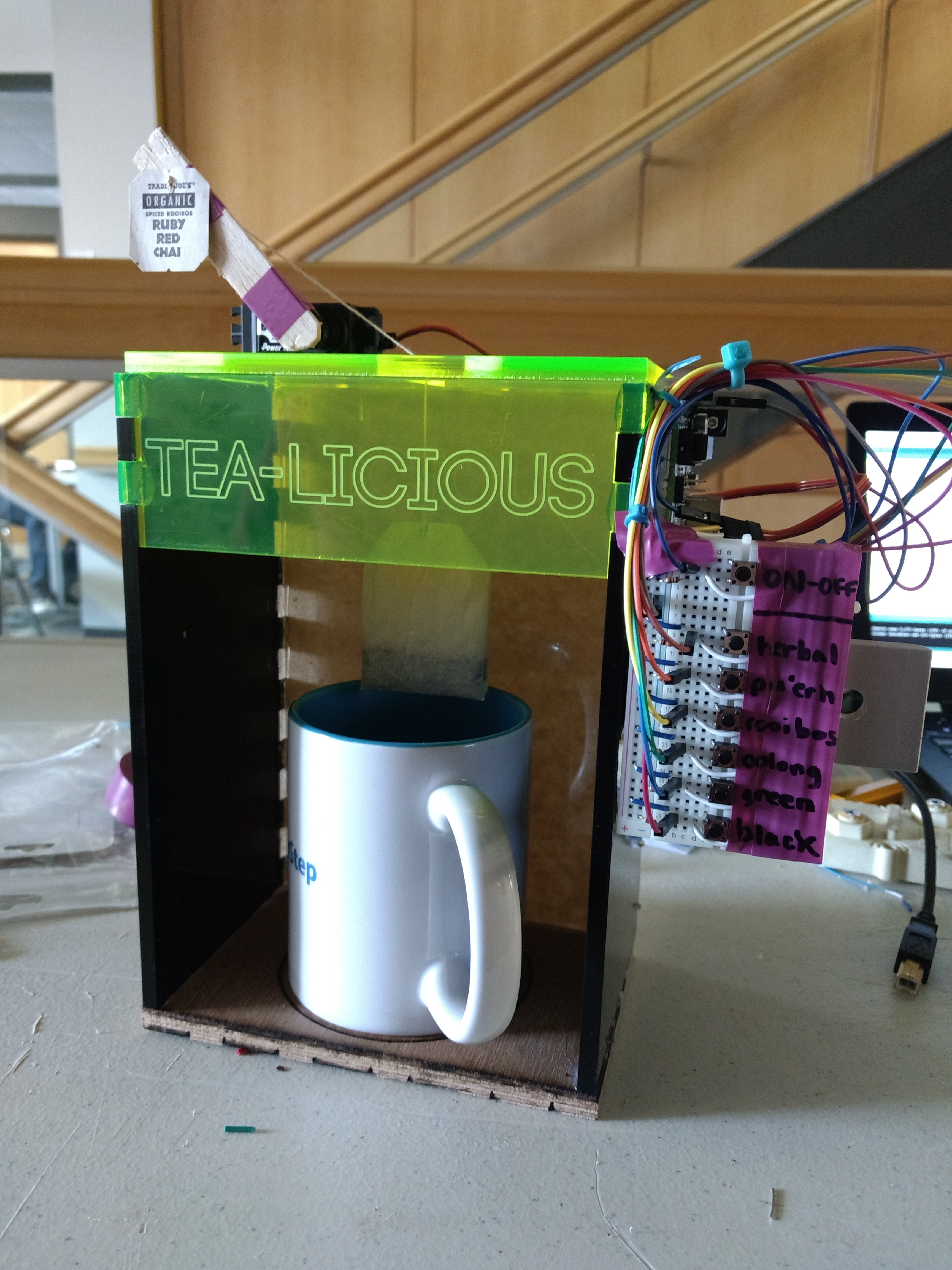

Our front plate-- LEDs added later.

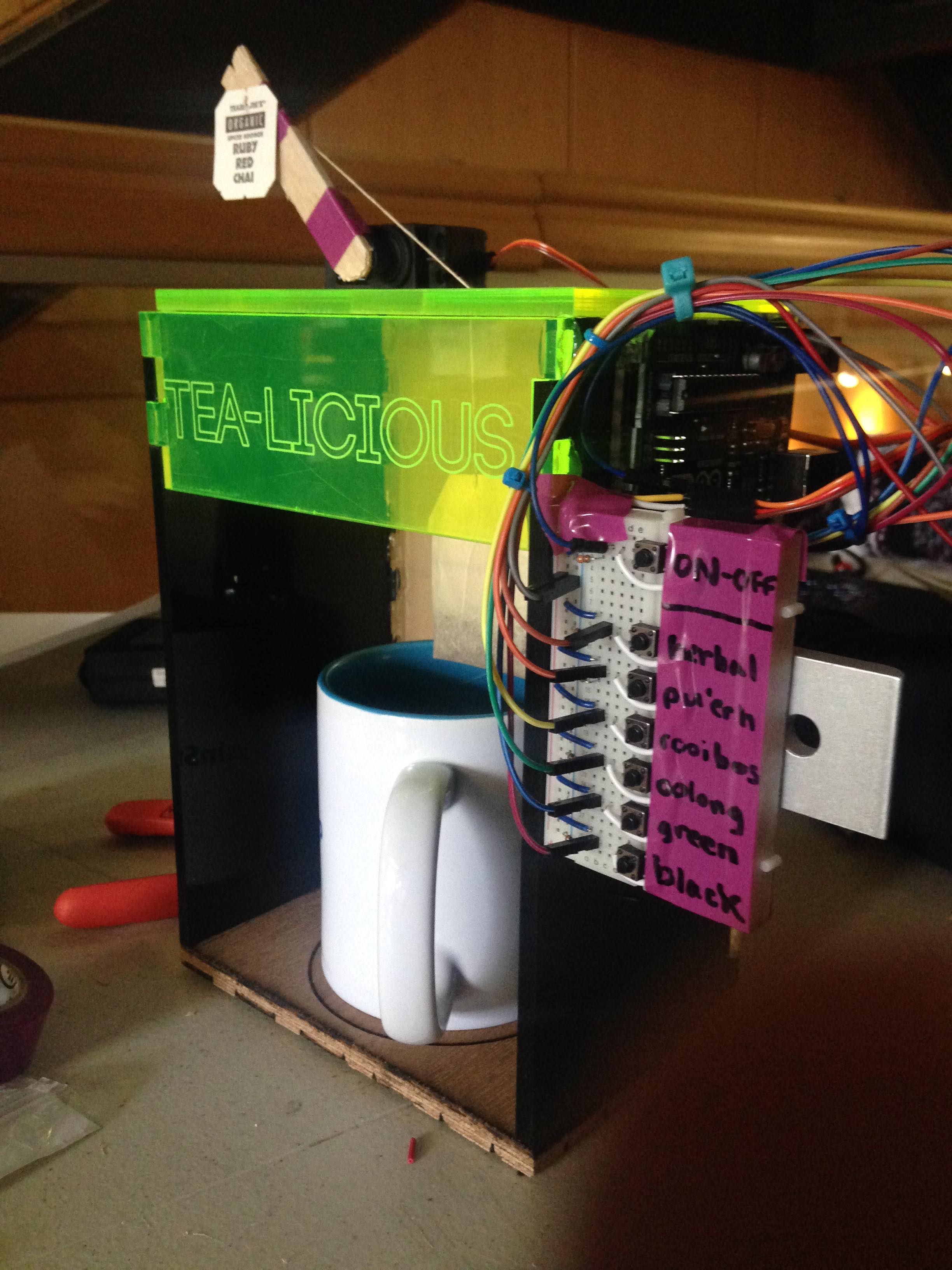

Seven buttons for 6 different types of tea!

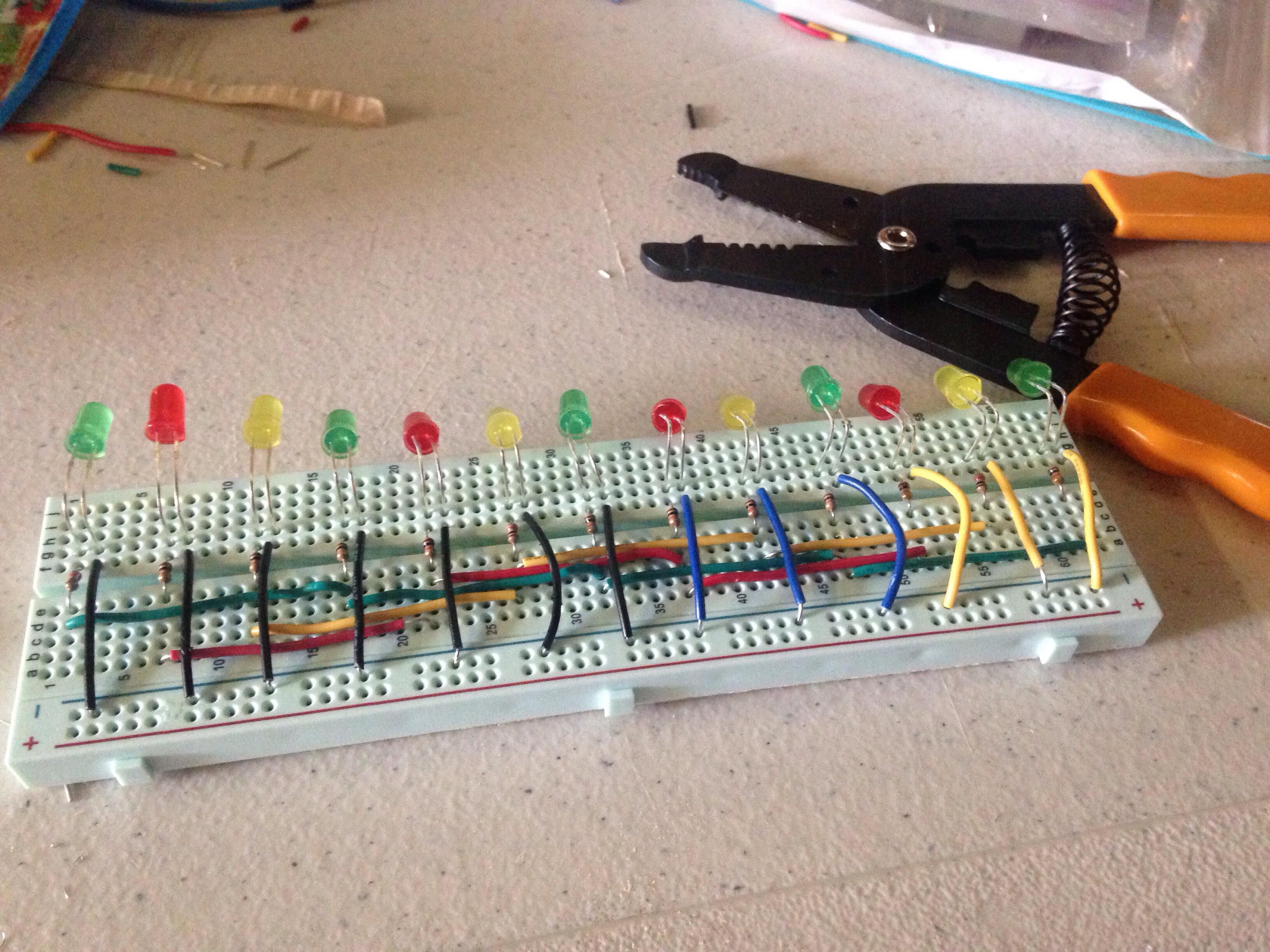

Working on the LED breadboard

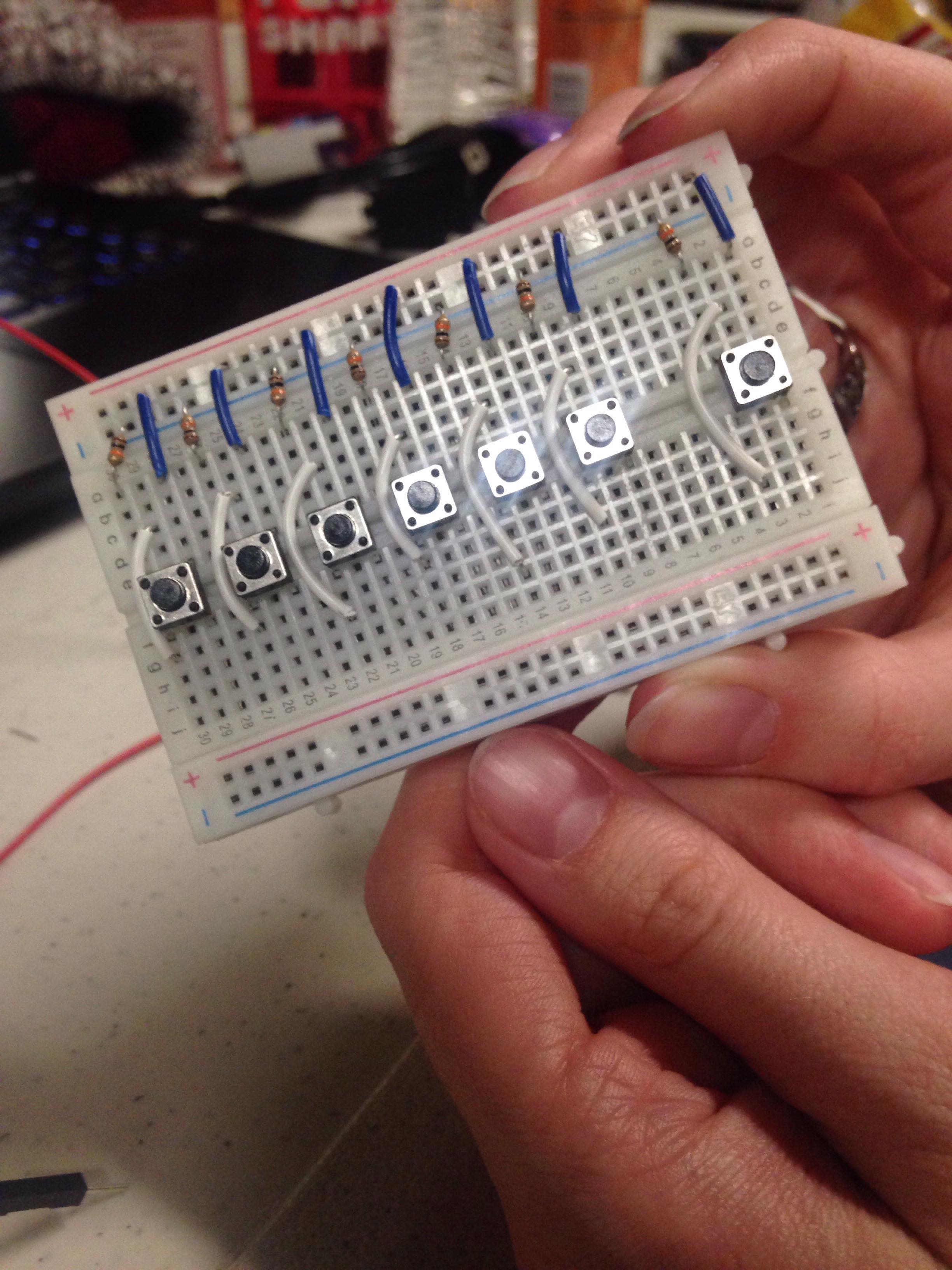

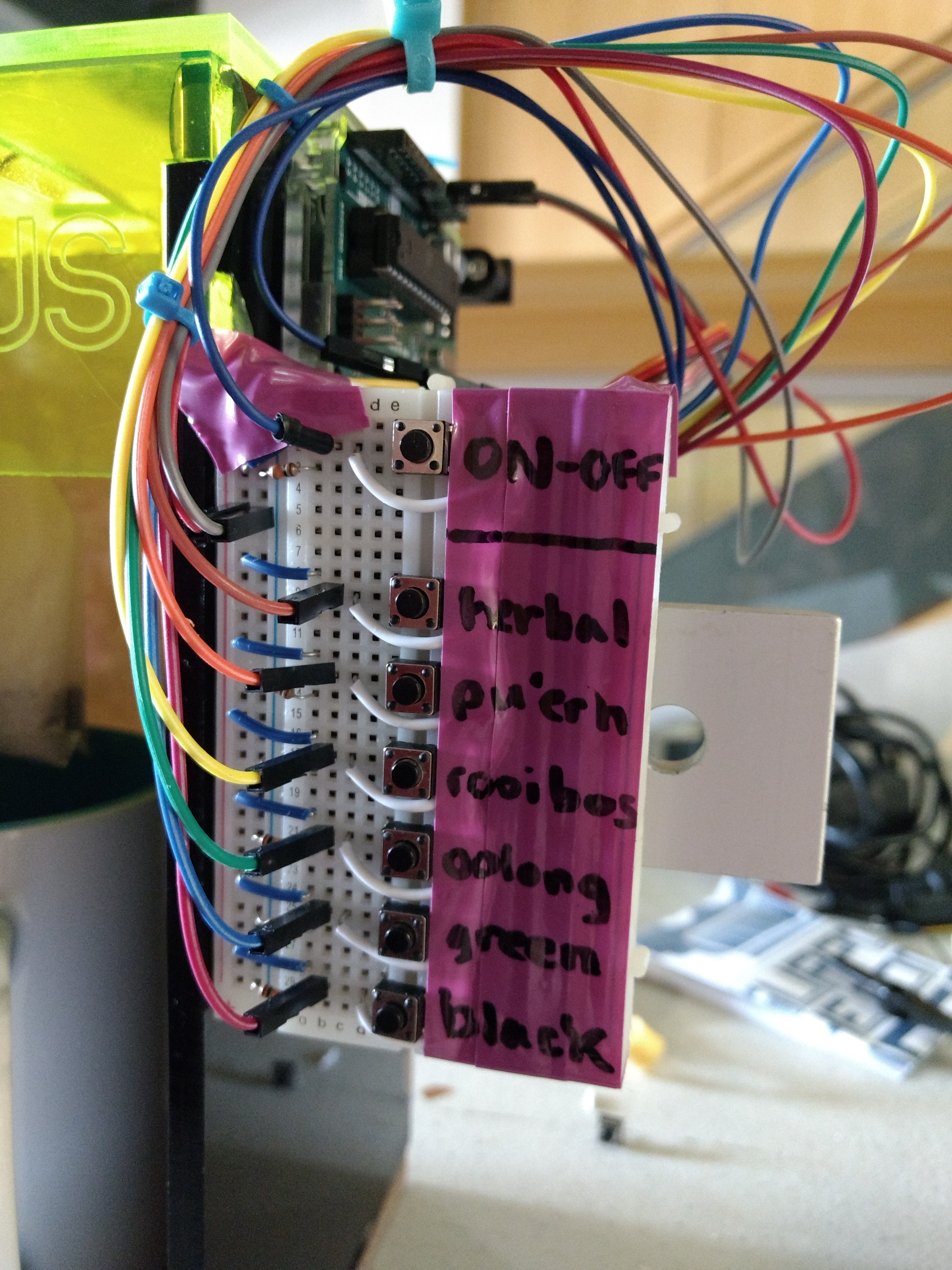

The button breadboard!

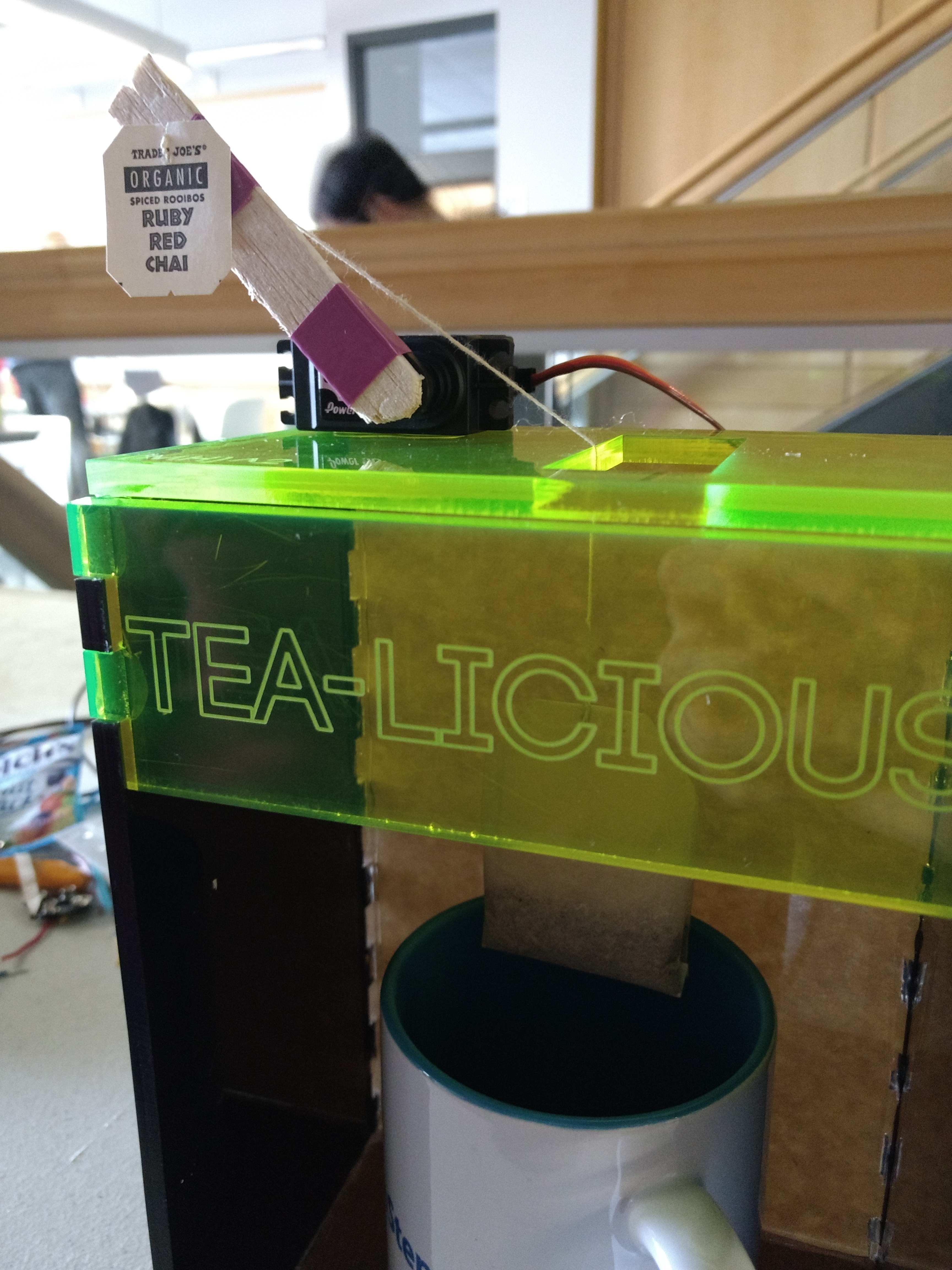

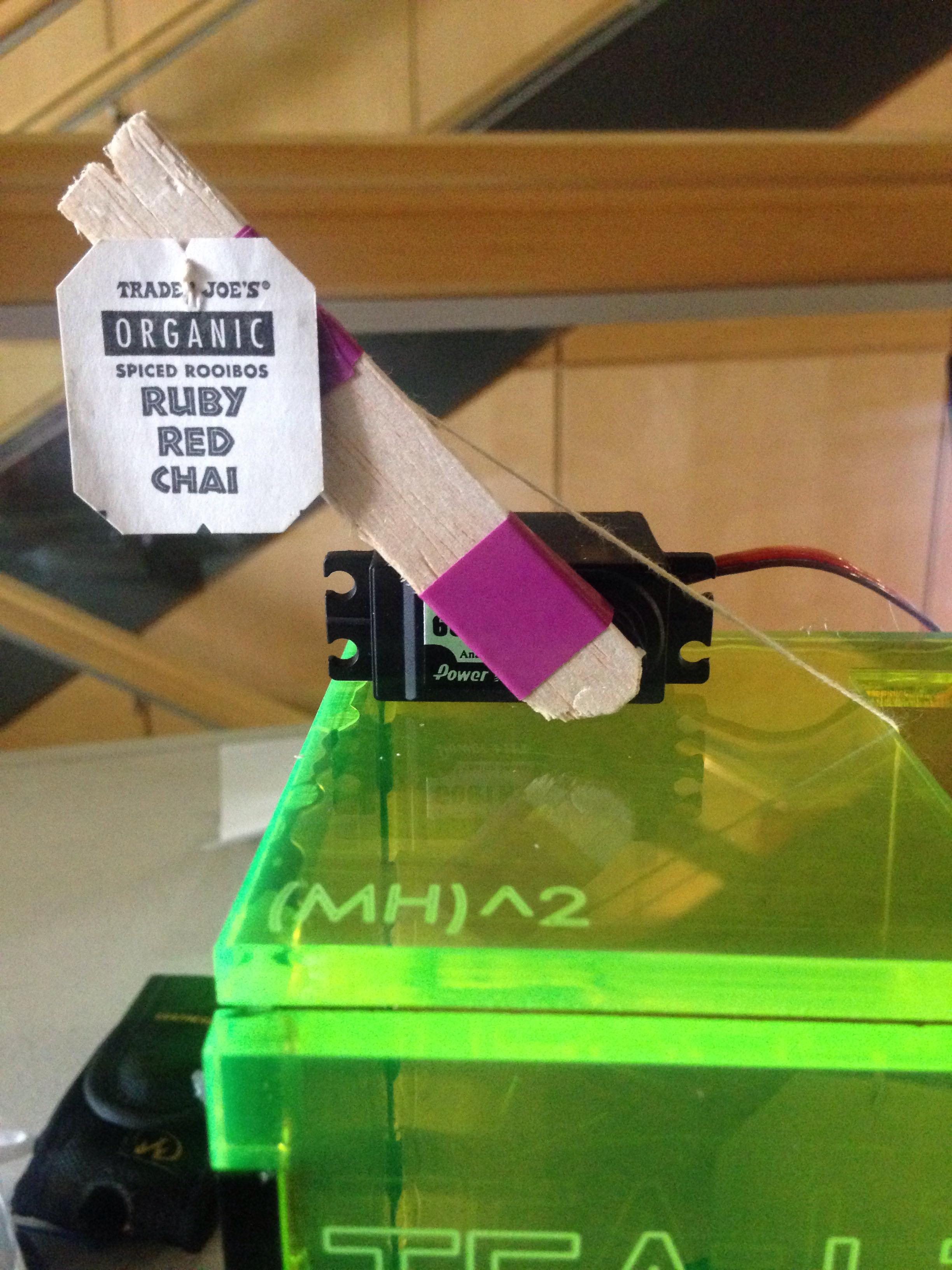

The servo, and our signature

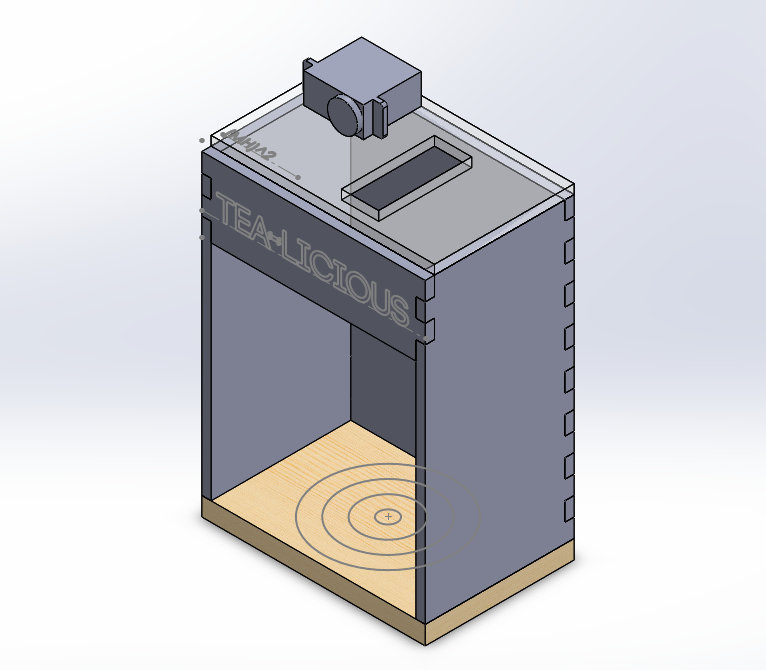

Our SolidWorks model, which we used to laser-cut the structure.
We were inspired by Maura's love for tea! It's little-known that different teas require different steeping times and temperatures. Tea-licious makes it easy to brew a perfect cup of tea every time.
What it does
Tea-licious allows the user to insert a cup of hot water and a teabag, press a button, and relax while Tea-licious brews a delicious cup of tea! There are settings for herbal, green, black, rooibos, oolong, and pu'erh tea. Each type of tea must steep at a different temperature for a different amount of time. Tea-licious assumes that the user inserts a cup of boiling water (100 degrees Celsius)-- we utilized the known relationship between time and temperature of cooling water in ambient air to determine cooling times for each type of tea. Then, Tea-licious "dunks" the teabag in the water for the corresponding steeping time, lifting it out every minute to facilitate diffusion. Tea-licious's LEDs let the user know when it's safe to interact with it. They flash from yellow to green when Tea-licious is turned on, light up red when the tea is brewing, and return to green when the tea is done.
How we built it
We modeled the structure in SolidWorks, laser-cut it out of acrylic and wood, and put it together with hot glue. We incorporated joints that fit together to ensure the structure would be square. The "brains" of the operation is an Arduino Uno, which is connected to 7 buttons and controls a servomotor and colored LEDs.
Challenges we ran into
It took some time to determine how our code would be structured to enable user input and implement a control loop. The height of the structure also required some thought, as did our wiring. Another challenge was that there are many conflicting sources on the correct temperatures and steeping times for various teas. We tried to find a happy medium among all of them.
Accomplishments that we're proud of
Tea-licious works reliably, and gives user feedback to make it easy to use. We're really excited that we took Tea-licious from idea to reality in under 24 hours!
What we learned
We learned that wirecutters are feisty! Maura learned more Arduino code, and Madee learned a lot about tea!
What's next for Tea-Licious
Next, we'd like to incorporate a heating element and temperature sensor so that Tea-licious can brew the tea from start to finish. We would also like for the user to be able to add more settings for other types of tea, or customize the current settings. We might also add a buzzer or a screen to communicate with the user more effectively. If we were to make Tea-licious into a consumer product, we would incorporate custom PCBs and a more aesthetically-pleasing user interface.
