Project Story — Tap-to-Tip (Starknet • Front-only PWA)

🚀 About the project

Tap-to-Tip lets anyone send a micro-tip in two taps using QR or NFC, with ultra-low fees on Starknet Sepolia. No backend, no accounts—just your wallet.

Why this matters: today’s payment UX still makes sending tiny amounts (a “thank you” of €0.05, €0.10) feel heavy. With L2 fees and a wallet-native flow, micro-gratitude becomes natural: tip a barista, a street artist, an open-source maintainer, or a streamer—instantly.

💡 Inspiration

  • Sub-cent fees deserve sub-second UX. We wanted to prove that you don’t need servers, custodians, or KYC walls to express appreciation.
  • QR/NFC is already mainstream (menus, transit, Apple/Google Pay). We reuse those habits to make crypto feel familiar.
  • Hackathon constraint: ship fast, keep it pure front-end, secure by design.

🧰 How we built it

Stack: Vite 5, React 18, TypeScript, TailwindCSS, starknet.js, qrcode, React Router. Deployment: Vercel (static hosting, SPA fallback).

Architecture (no backend)

  • UI only renders three screens: Create Tip → Pay → Receipt
  • Tip Link encodes all params directly in the URL (signed later by the wallet):
  /pay?recipient=<addr>&token=<erc20>&decimals=<int>&amount=<str>&memo=<txt>&nonce=<8>&expiry=<unix>
  • QR/NFC: the merchant page renders the link as a QR and (optionally) writes it to an NFC tag (Web NFC on Android/Chrome).
  • Wallet: the payer confirms an ERC-20 transfer from their wallet (Argent X / Braavos). No private keys in the app.

Core math (client-side)

We convert the human amount to token units: [ \text{amount_units} = \left\lfloor \text{amount} \times 10^{\text{decimals}} \right\rfloor ] For Cairo’s u256: [ \text{u256} = (\text{low} = x \bmod 2^{128},\ \text{high} = \lfloor x / 2^{128} \rfloor) ]

Minimal on-chain interaction

  • We call only ERC20.transfer(recipient, u256_amount).
  • The wallet handles gas, nonce, chain selection, and signature.

Security model (front-only)

  • Wallet confirmation is the hard gate: no tx can broadcast without explicit user approval.
  • expiry + nonce in the link to reduce accidental reuse.
  • No secrets, no API keys, no servers → tiny attack surface.

🧪 What it does (demo flow)

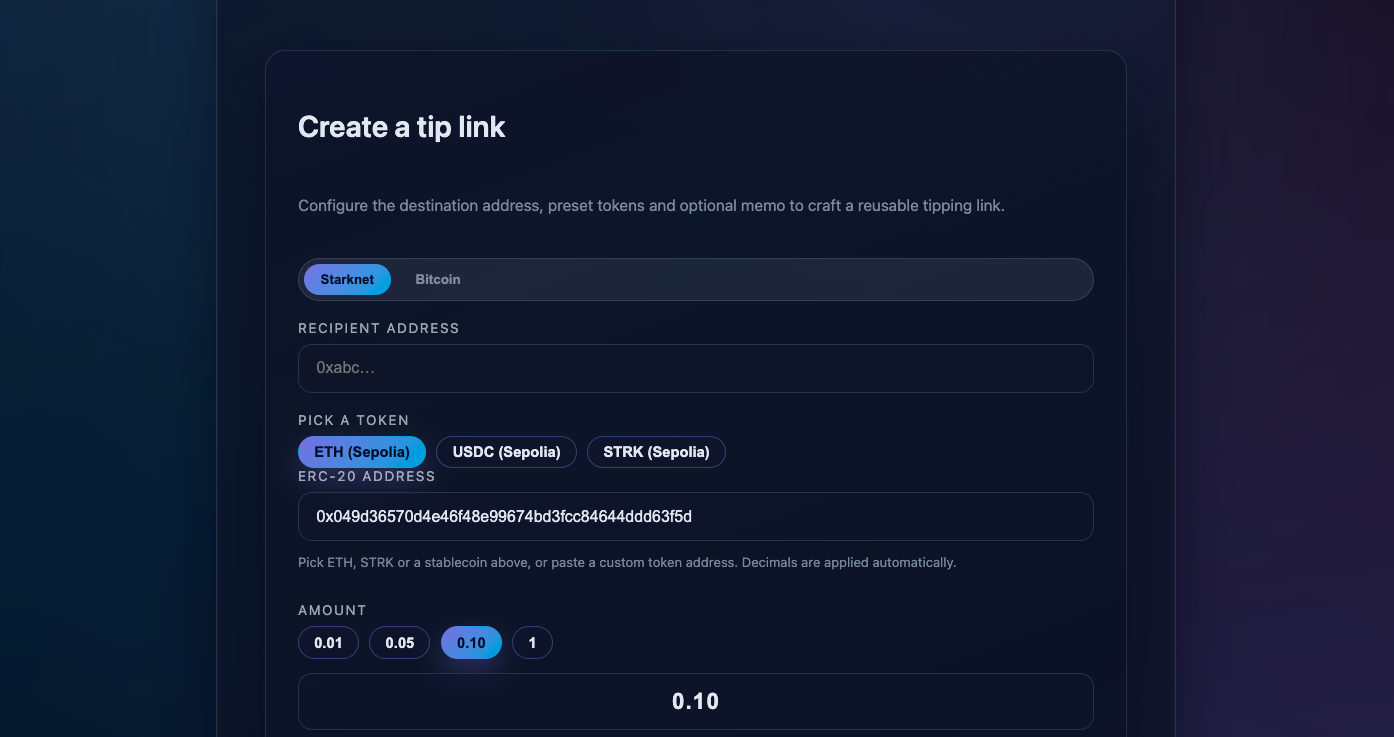

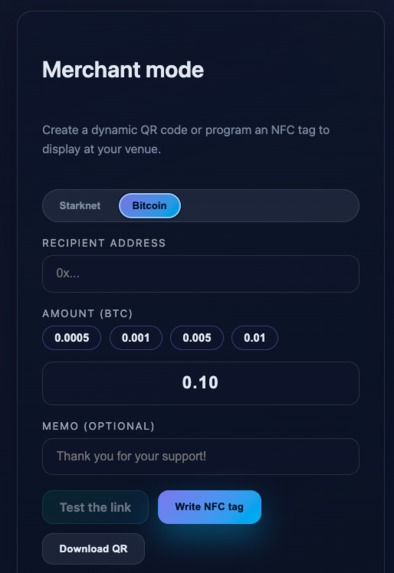

  1. Merchant opens /merchant, fills:
  • recipient (destination address)
  • token (ERC-20 on Starknet Sepolia) + decimals (often 18)
  • amount (e.g., 0.10), optional memo

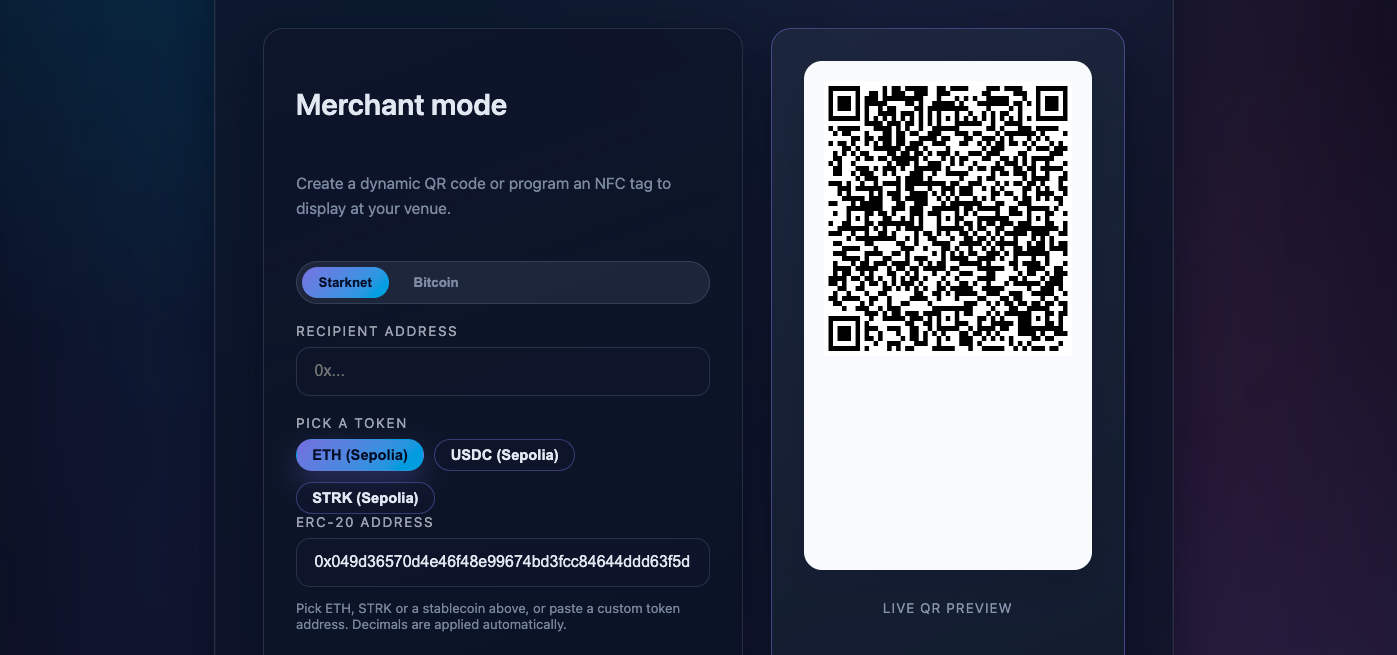

  • The app generates a Tip Link, QR, and can write NFC.

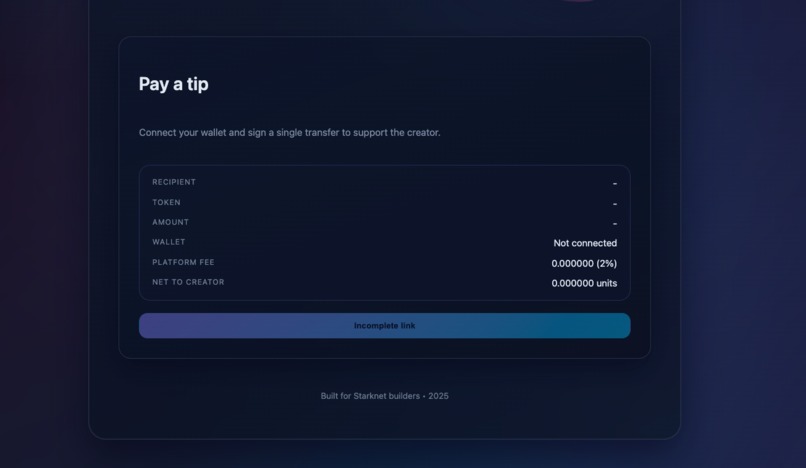

    1. Payer scans the QR (or taps NFC), lands on /pay?..., connects wallet, clicks Pay, signs.
    2. The app shows the transaction hash and a link to the explorer.

🧩 Key code snippets

ERC-20 transfer (starknet.js)

const erc20Abi = [{ name: "transfer", type: "function", state_mutability: "external",
  inputs: [
    { name: "recipient", type: "core::starknet::contract_address::ContractAddress" },
    { name: "amount", type: "core::integer::u256" }
  ],
  outputs: []
}];

const toU256 = (x: bigint) => ({
  low:  "0x" + (x & ((1n << 128n) - 1n)).toString(16),
  high: "0x" + (x >> 128n).toString(16)
});

const amount = BigInt(Math.floor(Number(amountStr) * 10 ** decimals));
const erc20 = new Contract(erc20Abi as any, tokenAddress, account);
const tx = await erc20.transfer(recipient, toU256(amount));
await account.waitForTransaction(tx.transaction_hash);

QR build & render

const url = `/pay?${new URLSearchParams(params).toString()}`;
await QRCode.toCanvas(canvasEl, url, { margin: 1, scale: 5 });

NFC write (Android / Chrome)

const ndef = new (window as any).NDEFReader();
await ndef.write({ records: [{ recordType: "url", data: url }] });

🏆 What we’re proud of

  • Truly serverless: nothing to host except static files.
  • 2-tap UX that feels like Web2: scan → pay.
  • Composable: works with any ERC-20 on Starknet testnet (ETH/STRK/USDC test).
  • Production-friendly: simple code, clear README, fast deploys.

🧠 What we learned

  • The wallet = account contract pattern on Starknet is powerful: deployment + signatures are ergonomic for end-users.
  • Keeping it front-only forces crisp boundaries and reduces complexity.
  • Mobile UX details matter (clipboard, share sheet, NFC quirks, route fallbacks on hosting).

🧗 Challenges

  • Tooling vs Node versions: Vite 7 enforces Node ≥ 20; we stabilized on Vite 5 to support Node 18 for easy dev environments.
  • Wallet variability: ensuring the app degrades gracefully when no extension is present or when network isn’t set to Sepolia.
  • Token presets: different decimals and addresses need a simple, safe UX (we added a preset mechanism).

🔭 What’s next

  • NFT Receipt (“Proof-of-Tip”): mint a minimalist ERC-721 (Cairo) with data: URI metadata post-payment.
  • Official token presets (ETH/STRK/USDC test) shipped as a signed JSON.
  • Fiat preview: lightweight, bundled price cache (no external calls).
  • Offline queue: optimistic UI + retry when connectivity returns.

📐 Minimal spec (for reviewers)

  • Tracks: Payments (Starknet Foundation / Chipi Pay), Mobile, Open.
  • Contracts: none required for MVP (uses existing ERC-20). Optional ERC-721 receipt.
  • Security: no keys, wallet-signed txs only, link expiry/nonce.
  • Deploy: static SPA (Vercel), SPA fallback enabled.

📎 Appendix

Tip Link schema

/pay?recipient=<addr>&token=<erc20>&decimals=<int>&amount=<string>&memo=<txt>&nonce=<8>&expiry=<unix>

Amount conversion [ \text{units}=\left\lfloor \text{amount}\times 10^{\text{decimals}}\right\rfloor,\quad \text{u256}=(\text{low},\ \text{high}) ]

Explorer: configurable in src/lib/constants.ts Wallets tested: Argent X, Braavos (Starknet Sepolia)

Thanks for reading! If you want to try it live, ping us for a test token preset and a demo QR.
