System visualizer

Test your system before you deploy.

Comment

Inspiration

The idea for System Visualizer came from a very real frustration I faced as a developer.

While building projects, I often found myself asking:

  • Will my system handle 100 concurrent users?
  • What happens if my database goes down?
  • Will this architecture scale… or silently fail?

Despite writing functional code, I lacked confidence in my system’s behavior under real-world conditions.

At the same time, I observed a major shift with AI coding assistants —
we can now generate entire applications with simple prompts.

But this raised a deeper question:

If AI can build systems… who ensures those systems are architecturally sound?

That gap — between code generation and architecture validation — became the foundation of this project.

What System Visualizer Does

System Visualizer is a platform that allows developers, teams, and even non-developers to design, simulate, and analyze system architectures before deployment.

Core Capabilities:

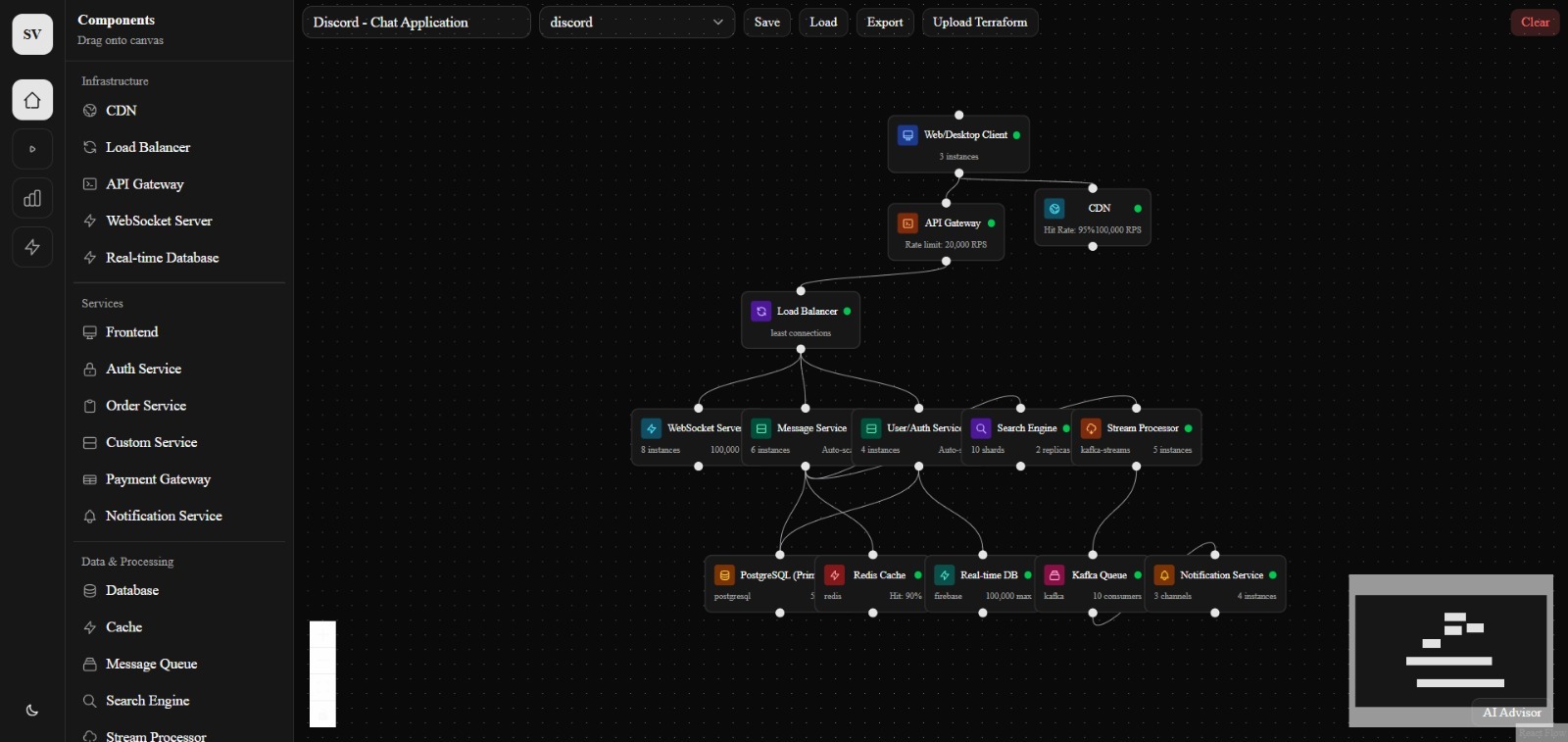

  • Architecture Modeling

    • Create systems using components like servers, databases, queues, and APIs
    • Define how different parts of the system interact

  • Traffic Simulation

    • Simulate real-world load (e.g., 100 → 1M users)
    • Observe how requests flow through the system

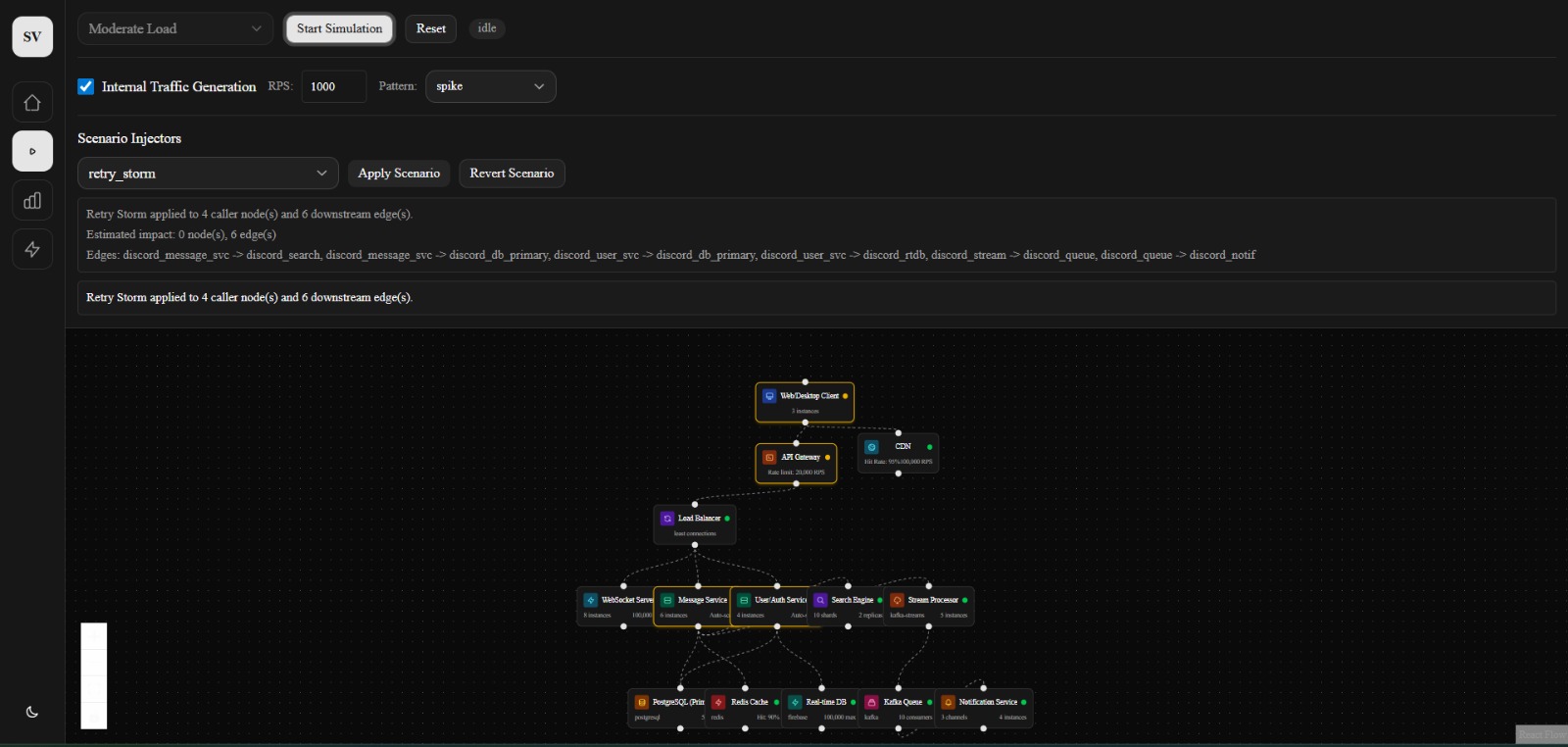

  • Failure Injection

    • Test scenarios like:
    • server crashes
    • database downtime
    • network latency
    • Understand how failures impact the system

  • Bottleneck Detection

    • Identify weak points in architecture
    • Detect overload conditions and inefficiencies

  • Real-Time Visualization

    • Watch system behavior dynamically:
    • node health
    • latency
    • load distribution

Instead of guessing how a system behaves, users can see it in action before it breaks.

What I Learned

Building this project fundamentally changed how I think about software systems.

1. Code ≠ System

A working application does not guarantee a scalable system.
Scalability depends on architecture, not just implementation.

2. Systems Behave Non-Linearly

When load increases, system behavior is not always predictable.

For example:

$$ y = kx^2 $$

A small increase in users can lead to disproportionate stress on resources like databases or queues.

3. Visualization Drives Understanding

Seeing a system visually:

  • exposes bottlenecks faster
  • improves decision-making
  • bridges the gap between developers and architects

4. Failure is a First-Class Citizen

Instead of avoiding failure, systems should be designed with failure in mind:

  • server crashes
  • latency spikes
  • cascading failures

How I Built It

I approached this project as a developer-first simulation platform.

Core Components:

1. Architecture Modeling Layer

  • Users define systems as:
    • nodes (servers, databases, queues)
    • edges (data flow)
  • Designed to be simple yet expressive

2. Simulation Engine

  • Models:
    • traffic load
    • request distribution
    • failure scenarios
  • Allows dynamic scaling (e.g., 100 → 1M users)

3. Visualization Engine

  • Real-time rendering of:
    • system flow
    • node health
    • bottlenecks
  • Inspired by modern DevOps dashboards

4. UI/UX Layer

  • Built with a focus on:
    • clarity
    • interactivity
    • minimal friction

The goal was to make system design feel intuitive, not intimidating.

Challenges I Faced

1. Modeling Real-World Systems

Real systems are complex:

  • distributed services
  • unpredictable traffic
  • multiple failure points

Simplifying this into a usable model without losing realism was difficult.

2. Balancing Accuracy vs Performance

Simulating large-scale systems requires trade-offs:

  • Highly accurate simulations can be slow
  • Faster simulations may lose detail

Finding the right balance was a key challenge.

3. Designing for Both Developers & Non-Developers

I wanted the tool to be:

  • powerful for engineers
  • accessible for beginners

This required careful abstraction and UI design.

4. Lack of Existing Tools in This Space

Most tools today focus on:

  • diagrams (static)
  • monitoring (post-deployment)

There are very few tools for pre-deployment system simulation, which meant building many concepts from scratch.

Vision

System Visualizer is more than a tool.

It represents a shift from guessing system behavior → to simulating it before deployment.

In the future, I envision:

  • AI-assisted architecture recommendations
  • integration with CI/CD pipelines
  • “architecture testing” becoming as standard as unit testing

Closing Thought

We are entering an era where building software is easy.

But building systems that scale, survive, and adapt —
that’s the real challenge.

System Visualizer exists to solve that.
