Soul - Smart Insole for Diabetic Foot Ulcer Prevention

Inspiration

Every 20 seconds, someone loses a limb because of a diabetic foot ulcer—yet 85% of these amputations are preventable with early detection.

Diabetic patients with neuropathy can't feel wounds or pressure points developing on their feet. By the time symptoms appear, tissue damage is often irreversible. We wanted to build something that listens before pain speaks—an intelligent insole detecting the earliest warning signs through continuous monitoring.

Soul is prevention as effortless as stepping into your shoes each morning, giving people with diabetes back their independence, mobility, and confidence.

A soul for a diabetic's sole.

What it does

Soul monitors the three critical risk factors for diabetic foot ulcers: pressure, temperature, and humidity.

Clinical Foundation

Temperature asymmetry >2.2°C between feet predicts ulcers 33-42 days early (97% sensitivity)
Sustained pressure >200 kPa causes capillary occlusion and tissue ischemia
Elevated humidity >80% indicates maceration risk
Multimodal monitoring achieves F1 scores 0.983-0.997 in ulcer prediction

System Components

Hardware Monitoring:

2 pressure sensors/foot (0-999 range → 0-400 kPa) at metatarsal heads and heel
1 temperature sensor/foot (0-65°C) for bilateral asymmetry detection
1 humidity sensor/foot (0-100% RH) tracking moisture
1 sample/minute (validated by FDA-cleared Orpyx system)
BLE transmission to mobile app

Dual Analysis System:

Rule-Based Algorithm (interpretable, clinically validated):

# 1. Calculate bilateral asymmetry
temp_asymmetry = abs(temp_left - temp_right)

# 2. Check consecutive-day confirmation (reduces false positives 96%)
if temp_asymmetry > 2.2 and occurred_yesterday:
    CRITICAL_ALERT  # 99.7% specificity

# 3. Multimodal risk score (0-7+ points)
risk_score = (
    2 if temp_asymmetry > 2.2 else 1 if temp_asymmetry > 1.5 else 0
) + (1 if pressure > 200 else 0) + (1 if PTI > 70 else 0) + ...

# 4. Generate actionable alerts
"High pressure (245 kPa) at LEFT metatarsal → Shift weight to heel"

XGBoost ML Model (pattern recognition):

Input: 15+ engineered features (bilateral asymmetry, PTI, temporal trends)
Output: 4-tier classification (Normal/Monitor/At-Risk/Critical)
Performance: F1 0.96, trained on DFUC 2020 + clinical trial data

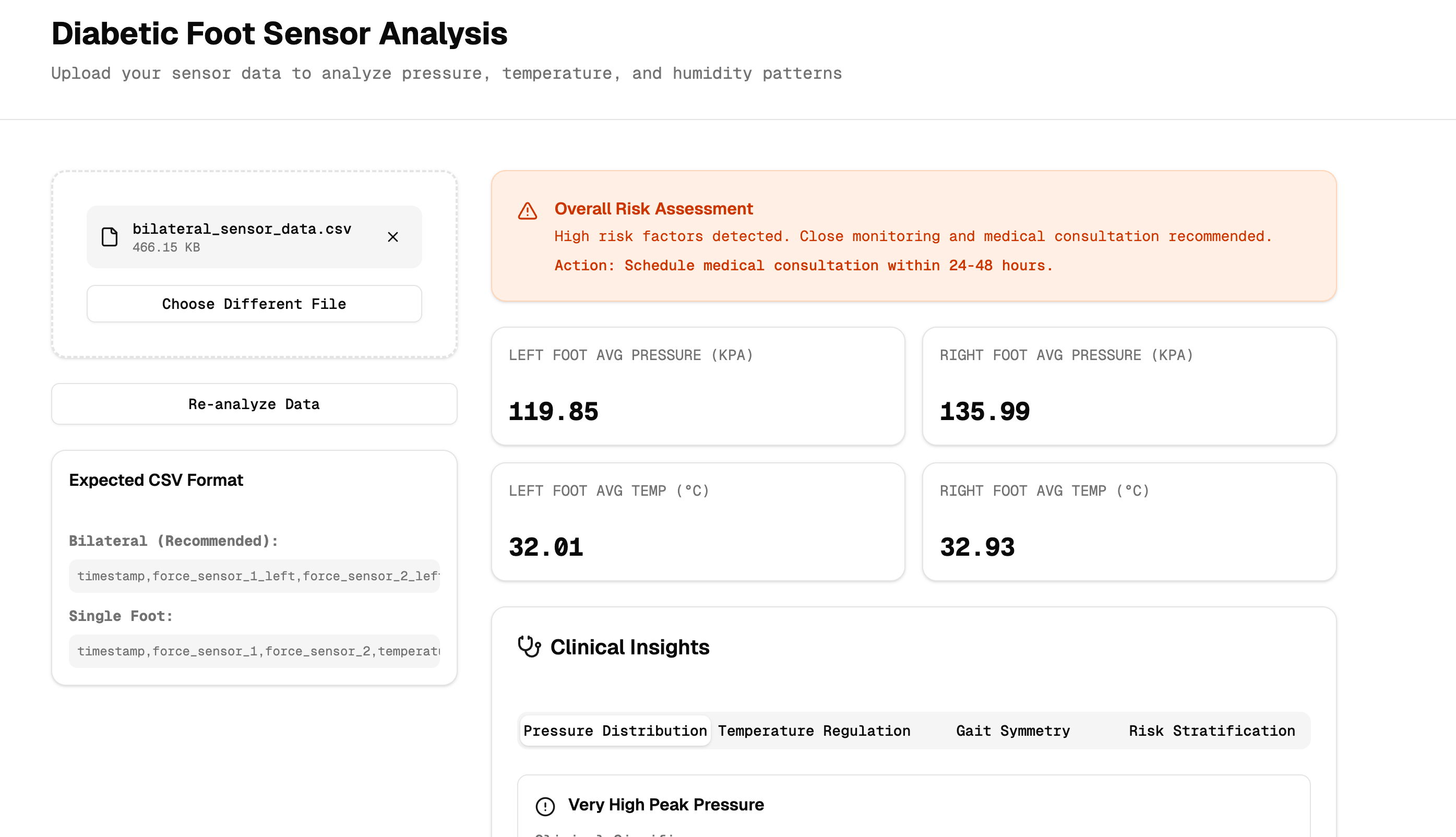

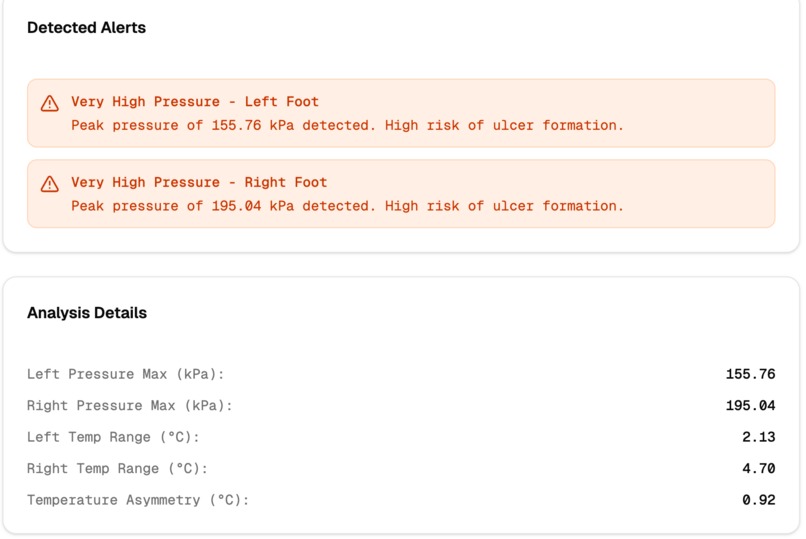

Mobile Dashboard:

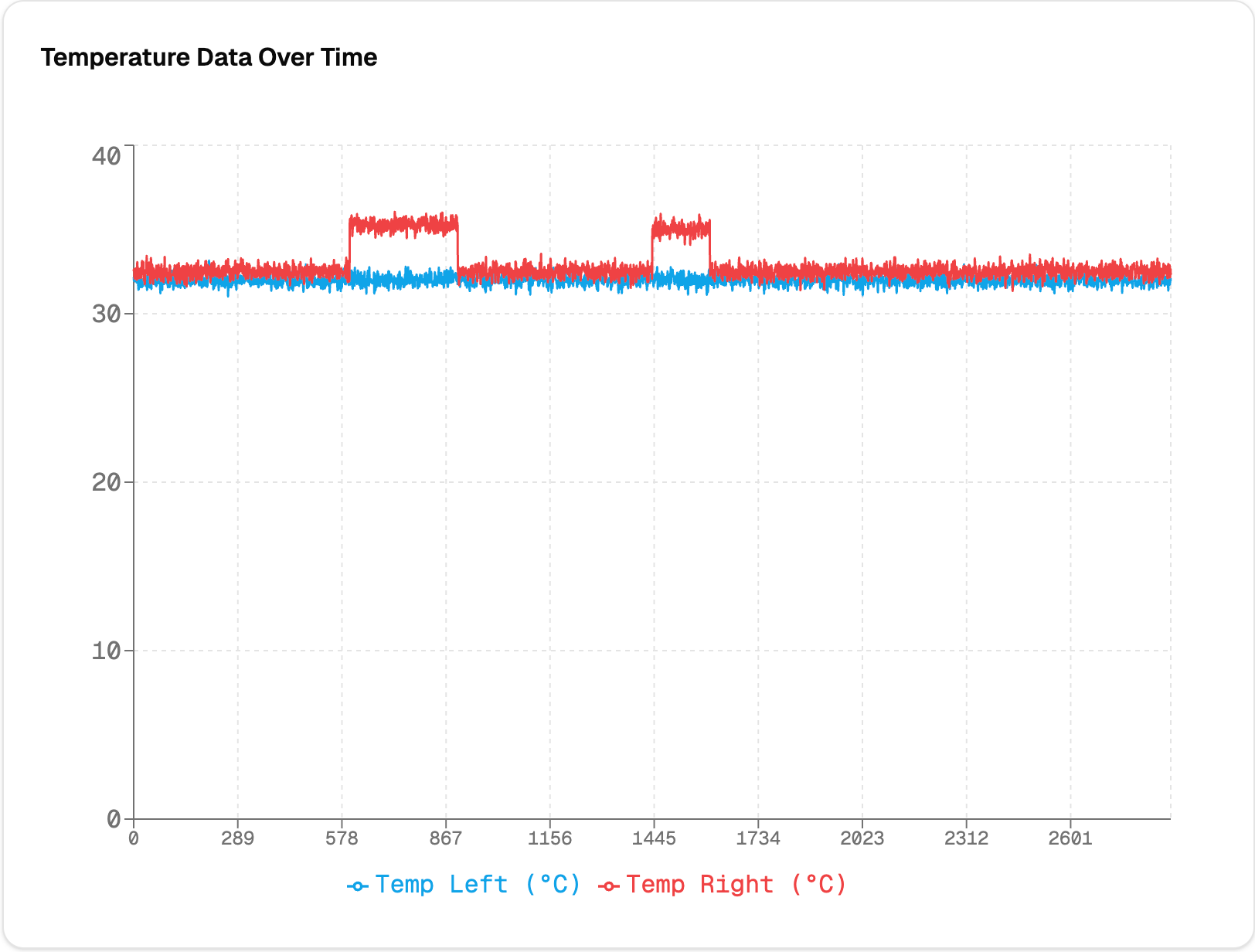

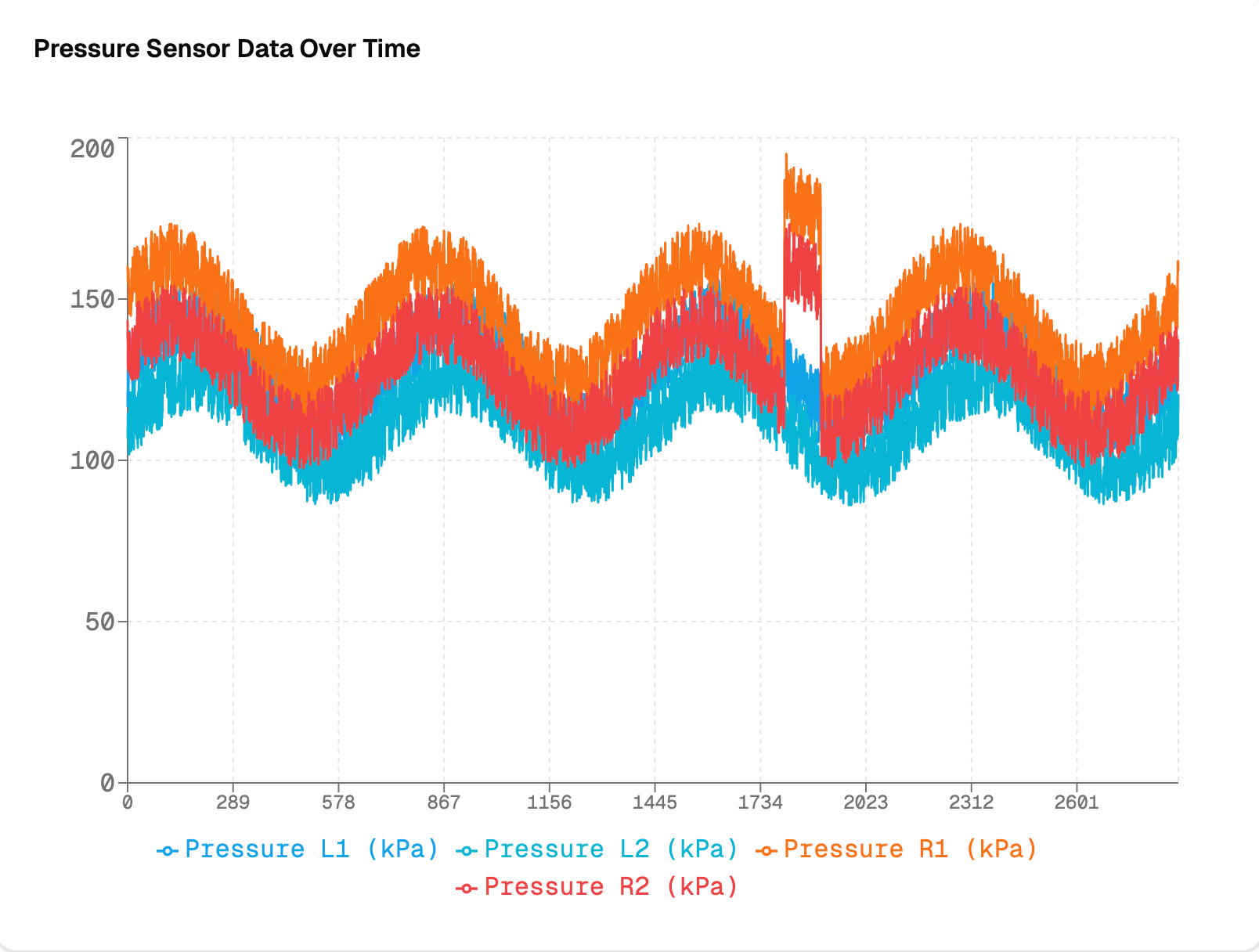

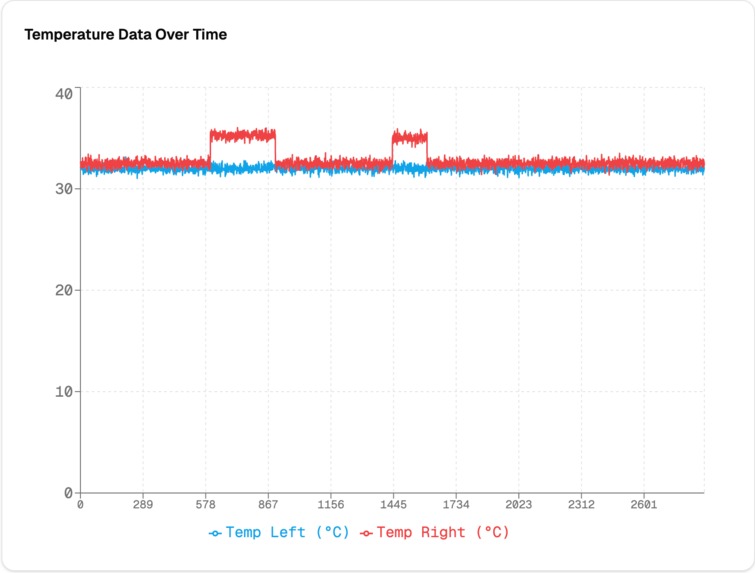

Real-time bilateral heatmaps with asymmetry visualization
Color-coded risk zones (Green → Yellow → Orange → Red)

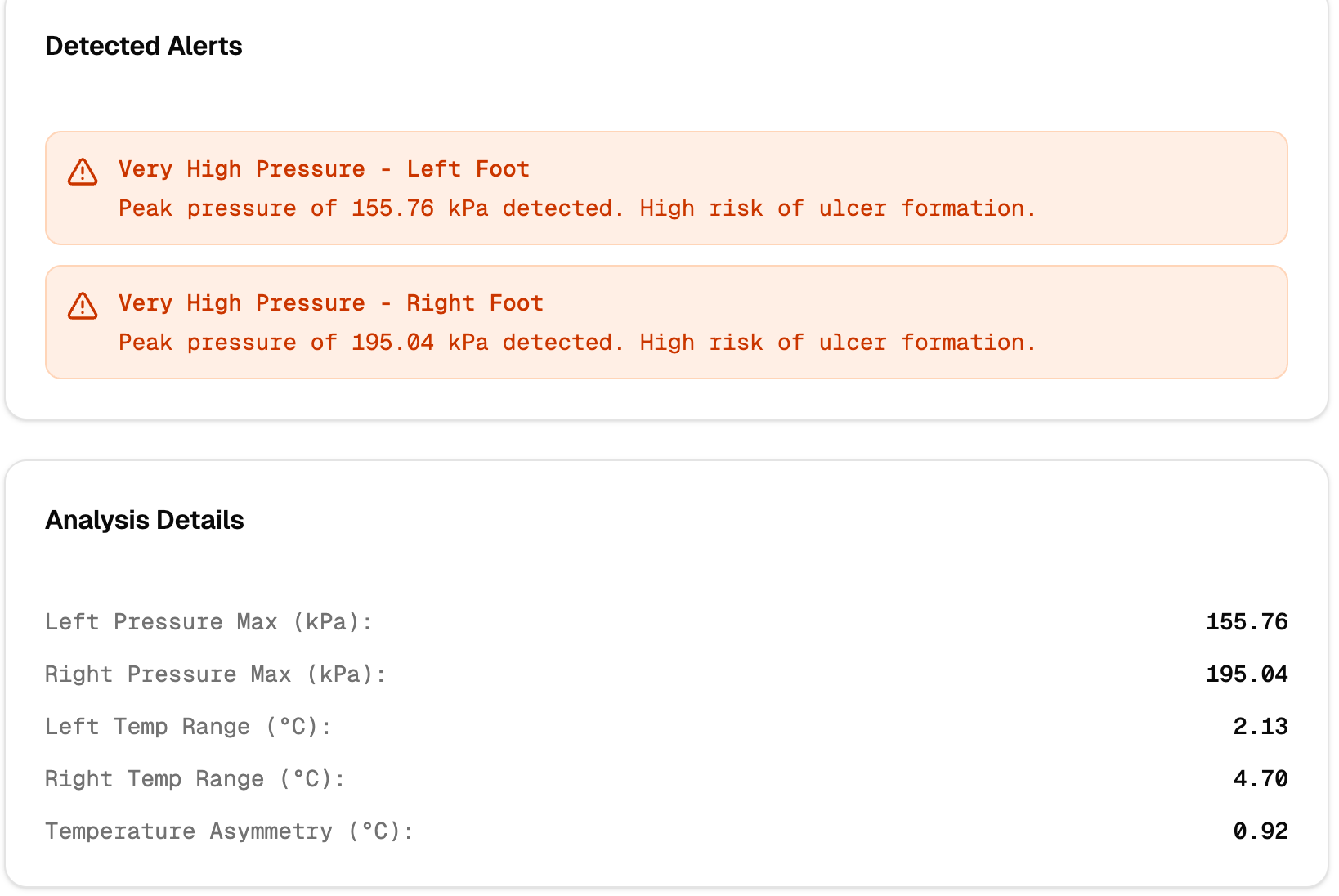

Actionable alerts: "shift weight to heel," "schedule clinical evaluation"
Historical trends and consecutive-day confirmation tracking

Clinical Documentation:

Timestamped data with consecutive-day confirmation
Weekly/monthly reports for providers
Foot-specific risk assessment
Relief period tracking (alerts >90 min without offloading)

How we built it

Hardware

FSRs at MTH 1/3 (highest ulcer risk zones) with voltage divider linearization
Thin-film thermistors (±0.1°C precision)
Capacitive humidity sensors at toe box/midfoot
ESP32 for data acquisition and BLE transmission
Li-Po battery (24+ hour operation)

Software Pipeline

ESP32 → BLE → React Native App → Flask API → Dual Analysis
                      ↓                ↓
              Live Dashboard    Rule Algorithm + XGBoost
                                        ↓
                                  Supabase (PostgreSQL)

Algorithm: Implements 7 steps—preprocessing, bilateral asymmetry, rolling window analysis (15-min PTI), consecutive-day confirmation, multimodal scoring, foot-specific assessment, alert generation

ML Training: DFUC 2020 dataset + synthetic gait pressure maps + clinical trial data (Lavery, Abbott, Ghulam & Abdullah)

Backend: Flask endpoints (/upload, /predict, /alerts) + Supabase (auth, real-time DB, row-level security)

Clinical Validation

Grounded in:

5 RCTs (772 participants) showing 71-90% ulcer reduction
Systematic reviews (Castro-Martins 2024, 26 studies)
Commercial validations (Orpyx, Podimetrics)
40+ papers synthesized into unified thresholds

Challenges we ran into

Sensor Calibration: FSRs showed non-linear response/hysteresis → Polynomial calibration curves + temperature compensation

False Positives: Initial temp alerts triggered on normal variation → 2-consecutive-day confirmation (Wijlens 2017): 96% false positive reduction, maintained 97% sensitivity

Data Sync: Time-aligning left/right readings for asymmetry → Timestamp protocol + interpolation for missing samples

Research Synthesis: Fragmented medical literature → Systematic review of 40+ papers into unified algorithm

Accomplishments that we're proud of

Evidence-Based System: Every threshold backed by peer-reviewed research—not just a sensor, but a clinically validated early warning system

Gold Standard Detection: Temperature asymmetry >2.2°C on consecutive days = most validated predictor (99.7% specificity beats commercial systems)

Dual Analysis Innovation: Rule-based (interpretable for clinicians) + XGBoost (subtle pattern recognition) = best of both worlds

End-to-End Integration: Hardware → firmware → ML → mobile app → clinical dashboard—complete pipeline with <2s latency

Actionable Intelligence: Not just data visualization—specific guidance ("shift weight to heel") and foot-specific assessments

What we learned

Technical:

Biomechanical forces → reliable digital signals requires careful calibration
ML needs temporal context; consecutive-day confirmation is algorithmic brilliance
Dual approach (rules + ML) > either alone for medical devices

Clinical:
