Smart Water Meter Project

•

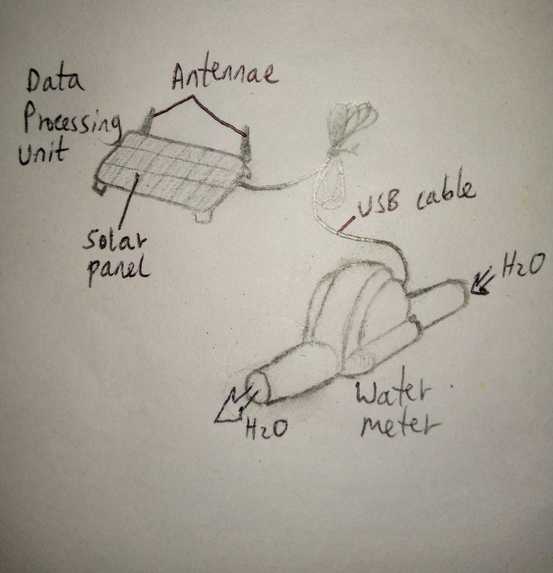

  A wireframe of the smart water meter device.

•

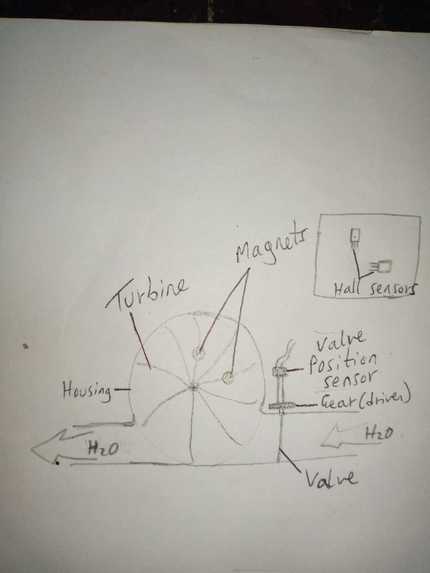

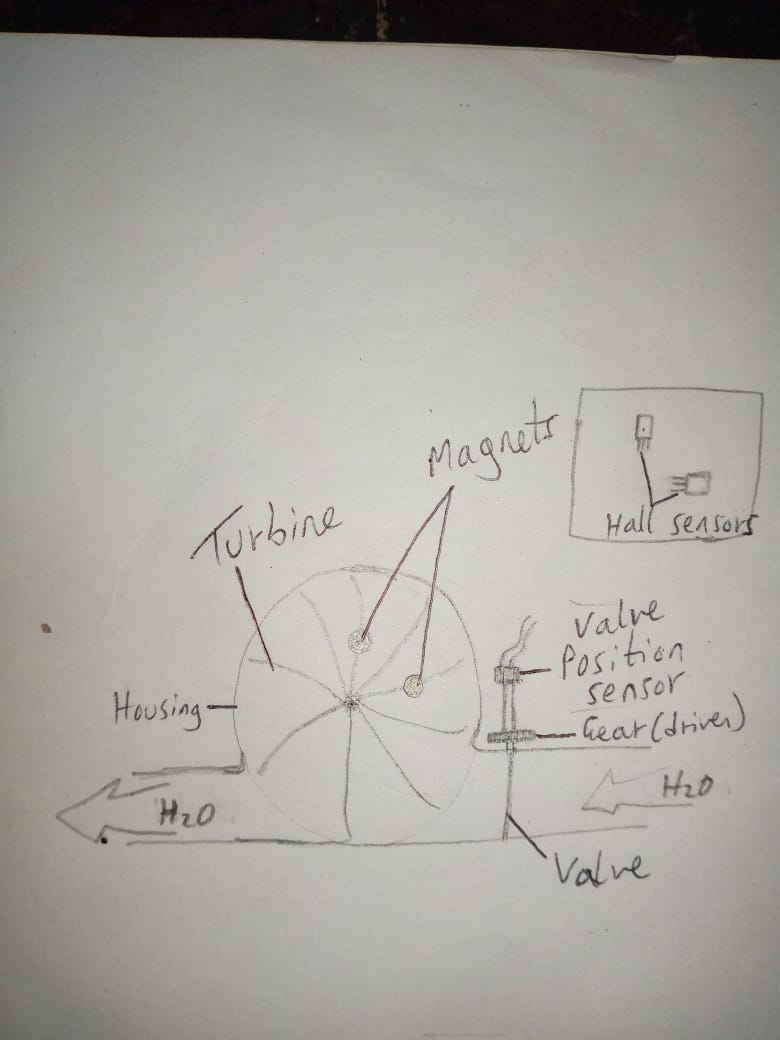

  2 magnets placed in a 90degrees angle will be attached on a turbine,2 hall effect sensors will be placed

•

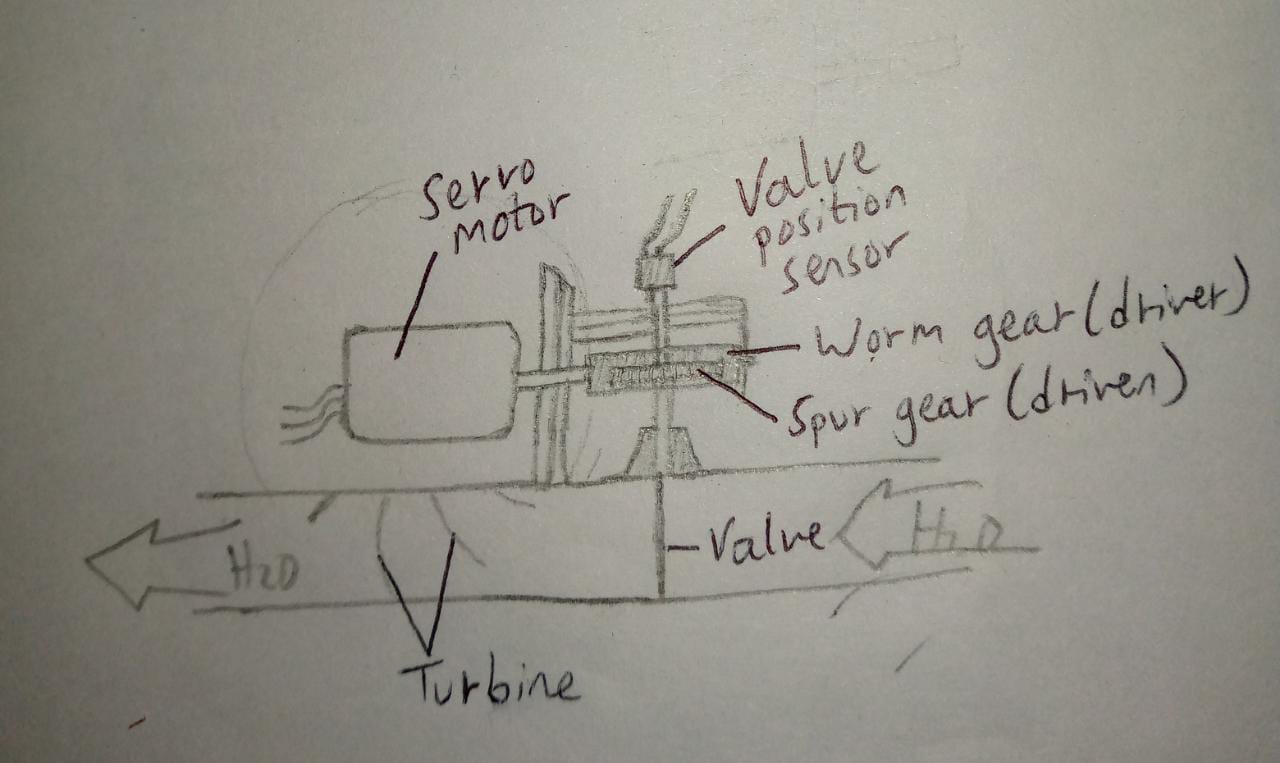

  A SERVO MOTOR will control the valve depending on the instructions given by the processing unit

•

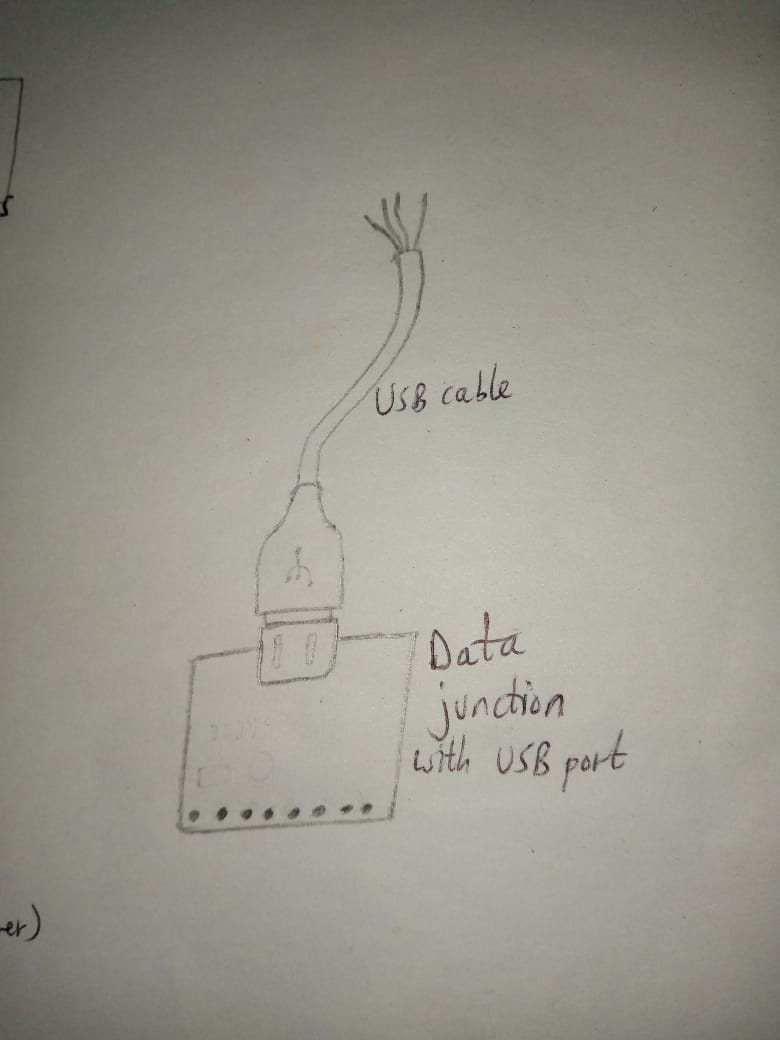

  This is an OUTLET USB PORT. Data from the various sensors will be transfered via this port before it's conveyed to the processing unit.

•

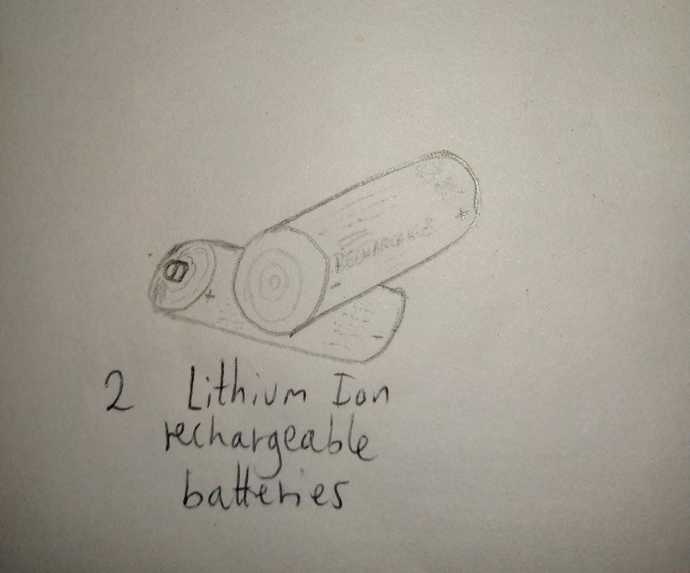

  Rechargeable LiOn batteries will also be included for power back up

THE SMART WATER METER PROJECT

Hi We are glad to present to you this project. We are a team of 4: 1. Stanley Gachara 2.Mr.Elton 3.Mercy. 4.Emmanuel Enzeyi This is a project that is in progress. In this project, we aim to automate the tracking process of supply and consumption of tapped water. Generally, the water meter detects and measures the supply of tapped water, it then sends the measurements to a data processing unit where the data is recorded and analyzed. The analyzed data is sent via radio frequency to the main gateway then to the internet. It can also receive data from the internet via the gateway which may be carrying a set of instructions. The data processing unit also sends instructions to the water meter. The main instructions will be to turn the supply of water either on/off . All these functionalities will be able to bring about a smart water metering system along with prepaid services. This will essentially help in tracking the supply and consumption of water in an simply automatic way.
