Smart Temp Checker

Lets check the body temp in a smart way

Comment

What it does

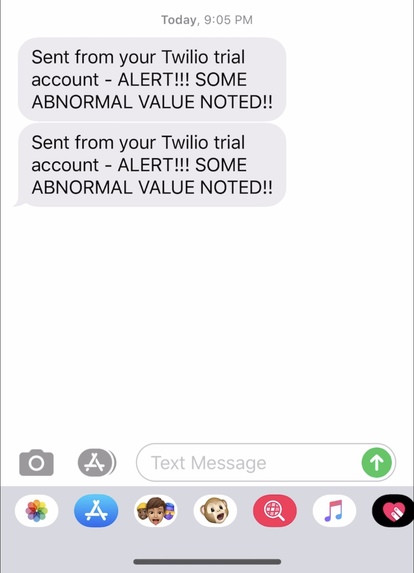

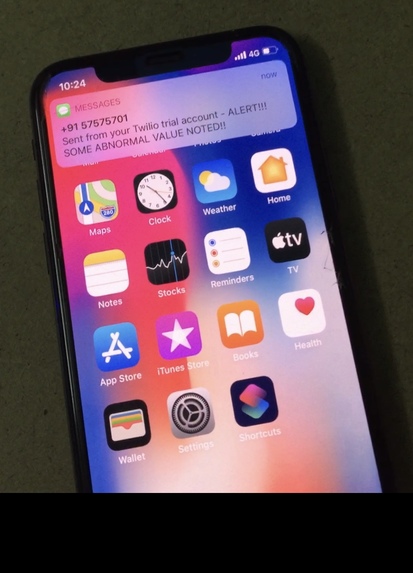

Detect the temperature of a person contactlessly within a certain range and allowing only the one who have a normal body temperature by showing a wheel of green led, and showing the wheel of red led if anyone above normal body temperature comes and will let the securities know about that by turning on the buzzer and sensing message of such case to the admin or to the authorities. This project has primarily three functionalities:- ii) To check the person’s temp. and to let him enter if he/she is having normal temp. Range. iii) To forbid the person, who is not having a normal temp, to allow, moreover it will indicate with a red indication to the person and also will alert the security by turning on the buzzer. iv) Finally it will send message to the authorities that a person with abnormal temperature had entered and also to take necessary actions. Now in heavily populated place like the supermarket or shopping mall where huge number of people come and go, having a person with higher than normal temperature can be harmful for the other customer too and to handle this type situation a bolt device have been made to notify the authorities from some person having abnormal body temp.

How we built it

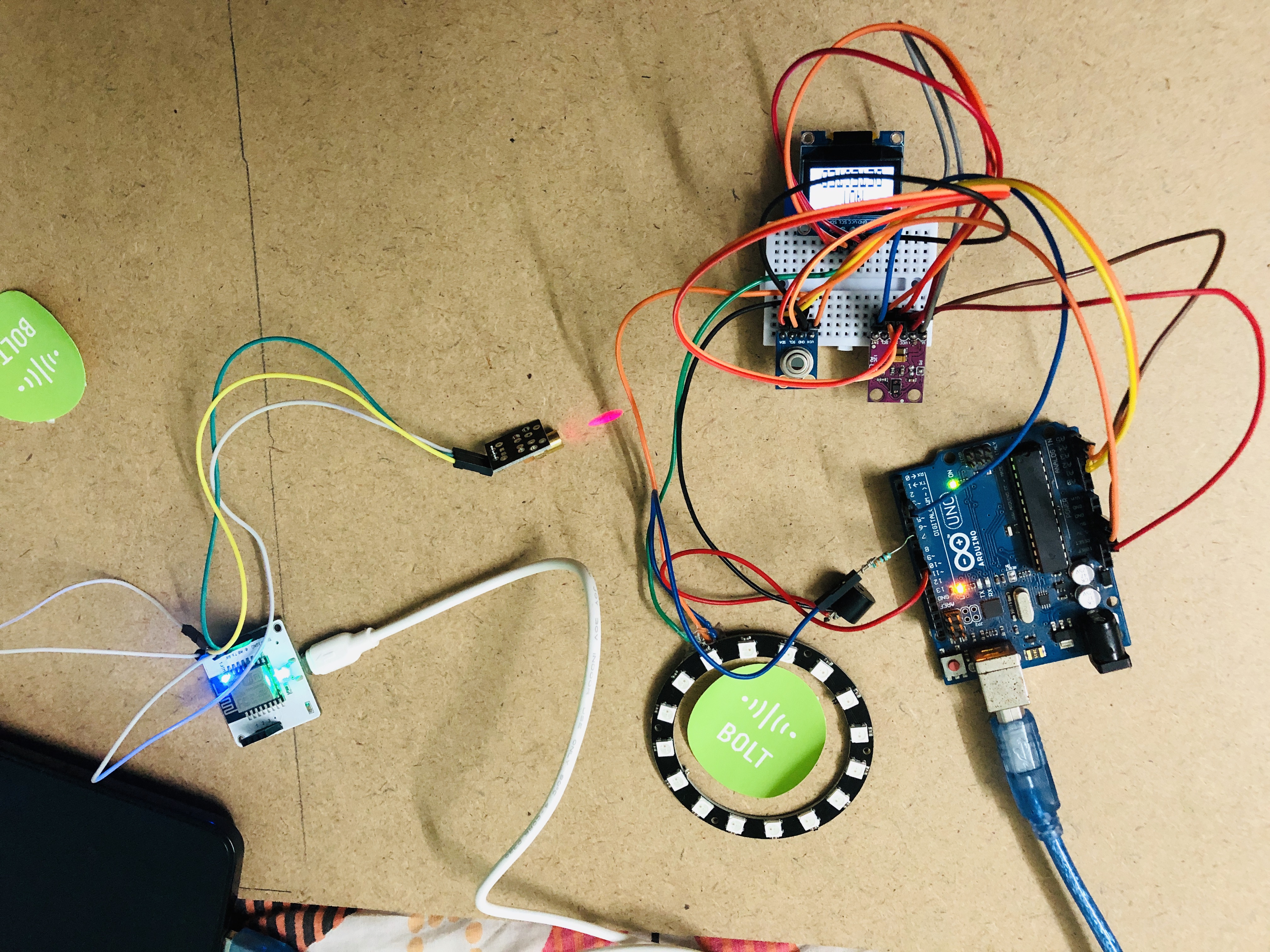

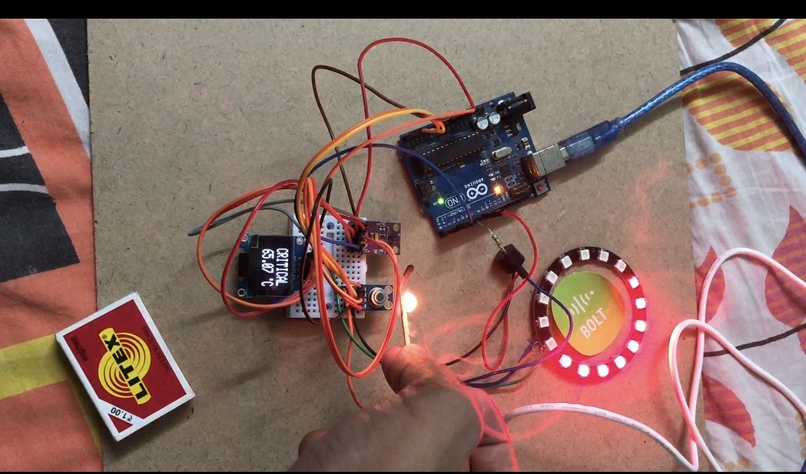

  1. When the proximity sensor sense a value among the certain range it allows the IR temp. sensor to collect the temperature of the object and to calculate it’s value, if it is normal only the green led will turn on and the display will show the normal body temp. 2.Again when the proximity sensor senses a value among the certain range it allows the IR temp. Sensor to collect the temperature of the object and to calculate its value, if it is not normal the led will do a wheel like pattern firstly and will also turn on the buzzer informing the security. Here I had use a matchstick to show the high temp. result. 3.Now, the sensor will also inform the authorities, to take necessary action and to forbid that particular person from entering for the shake and health of the other customers.
