SFA (Sound Factor Authentication)

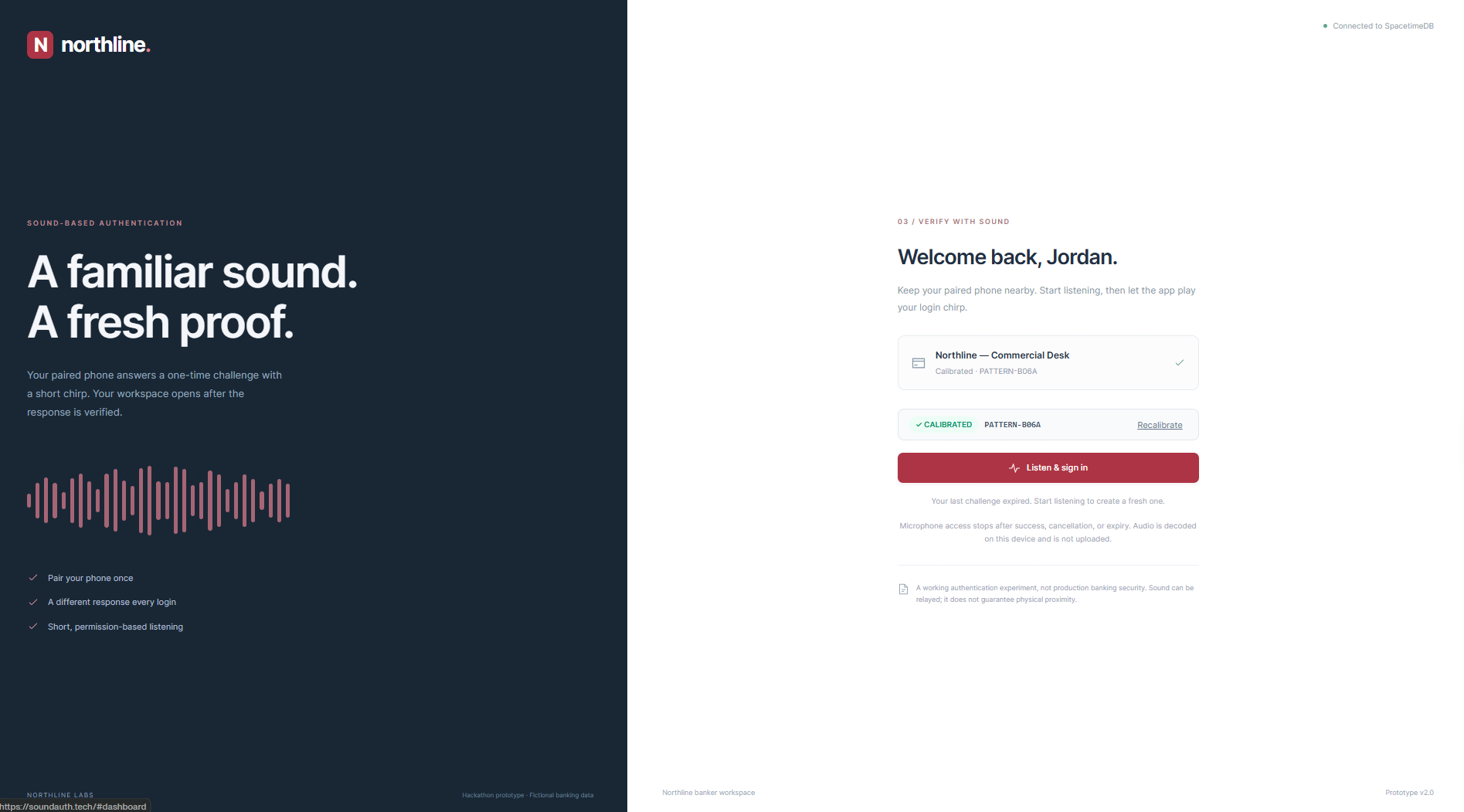

Sign on Page

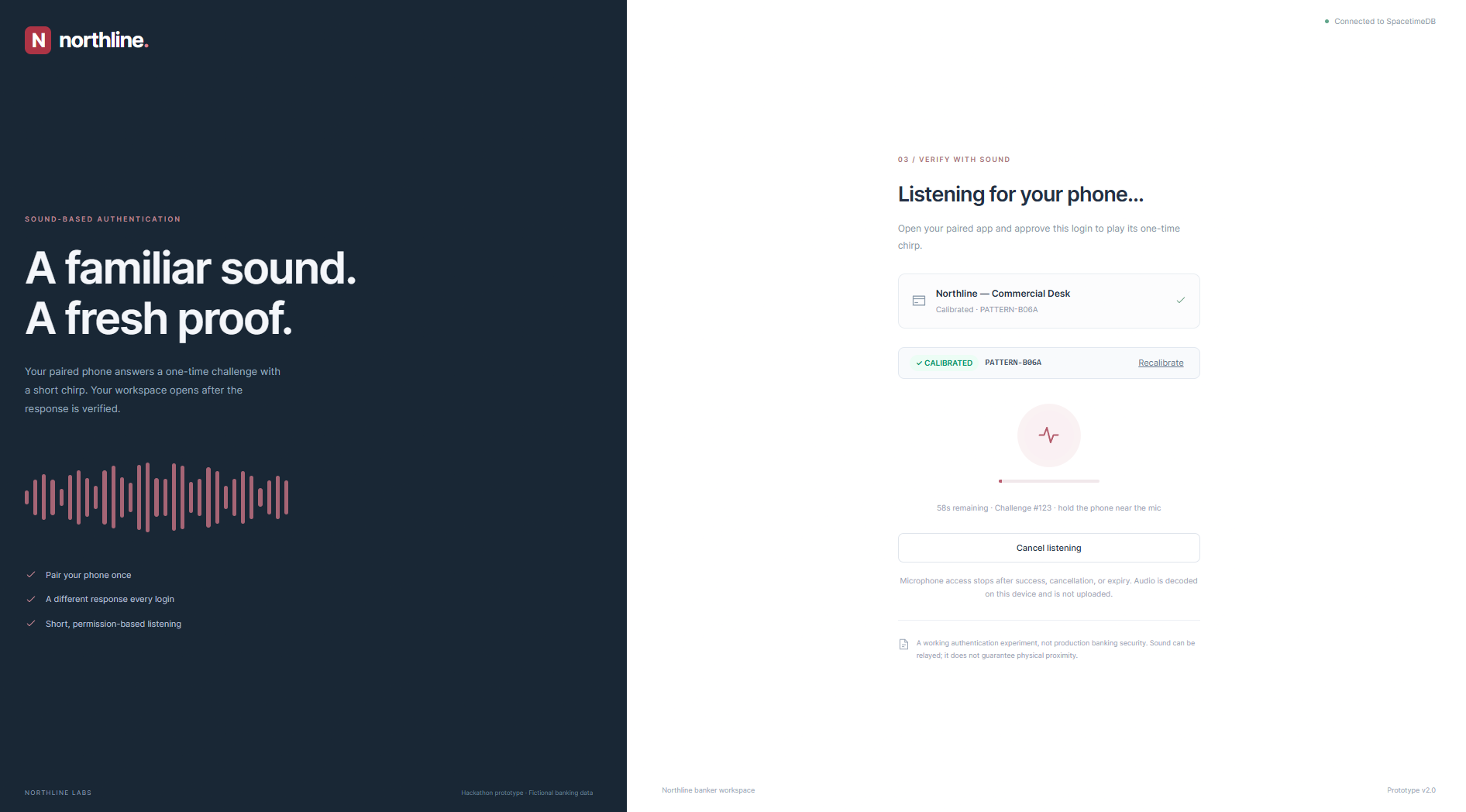

Auth Page

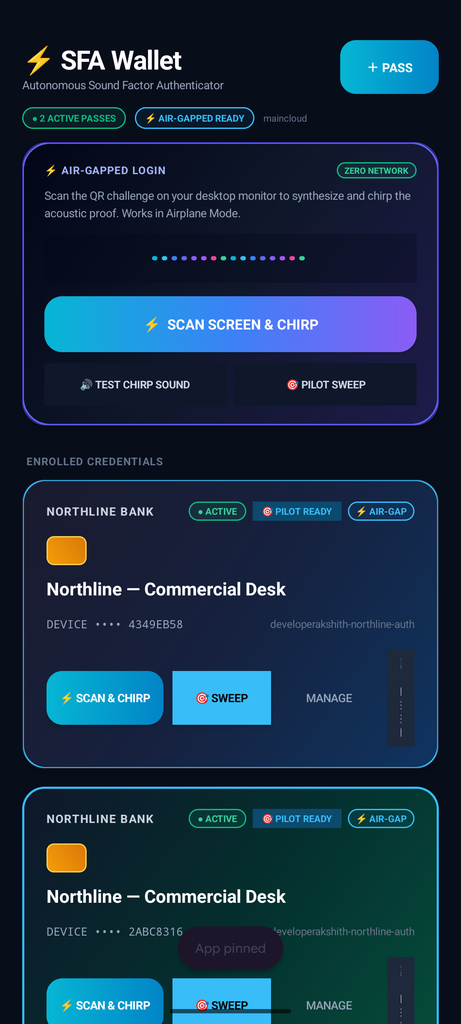

mobile wallet

Inspiration

High-security bank vaults, trading floors, and defense SCIFs have one rule: ZERO wireless signals allowed. No Wi-Fi. No Bluetooth. No cellular data.
Every modern MFA tool (Okta, Duo, SMS, Authenticator apps) dies instantly in these rooms. Hardware USB tokens get lost or stolen.
We asked: What if your phone and laptop could authenticate without sending a single radio wave?
Sound is physical. You can’t phish an acoustic wave from across the internet. We created SFA: login via light (inbound QR) and sound (outbound 16-FSK chirps).

What it does

✈️ 100% Air-Gapped Login:
- Workstation displays a one-time challenge QR and opens the laptop mic.
- Your Android phone in Airplane Mode with Wi-Fi & Bluetooth OFF scans the screen.
- The phone's hardware enclave calculates an HMAC-SHA256 signature and emits a 1.6-second acoustic chirp.
- Laptop microphone hears it, verifies the math via SpacetimeDB, and unlocks the banker workspace.
Step-Up Sound Auth for High-Risk Banking:
- Exporting customer records or approving loans requires an instant Step-Up Chirp to prove physical authorized human presence.
Capital One Nessie Integration:
- Powers real commercial customer portfolios, loan balances, and business credit lines behind an isolated 3-tier microservice boundary.
Autonomous 16-Channel Acoustic Calibration:
- A pilot sweep measures room Signal-to-Noise Ratio (SNR) and reverberation, guaranteeing better decoding accuracy in noisy environments.

The Acoustic Math (16-FSK Linear Chirps)

Single tones echo and cancel out off desks. We engineered linear frequency sweeps: $$s(t) = A(t) \cdot \cos\left(2\pi \left( f_0 t + \frac{1}{2} k t^2 \right)\right), \quad k = \frac{f_1 - f_0}{T_{\text{symbol}}}$$

Band: 2.4 kHz – 4.4 kHz across 8 frequency bins.
Symbol: 20 ms chirp + 4 ms guard gap with 12% cosine envelope taper.
Payload: 27-byte frame binding challengeId + HMAC-SHA256 + CRC-16/CCITT-FALSE.

Challenges we ran into

The Inaudible Ultrasound Trap (>18 kHz) & Room Humidity: We initially tried transmitting near-ultrasound (18 kHz – 20 kHz) so the auth chirp would be completely silent to human ears. But real-world physics hit hard: high-frequency sound waves suffer drastic atmospheric attenuation that worsens with room temperature and air humidity ($\alpha \propto f^2$). Furthermore, built-in laptop microphones have aggressive low-pass anti-aliasing filters that sharply roll off above 16 kHz. The sound was literally being absorbed by the room's air before the mic could hear it! We pivoted to the 2.4 kHz – 4.4 kHz acoustic sweet spot where sound travels reliably through humid air.
Math & Physics Tuning Algorithm: Tuning acoustic parameters required real physical modeling: balancing symbol duration ($T_{\text{symbol}} = 20\text{ ms}$) against Doppler spread, and windowing energy to eliminate spectral splatter. We developed an autonomous 16-channel pilot tuning algorithm that sweeps test frequencies, measures room impulse response and real-time SNR, and dynamically calibrates the FFT correlator thresholds.
Table Echoes (Multipath Interference): Static sine waves bounced off desks, laptops, and walls, creating destructive phase cancellation (zero audio). We solved this by designing linear frequency sweeps (chirps) where no two sequential symbols share the same frequency path.
AWS ECS Multi-Container & ALB Routing: Wiring up 3 decoupled containers in AWS ECS Fargate with an Application Load Balancer (ALB), private Cloud Map DNS, and AWS Secrets Manager so that the Capital One Nessie API key is strictly firewalled from the client.
Air-Gapped Clock Sync: A phone in Airplane Mode has no NTP time server. We embedded the server's cryptographic timestamp and nonce directly into the optical QR so the phone stays in sync offline.

Accomplishments that we're proud of

Pure Offline Proof of Possession: Watching a phone in Airplane Mode chirp a sound wave and unlock a workstation in 1.6 seconds with zero RF emissions feels like magic.
100% Test Pass Rate: 19 audio DSP tests (simulated noise, jitter, and room echo), 7 banking service tests, 7 Capital One tests, and native Android tests.
Zero Key Leakage: Production-ready architecture where the phone's secret never touches the browser or network.

What we learned

Acoustic channels can be just as dependable as Bluetooth when paired with robust signal processing (FSK + CRC16).
SpacetimeDB reducers completely replace fragile WebSocket pub/sub plumbing with clean reactive state.
Enterprise API security: isolating third-party credentials (Capital One Nessie) in dedicated gateway containers.

What's next for SFA (Sound Factor Authentication)

Inaudible Near-Ultrasound (18–20 kHz): Silent authentication undetectable to human ears.
$5 Hardware Key Fob: Flashing the acoustic engine onto an ESP32 or Raspberry Pi Pico with a piezo buzzer.
Linux/macOS PAM Module: Unlocking operating system screens with sound.
