SENTINEL-AI

YOLO-powered threat detection engine combining computer vision, persistent tracking, and adaptive threat scoring for intelligent border security operations

Comment

Inspiration

Border security teams are understaffed and overstretched. A single operator might be responsible for monitoring dozens of camera feeds across hundreds of kilometers and the tools they're given are either prohibitively expensive enterprise software or raw camera feeds with no intelligence at all. We wanted to close that gap. The idea was simple: take state-of-the-art computer vision and put it behind an interface that a non-technical security analyst could actually use on day one, no ML background required.

What it does

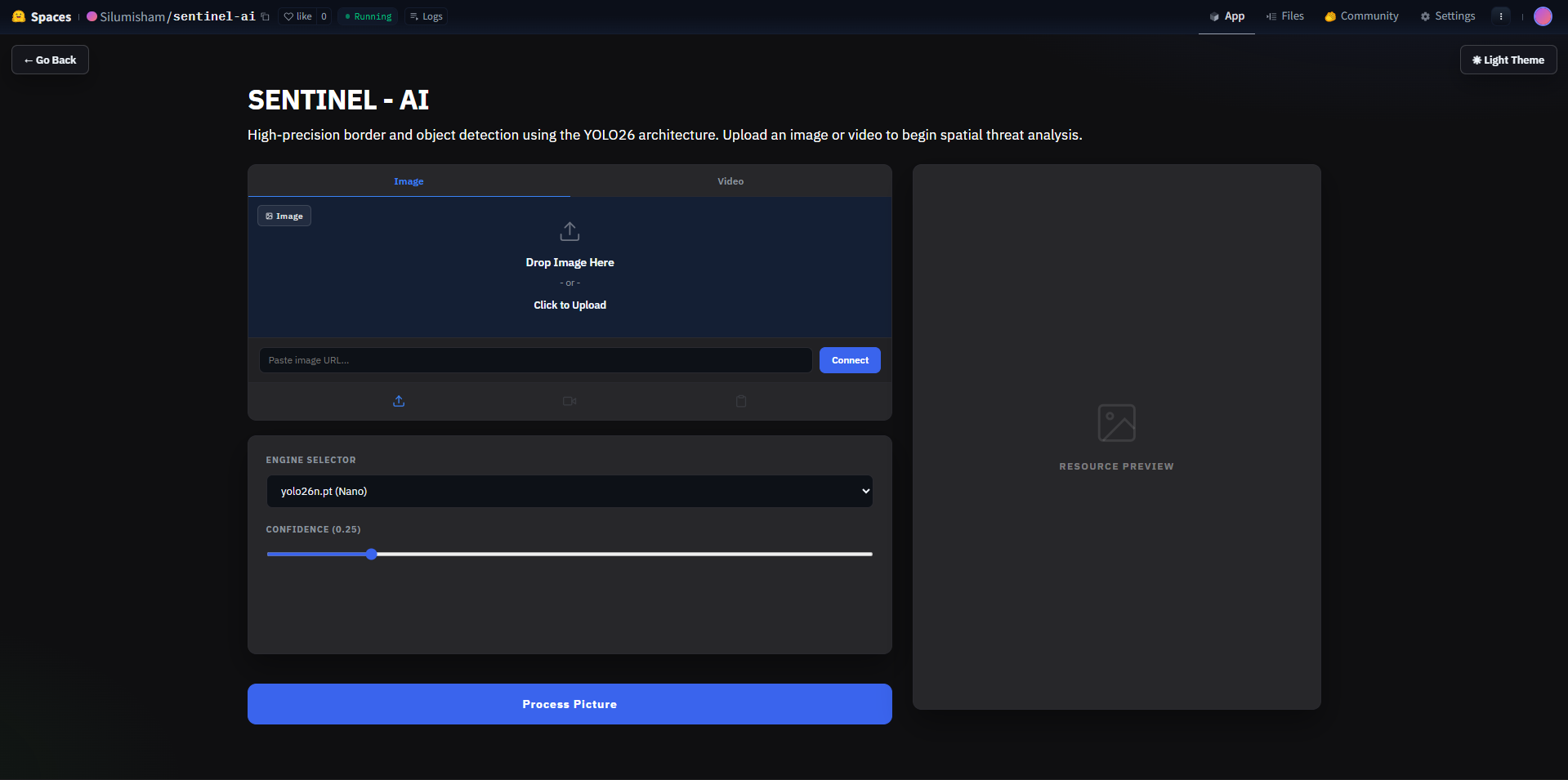

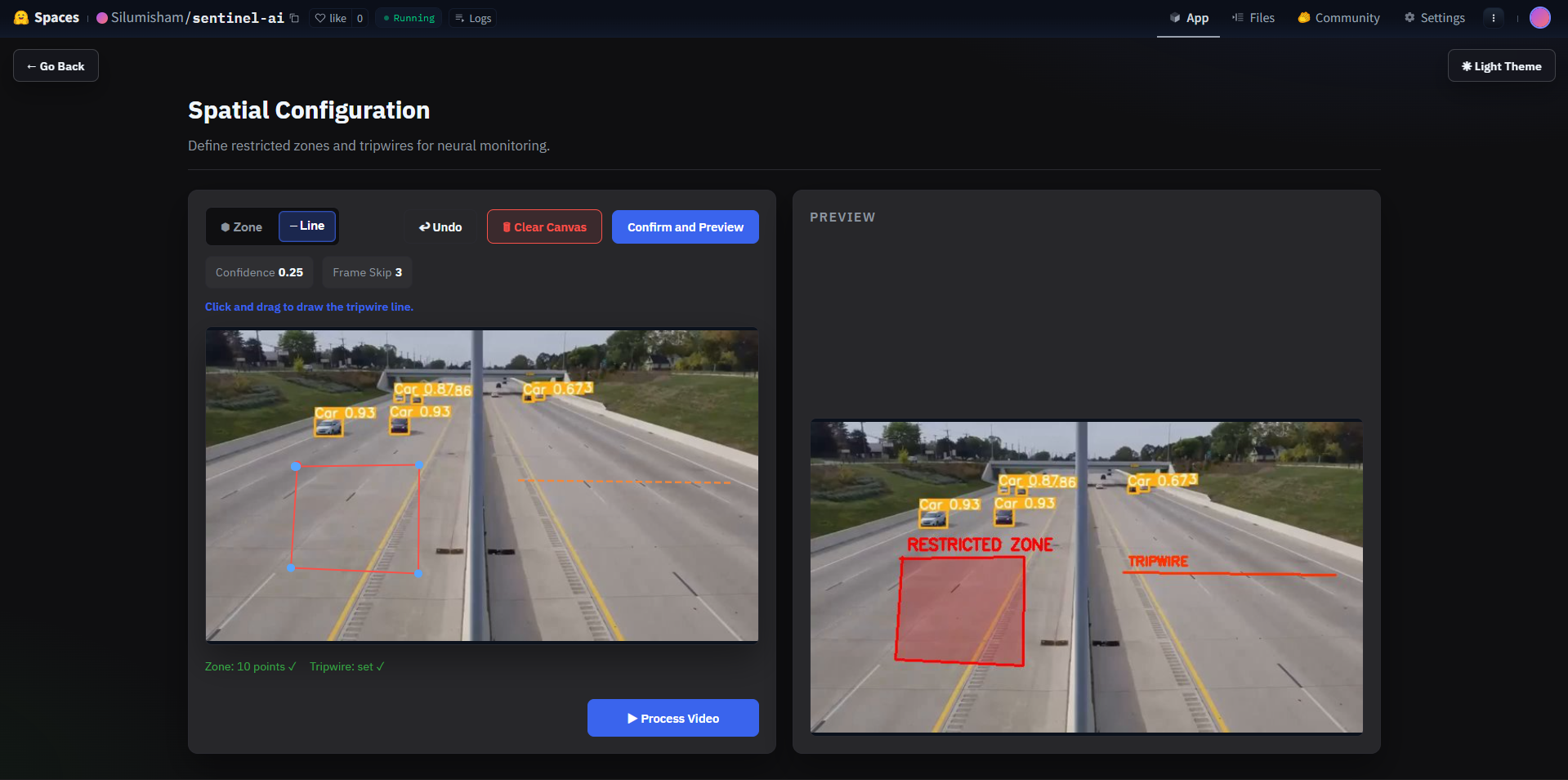

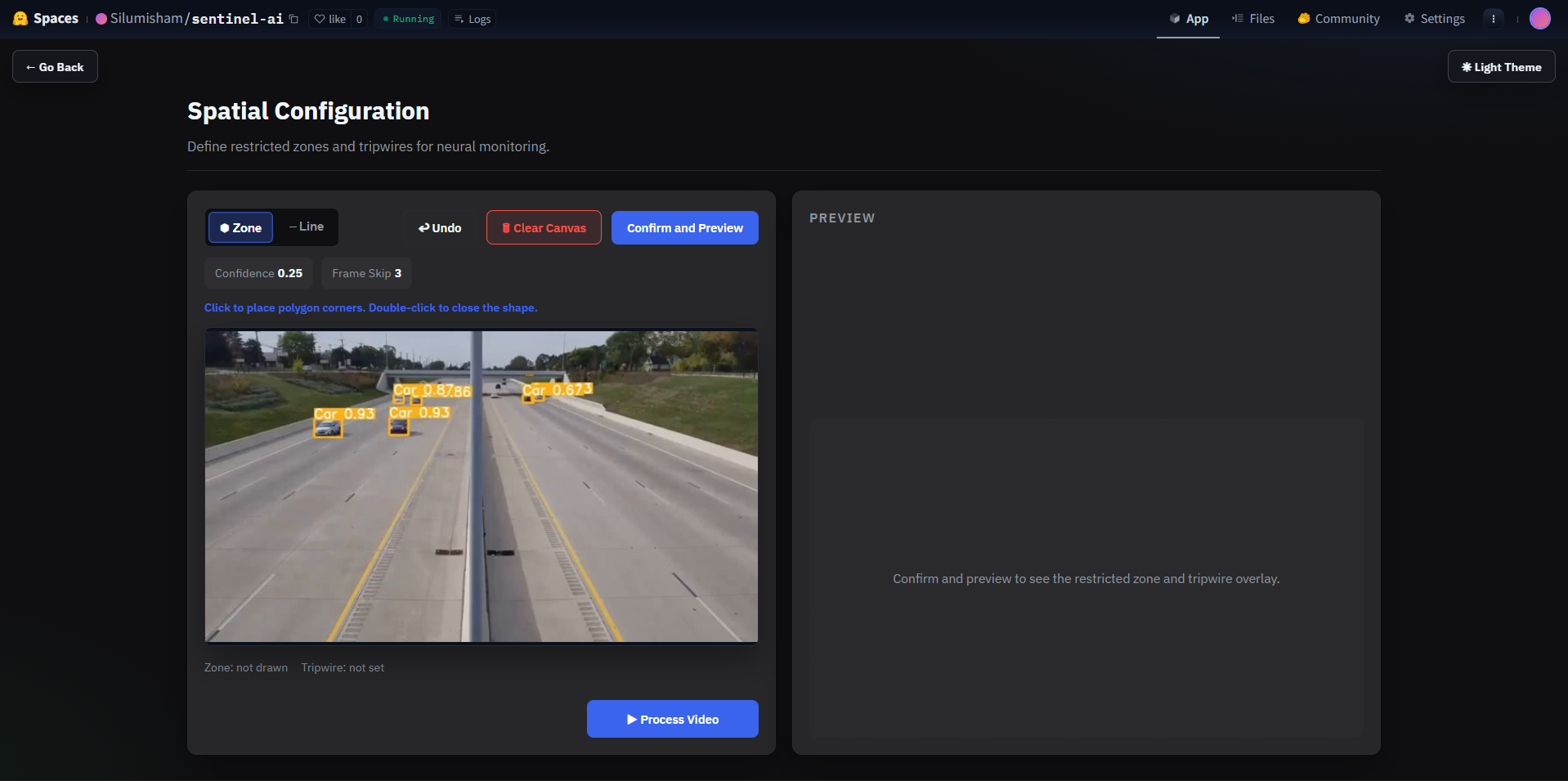

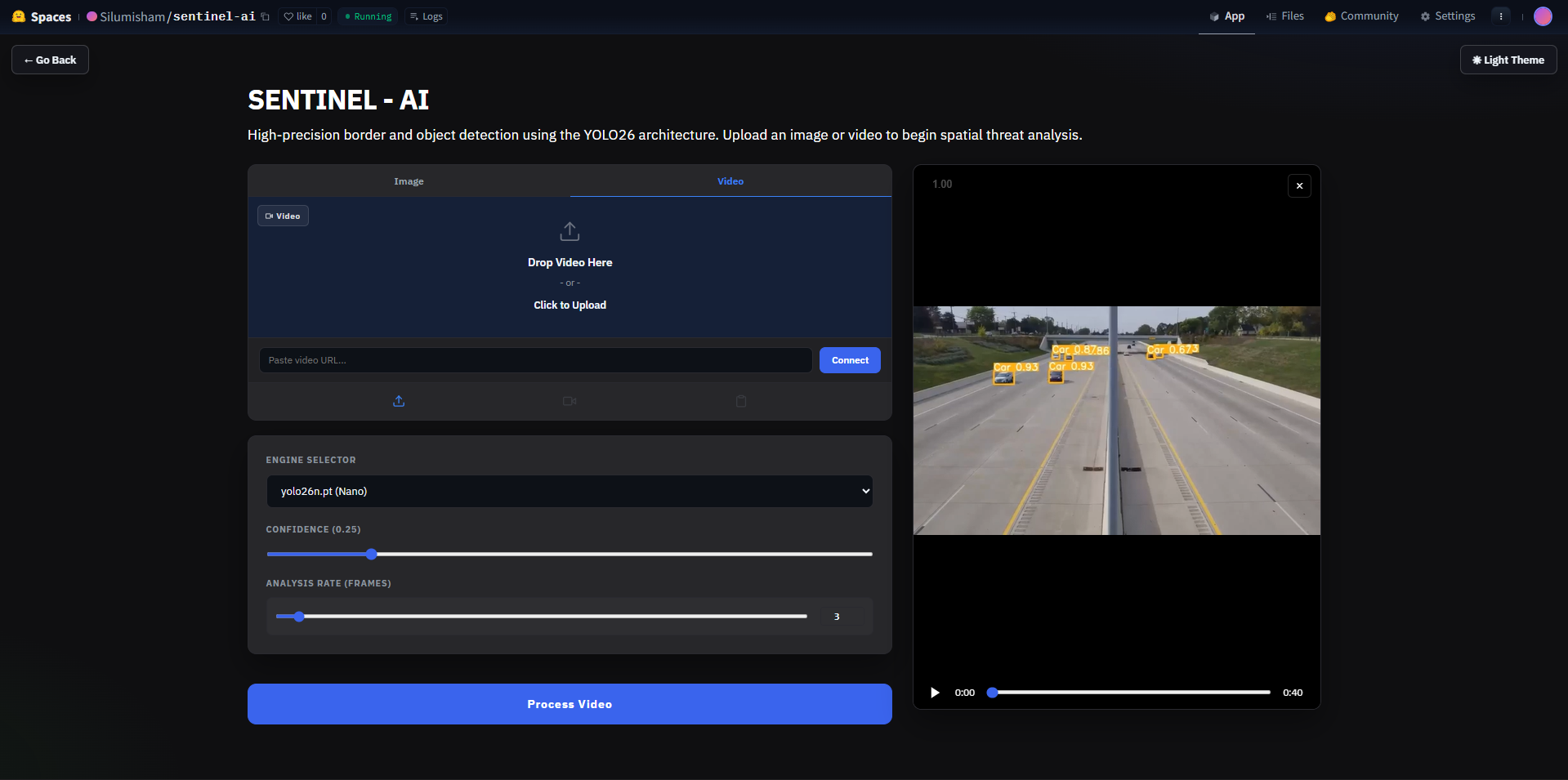

SentinelAI lets you upload any surveillance or drone footage and turns it into an actionable threat report in minutes. You draw a restricted zone or tripwire directly onto the first frame of your video no coordinates, no config files, just click. The system then runs YOLOv8 object detection with ByteTrack persistent tracking across every frame, watching for people or vehicles that cross your line or enter your zone.

It doesn't just detect it scores. Each event is graded LOW through CRITICAL based on a weighted combination of signals:

$$ S = \left( w_{\text{cross}} + w_{\text{zone}} + w_{\text{dwell}} + w_{\text{class}} + w_{\text{group}} \right) \times \text{conf} $$

Signal Weight
Line crossed +60
Inside restricted zone +30
Dwell time ≥ 8s (loitering) +25
Vehicle class +15
Group size ≥ 3 +20

The final score $S$ is multiplied by the model's detection confidence, then mapped to a threat level:

$$ \text{Threat} = \begin{cases} \text{CRITICAL} & S \geq 90 \ \text{HIGH} & S \geq 60 \ \text{MEDIUM} & S \geq 30 \ \text{LOW} & \text{otherwise} \end{cases} $$

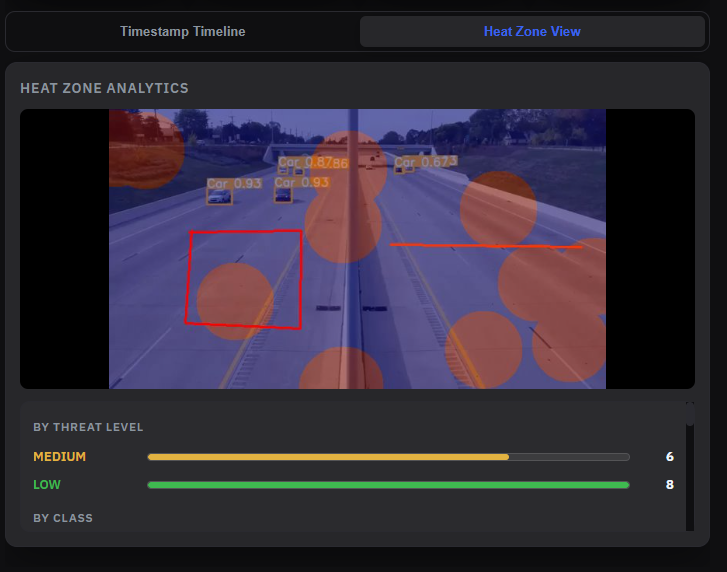

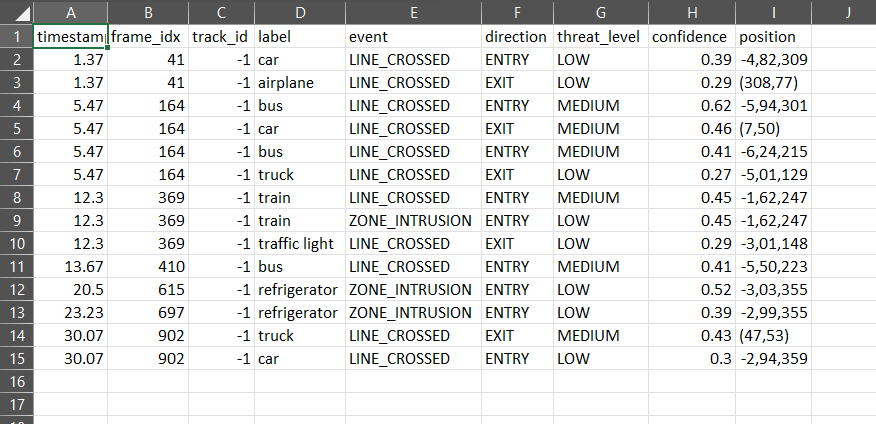

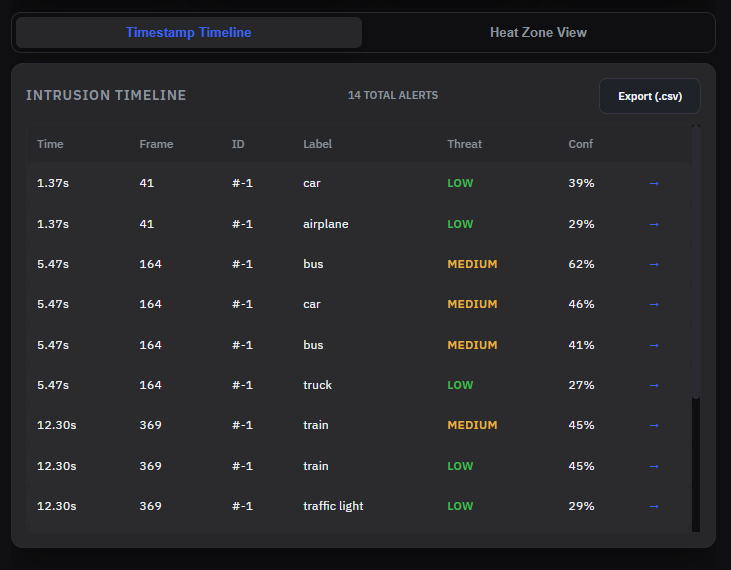

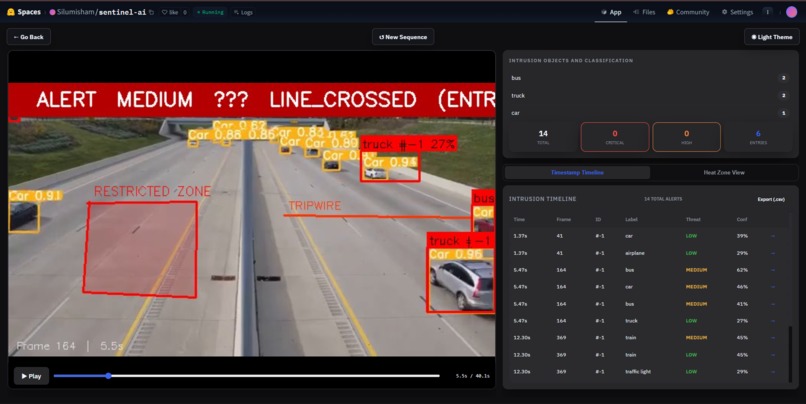

When processing is complete, you get a full frame-scrubbing review interface, a color-coded alert log exportable as CSV, and a heatmap showing exactly where threat activity concentrated across the entire video.

How we built it

The architecture is split into two completely decoupled layers.

threat_engine.py — the intelligence core

Handles all geometry and threat logic with zero UI dependencies:

  • Tripwire crossing uses the cross product sign to determine which side of the line a tracked object's foot point lies on. A sign change from negative to positive means ENTRY; positive to negative means EXIT:

$$ d = (P_2^x - P_1^x)(c_y - P_1^y) - (P_2^y - P_1^y)(c_x - P_1^x) $$

  • Zone intrusion uses cv2.pointPolygonTest against the operator-defined polygon
  • Loitering accumulates per-track frame counts inside the zone and fires after $t \geq 8\text{s}$
  • Scoring combines all signals weighted by detection confidence

Flask + Vanilla JS — the interface

A Flask backend exposes a clean REST API:

Route Purpose
POST /upload Receives video, extracts first frame
POST /set_geometry Saves zone polygon + tripwire coordinates
POST /process Starts background inference thread
GET /progress Polled every 800ms for progress updates
GET /frame/<idx> Returns single annotated JPEG
GET /alerts Returns full alert list as JSON
GET /heatmap Returns blended heatmap image
GET /export_csv Downloads alert log as CSV

The frontend is plain HTML5, CSS, and JavaScript — no framework. A native canvas overlay on the first frame handles zone and tripwire drawing. The review scrubber calls fetch("/frame/42") and gets back one JPEG — no page reloads, no reruns, instant response.

Challenges we ran into

Coordinate scaling — the HTML5 canvas overlays the video frame at display resolution, but YOLO processes the full-resolution frame. Every drawn point must be multiplied by a scale factor before reaching the threat engine. A single off-by-one in this mapping puts your zone in completely the wrong place.

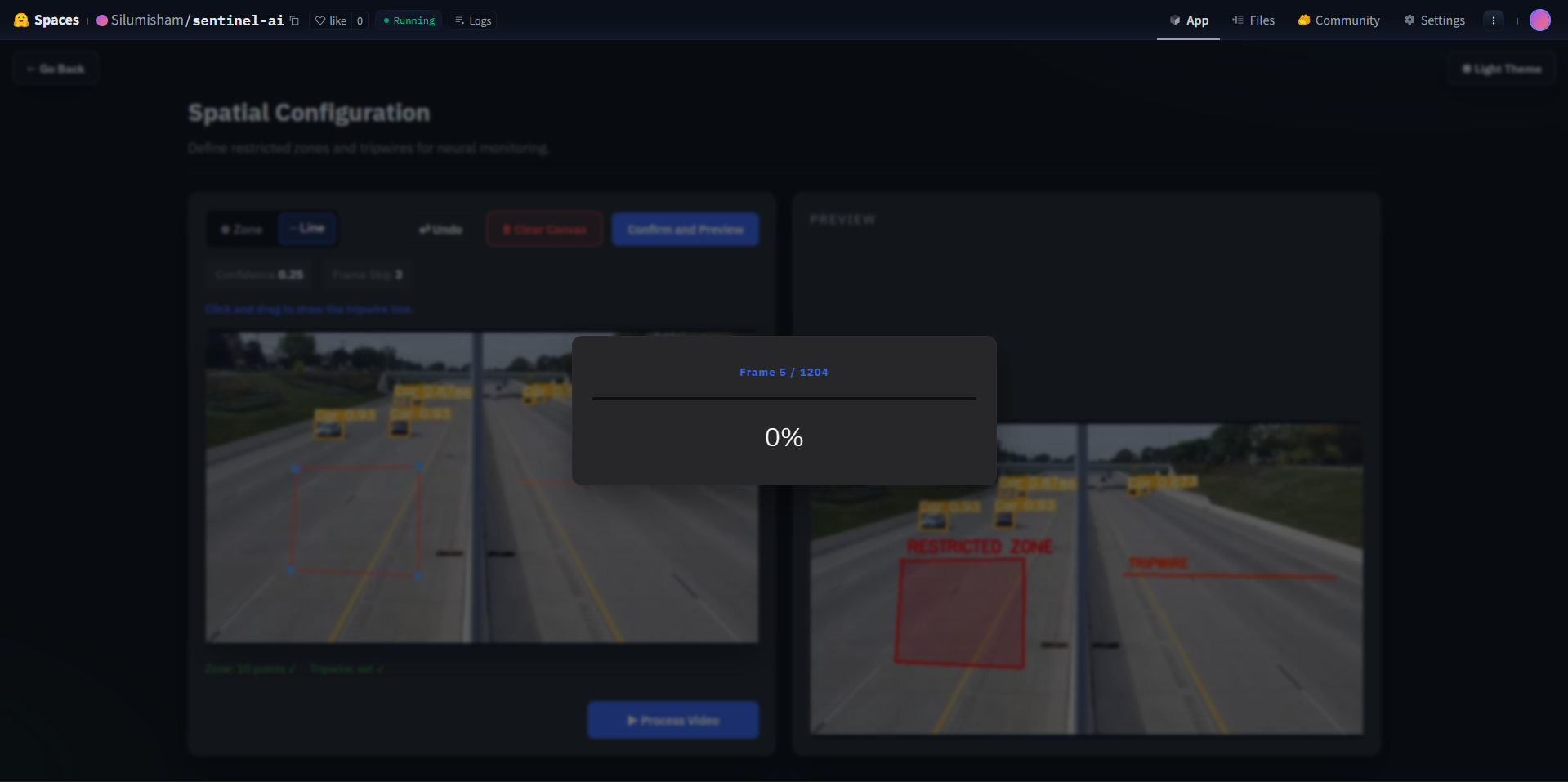

Non-blocking processing — Flask is synchronous. Running YOLO inference on 500 frames inside a request handler would time out the browser immediately. We moved processing into a threading.Thread and exposed a /progress polling endpoint, keeping the UI fully responsive throughout.

Tracking dependency — line crossing detection is only meaningful with persistent object IDs. Without ByteTrack, the same person generates a new detection on every frame with no connection between them. Getting ByteTrack integrated cleanly with the threat engine's per-track state dictionary was the critical architectural decision.

Accomplishments we're proud of

The threat engine logic stands on its own. Directional crossing detection, loitering thresholds, group-aware scoring — these aren't features you get from dropping in a YOLO demo. They're the difference between object detection and actual threat intelligence.

The other accomplishment worth calling out is the clean separation between layers. We started on Streamlit, hit its limitations hard mid-build, and switched the entire frontend to Flask and vanilla JS in a few hours — without touching a single line of threat_engine.py. The engine just worked. That separation is what made the pivot possible.

What we learned

ByteTrack changes everything. Without persistent IDs you're counting objects; with them you're tracking individuals. That shift — from "is there a person near the line" to "did this specific person cross the line" — is where the real intelligence lives.

We also learned that reaching for a heavy framework when you need real interactivity is the wrong call. Flask plus 300 lines of vanilla JavaScript gave us smoother video playback, faster frame scrubbing, and a more professional result than Streamlit could provide — and it deploys anywhere with a single python app.py.

What's next for SentinelAI

  • Live RTSP stream support — the pipeline already handles frame-by-frame input, it just needs a stream source instead of a file
  • Multi-camera dashboard — unified alert feed across concurrent feeds
  • PDF incident reports — exportable from the alert log
  • Configurable scoring weights — operators tune sensitivity per deployment
  • Database backend — persistent storage so historical patterns across sessions become queryable
  • 4K and night-vision optimisation — thermal camera feed support
