Inspiration

As a team, we decided that our focus should be to help others whose jobs are to help the general public. The most notable group of people that we wanted to assist were first responders, more specifically firefighters. In doing some research, we discovered that firefighters have one of the highest mortality rates amongst first responders. The main thing we were able to deduce thanks to first hand research, field gathering, and directly speaking firefighters. Was that firefighters have a lot of out of date gear, despite the advancement of technology. The idea was to build a new Personal Alert Safety System (PASS) alarm for firefighters to use instead of the blaring alarm that they currently have. The first thing that we wanted to change all together was the blaring alarm. The PASS alarm is the system used to know if a firefighter is down or needs assistance, it begins to ring incessantly. Again the year is 2018, these man and woman deserve better than just a sound if they were to need assistance. We figured that we could use a node network of devices to replace the PASS alarms to keep track of each firefighter’s location and oxygen level and if they require assistance or not. Their location and status would be redirected back to the commanding officer on the scene in real time. This could save numerous lives on the scene of a fire, or other disasters.

What it does - Hardware and Software

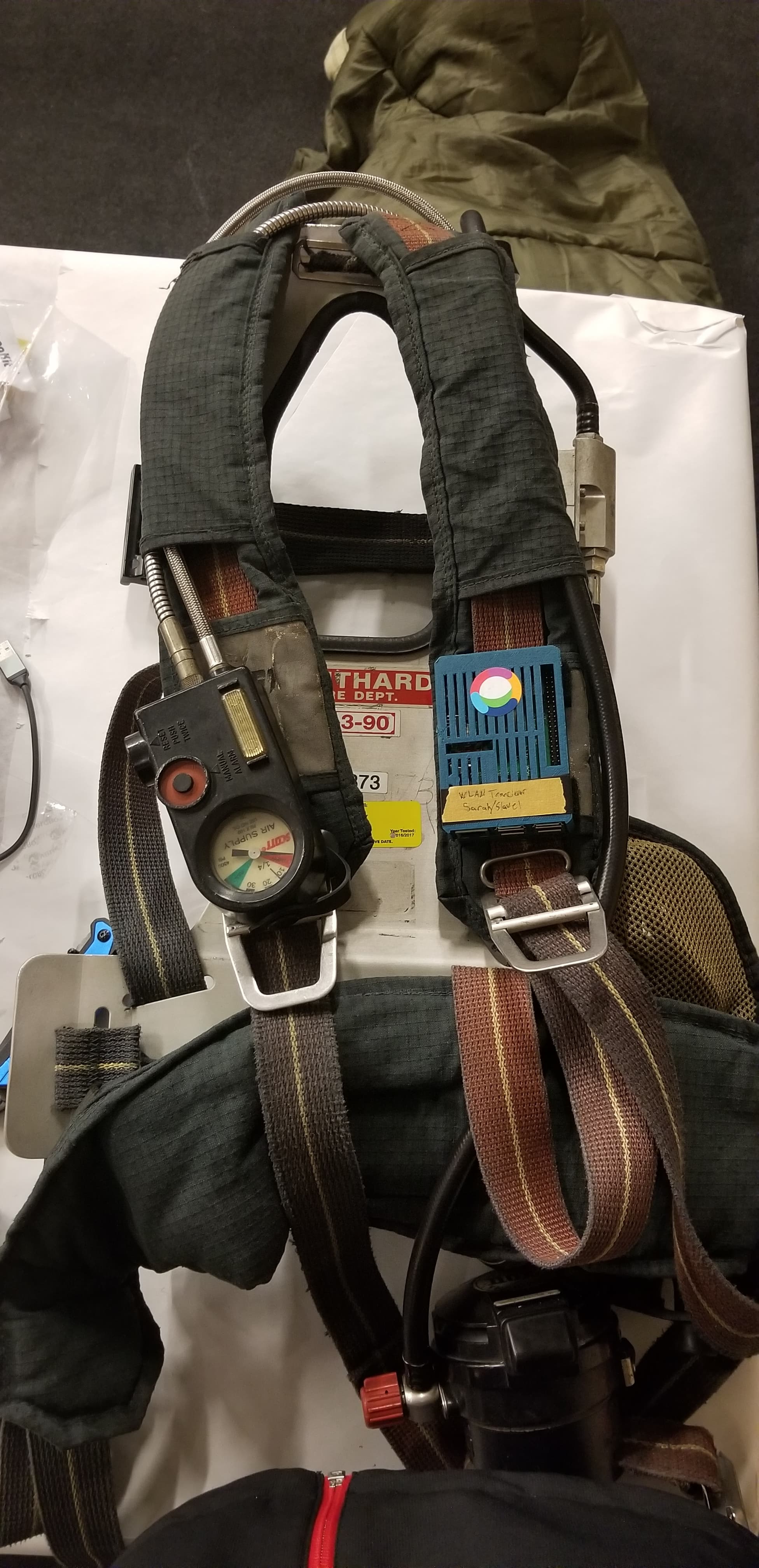

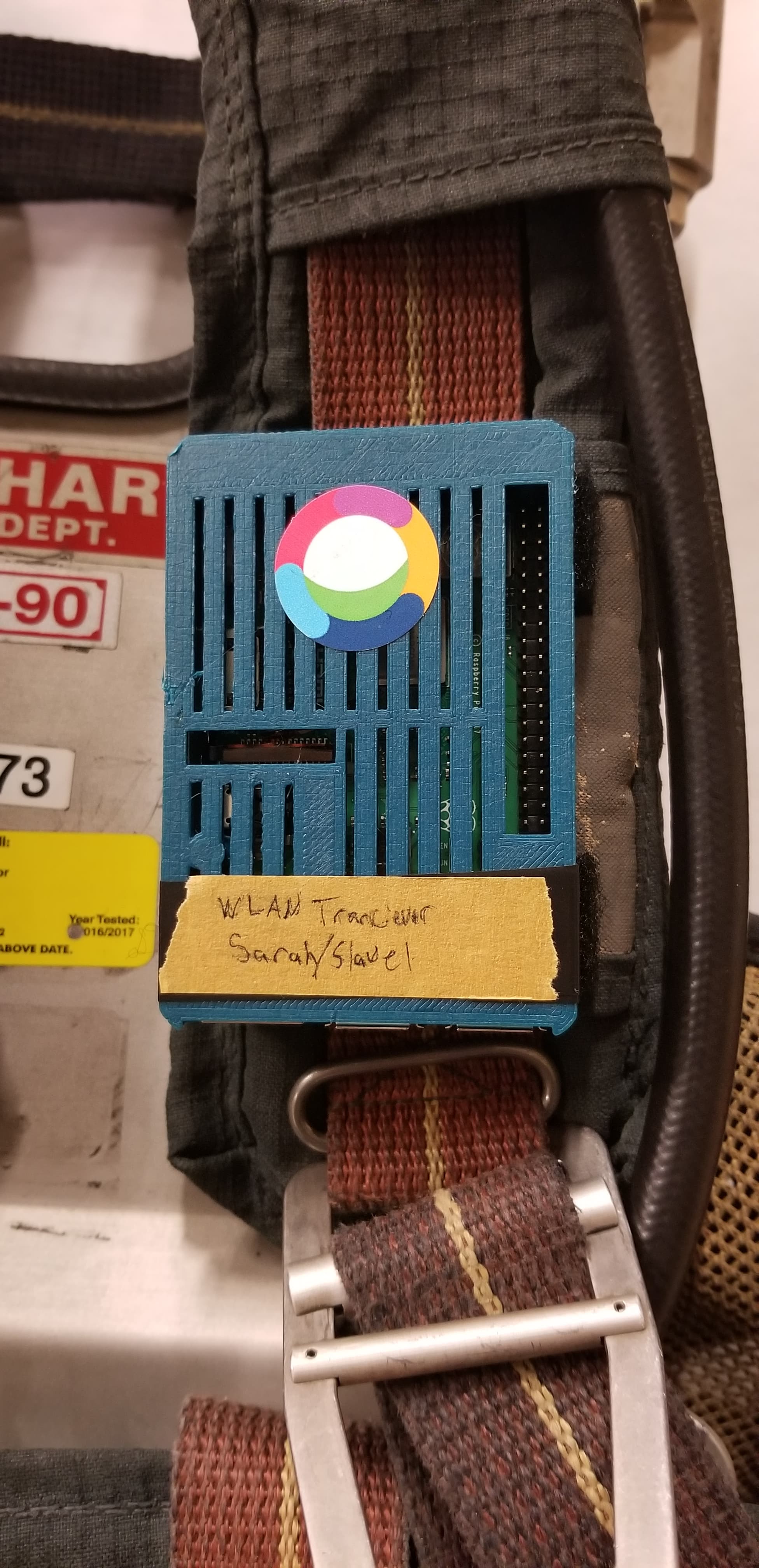

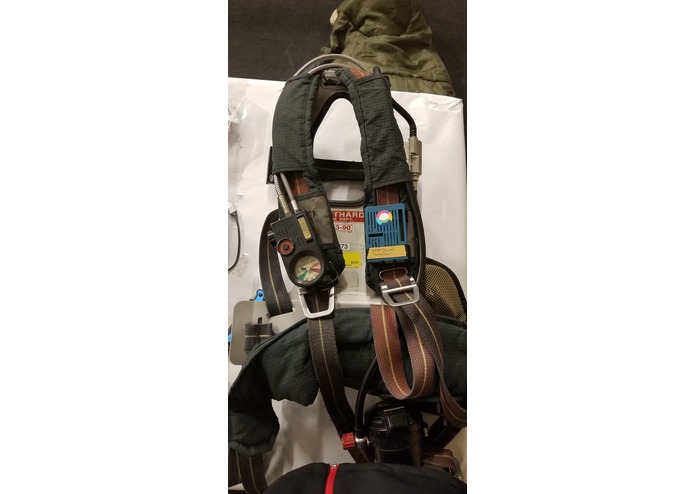

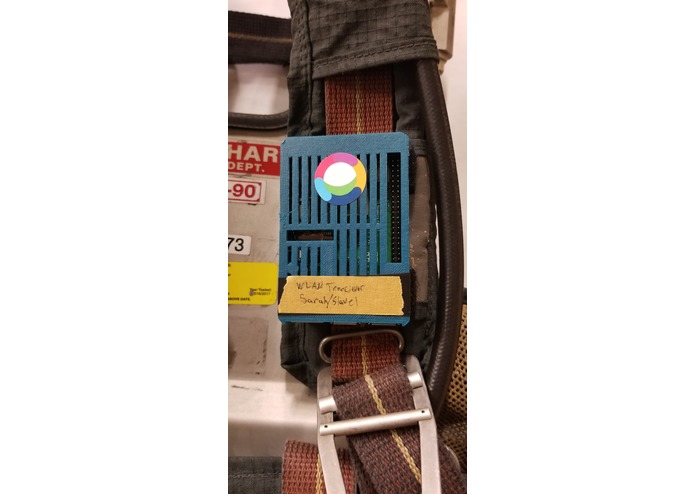

We had access to quiet a few raspberry pi 3 b+s models, which we used to build a loose node mesh network. We have one pi that was the master, or the server, of the network, its main job being to collect, hold, and display the data collected by the other two pis. The first slave pi utilizes Google’s geocoding API to find the address of found longitude and latitude coordinates. The first slave also uses wifi connectivity for find those coordinates to pass to the API. The data that the pi collects and stores is the exact longitude and latitude coordinates of the device, the address of those coordinates, and the ID of the transmitting pi or firefighter. Once all the data is collected, it is sent through the WLAN path opened by the master pi, which then displays it for the user to see. The second slave pi is used to determine the distance between all the pi 3s on the network using Bluetooth Low Energy waves. It sends out BLE pulses, calculates the delays and interference of the environment to determine the space between the second slave pi and the first slave pi, and between the second slave pi and the master pi. As it is calculating the distance between each pi, the margin of average error, error percentile, the distance between the two pis in both feet and centimeters, and the pulses sent out are printed out for the user to see and keep track of. While this data is being gathered, it is also being sent to the master pi simultaneously, so that the master pi can keep track of where exactly each slave pi is. We used a 3D printer to print out cases for our devices, simply to show how we plan to in case the final product obviously with a stronger material

What's next for Sekhmet Overwatch

We have no intention of not continuing with this project. We have already started to purchase the pieces necessary to greatly increase the effectiveness of our devices. We used bluetooth (BLE) and Wireless Local Area Network (WLAN) just to be able to show proof of concept here at Yale. We know we will need something even more real time and reliable. We will use the VHF and UHF frequencies already in use by firefighters, to piggyback our node network. Using smart glass we can replace the visor on their mask to create a smart hub. The hub will be able to display oxygen levels and were other firefighters are located based on their current location, thanks to what we have already built. Another thing we started to built is the Graphical User Interface (GUI), that the on scene commander will use on the Panasonic Toughpad already use. Thanks to google maps now starting to provide indoor maps of public buildings, we will eliminate any guesswork necessary to locate where a firefighter in need is located, again visible thanks to our devices providing Latitude, Longitude, and elevation.
