Sankalp — Multimodal Accessibility for DeafBlind Users

A real-time engine that turns ambient sound into haptic vibration patterns and translates sign language into refreshable Braille — so DeafBlind users can perceive the world through touch alone.

Comment

Inspiration

Roughly 2 million people worldwide are DeafBlind — they cannot rely on sight or sound. Existing assistive technologies serve one sense at a time: screen readers for the blind, captioning for the deaf. Almost nothing fuses both modalities into a single touch-first interface.

I wanted to build a system where a DeafBlind user could feel their environment in real time:

  • A smoke alarm → long pulse on the wrist
  • A doorbell → distinct rhythm
  • A sign-language wave → Braille word on a display

The goal was a working prototype — not just a concept.

What It Does

Sankalp is a real-time multimodal accessibility engine with three parallel inputs:

  • Microphone → Whisper (speech) + YAMNet (sound classification)
  • Webcam → MediaPipe (sign-language gesture detection)
  • Knowledge queries → Wolfram Alpha + Gemini

All inputs are converted into a unified SemanticEvent:

type, content, urgency (0–10), source, timestamp

Outputs

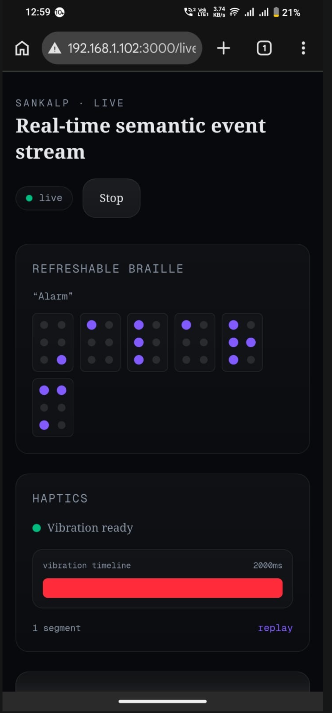

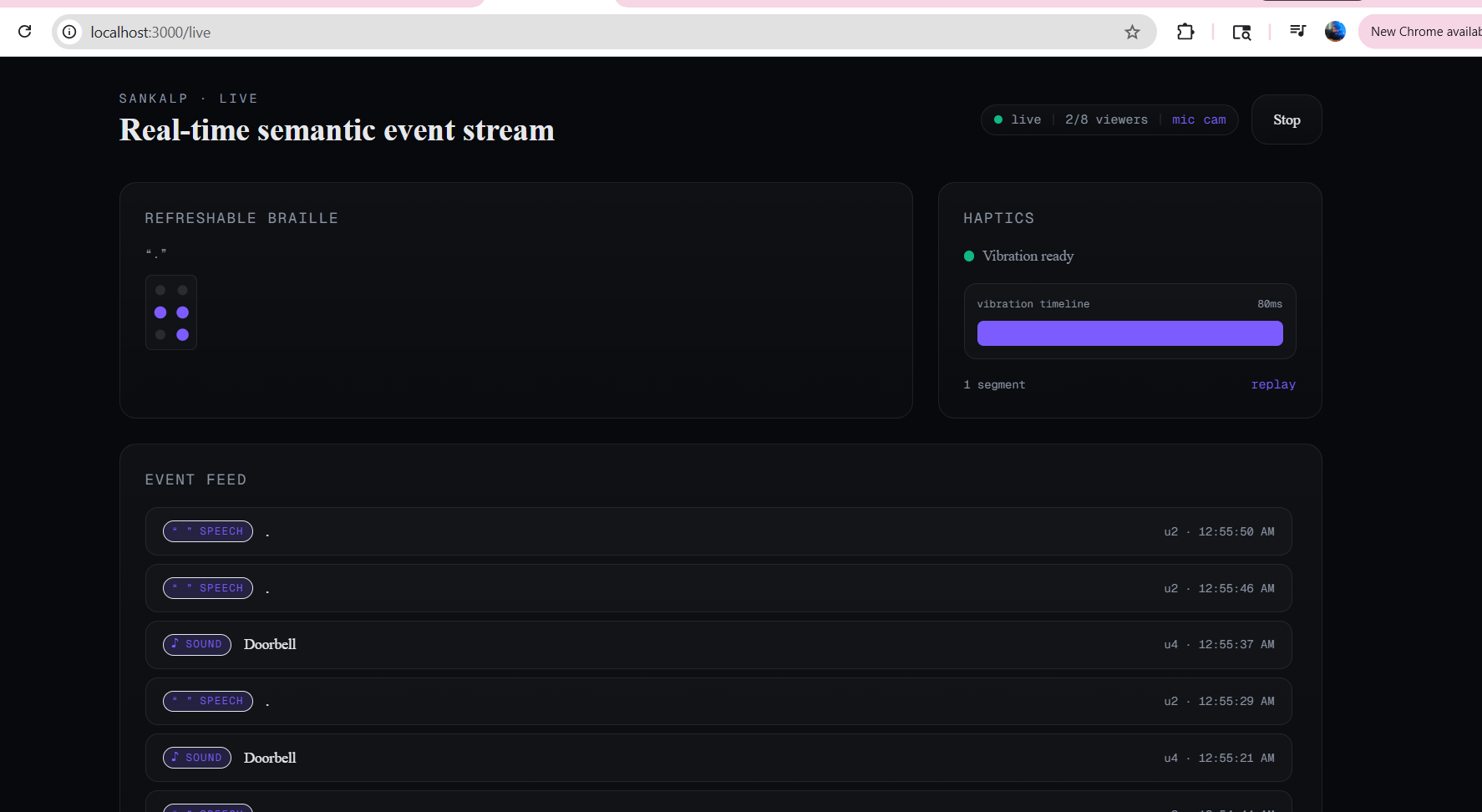

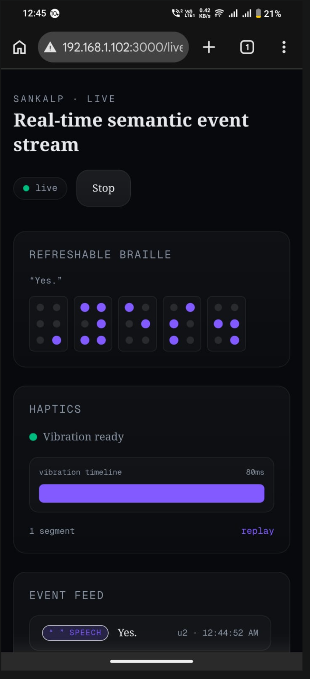

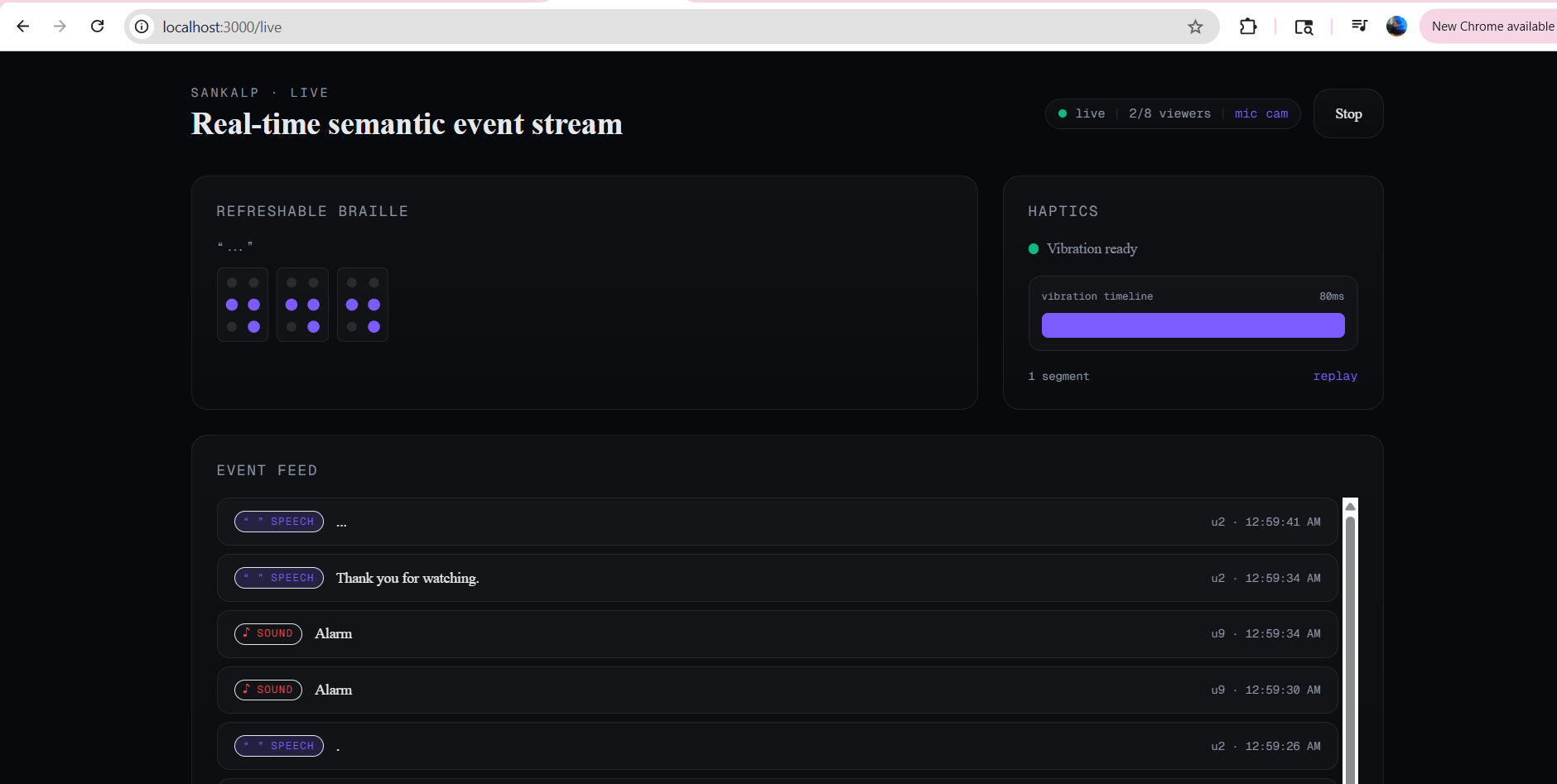

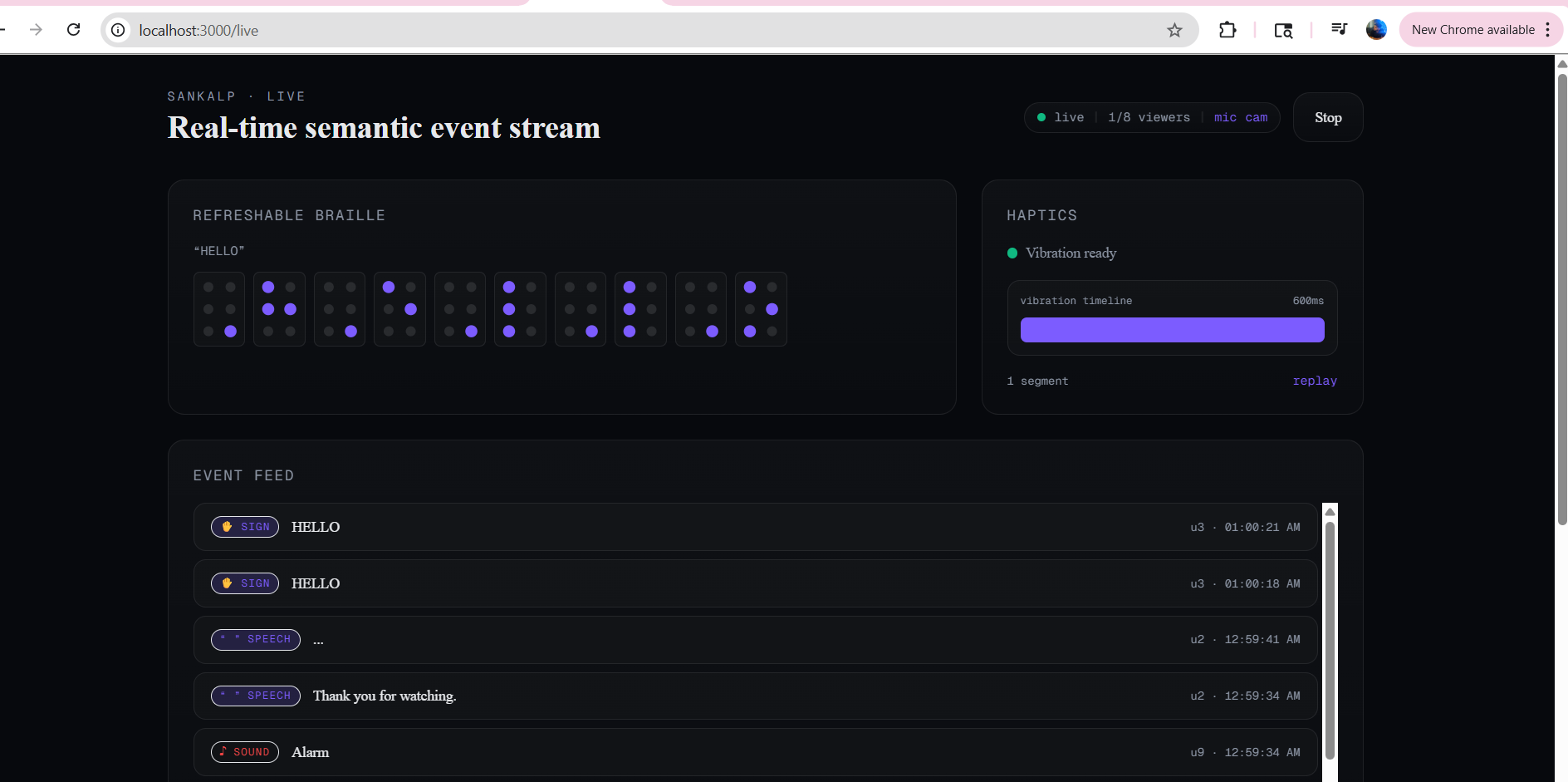

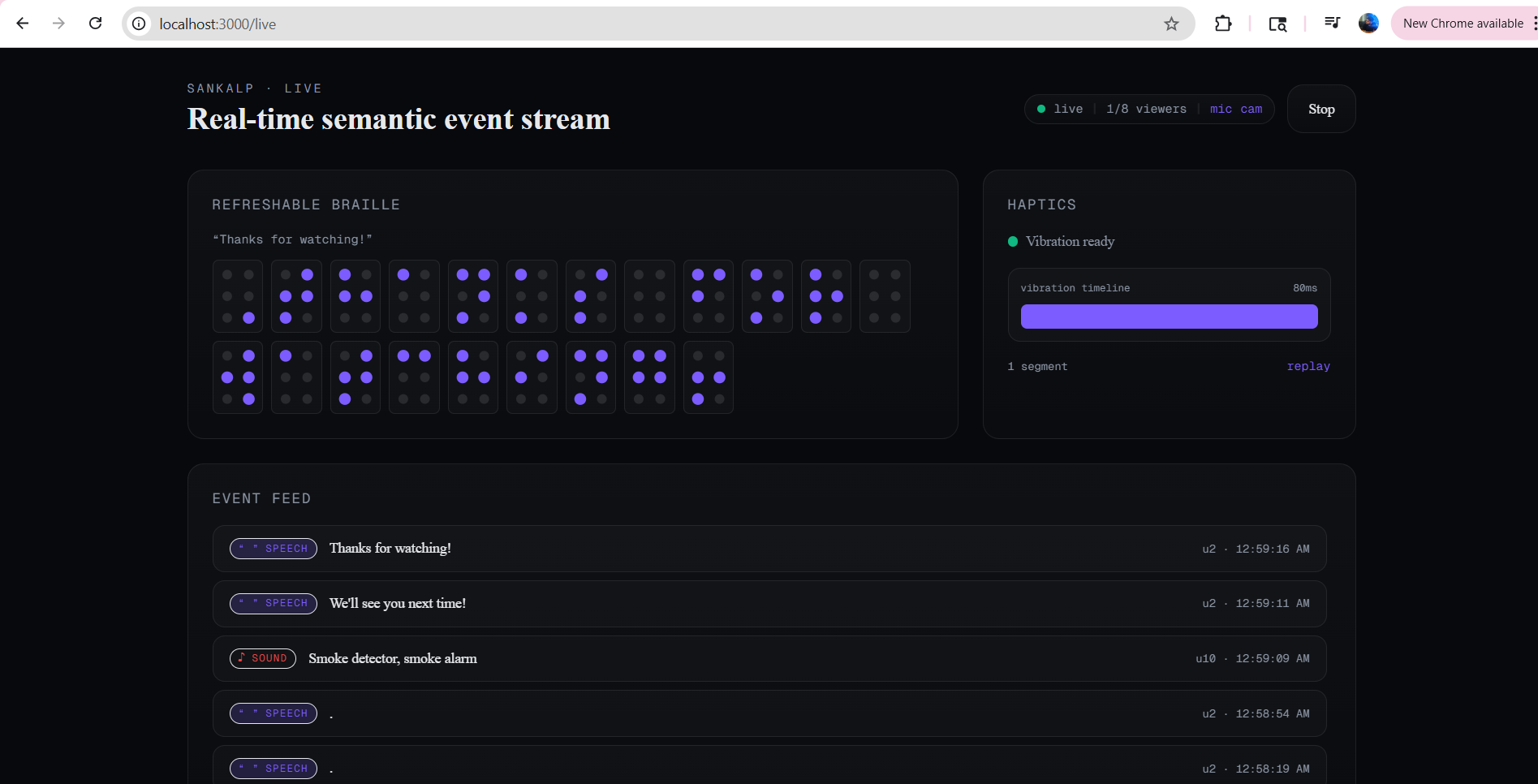

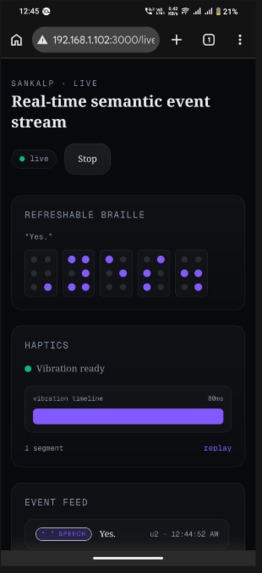

  • 6-dot animated Braille grid (Grade-1 UEB)
  • Haptic vibration patterns (via phone)

Haptic Grammar (Core Innovation)

Pattern (ms) Meaning Trigger
[2000] Emergency urgency ≥ 9
[120,80,120,80,400] Name being called speech
[100,80,100,80,100] Doorbell / knock sound
[600] Sign detected vision
[80] Default notification other

Rule: Urgency overrides everything.

How I Built It

Backend (Python + FastAPI)

  • Event system with SemanticEvent
  • Audio pipeline (Whisper + YAMNet)
  • Vision pipeline (MediaPipe)
  • Braille encoder (custom Python)
  • Haptic encoder (pattern mapping)
  • WebSocket system with real-time streaming

Frontend (Next.js + TypeScript)

  • Animated Braille grid (SVG)
  • Haptic visualizer
  • Event feed with urgency colors

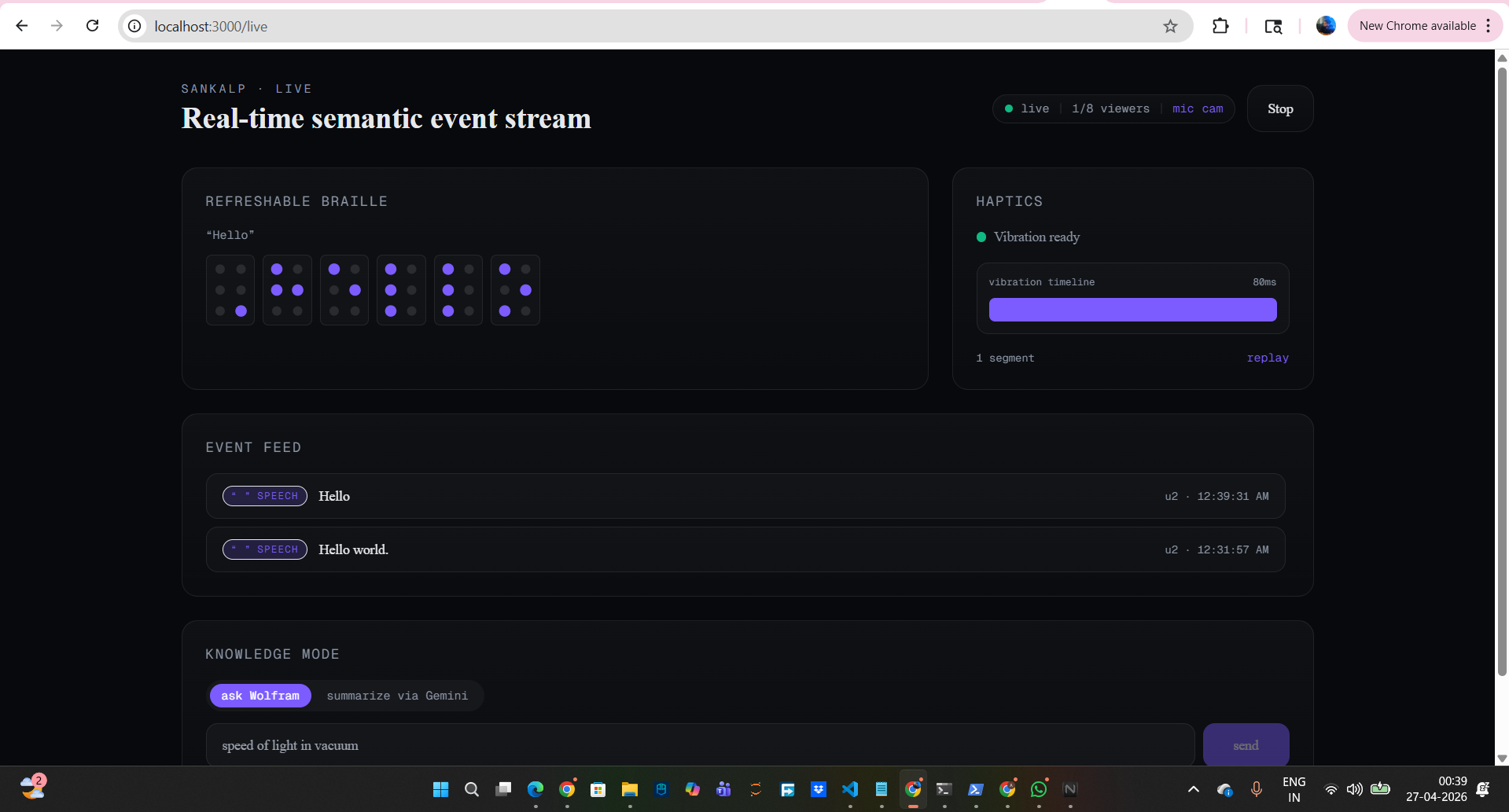

  • Knowledge query panel
  • Emergency full-screen alert

Challenges

  • liblouis issues on Windows → built custom Braille encoder
  • No tflite-runtime support → switched to ai-edge-litert
  • MediaPipe API changes → migrated to Tasks API
  • Gemini rate limits → built retry + limiter system
  • Real-time tradeoff → freshness > completeness

Accomplishments

  • Unified SemanticEvent architecture
  • Designed Haptic Grammar (core innovation)
  • 51 tests passing
  • Fully working end-to-end real-time system

What I Learned

  • Stub-first development works best
  • ML libraries change fast (breaking changes)
  • Urgency > confidence in accessibility systems
  • Free-tier APIs are enough if optimized

What’s Next

  • Expand sign-language recognition (20+ signs)
  • Add Grade-2 Braille
  • Support real Braille hardware (Bluetooth)
  • Build wearable version (wristband)
  • Enable full offline privacy mode
