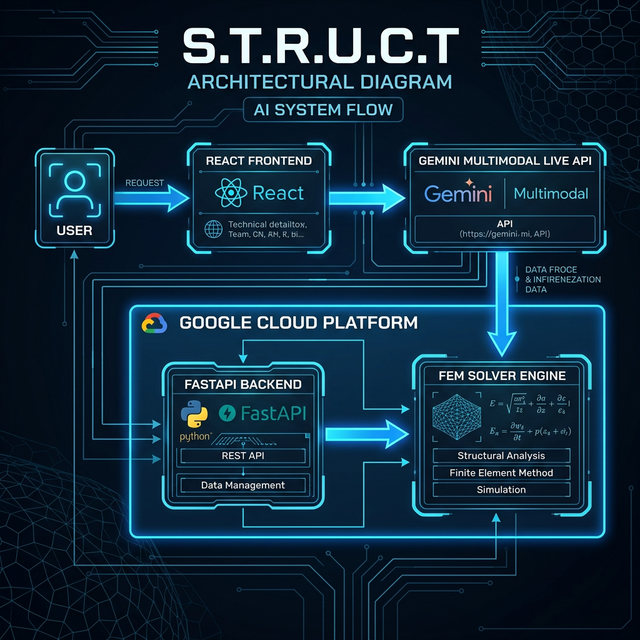

Architecture

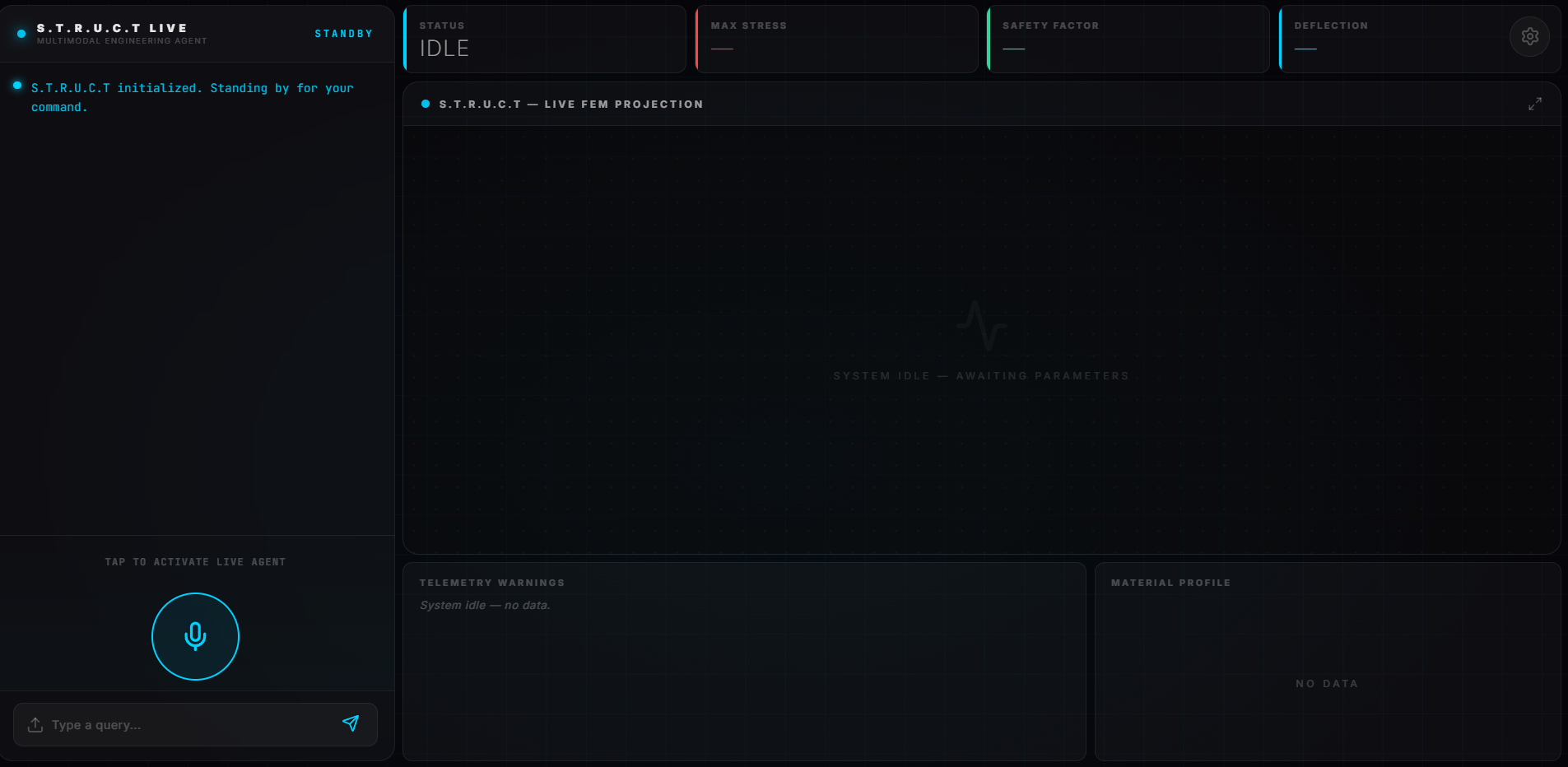

UI

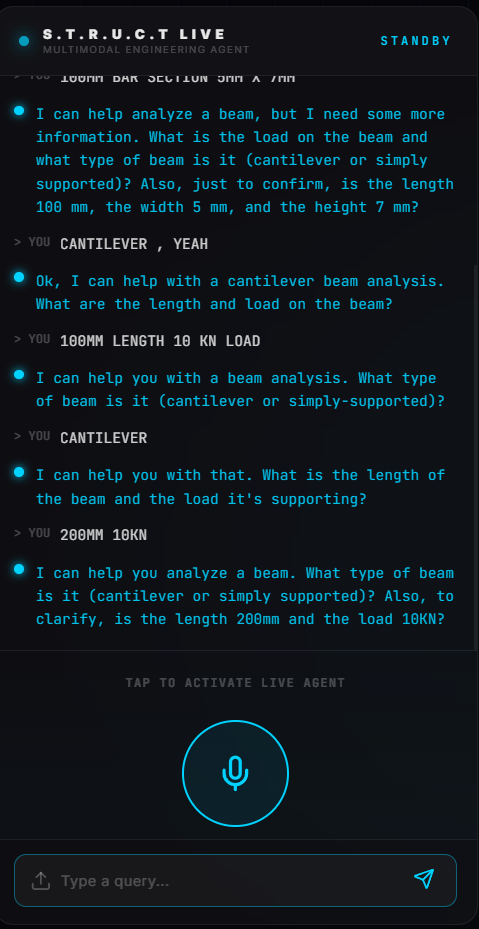

Chat box

Project Description Project Title: S.T.R.U.C.T. Structural Testing, Reasoning & Unified Computational Tool.

Inspiration Structural engineering often involves cross-referencing complex diagrams with dry technical solvers. We wanted to build a "Jarvis" for civil engineers—an agent that can "see" a loading diagram, "hear" an engineer's verbal constraints, and "speak" back technical insights in real-time, bridging the gap between human intuition and FEM (Finite Element Method) precision.

What it does S.T.R.U.C.T is a multimodal engineering copilot that:
