Deep Learning RPS

React Flask CockroachDB Tensorflow

A web application game based upon the popular rock, paper, scissors, lizard, spock - made popular by the show The Big Bang Theory. The app leverages deep-learning and a webcam to authenticate users by their face then recognize their desired play through their hand shape. A game AI has also been implemented to promote thoughtful play.
Made-by: Shrish Mohapatra (shrish-mohapatra), Rajessen Sanassy (rajykins), Yousef Yassin (yyassin)

Minimum Requirements:

  • Windows 7 or higher.
  • macOS 10.13 or later.
  • python 3.7.6 or older

note: Tensorflow is not supported on newer python versions

Features

  • Asynchronous user registration/authentication using face detection -> all data is saved locally with CockroachDB
  • Initial onboarding calibration process:
    • Asynchronously analyze user webcam stream by persisting images to local cockroach database.
    • Notify players of game instructions and verify knowledge of 5 hand symbols.
    • Calibrate AI with the hand symbols the user provides by updating detection model with tensorflow.
  • Play RPLSS with advanced AI
    • Implemented first-order markov-chain based AI that records game states.
    • Based on previous state, calculates the users next most likely move by computing maximum probability with Bayesian theorem.A
    • For example, if the player engages in a specific strategy or plays a certain pattern/move consistently; the AI will begin to learn and win consistently.
    • Loss prevention method acheived by random selection.

Built With

  • ReactJS | context
  • Flask | websockets
  • CockroachDB
  • SQL Alchemy
  • openCV
  • TensorFlow

Multithreading enabled for asynchronous image processing

Running the Application

You will first need to clone the repository to your local machine:

git clone https://github.com/Rajykins/Deep-Learning-Rock-Paper-Scissors
  • Install CockroachDB.

  • Navigate to the DB directory and setup Database:

    cd ~/cockroach
    ./cockroach.exe demo --empty
    CREATE DATABASE dbrps
    CREATE USER dbADmin WITH PASSWORD password
    GRANT ALL ON DATABASE dprps to dbAdmin

  • Navigate to the appropriate application directory from terminal:

    cd ~/Deep-Learning-Rock-Paper-Scissors

  • (Optional) Setup and activate a virtual environment for dependencies:

    pip install virtualenv
    virtualenv venv
    venv/Scripts/activate

  • Install required dependencies :

    pip install -r requirements.txt

  • Create the required directories under /server :

    ./server/snapshots
    ./server/face_images
    ./server/face_cascade

  • Run the application :

    flask run

  • Initialize the database application by navigating to the /createDB endpoint here

  • Visit the home page to get started: localhost:5000

  • Enjoy! 🎉

Using Project

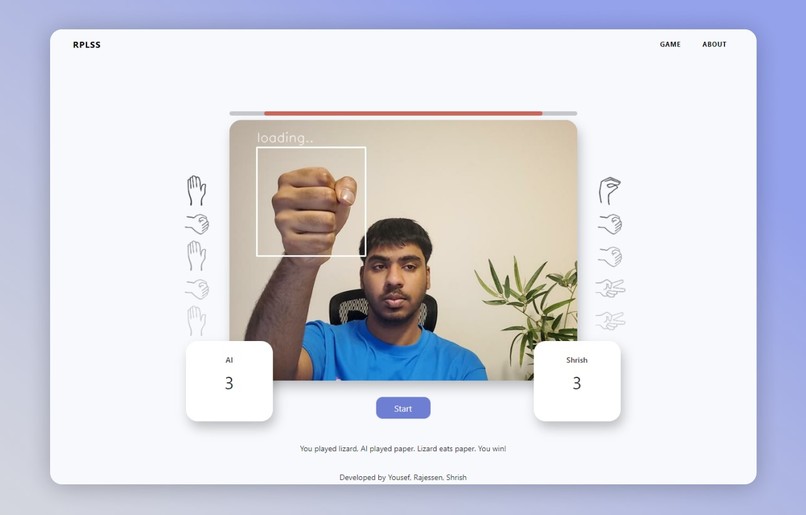

  1. Users will be prompted with a Signin card where users can register their face to the database.
  2. Users can alternatively select Login if their face has already been scanned.
  3. There is a calibration process where users will be prompted with the various moves of the game.
  4. To start playing the game, click the Start button and the rounds will begin.
    • A bar will indicate how much time is left for the round
    • Perform your move in the designated area each round
    • Points are awarded for wins against the AI
    • Past moves are shown in descending order
