🤖 RobotixFunnel AI-Powered Robotised E-Commerce Platform

RobotixFunnel is a full-stack, AI-powered e-commerce platform with a real-time Digital Twin Warehouse featuring autonomous AGV robots, an AI chatbot shopping assistant, and a complete admin panel — built for the Romanian & European electronics market.

📐 Architecture Overview

┌─────────────────────────────────────────────────────────────────────┐
│                          CLIENT LAYER                              │
│                                                                     │
│   🛒 Storefront (8000)    🔧 Admin Panel (3001)    🏭 Dashboard    │
│   Next.js 15 + React 19   Next.js 16 + React 19    Three.js 3D    │
│   Tailwind CSS             Tailwind CSS 4            WebGL + WS    │
└──────────┬───────────────────────┬───────────────────────┬──────────┘
           │                       │                       │
           ▼                       ▼                       ▼
┌─────────────────────┐  ┌────────────────────┐  ┌────────────────────┐
│  Platform Backend   │  │  AI Chat Service   │  │ Warehouse Orch.    │
│  Fastify 5 (:9000)  │  │  FastAPI (:5050)   │  │ Express (:4000)    │
│  Drizzle ORM        │  │  Gemini 3 Flash    │  │ Socket.IO + Gemini │
│  Stripe Payments    │  │  Product Search    │  │ A* Pathfinding     │
│  JWT + Google OAuth  │  │  Knowledge Base    │  │ 4 AGV Robots       │
└─────────┬───────────┘  └────────┬───────────┘  └─────────┬──────────┘
          │                       │                         │
          ▼                       ▼                         ▼
┌─────────────────────────────────────────────────────────────────────┐
│                          DATA LAYER                                 │
│                                                                     │
│   🐘 PostgreSQL (27 tables)       🔴 Redis (cache)                 │
│   Products, Orders, Invoices       Session, API cache              │
│   Customers, Carts, Blog                                           │
└─────────────────────────────────────────────────────────────────────┘

🧩 Project Structure

RobotixFunnel/
├── frontend/                 # 🛒 Customer Storefront (Next.js 15, port 8000)
├── backend-v2/               # ⚙️ Platform Backend API (Fastify 5, port 9000)
├── Admin01/                  # 🔧 Admin Panel (Next.js 16, port 3001)
├── warehouse-orchestrator/   # 🏭 Digital Twin Warehouse (Express, port 4000)
├── ai-chat-service/          # 🤖 AI Chatbot (FastAPI, port 5050)
├── architecture.md           # Architecture documentation
└── README.md                 # This file

🛒 Frontend — Customer Storefront

Tech: Next.js 15.3 · React 19 · Tailwind CSS · Turbopack · TypeScript
Port: 8000
Package: robotixfunnel-storefront

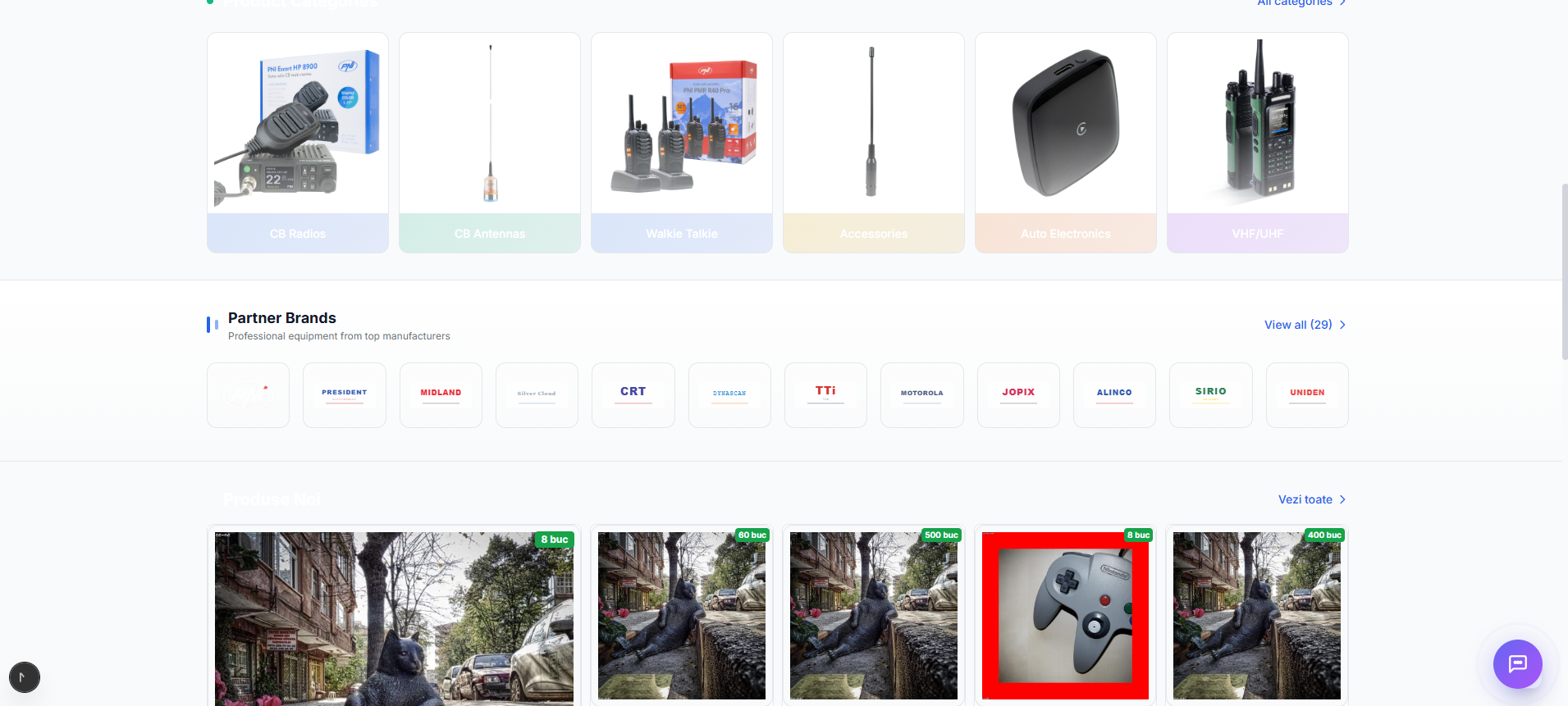

The storefront is a high-performance SSR/SSG e-commerce frontend with full shopping experience.

Key Features

Server-Side Rendering with Next.js App Router and Turbopack
Stripe Payment Integration — Credit card, iDEAL, and more
Google OAuth — One-click customer login

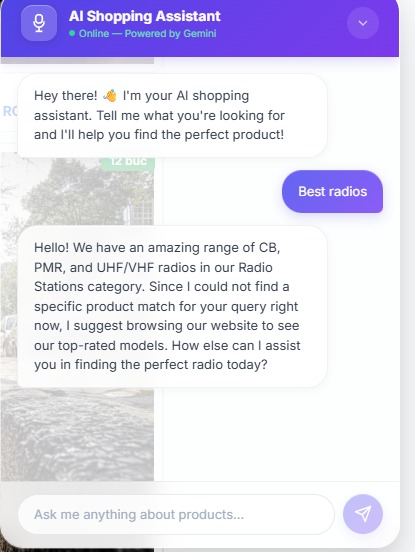

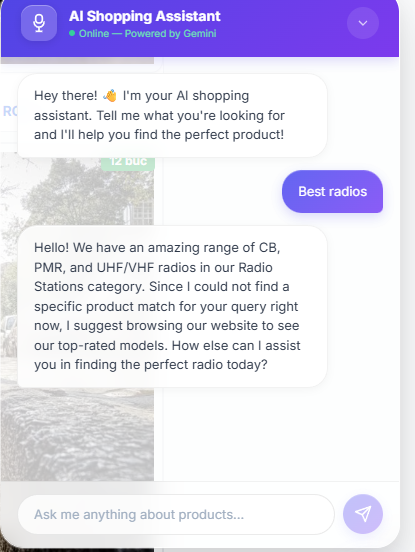

AI Chatbot Widget — Embedded Gemini-powered shopping assistant
Multi-region Support — Country-code based routing (/ro/, /us/)
Bilingual URLs — English + Romanian routes (/shipping + /livrare)
Image Optimization — AVIF/WebP with CDN (cdn.mypni.com)

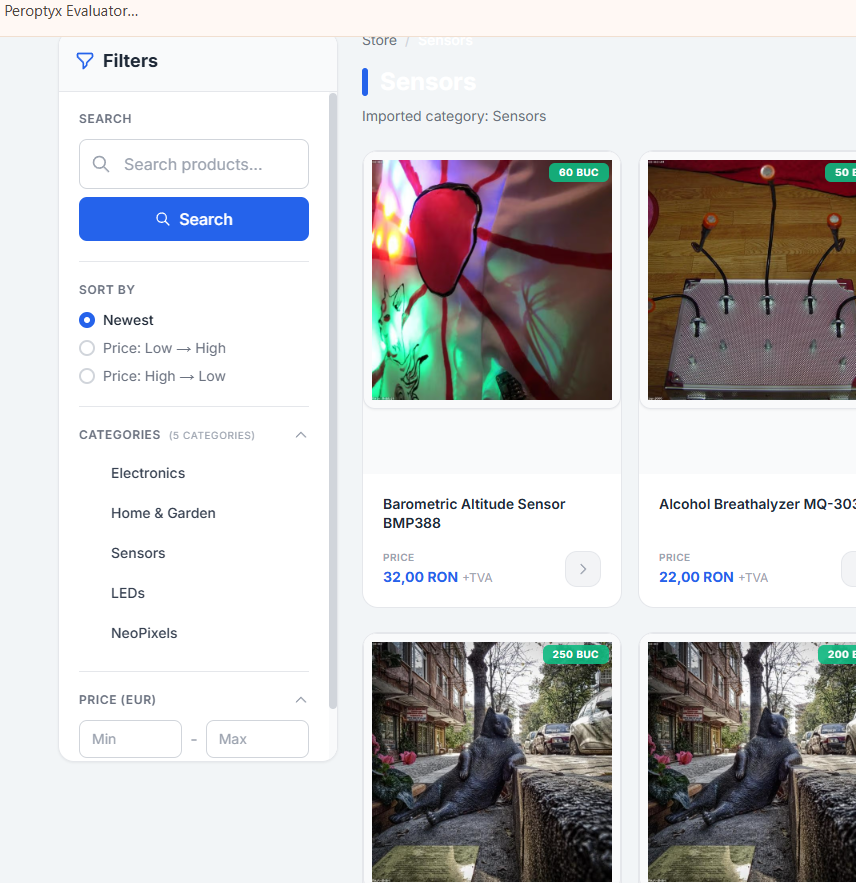

Product Search & Filtering — By category, brand, price, with sorting
Responsive Design — Mobile-first Tailwind CSS

Pages & Routes

Route	Description

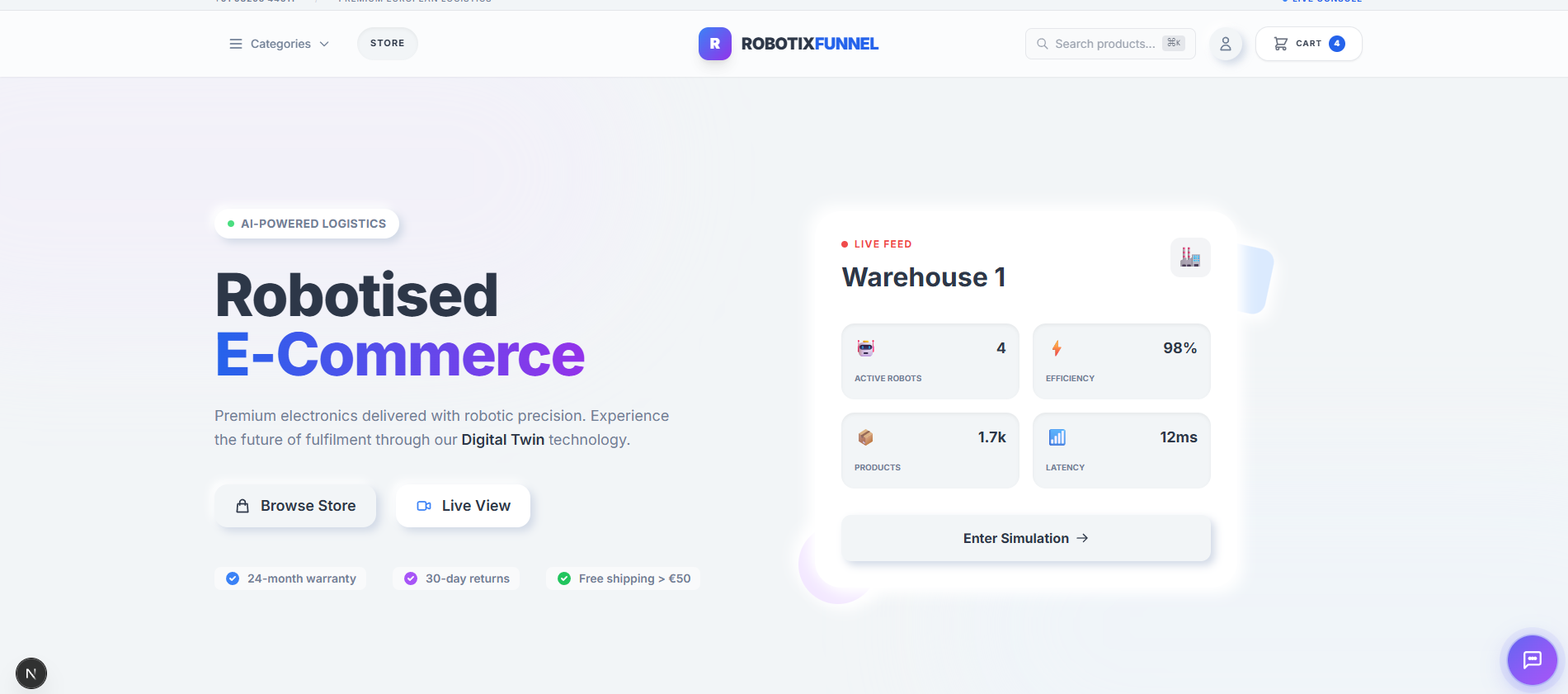

`/`	Homepage with featured products & categories

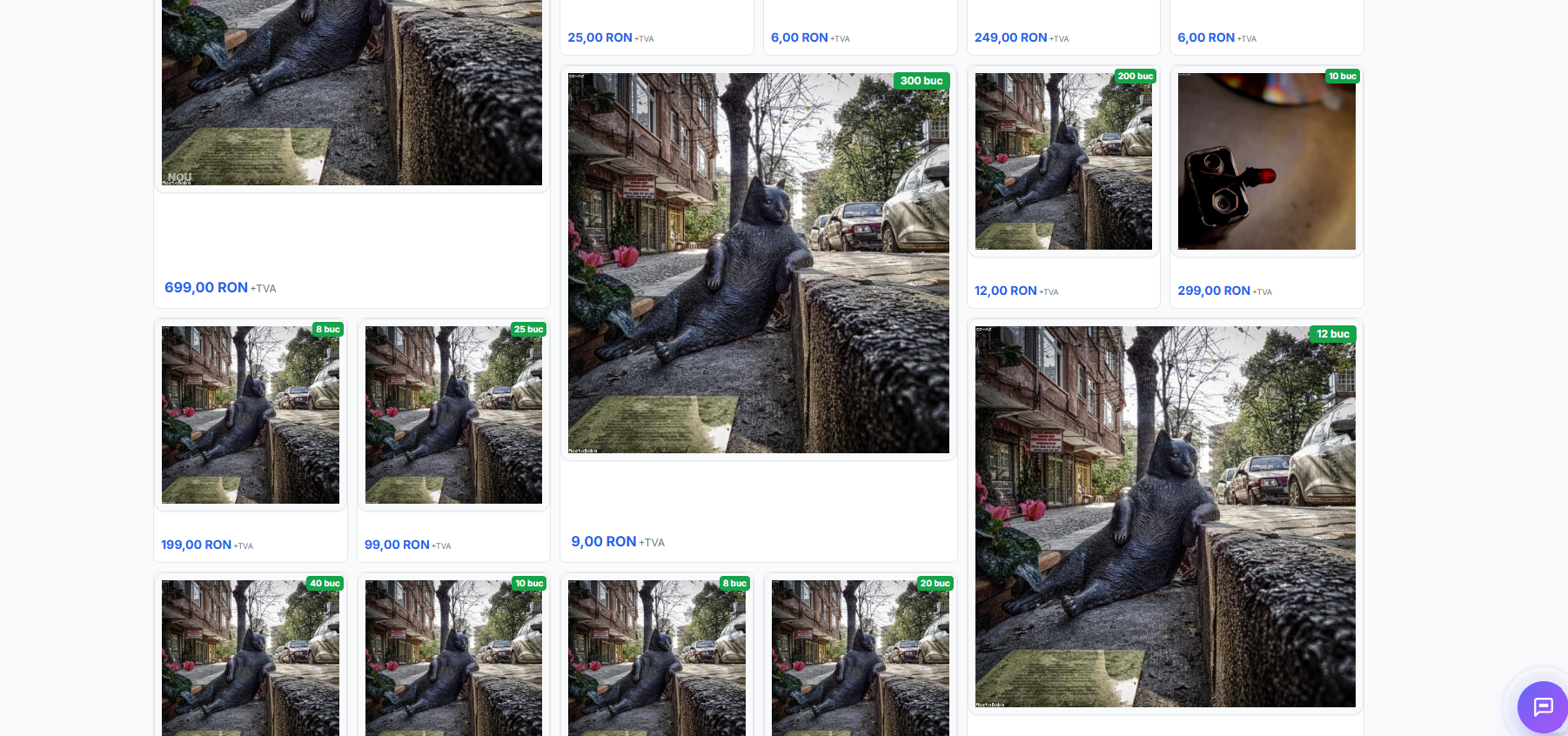

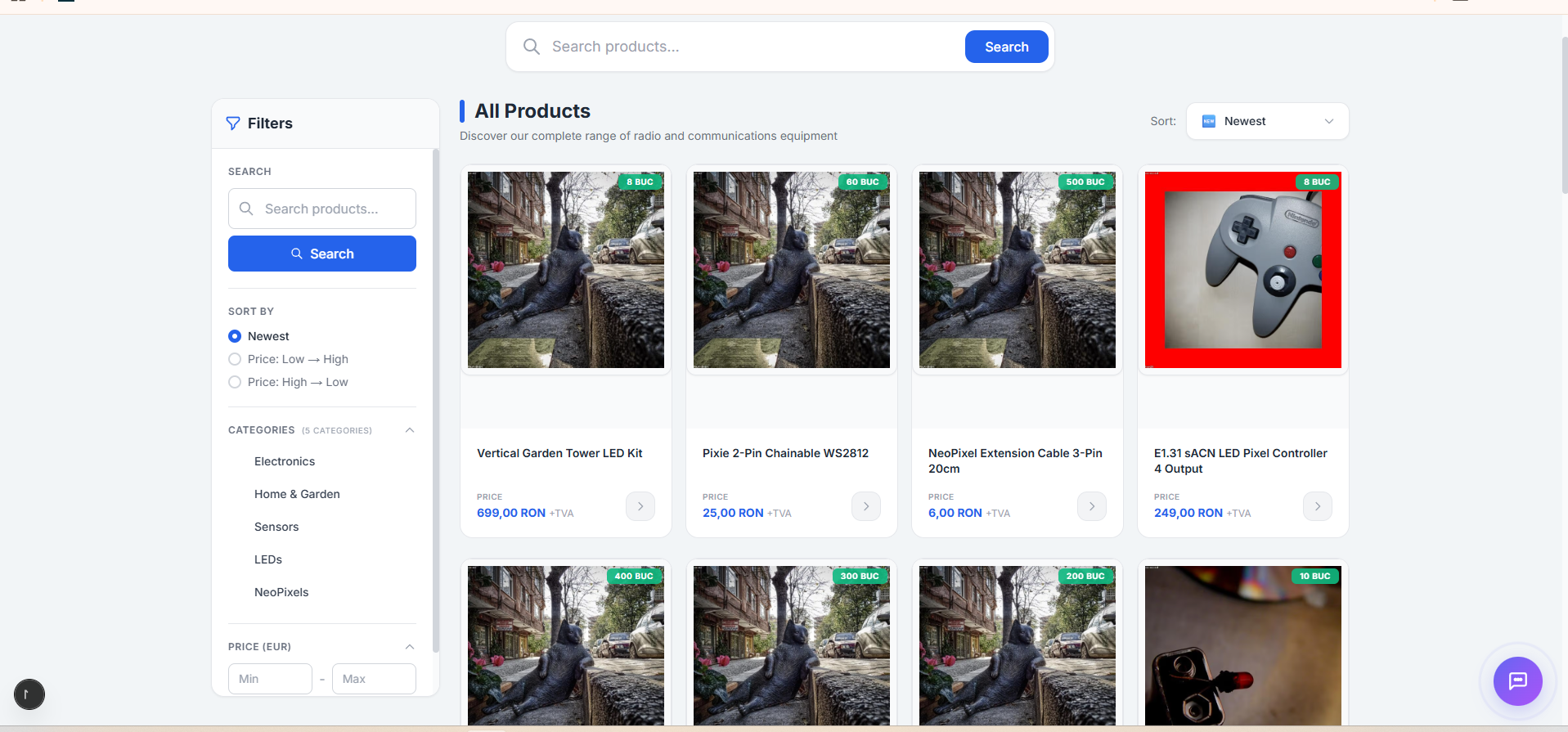

`/store`	Product catalog with search, filters & sorting
`/products/[handle]`	Product detail page
`/categories/[...handle]`	Category browsing
`/collections/[handle]`	Product collections
`/brands`	Brand listing

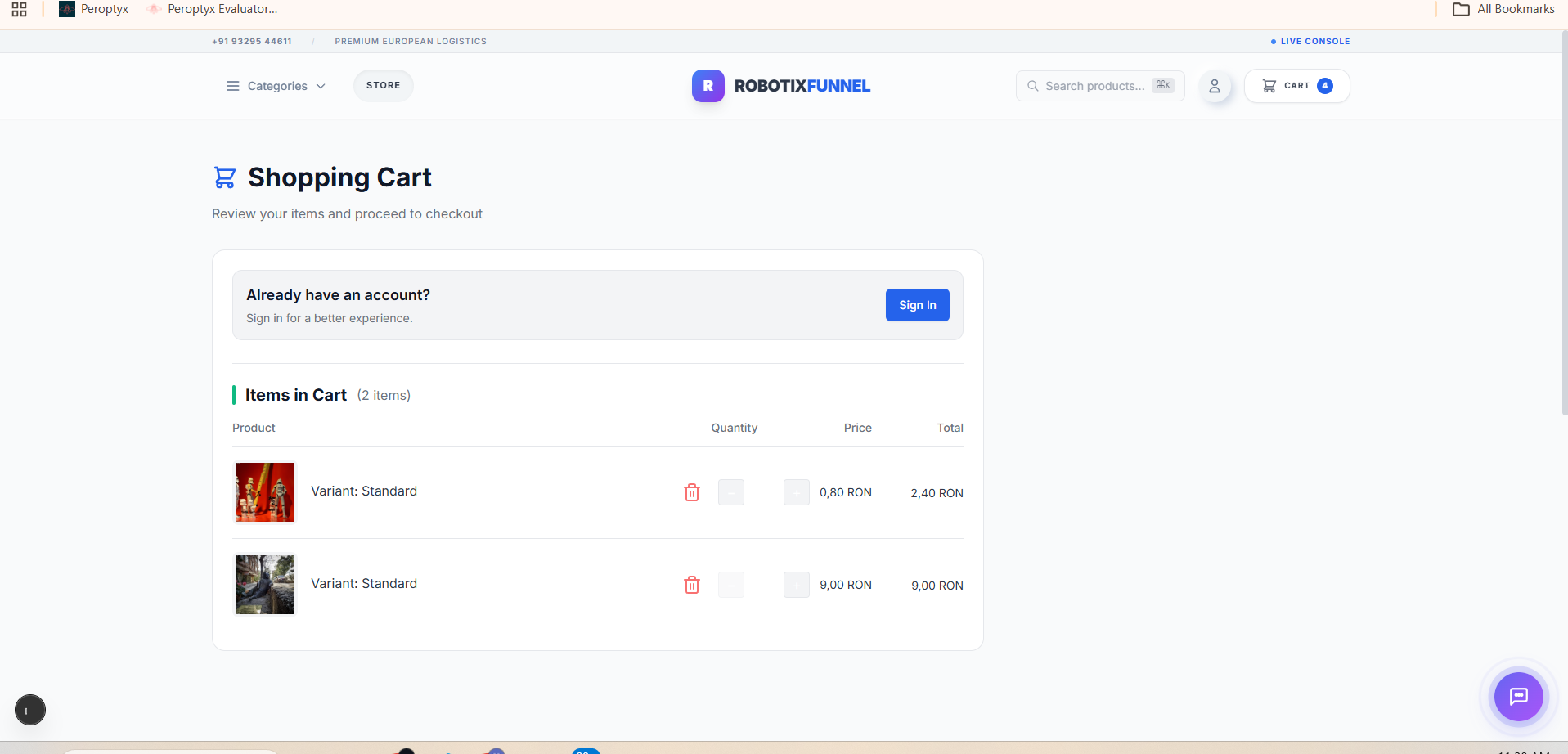

`/cart`	Shopping cart
`/checkout`	Multi-step checkout flow
`/payment`	Payment processing (Stripe)
`/account`	Customer dashboard, orders, profile
`/order/[id]`	Order tracking & details
`/blog`	Blog articles
`/about` `/despre-noi`	About us (EN/RO)
`/shipping` `/livrare`	Shipping policy (EN/RO)
`/returns` `/retur`	Return policy (EN/RO)
`/warranty` `/garantie`	Warranty info (EN/RO)
`/terms` `/termeni`	Terms & conditions (EN/RO)
`/privacy` `/confidentialitate`	Privacy policy (EN/RO)
`/contact`	Contact form

Frontend API Routes

Endpoint	Description
`/api/auth/google`	Google OAuth callback
`/api/cart`	Cart operations
`/api/products`	Product data (with specs)
`/api/blog`	Blog content
`/api/tracking`	Order tracking
`/api/warehouse`	Warehouse status proxy
`/api/revalidate`	ISR cache revalidation

Scripts

yarn dev          # Start dev server (port 8000, Turbopack)
yarn build        # Production build
yarn start        # Production server
yarn lint         # ESLint
yarn analyze      # Bundle analyzer

⚙️ Backend — Platform API

Tech: Fastify 5 · Drizzle ORM · PostgreSQL · Redis · Stripe · TypeScript
Port: 9000
Architecture: Clean Architecture (Domain → Application → Infrastructure → Presentation)

The backend follows Clean Architecture with dependency injection, providing RESTful APIs for the storefront, admin panel, and warehouse.

Key Features

Clean Architecture — Domain entities, use cases, repository interfaces
Stripe Payments — Full payment lifecycle with webhooks
B2B Supplier Integration — PNI/MyPNI product sync & scraping
Tiered Pricing — B2B volume-based pricing system
JWT Authentication — Stateless auth with refresh tokens
Redis Caching — High-performance API response cache
Swagger UI — Auto-generated API documentation
Rate Limiting — Per-route rate limiting
Structured Logging — Pino logger with pretty-print

API Endpoints

Store APIs (Public)

Method	Endpoint	Description
GET	`/store/products`	List products (with search, filters, pagination)
GET	`/store/products/:id`	Product detail
GET	`/store/product-categories`	Category tree
GET	`/store/collections`	Product collections
GET	`/store/regions`	Available regions & countries
POST	`/store/carts`	Create cart
POST	`/store/carts/:id/line-items`	Add to cart
GET	`/store/customers/me`	Current customer profile
POST	`/store/orders`	Place order
GET	`/store/orders`	Customer order history

Admin APIs (Authenticated)

Method	Endpoint	Description
CRUD	`/admin/products`	Product management
CRUD	`/admin/product-categories`	Category management
CRUD	`/admin/orders`	Order management
CRUD	`/admin/customers`	Customer management
CRUD	`/admin/invoices`	Invoice management
CRUD	`/admin/promotions`	Promo code management
POST	`/admin/pni/sync`	Sync B2B supplier products

Other

Method	Endpoint	Description
POST	`/auth/login`	Admin login
POST	`/auth/register`	Customer registration
POST	`/webhooks/stripe`	Stripe webhook handler
GET	`/health`	Health check

Database Schema (27 Tables)

Table	Purpose
`products`	Product catalog (title, description, price tiers, B2B data)
`product_variants`	SKU, inventory, pricing (RON bani)
`categories`	Hierarchical categories (parent_id)
`brands`	Product brands
`orders`	Full order lifecycle (9 statuses)
`order_items`	Order line items
`carts` / `cart_items`	Shopping carts
`customers`	Accounts (B2B: CUI, reg number)
`customer_addresses`	Shipping & billing addresses
`invoices` / `invoice_items`	Romanian-format invoices (RON)
`promotions`	Promo codes (%, fixed, date ranges, usage limits)
`payment_collections` / `payment_sessions`	Stripe payment records
`regions` / `region_countries`	Geographic regions with tax rates
`collections` / `collection_products`	Product collections
`blog_posts` / `blog_categories`	Blog CMS
`admin_users`	Admin accounts
`system_config`	Key-value system configuration
`platform_log`	Structured logging

Scripts

npm run dev           # Start dev server (tsx watch, port 9000)
npm run build         # TypeScript compile
npm run start         # Production server
npm run db:generate   # Generate Drizzle migrations
npm run db:migrate    # Run migrations
npm run db:push       # Push schema to DB
npm run db:seed       # Seed initial data
npm run db:studio     # Drizzle Studio (DB GUI)
npm run test          # Run tests (Vitest)

🔧 Admin Panel

Tech: Next.js 16 · React 19 · Tailwind CSS 4 · TypeScript
Port: 3001
Base Path: /app

Full-featured admin dashboard for managing the entire e-commerce operation.

Key Features

Product Management — CRUD, bulk import, B2B supplier sync
Order Management — View, process, fulfill orders with status tracking
Customer Management — Customer profiles, B2B company data
Invoicing (Facturare) — Romanian-format e-invoices (e-Factura)
Marketing Tools — Email campaigns, promotions, SEO management
Blog CMS — Content management with AI blog generation
Media Library — Upload & manage product images
Supplier Integration — PNI/MyPNI import & API connectivity
Google Ads — Google advertising integration
Security Settings — User roles, access control

Admin Pages

Route	Description
`/app/dashboard`	Overview stats & analytics
`/app/products`	Product catalog management
`/app/products/new`	Create new product
`/app/orders`	Order processing & fulfillment
`/app/customers`	Customer database
`/app/inventory`	Stock management
`/app/promotions`	Discount codes & promotions
`/app/facturare`	Romanian invoice management
`/app/blog`	Blog post editor
`/app/cms`	Static page management
`/app/seo`	SEO settings & sitemap
`/app/email`	Email template manager
`/app/marketing`	Marketing campaigns
`/app/media`	Media library
`/app/settings`	Store configuration
`/app/magazin/furnizori`	Supplier management
`/app/magazin/api-furnizori`	B2B API integration
`/app/google/ads`	Google Ads dashboard
`/app/utilizatori`	User management
`/app/securitate`	Security settings

Scripts

npm run dev       # Start admin panel (port 3001)
npm run build     # Production build
npm run start     # Production server
npm run lint      # ESLint

🏭 Warehouse Orchestrator — Digital Twin

Tech: Express.js · Socket.IO · Three.js · Google Gemini AI · TypeScript
Port: 4000

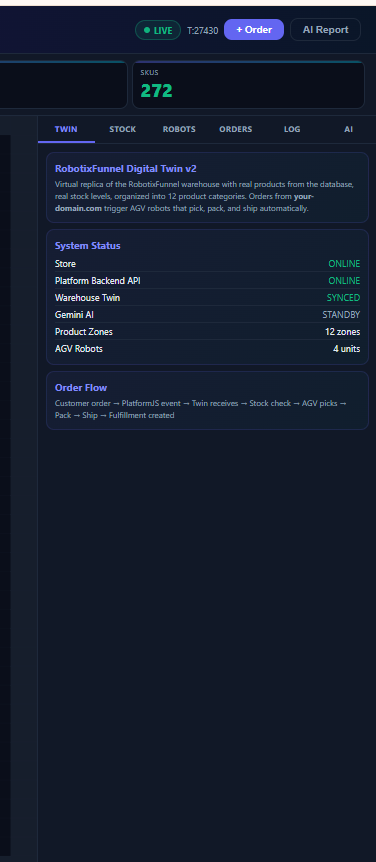

A real-time Digital Twin Warehouse with autonomous AGV robot simulation, AI-powered route optimization, and 3D WebGL visualization.

Key Features

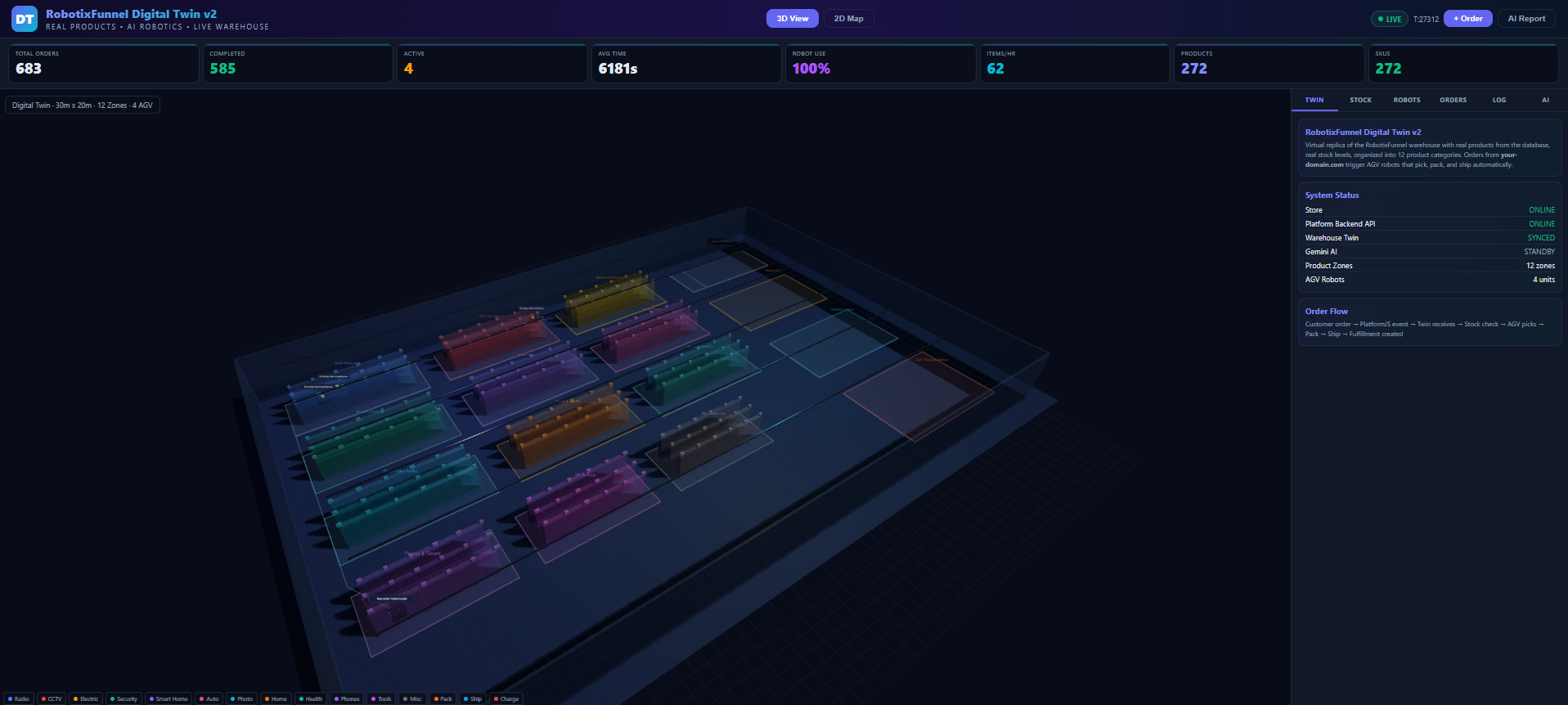

3D Warehouse Visualization — Three.js WebGL rendering of warehouse floor
4 Autonomous AGV Robots — Octobot, Marcobot, Cyberbot, Vegbot
A* Pathfinding — Optimal route calculation for robots on 60×40 grid
Real-time WebSocket Streaming — Live robot positions via Socket.IO
AI Route Optimization — Gemini AI optimizes picking routes
AI Copilot — Natural language Q&A about warehouse state
AI Anomaly Detection — Detects stuck robots, low battery, queue buildup
Voice Commands — Speech-to-text via Gemini for robot control
Real Stock Integration — Loads actual product inventory from PostgreSQL
Multi-stage Fulfillment — Pick → Transport → Pack → Ship → Complete
Demo Mode — Auto-generates orders for demonstration
Backend Callback — Notifies platform when orders are fulfilled

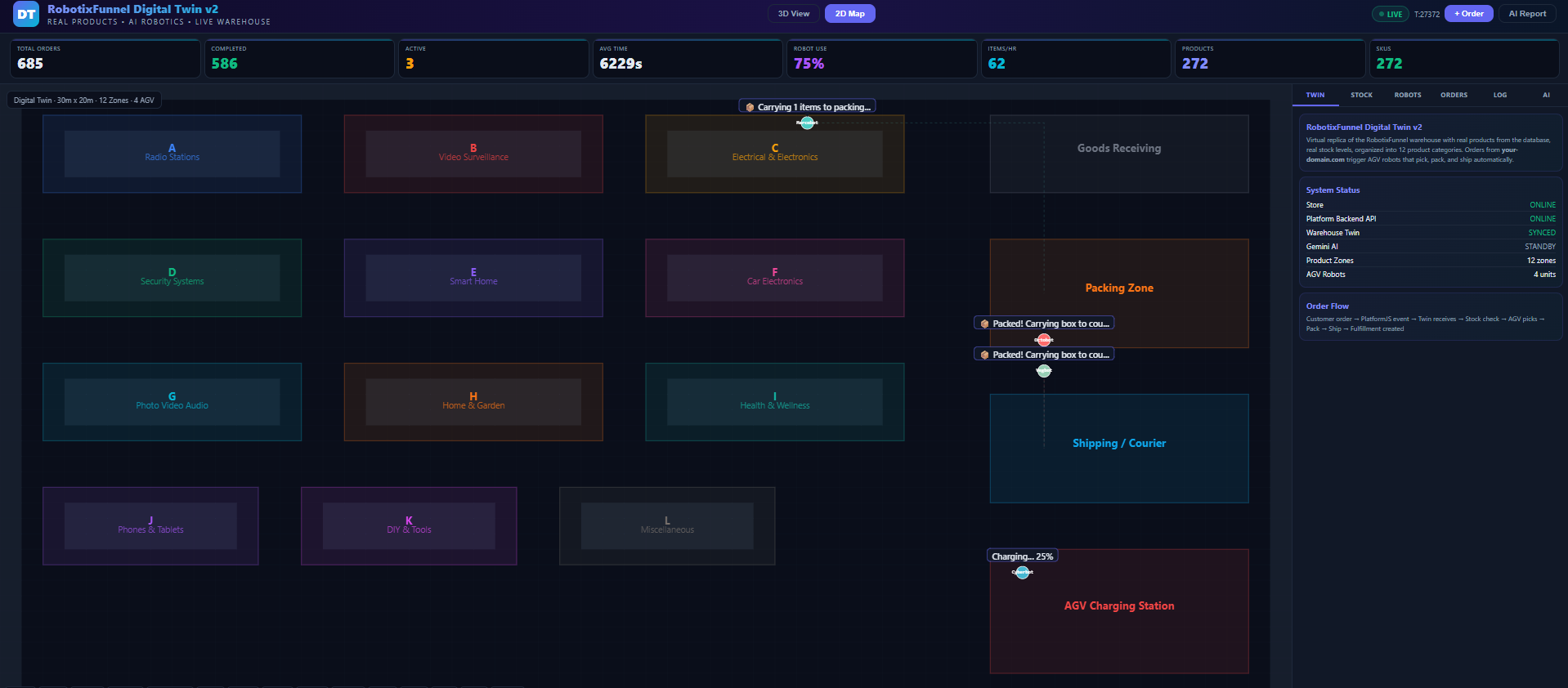

Warehouse Layout

┌──────────────────────────────────────────────────────────────┐
│ 📦 RECEIVING    │ Radio    │ Surveillance │ Electrical │ DIY │
│                 │ Stations │  & Video     │ Electronics│     │
├─────────────────┼──────────┼──────────────┼────────────┤     │
│                 │ Security │ Smart Home   │ Car        │     │
│   Aisles        │ Systems  │              │ Electronics│     │
│   (Robot Paths) ├──────────┼──────────────┼────────────┤     │
│                 │ Photo    │ Home &       │ Health &   │     │
│ 🤖 Octobot     │ Video    │ Garden       │ Wellness   │     │
│ 🤖 Marcobot    │ Audio    │              │            │     │
│ 🤖 Cyberbot    ├──────────┼──────────────┼────────────┤     │
│ 🤖 Vegbot      │ Phones & │ Miscellaneous│            │     │
│                 │ Tablets  │              │            │     │
├─────────────────┼──────────┴──────────────┴────────────┘     │
│ 📦 PACKING      │                          🔋 CHARGING      │
│                  │                                           │
│ 🚚 SHIPPING     │                                           │
└──────────────────────────────────────────────────────────────┘

Grid: 60 × 40 cells · 16 Zones (12 category + 4 functional)
Robot States: IDLE → MOVING → PICKING → CARRYING → PACKING → CHARGING

REST API

Method	Endpoint	Description
GET	`/api/health`	Health check (uptime, Gemini status, stock)
GET	`/api/warehouse/state`	Full warehouse state snapshot
GET	`/api/warehouse/metrics`	Performance metrics
POST	`/api/warehouse/order`	Submit order for robot fulfillment
GET	`/api/warehouse/order/:id`	Track order fulfillment status
GET	`/api/warehouse/stock`	Stock by zone
POST	`/api/warehouse/stock/reload`	Reload stock from database
POST	`/api/ai/copilot`	Ask AI about warehouse (natural language)
GET	`/api/ai/report`	AI-generated performance report
GET	`/api/ai/anomalies`	AI anomaly detection
POST	`/api/ai/transcribe`	Voice command transcription

WebSocket Events (Socket.IO)

Event	Direction	Description
`warehouseState`	Server→Client	Real-time state broadcast (every 500ms)
`newOrder`	Server→Client	New order received
`fulfillmentCreated`	Server→Client	Order fulfilled by robots
`anomalies`	Server→Client	AI anomaly alerts
`copilotQuestion`	Client→Server	Ask AI copilot
`copilotAnswer`	Server→Client	AI copilot response
`addDemoOrder`	Client→Server	Trigger demo order
`moveRobot`	Client→Server	Joystick robot control
`sendRobotTo`	Client→Server	Send robot to coordinates
`sendRobotToZone`	Client→Server	Send robot to named zone
`aiRobotCommand`	Client→Server	Natural language robot command
`optimizeRoute`	Client→Server	AI route optimization

Scripts

npm run dev       # Start with hot reload (tsx watch, port 4000)
npm run build     # Compile TypeScript
npm run start     # Production server

🤖 AI Chat Service — Shopping Assistant

Tech: FastAPI · Google Gemini (gemini-3-flash-preview) · Python
Port: 5050

An AI-powered chatbot that helps customers find products, answers store questions, and provides personalized recommendations.

Key Features

Gemini 3 Flash Preview — Latest Google AI model for fast responses
Product Search — Searches backend catalog and recommends products
Knowledge Base — Store policies, categories, shipping, returns
Product Cards — Returns structured product data for UI rendering
Conversational AI — Natural greetings, store Q&A, product queries
Template Fallback — Graceful degradation when AI is unavailable
CORS Enabled — Cross-origin support for frontend widget

How It Works

User Message → is_conversational?
                ├── YES → Gemini AI response (store knowledge)
                └── NO  → Extract keywords
                          → Search backend (/store/products?q=...)
                          → Gemini AI crafts response with product context
                          → Return response + ProductCard[] for UI

API Endpoints

Method	Endpoint	Description
GET	`/health`	Health check (AI enabled, model name)
POST	`/chat`	Chat endpoint

POST /chat Request:

{
  "message": "show me LED strips",
  "history": []
}

Response:

{
  "response": "Check out these awesome LED strips! ...",
  "products": [
    {
      "id": "prod_123",
      "title": "SK9822 LED Strip 1m 60px",
      "handle": "sk9822-led-strip",
      "thumbnail": "https://cdn.mypni.com/...",
      "price": "45.99",
      "currency": "RON"
    }
  ]
}

Knowledge Base Categories

#	Category	Handle
1	Radio Stations	`statii-radio`
2	Video Surveillance	`sisteme-supraveghere-video`
3	Electrical & Electronics	`electrice-si-electronice`
4	Security Systems	`sisteme-securitate`
5	Smart Home	`smart-home`
6	Car Electronics	`electronice-auto`
7	Photo Video Audio	`foto-video-audio`
8	Home & Garden	`casa-si-gradina`
9	Health & Wellness	`sanatate-si-wellness`
10	Phones & Tablets	`telefoane-si-tablete`
11	DIY & Tools	`bricolaj-si-scule`
12	Miscellaneous	`diverse`

Setup

pip install -r requirements.txt
python main.py    # Start on port 5050

🚀 Getting Started

Prerequisites

Node.js ≥ 20
Python ≥ 3.10
PostgreSQL 16
Redis 7
Yarn 4.x (for frontend)

1. Clone the Repository

git clone https://github.com/sunnyshin8/RobotixFunnel.git
cd RobotixFunnel

2. Set Up Environment Variables

Create .env files in each service directory:

backend-v2/.env

PORT=9000
HOST=0.0.0.0
NODE_ENV=development
DATABASE_URL=postgresql://robotix:password@localhost:5432/robotixfunnel
REDIS_URL=redis://localhost:6379
JWT_SECRET=your-jwt-secret
COOKIE_SECRET=your-cookie-secret
STRIPE_SECRET_KEY=sk_test_...
STRIPE_WEBHOOK_SECRET=whsec_...
[email protected]
ADMIN_PASSWORD=your-admin-password
WAREHOUSE_ORCHESTRATOR_URL=http://localhost:4000

frontend/.env

NEXT_PUBLIC_BACKEND_URL=http://localhost:9000
NEXT_PUBLIC_BASE_URL=http://localhost:8000
NEXT_PUBLIC_DEFAULT_REGION=ro
NEXT_PUBLIC_STRIPE_KEY=pk_test_...
NEXT_PUBLIC_AI_CHAT_URL=http://localhost:5050
JWT_SECRET=your-jwt-secret
DATABASE_PASSWORD=your-db-password

warehouse-orchestrator/.env

PORT=4000
GEMINI_API_KEY=your-gemini-api-key
DATABASE_URL=postgresql://robotix:password@localhost:5432/robotixfunnel
BACKEND_API_URL=http://localhost:9000
DEMO_MODE=true
TICK_INTERVAL=500
ROBOT_COUNT=4

ai-chat-service/.env

GEMINI_API_KEY=your-gemini-api-key
BACKEND_URL=http://localhost:9000

3. Install Dependencies & Start Services

# Backend
cd backend-v2
npm install
npm run db:push       # Create database tables
npm run db:seed       # Seed initial data
npm run dev           # Start on port 9000

# Frontend
cd ../frontend
yarn install
yarn dev              # Start on port 8000

# Warehouse Orchestrator
cd ../warehouse-orchestrator
npm install
npm run dev           # Start on port 4000

# AI Chat Service
cd ../ai-chat-service
pip install -r requirements.txt
python main.py        # Start on port 5050

# Admin Panel
cd ../Admin01
npm install
npm run dev           # Start on port 3001

4. Access the Services

Service	URL
🛒 Storefront	http://localhost:8000
⚙️ Backend API	http://localhost:9000
📊 Swagger Docs	http://localhost:9000/docs
🔧 Admin Panel	http://localhost:3001/app
🏭 Warehouse 3D	http://localhost:4000
🤖 Chat Health	http://localhost:5050/health

🌐 CDN Layer

A CDN (Content Delivery Network) layer is integrated into the platform to accelerate static asset delivery:

Domain: cdn.mypni.com — whitelisted in the storefront's next.config.js for optimized image delivery.
Purpose: Serves product images, brand logos, and other static media from edge locations closer to end users.
Next.js Image Optimization: Works in tandem with Next.js <Image> component to serve avif/webp formats, apply device-aware resizing, and cache responses for 24 hours (minimumCacheTTL: 86400).

🛠️ Tech Stack Summary

Layer	Technology	Purpose
Frontend	Next.js 15, React 19, Tailwind CSS	Customer storefront
Admin	Next.js 16, React 19, Tailwind CSS 4	Admin dashboard
Backend	Fastify 5, TypeScript	REST API server
Database	PostgreSQL 16, Drizzle ORM	Data persistence (27 tables)
Cache	Redis 7, ioredis	API response caching
Payments	Stripe	Credit card & payment processing
Auth	JWT, Google OAuth, bcrypt	Authentication & authorization
Warehouse	Express, Socket.IO, Three.js	Digital twin simulation
AI Chat	FastAPI, Google Gemini 3	Shopping assistant chatbot
AI Warehouse	Google Gemini 2.0/2.5	Route optimization, copilot, anomaly detection
CDN	Cloudflare (cdn.mypni.com)	Image optimization & delivery
Styling	Tailwind CSS, Radix UI, Headless UI	Component library
Icons	Lucide React	Icon system
Logging	Pino	Structured logging

🌟 Unique Features

🏭 Digital Twin Warehouse

Real-time 3D warehouse simulation with 4 autonomous AGV robots (Octobot, Marcobot, Cyberbot, Vegbot) navigating a 60×40 grid using A* pathfinding. Robots autonomously pick, transport, pack, and ship orders with live WebSocket streaming to a Three.js dashboard.

🤖 Triple AI Integration

Three separate Google Gemini AI integrations:

Warehouse Copilot — Natural language Q&A about warehouse operations
Shopping Assistant — Customer-facing chatbot with product recommendations
Route Optimizer — AI-optimized picking routes for warehouse robots

🗣️ Voice-Controlled Warehouse

Speak commands to control warehouse robots — audio is transcribed by Gemini AI and parsed into robot instructions.

🇷🇴 Romanian E-Commerce

Full Romanian localization: bilingual URLs (/shipping + /livrare), RON currency, 19% VAT, e-Factura electronic invoicing, Romanian-format invoices.
