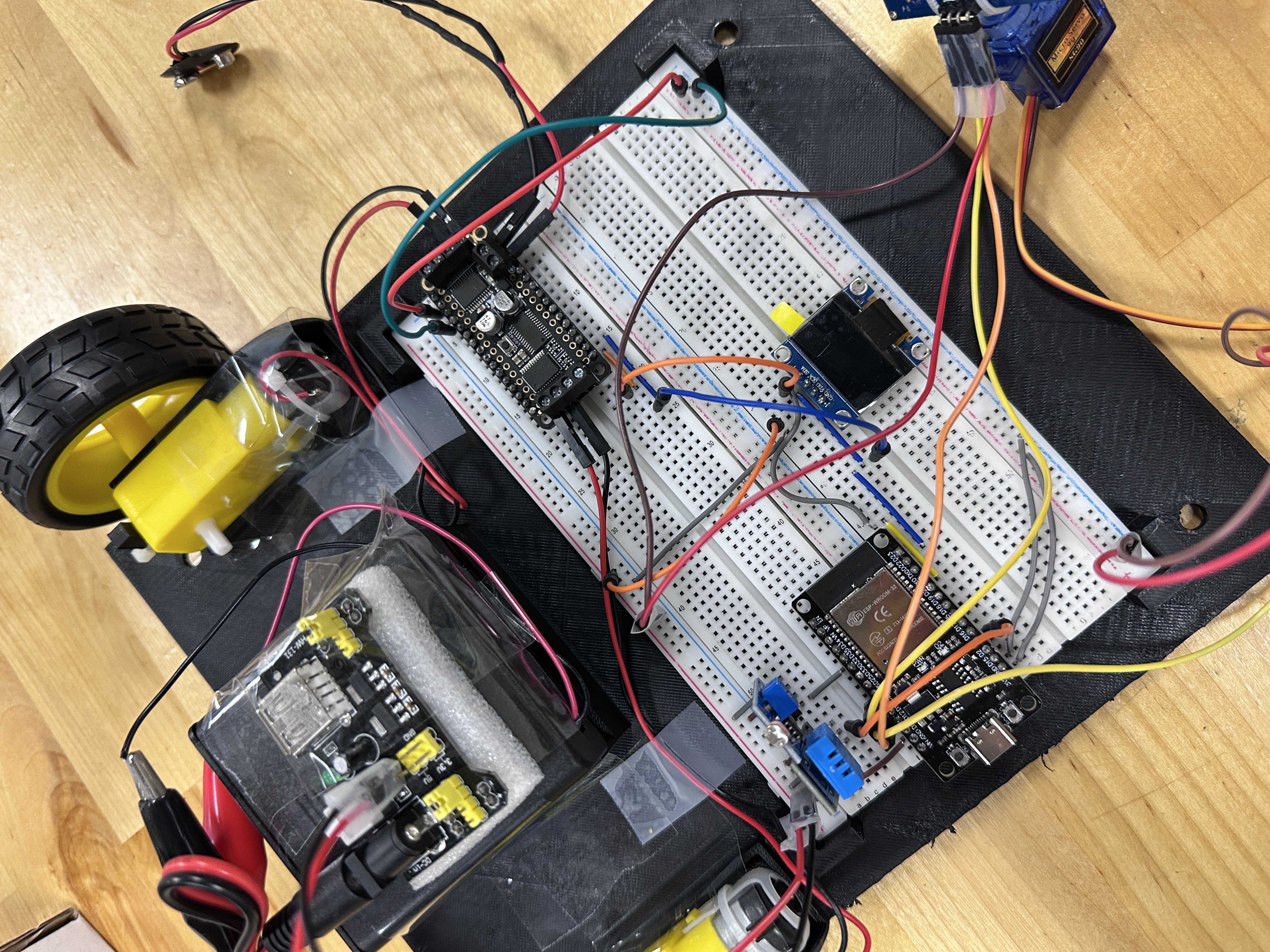

The "Revor" rover is an ESP32-controlled rover. The software is programmed using a combination of Arduino, C++, HTML & CSS, and some extra functionality from the PlatformIO IDE, which is a VS Code extension. Our project is built as a basic space rover prototype for exploring the surface of extraterrestrial planets, like Mars. Revor is a sturdy vehicle with a black PLA 3D-printed chassis for holding all of the main components and sensors. The motion is powered with two 12V-DC motors that have large rubber tyres for better traction and maneuverability on rough terrain. The wiring is done on two breadboards that sit on the chassis. The power comes from one 12V 8xAA battery pack and one 6V 4xAA battery pack. The 12V battery pack is connected to the Adafruit Featherwing DC motor driver, and the 6V battery pack goes into the Breadboard power supply module for steady current and voltage to ensure safe voltages for the sensitive components. The sensor modules are made up of a temperature and humidity DHT11, an HCSR04 ultrasonic distance sensor, and a photoresistor module. The HCSR04 is fitted onto a 180-degree angle-controlled servo to create a radar-style detection of the surrounding environment. There is also a 128x64 OLED display module on the breadboard for showing sensor readings in real-time and reflecting the corresponding motor modes while controlling them. The website displays the same information in a cleaner format. The ESP32 connects to the WiFi as a web server host for the website, and the motors are controlled using the arrow buttons on the website as well.
