RepLens: AI Form Coach for Fire TV

Inspiration

Staying active at home should be simple, accessible, and engaging. However, many people struggle to maintain proper exercise form when working out alone. Traditional workout videos demonstrate movements but cannot observe the user, count repetitions accurately, or provide personalized feedback.

We wanted to bridge the gap between watching a workout and receiving actual coaching.

This inspired us to create RepLens: AI Form Coach for Fire TV, an intelligent home fitness experience that transforms an ordinary television and smartphone into an interactive workout coaching system.

Our idea was to make fitness coaching more accessible without requiring expensive fitness equipment, dedicated motion sensors, smart mirrors, or wearable devices.

By combining smartphone computer vision, real-time movement analysis, conversational AI, and the large-screen Fire TV experience, RepLens brings personalized workout guidance directly into the living room.

What it does

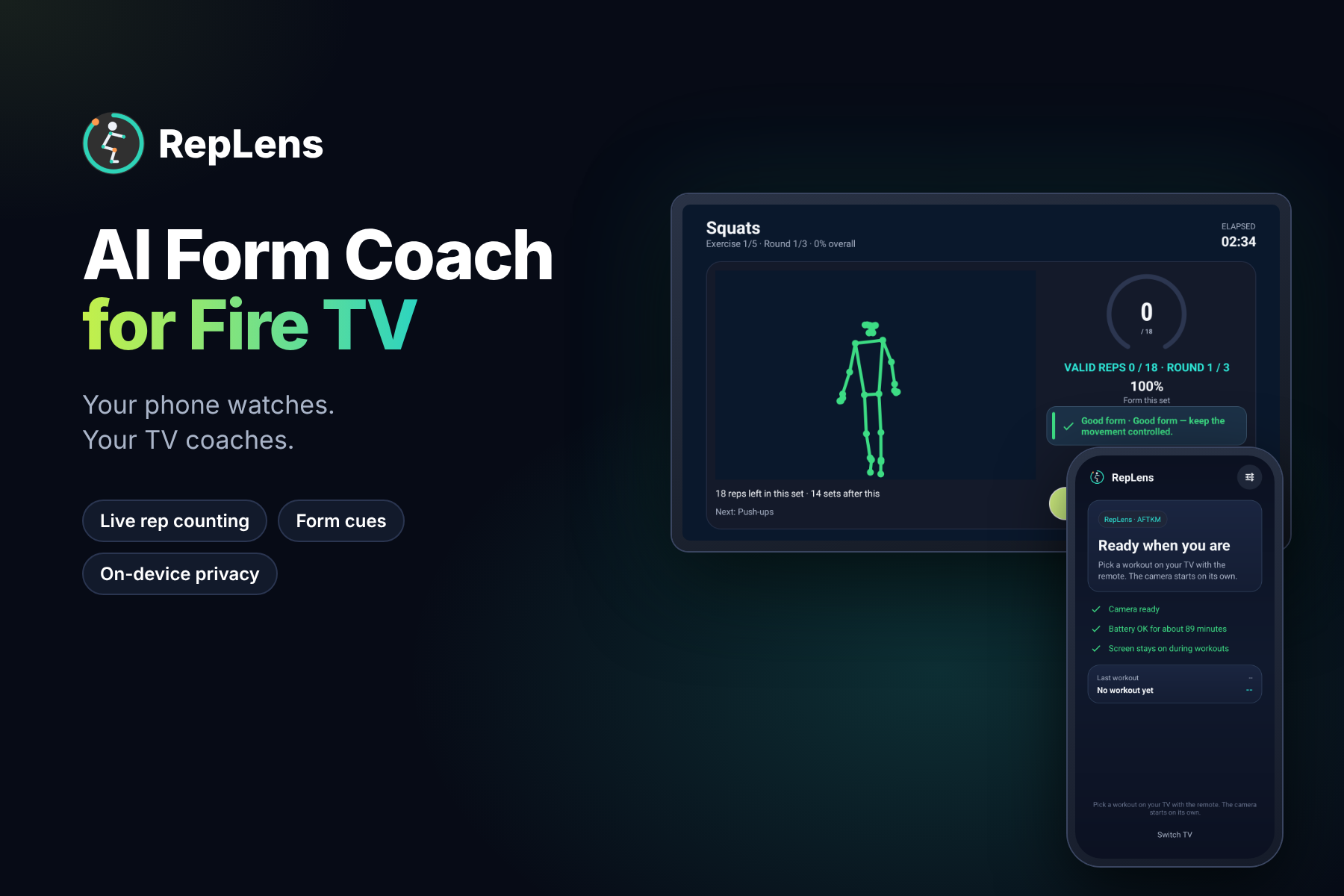

RepLens is an AI-powered home workout coach that uses a smartphone camera to analyze body movements and Amazon Fire TV to deliver real-time exercise guidance.

The smartphone works as the motion-tracking device, while Fire TV serves as the interactive coaching screen.

Users connect their smartphone to Fire TV through their local Wi-Fi network using a QR code or pairing code. Once connected, they position their phone where the camera can see their body and follow the workout instructions displayed on their television.

Key Functionalities

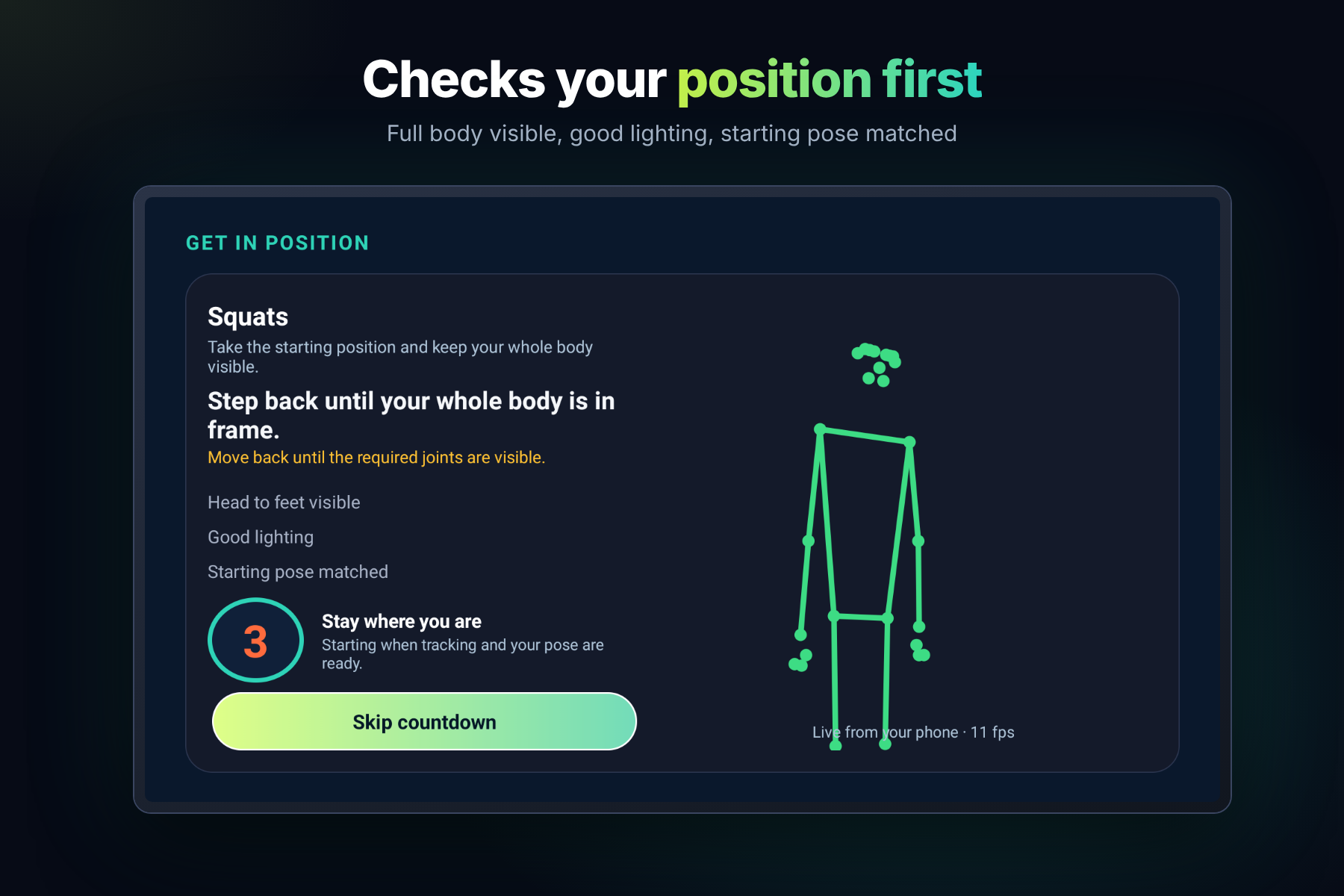

1. Real-Time Body Pose Detection

RepLens uses computer vision to identify body landmarks such as shoulders, elbows, hips, knees, and ankles. These landmarks help the system understand body posture and movement during exercises.

2. Intelligent Repetition Counting

The application automatically counts exercise repetitions by analyzing joint angles, movement phases, and range of motion. Exercise-specific rules help distinguish completed repetitions from incomplete movements.

3. AI-Powered Form Analysis

RepLens evaluates movement quality using factors such as joint positioning, movement symmetry, range of motion, and exercise-specific posture requirements.

When the system identifies a potential form issue, it provides corrective coaching cues to help users improve their technique.

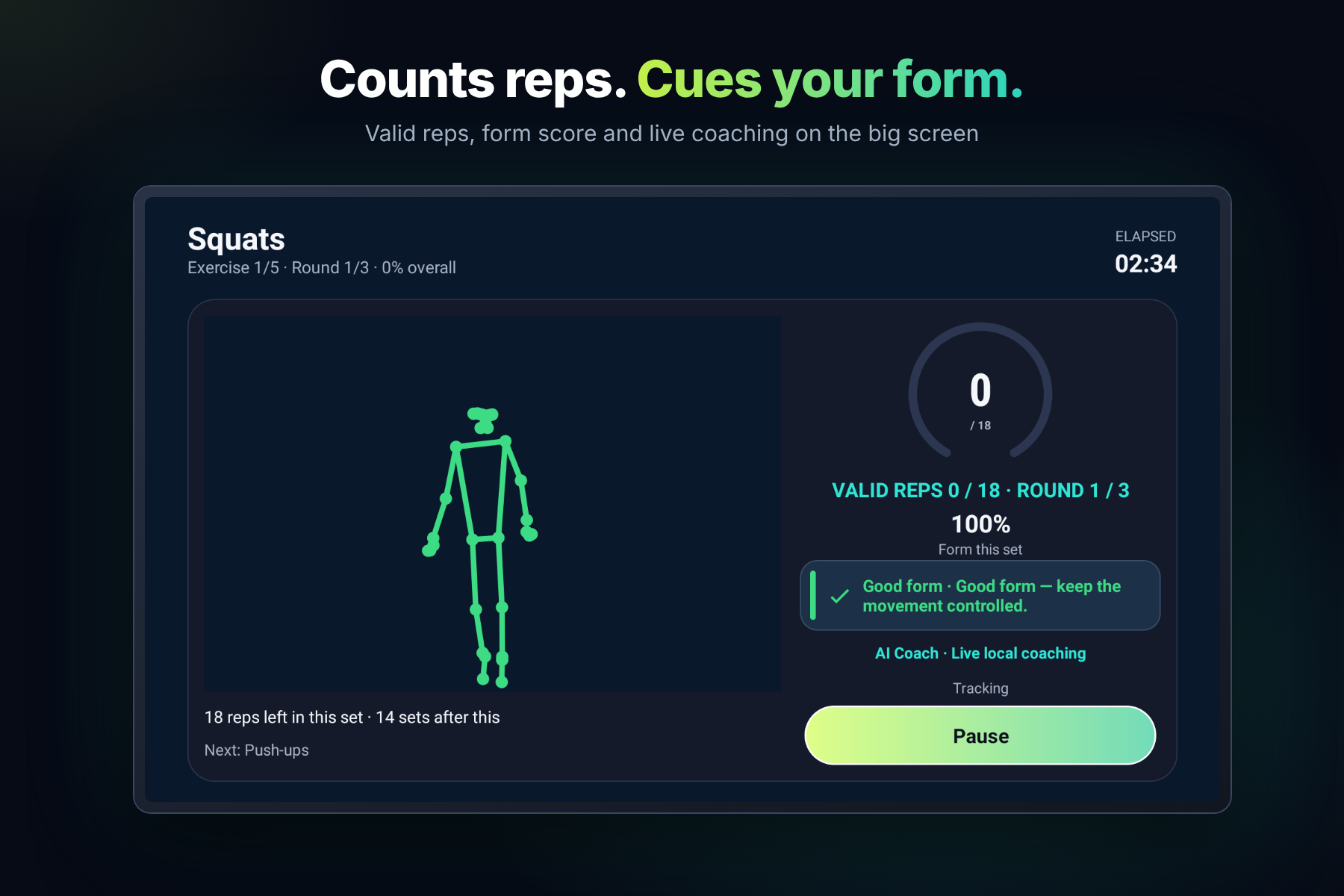

4. Live Fire TV Coaching

The television displays workout instructions, repetition counts, progress, form feedback, and coaching messages.

Visual feedback and voice guidance allow users to focus on their movements without continuously checking their smartphones.

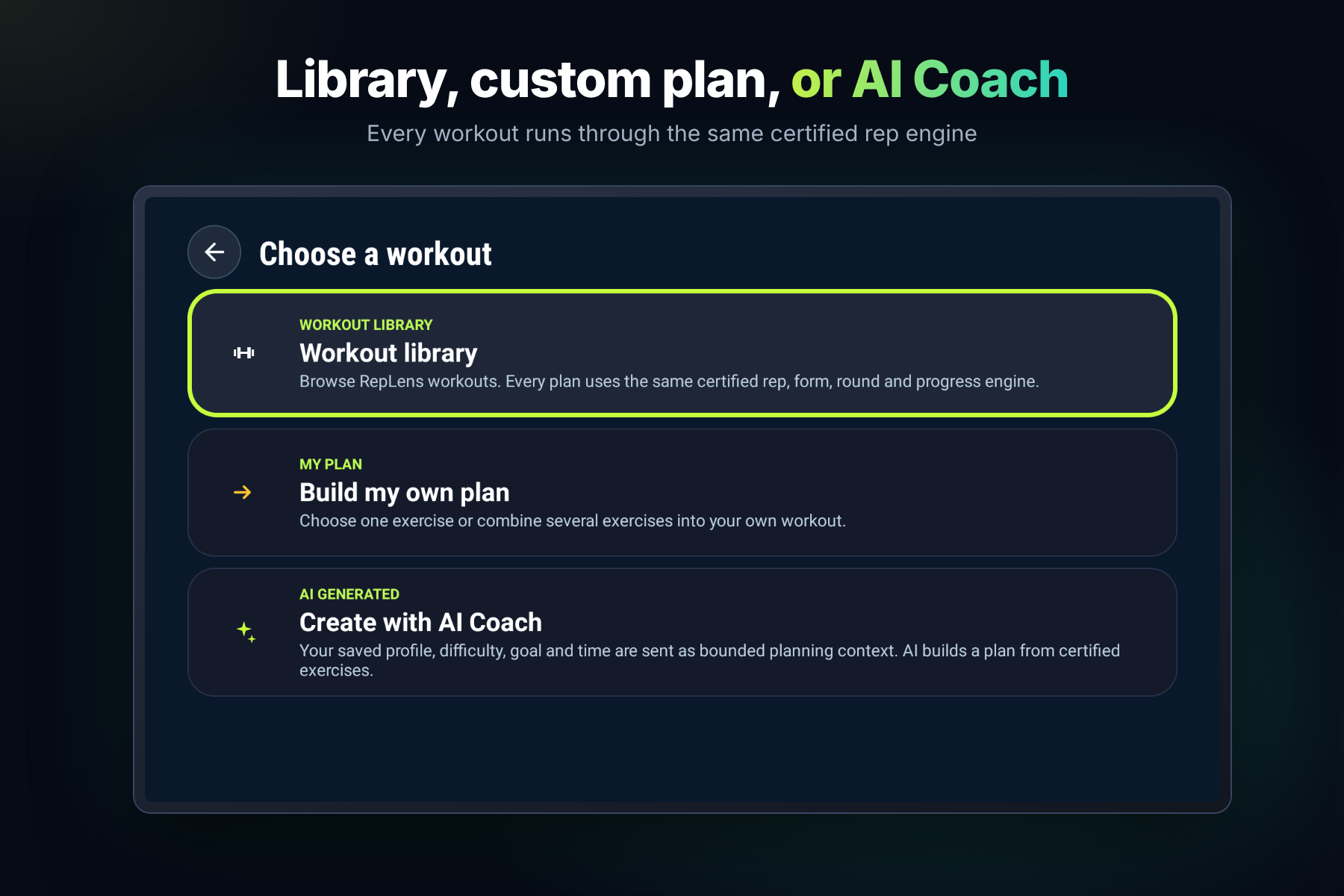

5. Personalized AI Workout Planning

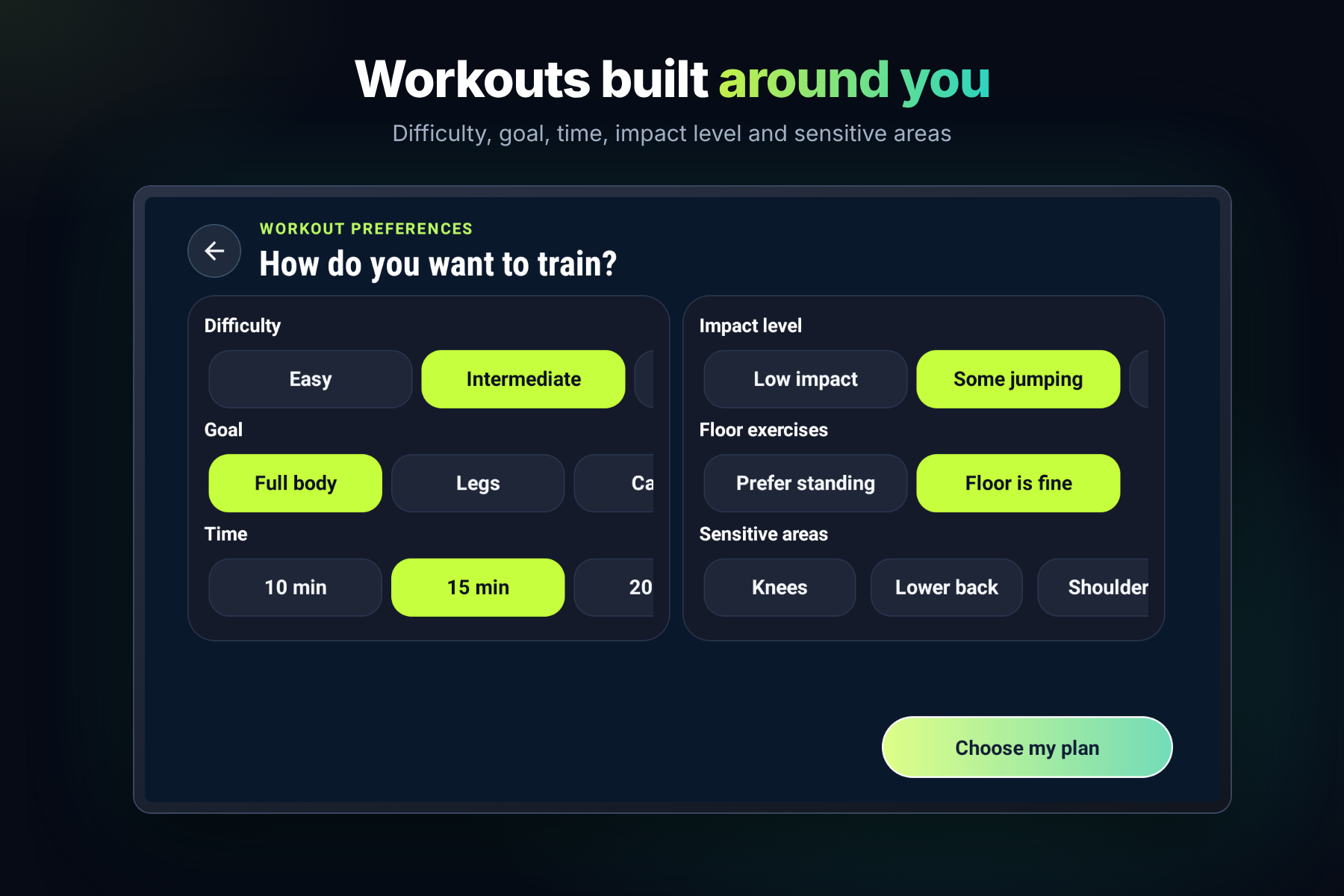

Users can configure workout preferences, including fitness goals, difficulty, and exercise requirements.

The AI-assisted planning system helps create structured routines using supported exercises, repetitions, sets, and rest periods.

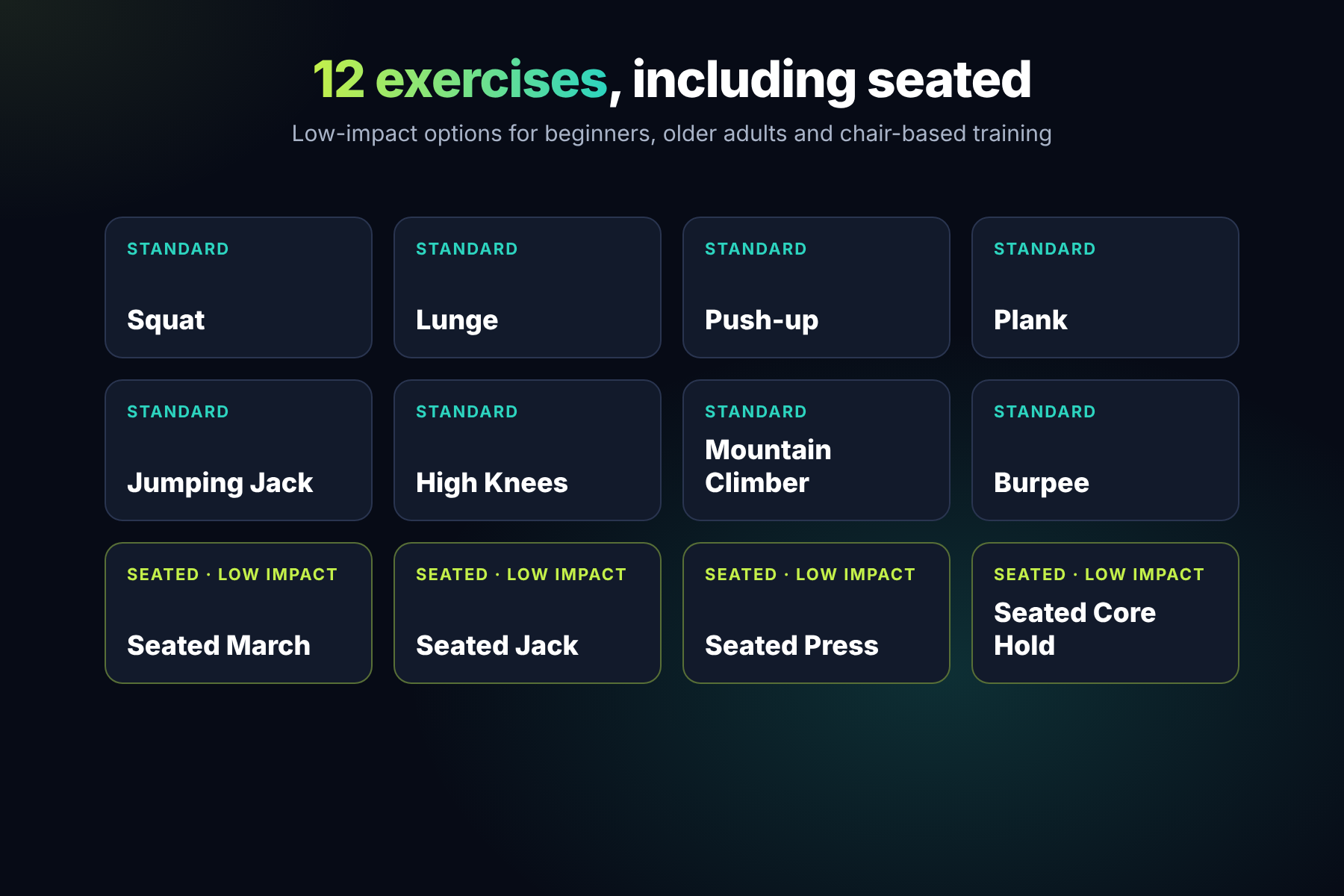

6. Multiple Supported Exercises

RepLens includes movement-analysis functionality for common bodyweight exercises, including:

  • Squats
  • Lunges
  • Push-ups
  • Jumping Jacks
  • High Knees
  • Burpees
  • Mountain Climbers
  • Planks

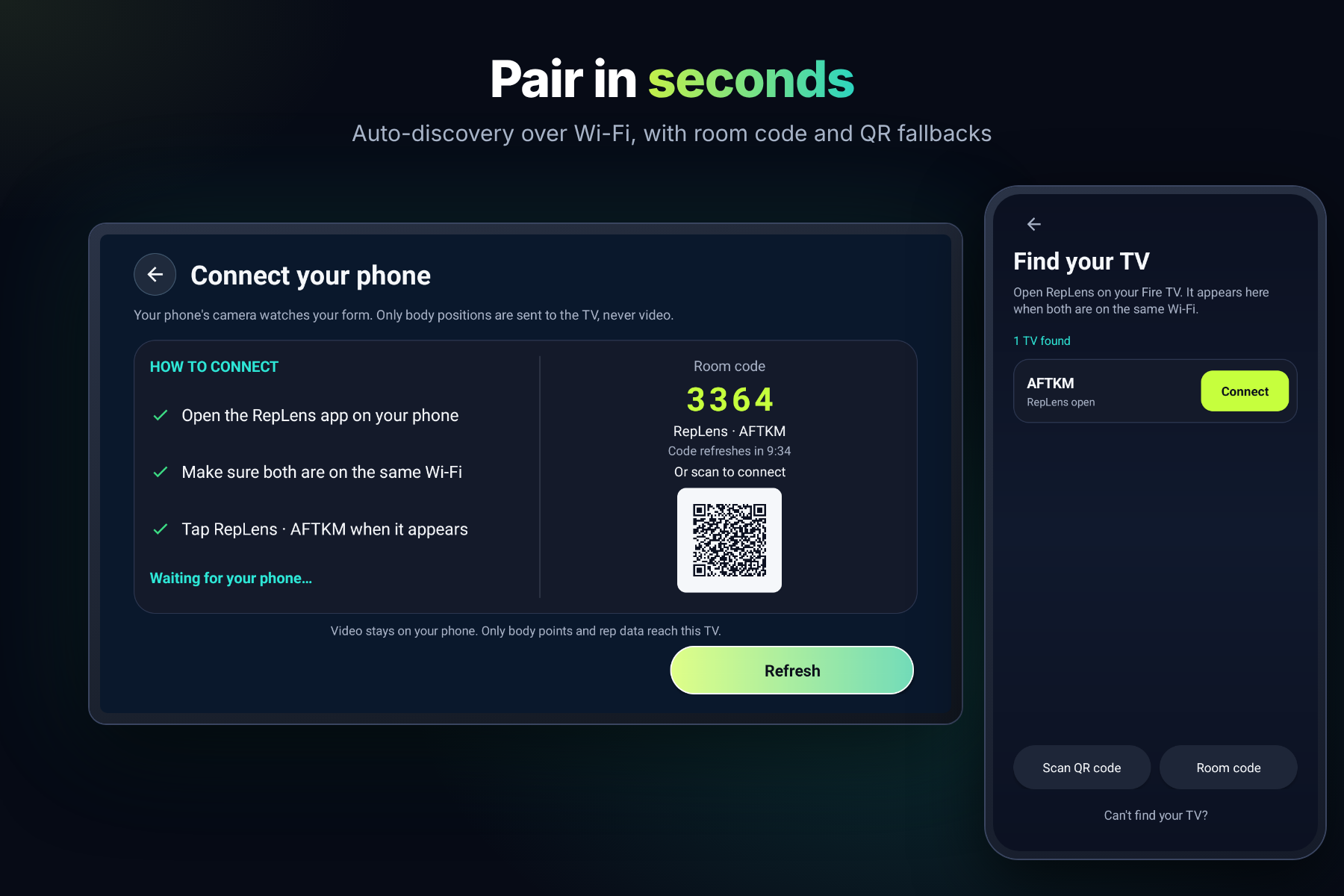

7. Smartphone and Fire TV Connectivity

The smartphone and Fire TV communicate over the local network, allowing movement information and workout controls to remain synchronized.

Connection recovery mechanisms help handle temporary communication interruptions.

8. Workout Summaries and Progress Tracking

After completing a workout, users can review their performance, including completed repetitions, workout duration, movement quality, and coaching feedback.

Workout history helps users track their activity and progress over time.

9. Voice Guidance and Motivation

RepLens combines visual coaching with spoken instructions, repetition announcements, exercise transitions, and motivational feedback.

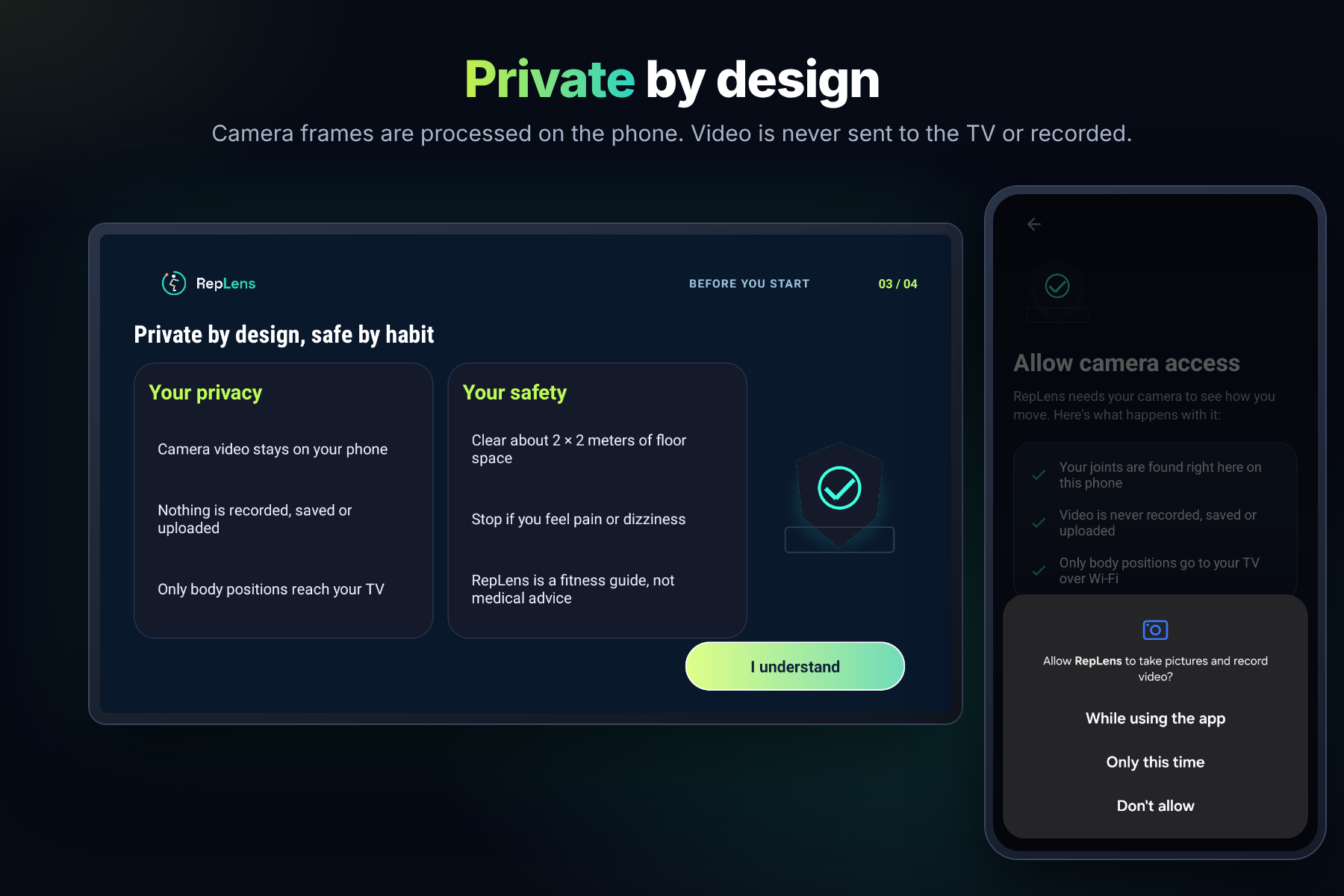

10. Privacy-Focused Pose Processing

Camera frames are processed locally on the smartphone. Instead of transmitting raw workout video, the system communicates compact body landmark and exercise telemetry to the television.

11. Fire TV Remote Navigation

The television interface is designed for remote-control interaction, supporting directional navigation, clear focus indicators, and a comfortable large-screen workout experience.

Together, these features turn an ordinary television into an interactive home fitness coaching platform.

How we built it

RepLens was developed using a combination of Android development, on-device computer vision, real-time communication, movement analysis, and AI-powered coaching.

Android Development

We built the application using Java, Android SDK, and Android Studio, with interfaces adapted for smartphone interaction and Amazon Fire TV remote navigation.

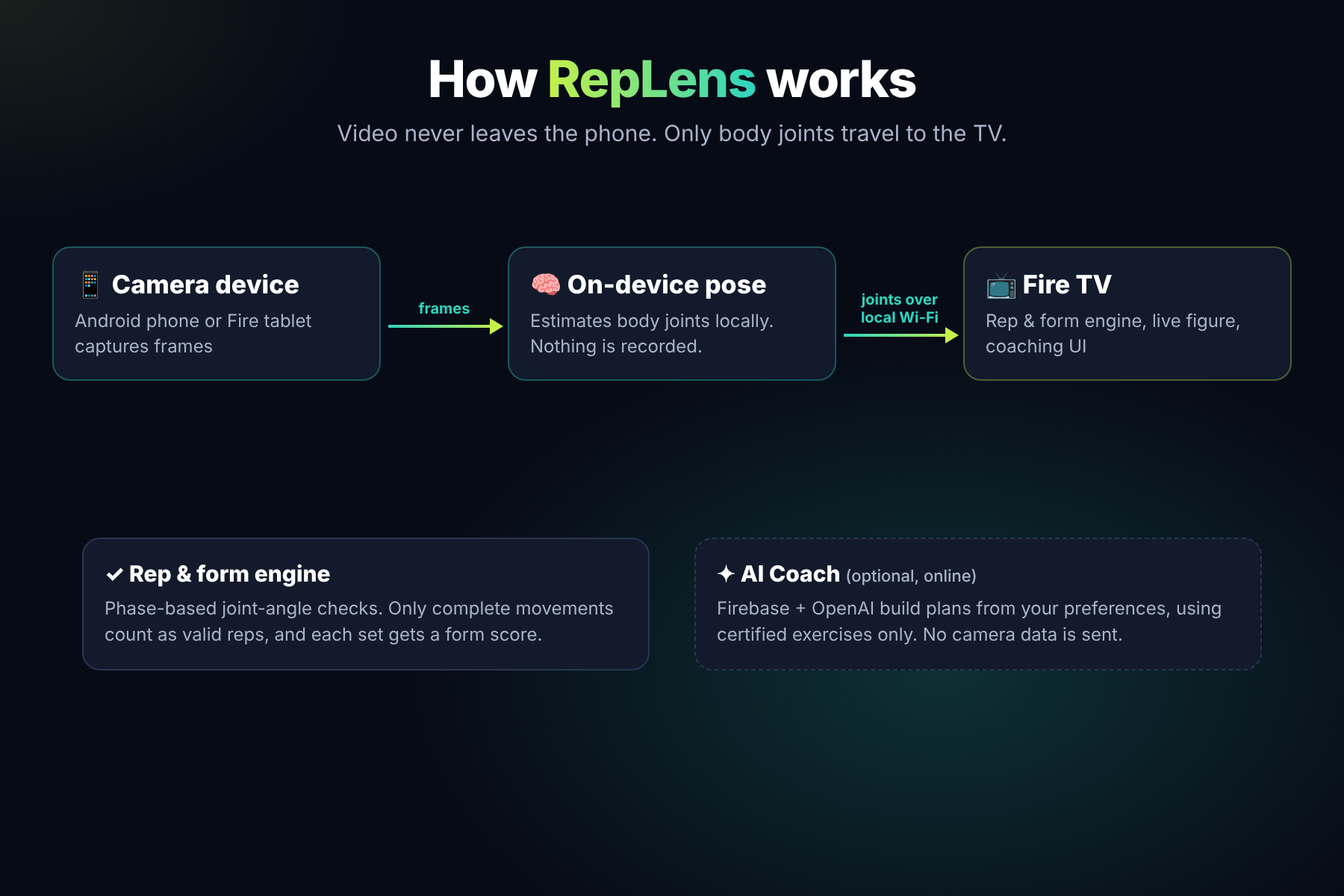

The architecture separates responsibilities between the two devices:

  • Smartphone: Camera capture, pose detection, movement analysis, and exercise telemetry.
  • Fire TV: Workout management, visual coaching, progress monitoring, and user interaction.

Computer Vision and Pose Estimation

We integrated Google's ML Kit Pose Detection technology to identify body landmarks from the smartphone camera.

Pose coordinates are processed to calculate joint angles, movement direction, range of motion, body alignment, and exercise phases.

Exercise Recognition and Repetition Analysis

We implemented exercise-specific analysis engines that evaluate movement patterns.

These engines use geometric measurements, temporal movement information, confidence checks, and state-based repetition logic to determine exercise progress and generate form feedback.

Real-Time Device Communication

We developed a local Wi-Fi communication system to connect smartphones with Fire TV.

The connection system supports device pairing, movement telemetry, workout control messages, and recovery from temporary disconnections.

AI Integration

We integrated OpenAI-powered functionality to support personalized workout planning, coaching feedback, and post-workout analysis.

The AI functionality complements the local movement-analysis engine rather than replacing it. Pose tracking and authoritative repetition counting are handled separately from language-model-generated coaching.

Voice and Interactive Coaching

We implemented Android text-to-speech and local voice-feedback mechanisms to announce exercise progress, provide instructions, and deliver motivational guidance.

Workout Management and Local Storage

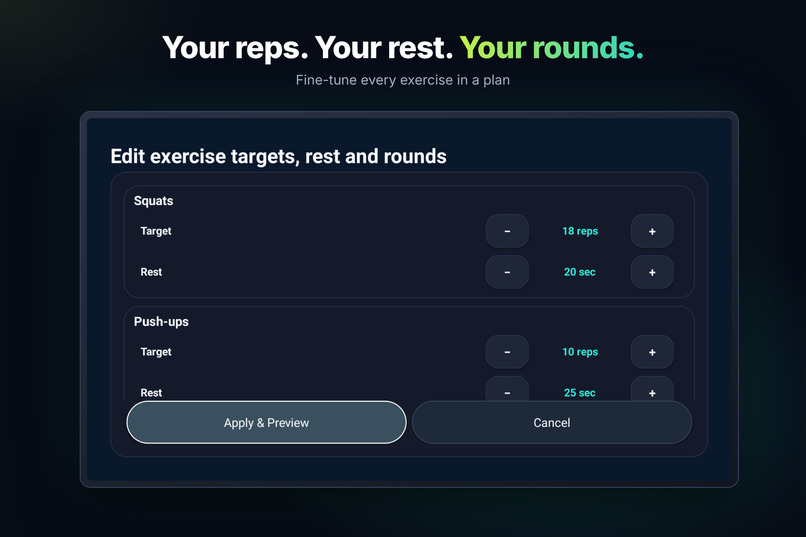

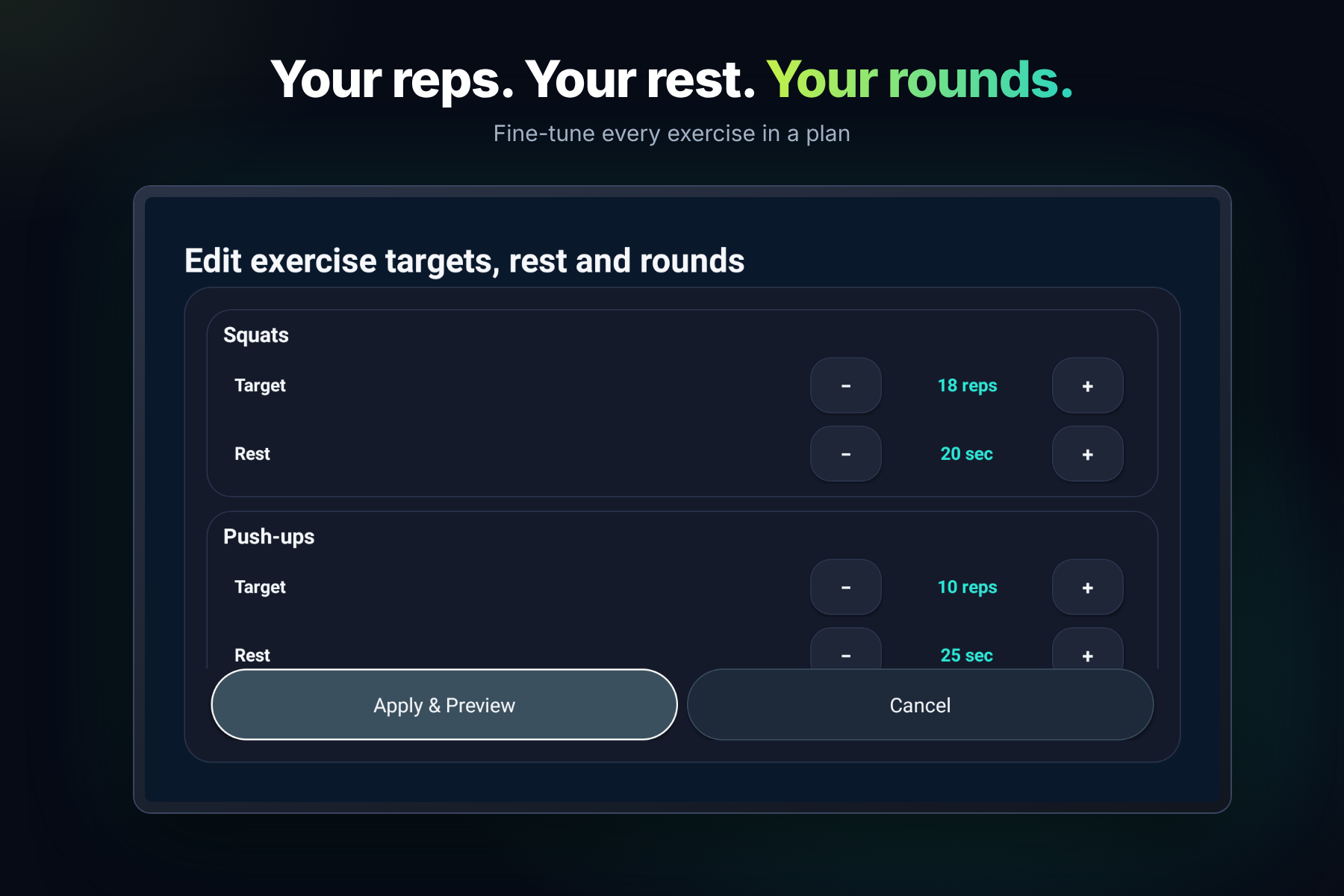

We developed workout session management, configurable exercise targets, workout summaries, and local activity history.

Amazon Fire TV Optimization

We adapted the application for television screens, including D-pad navigation, focus handling, landscape layouts, large-screen readability, and device compatibility configurations.

The result is a connected fitness system combining on-device computer vision with an AI-assisted coaching experience.

Challenges we ran into

Developing RepLens introduced several technical challenges.

1. Accurate Exercise Recognition

One of our biggest challenges was distinguishing valid exercise movements from incomplete repetitions, incorrect posture, and unrelated body movements.

Different exercises require different joint-angle thresholds, movement sequences, and range-of-motion measurements.

We addressed this by developing exercise-specific tracking logic, movement phases, and confidence-based validation.

2. Real-Time Pose Tracking

Human movement can be fast and unpredictable. Changes in camera angle, lighting, distance, and temporary landmark loss can affect detection quality.

We worked on smoothing movement measurements, validating landmarks, and improving tracking stability.

3. Synchronizing Smartphone and Fire TV

Maintaining consistent workout information across two devices was another major challenge.

Network delays and interruptions could potentially cause mismatched repetition counts, delayed coaching messages, or interrupted sessions.

We developed synchronization, acknowledgment, and reconnection mechanisms to improve reliability.

4. Balancing AI Feedback with Accurate Repetition Counting

AI-generated coaching is useful for personalized guidance, but repetition counting requires predictable and measurable logic.

We separated deterministic exercise measurements from AI-generated explanations and coaching recommendations.

This helped prevent language-model responses from becoming the authoritative source of exercise counts.

5. Maintaining Performance

Running pose detection, movement analysis, networking, and real-time coaching simultaneously required careful resource management.

We worked on processing efficiency, telemetry optimization, and reducing unnecessary operations.

6. Designing for Fire TV

Building a fitness experience for television is different from developing a traditional mobile application.

We had to account for remote-control navigation, focus visibility, screen distance, and layouts that remain usable without touch interaction.

7. Exercise Consistency Across Different Users

People perform exercises with different speeds, movement ranges, and camera positions.

Developing reliable movement evaluation required continuous adjustments to movement thresholds, exercise-specific rules, and confidence handling.

These challenges helped us improve the architecture and identify areas requiring further real-device testing and refinement.

Accomplishments that we're proud of

Our biggest accomplishment is bringing together smartphone-based movement detection and a television-based coaching experience into one connected fitness application.

We are particularly proud of the following achievements:

1. Transforming Fire TV into an Interactive Fitness Coach

RepLens goes beyond passive workout videos by responding to movement information during a workout.

2. Building a Camera-Based Tracking System Without Dedicated Fitness Hardware

The system uses a smartphone camera and Fire TV instead of relying on specialized sensors or expensive exercise equipment.

3. Implementing Exercise-Specific Movement Intelligence

We developed movement-analysis functionality for multiple bodyweight exercises, including repetition counting and form-related measurements.

4. Combining Computer Vision with Generative AI

RepLens integrates pose estimation and rule-based motion analysis with AI-powered workout planning and coaching feedback.

5. Creating a Privacy-Conscious Architecture

Processing camera frames on the smartphone avoids the need to stream workout video to the television or cloud.

6. Developing a Connected Cross-Device Experience

We implemented pairing, workout synchronization, and reconnection handling between smartphone and Fire TV.

7. Building a Hands-Free Workout Experience

By presenting feedback and voice guidance on the television, RepLens allows users to concentrate on exercising rather than operating their phones.

8. Creating a Foundation for More Advanced Movement Coaching

The architecture supports continued improvements in exercise recognition, movement quality analysis, personalized feedback, and tracking reliability.

We are proud that RepLens demonstrates how existing consumer devices can be combined to create a more intelligent and accessible fitness experience.

What we learned

Building RepLens taught us valuable lessons about computer vision, AI integration, Android development, and cross-device systems.

Computer vision requires more than landmark detection.

Detecting body joints is only the beginning. Meaningful movement analysis also requires understanding joint relationships, movement phases, timing, and tracking confidence.

Real-time fitness feedback must be reliable.

A useful exercise coach needs predictable repetition counts and relevant form feedback. We learned the importance of combining AI technologies with deterministic movement-validation rules.

Generative AI works best when supported by structured data.

Instead of depending on a language model to interpret raw camera frames, we learned to provide structured exercise measurements for coaching and workout personalization.

Cross-device applications require careful synchronization.

Working with smartphone and Fire TV communication highlighted the importance of connection management, recovery mechanisms, and consistent workout states.

User experience is especially important on television.

We learned how to design around D-pad navigation, visible focus indicators, readable instructions, and hands-free interaction.

Privacy should influence system architecture from the beginning.

Local camera processing demonstrated how useful AI-powered features can be developed while minimizing the transfer of sensitive visual information.

Fitness technology requires continuous testing.

Movement recognition can vary depending on camera placement, environment, and exercise technique. We learned that reliable fitness coaching requires ongoing validation with diverse movement samples and real devices.

Overall, RepLens helped us strengthen our understanding of machine learning, movement analysis, real-time application architecture, generative AI, and Amazon Fire TV development.

What's next for RepLens: AI Form Coach for Fire TV

Our vision is to continue developing RepLens into a more intelligent, personalized, and accessible home fitness platform.

Our next development priorities include:

1. More Advanced Exercise Recognition

Expand and refine supported exercise types, including additional standing, floor-based, and seated movements.

2. Improved 3D Movement Analysis

Explore calibrated 3D body-coordinate analysis to better understand posture, joint alignment, and movement quality from different camera perspectives.

3. More Personalized AI Coaching

Improve workout recommendations using exercise preferences, previous performance, movement quality, and individual progress.

4. Enhanced Form Correction

Develop more detailed, exercise-specific coaching feedback that identifies recurring movement issues and provides clearer corrective guidance.

5. Expanded Workout Library

Introduce more structured workout routines covering strength, mobility, endurance, and beginner-friendly fitness activities.

6. Smarter Progress Analytics

Expand progress tracking with movement-quality trends, exercise consistency, workout milestones, and personalized improvement insights.

7. Improved Accessibility

Continue optimizing television navigation, voice instructions, readable feedback, and exercise adaptations for different abilities and fitness experience levels.

8. Better Tracking Reliability

Improve performance under different lighting conditions, camera angles, movement speeds, and temporary tracking interruptions.

9. Broader Device Compatibility

Continue improving support for Amazon Fire TV models, Android smartphones, and compatible Fire tablets.

10. Production Readiness and Real-World Validation

Complete additional device testing, movement-accuracy evaluation, security checks, performance optimization, and Amazon Appstore release validation.

Our long-term goal is to make RepLens a practical AI-powered fitness companion that helps people exercise more confidently using devices they already own.

We believe the future of home fitness is not just about watching workout content. It is about creating interactive experiences that understand movement, provide useful feedback, and make everyday exercise more engaging.

RepLens: Turn your TV into your personal AI fitness coach.
