Inspiration

As students in a remote environment, we wanted to create a way to incentivize learning and collaboration and also make it easier for professors to determine the students participating the most (which is often much harder to do in a remote environment). Our main inspiration for this project was to find a way to motivate students to participate more in remote learning. As of June 2020, parents of high school seniors have rated the current remote learning environment a 5.6 out of 10, due to concerns over poor curriculum, rare encounters for collaboration, inconsistency, stringent accessibility to resources such as professors and teaching assistance, and much more. Sure, there are students who regularly attend lectures, for example, but few of those students actually end up regularly participating with the curriculum, and we wanted to find a way to represent this distinction.

Originality/Creativity

While our idea stems from qualitative text analysis, which is a topic on machine learning and natural language processing that’s been researched and studied by many individuals, the parsing of a forum channel is unique. Qualitative text analysis has generally been based on sources such as news articles, classical novels, and movie scripts, but analyzing real-time forum-based discussion platforms such as Piazza, Slack, and Discord is a novel one. The ability to determine whether a user’s post’s content is considered a question, answer, or neither is appended with a creative method to track user engagement via the content itself, replies to questions, and reactions to those responses.

Technical Complexity

Determining what makes a question was a difficult process. Since the English language is so dynamic, there are many different forms a sentence can take. Thankfully, using pre-trained models from the Stanford Core NLP library, we were able to break up sentences into their constituent clauses and classify them based on what clauses they contained. Our solution consisted of 5 major parts interacting with each other:

  • an Angular web application
  • a backend RESTful API service built on Flask with 6 endpoint
  • a Discord bot made with the unofficial Discord Python wrapper
  • a Java-based NLP server
  • a CockroachDB cloud database

The bot sends specific message data to the NLP server which returns whether the message is a question:

  • message content
  • message ID
  • the Discord user ID of the message author
  • whether the message refers to another message
  • how many unique users reacted to the message
  • the timestamp the message was created at

A user is given points to a question based on the quality of the question, which is currently determined by the amount of words in the question.

Then, the backend tracks answers to that question. A message is deemed an answer to a question if the message has a reference to the question (such as when a user directly replies to the message) or to a tag of the ID of the user who asked the question. The answerer is then awarded points based on the speed and relevance of their answer, utilizing logarithmic equations to emphasize a diminishing return of points if an answerer takes too long to respond. An answerer receives almost no points after an hour of the posting of a question.

Finally, scores are updated on the leaderboard based on the simplicity of directly importing the style of the primary SQL table located in the CockroachDB database, with this update occurring every few seconds.

Adherence to Theme

Judging engagement in a remote environment compared to an in-person one is distinct and difficult to analyze. In an in-person environment, it is simpler for a teacher or professor to detect which students are actively participating by observing each student’s body language, eye contact, willingness to collaborate with classmates, and other touch points by simply searching around the classroom.

However, the lack of face-to-face interaction in the remote learning environment creates a barrier towards engagement analysis: unique indicators such as body language and physical behavior vanishes due to the asynchronous nature, and it’s unclear to figure out how frequent students are participating in the material without the professor constantly searching the forum platform. The integration of our Discord scraper bot with natural language processing allows for tangible touch points in the remote environment: each student in a certain Discord server gains points based on if a student asks questions, answers other questions, and the reaction of the asker of the question to the response.

This feedback loop is emphasized in a real-time discussion-based application like Discord, where interaction between students and instructors is more likely than on a Zoom lecture, for example, due to the subconscious safety of being behind a screen. This feedback loop allows for an instructor to feasibly analyze the effectiveness of remote learning based on the distribution of points over the entire class: the more points a student has, the more engaged they are.

Practical Implementation

We designed the Discord bot’s to be as accessible as possible, relying on an underscore key character to denote a command. The bot relies on only a few simple commands:

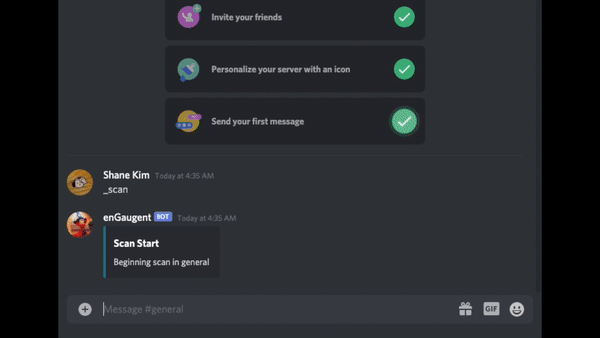

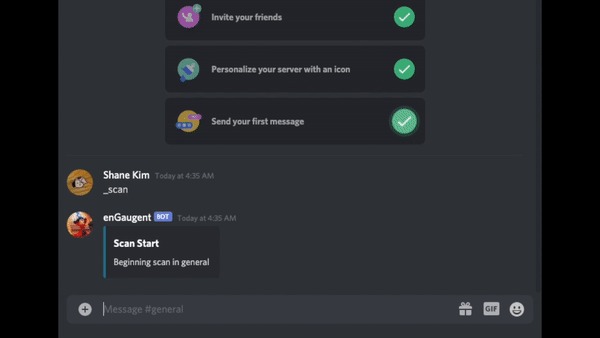

_scan looks through messages and scan for questions, answers, and participation.

_scan

_register tracks the points of a user not previously tracked.

_register

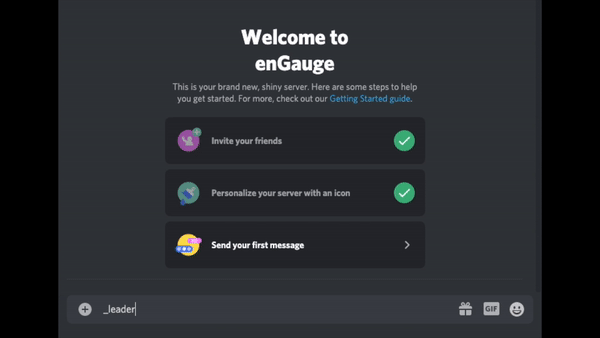

_leaderboard views the overall top 3 most engaged students.

_leaderboard

The _leaderboard command also includes a link to a simple but stylish front-end web application that displays the participation points for each participant on the Discord channel as well as a leaderboard with an easy to read GUI.

front-end

The understanding of the key metrics is simple: the more points a student has, the more engaged they are, and that level of accessibility makes this project a user-friendly one.

Accomplishments We Are Proud Of

We are very proud of what we accomplished over this hackathon. Coming into this hackathon, each of us had little experience, especially since a majority of us are freshman. This made the hackathon a daunting challenge for us to complete, but also an amazing experience for us when we overcame the challenges that sprung up during our development, such as:

  • understanding constituent clauses in natural language processing
  • utilizing the various functions, objects, and their fields in the Discord API
  • Managing GET, POST, and PUT requests from the bot to the back-end
  • working through a new tech stack framework with Flask and Angular.js

We are extremely proud of our implementation of a complex natural language processing algorithm, which allowed us to categorize user messages and reactions in Discord. In addition, we are impressed with our success in integrating a complex project with several moving parts: a web application, a Discord bot, a natural language processing server, and database to store all the relevant information to create a fully functional and useful program that can help improve learning in our current environment.

What's next for enGauge

We might expand the idea of participation chatbots and apply them to other mediums such as Piazza and Slack, which are used to a great extent during our current remote learning environment. We might also consider expanding our point participation system to Zoom and employ audio and textual machine learning parsing algorithms in order to obtain participation information that can help professors improve their teaching strategies and hold students more accountable in remote learning.
