Reflex

The reflex arc for embedded robots on Arm: sensor to brake signal, worst-frame latency cut 2.3x, with every speed claim paying its accuracy bill against perfect simulator ground truth.

Comment

What is Reflex?

Reflex is the reflex arc for embedded robots on Arm: a closed camera -> perception -> decision -> actuation loop with a hard end-to-end latency budget, taken from a naive fp32 pipeline to an Arm-tuned int8 one by a six-rung optimization ladder that pays the full quality bill at every step — and picks every configuration by p99, because a reflex loop is judged by its worst frame, not its median.

Track framing (Physical AI)

  • Perception-to-action on sensor data. The loop is the physical-AI primitive: sensor frame in, brake/clear actuation signal out, with the decision stage (constant-velocity tracker + ego-corridor intersection) scored against ground-truth collision-course labels.
  • Simulated sensor feed, explicitly allowed by the track. Frames come from a deterministic procedural simulator (640x480 overhead camera, moving obstacles, seeded). We chose simulation because it emits perfect ground truth: every latency claim ships with an exact AP@0.5 and brake-decision delta instead of "it looks fine".
  • Honest scope statement (put this verbatim on Devpost): Reflex runs on simulated sensor data only. No robot hardware was used and no robot-hardware performance is claimed. Benchmarks ran on Apple M1 Max (macOS arm64) and Neoverse N2 (GitHub ubuntu-24.04-arm CI) as stand-ins for the Arm embedded/edge CPU class; rung ordering is expected to transfer to robot-class Arm SoCs, absolute numbers are not.

What it does

  1. sim/ generates a seeded episode with exact ground-truth boxes, velocities, and collision-course labels — zero external data.
  2. perception/ runs YOLOX-Nano (ONNX Runtime, CPU EP) through preprocess -> inference -> decode/NMS, each stage timed per frame.

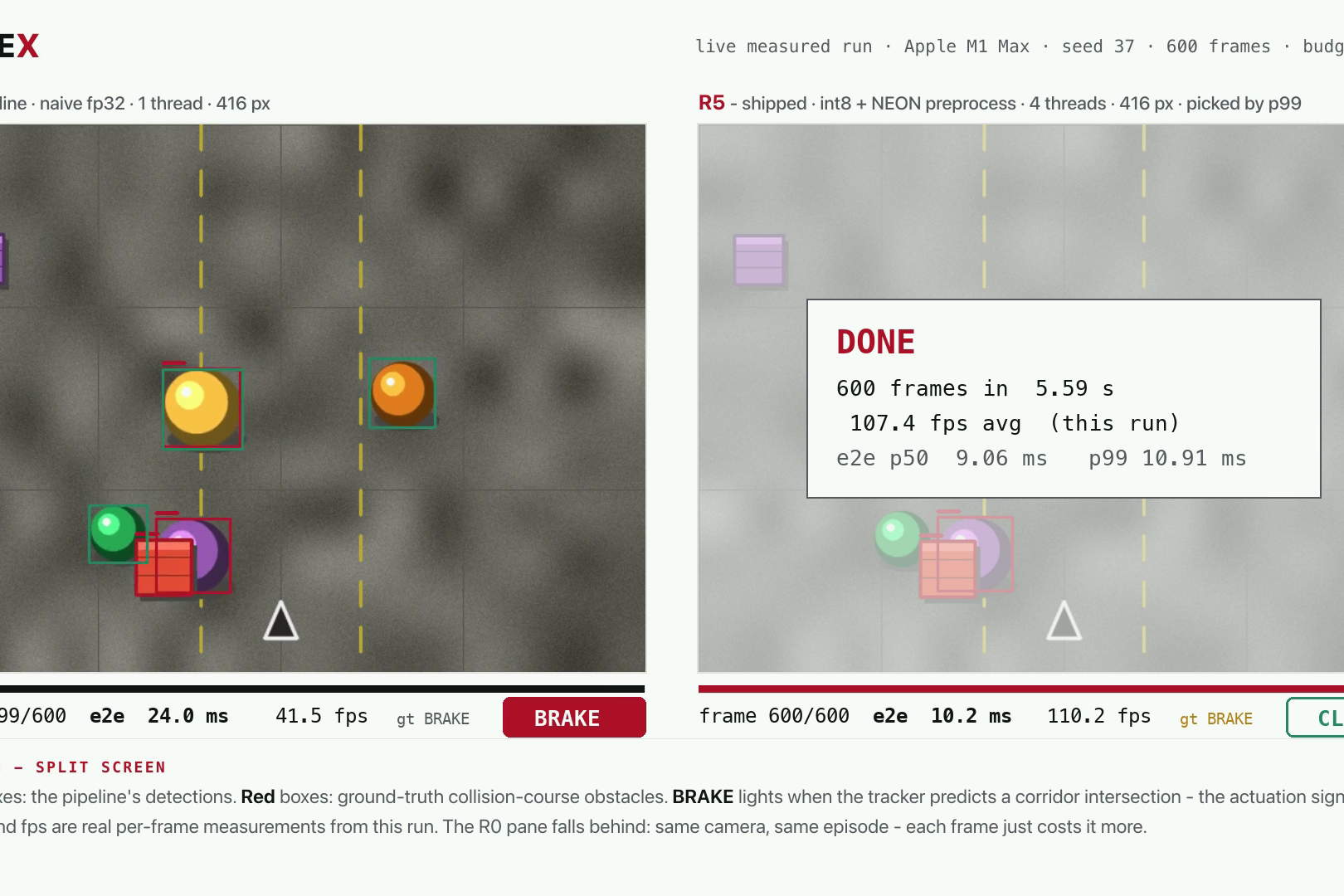

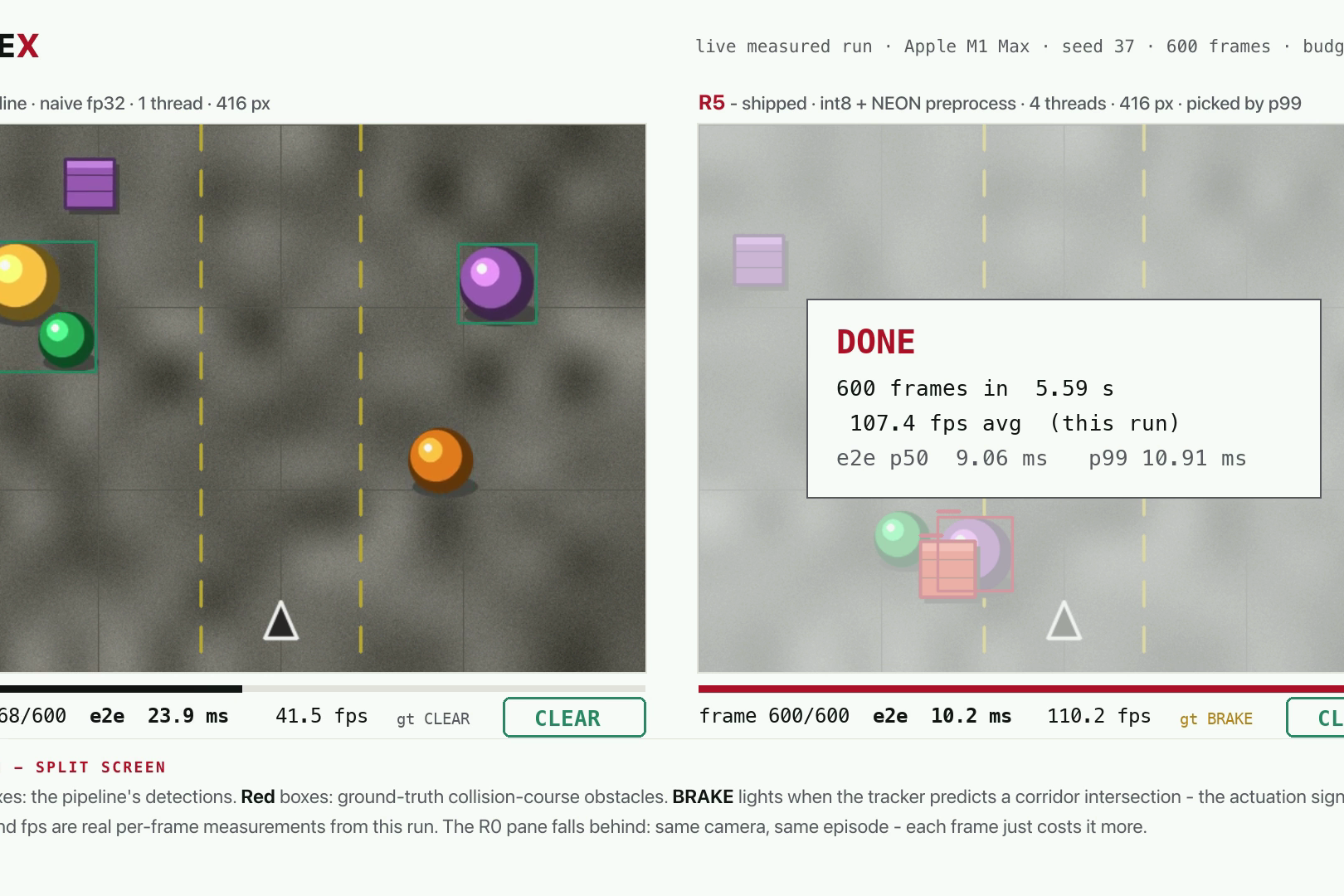

  3. A tracker + corridor check turns detections into a per-frame BRAKE/CLEAR signal.
  4. reflex/ladder.py climbs six rungs (R0 naive fp32 baseline; R1 vectorized uint8 preprocessing; R2 static int8 QDQ quantization; R3 threads x provider sweep; R4 resolution policy incl. a closed-loop adaptive controller; R5 combined shipping config), emitting one session JSON with every raw sample, host + Arm ISA probe, and a verbatim repro command per rung.

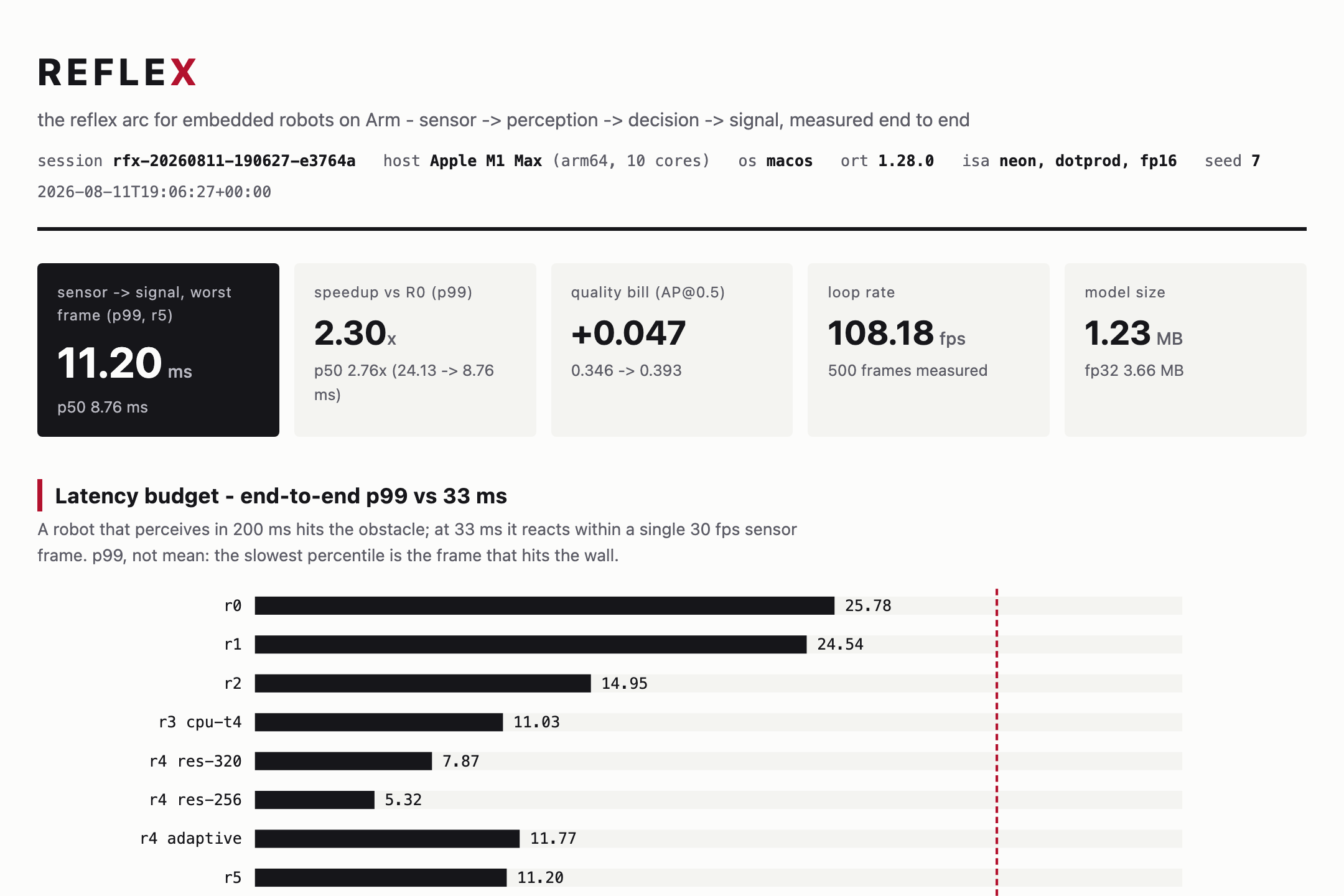

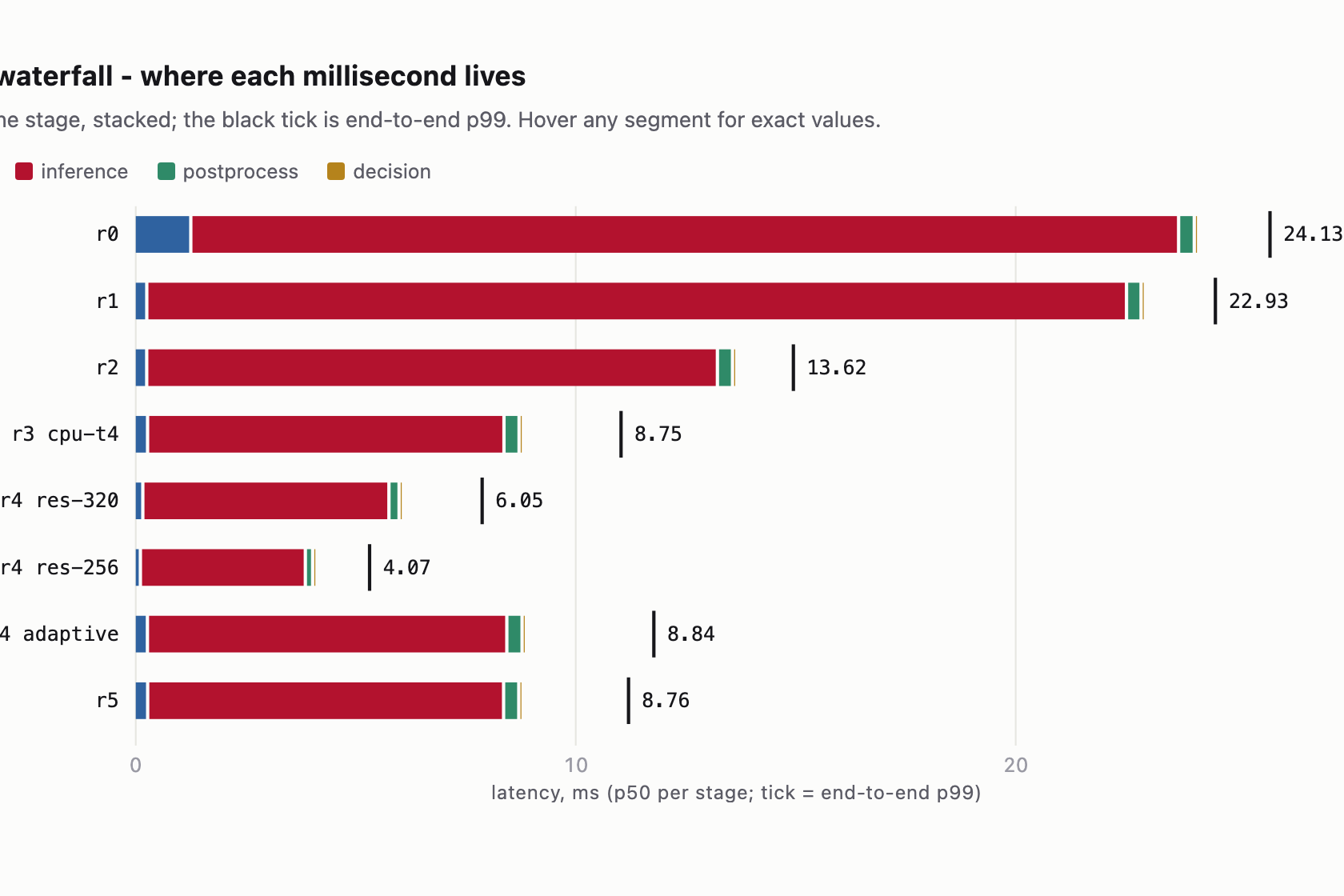

  5. report/generate.py renders a single-file, no-dependency HTML report: p99 budget bullets, stage waterfall, latency-quality frontier, thread-scaling knee with p50 and p99, per-frame timeline.

Results (blessed 500-frame session, Apple M1 Max)

  • Sensor-to-signal p99: 25.78 -> 11.20 ms (2.30x); p50 24.13 -> 8.76 ms (2.76x); loop rate 41 -> 108 fps — from 30 fps-marginal to comfortably inside a 33 ms reflex budget with headroom.
  • The quality bill, paid in public: AP@0.5 vs exact simulator ground truth went up 0.346 -> 0.393 under int8 (out-of-domain workload); brake-decision accuracy 0.686 -> 0.666 (10 of 500 must-brake frames traded); model 3.66 -> 1.23 MB.

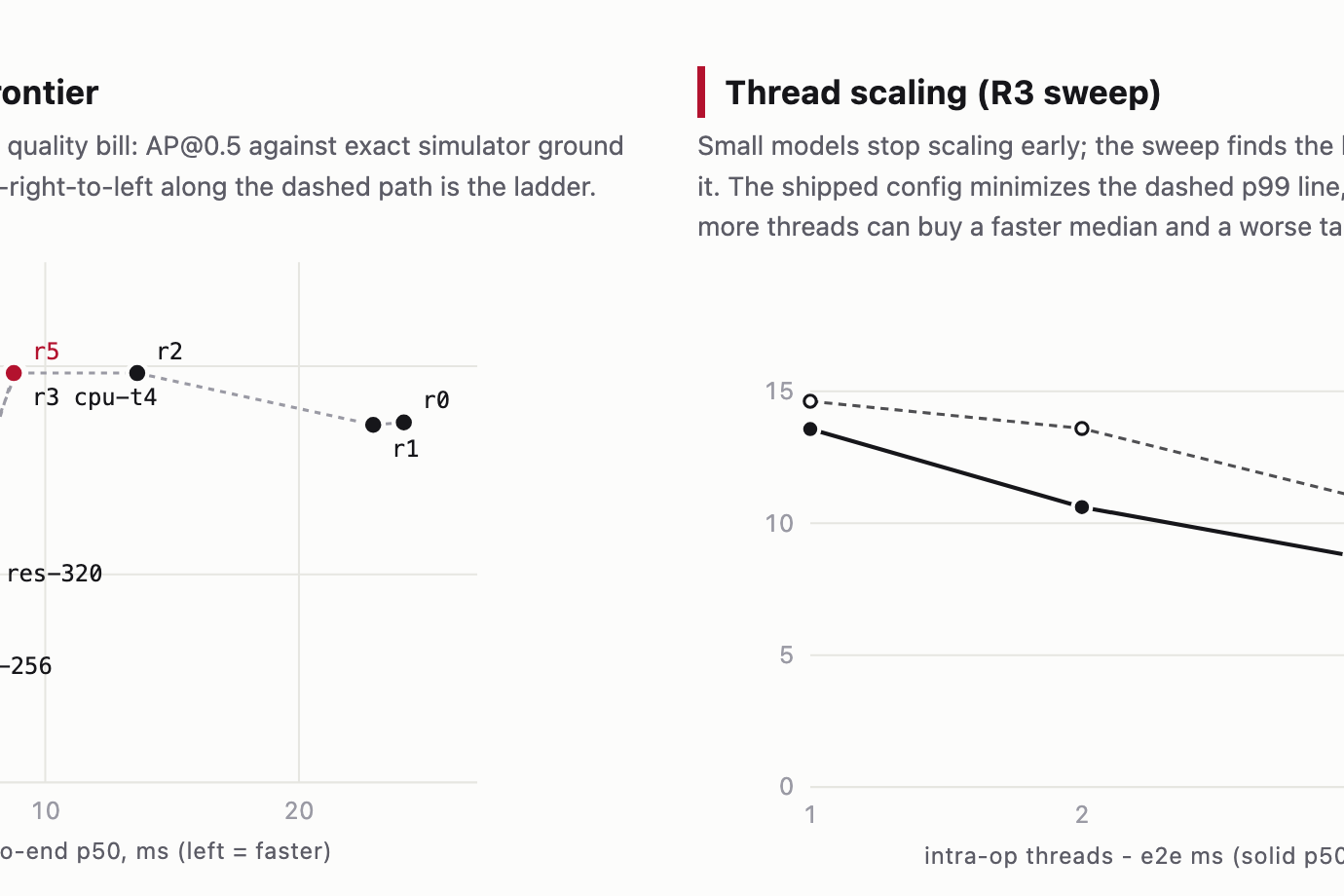

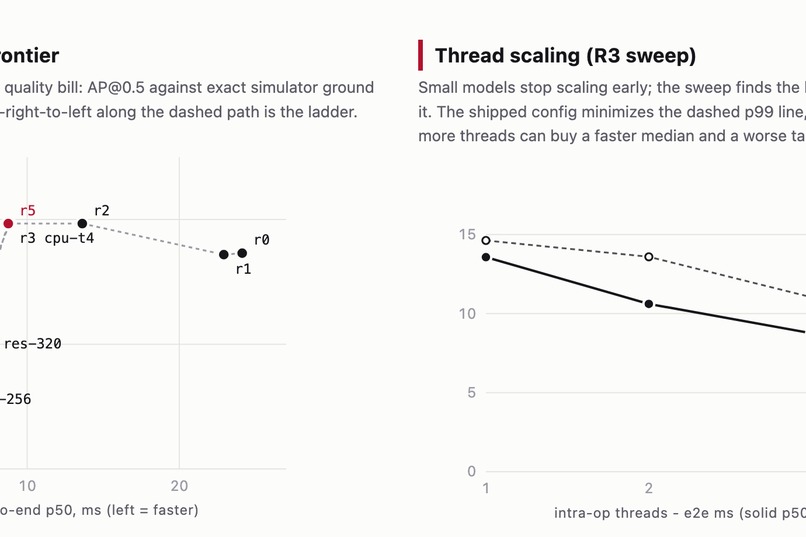

  • The p99 story (the differentiator): 8 threads ties 4 threads on median (8.79 vs 8.75 ms) but fattens the tail (p99 16.09 vs 11.03 ms). Median-based selection ships the jitterier config; Reflex selects on p99 and ships 4 threads. The worst frame is the one that meets the wall.
  • Cross-silicon (Neoverse N2, CI quick mode): overall p50 45.1 -> 16.0 ms (2.8x); the int8 rung alone is 1.85x on N2 vs 1.68x on M1 Max — the quantization win grows on silicon with i8mm, and the session records the ISA probe that says so.

Why it fits "AI optimization on Arm"

Every rung is an Arm-specific optimization with its mechanism named and measured: cv2's NEON uint8 resize path (R1), int8 GEMMs hitting MLAS sdot/udot kernels (R2), the thread-scaling knee of a small model on big.LITTLE-class cores (R3), and a latency-quality exchange rate spent by a controller under a budget (R4). Nothing is asserted from a datasheet; the harness measures it and stores the samples.

What is reusable beyond the demo

  • The simulator: seeded procedural episodes with perfect ground truth — a drop-in way to give any perception benchmark an exact quality bill.
  • The ladder harness: rung schema, per-stage timing, p99-first selection policy, session JSON with embedded repro commands, and a structural validator — model- and task-agnostic.
  • The report generator: session JSON -> single-file HTML with zero JS dependencies.

Try it

See README "Quick start": venv + pip, python -m perception.fetch_model (SHA-256-verified official YOLOX-Nano) + python -m perception.quantize, then python -m reflex.ladder --quick and python -m report.generate. Quick mode runs in a few minutes on any Apple Silicon or aarch64 Linux box; CI proves the same commands on a fresh Neoverse N2 runner.
