RecallMe OnDevice AI Dementia Support & Memory Assistance

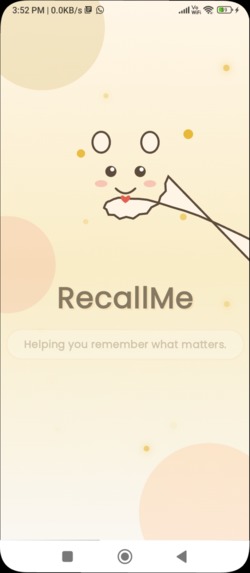

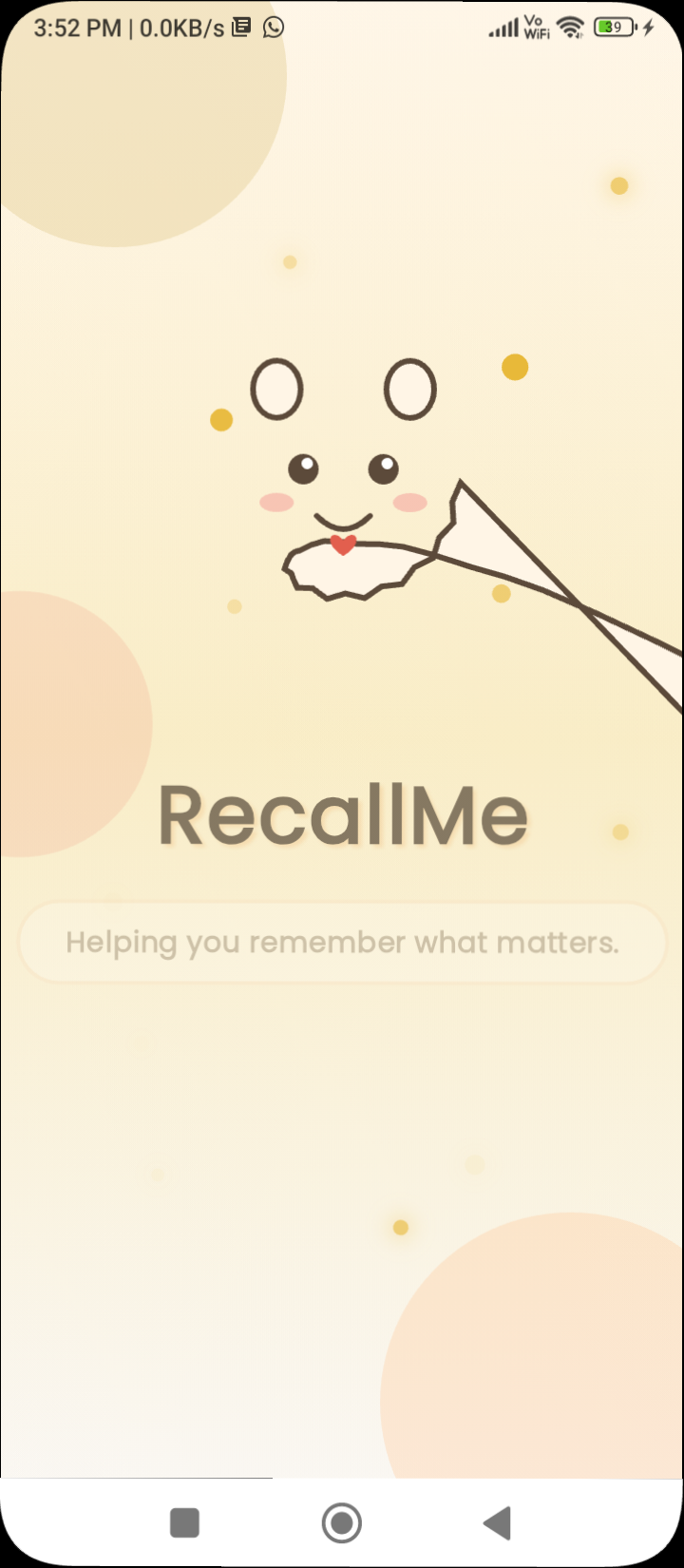

Splash screen

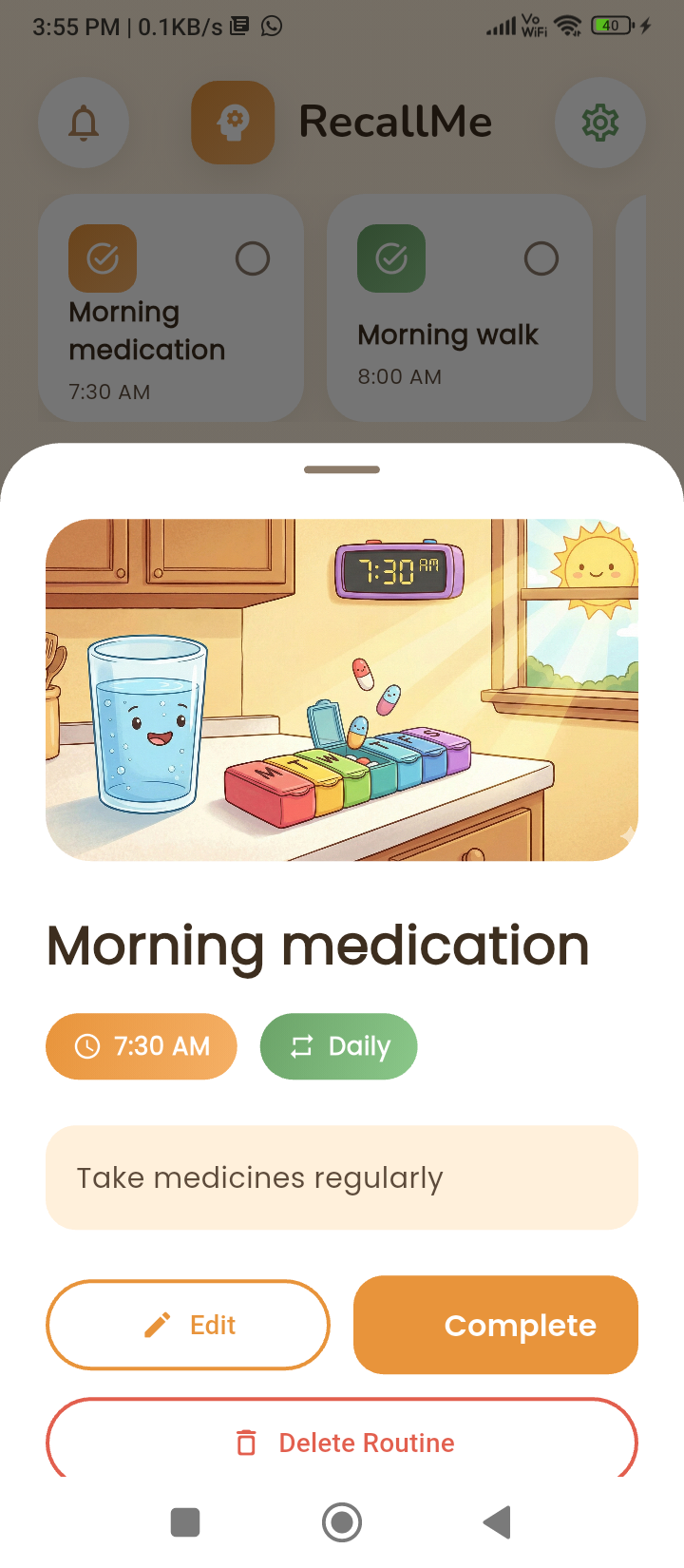

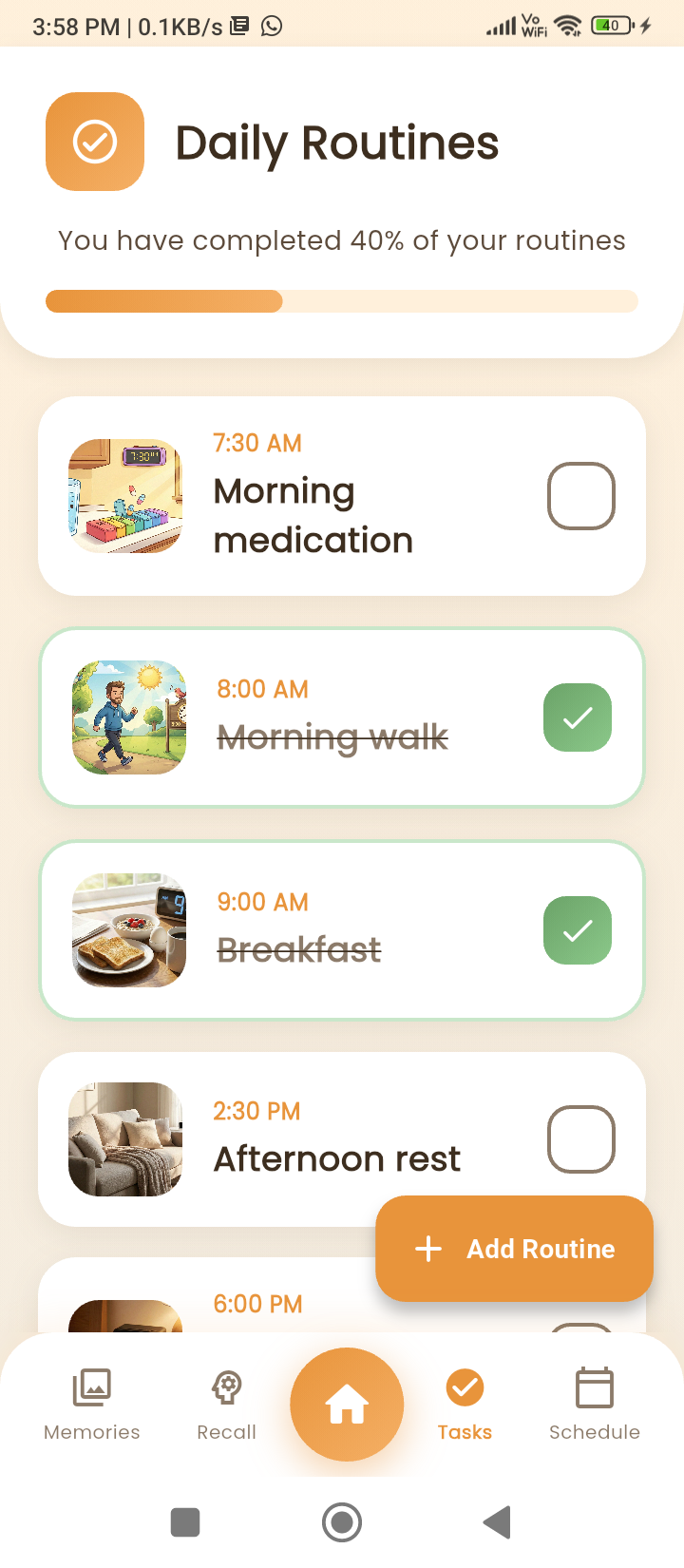

Daily routine
Recall me memory glimpse

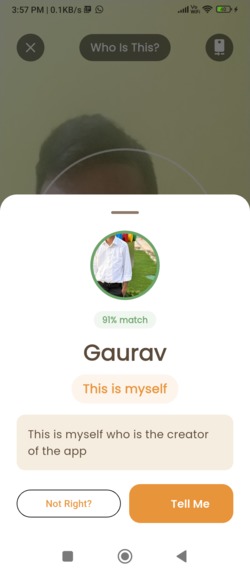

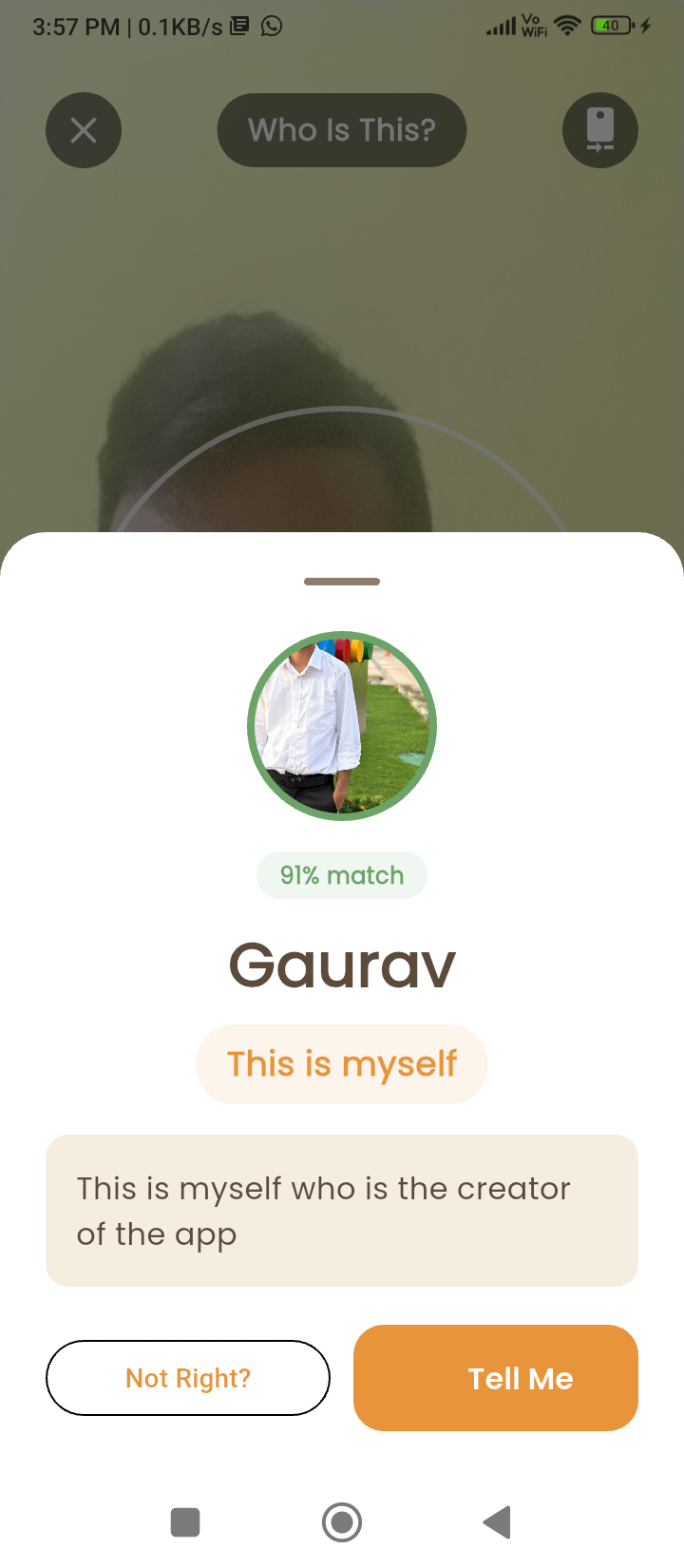

Face and person recognition
Daily routine

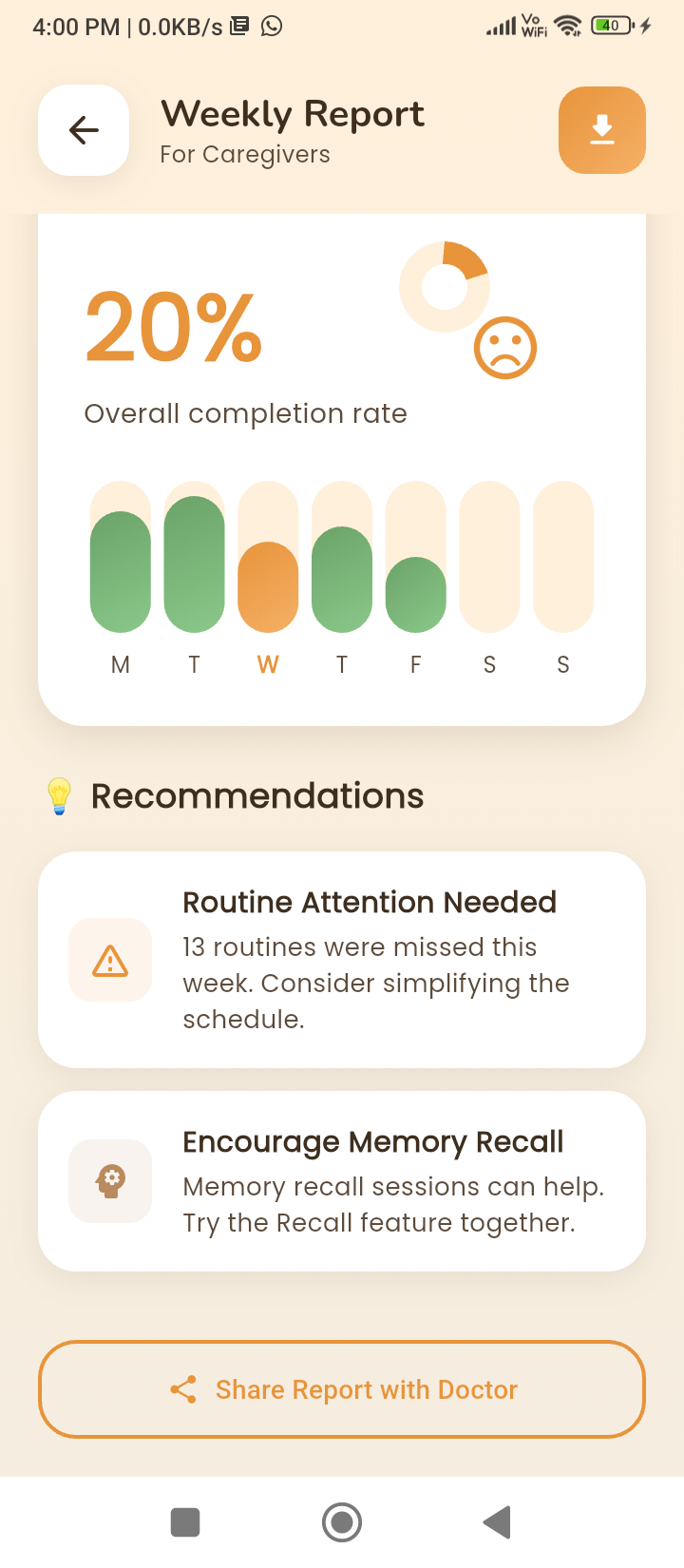

Weekly report

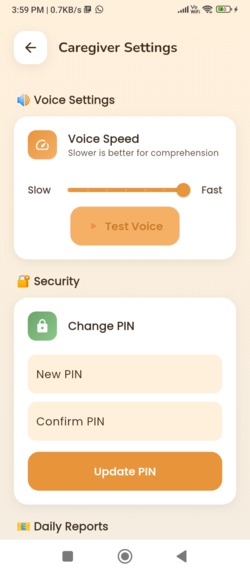

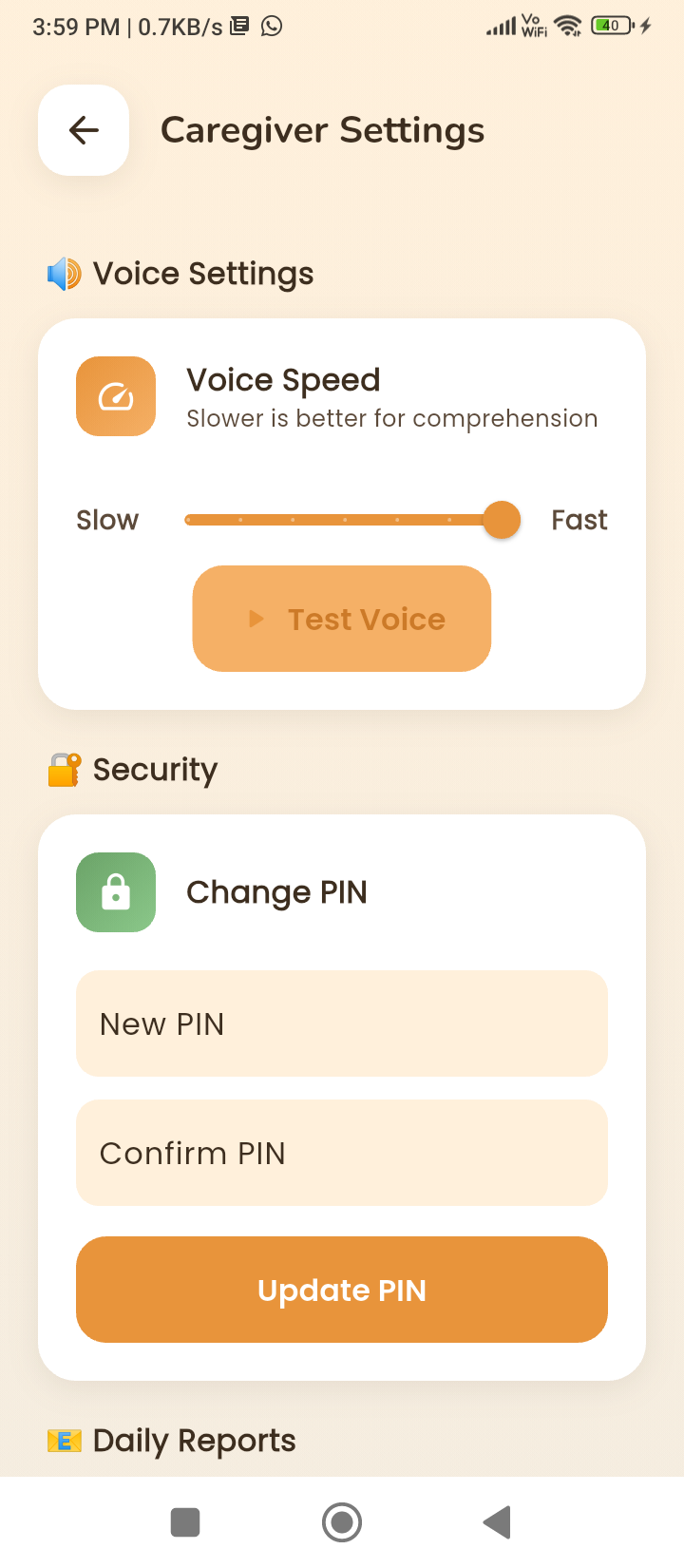

Caregiver settings

Inspiration

Working with caregivers and families of people with dementia, we saw the same pain points repeat:
loved ones not being recognized, important routines being forgotten, and overwhelming caregiver burnout.
Existing apps were either too simple (just reminders) or too risky (cloud-based photo uploads, privacy issues).

We wanted to explore a harder, more interesting question:

How far can we push on-device AI on an Arm phone to actually help with day-to-day dementia care?

That challenge combining real impact, strict privacy, and constrained mobile hardware became the core inspiration for RecallMe.

What it does

RecallMe is an on-device AI companion for dementia support that runs entirely on an Arm-based Android device.

At a high level, it:

1. Recognizes familiar faces using the camera

Shows:

Who the person is (name, relation)
A confidence percentage
A short, friendly spoken description

2. Helps recall memories

Stores photos as “memories” with metadata (year, people, memory word)
Lets users ask: “Tell me about this picture”
Responds in short, simple, spoken sentences

3. Manages daily routines

Scheduling (once/daily/twice-daily/weekly/custom)
Smart notifications at the right times
Weekly reports and completion tracking

4. Works offline and keeps data private

Photos, embeddings, and memory data never leave the device
All recognition and most logic run locally on the Arm CPU/GPU

How we built it

RecallMe is designed as a layered system: Flutter UI + native Android ML core.

Architecture overview (high level)

UI & State Management

Flutter
provider for global app state
Screens: Home, Memories, Recall, Face Recognition, Schedule, Weekly Records

Data Layer

hive local NoSQL storage:
Person, Memory, Routine, CaregiverReport, ConversationLog
flutter_secure_storage for sensitive keys (PIN, Azure API keys)

AI & ML Layer

Face detection: Google ML Kit (on-device, Arm-optimized)
Embedding generation: custom Kotlin code in MainActivity.kt
Similarity search: cosine similarity in Dart (256-D vectors)
LLM integration: Azure OpenAI (optional, with strict system prompts)

Speech

STT: speech_to_text
TTS: native Android TextToSpeech via MethodChannel

Face recognition pipeline (implementation details)

Capture frame

Using the Flutter camera package
Dedicated screen: who_is_this_screen.dart

Face detection (ML Kit)

Image bytes passed into FaceRecognitionService
Fully on-device with TensorFlow Lite (Arm-optimized)

Embedding extraction (Kotlin, on-device)

In generateSimpleEmbedding(...), we:

Decode face region into a Bitmap
Compute features:
- Color histograms (R, G, B, grayscale)
- 8×8 spatial intensity grid
- Gradient features (eyes, nose, mouth)
- LBP histogram
- Quadrant intensity averages
Concatenate + normalize into a 256-dimensional vector
Use NEON-friendly loops for Arm performance

Matching (Dart)

We compute cosine similarity:

\( \text{sim}(a,b) = \frac{a \cdot b}{|a|\;|b|} \)

Tuned threshold: ≈ 0.45
Return highest-scoring person with similarity %

Result UI & TTS

Show: photo, name, relation, “XX% match”

- Speak a short description

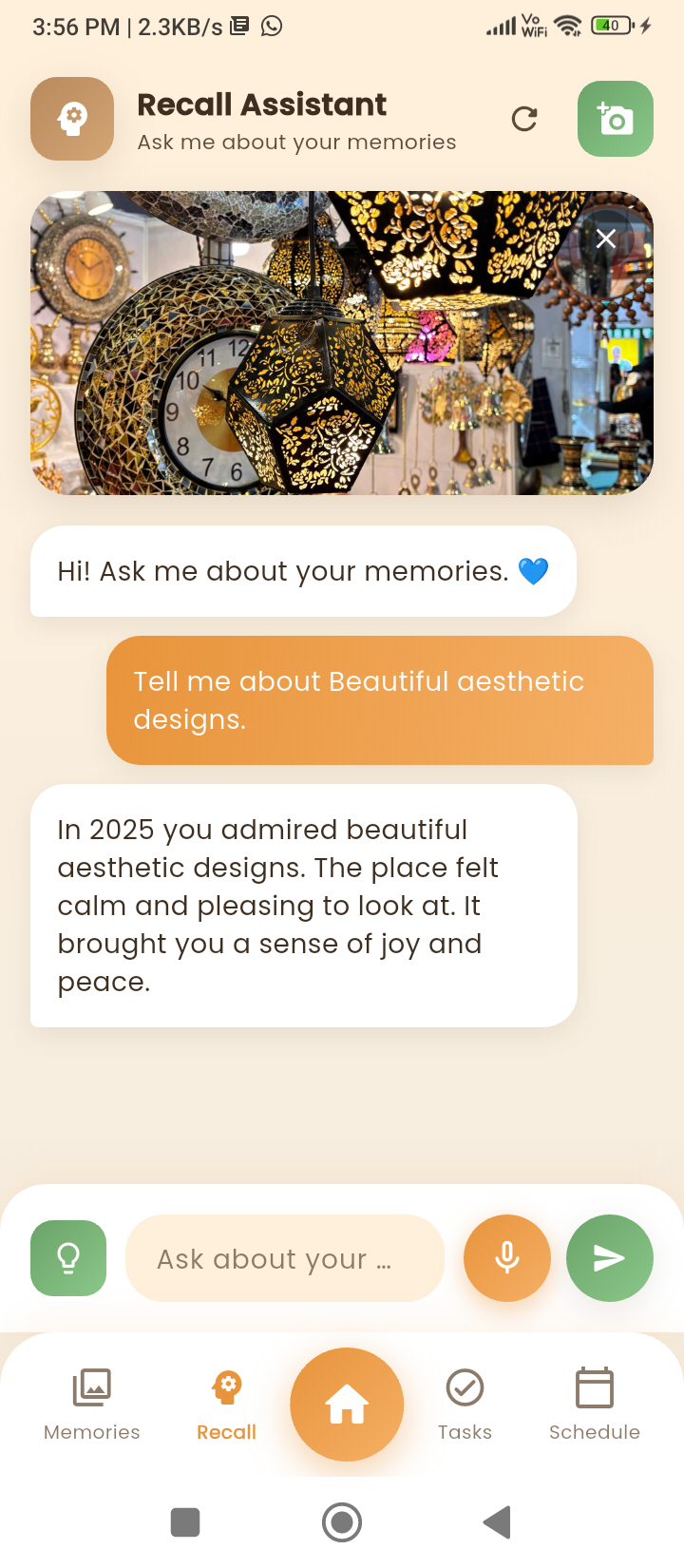

Memory Recall Assistant

On the Recall screen:

Load all Memory objects
Construct prompts with:
- Memory name
- Year
- People’s names
- Memory word
- Last few conversation turns
Strict dementia-friendly system prompt:
- Short responses (2–3 sentences)
- No markdown / emojis
- Only describe the selected memory

Send to Azure OpenAI (optional).
Clean response → show in chat → send first 2 sentences to TTS.

Voice subsystem

STT

Implemented with speech_to_text
SttService handles streaming partial/final results

TTS

Native:

MethodChannel: 'com.recallme/tts'
In MainActivity.kt:
- Set Locale.US
- Apply speech rate & pitch from settings
- ttsService.speak(text) for output

Routine engine

Routine times stored as minutes since midnight (int)
Convert to DateTime (timezone-aware) using timezone package
Scheduling:
- flutter_local_notifications
- AndroidScheduleMode.exactAllowWhileIdle

Completion updates flow to:

Home screen
Daily Tasks
Schedule
Weekly Records

Challenges we ran into

1. On-device face recognition without a big model

No large models like FaceNet
Built a custom classical feature-based 256D embedding
Threshold tuning was challenging

2. Accuracy vs performance

Too many features → slow + battery drain
Too few → misidentification
Needed careful feature engineering

3. TTS initialization issues

Native TTS async behavior caused skipped speech
Solved via deferred onInit and caching results

4. Notification reliability

Due to Android restrictions:

Exact alarms
Doze mode
Permissions: SCHEDULE_EXACT_ALARM, POST_NOTIFICATIONS

5. Designing for dementia

Simplified language
Soft colors
Gentle animations
LLM must be strictly constrained & cleaned

Accomplishments that we're proud of

Fully on-device face recognition on everyday Arm phones
Production-quality UX: splash screen → routines → weekly reports
Multi-modal AI stack:
- Computer vision
- Memory reasoning
- Speech
- Time-based logic
Privacy by design: no photo uploads, no cloud embedding storage
Warm, dementia-friendly UX with calming palette and short responses
