Reactech — Virtual Chemistry Lab

Gesture-controlled virtual chemistry lab with AI tutoring for safe, interactive learning.

Inspiration

During the pandemic, students lost access to chemistry labs. But the problem goes deeper — many of the most exciting reactions like sodium + water ($2Na + 2H_2O \rightarrow 2NaOH + H_2 \uparrow$) are too dangerous to ever demonstrate in schools. We wanted to make these experiments safe and accessible through webcam-based gesture control, letting students literally mix chemicals with their hands.

What it does

Reactech transforms any webcam into a chemistry lab with four modes:

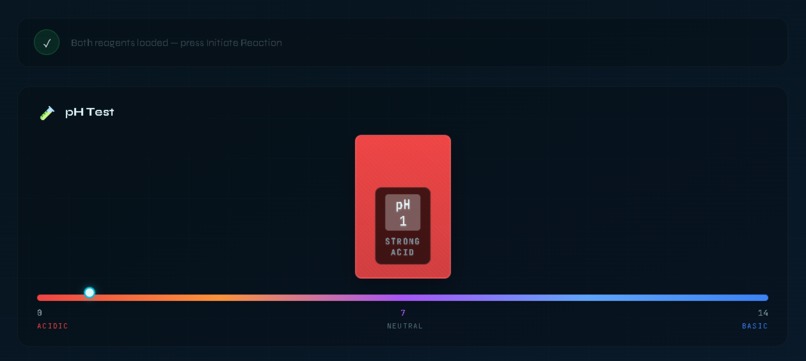

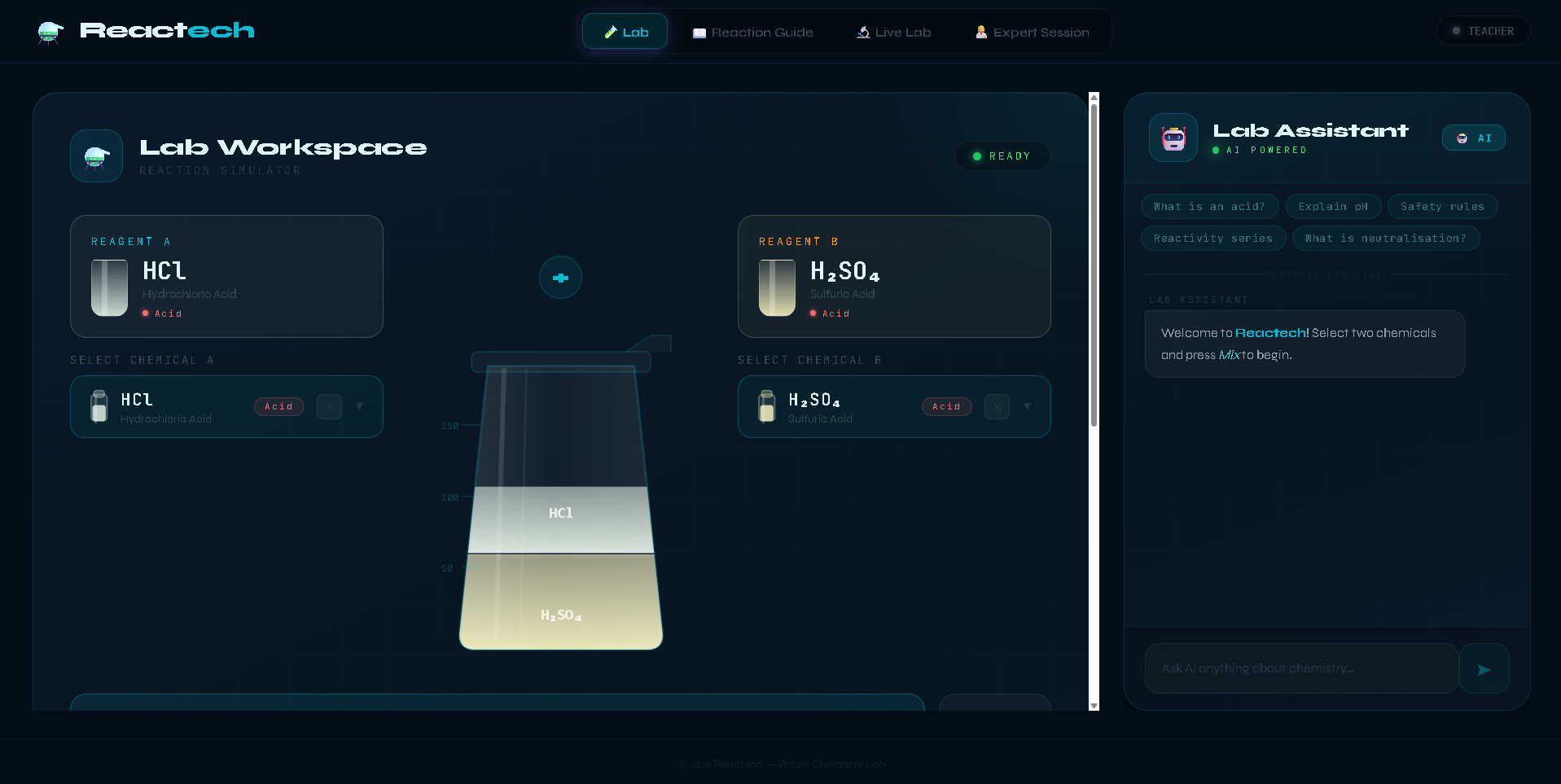

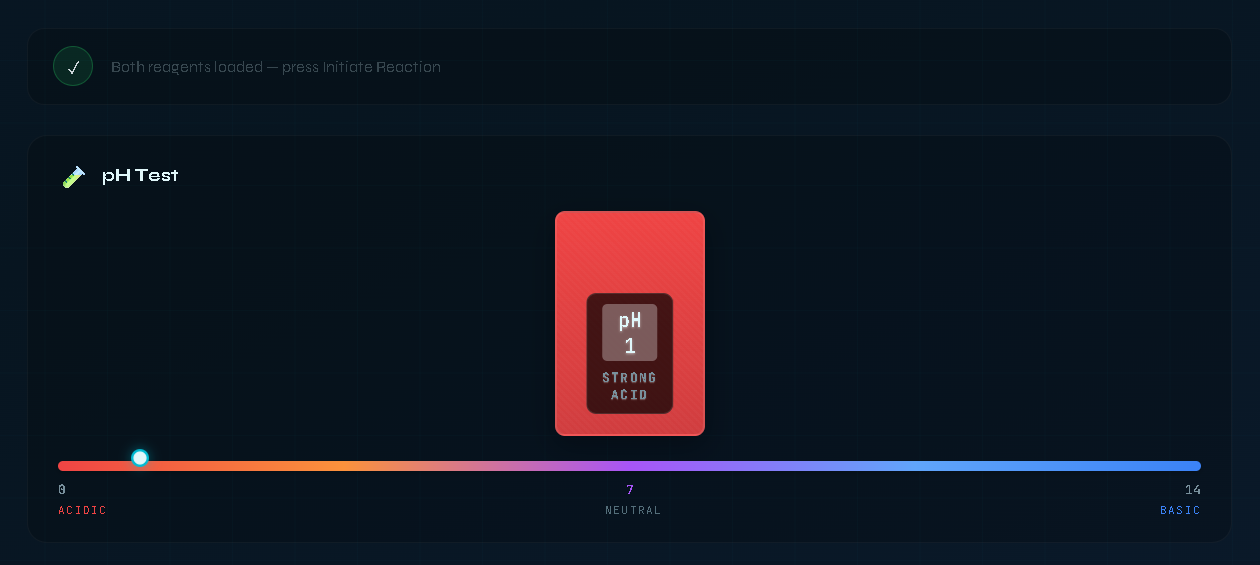

🧪 Manual Lab — Select chemicals from dropdowns, test pH with interactive litmus paper, see realistic beaker mixing
🔬 Live Lab — MediaPipe tracks your hands (30fps, 21 landmarks), bring them together to trigger reactions with risk-graduated 3D effects

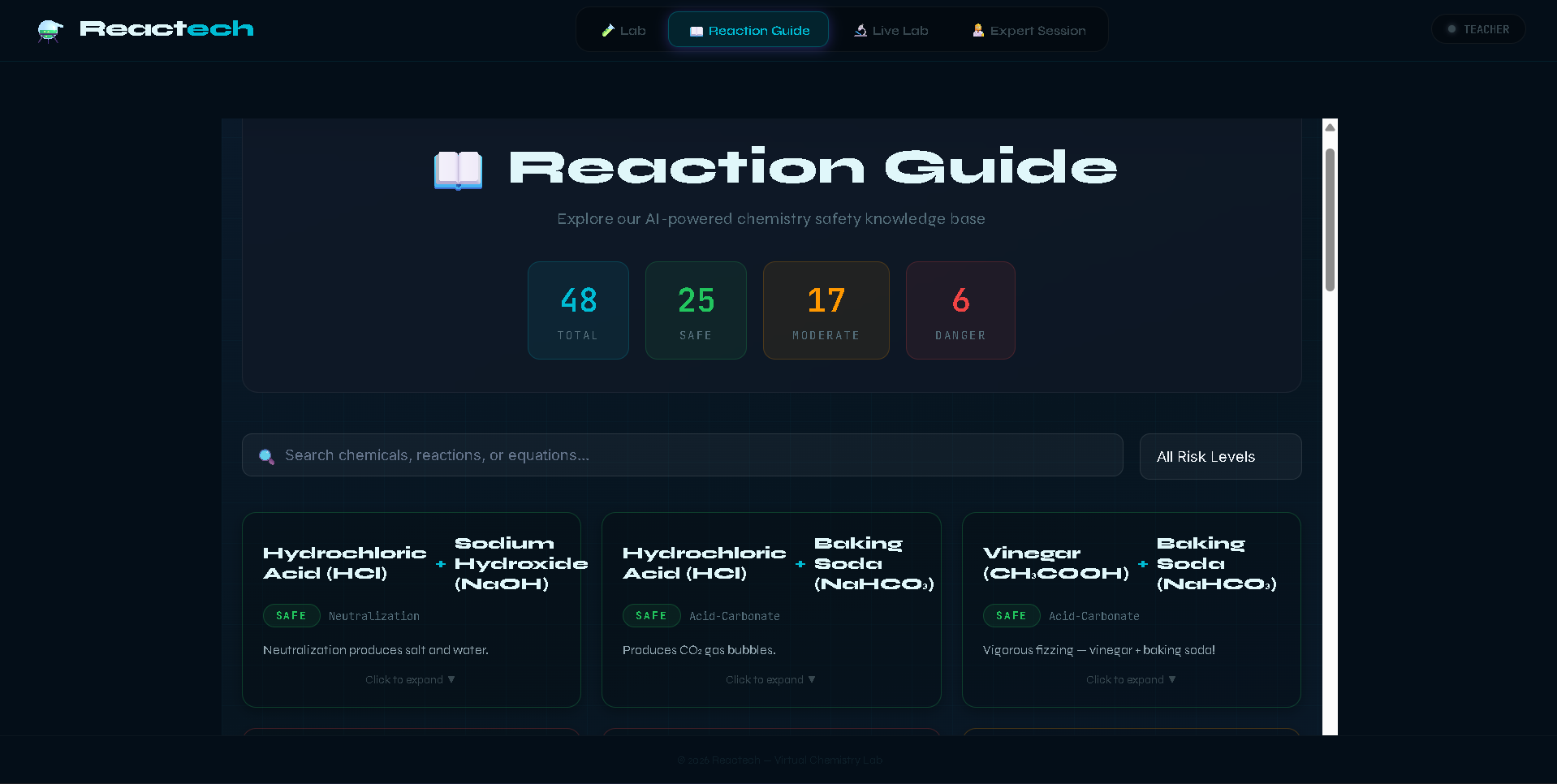

📖 Reaction Guide — Browse 44+ reactions with advanced filtering and search

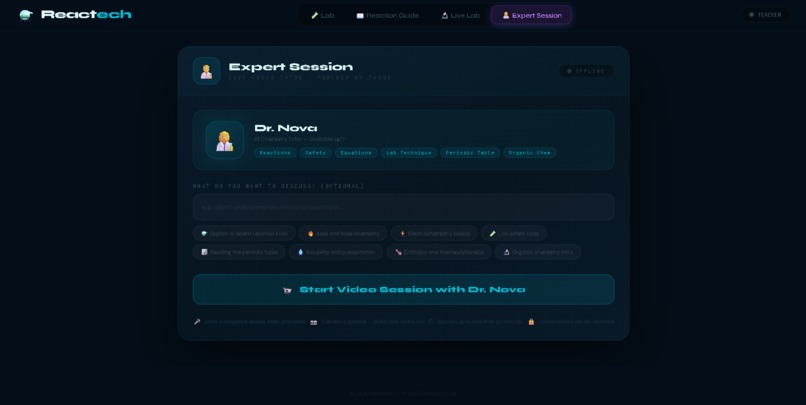

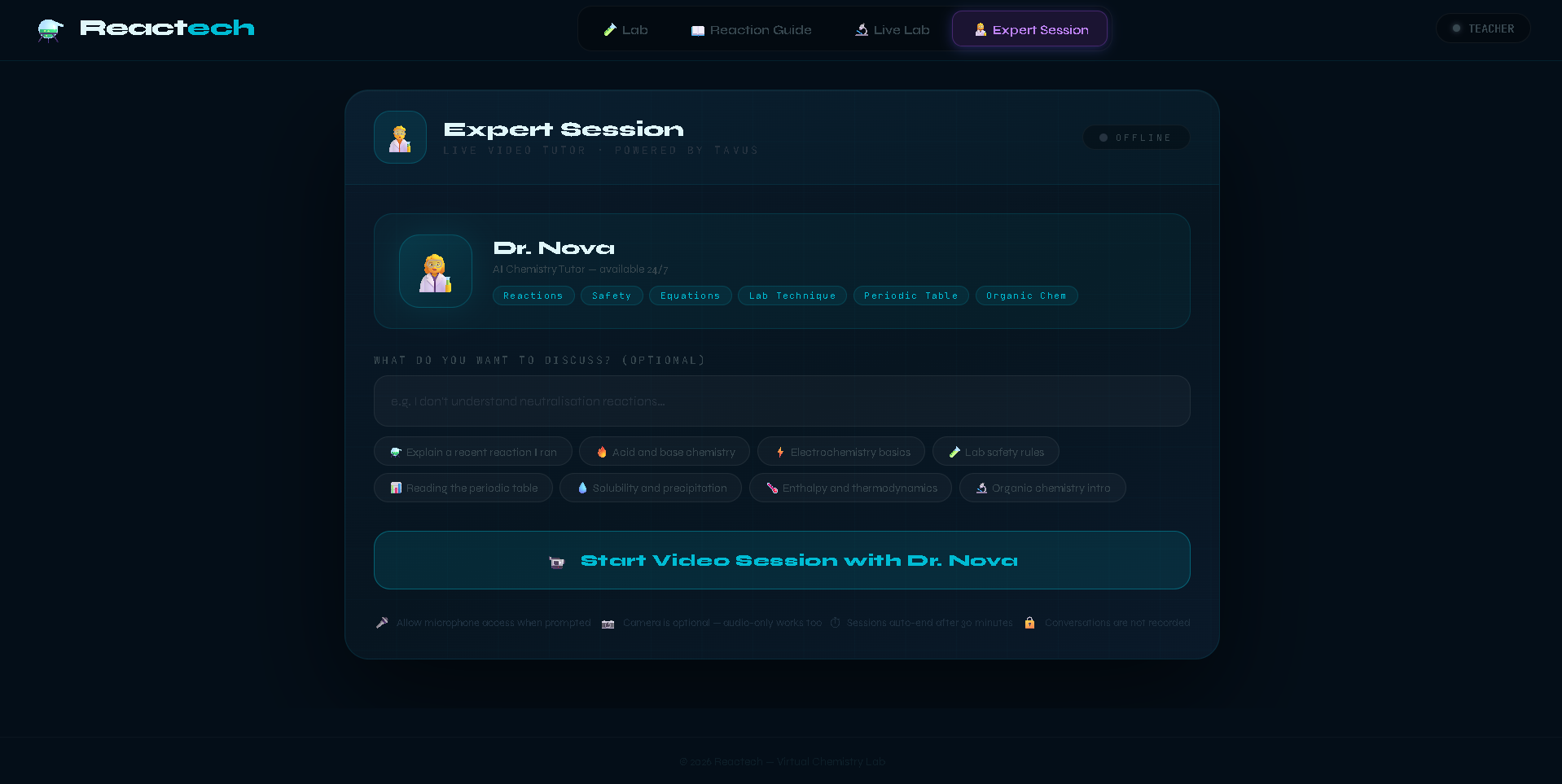

👩‍🔬 Expert Session — Live AI video tutor powered by Tavus for face-to-face chemistry guidance
🤖 AI Assistant — Google Gemini 2.5 Flash provides contextual chemistry help via Netlify Functions

How we built it

Frontend:

React 19 + Vite for fast development and optimized builds
MediaPipe Hands for real-time gesture recognition
Three.js for 3D particle effects (explosions, smoke, sparks) at 60fps
Optimized gesture detection using useRef instead of useState for <50ms latency

Key Code:

// Zero-delay gesture recognition
const distance = Math.sqrt(
  Math.pow(hand1.x - hand2.x, 2) +
  Math.pow(hand1.y - hand2.y, 2)
);

if (distance < 0.20 && !lockedRef.current) {
  lockedRef.current = true;
  triggerReaction(); // <50ms response time
}

AI Integration:

Google Gemini via Netlify serverless functions for secure API calls
Tavus AI for video tutoring with Daily.co WebRTC
Context-aware conversations with fallback to local Q&A

Backend:

Python FastAPI with four microservices:
- Chemistry engine for thermodynamics ($\Delta G = \Delta H - T\Delta S$)
- Safety validator with hazard assessment
- Reaction analyzer for mistake detection
- Multi-provider LLM service (Gemini/OpenAI/Claude)

Database:

35 chemicals (acids, bases, metals, salts, organics)
44+ reactions with balanced equations and safety data

Challenges we ran into

1. React Performance

Problem: useState for hand tracking caused 200ms lag
Solution: Switched to useRef → achieved <50ms latency

2. Hand Tracking Accuracy

Problem: MediaPipe lost tracking in poor lighting
Solution: 5-frame smoothing + confidence thresholds + visual feedback (green/yellow/red dots)

3. Bundle Size

Problem: 1.35MB initial bundle, slow loading
Solution: Code splitting with Vite → reduced to 147KB (89% reduction)

4. AI Reliability

Problem: API rate limits and network failures
Solution: Netlify Functions for security + exponential backoff + local Q&A fallback

Accomplishments that we're proud of

✅ <50ms gesture recognition through React optimization
✅ 35 chemicals, 44+ reactions with scientific accuracy
✅ 89% bundle size reduction (1.35MB → 147KB)
✅ Cross-platform — works on Windows, macOS, Linux
✅ Offline functionality with local fallbacks
✅ Safe exploration of dangerous reactions students can't do in school

What we learned

State management matters — useRef vs useState for performance-critical code
Fallbacks are essential — Every API should have a backup (AI → local Q&A)
Security from day one — Use serverless functions, never expose API keys in frontend
Real-world testing — MediaPipe needs testing in poor lighting, varied conditions
Bundle size impacts UX — Code splitting is not optional for production
