RainShield

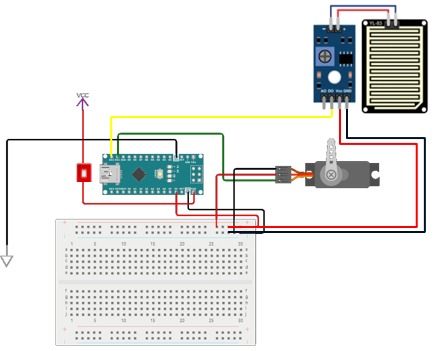

The Circuit Diagram

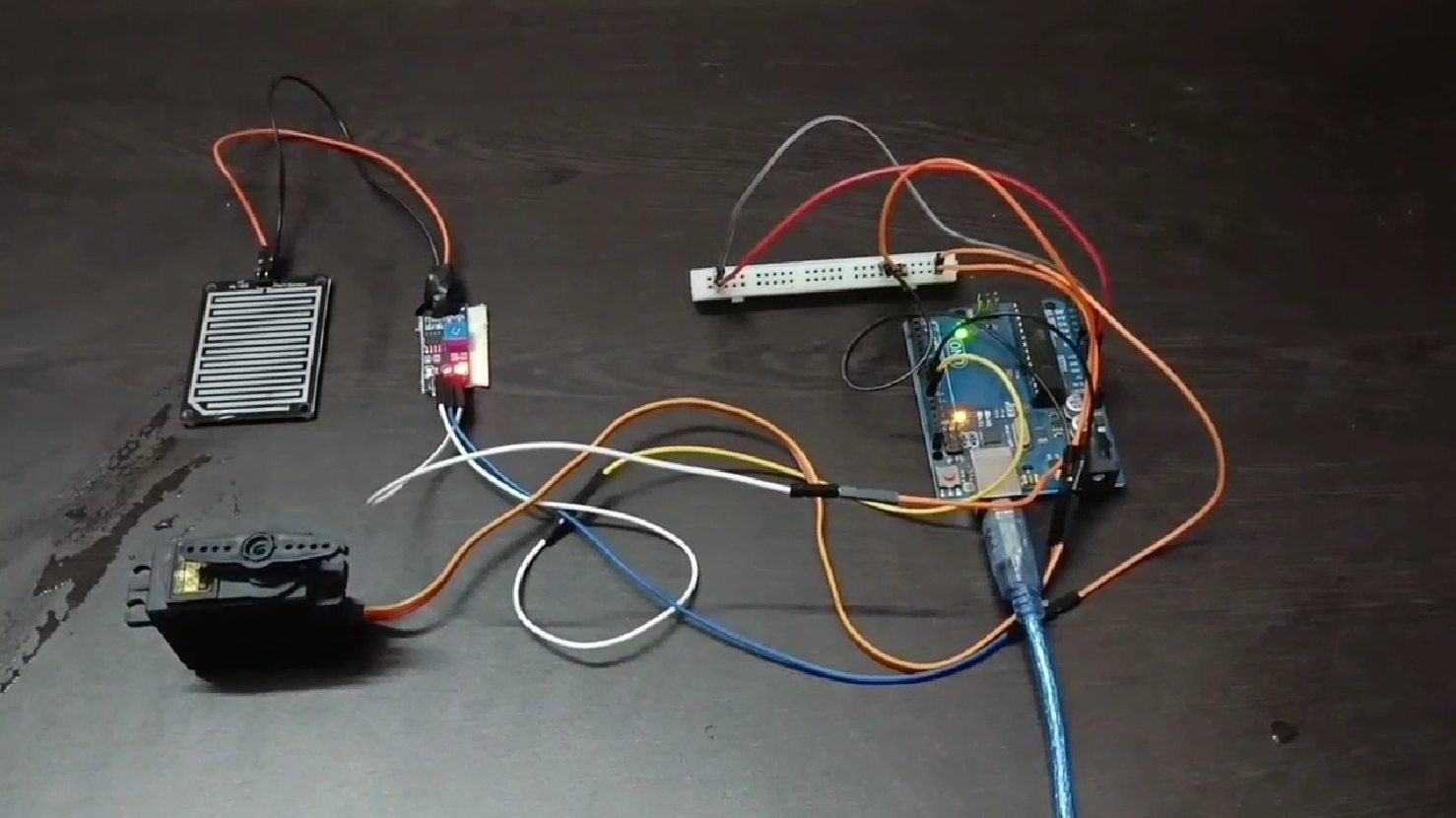

The Project

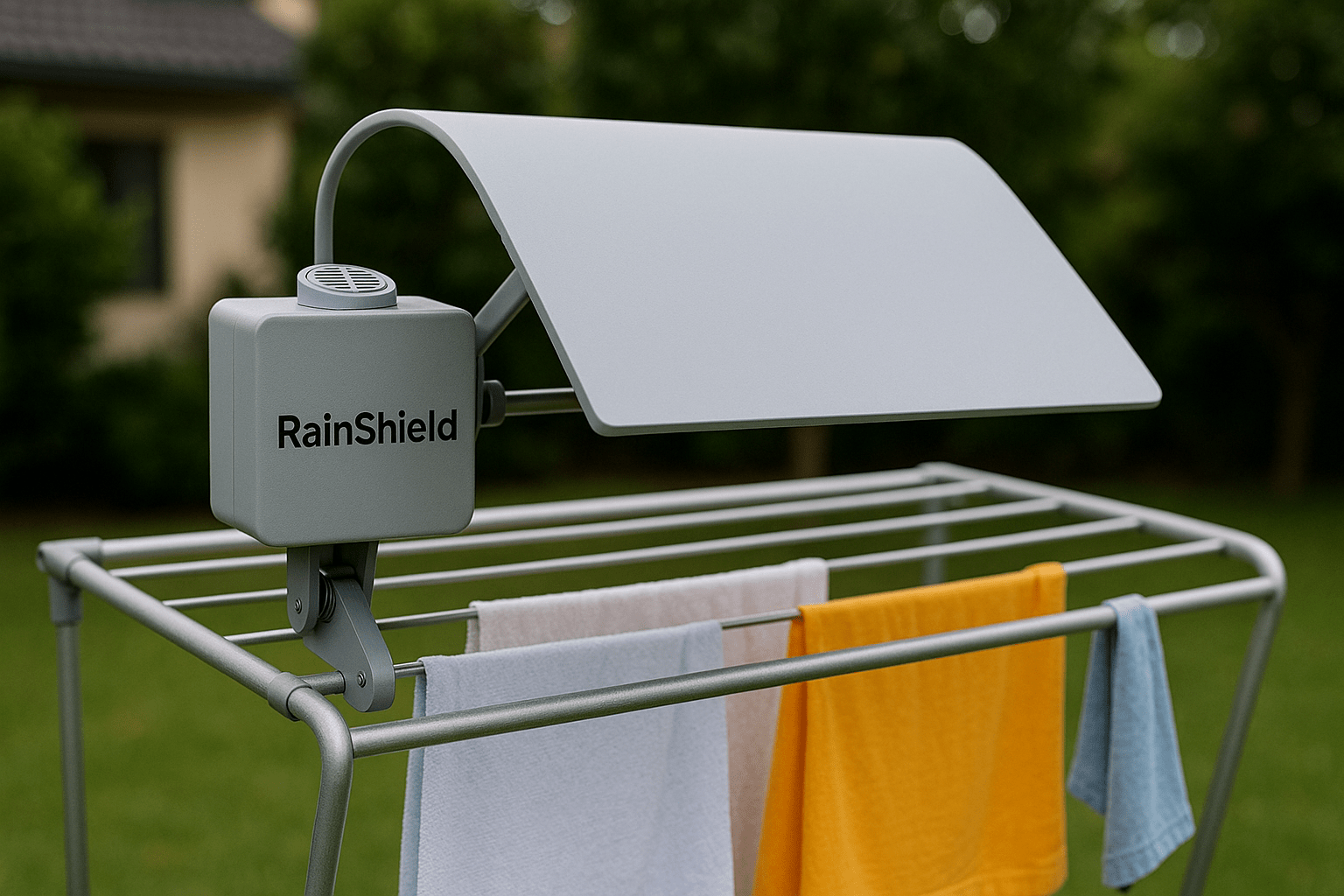

The Future Design

Inspiration

The idea for RainShield was inspired by a common everyday problem—clothes left to dry outside suddenly getting soaked due to unexpected rain. After witnessing several instances where freshly laundered clothes had to be rewashed because no one was home to take them in on time, I realized the need for an automatic solution. This sparked the concept of RainShield: a smart, affordable device that detects rainfall and instantly covers outdoor-dried laundry, protecting it from getting wet without any human intervention.

What it does

RainShield is a smart, low-cost device designed to automatically protect clothes drying outdoors from unexpected rain. It uses a rain sensor to detect the first signs of rainfall and immediately activates a mechanism that covers the clothes with a nylon cloth. This ensures the laundry stays dry even when no one is around, saving time, effort, and water that would otherwise be wasted on rewashing.

How we built it

We built RainShield using simple, cost-effective components to keep it within a budget of ₹1000. A rain sensor was used to detect the first signs of rainfall, which then triggered a small motor connected to a sliding mechanism. This mechanism moved a lightweight transparent glass or plastic cover over the clothes to protect them. The entire setup was powered by a basic microcontroller, programmed to respond instantly to rain detection. We designed the system to be easy to install, energy-efficient, and reliable for everyday household use.

Challenges we ran into

One of the main challenges we faced while developing RainShield was designing a reliable and low-cost rain detection system that could function accurately in varying weather conditions. Integrating the sensor with a responsive mechanical cover within a limited budget was also difficult, especially when trying to ensure the system was durable yet lightweight. Additionally, achieving smooth and timely movement of the cover without using expensive components required several trials and adjustments to the mechanism.

Accomplishments that we're proud of

The biggest accomplishment is the completion of a cost effective, working prototype such a small time.

What we learned

We learned about working fluently with the Arduino Nano microcontroller and also programming it using the Arduino IDE.

What's next for RainShield

We plan to further refine the project and add more rigid systems into it, such as a 3D printed dish to cover the clothes instead of nylon cloth and a pulley instead of a servo motor.
