QBIV – Query-Based Intelligence Visualization

AI-Powered SQL Visualizer for Everyone

Version: Alpha v1.0.0

🧠 Overview

QBIV is a cross-platform business intelligence (BI) desktop app built for non-technical users and small teams. It enables users to query structured data from databases using natural language or form-based SQL, then visualize the results in rich, interactive charts and dashboards.

🚀 Features

  • 🔌 Easy connect to MySQL database

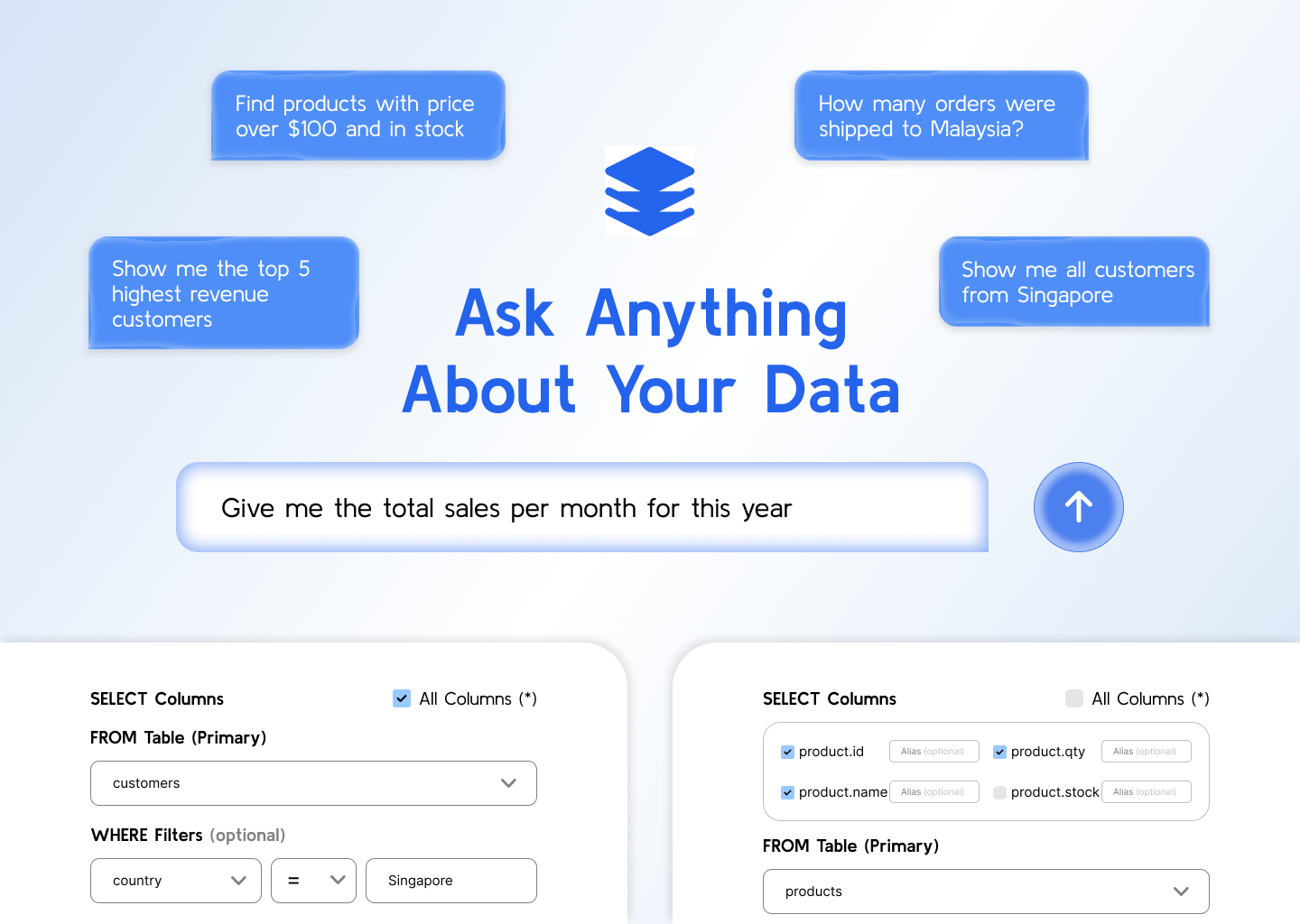

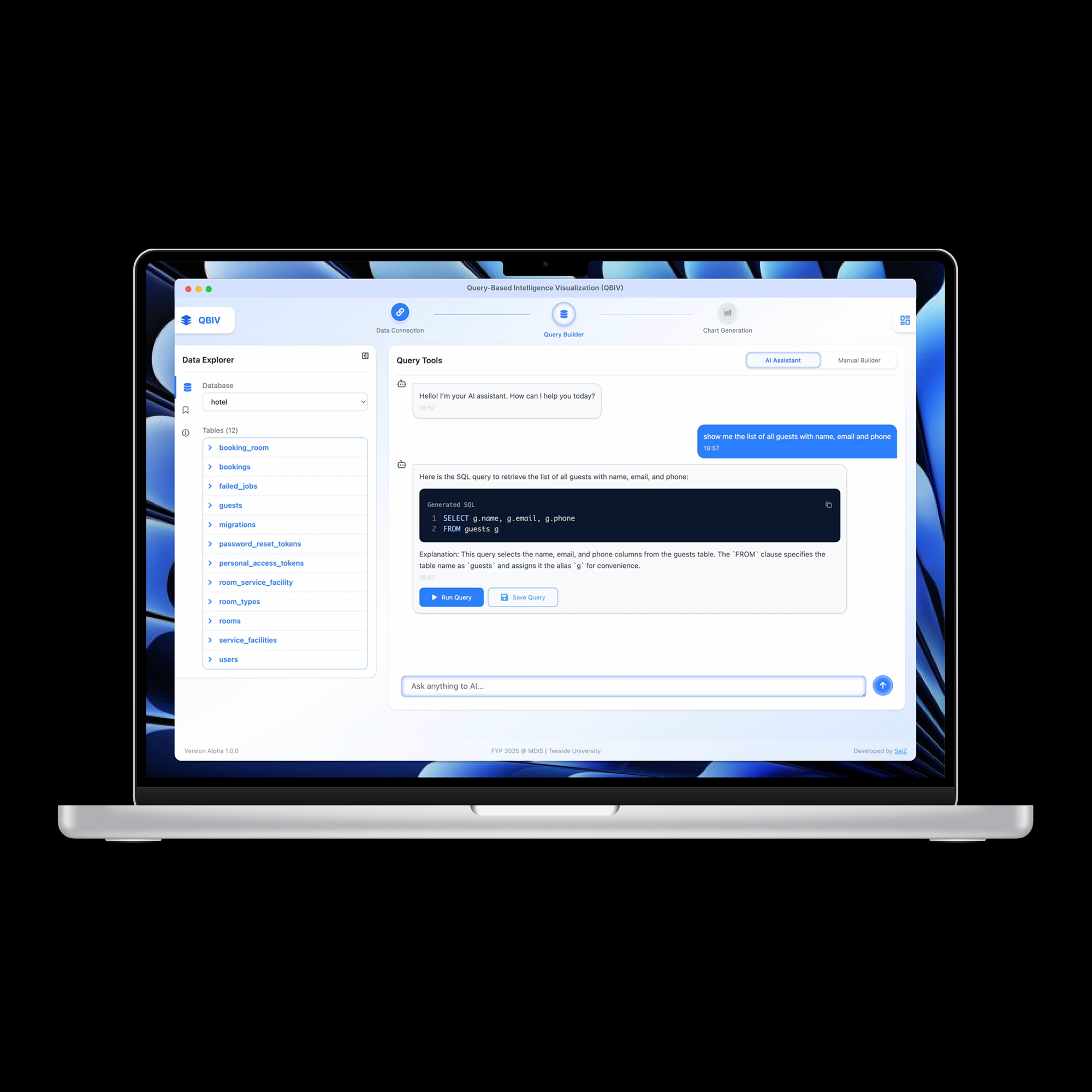

  • 🤖 AI Query Builder: Natural language to SQL
  • 🧱 Form-Based SQL Builder: Build SQL queries using interactive form controls (checkboxes, dropdowns, inputs) — no need to write code
  • 📊 Chart Generator: Bar, line, area, and pie charts
  • 📋 Dashboard System: Save, arrange, and share charts
  • 🔒 Offline-First: Works offline for almost all features (only the AI-powered SQL generation requires internet)
  • 🌐 Cross-Platform: Runs on Windows, macOS, and Linux

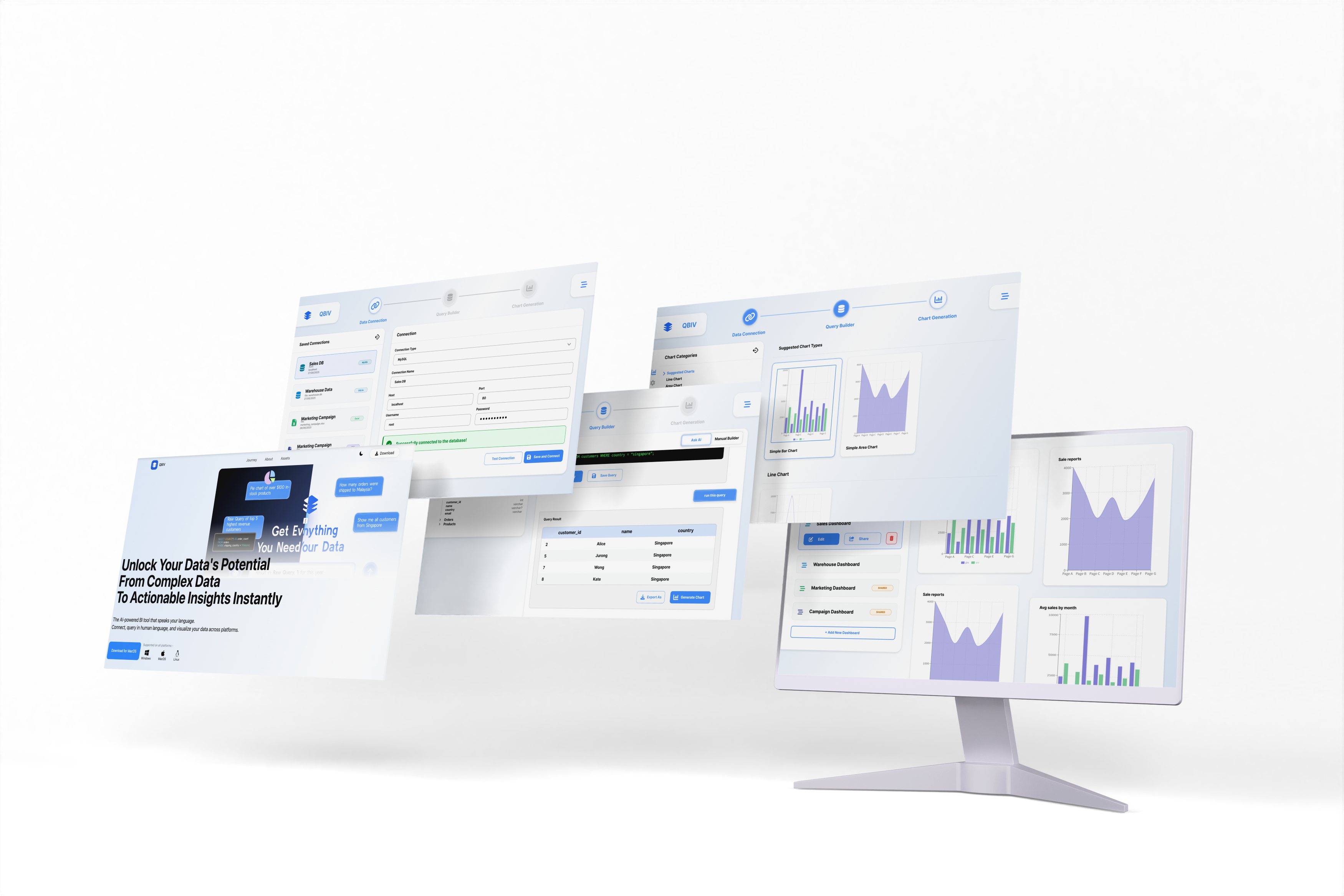

📷 UI/UX Prototype

🧪 Interactive Prototype

🔗 View Prototype on Figma

🔗 Links

Latest version: v1.0.0

Platform Installer
🪟 Windows Download .exe
🍎 macOS (M1/M2) Download .dmg
🐧 Linux (AppImage) Download .AppImage
🐧 Linux (Debian) Download .deb

🛠️ Tech Stack

Layer Tech
Frontend React + Tailwind CSS
Backend Electron + SQLite
Language TypeScript
Charting Recharts
Build Vite
Tools Figma, GitHub, Canva, Netlify

✅ Full Setup Guide for QBIV (Main App + AI Proxy)

Make sure you have:

  • Node.js ≥ 18
  • npm ≥ 9

1. Clone and Set Up the AI Proxy First

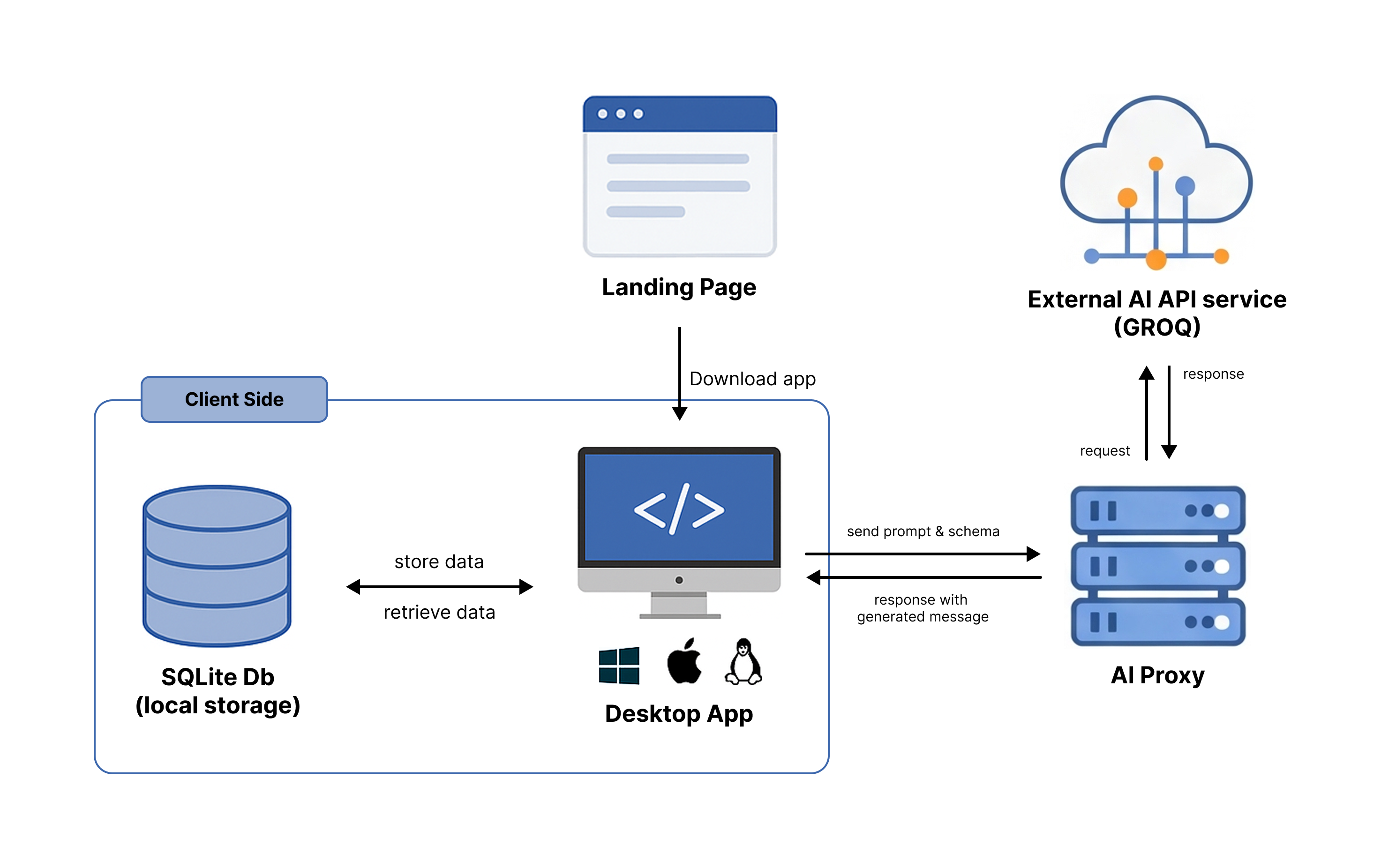

The AI proxy acts as a local server that converts natural language prompts to SQL via Groq API.

# Clone the AI proxy repo
git clone https://github.com/sai-zack-dev/qbiv-ai-proxy.git

cd qbiv-ai-proxy

# Install dependencies
npm install

# Create .env file
cp .env.example .env

Then open .env and fill in:

GROQ_API_KEY=your-real-api-key-here

🔑 How to get a Groq API Key:

  1. Go to https://console.groq.com/keys (you need to sign in).
  2. Click “Create Key”.
  3. Copy the key and paste it into the .env file under GROQ_API_KEY.

2. Run the AI Proxy Server

After setting the key:

node index.js

This will start the proxy on http://localhost:3000.

3. Clone and Set Up the Main QBIV App

# In another terminal tab or window
git clone https://github.com/sai-zack-dev/query-based-intelligence-visualization.git

cd query-based-intelligence-visualization

# Install dependencies
npm install

# Create a .env file
cp .env.example .env

Update .env in the main app:

AI_API_BASE=http://localhost:3000

4. Start the Main Electron App

npm run dev

🧠 Notes

  • Your Electron app will use process.env.AI_API_BASE to send prompts to the AI proxy.
  • The proxy securely calls Groq API with your GROQ_API_KEY.

🌱 Future Plans

  • 🌐 Web app version (Laravel + React)
  • 📱 Mobile app for viewing dashboards (React Native + Expo)
  • ☁️ Cloud sync for dashboards & team collaboration
  • 🔐 Role-based sharing & multi-user workspaces
  • 🌍 Multi-language UI support
  • 🧠 Fine-tuned AI for better schema-based query generation

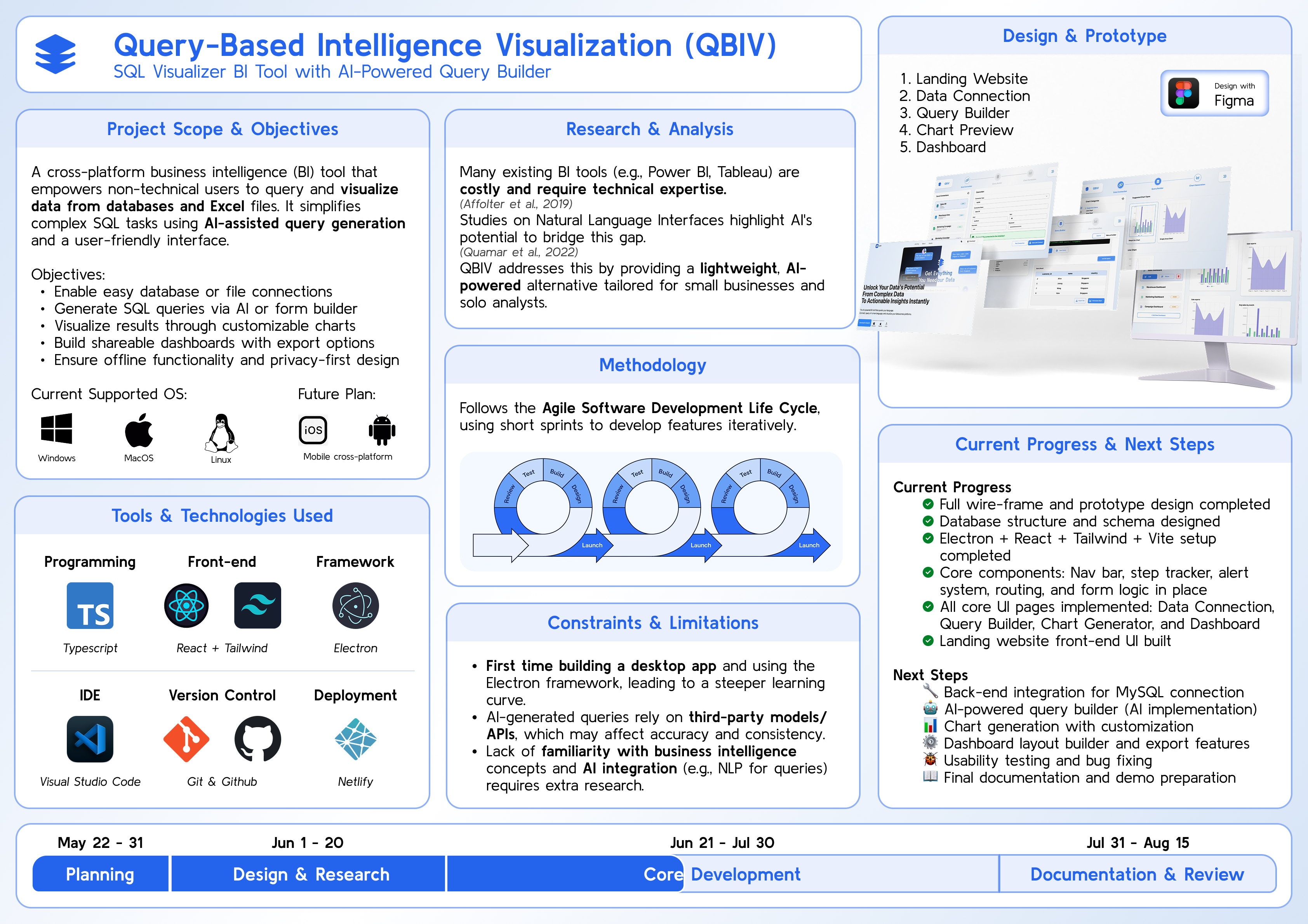

📋 Poster and Slides

Presentation Slides: canva.qbiv

👨‍💻 Author / Developer

Sai Zay Linn Htet BSc (Hons) Cybersecurity and Networks Teesside University @ MDIS Singapore
