HELP WANTED

•

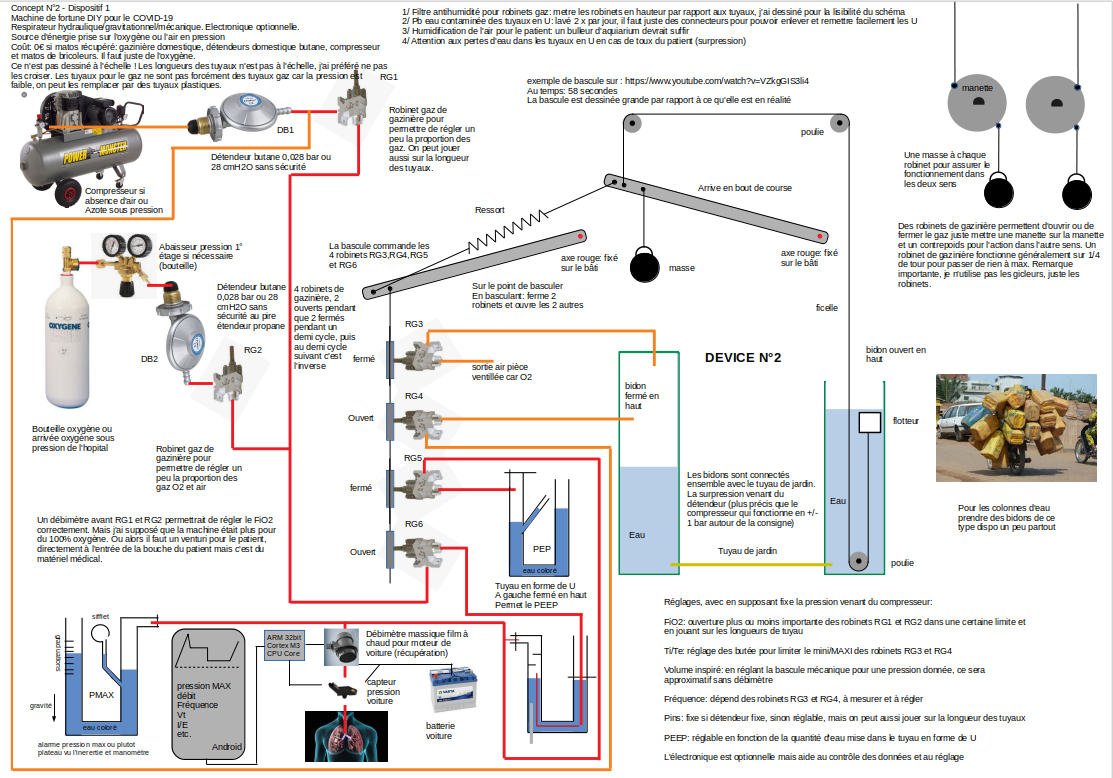

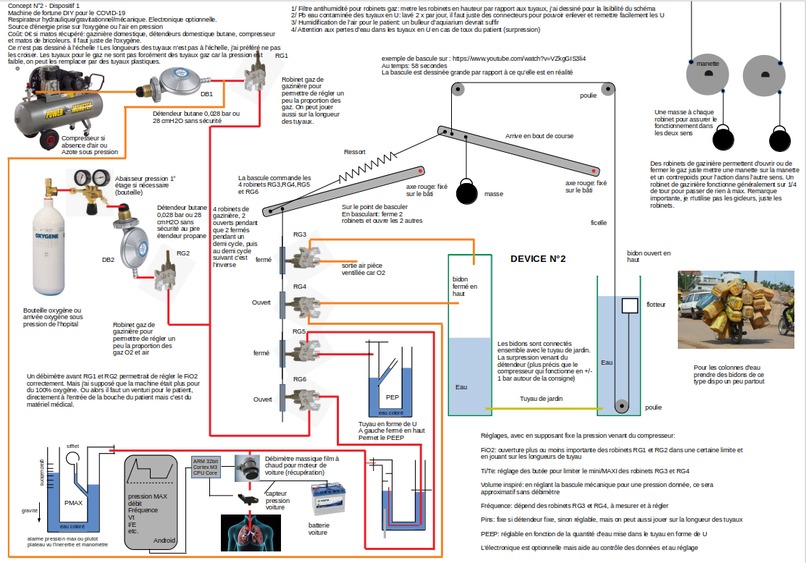

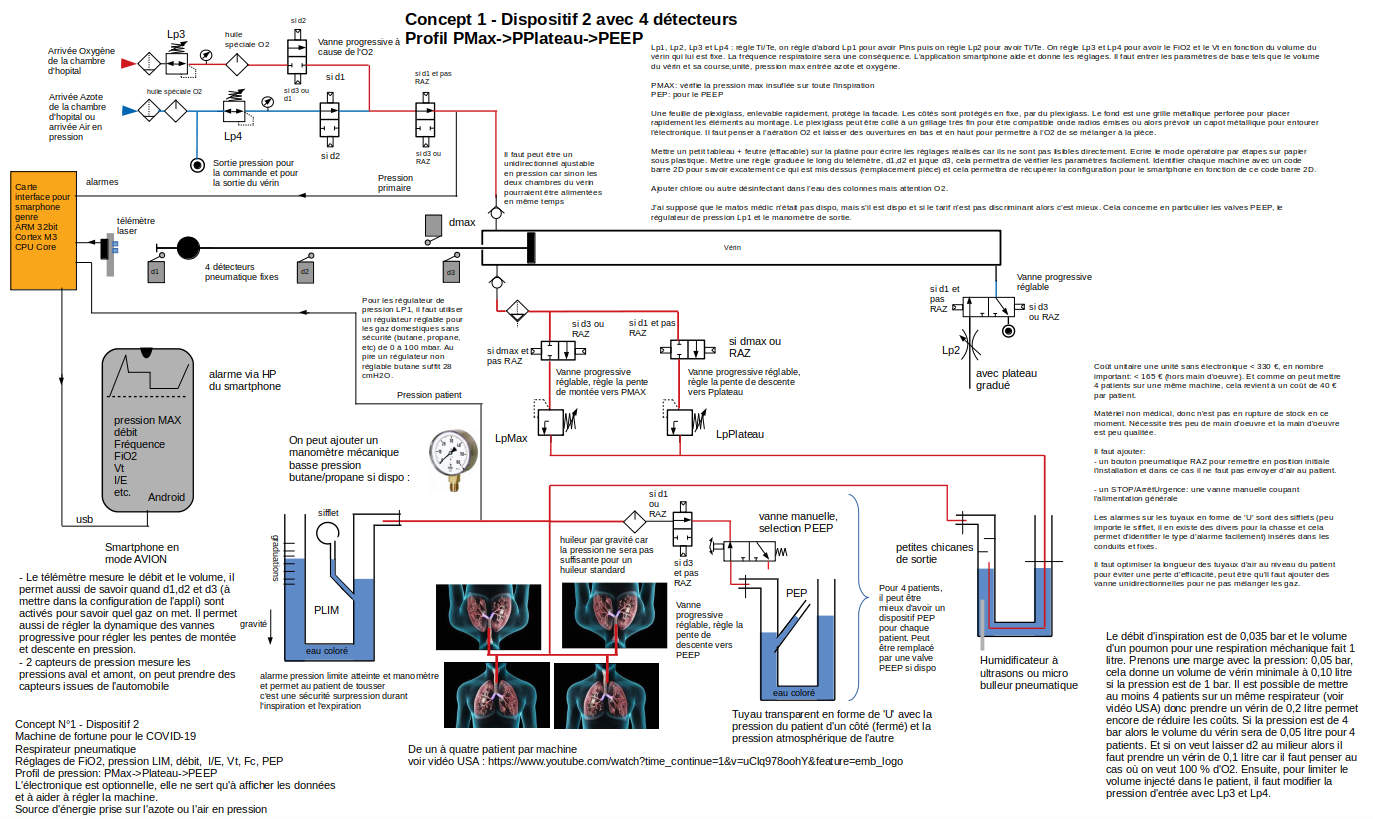

  Pneumatic 2

•

  Cost 0 for poor countries

•

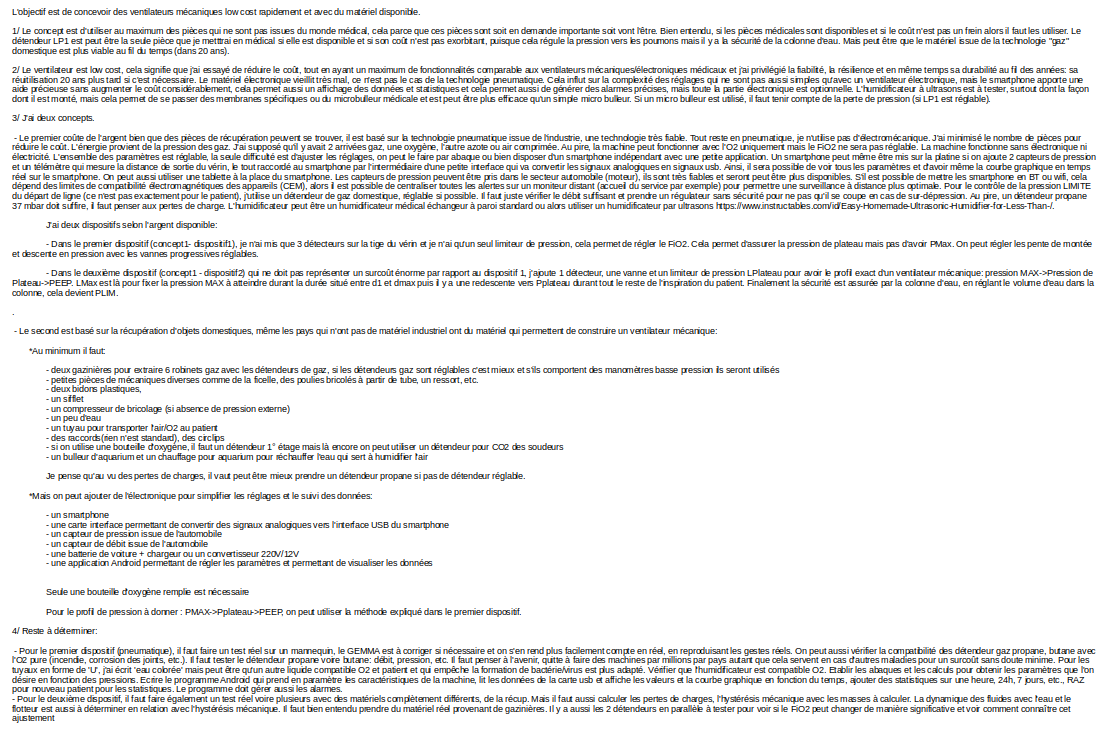

  Explications

•

  Pneumatic 1

•

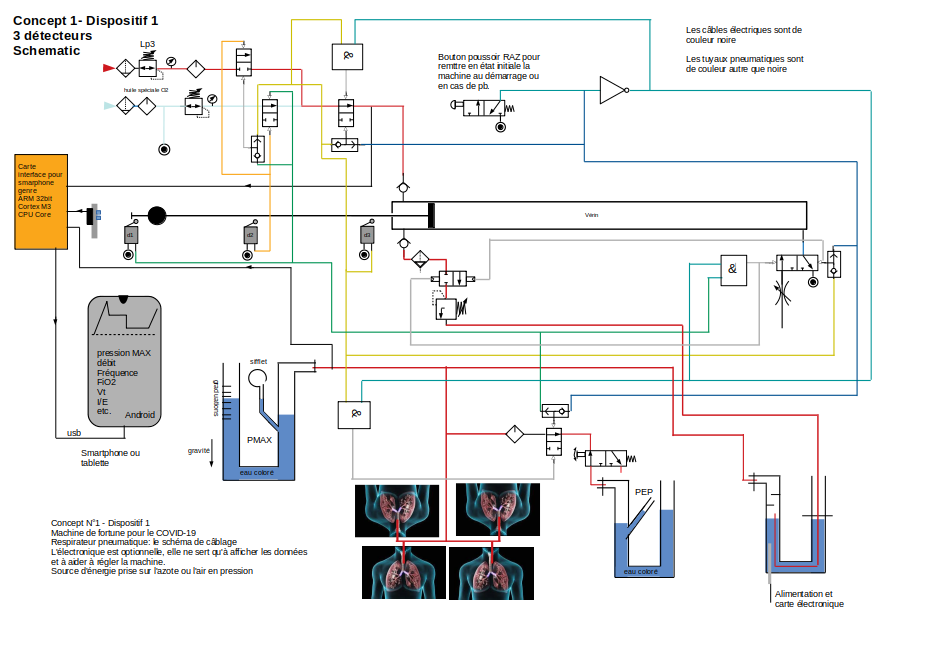

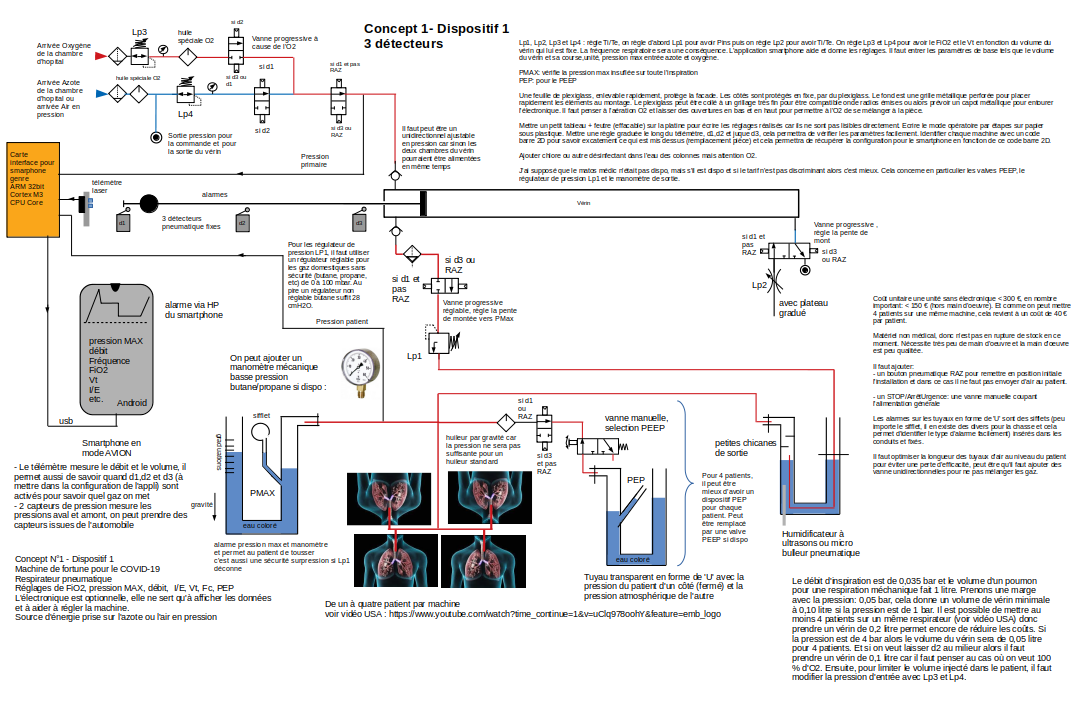

  Pneumatic 1 schéma

Inspiration

Help people

What it does

Allows people to breath

How I design it

With pneumatic parts or DIY parts

Challenges I ran into

Find parts outside the medical and available at home for the DIY device

Accomplishments that I'm proud of

Do it in 2 weeks and find a 0 cost device

What I learned

Medical mechanical ventilator concept

What's next for HELP

Validate, simulate, give the parameters

Help needed:

1/ Simulate the first device (pneumatic parts) with human lungs model and with true pneumatic parts.

2/ Calculate the parameters of the 2nd concept (DIY) and give an Excel (or other format) file to allow people to build easily the device, people can enter some parameters of parts they have (because it is another country, with second parts, etc.) and the Excel file give the size, force of the spring, etc.

3/ Create the App on Android to read the data from usb, to take the parameters of the device, draw the profile of pressure in real time, display the data, save statistics.

4/ Simulate the possibility of place 2 pressure regulator of gases in parallel and see how it is possible to adjust the level of O2. It is not a priority because the device can work with 100% of O2 but it could help.

5/ Choose the best parts for the electronic interface, the best availability.

6/ Test the devices in a labs with labs sensors.

Built With

• android
• electronics
• fluid
• labs
• physics
• pneumatic
