PodsControlMac

Cursor control, hands-free scrolling, on-device dictation, and more for macOS using your AirPods / Beats

PodsControlMac (codename HeadFlow) started as a project to help a close friend living with fibromyalgia, with the goal of improving accessibility and reducing the sense of alienation while using a MacBook.

As development progressed, it became clear that the use case extended far beyond a single individual.

This project is designed to support people affected by conditions such as:

Fibromyalgia
Parkinson’s disease
Paralysis from the neck down (tetraplegia / quadriplegia)
Chronic fatigue syndrome
Motor coordination disorders
Carpal tunnel syndrome

PodsControlMac helps users interact with macOS in a more natural, hands-free, and accessible way.

Problems

What it does

PodsControlMac is a macOS accessibility and utility application that converts spatial head-movement data from AirPods or compatible Apple headphones into system-wide input.

Users can:

Control the mouse cursor using head movements
Scroll and read content hands-free
Use on-device, offline dictation for text input
Perform actions using head-based gesture movements
Trigger keyboard shortcuts without touching the keyboard or trackpad
Follow an integrated tutorial video with chapters for first-time users

Built using Core Motion, CGEvent, and SwiftUI, the app is designed to feel:

✨ Natural • 🔒 Safe • 🧠 Smart about when to get out of your way

Solution

Demo Scenarios
Feature Overview
System Requirements
Architecture Overview
Motion Pipeline
Safety & Pause Logic
Per-App Profiles
Cursor Mode
Gestures & Shortcuts
Dictation & Voice Commands
Preferences App
Key Code Components
Building & Running
Future Ideas

Building & Running

Download App from the Drive Link

_ Or _

Clone / open project

   git clone <this-repo-url>
   cd PodsControlMac
   open PodsControlMac.xcodeproj   # or .xcworkspace if using SwiftPM/CocoaPods

Open in Xcode and select the PodsControlMac app target.
Signing & Capabilities

Set your Team and bundle identifier.
Ensure capabilities for:
- Motion / Health (for CMHeadphoneMotionManager)
- Hardened runtime (if applicable)

Build & Run

Run the app on your local Mac.

Grant Permissions on first run

When prompted:
- Enable Accessibility for PodsControlMac in System Settings → Privacy & Security → Accessibility
- Allow Motion & Fitness access for head tracking
- Accept any prompts for input monitoring (if shown)

Connect headphones & start

Put on compatible AirPods / Beats
Ensure they show as your audio output device
Open PodsControlMac from the menu bar
Use the global shortcut to start/stop PodsControlMac, or toggle from the UI
Use the calibrate shortcut to set your neutral head position
- How much manual scrolling vs head scrolling you’re doing
- Which apps you use PodsControlMac with the most

Demo Scenarios

1. Long article / PDF reading

Put on your AirPods / compatible headphones
Open Safari or your PDF reader
Switch to Auto-read mode
Slightly tilt your head down ➝ the page auto-scrolls at a readable pace
Straighten your head ➝ scrolling eases to a stop
Start typing ➝ head scrolling pauses automatically so it never fights you

2. One-handed browsing / coding

Switch to Continuous mode
Lean your head back/forward to scroll up/down
Move your mouse or trackpad ➝ PodsControlMac detects pointer activity and backs off
Use a global shortcut (e.g. ⇧⌘H) to temporarily toggle PodsControlMac without touching the menu bar

3. Full cursor control with head movements

Switch to Cursor mode
Turn your head left/right ➝ cursor moves horizontally
Tilt your head up/down ➝ cursor moves vertically
Turn your head past a configurable angle while holding modifiers ➝ single or double click
Add extra modifier(s) ➝ same motion performs a drag

Example:

Click = ⌘ (Command)
Drag = ⌘ + ⌃ (Command + Control)

Turn head right while holding ⌘ to click, then hold ⌘+⌃ and turn again to drag.

Feature Overview

Motion Modes

Continuous Scroll
- Scroll speed scales proportionally with head tilt
- Smooth acceleration & damping using exponential smoothing
- Configurable:
- Scroll sensitivity (0–100)
- Max lines at full tilt (0–500)
- Dead zone (°)
- Max tilt (°) for full speed
- Acceleration & damping factors
Auto-read (Teleprompter)
- Slight downward tilt starts slow, steady downward scroll
- Always scrolls down; straightening your head smoothly decelerates to zero
- Lower max speed and more forgiving timing than continuous mode
Cursor Mode
- Yaw (turning left/right) → horizontal pointer movement
- Pitch (up/down) → vertical pointer movement
- Head turning beyond thresholds (with modifiers) triggers:
- Single click
- Double click
- Click-and-drag via extra modifiers
- Tunable:
- Pointer speed
- Pointer dead zone
- Pointer smoothing
- Single/double click yaw angle
- Click cooldown
- Modifier combinations for click & drag

Safety & “Don’t Fight Me” Features

PodsControlMac constantly asks: “Is now a good time to move the page?”

It automatically pauses for:

Mouse / trackpad movement (PointerActivityMonitor)
Typing (TypingActivityMonitor)
Manual scrolling (scroll wheel events from real hardware, not PodsControlMac)
Dictation (optional)
Shift clutch – hold ⇧ to temporarily suspend head scrolling
When its own Preferences window is frontmost (UI pause, no live updates)

Each safety feature is individually configurable in Preferences.

Per-App Profiles

Different apps need different behaviour. PodsControlMac lets you create per-app profiles:

Enable/disable PodsControlMac in specific apps
Per-app overrides for:
- Scroll sensitivity
- Max lines at full tilt
- Dead zone
- Max tilt
- Scroll Mode (Continuous / Auto-read / Cursor)

Profiles are managed via ProfileManager and stored in UserDefaults.

Gestures & Shortcuts

You can bind head tilt gestures to system actions:

Gestures (detected via ROLL + YAW):
- Tilt left
- Tilt right
Bindable actions:
- PodsControlMac actions (e.g. toggle, calibrate, change mode)
- Standard macOS shortcuts (Cmd+C, Cmd+V, etc.)
- Your own custom shortcut bank (any key + modifiers)

Global keyboard shortcuts (works system-wide):

Toggle PodsControlMac on/off
Create profile for current app
Open Preferences
Calibrate head position
Cycle modes (Continuous / Auto-read / Cursor)
Toggle dictation HUD
Toggle dictation mic

All are customizable from the Shortcuts tab with a pill-style shortcut recorder.

Dictation & Voice Commands

PodsControlMac can be paired with dictation (SFSpeechRecognizer API) to reduce keyboard usage:

Optional: Pause PodsControlMac while dictating
Optional: Auto-commit dictated text after X seconds of silence
Custom dictation commands:
- “When I say: new paragraph → type: \n\n”
- “When I say: wrap this → type: {{ $SELECTION }}” (conceptually)

Configured via a lightweight list of DictationCommand objects, exposed in Preferences as:

Trigger phrase
Replacement text

Licensing / Trial

While the full implementation details are in AccessGate, conceptually:

Trial mode with limited usage / time
One-time unlock for full access
Preferences include a License tab and a TrialStatusBanner at the top

The runtime checks AccessGate.hasFullAccess inside MotionEngine. If the trial is over and not unlocked, motion events are simply ignored.

System Requirements

macOS 14.0 (Sonoma) or later
(@available(macOS 14.0, *) on MotionEngine)
AirPods / Beats with head tracking (via CMHeadphoneMotionManager)
Xcode 15+ to build
Permissions:
- Accessibility (to send scroll & mouse events)
- Motion & Fitness (for CMHeadphoneMotionManager)
- Possibly Input Monitoring (for global key/mouse monitors, depending on OS dialog behavior)

Architecture Overview

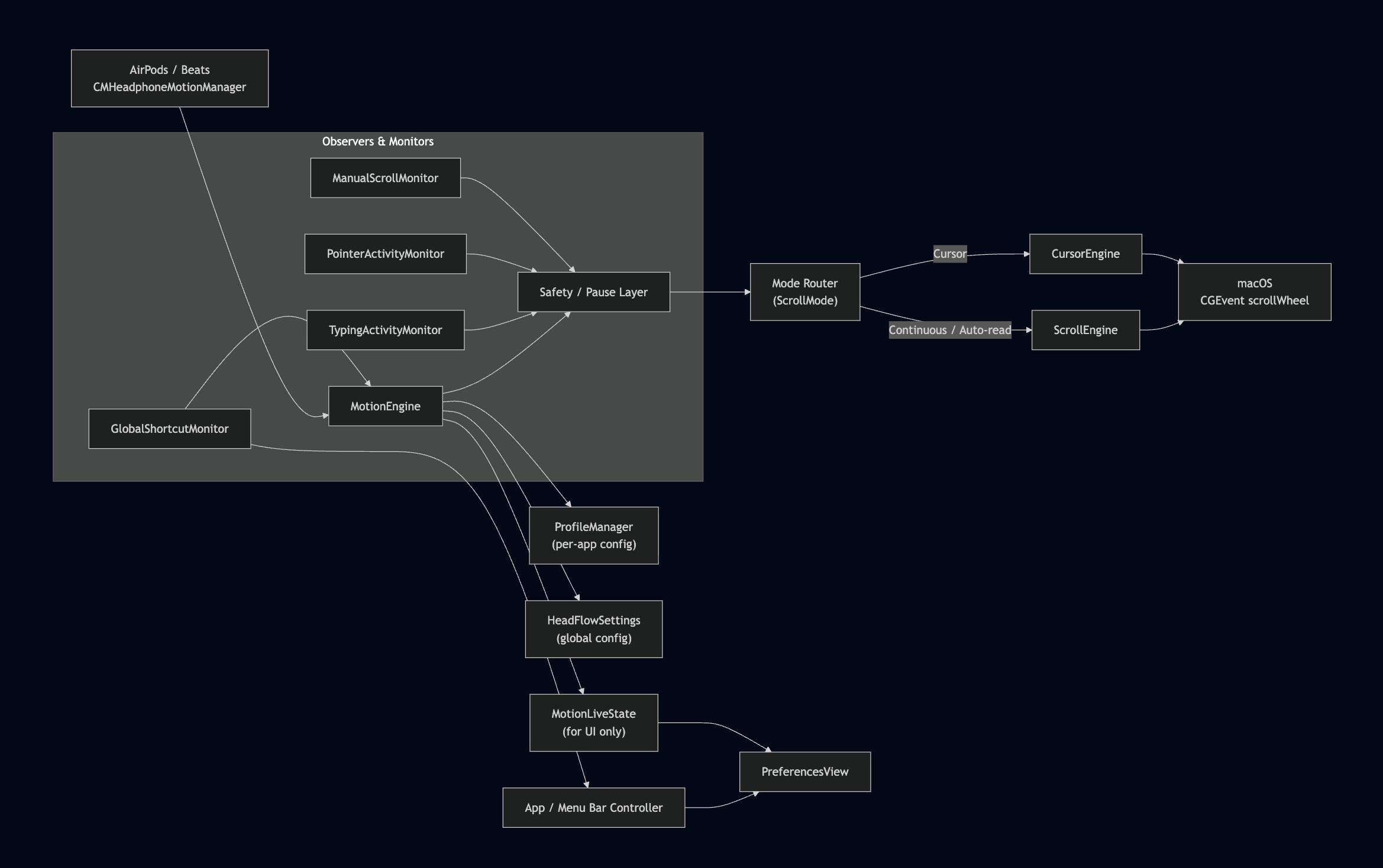

High-Level Architecture

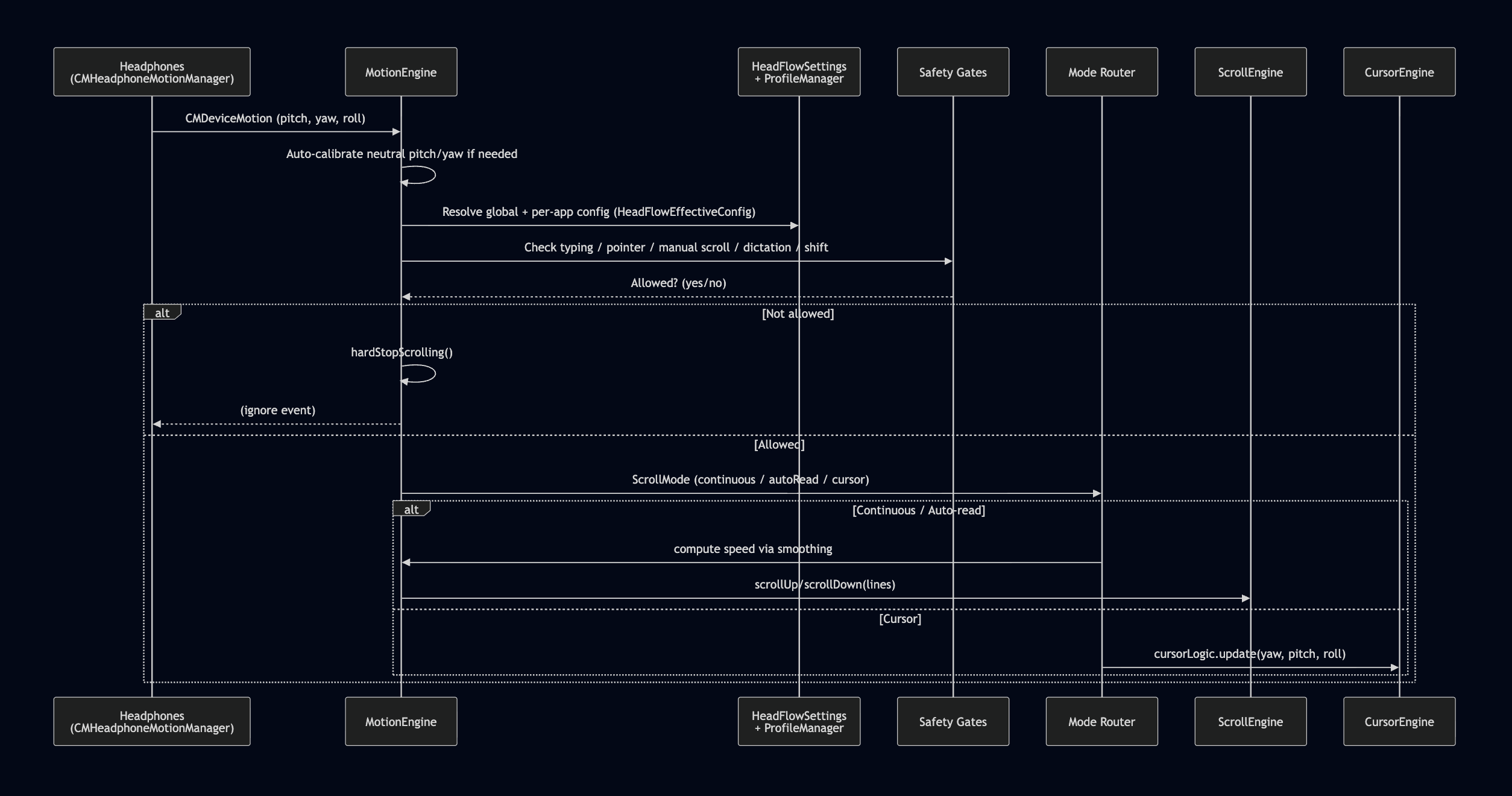

Motion Pipeline

From Head Tilt to Scroll/Cursor

Smoothing & Telemetry

For scrolling modes, motion is mapped to velocity (lines/sec):

Compute delta = current pitch − neutral pitch
Apply dead zone and max tilt
Map to [−1, 1] factor and [0, 1] magnitude
Compute max speed = baseLines * speedMultiplier
Use exponential smoothing with different tauUp / tauDown for acceleration vs braking:

   let accelerating = abs(targetSpeed) > abs(continuousCurrentSpeed)
   let tau = accelerating ? tauUp : tauDown
   let alpha = 1.0 - exp(-dt / tau)
   continuousCurrentSpeed += (targetSpeed - continuousCurrentSpeed) * alpha

Integrate speed over dt to accumulate lines and send integer scroll events.

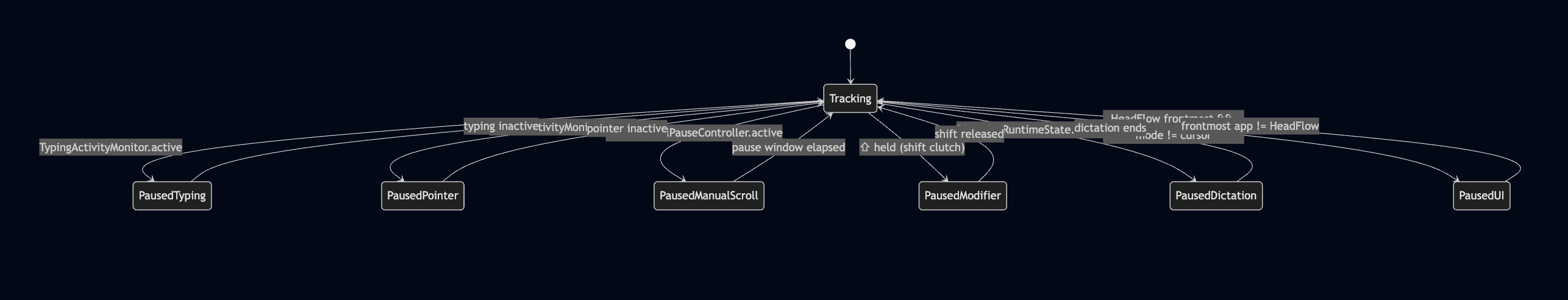

Safety & Pause Logic

Pause Conditions

Each pause state is reflected in MotionLiveState.Status:

.idle
.tracking
.disconnected
.needsSetup
.pausedPointer
.pausedTyping
.pausedModifier
.pausedManualScroll
.pausedDictation

These are shown in the Preferences UI (and were partially trimmed to keep CPU usage low when the app is frontmost).

Per-App Profiles

Managed by ProfileManager and AppProfile:

struct AppProfile: Identifiable, Codable, Hashable {
    var id: UUID
    var bundleIdentifier: String
    var appName: String

    var isEnabled: Bool
    var scrollSensitivity: Double
    var baseLines: Double
    var deadZoneDegrees: Double
    var maxTiltDegrees: Double
    var scrollModeRaw: Int
}

Global vs Effective Config

struct HeadFlowEffectiveConfig {
    var isEnabled: Bool
    var scrollSensitivity: Double
    var baseLines: Int32
    var deadZoneDegrees: Double
    var maxTiltDegrees: Double
    var scrollMode: ScrollMode
}

Resolution logic:

If there is an AppProfile matching the current frontmost bundle ID:
- Use its values (clamped to safe ranges)
Otherwise:
- Use global HeadFlowSettings values

This lets you tune:

Safari → gentle auto-read
VSCode → snappy continuous scroll
Figma → cursor mode only

…without manually toggling modes each time.

Cursor Mode

Cursor mode is powered by:

CursorLogic – interprets yaw/pitch/roll into desired cursor deltas + click/drag events
CursorEngine – synthesizes mouse movement & clicks via CoreGraphics

Key concepts:

Yaw delta (turning left/right around neutral yaw):
- Controls X movement
Pitch delta (tilting up/down around neutral pitch):
- Controls Y movement
Dead zone:
- Small head movements are ignored so the cursor doesn’t jitter
Smoothing:
- Head data is filtered before being turned into cursor deltas, for a less “nervous” pointer
Click gestures:
- Turn beyond singleClickYawDeg with the configured click modifiers to click
- Turn beyond doubleClickYawDeg for double-click
- Add extra drag modifiers to start a drag operation

Gestures & Shortcuts

Gesture Detection

Implemented in MotionEngine.detectGestures:

Uses ROLL and YAW:
- Roll → tilt toward shoulders
- Yaw → turning left/right
Normalizes roll to [−180°, 180°]
Combines yaw into roll to better reflect real-world head movements:

  let combinedTiltRight = rollDeg + (yawDeg > 0 ? yawDeg * 0.3 : 0)
  let combinedTiltLeft  = rollDeg - (yawDeg < 0 ? abs(yawDeg) * 0.3 : 0)

Applies:
- Threshold (°)
- 85% hysteresis (for clean edge detection)
- Per-gesture cooldown
Emits .tiltLeft / .tiltRight to GestureDispatcher with a GestureContext:
- .headFlowOn
- .headFlowOff

Gesture Settings in Preferences

Tilt threshold slider (degrees)
Cooldown slider (seconds)
For “HeadFlow ON” and “HeadFlow OFF” separately:
- Pickers to map tilt left/right → GestureAction:
- None
- HeadFlow action
- Standard macOS shortcut
- Custom shortcut

Custom Shortcut Bank

User-defined CustomShortcut entries:

Name (“Copy & Close Tab”)
KeyboardShortcut (e.g. ⌘+⌥+W)

These can be reused across gestures for readable configurations like:

“When HeadFlow is OFF and I tilt right, fire: Custom – Center Mouse”

Dictation & Voice Commands

Dictation integration (high-level):

DictationRuntimeState.shared.isDictating informs pause logic
Settings:
- dictationPausesHeadFlow
- dictationAutoCommitEnabled
- dictationAutoCommitDelaySeconds
Custom DictationCommand rows in Preferences:
- Trigger phrase (“new line”)
- Replacement text (\n)

These can be used to automate small text patterns via voice.

Preferences App

The Preferences UI (PreferencesView) is a modern SwiftUI interface with tabs:

Overview
- System status: Motion permission, Accessibility status
- Quick buttons: “Refresh Status”, “System Settings…”
- Trial / license banner
Scrolling
- Enable head scrolling
- Scroll sensitivity & base lines
- Cursor Control section:
- Pointer speed, dead zone, smoothing
- Single / double click yaw angle
- Click cooldown
- Modifier picker for click & drag
- Scroll Mode (Continuous / Auto-read / Cursor)
- Safety & Pausing toggles:
- Pause while mouse moving
- Pause while typing
- Hold ⇧ to disable
- Pause while dictating
- Pause when scrolling manually (+ pause duration slider)
- Dictation settings & voice commands
Gestures
- Tilt threshold & cooldown
- When HeadFlow is ON: tilt left/right → actions
- When HeadFlow is OFF: tilt left/right → actions
- Custom shortcuts bank
Apps
- Explanation of per-app profiles
- List of AppProfile cards:
- Enable in this app
- Per-app scroll sensitivity, base lines, scroll mode
- Delete profile button
Advanced
- Dead zone
- Max tilt for full speed
- Acceleration factor
- Damping factor
Shortcuts
- Global shortcuts for:
- Start/Stop HeadFlow
- Create profile for current app
- Open preferences
- Calibrate head position
- Cycle scroll mode
- Toggle dictation HUD
- Toggle dictation mic
- Each uses a ShortcutRecorderButton pill:
- Click to record
- Press Esc to clear
- Tips card about recording shortcuts
License
- Trial status, purchase options, restore purchases, etc. (Implemented via PurchaseManager, LicenseSectionView, AccessGate.)

Mode changes display a macOS HUD-style overlay (ModeNotificationUtil + ModeHUDWindow) with:

SF Symbol icon (scroll, book, cursor)
Mode name (“Continuous Scroll”, “Auto Read”, “Cursor Control”)
Blur background, rounded corners, fade in/out

Key Code Components

Motion & Input
- MotionEngine – core logic for motion → scroll/cursor
- CursorLogic – interprets yaw/pitch/roll into cursor deltas & click/drag
- CursorEngine – sends CGEvent mouse moves/clicks
- ScrollEngine – sends CGEvent scrollWheel events
Config & State
- HeadFlowSettings – global settings & @AppStorage keys
- ProfileManager / AppProfile / HeadFlowEffectiveConfig – per-app profiles
- HeadFlowStatus – global status (permissions, headphones, etc.)
- HeadphoneDeviceState – connection & name info
- MotionLiveState – live telemetry for the UI
Monitors
- TypingActivityMonitor – global keyDown activity
- PointerActivityMonitor – mouse moved / dragged
- ManualScrollMonitor – CGEvent tap for real scroll wheel events
- ManualScrollPauseController – small time window after manual scroll
- GlobalShortcutMonitor – global keyboard shortcuts
Gestures & Dictation
- GestureType, GestureAction, GestureContext, GestureDispatcher
- GestureSettings, GestureMapping, CustomShortcut
- DictationRuntimeState, DictationCommand
UI
- PreferencesView & section subviews
- ShortcutRecorderButton, ShortcutRecorderField
- CursorModifierPicker
- LicenseSectionView, TrialStatusBanner
- ModeNotificationUtil, ModeHUDWindow, ModeHUDView

Future Ideas

Expand gesture library with nod, shake, double-nod for undo/redo, tab switching, zoom, or triggers
Add hybrid eye-tracking + head motion mode for precise cursor + gross scrolling (via future Continuity APIs)
Implement intelligent auto-switching of scroll modes based on window title, UI element, or app context
Enable voice + head combo commands (e.g., “scroll faster” while tilting to boost sensitivity temporarily)
Integrate deeper with Switch Control and VoiceOver for rotor navigation and spoken text triggers
Support multiple user calibration profiles for shared Macs or different seating postures
Add gentle fatigue/posture reminders and optional head-movement logging for ergonomics review
Sync profiles, gestures, shortcuts, and calibration data via iCloud across Macs

Build for Orygn AI Hackathon 2026 by - Aaditya Srivastava — macOS architecture, motion engine, cursor logic, UI/UX, safety systems, demo

Built With

airpods
appkit
macos
swift
swiftui

PodsControlMac - Control your Mac with Airpods

PodsControlMac

Cursor control, hands-free scrolling, on-device dictation, and more for macOS using your AirPods / Beats

What it does

Table of Contents

Building & Running

Demo Scenarios

1. Long article / PDF reading

2. One-handed browsing / coding

3. Full cursor control with head movements

Feature Overview

Motion Modes

Safety & “Don’t Fight Me” Features

Per-App Profiles

Gestures & Shortcuts

Dictation & Voice Commands

Licensing / Trial

System Requirements

Architecture Overview

High-Level Architecture

Motion Pipeline

From Head Tilt to Scroll/Cursor

Smoothing & Telemetry

Safety & Pause Logic

Pause Conditions

Per-App Profiles

Global vs Effective Config

Cursor Mode

Gestures & Shortcuts

Gesture Detection

Gesture Settings in Preferences

Custom Shortcut Bank

Dictation & Voice Commands

Preferences App

Key Code Components

Future Ideas

Built With

Updates
