PodsControlMac

Cursor control, hands-free scrolling, on-device dictation, and more for macOS using your AirPods / Beats

PodsControlMac (codename HeadFlow) started as a project to help a close friend living with fibromyalgia, with the goal of improving accessibility and reducing the sense of alienation while using a MacBook.

As development progressed, it became clear that the use case extended far beyond a single individual.

This project is designed to support people affected by conditions such as:

  • Fibromyalgia
  • Parkinson’s disease
  • Paralysis from the neck down (tetraplegia / quadriplegia)
  • Chronic fatigue syndrome
  • Motor coordination disorders
  • Carpal tunnel syndrome

PodsControlMac helps users interact with macOS in a more natural, hands-free, and accessible way.

Problems

What it does

PodsControlMac is a macOS accessibility and utility application that converts spatial head-movement data from AirPods or compatible Apple headphones into system-wide input.

Users can:

  1. Control the mouse cursor using head movements
  2. Scroll and read content hands-free
  3. Use on-device, offline dictation for text input
  4. Perform actions using head-based gesture movements
  5. Trigger keyboard shortcuts without touching the keyboard or trackpad
  6. Follow an integrated tutorial video with chapters for first-time users

Built using Core Motion, CGEvent, and SwiftUI, the app is designed to feel:

✨ Natural • 🔒 Safe • 🧠 Smart about when to get out of your way

Solution

Table of Contents

  1. Demo Scenarios
  2. Feature Overview
  3. System Requirements
  4. Architecture Overview
  5. Motion Pipeline
  6. Safety & Pause Logic
  7. Per-App Profiles
  8. Cursor Mode
  9. Gestures & Shortcuts
  10. Dictation & Voice Commands
  11. Preferences App
  12. Key Code Components
  13. Building & Running
  14. Future Ideas

Building & Running

Download App from the Drive Link

_ Or _

  1. Clone / open project
   git clone <this-repo-url>
   cd PodsControlMac
   open PodsControlMac.xcodeproj   # or .xcworkspace if using SwiftPM/CocoaPods

  1. Open in Xcode and select the PodsControlMac app target.

  2. Signing & Capabilities

  • Set your Team and bundle identifier.

  • Ensure capabilities for:

    • Motion / Health (for CMHeadphoneMotionManager)
    • Hardened runtime (if applicable)
  1. Build & Run
  • Run the app on your local Mac.
  1. Grant Permissions on first run

  • When prompted:

    • Enable Accessibility for PodsControlMac in System Settings → Privacy & Security → Accessibility
    • Allow Motion & Fitness access for head tracking
    • Accept any prompts for input monitoring (if shown)
  1. Connect headphones & start
  • Put on compatible AirPods / Beats
  • Ensure they show as your audio output device
  • Open PodsControlMac from the menu bar
  • Use the global shortcut to start/stop PodsControlMac, or toggle from the UI
  • Use the calibrate shortcut to set your neutral head position
    • How much manual scrolling vs head scrolling you’re doing
    • Which apps you use PodsControlMac with the most

Demo Scenarios

1. Long article / PDF reading

  1. Put on your AirPods / compatible headphones
  2. Open Safari or your PDF reader
  3. Switch to Auto-read mode
  4. Slightly tilt your head down ➝ the page auto-scrolls at a readable pace
  5. Straighten your head ➝ scrolling eases to a stop
  6. Start typing ➝ head scrolling pauses automatically so it never fights you

2. One-handed browsing / coding

  1. Switch to Continuous mode
  2. Lean your head back/forward to scroll up/down
  3. Move your mouse or trackpad ➝ PodsControlMac detects pointer activity and backs off
  4. Use a global shortcut (e.g. ⇧⌘H) to temporarily toggle PodsControlMac without touching the menu bar

3. Full cursor control with head movements

  1. Switch to Cursor mode
  2. Turn your head left/right ➝ cursor moves horizontally
  3. Tilt your head up/down ➝ cursor moves vertically
  4. Turn your head past a configurable angle while holding modifiers ➝ single or double click
  5. Add extra modifier(s) ➝ same motion performs a drag

Example:

  • Click = ⌘ (Command)
  • Drag = ⌘ + ⌃ (Command + Control)

Turn head right while holding ⌘ to click, then hold ⌘+⌃ and turn again to drag.

Feature Overview

Motion Modes

  • Continuous Scroll

    • Scroll speed scales proportionally with head tilt
    • Smooth acceleration & damping using exponential smoothing
    • Configurable:
    • Scroll sensitivity (0–100)
    • Max lines at full tilt (0–500)
    • Dead zone (°)
    • Max tilt (°) for full speed
    • Acceleration & damping factors

  • Auto-read (Teleprompter)

    • Slight downward tilt starts slow, steady downward scroll
    • Always scrolls down; straightening your head smoothly decelerates to zero
    • Lower max speed and more forgiving timing than continuous mode

  • Cursor Mode

    • Yaw (turning left/right) → horizontal pointer movement
    • Pitch (up/down) → vertical pointer movement
    • Head turning beyond thresholds (with modifiers) triggers:
    • Single click
    • Double click
    • Click-and-drag via extra modifiers
    • Tunable:
    • Pointer speed
    • Pointer dead zone
    • Pointer smoothing
    • Single/double click yaw angle
    • Click cooldown
    • Modifier combinations for click & drag

Safety & “Don’t Fight Me” Features

PodsControlMac constantly asks: “Is now a good time to move the page?”

It automatically pauses for:

  • Mouse / trackpad movement (PointerActivityMonitor)
  • Typing (TypingActivityMonitor)
  • Manual scrolling (scroll wheel events from real hardware, not PodsControlMac)
  • Dictation (optional)
  • Shift clutch – hold ⇧ to temporarily suspend head scrolling
  • When its own Preferences window is frontmost (UI pause, no live updates)

Each safety feature is individually configurable in Preferences.

Per-App Profiles

Different apps need different behaviour. PodsControlMac lets you create per-app profiles:

  • Enable/disable PodsControlMac in specific apps
  • Per-app overrides for:
    • Scroll sensitivity
    • Max lines at full tilt
    • Dead zone
    • Max tilt
    • Scroll Mode (Continuous / Auto-read / Cursor)

Profiles are managed via ProfileManager and stored in UserDefaults.

Gestures & Shortcuts

You can bind head tilt gestures to system actions:

  • Gestures (detected via ROLL + YAW):
    • Tilt left
    • Tilt right
  • Bindable actions:
    • PodsControlMac actions (e.g. toggle, calibrate, change mode)
    • Standard macOS shortcuts (Cmd+C, Cmd+V, etc.)
    • Your own custom shortcut bank (any key + modifiers)

Global keyboard shortcuts (works system-wide):

  • Toggle PodsControlMac on/off
  • Create profile for current app
  • Open Preferences
  • Calibrate head position
  • Cycle modes (Continuous / Auto-read / Cursor)
  • Toggle dictation HUD
  • Toggle dictation mic

All are customizable from the Shortcuts tab with a pill-style shortcut recorder.

Dictation & Voice Commands

PodsControlMac can be paired with dictation (SFSpeechRecognizer API) to reduce keyboard usage:

  • Optional: Pause PodsControlMac while dictating
  • Optional: Auto-commit dictated text after X seconds of silence
  • Custom dictation commands:
    • “When I say: new paragraph → type: \n\n”
    • “When I say: wrap this → type: {{ $SELECTION }}” (conceptually)

Configured via a lightweight list of DictationCommand objects, exposed in Preferences as:

  • Trigger phrase
  • Replacement text

Licensing / Trial

While the full implementation details are in AccessGate, conceptually:

  • Trial mode with limited usage / time
  • One-time unlock for full access
  • Preferences include a License tab and a TrialStatusBanner at the top

The runtime checks AccessGate.hasFullAccess inside MotionEngine. If the trial is over and not unlocked, motion events are simply ignored.

System Requirements

  • macOS 14.0 (Sonoma) or later
    (@available(macOS 14.0, *) on MotionEngine)
  • AirPods / Beats with head tracking (via CMHeadphoneMotionManager)
  • Xcode 15+ to build
  • Permissions:
    • Accessibility (to send scroll & mouse events)
    • Motion & Fitness (for CMHeadphoneMotionManager)
    • Possibly Input Monitoring (for global key/mouse monitors, depending on OS dialog behavior)

Architecture Overview

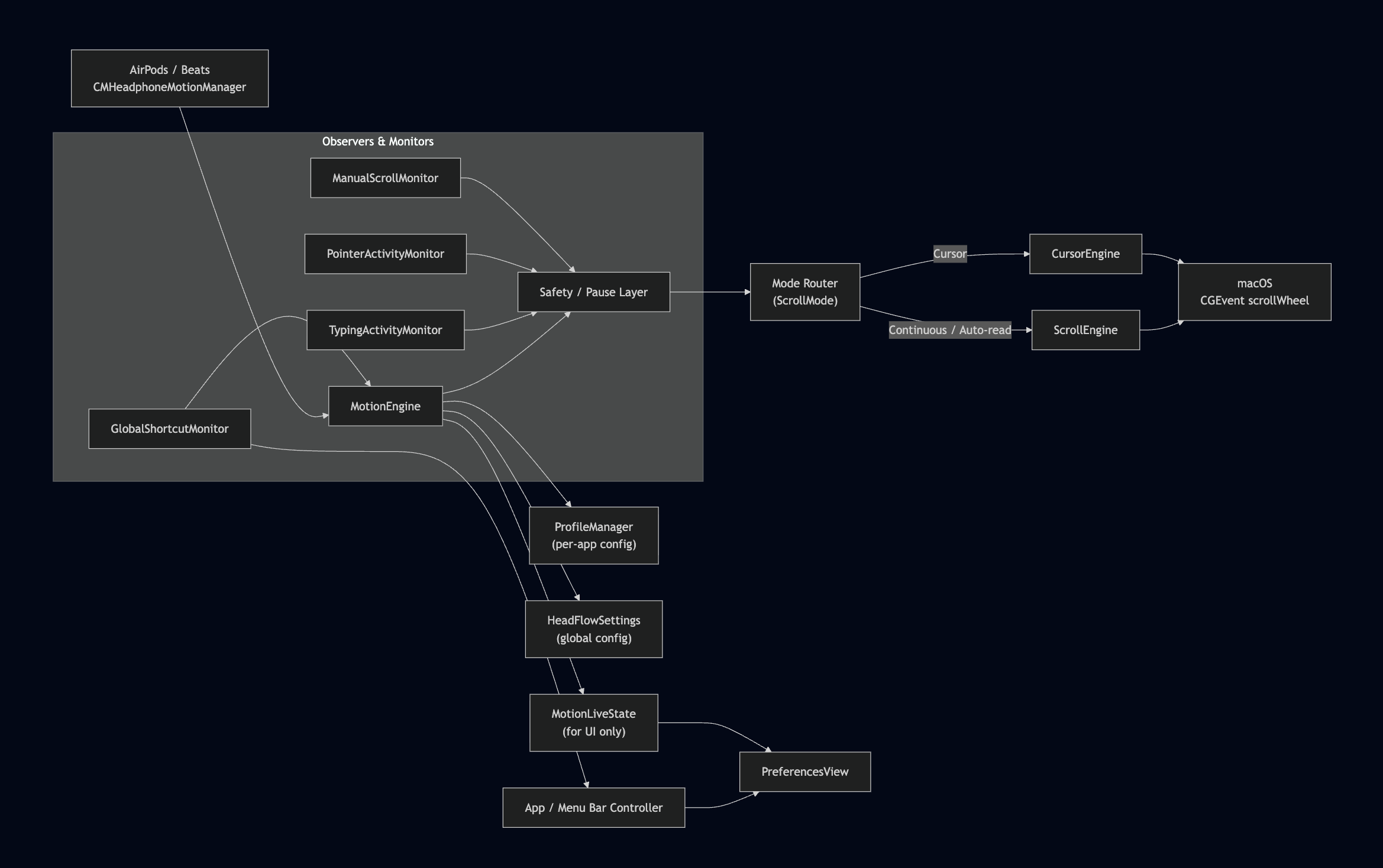

High-Level Architecture

High-Level Architecture

Motion Pipeline

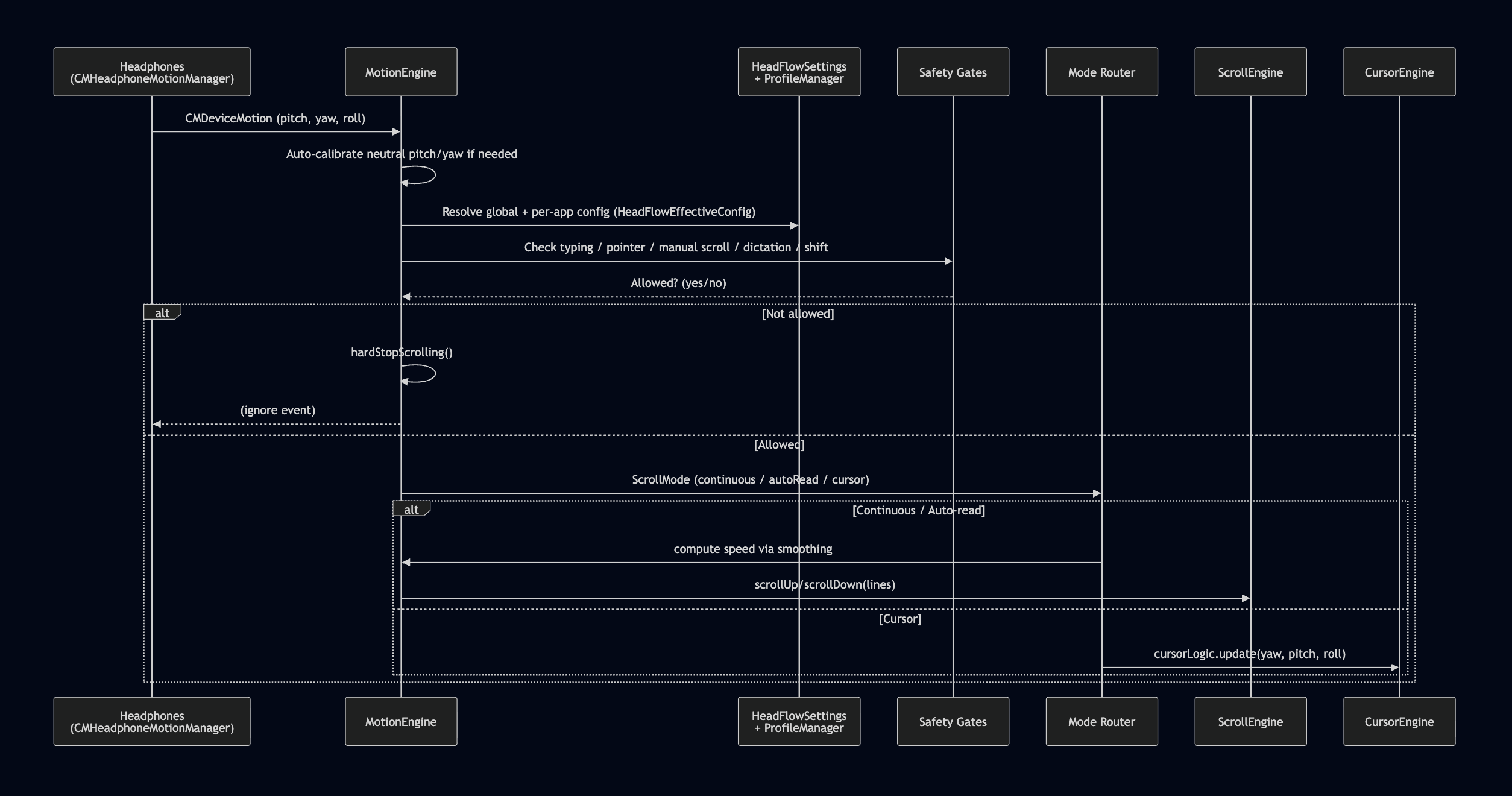

From Head Tilt to Scroll/Cursor

From Head Tilt to Scroll/Cursor

Smoothing & Telemetry

For scrolling modes, motion is mapped to velocity (lines/sec):

  1. Compute delta = current pitch − neutral pitch
  2. Apply dead zone and max tilt
  3. Map to [−1, 1] factor and [0, 1] magnitude
  4. Compute max speed = baseLines * speedMultiplier
  5. Use exponential smoothing with different tauUp / tauDown for acceleration vs braking:
   let accelerating = abs(targetSpeed) > abs(continuousCurrentSpeed)
   let tau = accelerating ? tauUp : tauDown
   let alpha = 1.0 - exp(-dt / tau)
   continuousCurrentSpeed += (targetSpeed - continuousCurrentSpeed) * alpha
  1. Integrate speed over dt to accumulate lines and send integer scroll events.

Safety & Pause Logic

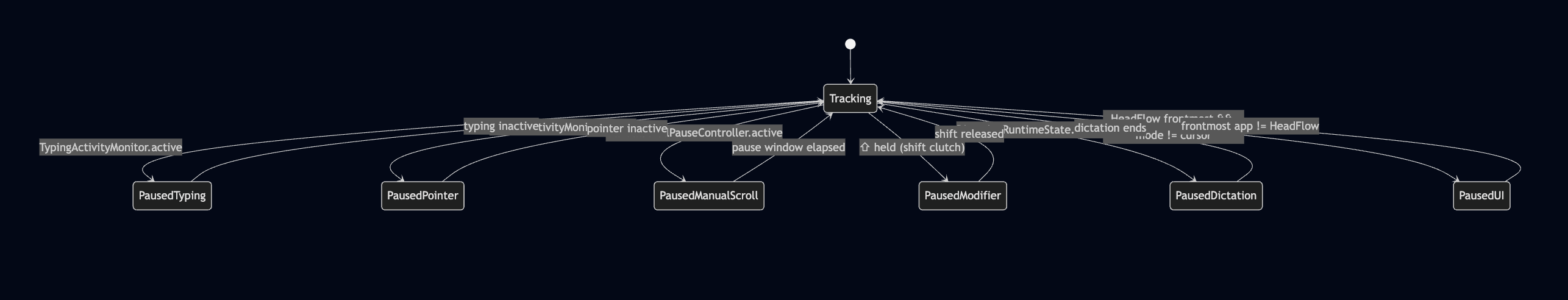

Pause Conditions

Pause Conditions

Each pause state is reflected in MotionLiveState.Status:

  • .idle
  • .tracking
  • .disconnected
  • .needsSetup
  • .pausedPointer
  • .pausedTyping
  • .pausedModifier
  • .pausedManualScroll
  • .pausedDictation

These are shown in the Preferences UI (and were partially trimmed to keep CPU usage low when the app is frontmost).

Per-App Profiles

Managed by ProfileManager and AppProfile:

struct AppProfile: Identifiable, Codable, Hashable {
    var id: UUID
    var bundleIdentifier: String
    var appName: String

    var isEnabled: Bool
    var scrollSensitivity: Double
    var baseLines: Double
    var deadZoneDegrees: Double
    var maxTiltDegrees: Double
    var scrollModeRaw: Int
}

Global vs Effective Config

struct HeadFlowEffectiveConfig {
    var isEnabled: Bool
    var scrollSensitivity: Double
    var baseLines: Int32
    var deadZoneDegrees: Double
    var maxTiltDegrees: Double
    var scrollMode: ScrollMode
}

Resolution logic:

  • If there is an AppProfile matching the current frontmost bundle ID:

    • Use its values (clamped to safe ranges)

  • Otherwise:

    • Use global HeadFlowSettings values

This lets you tune:

  • Safari → gentle auto-read
  • VSCode → snappy continuous scroll
  • Figma → cursor mode only

…without manually toggling modes each time.

Cursor Mode

Cursor mode is powered by:

  • CursorLogic – interprets yaw/pitch/roll into desired cursor deltas + click/drag events
  • CursorEngine – synthesizes mouse movement & clicks via CoreGraphics

Key concepts:

  • Yaw delta (turning left/right around neutral yaw):

    • Controls X movement

  • Pitch delta (tilting up/down around neutral pitch):

    • Controls Y movement

  • Dead zone:

    • Small head movements are ignored so the cursor doesn’t jitter

  • Smoothing:

    • Head data is filtered before being turned into cursor deltas, for a less “nervous” pointer

  • Click gestures:

    • Turn beyond singleClickYawDeg with the configured click modifiers to click
    • Turn beyond doubleClickYawDeg for double-click
    • Add extra drag modifiers to start a drag operation

Gestures & Shortcuts

Gesture Detection

Implemented in MotionEngine.detectGestures:

  • Uses ROLL and YAW:

    • Roll → tilt toward shoulders
    • Yaw → turning left/right

  • Normalizes roll to [−180°, 180°]

  • Combines yaw into roll to better reflect real-world head movements:

  let combinedTiltRight = rollDeg + (yawDeg > 0 ? yawDeg * 0.3 : 0)
  let combinedTiltLeft  = rollDeg - (yawDeg < 0 ? abs(yawDeg) * 0.3 : 0)

  • Applies:

    • Threshold (°)
    • 85% hysteresis (for clean edge detection)
    • Per-gesture cooldown

  • Emits .tiltLeft / .tiltRight to GestureDispatcher with a GestureContext:

    • .headFlowOn
    • .headFlowOff

Gesture Settings in Preferences

  • Tilt threshold slider (degrees)
  • Cooldown slider (seconds)

  • For “HeadFlow ON” and “HeadFlow OFF” separately:

    • Pickers to map tilt left/right → GestureAction:
    • None
    • HeadFlow action
    • Standard macOS shortcut
    • Custom shortcut

Custom Shortcut Bank

User-defined CustomShortcut entries:

  • Name (“Copy & Close Tab”)
  • KeyboardShortcut (e.g. ⌘+⌥+W)

These can be reused across gestures for readable configurations like:

“When HeadFlow is OFF and I tilt right, fire: Custom – Center Mouse”

Dictation & Voice Commands

Dictation integration (high-level):

  • DictationRuntimeState.shared.isDictating informs pause logic

  • Settings:

    • dictationPausesHeadFlow
    • dictationAutoCommitEnabled
    • dictationAutoCommitDelaySeconds

  • Custom DictationCommand rows in Preferences:

    • Trigger phrase (“new line”)
    • Replacement text (\n)

These can be used to automate small text patterns via voice.

Preferences App

The Preferences UI (PreferencesView) is a modern SwiftUI interface with tabs:

  • Overview

    • System status: Motion permission, Accessibility status
    • Quick buttons: “Refresh Status”, “System Settings…”
    • Trial / license banner

  • Scrolling

    • Enable head scrolling
    • Scroll sensitivity & base lines
    • Cursor Control section:
    • Pointer speed, dead zone, smoothing
    • Single / double click yaw angle
    • Click cooldown
    • Modifier picker for click & drag
    • Scroll Mode (Continuous / Auto-read / Cursor)
    • Safety & Pausing toggles:
    • Pause while mouse moving
    • Pause while typing
    • Hold ⇧ to disable
    • Pause while dictating
    • Pause when scrolling manually (+ pause duration slider)
    • Dictation settings & voice commands

  • Gestures

    • Tilt threshold & cooldown
    • When HeadFlow is ON: tilt left/right → actions
    • When HeadFlow is OFF: tilt left/right → actions
    • Custom shortcuts bank

  • Apps

    • Explanation of per-app profiles
    • List of AppProfile cards:
    • Enable in this app
    • Per-app scroll sensitivity, base lines, scroll mode
    • Delete profile button

  • Advanced

    • Dead zone
    • Max tilt for full speed
    • Acceleration factor
    • Damping factor

  • Shortcuts

    • Global shortcuts for:
    • Start/Stop HeadFlow
    • Create profile for current app
    • Open preferences
    • Calibrate head position
    • Cycle scroll mode
    • Toggle dictation HUD
    • Toggle dictation mic
    • Each uses a ShortcutRecorderButton pill:
    • Click to record
    • Press Esc to clear
    • Tips card about recording shortcuts

  • License

    • Trial status, purchase options, restore purchases, etc. (Implemented via PurchaseManager, LicenseSectionView, AccessGate.)

Mode changes display a macOS HUD-style overlay (ModeNotificationUtil + ModeHUDWindow) with:

  • SF Symbol icon (scroll, book, cursor)
  • Mode name (“Continuous Scroll”, “Auto Read”, “Cursor Control”)
  • Blur background, rounded corners, fade in/out

Key Code Components

  • Motion & Input

    • MotionEngine – core logic for motion → scroll/cursor
    • CursorLogic – interprets yaw/pitch/roll into cursor deltas & click/drag
    • CursorEngine – sends CGEvent mouse moves/clicks
    • ScrollEngine – sends CGEvent scrollWheel events

  • Config & State

    • HeadFlowSettings – global settings & @AppStorage keys
    • ProfileManager / AppProfile / HeadFlowEffectiveConfig – per-app profiles
    • HeadFlowStatus – global status (permissions, headphones, etc.)
    • HeadphoneDeviceState – connection & name info
    • MotionLiveState – live telemetry for the UI

  • Monitors

    • TypingActivityMonitor – global keyDown activity
    • PointerActivityMonitor – mouse moved / dragged
    • ManualScrollMonitor – CGEvent tap for real scroll wheel events
    • ManualScrollPauseController – small time window after manual scroll
    • GlobalShortcutMonitor – global keyboard shortcuts

  • Gestures & Dictation

    • GestureType, GestureAction, GestureContext, GestureDispatcher
    • GestureSettings, GestureMapping, CustomShortcut
    • DictationRuntimeState, DictationCommand

  • UI

    • PreferencesView & section subviews
    • ShortcutRecorderButton, ShortcutRecorderField
    • CursorModifierPicker
    • LicenseSectionView, TrialStatusBanner
    • ModeNotificationUtil, ModeHUDWindow, ModeHUDView

Future Ideas

  • Expand gesture library with nod, shake, double-nod for undo/redo, tab switching, zoom, or triggers
  • Add hybrid eye-tracking + head motion mode for precise cursor + gross scrolling (via future Continuity APIs)
  • Implement intelligent auto-switching of scroll modes based on window title, UI element, or app context
  • Enable voice + head combo commands (e.g., “scroll faster” while tilting to boost sensitivity temporarily)
  • Integrate deeper with Switch Control and VoiceOver for rotor navigation and spoken text triggers
  • Support multiple user calibration profiles for shared Macs or different seating postures
  • Add gentle fatigue/posture reminders and optional head-movement logging for ergonomics review
  • Sync profiles, gestures, shortcuts, and calibration data via iCloud across Macs

Build for Nexora Hacks 2026 by - Aaditya Srivastava — macOS architecture, motion engine, cursor logic, UI/UX, safety systems, demo

Built With

  • airpods
  • appkit
  • cmheadphonemotionmanager
  • macos
  • swift
  • swiftui
Share this project:

Updates
