Working flow of virtual nurse and on-device vital monitor.
Patient's prescription synced to his mobile app automatically.
Pocket Nurse guiding and advising about patient's medication and it's care plan.
Pocket Nurse auto-suggests possible allergies and side-effect list and patient can report to doctor in 1-click.
Heart rate monitoring using mobile phone camera and flash. Note: Finger is closing the camera.
Heart rate monitored is uploaded to the DrChrono patient's documents once doctor approves it.
Colorimetry Analysis to find heart rate using mobile camera and flash.
Colorimetry Analysis of Urinalysis Dipstick in Action.

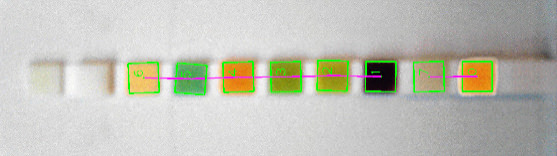

Colorimetry Analysis of Urinalysis Dipstick.
Colorimetry Analysis Chart of Urinalysis Dipstick.
In developed countries like the USA, doctors spend a lot of time explaining medication and care plans to their patients. In developing countries like India, doctors don’t even have time to guide the care plan to their patients. Yeah! We have been there. But, by the time patients return home, 80% of them would still get confused about their medications, care, and diet plan. Plus, they don’t even have proper medical devices to monitor their condition.
Hiring a home-care nurse could cost a fortune and patients be on their own and often call doctors for the minor inconvenience.
Everyone deserves better healthcare but not everyone can afford the most of it. We know what it feels like growing up in such a situation and we build Pocket Nurse.
What it does
Pocket Nurse is a mobile app that uses an on-device mobile camera and flash to record the patient's condition like heart rate, urine analysis, etc... periodically during their care plan while guiding them about medication, allergies, diet for a speedy recovery and care plan automatically.
Prescription Sage Module: Pocket Nurse syncs the patient's prescription and explains to them why and when to take each medication. That way patients won’t miss their medication and would complete their full course. [Often patients won’t complete a medication course once they start feeling better. This could cause medication resistance.]
Plus, it gives an easy option for patients to update the medications' side-effects and allergies in one-click to their doctors for quick monitoring. That way doctors can reduce multiple calls from patients.
Home-Care Nursing Monitor Module: Pocket Nurse provides patients uses an on-device mobile camera and flash to measure the heart rate and urinalysis of the patient and upload it to the doctor periodically. That way, the doctors can craft their most effective care plan and make their patients feel heard. While patients don't need to own a pulse-meter.
Diet Plan: Pocket Nurse finds the best diet plan for certain medication conditions that would help the patient to recover quickly. After all, we all know food is a magic medicine. [under development]
How I built it
Following technologies and data were used to build Pocket Nurse:
- Native Android [Java] to create a mobile app.
- Google Cloud, Firebase, Python to build the backend.
- DrChrono APIs: Authentication API, Prescription Read API, Allergy Read & Write API, Document read & write API. For the complete operation of our app.
- We did colorimetry analysis to build the most accurate heart rate detector and urinalysis using a mobile camera and flash removing the need for medical devices.
- Dataset: We created Fast Fourier Transform modules for colorimeter analysis using test data and results generated by real pulse-meter and visual observation. [Test sample for FFT n=68]
Challenges I ran into
As we got to know about this hackathon a week before the deadline, we had limited time to develop the whole app and we feel if we had more time we would have innovated more on Pocket Nurse.
Accomplishments that I'm proud of
We were able to implement a heart rate monitor using a mobile phone camera with high accuracy which could replace expensive pulse-meter that most people can’t afford. [People in countries like India, earn less than $2 per day.]
Also, with Pocket Nurse, we removed the adaptation barrier and domesticated or could promote usage of pulse meters and urinalysis at home to monitor sickness.
What I learned
We learned that people often misplace their prescriptions, get confused with the order of medication to consume, the patients don’t know why monitoring their pulse levels are important for a speedy recovery, and many more, we can write a whole thesis about it.
What's next for Pocket Nurse, with you in sickness and in health
Disclaimer: The below plan is based on what we have seen in our country market, as we weren’t fortunate enough to go to other countries and study their market in person. :) Correct us in the comment if we are wrong.
The Plan: If supported, we will be building a WhatsApp based chatbot version of Pocket Nurse and will promote it in Indian markets through the doctors under DrChrono to provide virtual home-care nursing to patients. In one way, we democratize home-care nursing while DrChrono can penetrate into the Indian market.
Technical Reference: Heart-pulse detection using a mobile phone camera, flash and colorimetry: https://www.researchgate.net/publication/49627485_A_Novel_Method_to_Detect_Heart_Beat_Rate_Using_a_Mobile_Phone
