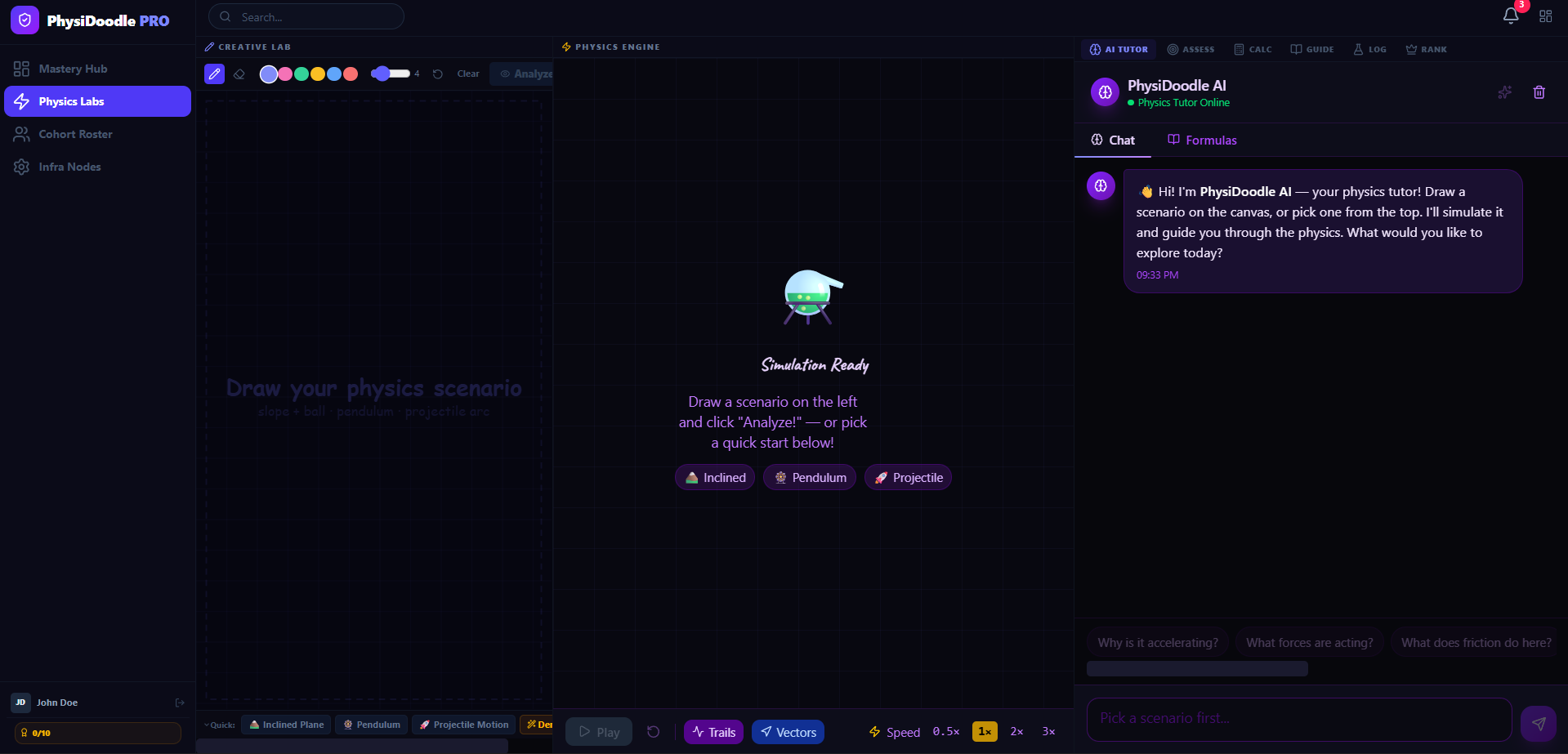

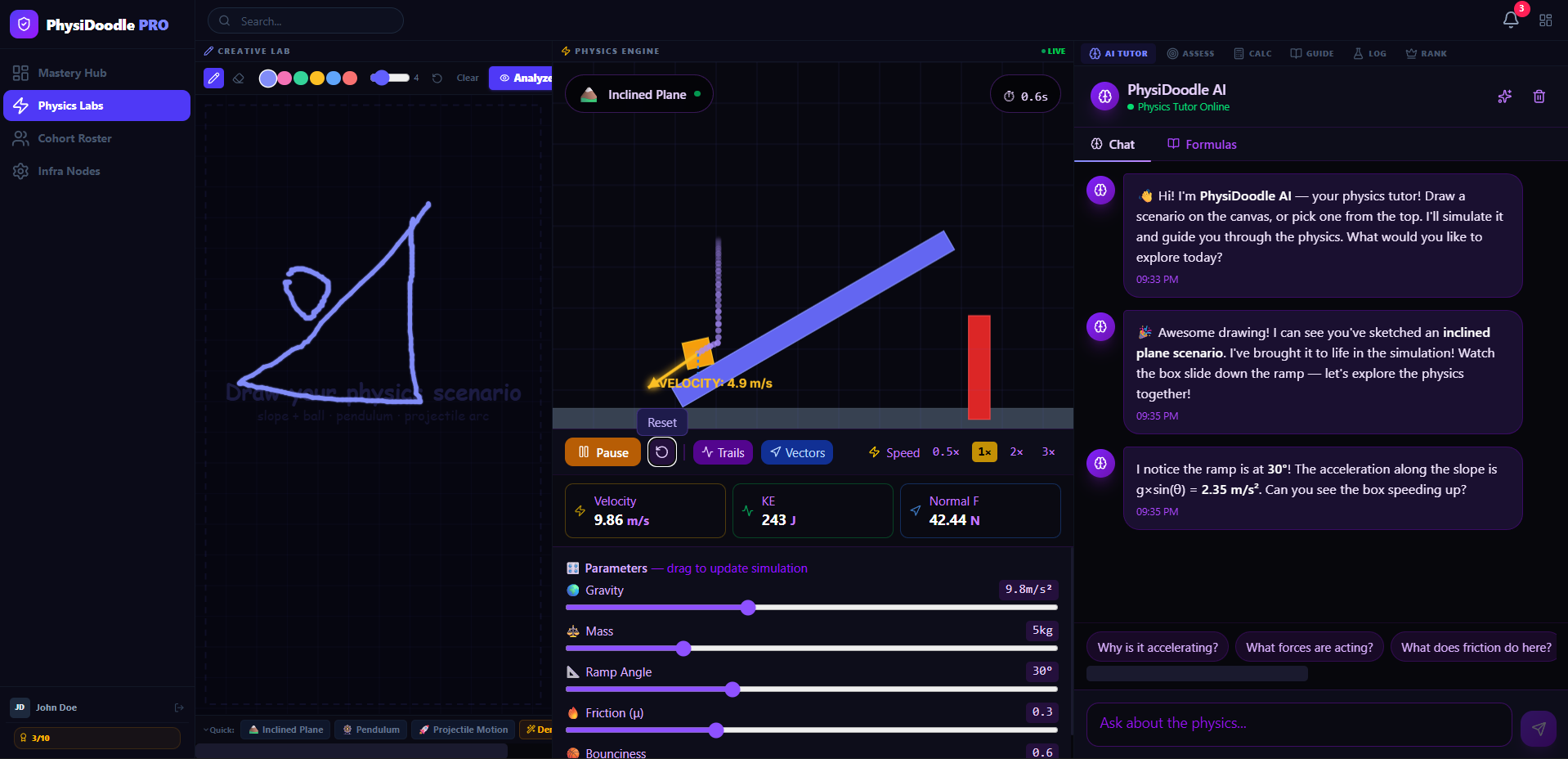

Example of Inclined Plane with Parameters
Classroom Dashboard

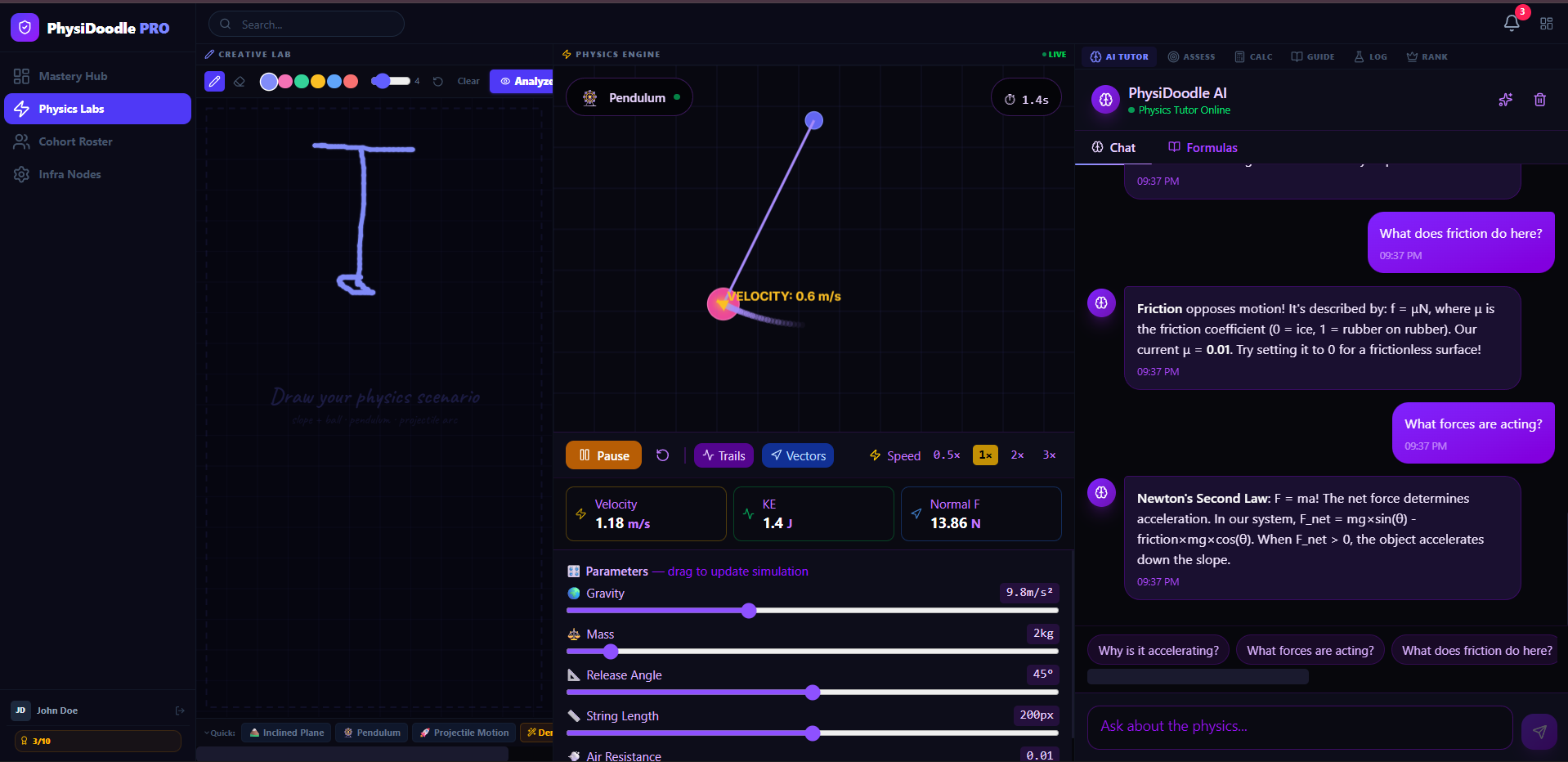

Example of Simple Pendulum with Parameters
Assesment

Inspiration

STEM education often suffers from a "feedback latency" problem. Students draw a diagram on paper, but wait days for a teacher to grade it, or struggle with complex software that requires coding knowledge. We wanted to build a system where the feedback loop is instantaneous. Our inspiration was to create a "Creative → Scan → Simulate → Learn" loop that runs entirely in the browser, respecting student privacy while delivering enterprise-grade physics simulation.

What it does

PhysiDoodle AI is a comprehensive STEM platform that allows students to draw physics scenarios on an HTML5 Canvas. Unlike standard simulators, our Custom Pixel-Buffer Heuristics analyze the raw drawing data client-side to identify ramps, pendulums, and projectiles without sending images to a server.

Once analyzed, the Matter.js engine brings the drawing to life. The platform includes:

Real-Time Vector Visualization: Shows velocity and force arrows during simulation
AI Tutor Chat: Context-aware guidance based on the specific physics parameters detected
Gamification Engine: Earn badges (e.g., "Ballistics Expert") triggered by useAchievements hooks
Synthesized SFX: Zero-latency sound effects generated via Web Audio API upon collisions

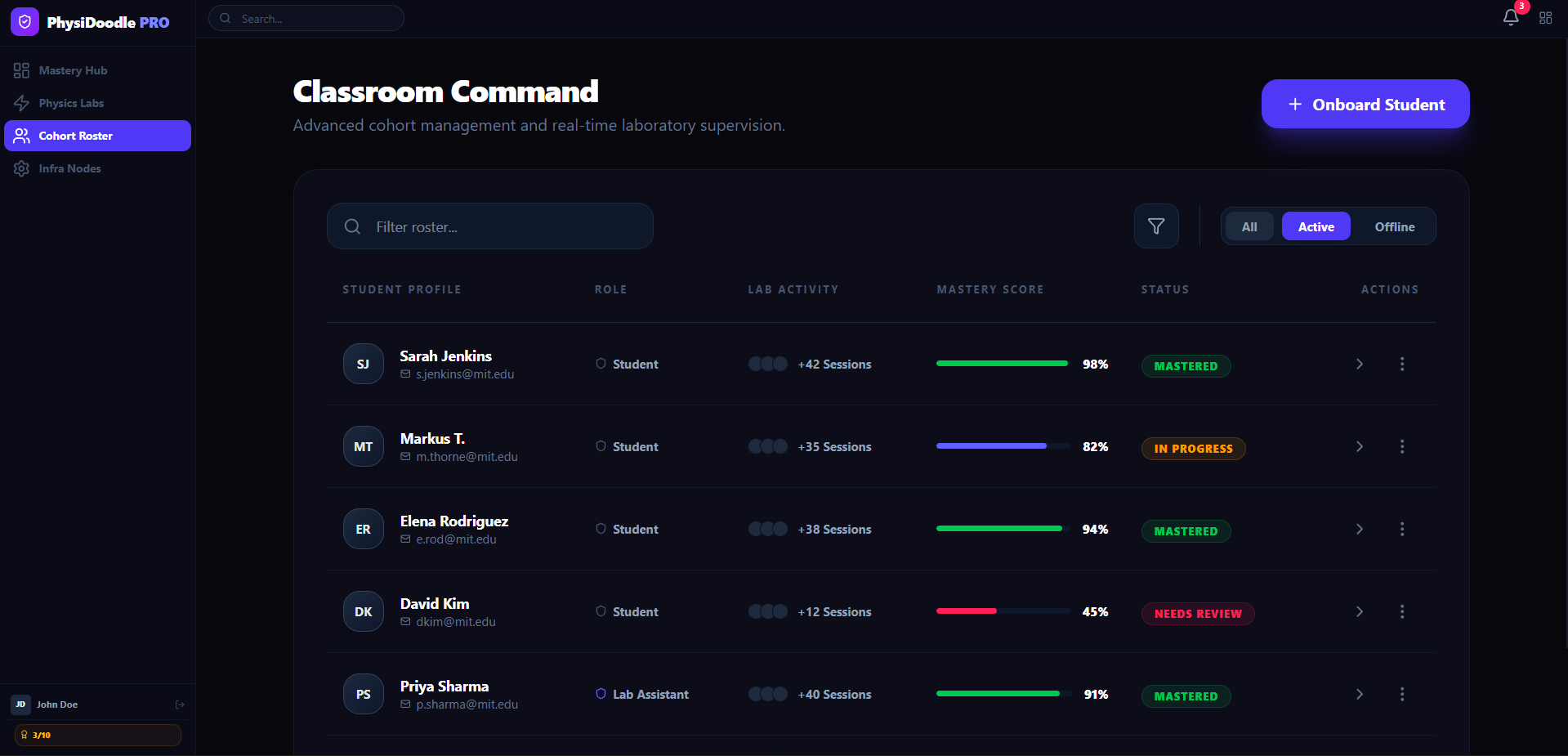

Classroom Dashboard: Institutional tools for tracking student progress and mastery

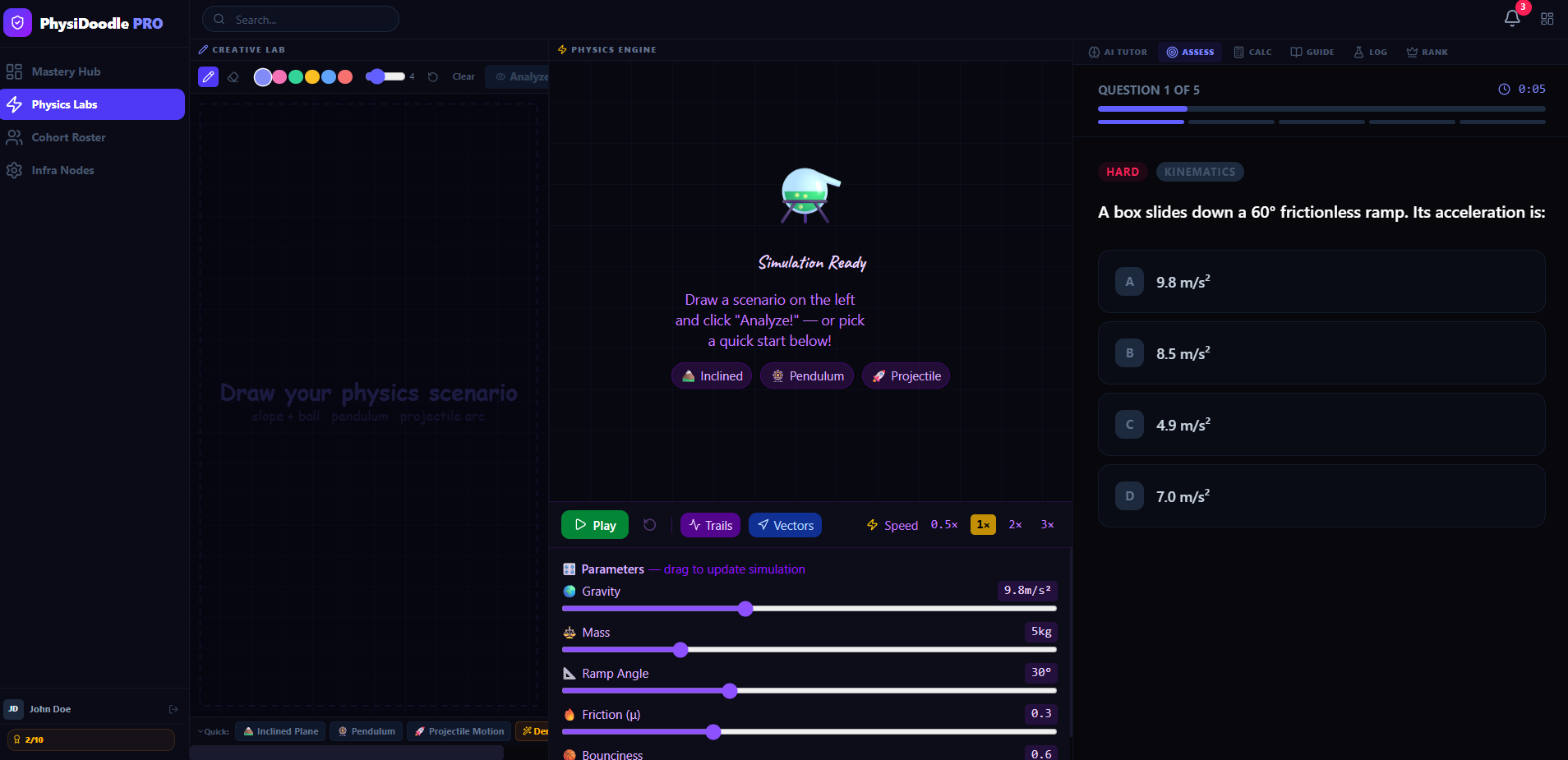

Quiz Panel: Dynamic quizzes generated based on the drawn scenario
Formula Calculator: Auto-extracts relevant physics formulas (e.g., ( F = ma ), ( E = mgh )) and calculates results
Guided Tutorials: Step-by-step walkthroughs for beginners
Experiment History: Save and revisit past simulations
Leaderboard & Student Progress: Gamified tracking to encourage engagement

How we built it

Core Architecture

Framework: React 19 + Vite for sub-second HMR and optimized rendering
Styling: Tailwind CSS 4 for high-performance layout management
Physics Engine: Matter.js integrated via a custom usePhysicsEngine hook to bridge React state with the physics world
Computer Vision: We built a custom canvasAnalysis module. Instead of relying solely on external APIs, we scan raw pixel buffers to calculate bounding boxes and directional vectors, identifying diagonals as ramps and vertical anchors as pendulums
Audio: A dedicated sounds.ts utility uses frequency oscillators to synthesize sound effects dynamically
Visuals: HTML5 Canvas API for the drawing lab and the high-performance confetti system
Icons: Lucide React for enterprise-grade iconography
Deployment: Vercel optimized via vercel.json for SPA routing

Key Technical Components

Client-Side Vision: The canvasAnalysis.ts module performs heuristic scoring to identify shapes without server latency
Physics Bridge: usePhysicsEngine.ts manages Matter.js bodies, constraints, and collision events
Gamification: useAchievements.ts tracks unique badges and triggers confetti effects
Audio Synthesis: sounds.ts uses Web Audio API for zero-latency, procedurally generated sound effects

Challenges we ran into

Client-Side Vision Accuracy

Translating arbitrary pixel data into physics primitives was difficult. A shaky hand-drawn line needed to be smoothed and interpreted as a perfect rigid body. We implemented a Heuristic Scoring system to assign confidence levels to detected shapes.

Audio-Physics Sync

Ensuring sound effects played exactly at the moment of collision in the Matter.js engine required precise event listening within the render loop.

React 19 Compatibility

Migrating to React 19 new concurrency features while managing the Matter.js render loop required careful useEffect cleanup to prevent memory leaks.

Accomplishments that we're proud of

The Feedback Loop. We successfully created a seamless flow: Draw to Scan to Simulate to Calculate to Quiz to Badge. The moment a student draws a line and sees a velocity vector arrow appear on the moving object is magical.

We are also proud of the Privacy-First AI. By doing analysis client-side, we ensure student data never leaves their device. This is a critical differentiator for EdTech adoption in schools with strict data policies.

What we learned

We learned how to manipulate raw pixel buffers for computer vision tasks without heavy libraries. We also mastered the integration of Web Audio API for procedural sound generation, adding a layer of polish often missing in hackathon projects.

We discovered that heuristic-based shape detection can be surprisingly accurate when combined with physics-aware constraints, and that React 19 concurrent features require careful handling of external render loops like Matter.js.

What's next for PhysiDoodle AI

We plan to expand the heuristic engine to recognize electrical circuits and chemical bonds. We also aim to integrate with LMS platforms like Google Classroom to allow teachers to assign specific Doodle Challenges directly to their students.
