Inspiration

Reading about social media influencers and thinking about how to "gamify" promotion of charities.

What it does

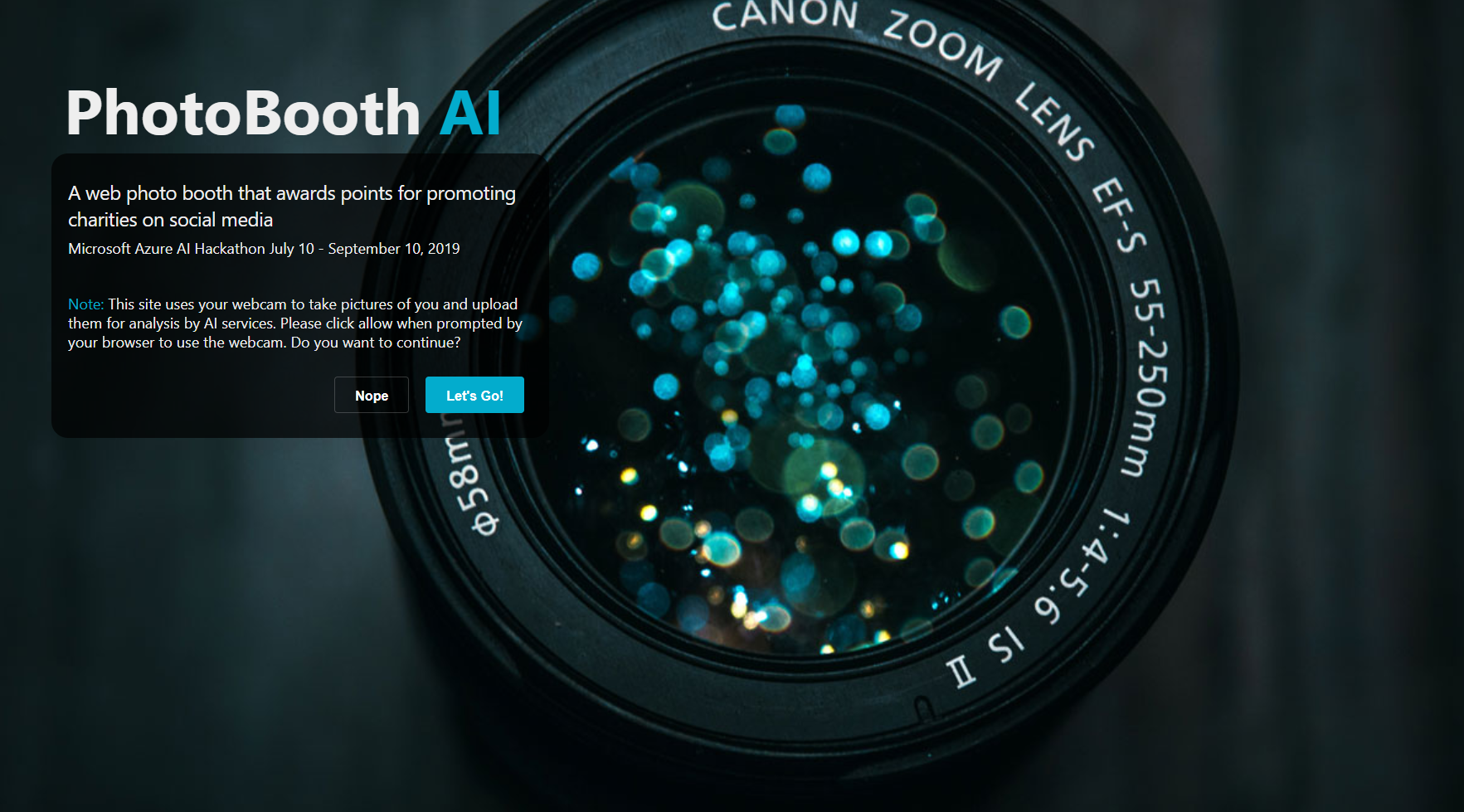

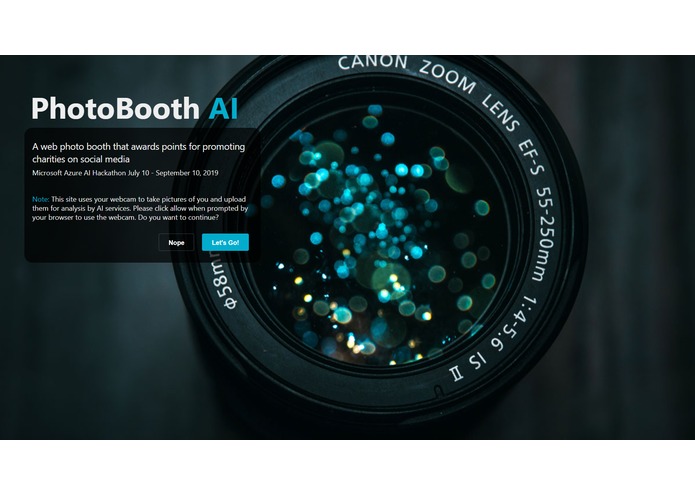

Allows users to take a picture of themselves smiling with the logo of a charity and gives them a score depending on if they are smiling and the charity's logo is present in the photo. I didn't have permission to use a real charity's logo so I used a placeholder one for now. In practice the logo might be on the user's t-shirt, a mug, etc.

How I built it

I built the website in Visual Studio Code. It uses vanilla HTML/CSS/JavaScript. The site uses getUserMedia to get the user's webcam video and pushes it over to canvas where I can draw annotations.

Here is how I built my custom vision model:

  • I edited the placeholder logo by inverting it (black print on white background and vice versa) and changed the color to red on another variation.
  • I printed out the different variations of the placeholder logo and some incorrect logos to indicate what shouldn't be tagged.
  • I took about 90 photos of the logos in different contexts (I.e. on a chair, me holding them, my kids holding them, etc). In some cases I mixed in incorrect logos.
  • I batch resized the photos to get them under the 4 meg limit and uploaded them all to the Azure Custom Vision portal.

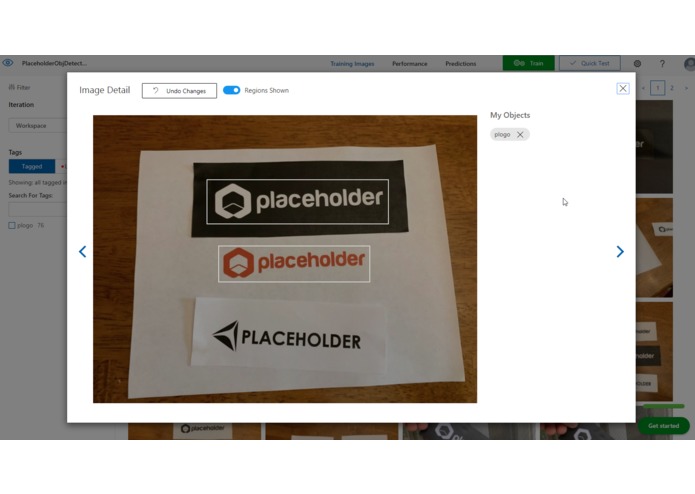

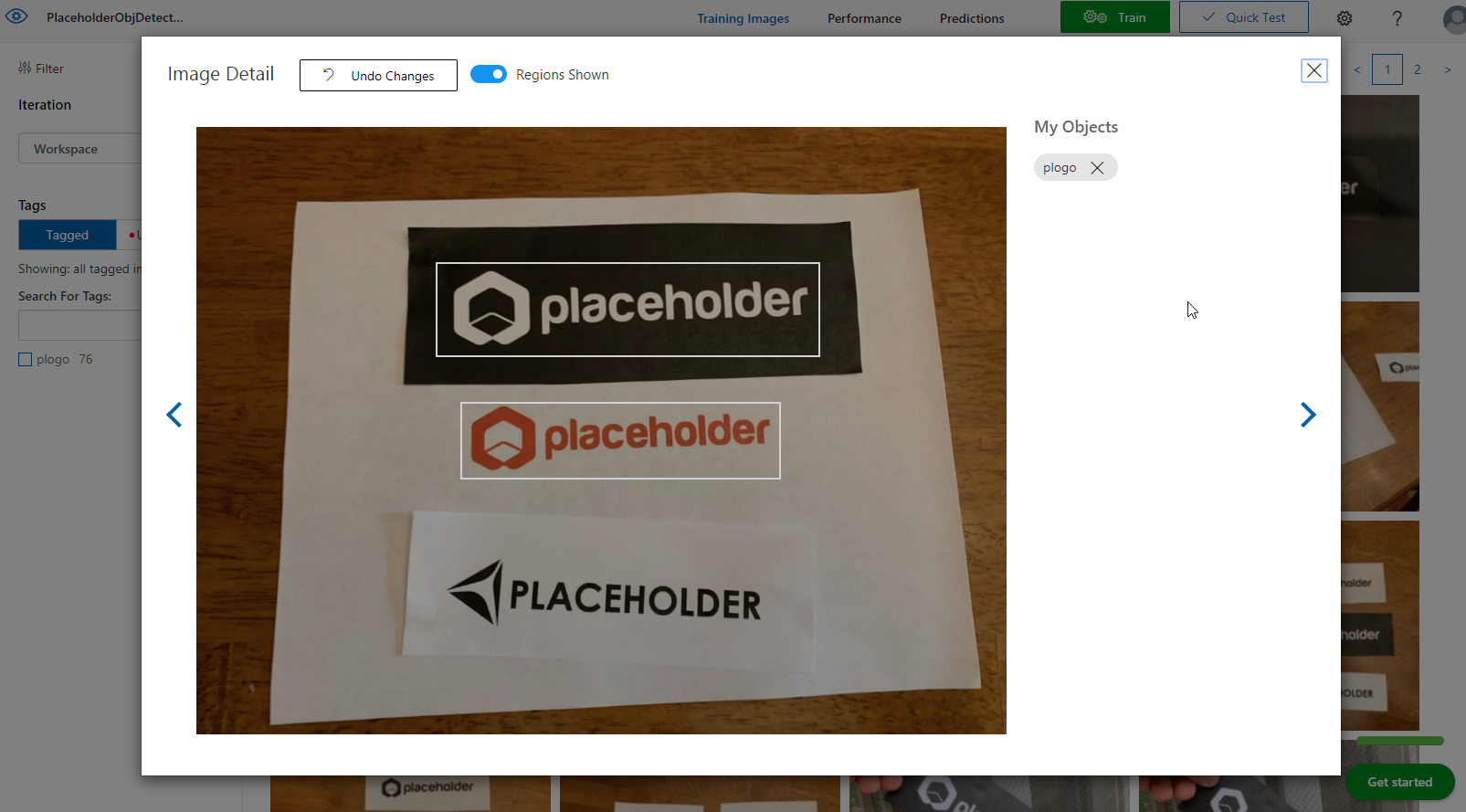

  • Using the Custom Vision portal, I tagged all my photos by outlining where the logo was and then clicked the train button. The tagging process is pretty quick and easy. :)
  • The resulting model/API is not only able to consistently spot the logo in a photo but also scores the prediction probability on incorrect logos low enough so I can easily filter them out.

Here is the behind the curtain process when you take a photo:

  • It calls an Azure function to get a shared access signatures (SAS) url that will allow the user to upload/write the image from the browser.
  • The frame is then upload to the SAS url.
  • Another Azure function (analyzeimage) is called and the UUID of the photo is passed along so it can find the image in storage.
  • The analyzeimage function gets an SAS url to will allow Azure cognitive services to read/get the image.
  • The analyzeimage function then calls the Face and Custom Vision apis passing in the SAS url and returns the data to the user's browser.

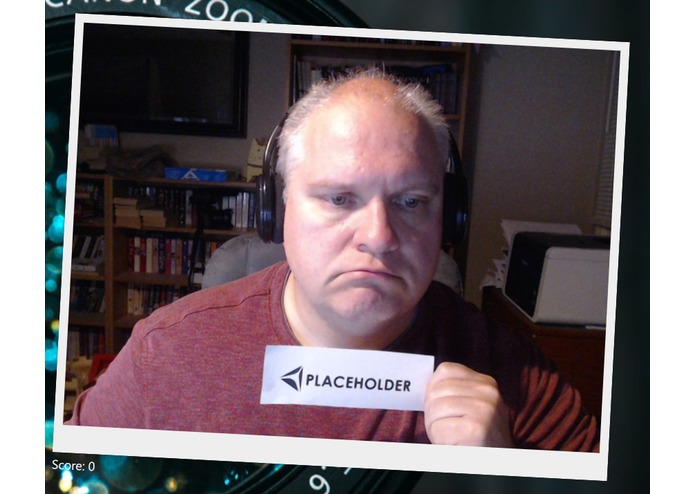

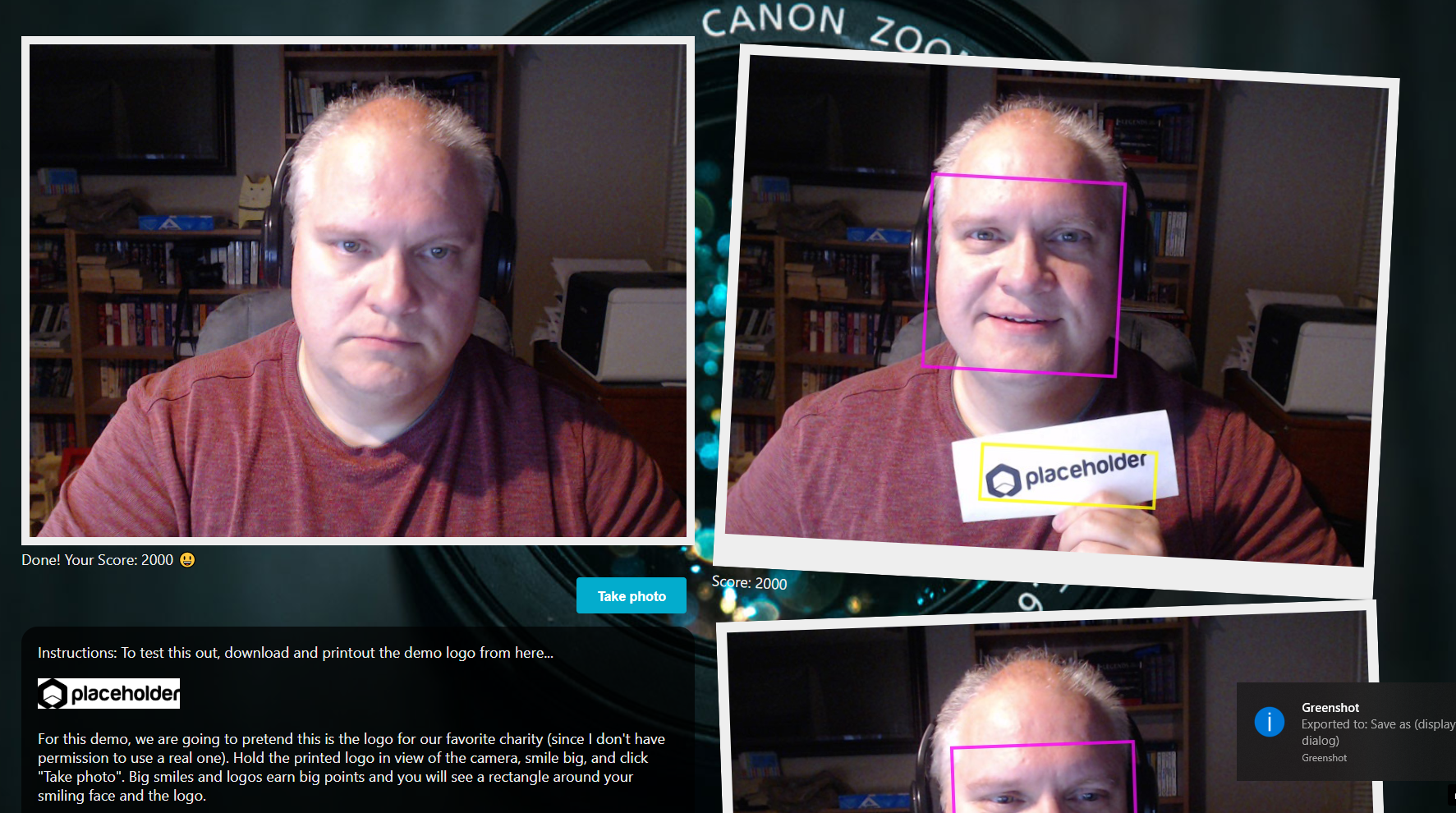

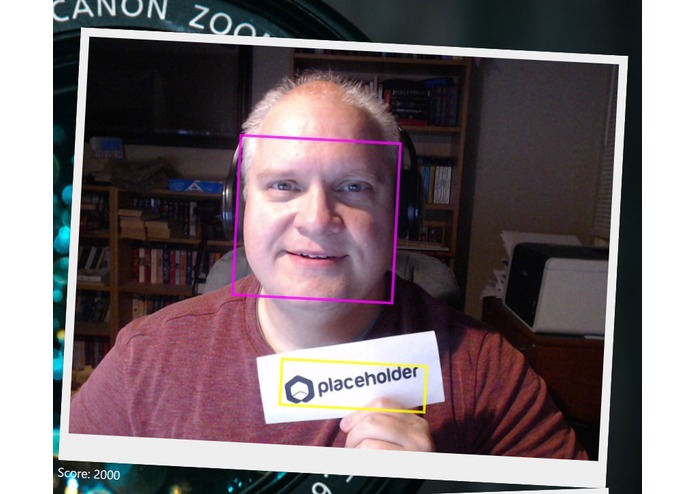

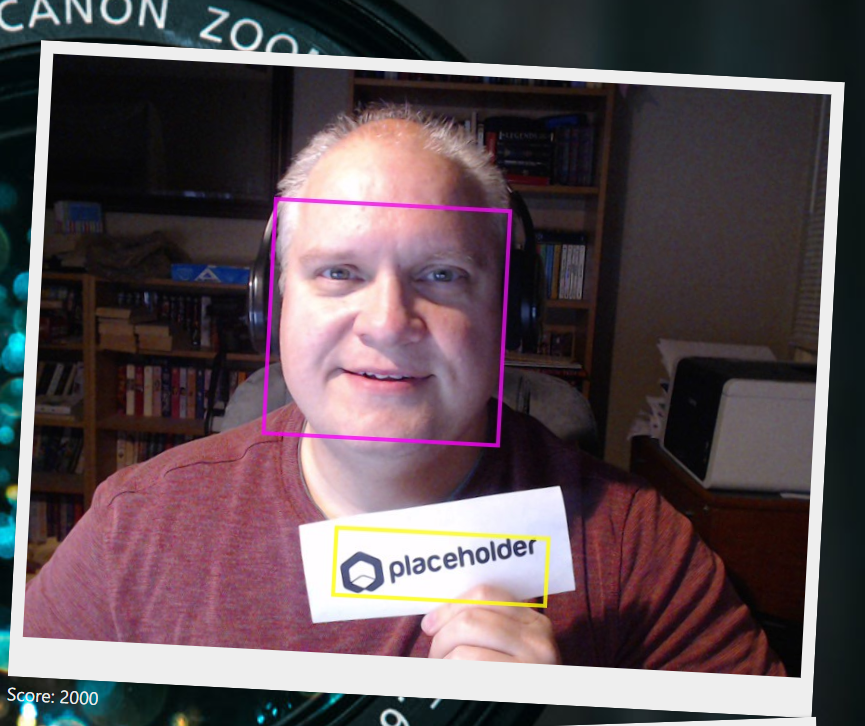

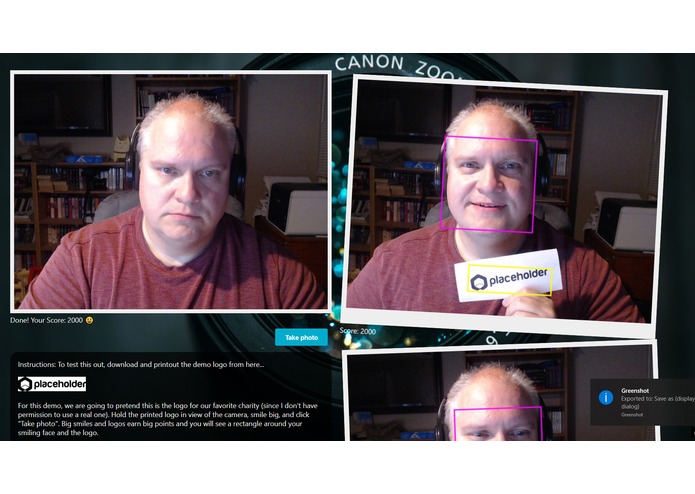

  • Rectangles are drawn on the qualifying smiles and logos using the returned data and the results are scored and displayed to the user.

Challenges I ran into

I am having some performance issues with the Azure functions. I think they take a while to cold start if they haven't been used in a bit. I will look into this.

Accomplishments that I'm proud of

I am super happy the logo detection works so well. Microsoft Custom Vision is super easy to use relative to the Jupyter Notebook approaches I have tried in the past and the accuracy of the object detection is great.

What I learned

  • Setting up file uploads from the browser and trying to make it relatively secure on Azure is tough.
  • Azure Custom Vision is probably the best kept secret in the machine learning world.

What's next for PhotoBoothAI

First some performance fixes. After that I have a few ideas including user accounts, authentication, badges/trophies/loyalty points, and easy social media share options. Face API could be used to recognize known influencers. Azure image moderation can be used to detect offensive images. Commercial applications.
