Peltier Power

•

  Layer separation

•

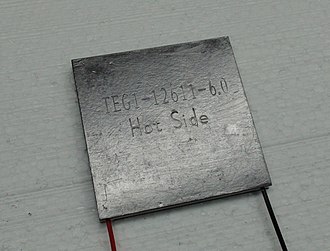

  Peltier module

•

  Heat isolation of module

•

  MPPT charge controller

•

  Metal packaging

•

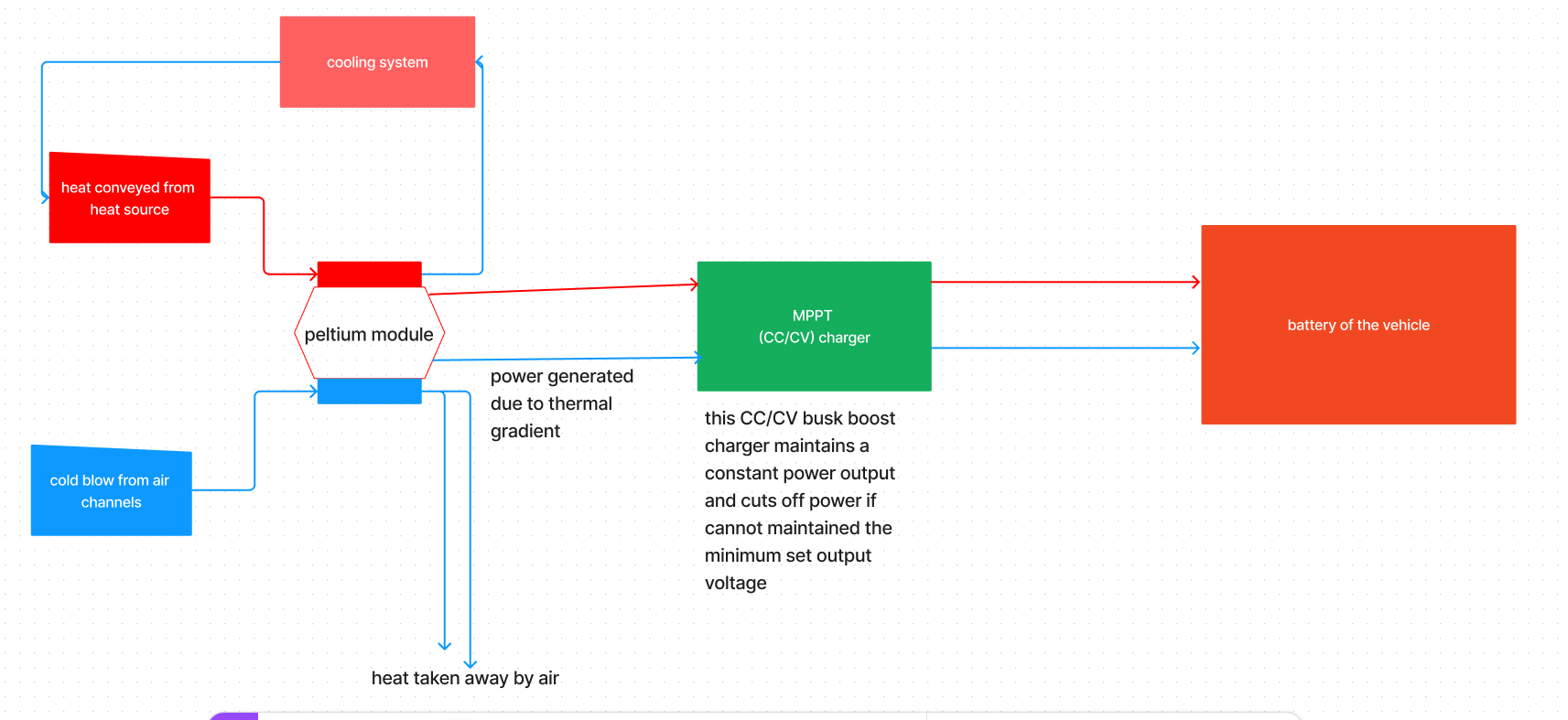

  Design flow diagram

•

  Semiconductor Level design

•

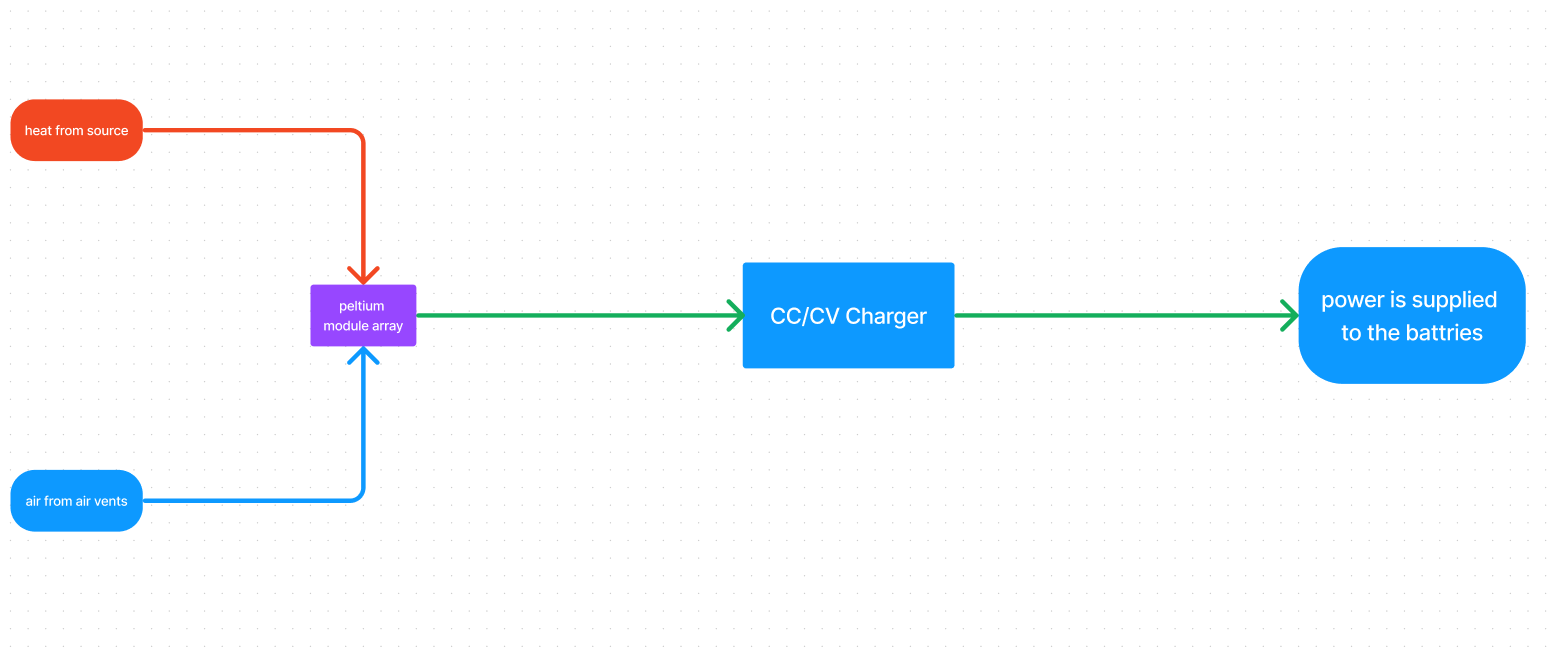

  Operational flow diagram

•

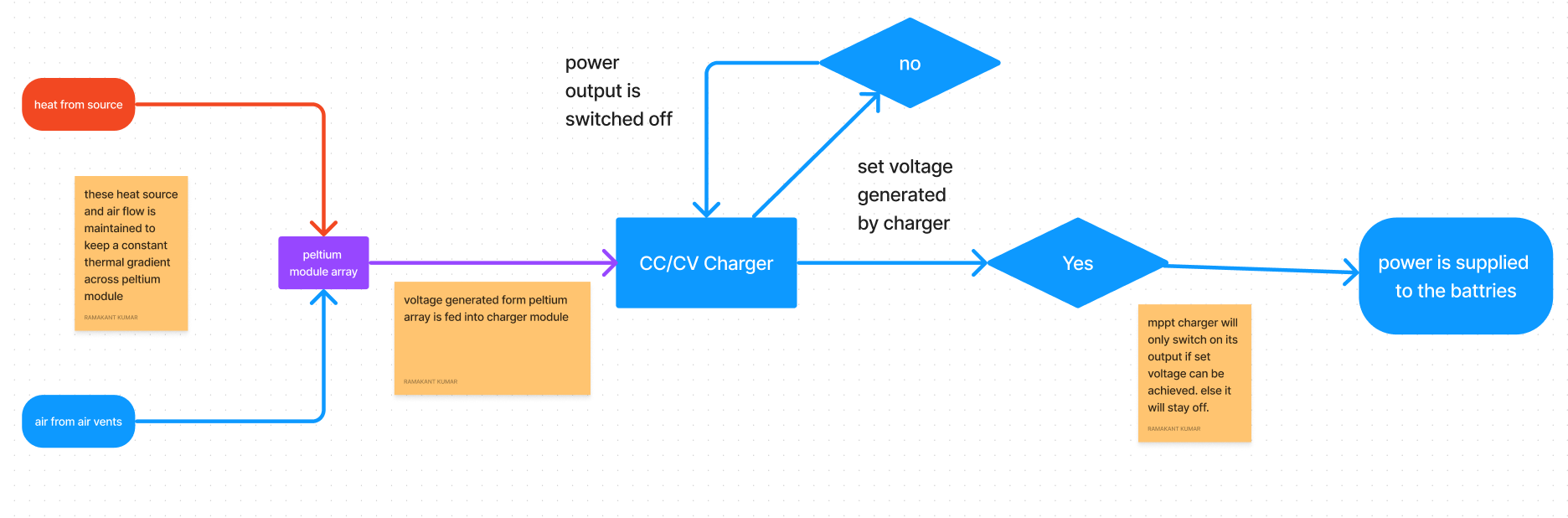

  Flow chart

•

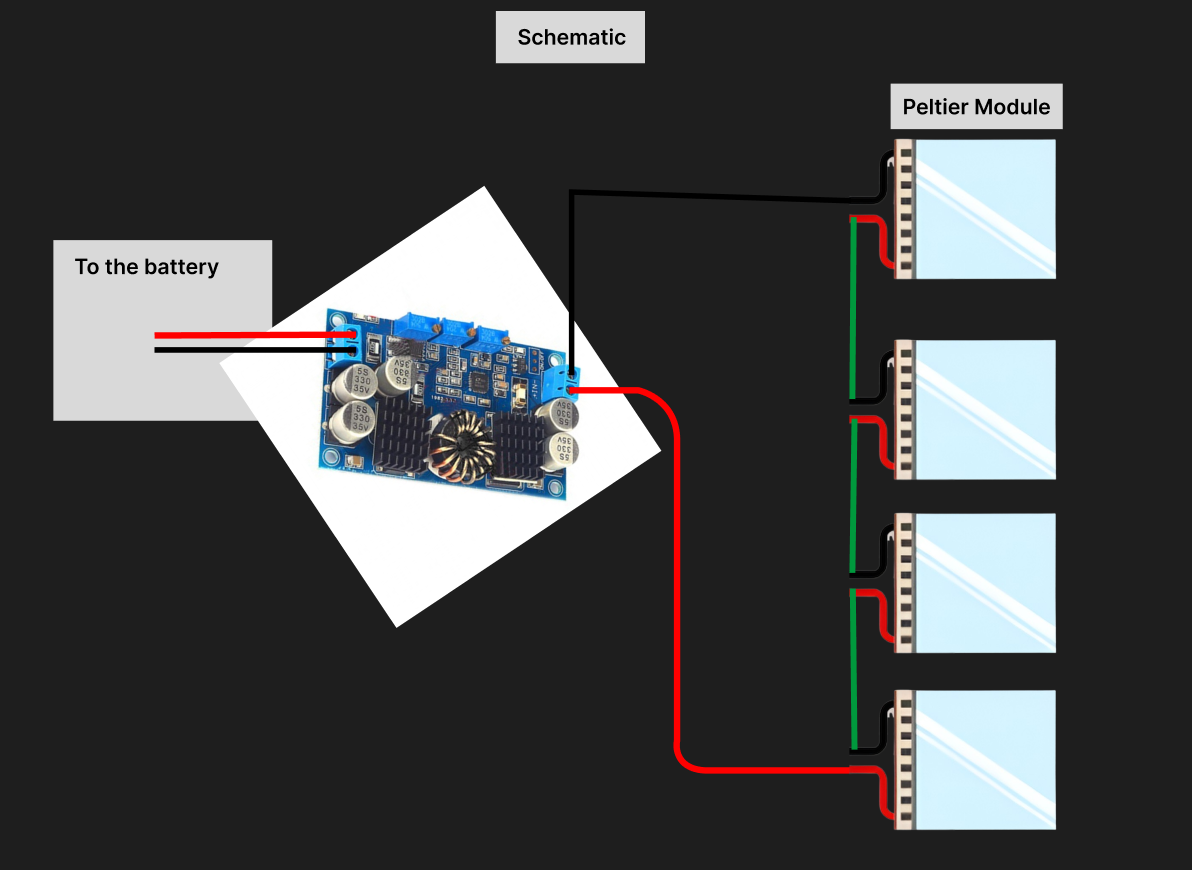

  Architecture/Schematic diagram

Inspiration:

The inspiration behind our Peltier module projects comes from our commitment to sustainable energy solutions. We were impressed by the Peltier modules' ability to match the temperature difference and convert it into usable energy. By using this new technology, we hope to contribute to a cleaner, more energy-efficient future.

How it works:

Our Peltier module project focuses on using temperature changes to generate electricity. Peltier modules act as thermoelectric generators, converting thermal energy into electrical energy. The energy collected can be used to power small devices, charge batteries, or contribute to power lines; This demonstrates the many uses and capabilities of Peltier technology.

How we built it:

We started by researching and understanding the basics of Peltier modules and thermoelectric power generation. We design a system that includes Peltier modules, heatsinks and appropriate cabling. The modules are carefully positioned to maximize temperature variations. We have rigorously tested and revised our systems to improve their performance and functionality.

Challenges we encountered:

We encountered some challenges during development. Demonstrating thermal conductivity and checking the correct spacing between Peltier modules is an important issue. Additionally, establishing trust and striving for change have brought their own challenges. Overcoming these challenges requires careful testing, analysis, and teamwork.

Things we are proud of:

We are very proud of our work on the Peltier module system, which can generate good electricity from heat transfer. Our optimization efforts have increased power output and efficiency. Witnessing the Peltier module successfully power the device and charge the battery validates our hard work and dedication to this project.

What We Learned:

Through this project we gained a better understanding of thermoelectricity, Peltier module efficiency, and applications of thermoelectric generators. We advance our understanding of thermal management, materials and standards in electrical engineering. These experiences provide us with valuable information for our future efforts in the field of renewable energy.

How to add Peltier Power:

Going forward, we plan to improve the efficiency and increase the capacity of our Peltier module system. Our goal is to explore stronger materials and advanced thermal management techniques to maximize power output. Integration with technology and IoT devices is another exciting avenue we want to explore, and Peltier modules play an important role in supporting modern devices today. We also plan to work with industry partners to bring Peltier module technology to success worldwide.

Built With

• embedded-systems
• iot
• power-electronics
