Overhead

A web-native canvas powered by WebMCP that turns any agent into a cloud architect. Design alongside it live while it calculates real-time infrastructure costs.

Comment

Inspiration

I wanted zero friction between proposing an architecture and actually starting one.

Canvas and whiteboard tools make agents work from stale copies. You move a box, the agent redraws from whatever it remembered, and your change is gone.

Then the rest of it. One app for the costing. Another for the components. Save in whatever format the next app will actually open. Imagine spending 8+ hours of work to finish a technical documentation that nobody reads.

Overhead uses WebMCP to eliminate this entirely. Semantic tools go straight to whatever agent shows up in the visitor's browser tab, so the design, the number and the code stop being five separate things. Alt text

What it does

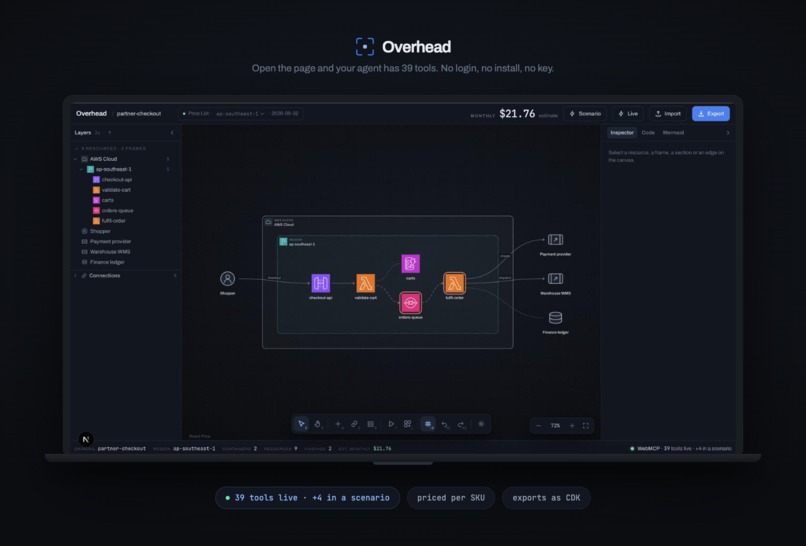

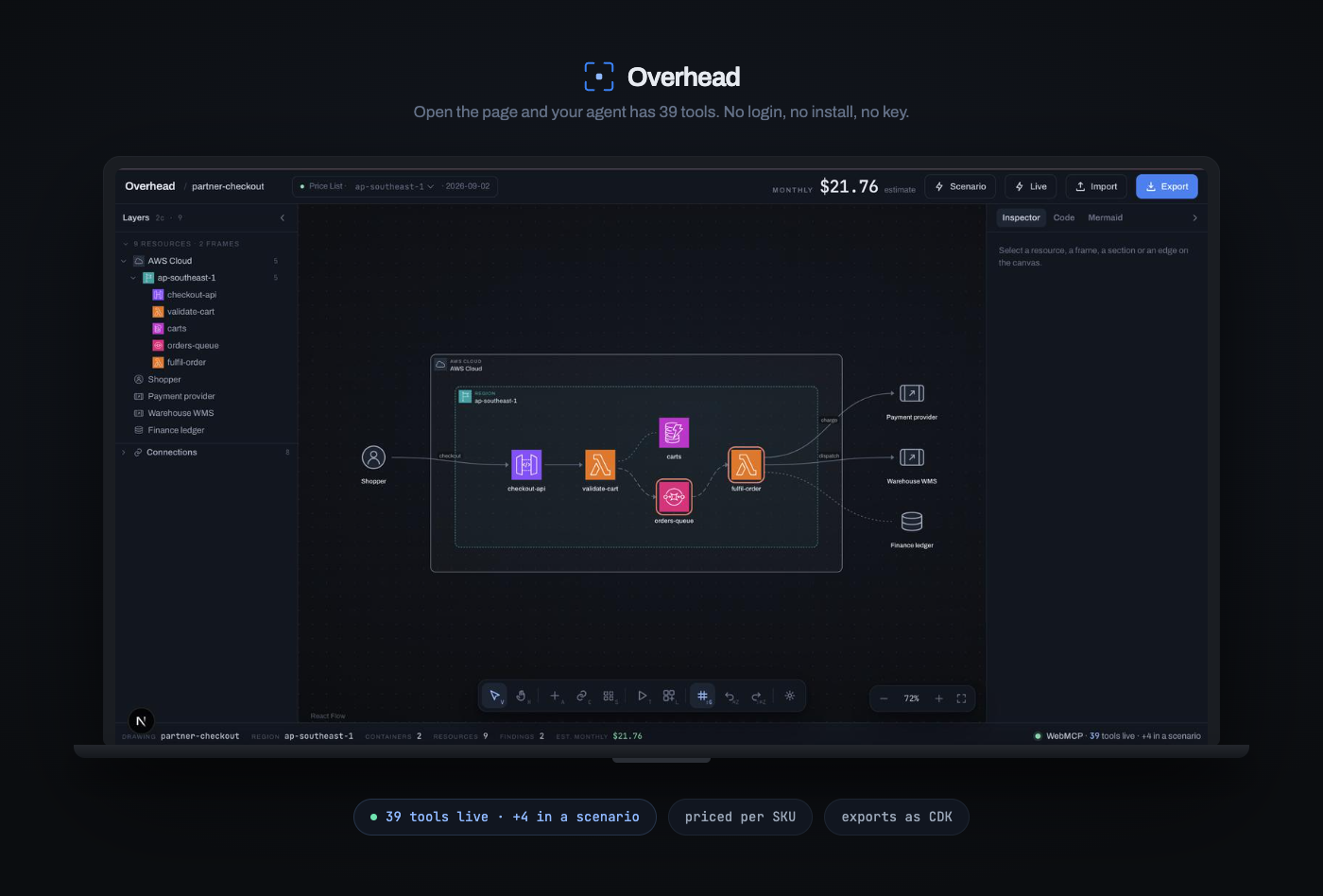

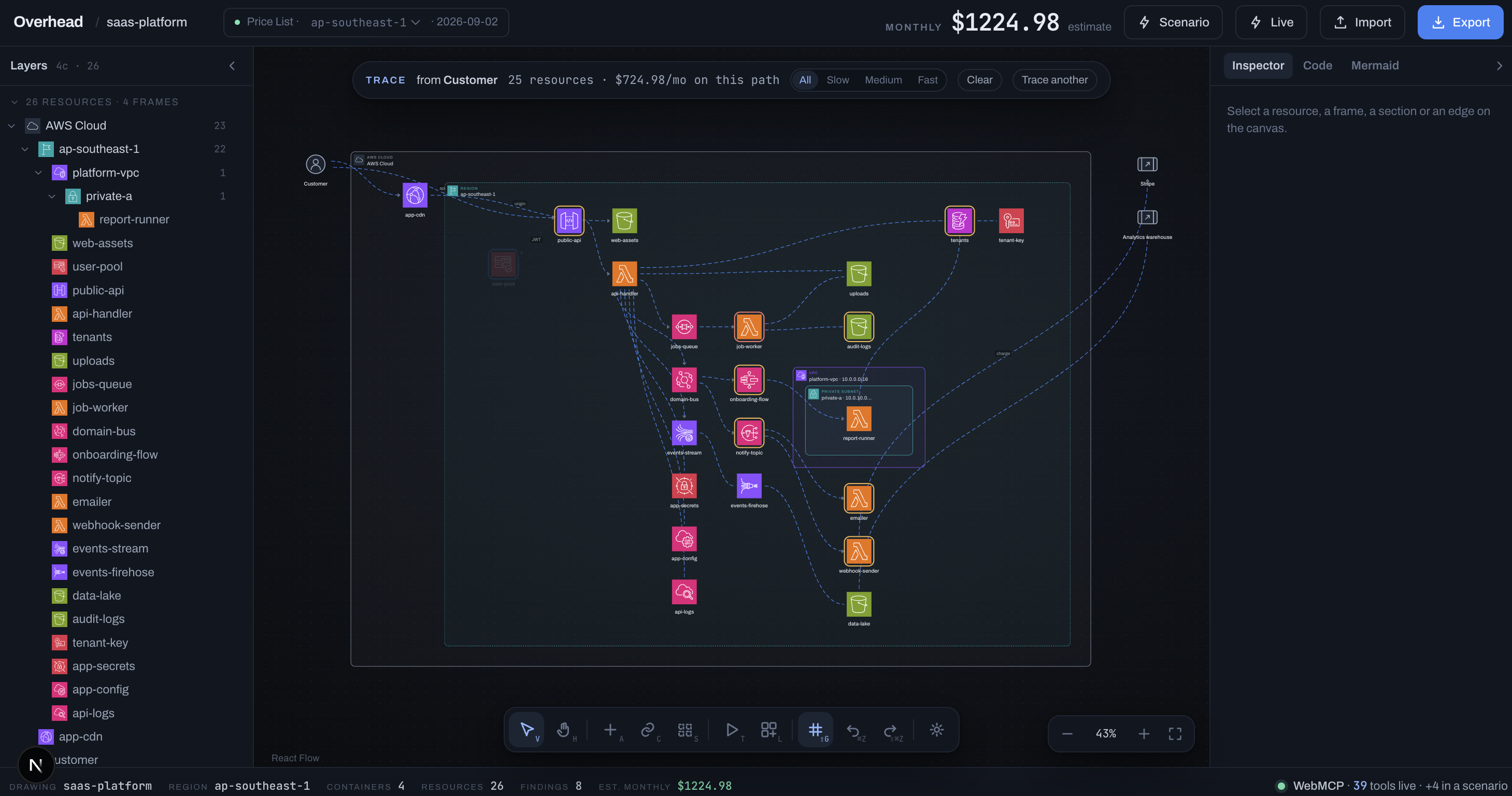

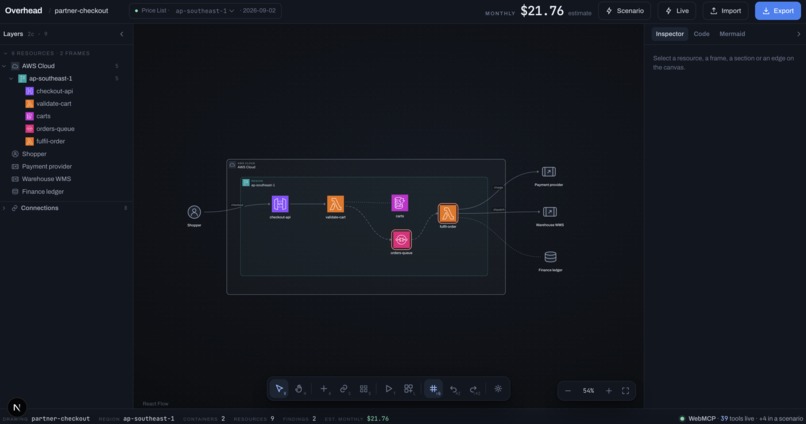

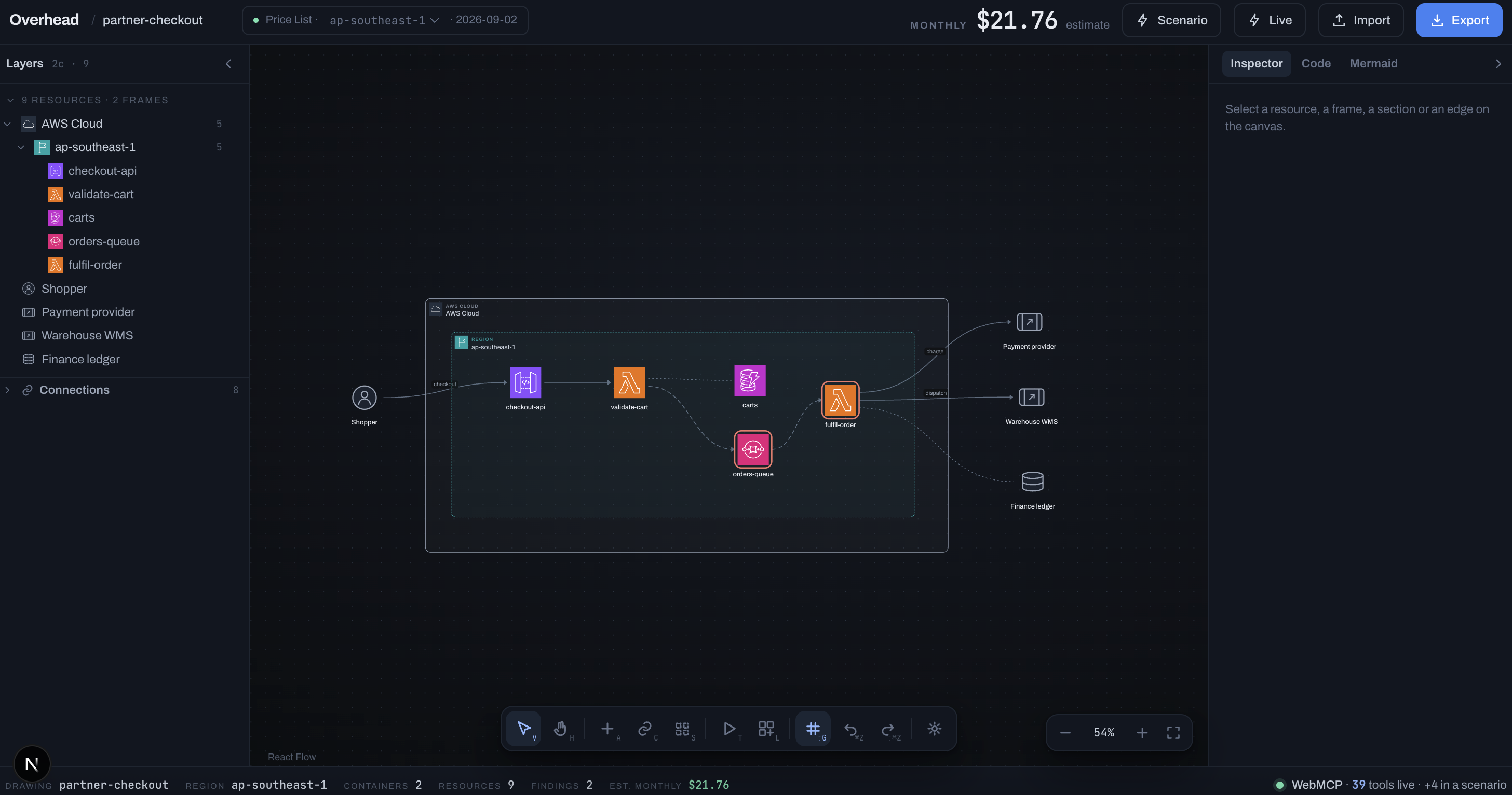

Overhead is one web page where you, your agent and your teammates design an architecture that prices itself, audits itself, and compiles.

  • Deep WebMCP integration. Agents get structural verbs (add_service, connect, patch_state) and edit the canvas directly, with no coordinate math burning tokens. Open a scenario and four more tools register themselves under an AbortController, then abort on commit.
  • Real prices, per SKU, generated from the AWS Price List Bulk API with every rate keeping its source URL. No number on screen is one we typed.
  • It audits its own work. The agent checks the design against rules citing cloud documentation, then patches what it flagged.
  • Zero-setup multiplayer. Ephemeral rooms. Several designers, their agents, one document object.
  • Production code compilation. Layouts compile to infrastructure code that passes cdk synth, plus deployable CloudFormation and diagrams that go both ways, which matters more than it sounds like it does: a Mermaid flowchart pasted out of anyone's README comes back as a priced, editable drawing. Alt text Everything runs client-side. No login, no API keys, no enterprise middleware.

How we built it

Stack

  • WebMCP (native agent runtime)
  • Next.js 15
  • React 19
  • React Flow (canvas UI)
  • Zustand (state layer)
  • Hosted on Vercel

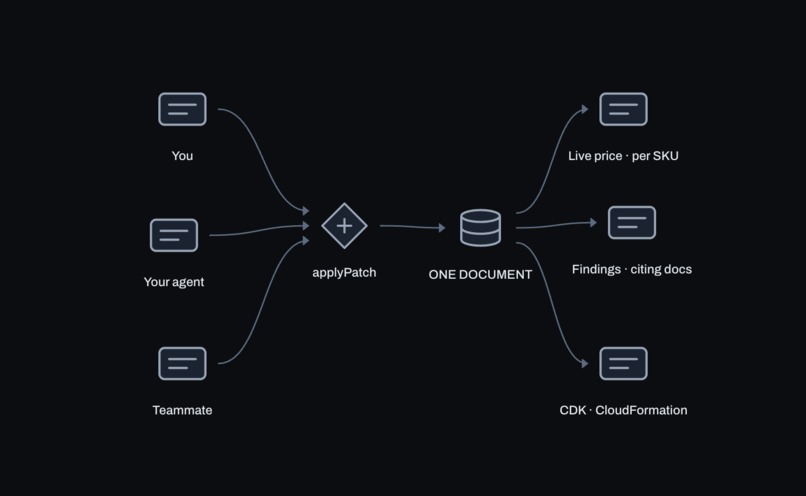

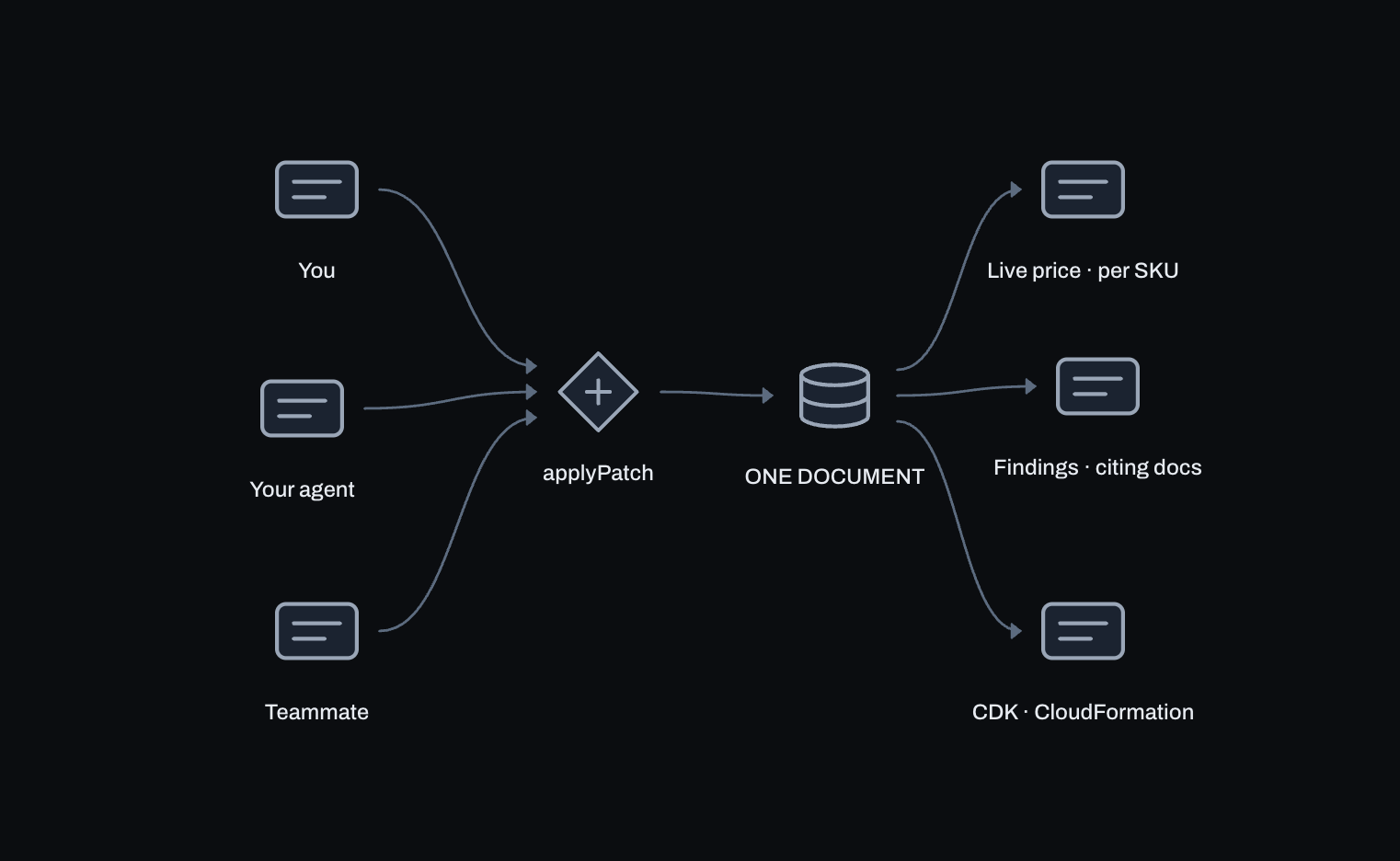

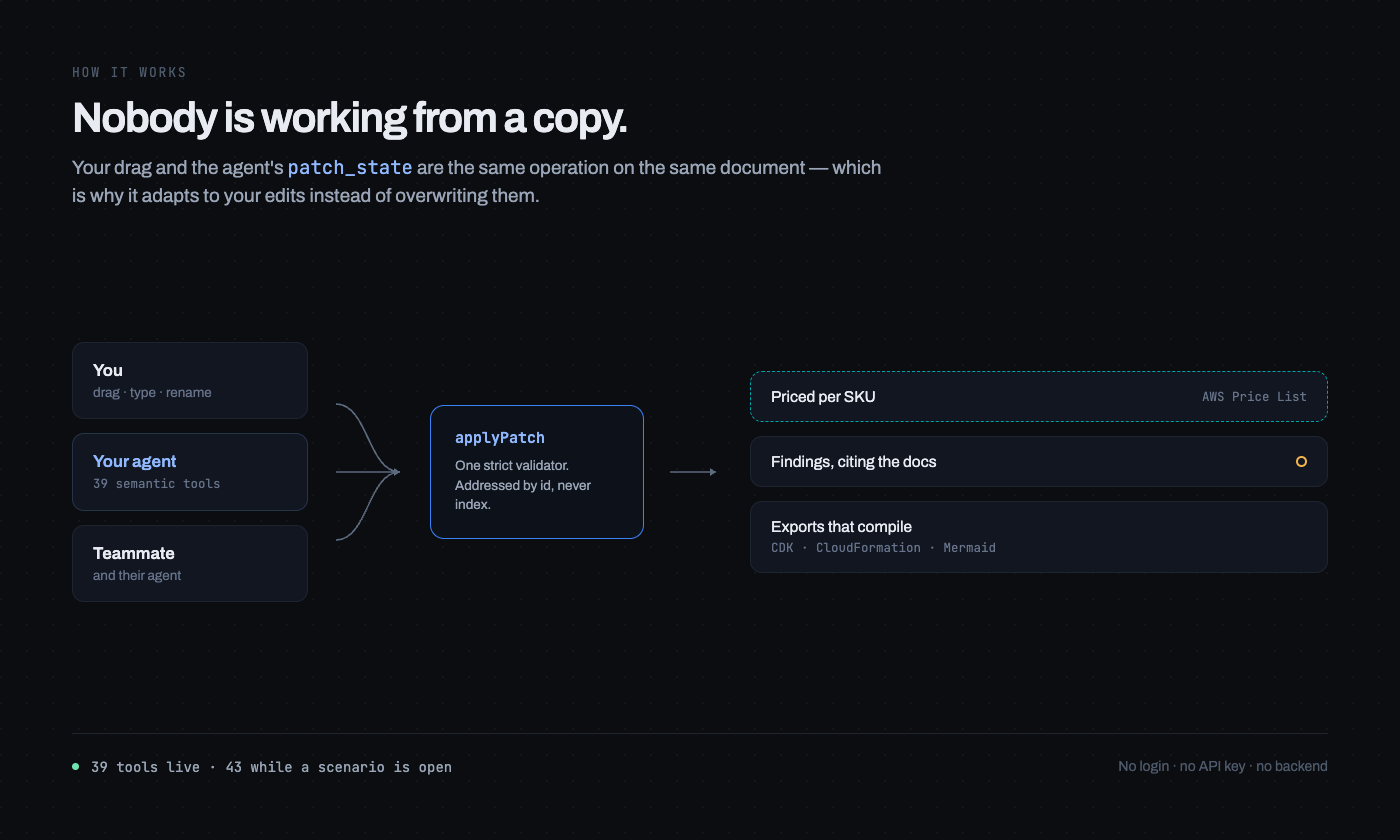

The core decision was addressing state patches by id rather than array index. Canvas mouse input, agent tool calls and peer messages all go through one strict applyPatch validator, and because every patch names what it touches instead of where it sits, the agent can't clobber a change you made while it was mid-thought. That was chosen for the agent's benefit. It turned out to be the reason two people can edit at once, which we didn't plan for and got almost free.

defineService() does the rest. One definition per service produces the inspector form, the tool schemas, the pricing calculation and the infrastructure exports, so what the human sees and what the agent gets can't drift apart.

No central database. Browser state only, with a WebSocket relay that routes multiplayer traffic and keeps none of it.

Challenges we ran into

Normalising the price APIs. Regional string variations, inconsistent schemas, offer codes that don't match the service name. Every mismatch surfaced as a wrong number on the canvas, which is a miserable way to find a bug and a very effective one.

The ~1.5K character cap on tool output. Tight, and it forced us to send condensed diffs instead of dumping canvas state. Better tools came out of the constraint.

Mixing grammars. A decision diamond sitting next to a Lambda asserts two incompatible things at once: architecture says what exists, a flowchart says what happens in what order. We let the samples teach the split instead of having the validator forbid it.

Accomplishments that we're proud of

  • The agent audits its own work. Ask it to build something, then ask it to check what it built, and it calls get_findings, gets back rules citing AWS docs, and fixes them. That loop only exists because the tools are semantic.
  • Dynamic registration you can watch happen. The tool count ticking up when a scenario opens, and back down on commit, is WebMCP doing something a screenshot can't fake.
  • npm run synth runs cdk synth on all three samples plus a fixture holding one node of every service. So the claim we make on camera is checked by a command.
  • CloudFormation round-trips. A template we wrote comes back as the same drawing, positions and containers and traffic intact, because the exporter also writes the things a template has no place for. Someone else's template comes back structurally, connections inferred from what references what.
  • Never a hardcoded price. Every rate traces to a SKU in a dated file with a source URL.
  • One document, three writers: canvas, code panel, agent. A mistake typed into the JSON gets the same error an agent gets from set_property.

What we learned

Semantic tools beat drawing primitives, and it is not close. Give an agent services and settings and it can be trusted with the next step, because its answers can be wrong in ways you can review and audit. Handing it long lists of SVG, or rules for making a diagram look right, is strictly worse.

Constraints improved the surface. The output cap forced summaries instead of state dumps. Having no backend forced everything into the page, which is exactly what makes it work for a visitor with no account.

WebMCP changes who gets to offer capability. Before it, you needed to be a platform big enough to ship an API and run an official MCP server. Now any page can serve whatever agent the visitor brought. No partnership, no permission, no server.

Measure what you claim. "Fewer crossing edges" and "the CDK works" are both testable. Both were wrong at some point, in ways that looked completely fine on screen.

What's next for Overhead

  1. Resource identity that survives a repo. Right now a foreign template matches back by service and name. Stamping the logical id onto the node would make a second import an update instead of a new drawing, even after a rename.
  2. Generate the wiring. The CloudFormation export names its stubs honestly: permissions, event sources and targets aren't generated yet. The edges already know what should be wired to what.
  3. "Visualise my architecture." The real destination. A coding agent has your repo, the page has the tools, and the diagram appears priced with no export step and no file to hand over. A crude version of this works today.
  4. More services as their SKUs land: NAT Gateway, ALB, RDS, ECS Fargate. The rule doesn't bend. Never hardcode a price, and a service arrives when its rate does.
