Orange Jam

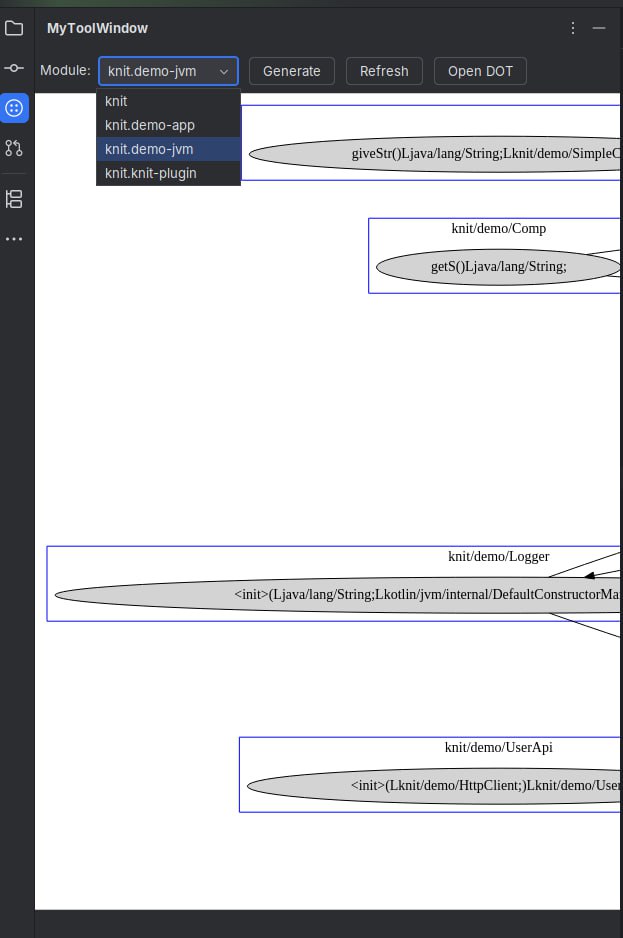

Tool Window graph display and options

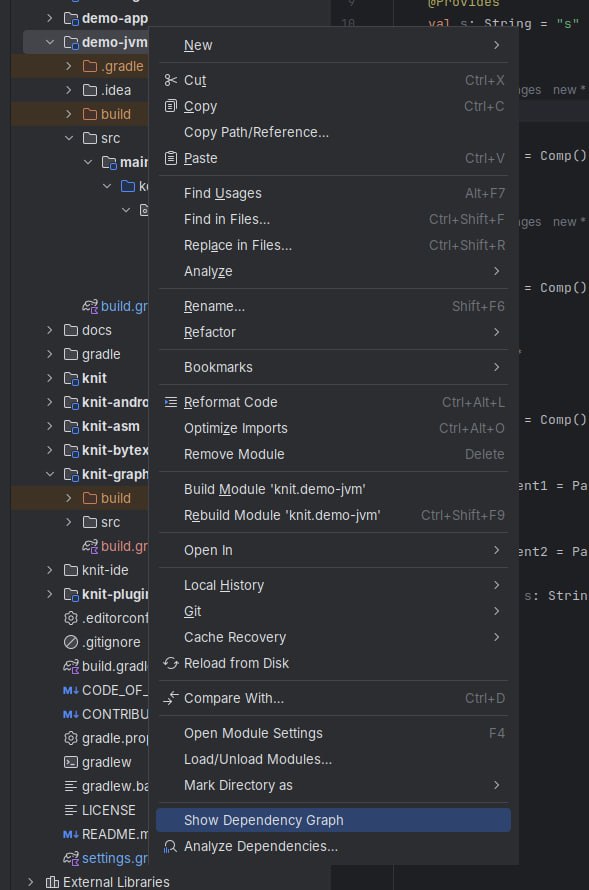

Our "Show Dependency Graph" context menu button

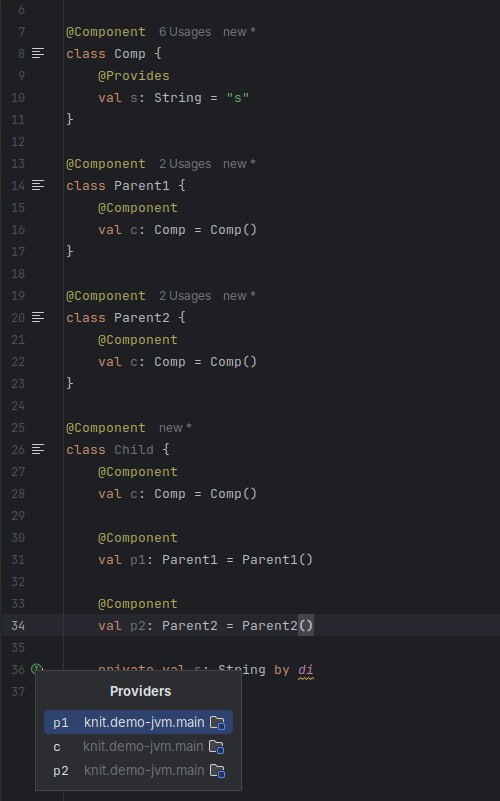

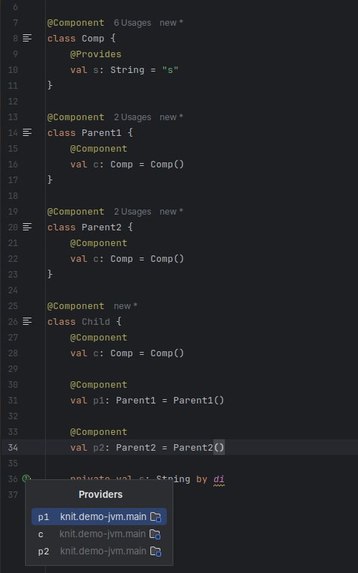

View providers within the gutter

Inspiration

The goal of Orange Jam is to make projects that use TikTok’s Knit have more visibility into their dependency relationships. By integrating this functionality directly into IntelliJ IDEs as a plugin, we aim to provide seamless, developer-friendly insight into how modules and classes interact without leaving the editor. Since IDEA is a popular IDE for Kotlin, this makes the tooling immediately usable by existing Knit projects.

What it does

Orange Jam is an IntelliJ plugin that analyses and visualises the dependency graph of modules that use Knit. Developers can:

Generate and view the full dependency graph of a selected module using the sidebar
Right-click a Gradle module to generate the module-level dependency graph
Use editor gutters to:
1. Jump directly to a provider for a given consumer
2. View the subgraph of relevant dependencies connected to the current provider or consumer class

All of this happens inside the editor, enhancing the developer’s workflow without switching context.

How we built it

We built Orange Jam using the IntelliJ Plugin SDK and Graphviz. Breakdown:

We scan the project for modules that depend on tiktok.knit
We analyse compiled class files using ASM to extract dependency data via Knit’s internal InjectionBinder
This data is used to construct a dependency graph
We export the graph to .dot (Graphviz) format and render it as .png or .svg for display in the IDE
We add UI hooks into IntelliJ, including tool windows that appear when you click on our sidebar button, context menu actions, and editor gutter icons. This makes it accessible for developers interact with the graph and jump around relevant code :D

Challenges we ran into

Intellij Plugin APIs have scarce documentation, we had to do a lot of trial and error to figure out how to integrate everything
Understanding Knit’s internal InjectionBinder mechanism and how to use it safely on compiled bytecode
Designing a workflow that feels natural inside IntelliJ, including where and how to trigger visualisations
Embedding an interactive SVG in the IntelliJ tool window via JCEF and wiring it to Kotlin handlers

Limitations

The plugin relies on the project being built before it can generate the visualisation. In large codebases where builds take a long time, this introduces a delay that may affect the seamlessness of the workflow.
Cross-class dependency navigation is not yet supported. Clicking on a method currently only works within the same class for now.

Accomplishments that we're proud of

Clean integration into the IntelliJ UI
Clickable visualisations that let you jump directly to code from a graph node
Supporting both full module views and focused subgraphs inline
Managed to make SVG in tool window clickable and navigate to the specific method in the class file

What we learned

How to build and package an IntelliJ plugin
How to analyse JVM bytecode with ASM
How dependency injection frameworks like Knit resolve and bind components internally

What's next for Orange Jam

Improve support for cross-class navigation by resolving and jumping to method definitions across class boundaries.
Enhance the interactivity of our SVG visualisation (or find a better format)
Add search and filter features to help developers explore large graphs more efficiently.
Improve error handling and fallback behavior for projects that have not been built yet.
Polish layout and styling of the visual graph to better reflect real-world DI patterns.
Package and publish the plugin for broader use in the Kotlin/IntelliJ (e.g. Android Studio) ecosystem
